前言

开发环境 ： Qt5.12.7 + Qt creator +vs2017
1、裁剪MVE功能，只留下三维模型文件读取和三维场景渲染
2、利用libQGLViewer 实现三维场景显示、鼠标抓取、动画

二、使用步骤

1.裁剪MVE

主要涉及到以下几个文件：
math：MVE中涉及的自定义vector 、matrix等数据结构及其相应计算
mve：MVE中涉及的网格处理、文件读取、纹理图片读取
ogl：MVE中涉及的顶点着色器、网格着色器、纹理贴图、相机类
util：MVE中涉及的string等自定义工具类

2.libQGLViewer修改

1、libQGLViewer中QGLViewer用于显示三维场景，MVE中用GLWidget显示三维场景，两者均是QOpenGLWidget的子类，参照GLWidget修改QGLViewer如下：
QGLViewer.h

#include "scene_addins/addin_state.h"
#include "ogl/context.h"
#include
#include
class Viewer : public QGLViewer {
public:Viewer();virtual void draw();virtual void init();virtual QString helpString() const;void set_context(ogl::Context* context);void resizeGL(int width, int height);void paintGL(void);void mouseMoveEvent(QMouseEvent *event);void wheelEvent(QWheelEvent* event);void mousePressEvent(QMouseEvent *event);void mouseReleaseEvent(QMouseEvent *event);
public slots:void repaint_async(void);
signals :void sig_replain();
private:bool cx_init;int gl_width;int gl_height;ogl::Context* context;qreal device_pixel_ratio =1;std::set<ogl::Context*> init_set;QTimer* repaint_timer;

QGLViewer draw()函数修改：

void Viewer::draw() {if (this->context == 0){std::cout << "context NULL" << std::endl;return;}elsestd::cout << "context Not Null" << std::endl;/* Current context may need initialization. */if (this->cx_init){if (this->init_set.find(this->context) == this->init_set.end()){std::cout << "Using OpenGL " << this->format().majorVersion()<< '.' << this->format().minorVersion() << " ..."<< std::endl;this->context->init();this->context->resize(this->gl_width, this->gl_height);this->init_set.insert(this->context); // Mark initialized}this->cx_init = false;}/* Paint it! */std::cout << "next paint" << std::endl;this->context->paint();
}

paintGL函数：

void Viewer::paintGL(void)
{QGLViewer::paintGL();
}

resizeGL函数：

void
Viewer::resizeGL(int width, int height)
{width *= this->device_pixel_ratio;height *= this->device_pixel_ratio;this->gl_width = width;this->gl_height = height;//initLable();if (this->context != nullptr)this->context->resize(width, height);QGLViewer::resizeGL(width, height);
}

鼠标响应事件修改，以点击事件为例：

void
Viewer::mousePressEvent(QMouseEvent *event)
{QGLViewer::mousePressEvent(event);this->makeCurrent();ogl::MouseEvent e;e.type = ogl::MOUSE_EVENT_PRESS;e.button = (ogl::MouseButton)event->button();e.button_mask = event->buttons();e.x = event->x() * this->device_pixel_ratio;e.y = event->y() * this->device_pixel_ratio;this->context->mouse_event(e);this->repaint_async();
}

添加set_context函数：

void Viewer::set_context(ogl::Context* context)
{this->context = context;this->cx_init = true;
}

2、将AddinManager中GLWidget 替换为Viewer

#include "scene_inspect/addin_manager.h"
AddinManager::AddinManager (/*GLWidget*/Viewer* gl_widget, QTabWidget* tab_widget): tab_widget(tab_widget), clear_color(6, 60, 107,200), clear_color_cb(new QCheckBox(/*"Background color"*/QStringLiteral("背景颜色")))
{/* Initialize state and widgets. */this->state.gl_widget = gl_widget;this->state.ui_needs_redraw = true;this->mesh_renderer = new AddinMeshesRenderer();/* Register addins. */this->addins.push_back(this->mesh_renderer);

3、各类将关联初始化：

	view = new Viewer();glWidget = new GLWidget;this->addin_manager = new AddinManager(this->view, NULL);this->view->set_context(this->addin_manager);view->setAxisIsDrawn();

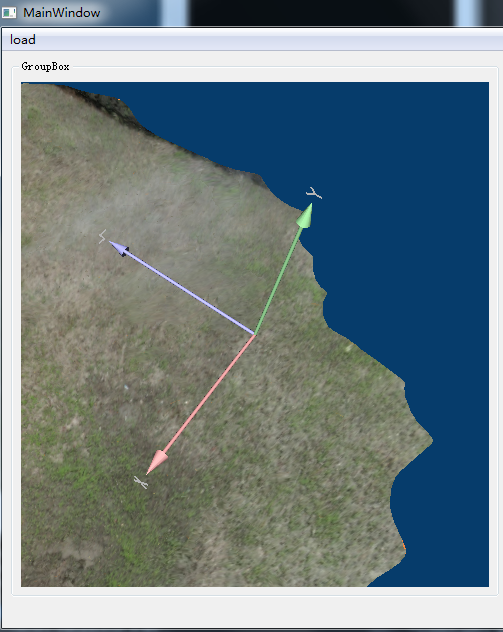

4、显示效果：

总结

场景能够加载，渲染正常，但界面无显示，子类化QGLViewer时未重新实现鼠标事件
