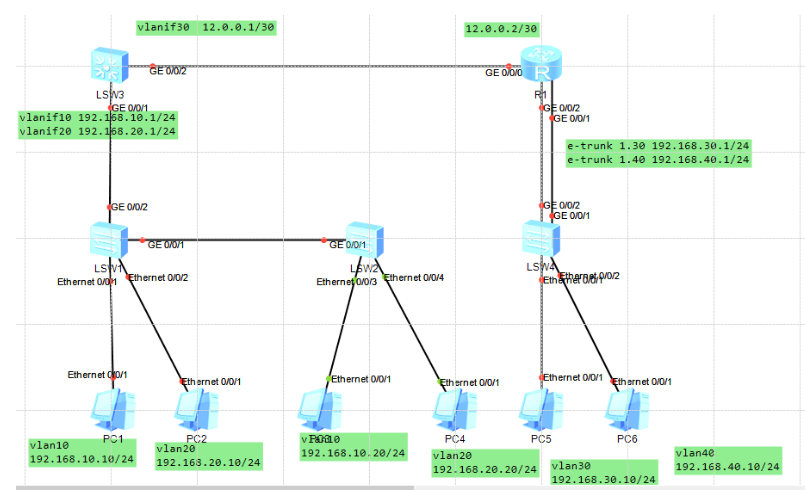

华为模拟器-三次交换机、链路捆绑、单臂路由综合实验

• 交换机SW1命令
• 交换机SW2命令
• 交换机SW3命令
• 交换机SW4命令
• 路由器R1命令

交换机SW1命令

划分vlan
[Huawei]vlan batch  10 20
interface Ethernet0/0/1
port link-type access
port default vlan  10interface Ethernet0/0/2port link-type accessport default vlan 20配置trunkinterface GigabitEthernet0/0/1port link-type trunkport trunk allow-pass vlan allinterface GigabitEthernet0/0/2port link-type trunkport trunk allow-pass vlan 2 to 4094

交换机SW2命令

划分vlan
[Huawei]vlan batch 10 20
interface Ethernet0/0/3port link-type accessport default vlan 10配置trunkinterface Ethernet0/0/4port link-type accessport default vlan 20interface GigabitEthernet0/0/1port link-type trunkport trunk allow-pass vlan 2 to 4094

交换机SW3命令

划分vlan
[Huawei]vlan batch 10 20 30
interface GigabitEthernet0/0/1port link-type trunkport trunk allow-pass vlan 2 to 4094interface GigabitEthernet0/0/2port link-type accessport default vlan 30在三层交换机的vlanif里配置网关和直连路由的IP地址interface Vlanif10ip address 192.168.10.1 255.255.255.0interface Vlanif20ip address 192.168.20.1 255.255.255.0interface Vlanif30ip address 12.0.0.1 255.255.255.252配置默认路由
ip route-static 0.0.0.0 0.0.0.0 12.0.0.2

交换机SW4命令

划分vlan
interface Ethernet0/0/1
port link-type access
port default vlan 30interface Ethernet0/0/2
port link-type access
port default vlan 40将g0/0/1到g0/0/2接口进行链路捆绑，并且设置为trunk口，允许所有vlan通过。
[Huawei]int Eth-Trunk 1
[Huawei-Eth-Trunk1]trunkport g 0/0/1 to 0/0/2
[Huawei-Eth-Trunk1]port link-type  trunk
[Huawei-port-group-trunk]port trunk allow-pass vlan all
[Huawei-port-group-trunk]un sh

路由器R1命令

[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add 12.0.0.2 30
[Huawei]int Eth-Trunk 1
[Huawei-Eth-Trunk1]trunkport GigabitEthernet 0/0/1 to 0/0/2将路由器R1设置成单臂路由。

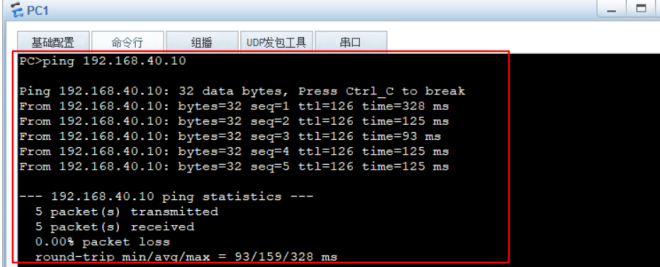

interface Eth-Trunk1.30dot1q termination vid 30ip address 192.168.30.1 255.255.255.0arp broadcast enableinterface Eth-Trunk1.40dot1q termination vid 40ip address 192.168.40.1 255.255.255.0arp broadcast enable
