Oracle数据库生成需求文档
Oracle数据库生成需求文档

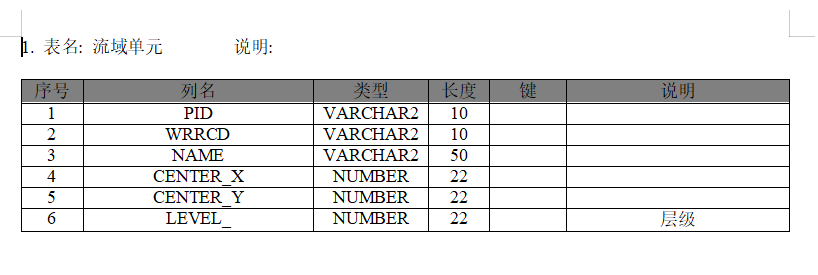

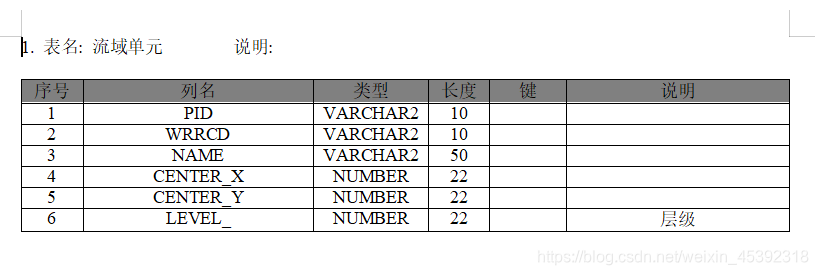

#这是生成之后的文档
#导入相关依赖
<dependency><groupId>com.lowagie</groupId><artifactId>itext</artifactId><version>2.1.7</version></dependency><dependency><groupId>com.lowagie</groupId><artifactId>itext-rtf</artifactId><version>2.1.7</version></dependency>
主要代码
import java.awt.*;
import java.io.FileOutputStream;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.Iterator;
import java.util.List;
import java.util.Map;import com.lowagie.text.*;
import com.lowagie.text.rtf.RtfWriter2;
/*** 数据库文档生成器 Oracle版**/
public class GenerateTableDoc {//键类型字典private static Map<String,String> keyType = new HashMap<String,String>();//需要导出的目标表private static List<String> targetTable = new ArrayList<String>();static{targetTable.add("流域单元");//表名//这里表多的话就多几个targetTable.add}//初始化jdbcstatic{try {keyType.put("ID", "主键");Class.forName("oracle.jdbc.OracleDriver");} catch (ClassNotFoundException e) {e.printStackTrace();}}//private static String url = "";//链接urlprivate static String url = "jdbc:oracle:thin:@ip:5521:ORCL";//链接urlprivate static String username = "dx"; //用户名.private static String password = "d"; //密码private static String schema = "DDXX"; //目标数据库名//查询所有表的sql语句private static String sql_get_all_tables = "select a.TABLE_NAME,b.COMMENTS from user_tables a,user_tab_comments b WHERE a.TABLE_NAME=b.TABLE_NAME order by TABLE_NAME"; //查询所有字段的sql语句private static String sql_get_all_columns = "select T1.column_name,T1.data_type,T1.data_length,t2.comments,T1.NULLABLE,(select max(constraint_type) from user_constraints x left join user_cons_columns y on x.constraint_name=y.constraint_name where x.table_name=t1.TABLE_NAME and y.COLUMN_NAME=T1.column_name) from user_tab_cols t1, user_col_comments t2, user_tab_comments t3 where t1.TABLE_NAME=t2.table_name(+) and t1.COLUMN_NAME=t2.column_name(+) and t1.TABLE_NAME=t3.table_name(+) and t1.TABLE_NAME='{table_name}' order by T1.COLUMN_ID ";public static void main(String[] args) throws Exception {//初始化word文档Document document = new Document(PageSize.A4);RtfWriter2.getInstance(document,new FileOutputStream("E:/word.doc"));document.open();//查询开始Connection conn = getConnection();//获取所有表List tables = getDataBySQL(sql_get_all_tables,conn);int i=1;for (Iterator iterator = tables.iterator(); iterator.hasNext();) {String [] arr = (String []) iterator.next();//循环获取字段信息String tableName = arr[0];if(targetTable.contains(tableName)){System.out.print(i+".正在处理数据表-----------"+arr[0]);addTableMetaData(document,arr,i);List columns = getDataBySQL(sql_get_all_columns.replace("{table_name}", arr[0]),conn);addTableDetail(document,columns);addBlank(document);System.out.println("...done");i++;}}document.close();conn.close();}/*** 添加一个空行* @param document* @throws Exception*/public static void addBlank(Document document)throws Exception{Paragraph ph = new Paragraph("");ph.setAlignment(Paragraph.ALIGN_LEFT);document.add(ph);}/*** 添加包含字段详细信息的表格* @param document* @param arr1* @param columns* @throws Exception*/public static void addTableDetail(Document document,List columns)throws Exception{Table table = new Table(6);table.setWidth(100f);table.setBorderWidth(1);table.setBorderColor(Color.BLACK);table.setPadding(0);table.setSpacing(0);Cell cell1 = new Cell("序号");// 单元格cell1.setHeader(true);Cell cell2 = new Cell("列名");// 单元格cell2.setHeader(true);Cell cell3 = new Cell("类型");// 单元格cell3.setHeader(true);Cell cell4 = new Cell("长度");// 单元格cell4.setHeader(true);Cell cell5 = new Cell("键");// 单元格cell5.setHeader(true);Cell cell6 = new Cell("说明");// 单元格cell6.setHeader(true);//设置表头格式table.setWidths(new float[]{8f,30f,15f,8f,10f,29f});cell1.setHorizontalAlignment(Cell.ALIGN_CENTER);cell1.setBackgroundColor(Color.gray);cell2.setHorizontalAlignment(Cell.ALIGN_CENTER);cell2.setBackgroundColor(Color.gray);cell3.setHorizontalAlignment(Cell.ALIGN_CENTER);cell3.setBackgroundColor(Color.gray);cell4.setHorizontalAlignment(Cell.ALIGN_CENTER);cell4.setBackgroundColor(Color.gray);cell5.setHorizontalAlignment(Cell.ALIGN_CENTER);cell5.setBackgroundColor(Color.gray);cell6.setHorizontalAlignment(Cell.ALIGN_CENTER);cell6.setBackgroundColor(Color.gray);table.addCell(cell1);table.addCell(cell2);table.addCell(cell3);table.addCell(cell4);table.addCell(cell5);table.addCell(cell6);table.endHeaders();// 表头结束int x = 1;for (Iterator iterator = columns.iterator(); iterator.hasNext();) {String [] arr2 = (String []) iterator.next();Cell c1 = new Cell(x+"");Cell c2 = new Cell(arr2[0]);Cell c3 = new Cell(arr2[1]);Cell c4 = new Cell(arr2[2]);String key = keyType.get(arr2[5]);if(key==null)key = "";Cell c5 = new Cell(key);Cell c6 = new Cell(arr2[3]);c1.setHorizontalAlignment(Cell.ALIGN_CENTER);c2.setHorizontalAlignment(Cell.ALIGN_CENTER);c3.setHorizontalAlignment(Cell.ALIGN_CENTER);c4.setHorizontalAlignment(Cell.ALIGN_CENTER);c5.setHorizontalAlignment(Cell.ALIGN_CENTER);c6.setHorizontalAlignment(Cell.ALIGN_CENTER);table.addCell(c1);table.addCell(c2);table.addCell(c3);table.addCell(c4);table.addCell(c5);table.addCell(c6);x++;}document.add(table);}/*** 增加表概要信息* @param dcument* @param arr* @param i* @throws Exception*/public static void addTableMetaData(Document dcument,String [] arr,int i) throws Exception{Paragraph ph = new Paragraph(i+". 表名: "+arr[0]+" 说明: "+(arr[1]==null?"":arr[1]));ph.setAlignment(Paragraph.ALIGN_LEFT);dcument.add(ph);}/*** 把SQL语句查询出列表* @param sql* @param conn* @return*/public static List getDataBySQL(String sql,Connection conn){Statement stmt = null;ResultSet rs = null;List list = new ArrayList();try {stmt = conn.createStatement();rs = stmt.executeQuery(sql);while(rs.next()){String [] arr = new String[rs.getMetaData().getColumnCount()];for(int i=0;i<arr.length;i++){arr[i] = rs.getString(i+1);}list.add(arr);}} catch (SQLException e) {e.printStackTrace();}finally{try {if(rs!=null)rs.close();if(stmt!=null)stmt.close();} catch (SQLException e) {e.printStackTrace();}}return list;}/*** 获取数据库连接* @return*/public static Connection getConnection(){try {return DriverManager.getConnection(url, username, password);} catch (SQLException e) {e.printStackTrace();}return null;}
}
#此文章主要是记录一下解决的问题，方便日后的查看
