跟我一步步二进制部署高可用kubernetes集群（上）

2023-12-08 00:58:07

微信公众号：运维开发故事，作者：double冬

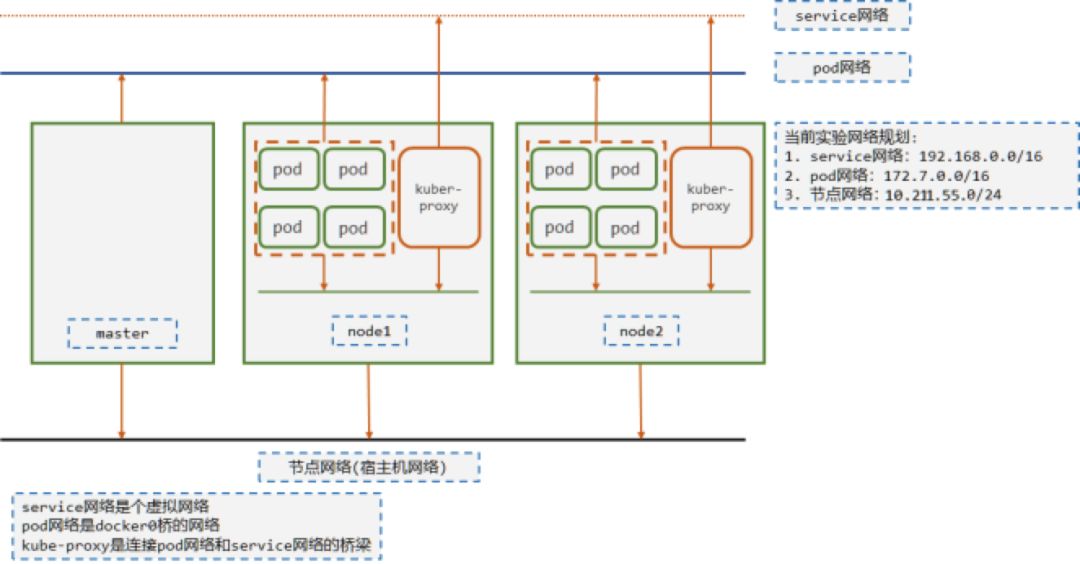

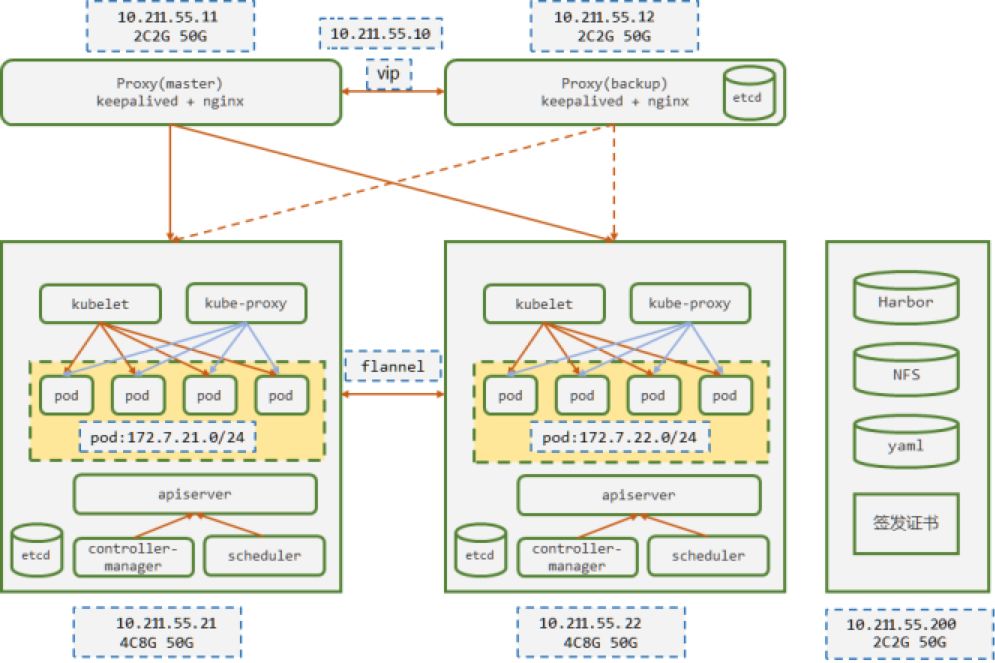

1.实现架构




1.1 硬件环境

创建5台虚拟机

网络：可通外网

RoleHOSTNAMEIPCPUMEMOSDISK
LB、DNSzdd211-11.host.com10.211.55.112C2GCentos7.520G
LB、ETCDzdd211-12.host.com10.211.55.122C2GCentos7.520G
Master1、Node1、ETCDzdd211-21.host.com10.211.55.214C8GCentos7.520G
Master2、Node2、ETCDzdd211-22.host.com10.211.55.224C8GCentos7.520G
Harbor、NFSzdd211-200.host.com10.211.55.2002C2GCentos7.520G

具体IP 以自己网络配置，但是后续的文档中的IP需要自己修改替换

2.实验准备工作

2.1 准备虚拟机

[root@zdd211-11 ~]# vim /etc/sysconfig/network-scripts/ifcfg-eth0
TYPE="Ethernet"
PROXY_METHOD="none"
BROWSER_ONLY="no"
BOOTPROTO="static"
DEFROUTE="yes"
IPV4_FAILURE_FATAL="no"
IPV6INIT="yes"
IPV6_AUTOCONF="yes"
IPV6_DEFROUTE="yes"
IPV6_FAILURE_FATAL="no"
IPV6_ADDR_GEN_MODE="stable-privacy"
NAME="eth0"
UUID="7290e242-14de-4cd8-92f4-5406b3507f03"
DEVICE="eth0"
ONBOOT="yes"
IPADDR=10.211.55.11
PREFIX=24
GATEWAY=10.211.55.1
DNS1=10.211.55.1

2.2 调整操作系统初始化

在每一个主机上分别设置各自的主机名
#hostnamectl set-hostname zdd211-11.host.com
#hostnamectl set-hostname zdd211-12.host.com
#hostnamectl set-hostname zdd211-21.host.com
#hostnamectl set-hostname zdd211-22.host.com
#hostnamectl set-hostname zdd211-200.host.com所有主机firewalldf防火墙
#systemctl stop firewalld.service  && systemctl enable firewalld所有主机关闭SElinux
#setenforce 0 #临时
#sed -i 's/enforcing/disabled/' /etc/selinux/config #永久关闭swap
#swapoff -a #临时
#sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab #永久永久生效都需要重启服务器,验证是否生效
[root@zdd211-11 ~]# getenforce
Disabled
[root@zdd211-11 ~]# free -mtotal        used        free      shared  buff/cache   available
Mem:           1833         111        1533           8         188        1555
Swap:             0同步系统时间
#ntpdate time.windows.com安装epel源和base源
#yum  -y  install epel-release安装必要的软件和工具
# yum install wget net-tools telnet tree nmap sysstat lrzsz dos2unix bind-utils -y

2.3 DNS服务初始化

2.3.1 安装bind9软件

zdd211-11上操作

[root@zdd211-11 ~]# yum install bind -y ##安装dns软件
2.3.2 配置bind9
主配置文件

zdd211-11上操作

[root@zdd211-11 ~]#vim /etc/named.conf   ##dns 配置文件
options {listen-on port 53 { 10.211.55.11; };  ## 配置本机IP地址allow-query     { any; };  ## 让这个网段的所有主机都可用forwarders      { 10.211.55.1; }; ## 配置网关recursion yes; ##递归查询dnssec-enable no;dnssec-validation no;
[root@zdd211-11 ~]# named-checkconf ##检查dns 配置文件，没有报错就可以
区域配置文件
#vim /etc/named.rfc1912.zones   ## 修改区域配置文件,在最底部填写如下信息，ip地址修改成本机地址
zone "host.com" IN {type  master;file  "host.com.zone";allow-update { 10.211.55.11; };
};zone "od.com" IN {type  master;file  "od.com.zone";allow-update { 10.211.55.11; };
};
配置区域数据文件
[root@zdd211-11 ~]# vim /var/named/host.com.zone # 其中serial需要改成自己当天的时间，底部的主机名和ip也修改成自己的
$ORIGIN host.com.
$TTL 600        ; 10 minutes
@       IN SOA  dns.host.com. dnsadmin.host.com. (2020022901   ; serial10800      ; refresh (3 hours)900        ; retry (15 minutes)604800     ; expire (1 week)86400      ; minimum (1 day))NS   dns.host.com.
$TTL 60 ; 1 minute
dns                 A    10.211.55.11
zdd211-11           A    10.211.55.11
zdd211-12           A    10.211.55.12
zdd211-21           A    10.211.55.21
zdd211-22           A    10.211.55.22
配置业务域数据文件
[root@zdd211-11 ~]# vim /var/named/od.com.zone
$ORIGIN od.com.
$TTL 600        ; 10 minutes
@               IN SOA  dns.od.com. dnsadmin.od.com. (2020022101 ; serial10800      ; refresh (3 hours)900        ; retry (15 minutes)604800     ; expire (1 week)86400      ; minimum (1 day))NS   dns.od.com.
$TTL 60 ; 1 minute
dns                A    10.211.55.11
启动bind9
[root@zdd211-11 ~]# named-checkconf ##检查dns 配置文件，没有报错就可以
[root@zdd211-11 ~]# systemctl start named ##启动
[root@zdd211-11 ~]# netstat -luntp|grep 53
tcp        0      0 10.211.55.11:53         0.0.0.0:*               LISTEN      14046/named
tcp        0      0 127.0.0.1:953           0.0.0.0:*               LISTEN      14046/named
tcp6       0      0 ::1:53                  :::*                    LISTEN      14046/named
tcp6       0      0 ::1:953                 :::*                    LISTEN      14046/named
udp        0      0 10.211.55.11:53         0.0.0.0:*                           14046/named
udp6       0      0 ::1:53
验证
[root@zdd211-11 ~]# dig  -t  A  zdd211-200.host.com @10.211.55.11 +short
10.211.55.200
[root@zdd211-11 ~]# dig  -t  A  zdd211-11.host.com @10.211.55.11 +short
10.211.55.11
配置客户端使用dns
  • linux主机
[root@zdd211-11 ~]# vim /etc/sysconfig/network-scripts/ifcfg-eth0 ##修改需要使用这个dns的服务器网卡配置
TYPE="Ethernet"
PROXY_METHOD="none"
BROWSER_ONLY="no"
BOOTPROTO="static"
DEFROUTE="yes"
IPV4_FAILURE_FATAL="no"
IPV6INIT="yes"
IPV6_AUTOCONF="yes"
IPV6_DEFROUTE="yes"
IPV6_FAILURE_FATAL="no"
IPV6_ADDR_GEN_MODE="stable-privacy"
NAME="eth0"
UUID="7290e242-14de-4cd8-92f4-5406b3507f03"
DEVICE="eth0"
ONBOOT="yes"
IPADDR=10.211.55.11
PREFIX=24
GATEWAY=10.211.55.1
DNS1=10.211.55.11[root@zdd211-11 ~]# cat /etc/resolv.conf
# Generated by NetworkManager
search host.com  ##增加主机域
nameserver 10.211.55.11
nameserver fe80::21c:42ff:fe00:18%eth0

剩下四台机器同样的操做

1、修改网卡配置文件，将 dns1 改成：10.211.55.11

2、在/etc/resolv.conf 增加主机域

  • windows主机和Mac上

网络和共享中心->网卡设置->设置DNS服务器

如有必要，还应设置虚拟网卡的接口跃点数为：10

检查

  • 1、五台机器之间可以相互之间可以 ping通 其中两台

  • 2、本机电脑也要ping 通 zdd211-11.hsot.com 和 dns.od.com 这两个域名

    可以更改电脑的 dns，，但是记得用完要更改回来

2.4 准备签发证书环境

2.4.1 安装cfssl

证书签发工具cfssl:R1.2

[root@zdd211-200 ~]# wget https://pkg.cfssl.org/R1.2/cfssl_linux-amd64 -O /usr/bin/cfssl
[root@zdd211-200 ~]wget https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64 -O /usr/bin/cfssl-json
[root@zdd211-200 ~]wget https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd64 -O /usr/bin/cfssl-certinfo
[root@zdd211-200 ~]# chmod  +x  /usr/bin/cfssl*
2.4.2 创建生成CA证书签名请求（csr）的JSON配置文件
[root@zdd211-200 ~]# cd /opt/
[root@zdd211-200 opt]# mkdir certs
[root@zdd211-200 opt]# cd certs/
[root@zdd211-200 certs]# vim ca-csr.json
{"CN": "Goldwind","hosts": [],"key": {"algo": "rsa","size": 2048},"names": [{"C": "CN","ST": "beijing","L": "beijing","O": "od","OU": "ops"}],"ca": {"expiry": "175200h"}
}

CN:Common Name,浏览器使用该字段验证网站是否合法，一般写的是域名，非常重要。

C：Country，国家

ST：State，州，省

L：Locality，地区，城市

O：Organization Name,组织名称，公司名称

OU：Organization Unit Name,组织单位名称，公司部门

2.4.3 生成CA证书和私钥
[root@zdd211-200 certs]# cfssl gencert -initca ca-csr.json | cfssl-json -bare ca
2020/02/29 20:23:57 [INFO] generating a new CA key and certificate from CSR
2020/02/29 20:23:57 [INFO] generate received request
2020/02/29 20:23:57 [INFO] received CSR
2020/02/29 20:23:57 [INFO] generating key: rsa-2048
2020/02/29 20:23:57 [INFO] encoded CSR
2020/02/29 20:23:57 [INFO] signed certificate with serial number 428559232580901856197456402666377998171140121588
[root@zdd211-200 certs]# ls
ca.csr  ca-csr.json  ca-key.pem  ca.pem

2.5 部署docker环境

需要在zdd211-200.host.com,zdd211-21.host.com,zdd211-22.host.com上分别进行操作

2.5.1 安装
[root@zdd211-200 ~]# curl -fsSL https://get.docker.com | bash -s docker --mirror Aliyun
2.5.2 配置
[root@zdd211-200 ~]# mkdir -p /data/docker  /etc/docker
[root@zdd211-200 ~]# vim /etc/docker/daemon.json
{"graph": "/data/docker","storage-driver": "overlay2","insecure-registries": ["registry.access.redhat.com","quay.io","harbor.od.com"],"registry-mirrors": ["https://q2gr04ke.mirror.aliyuncs.com"],"bip": "172.7.200.1/24","exec-opts": ["native.cgroupdriver=systemd"],"live-restore": true
}
2.5.3 启动
[root@zdd211-200 ~]# systemctl start docker  && systemctl enable docker
Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service.
[root@zdd211-200 ~]# docker version
Client: Docker Engine - CommunityVersion:           19.03.6API version:       1.40Go version:        go1.12.16Git commit:        369ce74a3cBuilt:             Thu Feb 13 01:29:29 2020OS/Arch:           linux/amd64Experimental:      falseServer: Docker Engine - CommunityEngine:Version:          19.03.6API version:      1.40 (minimum version 1.12)Go version:       go1.12.16Git commit:       369ce74a3cBuilt:            Thu Feb 13 01:28:07 2020OS/Arch:          linux/amd64Experimental:     falsecontainerd:Version:          1.2.10GitCommit:        b34a5c8af56e510852c35414db4c1f4fa6172339runc:Version:          1.0.0-rc8+devGitCommit:        3e425f80a8c931f88e6d94a8c831b9d5aa481657docker-init:Version:          0.18.0GitCommit:        fec3683
[root@zdd211-200 ~]# docker ps
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS              PORTS               NAMES

2.6 部署docker镜像私有仓库harbor

按照集群的规划是在zdd211-200.host.com主机上部署

下载软件二进制包解压
[root@zdd211-200 src]# wget https://storage.googleapis.com/harbor-releases/release-1.8.0/harbor-offline-installer-v1.8.3.tgz
[root@zdd211-200 src# tar -xf  harbor-offline-installer-v1.8.3.tgz   -C  /opt
[root@zdd211-200 src]# cd ..
[root@zdd211-200 opt]# mv harbor/  harbor-v1.8.3
[root@zdd211-200 opt]# ln -sf  /opt/harbor-v1.8.3/   /opt/harbor ##方便将来升级
配置
[root@zdd211-200 opt]# cd harbor
[root@zdd211-200 harbor]# vim harbor.yml ##主要修改如下地方
hostname: harbor.od.com
http:
port: 180  ##启动端口
harbor_admin_password: Harbor12345 ##密码，生产环境需要修改
data_volume: /data/harbor
log:level: inforotate_count: 50rotate_size: 200Mlocation: /data/harbor/logs
[root@zdd211-200 harbor]# mkdir -p /data/harbor/logs
安装docker-compose
[root@zdd211-200 harbor]# yum -y install  docker-compose
[root@zdd211-200 harbor]# docker-compose version
docker-compose version 1.18.0, build 8dd22a9
docker-py version: 2.6.1
CPython version: 3.6.8
OpenSSL version: OpenSSL 1.0.2k-fips  26 Jan 2017
安装harbor
[root@zdd211-200 harbor]# ./install.sh  ##启动
检查harbor启动情况
[root@zdd211-200 harbor]# docker-compose ps  ##查看是否启动正常Name                     Command               State             Ports
--------------------------------------------------------------------------------------
harbor-core         /harbor/start.sh                 Up
harbor-db           /entrypoint.sh postgres          Up      5432/tcp
harbor-jobservice   /harbor/start.sh                 Up
harbor-log          /bin/sh -c /usr/local/bin/ ...   Up      127.0.0.1:1514->10514/tcp
harbor-portal       nginx -g daemon off;             Up      80/tcp
nginx               nginx -g daemon off;             Up      0.0.0.0:180->80/tcp
redis               docker-entrypoint.sh redis ...   Up      6379/tcp
registry            /entrypoint.sh /etc/regist ...   Up      5000/tcp
registryctl         /harbor/start.sh                 Up
配置harbor的dns内网解析

去zdd211-11上配置DNS

[root@zdd211-11 ~]# vim /var/named/od.com.zone ##在最后添加一条harbor的解析
$ORIGIN od.com.
$TTL 600        ; 10 minutes
@               IN SOA  dns.od.com. dnsadmin.od.com. (2020022102 ; serial10800      ; refresh (3 hours)900        ; retry (15 minutes)604800     ; expire (1 week)86400      ; minimum (1 day))NS   dns.od.com.
$TTL 60 ; 1 minute
dns                A    10.211.55.11
harbor             A    10.211.55.200[root@zdd211-11 ~]# systemctl restart  named
[root@zdd211-11 ~]# dig  -t A  harbor.od.com  +short
10.211.55.200
安装nginx并配置

去zdd211-200上：

[root@zdd211-200 harbor]# yum -y install nginx
[root@zdd211-200 harbor]# vim  /etc/nginx/conf.d/harbor.od.com.conf
server {listen       80;server_name  harbor.od.com;client_max_body_size 1000m;location / {proxy_pass http://127.0.0.1:180;}
}
[root@zdd211-200 harbor]# nginx -t
[root@zdd211-200 harbor]# systemctl start nginx
[root@zdd211-200 harbor]# systemctl enable nginx

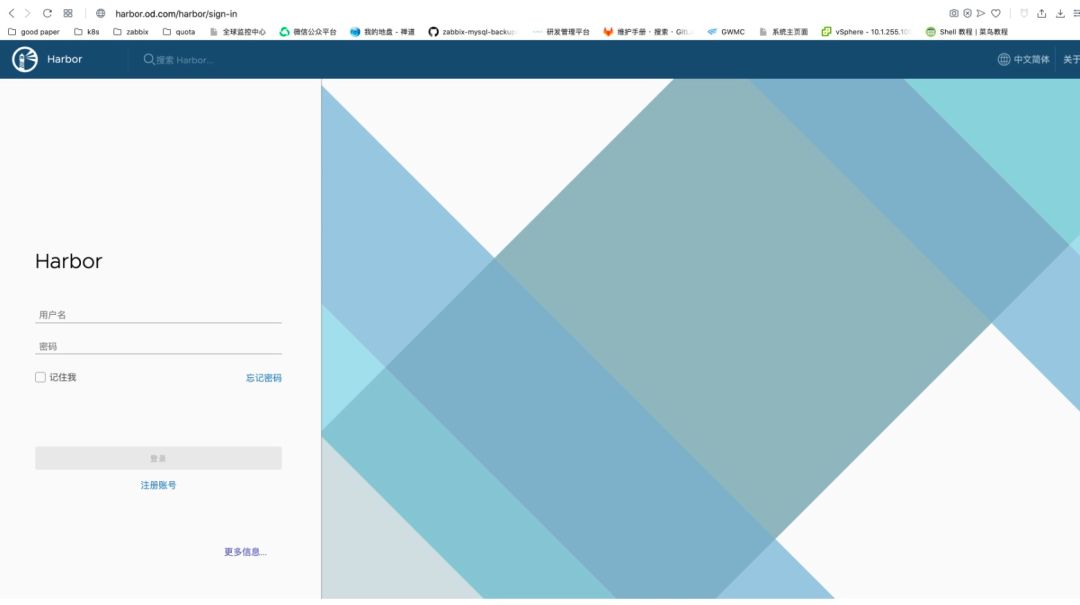

浏览器打开测试检查

打开本机浏览器，输入Url:http://harbor.od.com



用户名：admin 密码：Harbor12345



  • 在zdd211-200上推送镜像验证harbor镜像仓库
[root@zdd211-200 harbor]# docker pull nginx:1.7.9
[root@zdd211-200 harbor]#  docker images |grep nginx
goharbor/nginx-photon           v1.8.3                     3a016e0dc7de        5 months ago        37MB
nginx                           1.7.9                      84581e99d807        5 years ago         91.7MB
[root@zdd211-200 harbor]# docker tag  84581e99d807 harbor.od.com/public/nginx:v1.7.9
[root@zdd211-200 harbor]#  docker images |grep nginx
goharbor/nginx-photon           v1.8.3                     3a016e0dc7de        5 months ago        37MB
nginx                           1.7.9                      84581e99d807        5 years ago         91.7MB
harbor.od.com/public/nginx      v1.7.9                     84581e99d807        5 years ago         91.7MB
[root@zdd211-200 harbor]# docker login harbor.od.com
Username: admin
Password:
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-storeLogin Succeeded
[root@zdd211-200 harbor]# docker push harbor.od.com/public/nginx:v1.7.9
The push refers to repository [harbor.od.com/public/nginx]
5f70bf18a086: Pushed
4b26ab29a475: Pushed
ccb1d68e3fb7: Pushed
e387107e2065: Pushed
63bf84221cce: Pushed
e02dce553481: Pushed
dea2e4984e29: Pushed
v1.7.9: digest: sha256:b1f5935eb2e9e2ae89c0b3e2e148c19068d91ca502e857052f14db230443e4c2 size: 3012
[root@zdd211-200 harbor]#

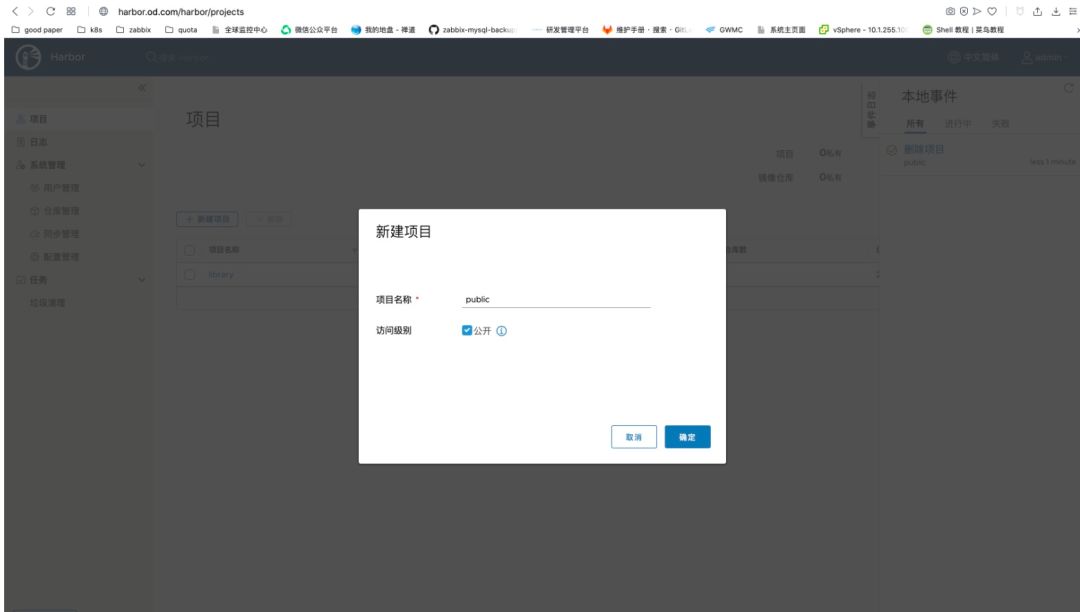

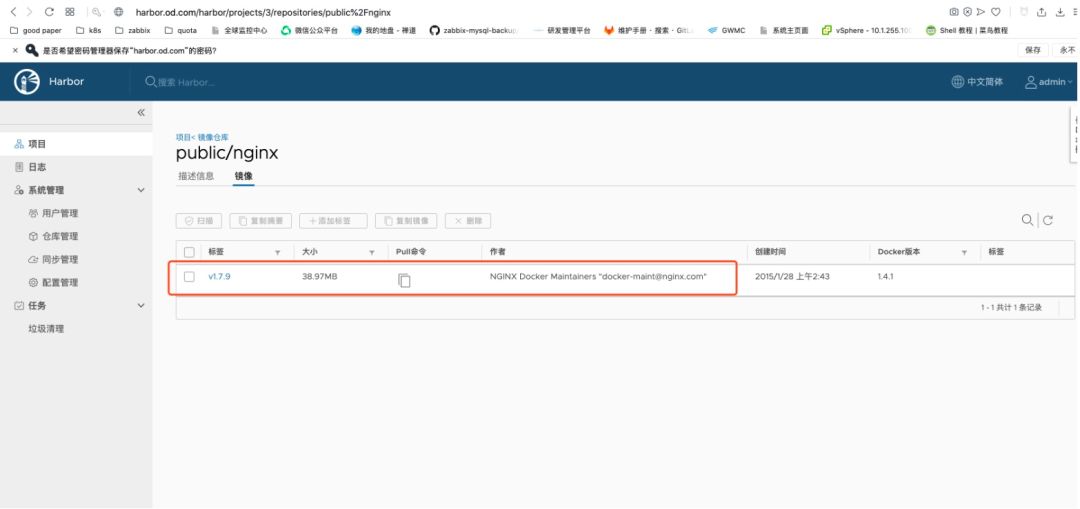

  • 登陆harbor镜像仓库验证



3.部署Master节点服务

3.1 部署etcd集群

集群规划
主机名角色ip
zdd211-12.host.comEtcd lead10.211.55.12
zdd211-21.host.comEtcd follow10.211.55.21
zdd211-22.host.comEtcd follow10.211.55.22

注意：这里部署文件以zdd211-12.host.com主机为例，另外两台主机安装部署方法类似

创建基于根证书的config配置文件
[root@zdd211-200 ~]# cd /opt/certs/
[root@zdd211-200 certs]# vim ca-config.json
{"signing": {"default": {"expiry": "175200h"},"profiles": {"server": {"expiry": "175200h","usages": ["signing","key encipherment","server auth"]},"client": {"expiry": "175200h","usages": ["signing","key encipherment","client auth"]},"peer": {"expiry": "175200h","usages": ["signing","key encipherment","server auth","client auth"]}}}
}
生产etcd证书和密钥
[root@zdd211-200 certs]# vim etcd-peer-csr.json
{"CN": "k8s-etcd","hosts": ["10.211.55.11","10.211.55.12","10.211.55.21","10.211.55.22"],"key": {"algo": "rsa","size": 2048},"names": [{"C": "CN","ST": "beijing","L": "beijing","O": "od","OU": "ops"}]
}
[root@zdd211-200 certs]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=peer etcd-peer-csr.json
[root@zdd211-200 certs]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=peer etcd-peer-csr.json | cfssl-json -bare etcd-peer
2020/02/29 21:33:22 [INFO] generate received request
2020/02/29 21:33:22 [INFO] received CSR
2020/02/29 21:33:22 [INFO] generating key: rsa-2048
2020/02/29 21:33:22 [INFO] encoded CSR
2020/02/29 21:33:22 [INFO] signed certificate with serial number 9245854548474729834486793670346860279143220749
2020/02/29 21:33:22 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").
检查生产的证书、密钥
[root@zdd211-200 certs]# ls -l|grep etcd
-rw-r--r-- 1 root root 1062 Feb 29 21:33 etcd-peer.csr
-rw-r--r-- 1 root root  375 Feb 29 21:30 etcd-peer-csr.json
-rw------- 1 root root 1679 Feb 29 21:33 etcd-peer-key.pem
-rw-r--r-- 1 root root 1428 Feb 29 21:33 etcd-peer.pem
创建etcd用户

zdd211-12.host.com上操作

[root@zdd211-12 ~]# useradd  -s  /sbin/nologin  -M etcd
下载etcd软件、解压，做软链接

我这下载的是：etcd-v3.1.20-linux-amd64.tar.gz 放入/opt/src

[root@zdd211-12 ~]# cd /opt/
[root@zdd211-12 opt]# mkdir src
[root@zdd211-12 opt]# cd src
[root@zdd211-12 src]# wget https://github.com/etcd-io/etcd/releases/download/v3.1.20/etcd-v3.1.20-linux-amd64.tar.gz
[root@zdd211-12 src]# tar -xf  etcd-v3.1.20-linux-amd64.tar.gz -C /opt
[root@zdd211-12 src]# cd /opt/
[root@zdd211-12 opt]# mv etcd-v3.1.20-linux-amd64/ etcd-v3.1.20
[root@zdd211-12 opt]# ln -s /opt/etcd-v3.1.20/ /opt/etcd
[root@zdd211-12 opt]# ll
total 0
lrwxrwxrwx 1 root   root   18 Feb 29 21:53 etcd -> /opt/etcd-v3.1.20/
drwxr-xr-x 3 478493 89939 123 Oct 11  2018 etcd-v3.1.20
drwxr-xr-x 2 root   root   67 Feb 29 21:48 src
[root@zdd211-12 opt]# cd etcd
创建目录，拷贝证书、私钥

zdd211-12.host.com上：

  • 创建目录
[root@zdd211-12 etcd]# mkdir -p /opt/etcd/certs /data/etcd /data/logs/etcd-server
  • 拷贝证书

将运维主机上生成的ca.pem、etcd-peer-key.pem、etüd-peer.pem拷贝到/opt/etcd/certs目录中，注意四要文件权限600

[root@zdd211-12 etcd]# cd certs/
[root@zdd211-12 certs]# scp zdd211-200:/opt/certs/ca.pem .
[root@zdd211-12 certs]# scp zdd211-200:/opt/certs/etcd-peer-key.pem .
[root@zdd211-12 certs]# scp zdd211-200:/opt/certs/etcd-peer.pem .
[root@zdd211-12 certs]# ll
total 12
-rw-r--r-- 1 root root 1342 Feb 29 22:01 ca.pem
-rw------- 1 root root 1679 Feb 29 22:05 etcd-peer-key.pem
-rw-r--r-- 1 root root 1428 Feb 29 22:05 etcd-peer.pem
  • 修改权限
[root@zdd211-12 certs]# chown -R etcd:etcd /opt/etcd/certs /data/etcd /data/logs/etcd-server
[root@zdd211-12 certs]# ls -l
total 12
-rw-r--r-- 1 etcd etcd 1342 Feb 29 22:01 ca.pem
-rw------- 1 etcd etcd 1679 Feb 29 22:05 etcd-peer-key.pem
-rw-r--r-- 1 etcd etcd 1428 Feb 29 22:05 etcd-peer.pem
创建etcd服务启动脚本

zdd211-12.host.com上：

[root@zdd211-12 etcd]# vim etcd-server-startup.sh
#!/bin/sh
./etcd --name etcd-server-55-12 \--data-dir /data/etcd/etcd-server \--listen-peer-urls https://10.211.55.12:2380 \--listen-client-urls https://10.211.55.12:2379,http://127.0.0.1:2379 \--quota-backend-bytes 8000000000 \--initial-advertise-peer-urls https://10.211.55.12:2380 \--advertise-client-urls https://10.211.55.12:2379,http://127.0.0.1:2379 \--initial-cluster  etcd-server-55-12=https://10.211.55.12:2380,etcd-server-55-21=https://10.211.55.21:2380,etcd-server-55-22=https://10.211.55.22:2380 \--ca-file ./certs/ca.pem \--cert-file ./certs/etcd-peer.pem \--key-file ./certs/etcd-peer-key.pem \--client-cert-auth  \--trusted-ca-file ./certs/ca.pem \--peer-ca-file ./certs/ca.pem \--peer-cert-file ./certs/etcd-peer.pem \--peer-key-file ./certs/etcd-peer-key.pem \--peer-client-cert-auth \--peer-trusted-ca-file ./certs/ca.pem \--log-output stdout
[root@zdd211-12 etcd]# chmod  +x  etcd-server-startup.sh
[root@zdd211-12 etcd]# chown  -R  etcd.etcd  /opt/etcd-v3.1.20/
[root@zdd211-12 etcd]# ll
total 30072
drwxr-xr-x  2 etcd etcd       66 Feb 29 22:05 certs
drwxr-xr-x 11 etcd etcd     4096 Oct 11  2018 Documentation
-rwxr-xr-x  1 etcd etcd 16406432 Oct 11  2018 etcd
-rwxr-xr-x  1 etcd etcd 14327712 Oct 11  2018 etcdctl
-rwxr-xr-x  1 etcd etcd     1006 Feb 29 22:14 etcd-server-startup.sh
-rw-r--r--  1 etcd etcd    32632 Oct 11  2018 README-etcdctl.md
-rw-r--r--  1 etcd etcd     5878 Oct 11  2018 README.md
-rw-r--r--  1 etcd etcd     7892 Oct 11  2018 READMEv2-etcdctl.md
[root@zdd211-12 etcd]# chown   -R etcd.etcd  /data/etcd/
[root@zdd211-12 etcd]# chown   -R etcd.etcd  /data/logs/etcd-server/
部署supervsiord进行服务管理

zdd211-12.host.com上：

管理后台进程软件

[root@zdd211-12 etcd]# yum -y install  supervisor
[root@zdd211-12 etcd]# systemctl start supervisord
[root@zdd211-12 etcd]# systemctl enable supervisord
Created symlink from /etc/systemd/system/multi-user.target.wants/supervisord.service to /usr/lib/systemd/system/supervisord.service.
创建etcd-server的启动配置

zdd211-12.host.com上：

[root@zdd211-12 etcd]# vim /etc/supervisord.d/etcd-server.ini
[program:etcd-server-211-12]
command=/opt/etcd/etcd-server-startup.sh                        ; the program (relative uses PATH, can take args)
numprocs=1                                                      ; number of processes copies to start (def 1)
directory=/opt/etcd                                             ; directory to cwd to before exec (def no cwd)
autostart=true                                                  ; start at supervisord start (default: true)
autorestart=true                                                ; retstart at unexpected quit (default: true)
startsecs=30                                                    ; number of secs prog must stay running (def. 1)
startretries=3                                                  ; max # of serial start failures (default 3)
exitcodes=0,2                                                   ; 'expected' exit codes for process (default 0,2)
stopsignal=QUIT                                                 ; signal used to kill process (default TERM)
stopwaitsecs=10                                                 ; max num secs to wait b4 SIGKILL (default 10)
user=etcd                                                       ; setuid to this UNIX account to run the program
redirect_stderr=true                                            ; redirect proc stderr to stdout (default false)
stdout_logfile=/data/logs/etcd-server/etcd.stdout.log           ; stdout log path, NONE for none; default AUTO
stdout_logfile_maxbytes=64MB                                    ; max # logfile bytes b4 rotation (default 50MB)
stdout_logfile_backups=4                                        ; # of stdout logfile backups (default 10)
stdout_capture_maxbytes=1MB                                     ; number of bytes in 'capturemode' (default 0)
stdout_events_enabled=false                                     ; emit events on stdout writes (default false)

注意：etcd集群各主机启动配置略有不同，配置其他节点时注意修改

启动etcd服务并检查
[root@zdd211-12 etcd]# supervisorctl update ##更新，启动
etcd-server-211-12: added process group
[root@zdd211-12 etcd]# supervisorctl status
etcd-server-211-12               STARTING
[root@zdd211-12 etcd]# tail -f /data/logs/etcd-server/etcd.stdout.log ##有问题可以查看日志
[root@zdd211-12 etcd]# supervisorctl status
etcd-server-211-12               RUNNING   pid 16207, uptime 0:00:42
[root@zdd211-12 etcd]# netstat -ntulp |grep etcd
tcp        0      0 10.211.55.12:2379       0.0.0.0:*               LISTEN      16208/./etcd
tcp        0      0 127.0.0.1:2379          0.0.0.0:*               LISTEN      16208/./etcd
tcp        0      0 10.211.55.12:2380       0.0.0.0:*               LISTEN      16208/./etcd
安装部署启动检查所有集群规划
检查集群状态

三个etcd节点都起来后：

[root@zdd211-12 etcd]# ./etcdctl cluster-health
member b1a3627c0343c2c5 is healthy: got healthy result from http://127.0.0.1:2379
member bd1ce44b83380692 is healthy: got healthy result from http://127.0.0.1:2379
member f9c27963788aad6e is healthy: got healthy result from http://127.0.0.1:2379
cluster is healthy
[root@zdd211-12 etcd]# ./etcdctl member list
b1a3627c0343c2c5: name=etcd-server-55-21 peerURLs=https://10.211.55.21:2380 clientURLs=http://127.0.0.1:2379,https://10.211.55.21:2379 isLeader=false
bd1ce44b83380692: name=etcd-server-55-22 peerURLs=https://10.211.55.22:2380 clientURLs=http://127.0.0.1:2379,https://10.211.55.22:2379 isLeader=false
f9c27963788aad6e: name=etcd-server-55-12 peerURLs=https://10.211.55.12:2380 clientURLs=http://127.0.0.1:2379,https://10.211.55.12:2379 isLeader=true

3.2 部署kube-apiserver集群

集群规划
主机名角色ip
zdd211-21.host.comKube-apiserver10.211.55.21
zdd211-22.host.comKube-apiserver10.211.55.22
zdd211-11.host.com4层负载均衡10.211.55.11
zdd211-12.host.com4层负载均衡10.211.55.12

注意：这里10.211.55.11和10.211.55.12使用nginx做4层负载均衡器，用keepalive跑一个vip：10.211.55.10，代理两个kube-apiserver，实现高可用

这里部署文档以zdd211-21.host.com主机为例，另外一台运算节点安装部署方法类似

下载软件、解压、做软连接

zdd211-21.host.com上：

有的时候不能下载，需要翻墙

[root@zdd211-21 src]# tar -xf  kubernetes-server-linux-amd64-v1.15.4.tar.gz  -C /opt/
[root@zdd211-21 src]# cd /opt/
[root@zdd211-21 opt]# mv kubernetes/ kubernetes-v1.15.4
[root@zdd211-21 opt]# ln -s /opt/kubernetes-v1.15.4/ /opt/kubernetes
[root@zdd211-21 opt]# ll
total 0
drwx--x--x  4 root root  28 Feb 29 20:45 containerd
lrwxrwxrwx  1 root root  18 Feb 29 23:18 etcd -> /opt/etcd-v3.1.20/
drwxr-xr-x  4 etcd etcd 166 Feb 29 23:27 etcd-v3.1.20
lrwxrwxrwx  1 root root  24 Mar  1 00:41 kubernetes -> /opt/kubernetes-v1.15.4/
drwxr-xr-x  4 root root  79 Sep 18 23:09 kubernetes-v1.15.4
drwxr-xr-x. 2 root root   6 Oct 31  2018 rh
drwxr-xr-x  2 root root  97 Mar  1 00:14 src
[root@zdd211-21 opt]# cd kubernetes
[root@zdd211-21 kubernetes]# ll
total 27196
drwxr-xr-x 2 root root        6 Sep 18 23:09 addons
-rw-r--r-- 1 root root 26639441 Sep 18 23:09 kubernetes-src.tar.gz
-rw-r--r-- 1 root root  1205293 Sep 18 23:09 LICENSES
drwxr-xr-x 3 root root       17 Sep 18 23:05 server
[root@zdd211-21 kubernetes]# rm -rf kubernetes-src.tar.gz
[root@zdd211-21 kubernetes]# cd server/bin/
[root@zdd211-21 bin]# ll
total 1549312
-rwxr-xr-x 1 root root  43538912 Sep 18 23:09 apiextensions-apiserver
-rwxr-xr-x 1 root root 100605984 Sep 18 23:09 cloud-controller-manager
-rw-r--r-- 1 root root         8 Sep 18 23:05 cloud-controller-manager.docker_tag
-rw-r--r-- 1 root root 144495104 Sep 18 23:05 cloud-controller-manager.tar
-rwxr-xr-x 1 root root 200722064 Sep 18 23:09 hyperkube
-rwxr-xr-x 1 root root  40186304 Sep 18 23:09 kubeadm
-rwxr-xr-x 1 root root 164563360 Sep 18 23:09 kube-apiserver
-rw-r--r-- 1 root root         8 Sep 18 23:05 kube-apiserver.docker_tag
-rw-r--r-- 1 root root 208452096 Sep 18 23:05 kube-apiserver.tar
-rwxr-xr-x 1 root root 116462624 Sep 18 23:09 kube-controller-manager
-rw-r--r-- 1 root root         8 Sep 18 23:05 kube-controller-manager.docker_tag
-rw-r--r-- 1 root root 160351744 Sep 18 23:05 kube-controller-manager.tar
-rwxr-xr-x 1 root root  42985504 Sep 18 23:09 kubectl
-rwxr-xr-x 1 root root 119690288 Sep 18 23:09 kubelet
-rwxr-xr-x 1 root root  36987488 Sep 18 23:09 kube-proxy
-rw-r--r-- 1 root root         8 Sep 18 23:05 kube-proxy.docker_tag
-rw-r--r-- 1 root root  84282368 Sep 18 23:05 kube-proxy.tar
-rwxr-xr-x 1 root root  38786144 Sep 18 23:09 kube-scheduler
-rw-r--r-- 1 root root         8 Sep 18 23:05 kube-scheduler.docker_tag
-rw-r--r-- 1 root root  82675200 Sep 18 23:05 kube-scheduler.tar
-rwxr-xr-x 1 root root   1648224 Sep 18 23:09 mounter
[root@zdd211-21 bin]# rm -rf *.tar
[root@zdd211-21 bin]# rm -rf *_tag
[root@zdd211-21 bin]# ll
total 884968
-rwxr-xr-x 1 root root  43538912 Sep 18 23:09 apiextensions-apiserver
-rwxr-xr-x 1 root root 100605984 Sep 18 23:09 cloud-controller-manager
-rwxr-xr-x 1 root root 200722064 Sep 18 23:09 hyperkube
-rwxr-xr-x 1 root root  40186304 Sep 18 23:09 kubeadm
-rwxr-xr-x 1 root root 164563360 Sep 18 23:09 kube-apiserver
-rwxr-xr-x 1 root root 116462624 Sep 18 23:09 kube-controller-manager
-rwxr-xr-x 1 root root  42985504 Sep 18 23:09 kubectl
-rwxr-xr-x 1 root root 119690288 Sep 18 23:09 kubelet
-rwxr-xr-x 1 root root  36987488 Sep 18 23:09 kube-proxy
-rwxr-xr-x 1 root root  38786144 Sep 18 23:09 kube-scheduler
-rwxr-xr-x 1 root root   1648224 Sep 18 23:09 mounter
[root@zdd211-21 bin]# mkdir certs
[root@zdd211-21 bin]# cd certs/
签发client证书

zdd211-200.host.com上：

创建生成证书签名请求的JSON配置文件
[root@zdd211-200 certs]# cd /opt/certs/
[root@zdd211-200 certs]# vim client-csr.json
{"CN": "k8s-node","hosts": [],"key": {"algo": "rsa","size": 2048},"names": [{"C": "CN","ST": "beijing","L": "beijing","O": "od","OU": "ops"}]
}
[root@zdd211-200 certs]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-
生成client证书和私钥
[root@zdd211-200 certs]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=client client-csr.json |cfssl-json -bare client
2020/03/01 00:22:52 [INFO] generate received request
2020/03/01 00:22:52 [INFO] received CSR
2020/03/01 00:22:52 [INFO] generating key: rsa-2048
2020/03/01 00:22:52 [INFO] encoded CSR
2020/03/01 00:22:53 [INFO] signed certificate with serial number 260904771189188911312572941899563851435532977548
2020/03/01 00:22:53 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").
检查生成的证书、私钥
[root@zdd211-200 certs]# ls -l |grep client
-rw-r--r-- 1 root root  993 Mar  1 00:22 client.csr
-rw-r--r-- 1 root root  280 Mar  1 00:22 client-csr.json
-rw------- 1 root root 1675 Mar  1 00:22 client-key.pem
-rw-r--r-- 1 root root 1363 Mar  1 00:22 client.pem
签发apiserver证书

zdd211-200.host.com上：

创建生成证书签名请求的JSON配置文件

[root@zdd211-200 certs]# vim apiserver-csr.json
{"CN": "k8s-apiserver","hosts": ["127.0.0.1","192.168.0.1","kubernetes.default","kubernetes.default.svc","kubernetes.default.svc.cluster","kubernetes.default.svc.cluster.local","10.211.55.10","10.211.55.21","10.211.55.22","10.211.55.23"],"key": {"algo": "rsa","size": 2048},"names": [{"C": "CN","ST": "beijing","L": "beijing","O": "od","OU": "ops"}]
}
生成apiserver证书和私钥
[root@zdd211-200 certs]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=server apiserver-csr.json |cfssl-json -bare apiserver
2020/03/01 00:34:18 [INFO] generate received request
2020/03/01 00:34:18 [INFO] received CSR
2020/03/01 00:34:18 [INFO] generating key: rsa-2048
2020/03/01 00:34:18 [INFO] encoded CSR
2020/03/01 00:34:18 [INFO] signed certificate with serial number 312812152997845240703964115854943008649545862358
2020/03/01 00:34:18 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").
[root@zdd211-200 certs]#
检查生成的证书、私钥
[root@zdd211-200 certs]# ls -l |grep apiserver
-rw-r--r-- 1 root root 1257 Mar  1 00:34 apiserver.csr
-rw-r--r-- 1 root root  602 Mar  1 00:32 apiserver-csr.json
-rw------- 1 root root 1679 Mar  1 00:34 apiserver-key.pem
-rw-r--r-- 1 root root 1606 Mar  1 00:34 apiserver.pem
拷贝证书至各运算节点，并创建配置

zdd211-21.host.com上：

拷贝证书、私钥，注意私钥文件属性600
[root@zdd211-21 certs]# pwd
/opt/kubernetes/server/bin/certs
[root@zdd211-21 certs]# scp  zdd211-200:/opt/certs/ca.pem .
root@zdd211-200's password:
ca.pem                                                                          100% 1342     1.9MB/s   00:00
[root@zdd211-21 certs]# scp  zdd211-200:/opt/certs/ca-key.pem .
root@zdd211-200's password:
ca-key.pem                                                                      100% 1679     2.3MB/s   00:00
[root@zdd211-21 certs]# scp  zdd211-200:/opt/certs/client.pem .
root@zdd211-200's password:
client.pem                                                                      100% 1363     2.0MB/s   00:00
[root@zdd211-21 certs]# scp  zdd211-200:/opt/certs/client-key.pem .
root@zdd211-200's password:
client-key.pem                                                                  100% 1675     2.3MB/s   00:00
[root@zdd211-21 certs]# scp  zdd211-200:/opt/certs/apiserver.pem .
root@zdd211-200's password:
apiserver.pem                                                                   100% 1606     2.3MB/s   00:00
[root@zdd211-21 certs]# scp  zdd211-200:/opt/certs/apiserver-key.pem .
root@zdd211-200's password:
apiserver-key.pem
检查证书、私钥

共3套证书和私钥

[root@zdd211-21 certs]# ll
total 24
-rw------- 1 root root 1679 Mar  1 00:48 apiserver-key.pem
-rw-r--r-- 1 root root 1606 Mar  1 00:48 apiserver.pem
-rw------- 1 root root 1679 Mar  1 00:47 ca-key.pem
-rw-r--r-- 1 root root 1342 Mar  1 00:46 ca.pem
-rw------- 1 root root 1675 Mar  1 00:47 client-key.pem
-rw-r--r-- 1 root root 1363 Mar  1 00:47 client.pem
创建配置
[root@zdd211-21 certs]# cd ..
[root@zdd211-21 bin]# mkdir conf
[root@zdd211-21 bin]# cd conf/
[root@zdd211-21 conf]# cat audit.yaml
apiVersion: audit.k8s.io/v1beta1 # This is required.
kind: Policy
# Don't generate audit events for all requests in RequestReceived stage.
omitStages:- "RequestReceived"
rules:# Log pod changes at RequestResponse level- level: RequestResponseresources:- group: ""# Resource "pods" doesn't match requests to any subresource of pods,# which is consistent with the RBAC policy.resources: ["pods"]# Log "pods/log", "pods/status" at Metadata level- level: Metadataresources:- group: ""resources: ["pods/log", "pods/status"]# Don't log requests to a configmap called "controller-leader"- level: Noneresources:- group: ""resources: ["configmaps"]resourceNames: ["controller-leader"]# Don't log watch requests by the "system:kube-proxy" on endpoints or services- level: Noneusers: ["system:kube-proxy"]verbs: ["watch"]resources:- group: "" # core API groupresources: ["endpoints", "services"]# Don't log authenticated requests to certain non-resource URL paths.- level: NoneuserGroups: ["system:authenticated"]nonResourceURLs:- "/api*" # Wildcard matching.- "/version"# Log the request body of configmap changes in kube-system.- level: Requestresources:- group: "" # core API groupresources: ["configmaps"]# This rule only applies to resources in the "kube-system" namespace.# The empty string "" can be used to select non-namespaced resources.namespaces: ["kube-system"]# Log configmap and secret changes in all other namespaces at the Metadata level.- level: Metadataresources:- group: "" # core API groupresources: ["secrets", "configmaps"]# Log all other resources in core and extensions at the Request level.- level: Requestresources:- group: "" # core API group- group: "extensions" # Version of group should NOT be included.# A catch-all rule to log all other requests at the Metadata level.- level: Metadata# Long-running requests like watches that fall under this rule will not# generate an audit event in RequestReceived.omitStages:- "RequestReceived"
创建启动脚本
[root@zdd211-21 conf]# cd ../
root@zdd211-21 bin]# vim kube-apiserver.sh
#!/bin/bash
./kube-apiserver \--apiserver-count 2 \--audit-log-path /data/logs/kubernetes/kube-apiserver/audit-log \--audit-policy-file ./conf/audit.yaml \--authorization-mode RBAC \--client-ca-file ./certs/ca.pem \--requestheader-client-ca-file ./certs/ca.pem \--enable-admission-plugins NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,MutatingAdmissionWebhook,ValidatingAdmissionWebhook,ResourceQuota \--etcd-cafile ./certs/ca.pem \--etcd-certfile ./certs/client.pem \--etcd-keyfile ./certs/client-key.pem \--etcd-servers https://10.211.55.12:2379,https://10.211.55.21:2379,https://10.211.55.22:2379 \--service-account-key-file ./certs/ca-key.pem \--service-cluster-ip-range 192.168.0.0/16 \--service-node-port-range 3000-29999 \--target-ram-mb=1024 \--kubelet-client-certificate ./certs/client.pem \--kubelet-client-key ./certs/client-key.pem \--log-dir  /data/logs/kubernetes/kube-apiserver \--tls-cert-file ./certs/apiserver.pem \--tls-private-key-file ./certs/apiserver-key.pem \--v 2[root@zdd211-21 bin]# ./kube-apiserver --help|grep -A 5 target-ram-mb ##可以查看参数解释--target-ram-mb int                            Memory limit for apiserver in MB (used to configure sizes of caches, etc.)Etcd flags:--default-watch-cache-size int             Default watch cache size. If zero, watch cache will be disabled for resources that do not have a default watch size set. (default 100)--delete-collection-workers int            Number of workers spawned for DeleteCollection call. These are used to speed up namespace cleanup. (default 1)
调整权限和目录
[root@zdd211-21 bin]# chmod  +x  kube-apiserver.sh
[root@zdd211-21 bin]# mkdir -p /data/logs/kubernetes/kube-apiserver
创建supervisor配置
[root@zdd211-21 bin]# vim /etc/supervisord.d/kube-apiserver.ini
[program:kube-apiserver-211-21]                                 ;根据实际情况更改
command=/opt/kubernetes/server/bin/kube-apiserver.sh            ; the program (relative uses PATH, can take args)
numprocs=1                                                      ; number of processes copies to start (def 1)
directory=/opt/kubernetes/server/bin                            ; directory to cwd to before exec (def no cwd)
autostart=true                                                  ; start at supervisord start (default: true)
autorestart=true                                                ; retstart at unexpected quit (default: true)
startsecs=30                                                    ; number of secs prog must stay running (def. 1)
startretries=3                                                  ; max # of serial start failures (default 3)
exitcodes=0,2                                                   ; 'expected' exit codes for process (default 0,2)
stopsignal=QUIT                                                 ; signal used to kill process (default TERM)
stopwaitsecs=10                                                 ; max num secs to wait b4 SIGKILL (default 10)
user=root                                                       ; setuid to this UNIX account to run the program
redirect_stderr=true                                            ; redirect proc stderr to stdout (default false)
stdout_logfile=/data/logs/kubernetes/kube-apiserver/apiserver.stdout.log        ; stderr log path, NONE for none; default AUTO
stdout_logfile_maxbytes=64MB                                    ; max # logfile bytes b4 rotation (default 50MB)
stdout_logfile_backups=4                                        ; # of stdout logfile backups (default 10)
stdout_capture_maxbytes=1MB                                     ; number of bytes in 'capturemode' (default 0)
stdout_events_enabled=false
启动服务并检查
[root@zdd211-21 bin]# supervisorctl  update
kube-apiserver-211-21: added process group
[root@zdd211-21 bin]# supervisorctl status
etcd-server-211-21               RUNNING   pid 16243, uptime 0:00:36
kube-apiserver-211-21            RUNNING   pid 16244, uptime 0:00:36
安装部署启动检查所有集群规划节点
配4层反向代理

zdd211-11和 zdd211-12操作，以 zdd211-11为例

nginx安装
nginx配置
[root@zdd211-11 ~]# vim /etc/nginx/nginx.conf  ##在配置文件的最底部
stream {upstream kube-apiserver {server 10.211.55.21:6443     max_fails=3 fail_timeout=30s;server 10.211.55.22:6443     max_fails=3 fail_timeout=30s;}server {listen 7443;proxy_connect_timeout 2s;proxy_timeout 900s;proxy_pass kube-apiserver;}
}
ngnix启动
[root@zdd211-11 ~]# nginx  -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@zdd211-11 ~]# systemctl start nginx && systemctl enable nginx
Created symlink from /etc/systemd/system/multi-user.target.wants/nginx.service to /usr/lib/systemd/system/nginx.service.
keepalived配置
  • 安装
[root@zdd211-11 ~]# yum -y install keepalived
  • 监听脚本
[root@zdd211-11 ~]# vim /etc/keepalived/check_port.sh
#!/bin/bash
#keepalived 监控端口脚本
#使用方法：
#在keepalived的配置文件中
#vrrp_script check_port {#创建一个vrrp_script脚本,检查配置
#    script "/etc/keepalived/check_port.sh 6379" #配置监听的端口
#    interval 2 #检查脚本的频率,单位（秒）
#}
CHK_PORT=$1
if [ -n "$CHK_PORT" ];thenPORT_PROCESS=`ss -lnt|grep $CHK_PORT|wc -l`if [ $PORT_PROCESS -eq 0 ];thenecho "Port $CHK_PORT Is Not Used,End."exit 1fi
elseecho "Check Port Cant Be Empty!"
fi
[root@zdd211-11 ~]# chmod  +x /etc/keepalived/check_port.sh
  • keepalived主配置文件
[root@zdd211-11 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalivedglobal_defs {router_id 10.211.55.11}vrrp_script chk_nginx {script "/etc/keepalived/check_port.sh 7443"interval 2weight -20
}vrrp_instance VI_1 {state MASTERinterface ens33virtual_router_id 251priority 100advert_int 1mcast_src_ip 10.211.55.11nopreempt    ##不抢VIP 机制authentication {auth_type PASSauth_pass 11111111}track_script {chk_nginx}virtual_ipaddress {10.211.55.10}
}
[root@zdd211-11 ~]systemctl start keepalived && systemctl enable keepalive
Created symlink from /etc/systemd/system/multi-user.target.wants/keepalived.service to /usr/lib/systemd/system/keepalived.service.
  • keepalived从配置文件
[root@zdd211-12 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {router_id 10.211.55.12
}
vrrp_script chk_nginx {script "/etc/keepalived/check_port.sh 7443"interval 2weight -20
}
vrrp_instance VI_1 {state BACKUPinterface ens33virtual_router_id 251mcast_src_ip 10.211.55.12priority 90advert_int 1authentication {auth_type PASSauth_pass 11111111}track_script {chk_nginx}virtual_ipaddress {10.211.55.10}
}[root@zdd211-12 ~]systemctl start keepalived && systemctl enable keepalive
Created symlink from /etc/systemd/system/multi-user.target.wants/keepalived.service to /usr/lib/systemd/system/keepalived.service.
启动代理并检查
[root@zdd211-11 ~]# ip addr
1: lo:  mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft foreverinet6 ::1/128 scope hostvalid_lft forever preferred_lft forever
2: eth0:  mtu 1500 qdisc pfifo_fast state UP group default qlen 1000link/ether 00:1c:42:b6:c5:48 brd ff:ff:ff:ff:ff:ffinet 10.211.55.11/24 brd 10.211.55.255 scope global noprefixroute eth0valid_lft forever preferred_lft foreverinet 10.211.55.10/32 scope global eth0valid_lft forever preferred_lft foreverinet6 fe80::c032:4140:7917:cf93/64 scope link tentative noprefixroute dadfailedvalid_lft forever preferred_lft foreverinet6 fe80::be6c:3cae:2851:9de9/64 scope link tentative noprefixroute dadfailedvalid_lft forever preferred_lft foreverinet6 fe80::e17c:787c:c2c1:540c/64 scope link tentative noprefixroute dadfailedvalid_lft forever preferred_lft forever

3.3 部署controller-manager

集群规划
主机名角色ip
zdd211-21.host.comkube-controller-manager10.211.55.21
zdd211-22.host.comkube-controller-manager10.211.55.22

注意：这里部署文档以zdd211-21.host.com主机为例，另外一台运算节点安装部署方法类似

创建启动脚本

Zdd211-21.host.com上：

[root@zdd211-21 bin]# pwd
/opt/kubernetes/server/bin
[root@zdd211-21 bin]# vim kube-controller-manager.sh
#!/bin/sh
./kube-controller-manager \--cluster-cidr 172.7.0.0/16 \--leader-elect true \--log-dir /data/logs/kubernetes/kube-controller-manager \--master http://127.0.0.1:8080 \--service-account-private-key-file ./certs/ca-key.pem \--service-cluster-ip-range 192.168.0.0/16 \--root-ca-file ./certs/ca.pem \--v 2
调整文件权限，创建目录
[root@zdd211-21 bin]# chmod  +x  kube-controller-manager.sh
[root@zdd211-21 bin]# mkdir  -p  /data/logs/kubernetes
[root@zdd211-21 bin]# mkdir  -p  /data/logs/kubernetes/kube-controller-manager/
创建supervisor配置
[root@zdd211-21 bin]# vim /etc/supervisord.d/kube-conntroller-manager.ini
[program:kube-controller-manager-211-21]
command=/opt/kubernetes/server/bin/kube-controller-manager.sh                     ; the program (relative uses PATH, can take args)
numprocs=1                                                                        ; number of processes copies to start (def 1)
directory=/opt/kubernetes/server/bin                                              ; directory to cwd to before exec (def no cwd)
autostart=true                                                                    ; start at supervisord start (default: true)
autorestart=true                                                                  ; retstart at unexpected quit (default: true)
startsecs=30                                                                      ; number of secs prog must stay running (def. 1)
startretries=3                                                                    ; max # of serial start failures (default 3)
exitcodes=0,2                                                                     ; 'expected' exit codes for process (default 0,2)
stopsignal=QUIT                                                                   ; signal used to kill process (default TERM)
stopwaitsecs=10                                                                   ; max num secs to wait b4 SIGKILL (default 10)
user=root                                                                         ; setuid to this UNIX account to run the program
redirect_stderr=true                                                              ; redirect proc stderr to stdout (default false)
stdout_logfile=/data/logs/kubernetes/kube-controller-manager/controller.stdout.log  ; stderr log path, NONE for none; default AUTO
stdout_logfile_maxbytes=64MB                                                      ; max # logfile bytes b4 rotation (default 50MB)
stdout_logfile_backups=4                                                          ; # of stdout logfile backups (default 10)
stdout_capture_maxbytes=1MB                                                       ; number of bytes in 'capturemode' (default 0)
stdout_events_enabled=false
启动服务并检查
[root@zdd211-21 bin]# supervisorctl  update
kube-controller-manager-211-21: added process group
[root@zdd211-21 bin]# supervisorctl  status
etcd-server-211-21               RUNNING   pid 16243, uptime 0:57:43
kube-apiserver-211-21            RUNNING   pid 16244, uptime 0:57:43
kube-controller-manager-211-21   RUNNING   pid 16513, uptime 0:01:03
安装部署启动检查所有集群规划主机上的kube-controller-manager服务

略

3.4 部署kube-scheduler

集群规划
主机名角色ip
zdd211-21.host.comKube-scheduler10.211.55.21
zdd211-22.host.comKube-scheduler10.211.55.22

注意：这里部署文档以zdd211-21.host.com主机为例，另外一台运算节点安装部署方法类似

创建启动脚本

Zdd211-21.host.com上：

[root@zdd211-21 bin]# pwd
/opt/kubernetes/server/bin
[root@zdd211-21 bin]# vim kube-scheduler.sh
#!/bin/sh
./kube-scheduler \--leader-elect  \--log-dir /data/logs/kubernetes/kube-scheduler \--master http://127.0.0.1:8080 \--v 2
调整文件权限，创建目录
[root@zdd211-21 bin]# chmod +x  kube-scheduler.sh
[root@zdd211-21 bin]# mkdir  -p  /data/logs/kubernetes/kube-scheduler
创建supervisor配置
[root@zdd211-21 bin]# vim /etc/supervisord.d/kube-scheduler.ini
[program:kube-scheduler-211-21]
command=/opt/kubernetes/server/bin/kube-scheduler.sh                     ; the program (relative uses PATH, can take args)
numprocs=1                                                               ; number of processes copies to start (def 1)
directory=/opt/kubernetes/server/bin                                     ; directory to cwd to before exec (def no cwd)
autostart=true                                                           ; start at supervisord start (default: true)
autorestart=true                                                         ; retstart at unexpected quit (default: true)
startsecs=30                                                             ; number of secs prog must stay running (def. 1)
startretries=3                                                           ; max # of serial start failures (default 3)
exitcodes=0,2                                                            ; 'expected' exit codes for process (default 0,2)
stopsignal=QUIT                                                          ; signal used to kill process (default TERM)
stopwaitsecs=10                                                          ; max num secs to wait b4 SIGKILL (default 10)
user=root                                                                ; setuid to this UNIX account to run the program
redirect_stderr=true                                                     ; redirect proc stderr to stdout (default false)
stdout_logfile=/data/logs/kubernetes/kube-scheduler/scheduler.stdout.log ; stderr log path, NONE for none; default AUTO
stdout_logfile_maxbytes=64MB                                             ; max # logfile bytes b4 rotation (default 50MB)
stdout_logfile_backups=4                                                 ; # of stdout logfile backups (default 10)
stdout_capture_maxbytes=1MB                                              ; number of bytes in 'capturemode' (default 0)
stdout_events_enabled=false
启动服务并检查
[root@zdd211-21 bin]# supervisorctl  update
kube-controller-manager-211-21: added process group
[root@zdd211-21 bin]# supervisorctl  status
etcd-server-211-21               RUNNING   pid 16243, uptime 0:57:43
kube-apiserver-211-21            RUNNING   pid 16244, uptime 0:57:43
kube-controller-manager-211-21   RUNNING   pid 16513, uptime 0:01:03
安装部署启动检查所有集群规划主机上的kube-controller-manager服务

略

3.5 检查主控节点

[root@zdd211-21 bin]# ln -s /opt/kubernetes/server/bin/kubectl   /usr/bin/kubectl
[root@zdd211-21 bin]# which kubectl
/usr/bin/kubectl
[root@zdd211-21 bin]# kubectl get cs
NAME                 STATUS    MESSAGE              ERROR
scheduler            Healthy   ok
controller-manager   Healthy   ok
etcd-0               Healthy   {"health": "true"}
etcd-1               Healthy   {"health": "true"}
etcd-2               Healthy   {"health": "true"}

4.部署Node节点服务

4.1 部署kubelet

集群规划
主机名角色ip
zdd211-21.host.comkubelet10.211.55.21
zdd211-22.host.comkubelet10.211.55.22

注意：这里部署文档以zdd211-21.host.com主机为例，另外一台运算节点安装部署方法类似

签发证书

运维主机zdd211-200.host.com上：

创建生成证书签名请求的JSON配置文件
[root@zdd211-200 certs]# vim kubelet-csr.json
{"CN": "k8s-kubelet","hosts": ["127.0.0.1","10.211.55.10","10.211.55.21","10.211.55.22","10.211.55.23","10.211.55.24","10.211.55.25","10.211.55.26","10.211.55.27","10.211.55.28"],"key": {"algo": "rsa","size": 2048},"names": [{"C": "CN","ST": "beijing","L": "beijing","O": "od","OU": "ops"}]
}
生成kubelet证书和私钥
[root@zdd211-200 certs]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=server kubelet-csr.json | cfssl-json -bare kubelet
2020/03/01 02:43:04 [INFO] generate received request
2020/03/01 02:43:04 [INFO] received CSR
2020/03/01 02:43:04 [INFO] generating key: rsa-2048
2020/03/01 02:43:05 [INFO] encoded CSR
2020/03/01 02:43:05 [INFO] signed certificate with serial number 87704427073277495803939532855812728907884442069
2020/03/01 02:43:05 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").
检查生成的证书，私钥
[root@zdd211-200 certs]# ls -l|grep kubelet
-rw-r--r-- 1 root root 1115 Mar  1 02:43 kubelet.csr
-rw-r--r-- 1 root root  479 Mar  1 02:37 kubelet-csr.json
-rw------- 1 root root 1679 Mar  1 02:43 kubelet-key.pem
-rw-r--r-- 1 root root 1464 Mar  1 02:43 kubelet.pem
拷贝证书至各运算节点，并创建配置

zdd211-21.host.com 操作

拷贝证书，私钥，注意私钥文件属性600
[root@zdd211-21 certs]# pwd
/opt/kubernetes/server/bin/certs
[root@zdd211-21 certs]# scp  zdd211-200:/opt/certs/kubelet.pem .
root@zdd211-200's password:
kubelet.pem
[root@zdd211-21 certs]# scp  zdd211-200:/opt/certs/kubelet-key.pem .
root@zdd211-200's password:
kubelet-key.pem
[root@zdd211-21 certs]# ll
total 32
-rw------- 1 root root 1679 Mar  1 00:48 apiserver-key.pem
-rw-r--r-- 1 root root 1606 Mar  1 00:48 apiserver.pem
-rw------- 1 root root 1679 Mar  1 00:47 ca-key.pem
-rw-r--r-- 1 root root 1342 Mar  1 00:46 ca.pem
-rw------- 1 root root 1675 Mar  1 00:47 client-key.pem
-rw-r--r-- 1 root root 1363 Mar  1 00:47 client.pem
-rw------- 1 root root 1679 Mar  1 02:46 kubelet-key.pem
-rw-r--r-- 1 root root 1464 Mar  1 02:45 kubelet.pem
[root@zdd211-21 certs]# cd ..
[root@zdd211-21 bin]# cd conf/
创建配置分发证书

分发证书到 zdd211-21 、zdd211-22 ##这里只需要在一个节点上操作一次

  • set-cluster

注意：在conf目录下

kubectl config set-cluster myk8s \--certificate-authority=/opt/kubernetes/server/bin/certs/ca.pem \--embed-certs=true \--server=https://10.211.55.10:7443\--kubeconfig=kubelet.kubeconfig
  • Set-credentials

注意：在conf目录下

kubectl config set-credentials k8s-node \--client-certificate=/opt/kubernetes/server/bin/certs/client.pem \--client-key=/opt/kubernetes/server/bin/certs/client-key.pem \--embed-certs=true \--kubeconfig=kubelet.kubeconfig
  • Set-context
kubectl config set-context myk8s-context \--cluster=myk8s \--user=k8s-node \--kubeconfig=kubelet.kubeconfig
  • Use-context
[root@zdd211-21 conf]# kubectl config use-context myk8s-context --kubeconfig=kubelet.kubeconfig
Switched to context "myk8s-context".
授权K8s node角色
[root@zdd211-21 conf]# vim k8s-node.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:name: k8s-node
roleRef:apiGroup: rbac.authorization.k8s.iokind: ClusterRolename: system:node
subjects:
- apiGroup: rbac.authorization.k8s.iokind: Username: k8s-node
[root@zdd211-21 conf]# kubectl create -f k8s-node.yaml
clusterrolebinding.rbac.authorization.k8s.io/k8s-node created
[root@zdd211-21 conf]# kubectl get clusterrolebinding k8s-node
NAME       AGE
k8s-node   61s
拷贝配置到另一个节点

zdd211-22.host.com 操作

[root@zdd211-22 conf]# pwd
/opt/kubernetes/server/bin/conf
[root@zdd211-22 conf]# scp zdd211-21:/opt/kubernetes/server/bin/conf/kubelet.kubeconfig .
[root@zdd211-22 conf]# ll
total 12
-rw------- 1 root root 2237 Mar  1 01:26 audit.yaml
-rw------- 1 root root 6194 Mar  1 03:12 kubelet.kubeconfig
准备pause基础镜像

zdd211-200.host.com上操作

[root@zdd211-200 certs]# docker pull  kubernetes/pause
[root@zdd211-200 certs]# docker images |grep kubernetes
kubernetes/pause                latest                     f9d5de079539        5 years ago
[root@zdd211-200 certs]# docker tag f9d5de079539 harbor.od.com/public/pause:latest
[root@zdd211-200 certs]# docker push harbor.od.com/public/pause:latest
创建kubelet启动脚本
[root@zdd211-21 bin]# pwd
/opt/kubernetes/server/bin
[root@zdd211-21 bin]# vim kubelet.sh
#!/bin/sh
./kubelet \--anonymous-auth=false \--cgroup-driver systemd \--cluster-dns 192.168.0.2 \--cluster-domain cluster.local \--runtime-cgroups=/systemd/system.slice \--kubelet-cgroups=/systemd/system.slice \--fail-swap-on="false" \--client-ca-file ./certs/ca.pem \--tls-cert-file ./certs/kubelet.pem \--tls-private-key-file ./certs/kubelet-key.pem \--hostname-override zdd211-21.host.com \--image-gc-high-threshold 20 \--image-gc-low-threshold 10 \--kubeconfig ./conf/kubelet.kubeconfig \--log-dir /data/logs/kubernetes/kube-kubelet \--pod-infra-container-image harbor.od.com/public/pause:latest \--root-dir /data/kubelet
检查配置，权限，创建日志目录
[root@zdd211-21 bin]# mkdir -p /data/logs/kubernetes/kube-kubelet /data/kubelet
[root@zdd211-21 bin]# chmod  +x  kubelet.sh
创建supervisor配置

zdd211-21.host.com上操作

[root@zdd211-21 bin]# vim /etc/supervisord.d/kube-kubelet.ini
[program:kube-kubelet-211-21]
command=/opt/kubernetes/server/bin/kubelet.sh     ; the program (relative uses PATH, can take args)
numprocs=1                                        ; number of processes copies to start (def 1)
directory=/opt/kubernetes/server/bin              ; directory to cwd to before exec (def no cwd)
autostart=true                                    ; start at supervisord start (default: true)
autorestart=true              		          ; retstart at unexpected quit (default: true)
startsecs=30                                      ; number of secs prog must stay running (def. 1)
startretries=3                                    ; max # of serial start failures (default 3)
exitcodes=0,2                                     ; 'expected' exit codes for process (default 0,2)
stopsignal=QUIT                                   ; signal used to kill process (default TERM)
stopwaitsecs=10                                   ; max num secs to wait b4 SIGKILL (default 10)
user=root                                         ; setuid to this UNIX account to run the program
redirect_stderr=true                              ; redirect proc stderr to stdout (default false)
stdout_logfile=/data/logs/kubernetes/kube-kubelet/kubelet.stdout.log   ; stderr log path, NONE for none; default AUTO
stdout_logfile_maxbytes=64MB                      ; max # logfile bytes b4 rotation (default 50MB)
stdout_logfile_backups=4                          ; # of stdout logfile backups (default 10)
stdout_capture_maxbytes=1MB                       ; number of bytes in 'capturemode' (default 0)
stdout_events_enabled=false                       ; emit events on stdout writes (default false)kubectl create clusterrolebinding kubelet-bootstrap \
--clusterrole=system:node-bootstrapper \
--user=kubelet-bootstrap
启动服务并检查
[root@zdd211-21 bin]# supervisorctl  update
kube-kubelet-211-21: added process group
[root@zdd211-21 bin]# supervisorctl status
etcd-server-211-21               RUNNING   pid 19731, uptime 2:41:09
kube-apiserver-211-21            RUNNING   pid 19729, uptime 2:41:09
kube-controller-manager-211-21   RUNNING   pid 19736, uptime 2:41:09
kube-kubelet-211-21              RUNNING   pid 19735, uptime 2:41:09
kube-scheduler-211-21            RUNNING   pid 19733, uptime 2:41:09
检查运算节点
[root@zdd211-21 bin]# kubectl get node
NAME                 STATUS   ROLES    AGE    VERSION
zdd211-21.host.com   Ready       172m   v1.15.4
安装部署启动检查所有集群规划主机上的kubelet服务

另外一个node节点zdd211-22.host.com可以根据上面的的步骤进行部署，注意修改配置文件中主机名

检查所有运算节点
[root@zdd211-22 bin]# supervisorctl  update
kube-kubelet-211-22: added process group
[root@zdd211-22 bin]# supervisorctl status
etcd-server-211-22               RUNNING   pid 16026, uptime 15:39:10
kube-apiserver-211-22            RUNNING   pid 16245, uptime 13:53:58
kube-controller-manager-211-22   RUNNING   pid 18498, uptime 10:54:38
kube-kubelet-211-22              RUNNING   pid 23091, uptime 0:19:50
kube-scheduler-211-22            RUNNING   pid 18505, uptime 10:54:38
[root@zdd211-21 bin]# kubectl get node
NAME                 STATUS   ROLES    AGE    VERSION
zdd211-21.host.com   Ready       172m   v1.15.4
zdd211-22.host.com   Ready       16m    v1.15.4
给node添加标签
[root@zdd211-21 bin]# kubectl label node zdd211-21.host.com node-role.kubernetes.io/node=
node/zdd211-21.host.com labeled
[root@zdd211-21 bin]# kubectl get node
NAME                 STATUS   ROLES    AGE    VERSION
zdd211-21.host.com   Ready    node     177m   v1.15.4
zdd211-22.host.com   Ready       21m    v1.15.4
[root@zdd211-21 bin]# kubectl label node zdd211-21.host.com node-role.kubernetes.io/master=
node/zdd211-21.host.com labeled
[root@zdd211-21 bin]# kubectl get node
NAME                 STATUS   ROLES         AGE    VERSION
zdd211-21.host.com   Ready    master,node   178m   v1.15.4
zdd211-22.host.com   Ready            22m    v1.15.4
[root@zdd211-21 bin]# kubectl label node zdd211-22.host.com node-role.kubernetes.io/node=
node/zdd211-22.host.com labeled
[root@zdd211-21 bin]# kubectl label node zdd211-22.host.com node-role.kubernetes.io/master=
node/zdd211-22.host.com labeled
[root@zdd211-21 bin]# kubectl get node
NAME                 STATUS   ROLES         AGE    VERSION
zdd211-21.host.com   Ready    master,node   178m   v1.15.4
zdd211-22.host.com   Ready    master,node   22m    v1.15.4

4.2 部署kube-proxy

集群规划
主机名角色ip
zdd211-21.host.comkube-proxy10.211.55.21
zdd211-22.host.comkube-proxy10.211.55.22

注意：这里部署文档以zdd211-21.host.com主机为例，另外一台运算节点安装部署方法类似

签发证书
创建生成证书签名请求的JSON配置文件
kube-proxy-csr.json
{"CN": "system:kube-proxy","key": {"algo": "rsa","size": 2048},"names": [{"C": "CN","ST": "beijing","L": "beijing","O": "od","OU": "ops"}]
}
生成kube-proxy证书和私钥
[root@zdd211-200 certs]# cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=client kube-proxy-csr.json |cfssl-json -bare kube-proxy-client
2020/03/01 03:52:35 [INFO] generate received request
2020/03/01 03:52:35 [INFO] received CSR
2020/03/01 03:52:35 [INFO] generating key: rsa-2048
2020/03/01 03:52:35 [INFO] encoded CSR
2020/03/01 03:52:35 [INFO] signed certificate with serial number 489461653582417608550059955294808367031662016464
2020/03/01 03:52:35 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").
检查生成的证书，私钥
[root@zdd211-200 certs]# ls -l|grep kube-proxy
-rw-r--r-- 1 root root 1005 Mar  1 03:52 kube-proxy-client.csr
-rw------- 1 root root 1679 Mar  1 03:52 kube-proxy-client-key.pem
-rw-r--r-- 1 root root 1375 Mar  1 03:52 kube-proxy-client.pem
-rw-r--r-- 1 root root  267 Mar  1 03:49 kube-proxy-csr.json
拷贝证书至各运算节点，并创建配置

zdd211-21.host.com 操作

拷贝证书，私钥，注意私钥文件属性600
[root@zdd211-21 certs]# pwd
/opt/kubernetes/server/bin/certs
[root@zdd211-21 certs]# scp  zdd211-200:/opt/certs/kube-proxy-client.pem .
root@zdd211-200's password:
kube-proxy-client.pem
[root@zdd211-21 certs]# scp  zdd211-200:/opt/certs/kube-proxy-client-key.pem .
root@zdd211-200's password:
kube-proxy-client-key.pem
[root@zdd211-21 certs]# ls -l|grep kube-proxy
-rw------- 1 root root 1679 Mar  1 03:55 kube-proxy-client-key.pem
-rw-r--r-- 1 root root 1375 Mar  1 03:54 kube-proxy-client.pem
[root@zdd211-21 certs]# cd ..
[root@zdd211-21 bin]# cd conf/
创建kube-proxy分发证书配置文件

分发证书到 zdd211-21 、zdd211-22 ##这里只需要在一个节点上操作一次

  • set-cluster

注意：在conf目录下

kubectl config set-cluster myk8s \--certificate-authority=/opt/kubernetes/server/bin/certs/ca.pem \--embed-certs=true \--server=https://10.211.55.10:7443 \--kubeconfig=kube-proxy.kubeconfig
  • Set-credentials

注意：在conf目录下

kubectl config set-credentials kube-proxy \--client-certificate=/opt/kubernetes/server/bin/certs/kube-proxy-client.pem \--client-key=/opt/kubernetes/server/bin/certs/kube-proxy-client-key.pem \--embed-certs=true \--kubeconfig=kube-proxy.kubeconfig
  • Set-context
kubectl config set-context myk8s-context \--cluster=myk8s \--user=kube-proxy \--kubeconfig=kube-proxy.kubeconfig
  • Use-context
[root@zdd211-21 conf]# kubectl config use-context myk8s-context --kubeconfig=kube-proxy.kubeconfig
Switched to context "myk8s-context".
K8s node角色绑定
拷贝配置到另一个节点

zdd211-22.host.com 操作

[root@zdd211-22 conf]# pwd
/opt/kubernetes/server/bin/conf
[root@zdd211-22 conf]# scp zdd211-21:/opt/kubernetes/server/bin/conf/kube-proxy.kubeconfig .
[root@zdd211-22 conf]# ll
total 20
-rw------- 1 root root 2237 Mar  1 01:26 audit.yaml
-rw------- 1 root root 6194 Mar  1 03:12 kubelet.kubeconfig
-rw------- 1 root root 6218 Mar  1 04:02 kube-proxy.kubeconfig
加载ipvs模块

zdd211-21.host.com上操作

[root@zdd211-21 conf]# cd
[root@zdd211-21 ~]# vim ipvs.sh
#!/bin/bash
ipvs_mods_dir="/usr/lib/modules/$(uname -r)/kernel/net/netfilter/ipvs"
for i in $(ls $ipvs_mods_dir|grep -o "^[^.]*")
do/sbin/modinfo -F filename $i &>/dev/nullif [ $? -eq 0 ];then/sbin/modprobe $ifi
done
[root@zdd211-21 ~]# chmod +x ipvs.sh
[root@zdd211-21 ~]# ./ipvs.sh
[root@zdd211-21 ~]# lsmod | grep ip_vs
ip_vs_wrr              12697  0
ip_vs_wlc              12519  0
ip_vs_sh               12688  0
ip_vs_sed              12519  0
ip_vs_rr               12600  0
ip_vs_pe_sip           12740  0
nf_conntrack_sip       33860  1 ip_vs_pe_sip
ip_vs_nq               12516  0
ip_vs_lc               12516  0
ip_vs_lblcr            12922  0
ip_vs_lblc             12819  0
ip_vs_ftp              13079  0
ip_vs_dh               12688  0
ip_vs                 145497  24 ip_vs_dh,ip_vs_lc,ip_vs_nq,ip_vs_rr,ip_vs_sh,ip_vs_ftp,ip_vs_sed,ip_vs_wlc,ip_vs_wrr,ip_vs_pe_sip,ip_vs_lblcr,ip_vs_lblc
nf_nat                 26787  3 ip_vs_ftp,nf_nat_ipv4,nf_nat_masquerade_ipv4
nf_conntrack          133095  8 ip_vs,nf_nat,nf_nat_ipv4,xt_conntrack,nf_nat_masquerade_ipv4,nf_conntrack_netlink,nf_conntrack_sip,nf_conntrack_ipv4
libcrc32c              12644  4 xfs,ip_vs,nf_nat,nf_conntrack
创建kube-proxy启动脚本
[root@zdd211-21 ~]# cd /opt/kubernetes/server/bin/
[root@zdd211-21 bin]# vim kube-proxy.sh
#!/bin/sh
./kube-proxy \--cluster-cidr 172.7.0.0/16 \--hostname-override zdd211-21.host.com \--proxy-mode=ipvs \--ipvs-scheduler=nq \--kubeconfig ./conf/kube-proxy.kubeconfig
检查配置，权限，创建日志目录
[root@zdd211-21 bin]# chmod +x kube-proxy.sh
[root@zdd211-21 bin]# mkdir -p /data/logs/kubernetes/kube-proxy
创建supervisor配置

zdd211-21.host.com上操作

[root@zdd211-21 bin]# vim /etc/supervisord.d/kube-proxy.ini
[program:kube-proxy-211-21]
command=/opt/kubernetes/server/bin/kube-proxy.sh                     ; the program (relative uses PATH, can take args)
numprocs=1                                                           ; number of processes copies to start (def 1)
directory=/opt/kubernetes/server/bin                                 ; directory to cwd to before exec (def no cwd)
autostart=true                                                       ; start at supervisord start (default: true)
autorestart=true                                                     ; retstart at unexpected quit (default: true)
startsecs=30                                                         ; number of secs prog must stay running (def. 1)
startretries=3                                                       ; max # of serial start failures (default 3)
exitcodes=0,2                                                        ; 'expected' exit codes for process (default 0,2)
stopsignal=QUIT                                                      ; signal used to kill process (default TERM)
stopwaitsecs=10                                                      ; max num secs to wait b4 SIGKILL (default 10)
user=root                                                            ; setuid to this UNIX account to run the program
redirect_stderr=true                                                 ; redirect proc stderr to stdout (default false)
stdout_logfile=/data/logs/kubernetes/kube-proxy/proxy.stdout.log     ; stderr log path, NONE for none; default AUTO
stdout_logfile_maxbytes=64MB                                         ; max # logfile bytes b4 rotation (default 50MB)
stdout_logfile_backups=4                                             ; # of stdout logfile backups (default 10)
stdout_capture_maxbytes=1MB                                          ; number of bytes in 'capturemode' (default 0)
stdout_events_enabled=false                                          ; emit events on stdout writes (default false)
启动服务并检查
[root@zdd211-21 bin]# supervisorctl  update
kube-proxy-211-21: added process group
[root@zdd211-21 bin]# supervisorctl status
etcd-server-211-21               RUNNING   pid 19731, uptime 2:41:09
kube-apiserver-211-21            RUNNING   pid 19729, uptime 2:41:09
kube-controller-manager-211-21   RUNNING   pid 19736, uptime 2:41:09
kube-kubelet-211-21              RUNNING   pid 19735, uptime 2:41:09
kube-proxy-211-21                RUNNING   pid 22344, uptime 0:02:20
kube-scheduler-211-21            RUNNING   pid 19733, uptime 2:41:09
检查运算节点
[root@zdd211-21 bin]#yum -y install ipvsadm
[root@zdd211-21 bin]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags-> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.0.1:443 nq-> 10.211.55.21:6443            Masq    1      0          0-> 10.211.55.22:6443            Masq    1      0          0
安装部署启动检查所有集群规划主机上的kubelet服务

方法可以参考zdd211-21进行部署，需要需要修改配置文件中的主机名

检查所有运算节点
[root@zdd211-22 bin]# supervisorctl status
etcd-server-211-22               RUNNING   pid 16026, uptime 15:30:58
kube-apiserver-211-22            RUNNING   pid 16245, uptime 13:45:46
kube-controller-manager-211-22   RUNNING   pid 18498, uptime 10:46:26
kube-kubelet-211-22              RUNNING   pid 23091, uptime 0:11:38
kube-proxy-211-22                RUNNING   pid 25108, uptime 0:02:55
kube-scheduler-211-22            RUNNING   pid 18505, uptime 10:46:26
[root@zdd211-22 bin]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags-> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.0.1:443 nq-> 10.211.55.21:6443            Masq    1      0          0-> 10.211.55.22:6443            Masq    1      0          0

5.验证kubernetes集群

5.1 在任意一个运算节点，创建一个资源配置清单

[root@zdd211-21 ~]# pwd
/root
[root@zdd211-21 ~]# cat nginx-ds.yaml
apiVersion: extensions/v1beta1
kind: DaemonSet
metadata:name: nginx-ds
spec:template:metadata:labels:app: nginx-dsspec:containers:- name: my-nginximage: harbor.od.com/public/nginx:v1.7.9ports:- containerPort: 80
[root@zdd211-21 ~]# kubectl create -f nginx-ds.yaml
daemonset.extensions/nginx-ds created

5.2 应用资源配置，并检查

[root@zdd211-21 ~]# kubectl get pods
NAME             READY   STATUS    RESTARTS   AGE
nginx-ds-8r8sc   1/1     Running   0          115s
nginx-ds-pdznf   1/1     Running   0          115s
[root@zdd211-21 ~]# kubectl get pods -o wide
NAME             READY   STATUS    RESTARTS   AGE    IP           NODE                 NOMINATED NODE   READINESS GATES
nginx-ds-8r8sc   1/1     Running   0          2m5s   172.7.22.2   zdd211-22.host.com
nginx-ds-pdznf   1/1     Running   0          2m5s   172.7.21.2   zdd211-21.host.com
[root@zdd211-21 ~]# curl 172.7.22.2 ##没有信息回应
^C
[root@zdd211-21 ~]# curl 172.7.21.2 ## 有信息回应

由于还没安装网络插件，不同主机上的pod之间不能互相访问

zdd211-21、zdd211-22今天的部署到以下的结果，，就算部署完成

[root@zdd211-21 ~]# kubectl get cs
NAME                 STATUS    MESSAGE              ERROR
scheduler            Healthy   ok
controller-manager   Healthy   ok
etcd-0               Healthy   {"health": "true"}
etcd-2               Healthy   {"health": "true"}
etcd-1               Healthy   {"health": "true"}
[root@zdd211-21 ~]# kubectl get node
NAME                 STATUS   ROLES         AGE    VERSION
zdd211-21.host.com   Ready    master,node   3h5m   v1.15.4
zdd211-22.host.com   Ready    master,node   29m    v1.15.4
[root@zdd211-21 ~]# kubectl get pods
NAME             READY   STATUS    RESTARTS   AGE
nginx-ds-8r8sc   1/1     Running   0          5m21s
nginx-ds-pdznf   1/1     Running   0          5m21s

温馨



如果你喜欢本文，请分享到朋友圈，想要获得更多信息，请关注我。


本文来自互联网用户投稿，文章观点仅代表作者本人，不代表本站立场，不承担相关法律责任。如若转载，请注明出处。 如若内容造成侵权/违法违规/事实不符，请点击【内容举报】进行投诉反馈！

相关文章

Duilib中list控件支持ctrl和shif多行选中的实现

[ICML2015]Batch Normalization:Accelerating Deep Network Training by Reducing Internal Covariate Shif

win10系统 微软输入法 于eclipse ctrl+shif+f冲突间接处理办法

Codeforces Round #259 (Div. 2) B. Little Pony and Sort by Shif

读LDD3，内存映射与DMA--PAGE_SHIF…

VMware虚拟机安装XP【要先分区，再设置BOOT 启动CD，shif+上移】

更换iBus五笔的左与右Shif

sublime ctrl+shif+f 没用解决办法

idea 对 ctrl + z 的撤销 是 ctrl + shif + z

计算机最早的设计师应用于,计算机应用基础选择题doc.doc

win10自带截图神器：Win+Shift+S

Python基础之文件目录操作

python简述目录_Python基础之文件目录操作(示例代码)

tp5 如何做数据采集

任务2-7(服务器字体+阿里巴巴矢量库)

html标签（1)：h1~h6,p,br,pre,hr

TI 电量计介绍与芯片选型指南

几款TI电源芯片简介

TI DSP芯片C2000系列读取FLASH数据

德州仪器(Ti)平台嵌入式开发基础

TI三相电机智能栅极驱动芯片特点分类

省选模拟（12.08） T3 圈圈圈圈圈圈圈圈

Hadoop生态圈技术栈（上）

大数据开发基础入门与项目实战（三）Hadoop核心及生态圈技术栈之6.Impala交互式查询

小猿圈之Linux下Mysql 操作命令

大数据Hadoop生态圈常用面试题

大数据开发基础入门与项目实战（三）Hadoop核心及生态圈技术栈之4.Hive DDL、DQL和数据操作

备战Noip2018模拟赛11（B组）T3 Monogatari 物语

【智能优化算法-圆圈搜索算法】基于圆圈搜索算法Circle Search Algorithm求解单目标优化问题附matlab代码

NYOJ 78 圈水池

递归问题 跑道 汽车 绕圈问题 Python实现

Hadoop生态圈（三）：MapReduce

立即
投稿

微信公众账号

微信扫一扫加关注

 返回
顶部
