流程引擎 Camunda工作流的退回起点 退回上一级

Camunda工作流的退回操作

话不多说,直接上代码

代码块 1:

/*** 退回到起点*/
@Test
public void deny(){String processInstanceId = "37f9f9f4-9f72-11ec-8d1f-5254000c17ac";Task activeTask = taskService.createTaskQuery().processInstanceId(processInstanceId).active().singleResult();HistoricTaskInstance taskInstance = historyService.createHistoricTaskInstanceQuery().taskId(activeTask.getId()).singleResult();// 获取流程定义ProcessDefinitionEntity processDefinitionEntity = (ProcessDefinitionEntity) ((RepositoryServiceImpl) repositoryService).getDeployedProcessDefinition(taskInstance.getProcessDefinitionId());// 获取当前活动ActivityImpl currentActivity = processDefinitionEntity.findActivity(taskInstance.getTaskDefinitionKey());// 获取起始活动List<HistoricActivityInstance> historicActivityInstances = historyService.createHistoricActivityInstanceQuery().activityType("userTask").processInstanceId(processInstanceId).finished().orderByHistoricActivityInstanceEndTime().asc().list();if(historicActivityInstances.size() == 0){return ;}ActivityImpl lastActivity = processDefinitionEntity.findActivity(historicActivityInstances.get(0).getActivityId());// 退回至起点runtimeService.createProcessInstanceModification(processInstanceId).cancelAllForActivity(currentActivity.getActivityId()).startBeforeActivity(lastActivity.getActivityId()).setVariable("denyReason","就是搞你,就给你退回去").execute();
}

这段代码是参考Camunda官网来写来的,具体地址: https://docs.camunda.org/manual/7.15/user-guide/process-engine/process-instance-modification/#process-instance-modification-in-junit-tests

还有一段代码是参照activiti的退回写的,代码如下:

代码块 2:

/*** 任务回退到开始*/
@Test
public void rollBackToShangYiJi(){//String processInstanceId = "49b521ac-9f50-11ec-8d1f-5254000c17ac";String processInstanceId = "37f9f9f4-9f72-11ec-8d1f-5254000c17ac";// 根据流程实例 id 获取当前任务Task activeTask = taskService.createTaskQuery().processInstanceId(processInstanceId).active().singleResult();HistoricTaskInstance taskInstance = historyService.createHistoricTaskInstanceQuery().taskId(activeTask.getId()).singleResult();// 获取流程定义ProcessDefinitionEntity processDefinitionEntity = (ProcessDefinitionEntity) ((RepositoryServiceImpl) repositoryService).getDeployedProcessDefinition(taskInstance.getProcessDefinitionId());// 获取当前活动ActivityImpl currentActivity = processDefinitionEntity.findActivity(taskInstance.getTaskDefinitionKey());//清除当前活动出口List<PvmTransition> originPvmTransitions = new ArrayList<>();List<PvmTransition> pvmTransitionList = currentActivity.getOutgoingTransitions();for (PvmTransition pvmTransition : pvmTransitionList) {originPvmTransitions.add(pvmTransition);}pvmTransitionList.clear();//查找最开始的user task节点List<HistoricActivityInstance> historicActivityInstances = historyService.createHistoricActivityInstanceQuery().activityType("userTask").processInstanceId(processInstanceId).finished().orderByHistoricActivityInstanceEndTime().asc().list();TransitionImpl transition = null;if(historicActivityInstances.size() > 0){ActivityImpl lastActivity = processDefinitionEntity.findActivity(historicActivityInstances.get(0).getActivityId());//把当前任务的新出口设置为最开始的userTask节点transition = currentActivity.createOutgoingTransition(lastActivity.getId());transition.setDestination(lastActivity);}// 完成任务List<Task> tasks = taskService.createTaskQuery().processInstanceId(processInstanceId).taskDefinitionKey(taskInstance.getTaskDefinitionKey()).list();for(Task task : tasks){taskService.complete(task.getId());historyService.deleteHistoricTaskInstance(task.getId());}//恢复活动方向currentActivity.getOutgoingTransitions().remove(transition);for (PvmTransition pvmTransition : originPvmTransitions) {pvmTransitionList.add(pvmTransition);}
}

参考网址:https://blog.csdn.net/qq_41136963/article/details/108184871

目前存在的问题

代码块1:

无法添加退回意见

代码块2:

测试时可以反复退回
但在实际环境下,二次退回时,节点的namedOutgoingTransitions无法清空,导致无法使当前节点的出口设置为起始节点
博主在找不到解决方案的情况下选择了代码块1

关于退回到上一级

假如存在 o -> 1 -> 2 ->3 -> O 的流程
如果用户在2节点和3节点之间反复横跳,来回的同意和退回,就会导致出现一大堆的historicActivityInstances数据
如果还使用上面的两个代码块中的代码,仅仅通过调整数字下标是无法准确定位到当前节点的上一级节点的
如何准确的获取需要用到一个有序不重复的集合LinkedHashSet

// 新建一个有序不重复集合
LinkedHashSet linkedHashSet = new LinkedHashSet();
// 获取当前的任务节点
String activeTask = "Activity_0lj34xv";
String backTask = "";
historyService.createHistoricTaskInstanceQuery().processInstanceId(processInstanceId).orderByHistoricTaskInstanceEndTime().asc().list().stream().forEach(historicTaskInstance -> {linkedHashSet.add(historicTaskInstance.getTaskDefinitionKey());
});
if(linkedHashSet.size() == 0){return ;
}
// 遍历到当前的任务节点后,取上一次遍历的值
Iterator<String> iterator = linkedHashSet.iterator();
while(iterator.hasNext()){String nowTask = iterator.next();if(StrUtil.equals(nowTask,activeTask)){return backTask;}backTask = nowTask;
}
backTask.toString();

关于添加退回意见

在退回起点之前,直接选中当前任务节点添加comment即可

关于任务状态的分辨

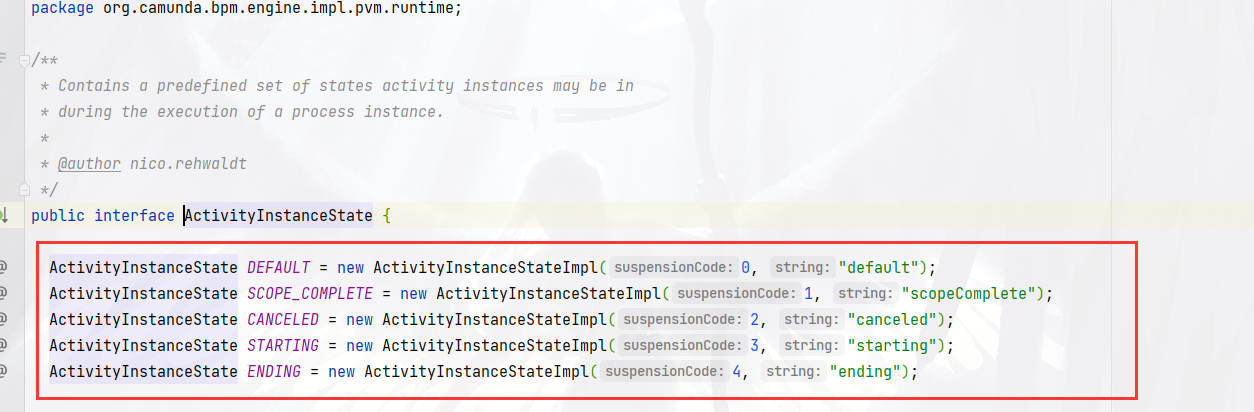

源码里对任务状态的标识

可以根据自己需要做简单转换

int state = ((HistoricActivityInstanceEntity) historicActivityInstance).getActivityInstanceState();
if (state == ActivityInstanceState.ENDING.getStateCode()){activityInfoVo.setResult("同意");
}else if(state == ActivityInstanceState.CANCELED.getStateCode()){activityInfoVo.setResult("退回");
}else if(state == ActivityInstanceState.DEFAULT.getStateCode()){activityInfoVo.setResult("进行中");
}

最后,欢迎大家留言讨论, 共同进步,一起成长
