[UGUI效果实现]图片色彩颜色渐变

一、效果

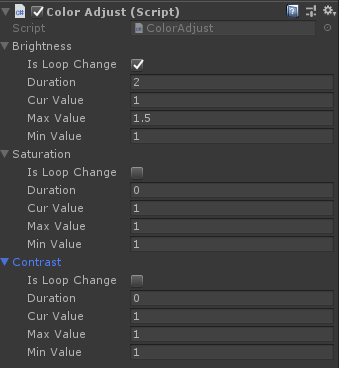

二、参数设置

Brightness:亮度

Saturation:饱和度

Contrast:对比度

成员属性：

Is Loop Change:是否循环变化（渐变）

Duration:渐变的时间

CurValue:当前值

MaxValue:最大值，只有当Is Loop Change选中时才有效

MinValue:最小值，只有当Is Loop Change选中时才有效

三、脚本

C#脚本：(注意引用DoTween)

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
using DG.Tweening;[System.Serializable]
public struct ColorAdjustShaderData
{public bool IsLoopChange;public float Duration;public float CurValue;public float MaxValue;public float MinValue;
}public class ColorAdjust : MonoBehaviour
{public ColorAdjustShaderData Brightness; //调整亮度public ColorAdjustShaderData Saturation;//调整饱和度public ColorAdjustShaderData Contrast; //调整对比度private MaskableGraphic maskableGraphic;void Awake(){maskableGraphic = GetComponent();if (maskableGraphic){Image image = maskableGraphic as Image;if (image){image.material = new Material(Shader.Find("Custom/ColorAdjustEffect"));}}if (Brightness.IsLoopChange){DOTween.To(x => Brightness.CurValue = x, Brightness.MinValue, Brightness.MaxValue, Brightness.Duration).SetLoops(-1,LoopType.Yoyo);}if (Saturation.IsLoopChange){DOTween.To(x => Saturation.CurValue = x, Saturation.MinValue, Saturation.MaxValue, Saturation.Duration).SetLoops(-1, LoopType.Yoyo);}if (Contrast.IsLoopChange){DOTween.To(x => Contrast.CurValue = x, Contrast.MinValue, Contrast.MaxValue, Contrast.Duration).SetLoops(-1, LoopType.Yoyo);}}void Update(){if (Brightness.IsLoopChange){maskableGraphic.material.SetFloat("_Brightness", Brightness.CurValue);}if (Saturation.IsLoopChange){maskableGraphic.material.SetFloat("_Saturation", Brightness.CurValue);}if (Contrast.IsLoopChange){maskableGraphic.material.SetFloat("_Contrast", Brightness.CurValue);}}void Start(){SetShader();}public void SetShader(){maskableGraphic.material.SetFloat("_Brightness", Brightness.CurValue);maskableGraphic.material.SetFloat("_Saturation", Saturation.CurValue);maskableGraphic.material.SetFloat("_Contrast", Contrast.CurValue);}
}

Shader脚本（本人并不会Shader，这是网上一位兄弟写的）

Shader "Custom/ColorAdjustEffect"
{Properties{_MainTex("Albedo (RGB)", 2D) = "white" {}_Brightness("Brightness", Float) = 1    //调整亮度_Saturation("Saturation", Float) = 1    //调整饱和度_Contrast("Contrast", Float) = 1        //调整对比度}SubShader{Pass{ZTest AlwaysCull OffZWrite OffBlend SrcAlpha OneMinusSrcAlphaCGPROGRAMsampler2D _MainTex;half _Brightness;half _Saturation;half _Contrast;//vert和frag函数
#pragma vertex vert
#pragma fragment frag
#include "Lighting.cginc"struct appdata_t{float4 vertex : POSITION;half4 color : COLOR;float2 texcoord : TEXCOORD0;};//从vertex shader传入pixel shader的参数struct v2f{float4 pos : SV_POSITION; //顶点位置half2  uv : TEXCOORD0;    //UV坐标half4 color : COLOR;};//vertex shaderv2f vert(appdata_t v){v2f o;//从自身空间转向投影空间o.pos = UnityObjectToClipPos(v.vertex);o.color = v.color;//uv坐标赋值给outputo.uv = v.texcoord;return o;}//fragment shaderfixed4 frag(v2f i) : COLOR{//从_MainTex中根据uv坐标进行采样fixed4 renderTex = tex2D(_MainTex, i.uv)*i.color;//brigtness亮度直接乘以一个系数，也就是RGB整体缩放，调整亮度fixed3 finalColor = renderTex * _Brightness;//saturation饱和度：首先根据公式计算同等亮度情况下饱和度最低的值：fixed gray = 0.2125 * renderTex.r + 0.7154 * renderTex.g + 0.0721 * renderTex.b;fixed3 grayColor = fixed3(gray, gray, gray);//根据Saturation在饱和度最低的图像和原图之间差值finalColor = lerp(grayColor, finalColor, _Saturation);//contrast对比度：首先计算对比度最低的值fixed3 avgColor = fixed3(0.5, 0.5, 0.5);//根据Contrast在对比度最低的图像和原图之间差值finalColor = lerp(avgColor, finalColor, _Contrast);//返回结果，alpha通道不变return fixed4(finalColor, renderTex.a);}ENDCG}}//防止shader失效的保障措施FallBack Off
}
