CountDownLatch与CyclicBarrier基本原理及区别
目录
一、CountDownLatch测试demo
二、CountDownLatch源码分析
三、cyclebarrier測試demo
四、CountDownLatch源码分析
兩者區別：
一、CountDownLatch测试demo
注：這裏調用countDownLatch.await()的綫程稱之爲主綫程
public class CountDownLatchTest {private static final int NUM=3 ;public static void main(String[] args) throws InterruptedException {CountDownLatch countDownLatch = new CountDownLatch(NUM);for(int i = 1; i <= NUM; i++){new Thread(() -> {System.out.println(String.format("%s已经准备好了",Thread.currentThread().getName()));countDownLatch.countDown();System.out.println(String.format("还有%d位玩家未准备好",countDownLatch.getCount()));}, "玩家"+i).start();}System.out.println("主线程正在等待所有玩家准备好");countDownLatch.await();TimeUnit.SECONDS.sleep(1);System.out.println("主线程被唤醒,开始主线程逻辑");}主线程正在等待所有玩家准备好
玩家2已经准备好了
玩家3已经准备好了
玩家1已经准备好了
还有2位玩家未准备好
还有1位玩家未准备好
还有0位玩家未准备好
主线程被唤醒,开始主线程逻辑
二、CountDownLatch源码分析
核心类AQS——抽象队列同步器AbstractQueuedSynchronizer

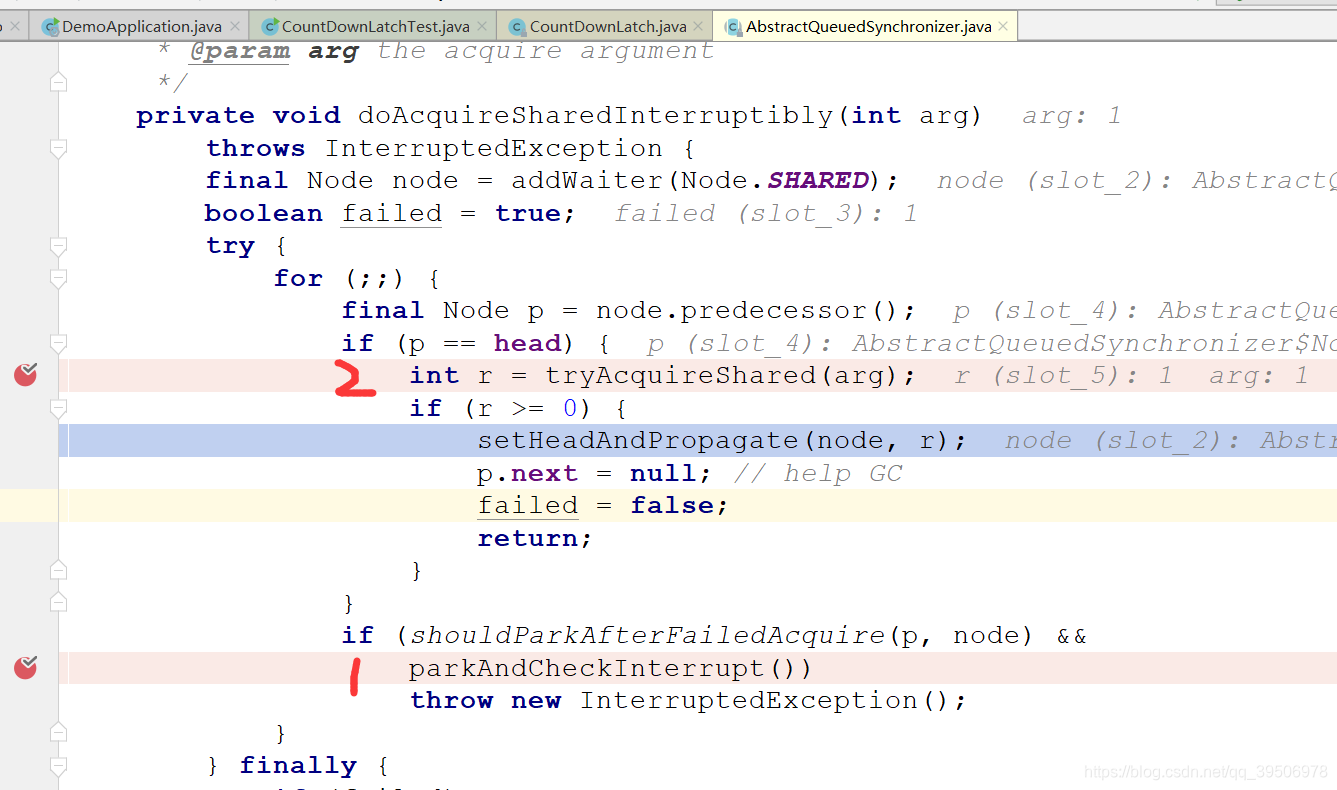

①主线程countDownLatch.await() ->doAcquireSharedInterruptibly死循环->第二次循环进入“标记1”的parkAndCheckInterrupt(),里面LockSupport.park(this),主线程进入等待状态；

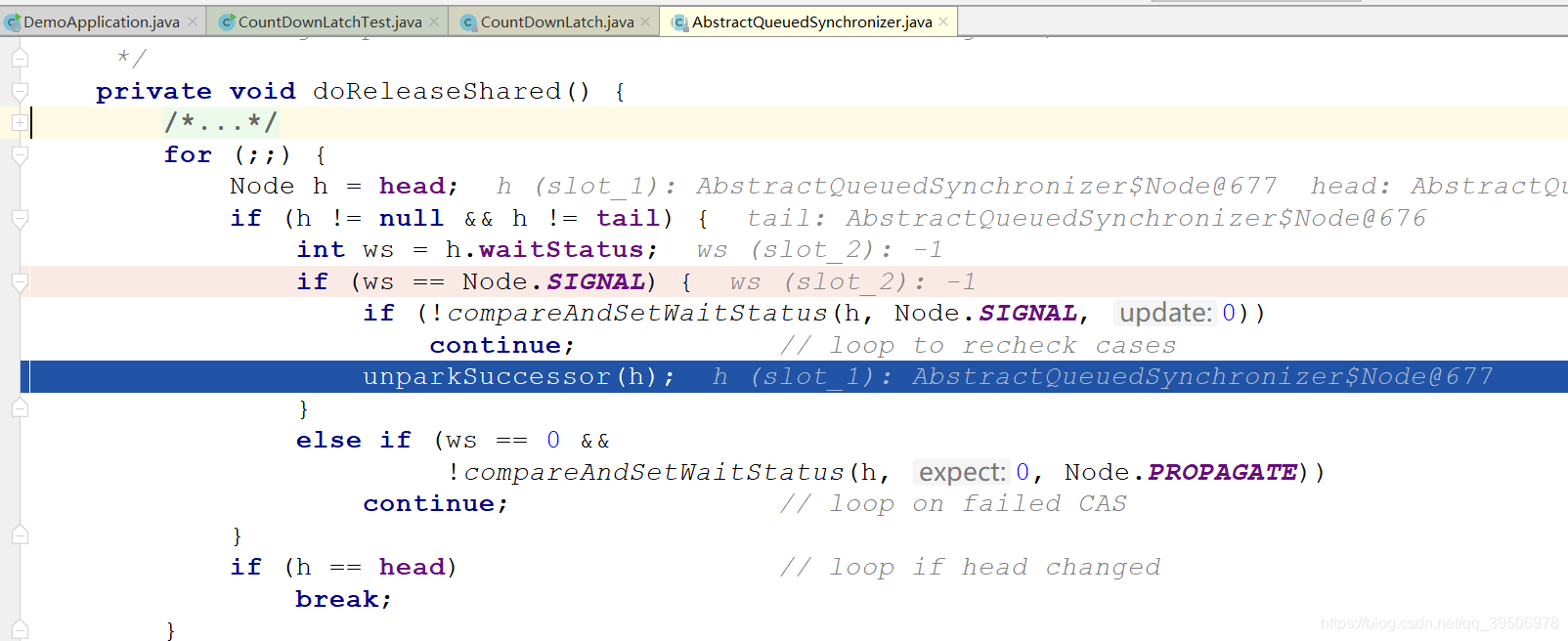

②子线程countDownLatch.countDown()，每执行一次检查并修改AQS的state，state是否已countDown到0，如果到0则unparkSuccessor(h),里面调用LockSupport.unpark(s.thread),唤醒调用countDownLatch.await的主线程，主线程唤醒后继续上图的死循环，到“标记2”时tryAcquireShared会检查AQS的state并返回r=1退出死循环，然后执行主线程countDownLatch.await后面的逻辑
三、cyclebarrier測試demo
package com.example.demo;import java.io.IOException;
import java.util.concurrent.*;public class CyclicBarrierTest {public static void main(String[] args) throws IOException, InterruptedException {CyclicBarrier barrier = new CyclicBarrier(3, () -> {System.out.println("栅栏已达到开放条件");});ExecutorService executor = Executors.newFixedThreadPool(3);executor.submit(new Thread(new Runner(barrier, "1号选手")));executor.submit(new Thread(new Runner(barrier, "2号选手")));executor.submit(new Thread(new Runner(barrier, "3号选手")));executor.submit(new Thread(new Runner(barrier, "4号选手")));executor.submit(new Thread(new Runner(barrier, "5号选手")));executor.submit(new Thread(new Runner(barrier, "6号选手")));executor.submit(new Thread(new Runner(barrier, "7号选手")));System.out.println("主线程完毕");executor.shutdown();}
}class Runner implements Runnable {private CyclicBarrier barrier;private String name;public Runner(CyclicBarrier barrier, String name) {super();this.barrier = barrier;this.name = name;}@Overridepublic void run() {try {System.out.println(name + " 准备好了...");barrier.await(3, TimeUnit.SECONDS);} catch (Exception e) {e.printStackTrace();}System.out.println(name + " 起跑！");}
}
四、CountDownLatch源码分析
核心类——抽象队列同步器AbstractQueuedSynchronizer+Condition接口

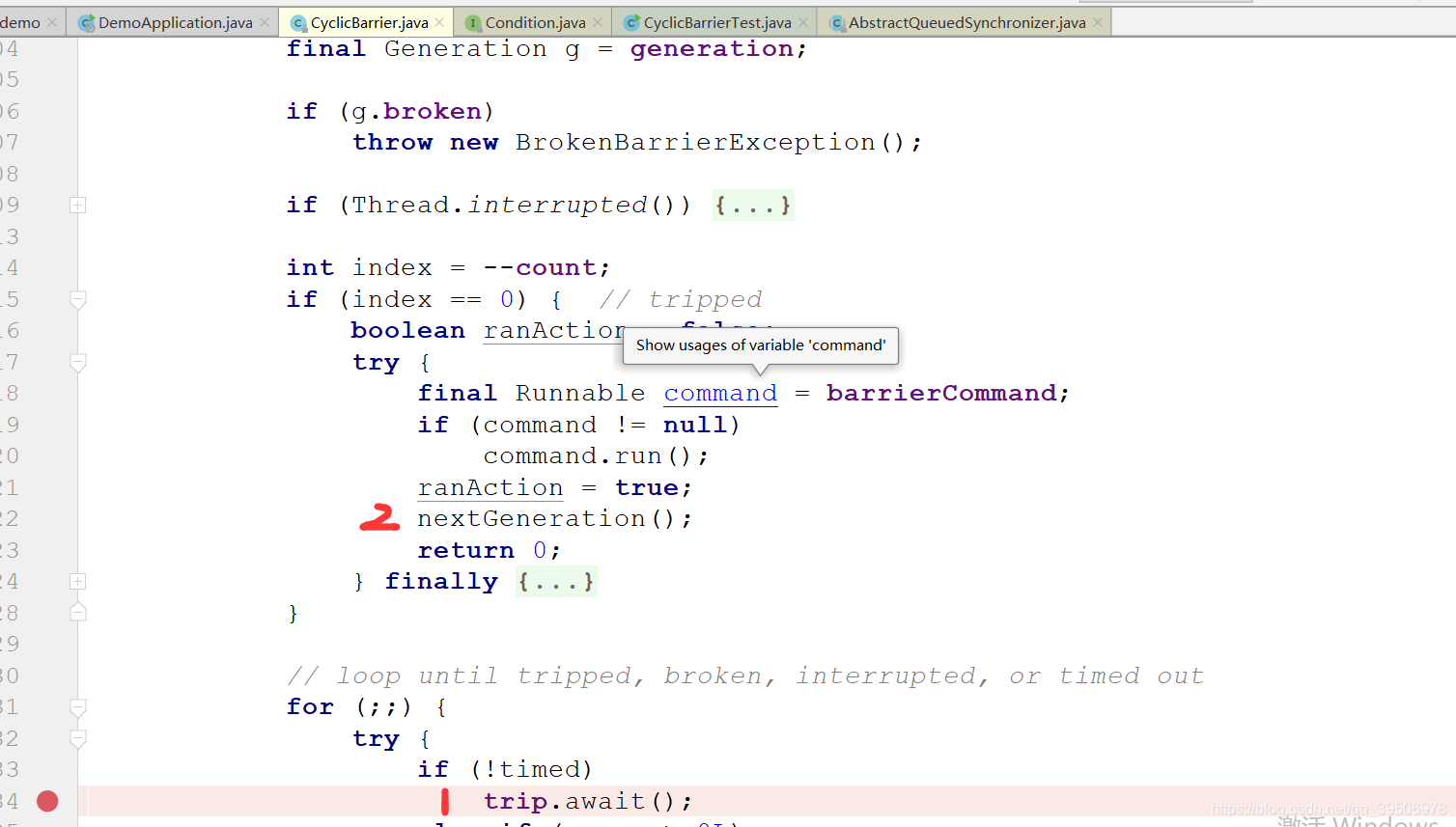

①子綫程每次調用barrier.await，int index = --count計數器減一，如果index！=0，進入“標記1”trip.await()。trip為Condition接口類型，實現仍然是AQS，裏面是LockSupport.park(this);
如果index=0則進入“標記2”，這之前如果cyclebarrier如果傳入了barrierAction會在這裏執行【最后一个线程到达之后栅栏触发（但在释放所有线程之前），该命令只在每个屏障点运行一次】。“標記2”nextGeneration()方法裏會執行trip.signalAll()喚醒柵欄上所有綫程並重置計數器count。
兩者區別：
1.countDownLatch.countdown()只是在countdown到0时对"主"线程进行唤醒（如果多个线程调用await()方法，则都会被唤醒），子线程不会阻塞且会执行countDownLatch.countdown()后的逻辑，子线程会优先主线程结束;
2.circlebarrier阻塞的是barrier.await()的线程，计数器count递减到0时重置计数器，唤醒所有阻塞的线程，然后继续执行barrier.await()后的逻辑；
3.circlebarrier计数器可重置；
4.两者都是基于park/unpark等待唤醒机制实现，两者的await()都支持等待超时\中断，规避死锁
其它：任何一个await阻塞的线程被中断，那么栅栏就认为是打破了，所有阻塞的await将继续运行并抛出BrokenBarrierException；await超时同样如此
package com.smtc.cloud.msg.mqtt;import java.io.IOException;
import java.util.concurrent.*;public class CyclicBarrierTest {public static void main(String[] args) throws IOException, InterruptedException {CyclicBarrier barrier = new CyclicBarrier(3, () -> {System.out.println("栅栏已达到开放条件");});ExecutorService executor = Executors.newFixedThreadPool(3);executor.submit(new Thread(new Runner(barrier, "1号选手")));executor.submit(new Thread(new Runner(barrier, "2号选手")));System.out.println("主线程完毕");executor.shutdown();}
}class Runner implements Runnable {private CyclicBarrier barrier;private String name;public Runner(CyclicBarrier barrier, String name) {super();this.barrier = barrier;this.name = name;}@Overridepublic void run() {try {System.out.println(name + " 准备好了...");if (Thread.currentThread().getName().contains("2")){Thread.currentThread().interrupt();}barrier.await();} catch (Exception e) {e.printStackTrace();}System.out.println(name + " 起跑！");}
}
其它测试
public class ConcurrentTest {// 请求总数public static int clientTotal = 5000;// 同时并发执行的线程数public static int threadTotal = 200;// public static int count=0;有线程安全问题，结果可能不为5000public static AtomicInteger count=new AtomicInteger(0);public static void main(String[] args) throws Exception {ExecutorService executorService = Executors.newCachedThreadPool();final Semaphore semaphore = new Semaphore(threadTotal);final CountDownLatch countDownLatch = new CountDownLatch(clientTotal);for (int i = 0; i < clientTotal ; i++) {executorService.execute(() -> {try {semaphore.acquire();//5000次循环完成，每次到这里获取令牌并-1当没有令牌就阻塞，一个线程执行完业务后释放令牌计数+1，阻塞的4800队列来抢这个信号执行Thread.sleep(1111);count.addAndGet(1);//count++;semaphore.release();} catch (Exception e) {}countDownLatch.countDown();//所有线程执行到这阻塞到countdown到0时一起执行System.out.println(countDownLatch.getCount());});}countDownLatch.await();//executorService.shutdown();System.out.println(count);}}
