深入理解RPC之手写RPC框架

TOC

一. RPC是什么

RPC全称remote procedure call，翻译过来就是远程过程调用。在分布式系统中，一个模块像调用本地方法一样调用远程方法的过程，就叫RPC。
我们耳熟能详的webservice、restful接口调用都是RPC，只是消息的组织方式和消息协议不同。
为了加深对RPC的理解，我手写了一个简单的RPC框架，完整的代码已上传至https://github.com/RingWu2012/ym-rpc

二.RPC流程

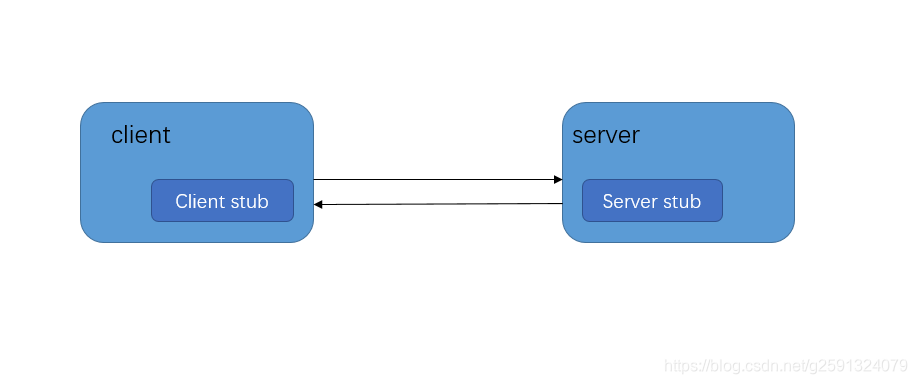

RPC的流程大致如上图所示：

1. 客户端调用client stub（client stub位于本地，就和调用本地方法一样），传递参数
2. clientstub将参数编组为消息，然后通过系统调用向服务的发送消息；
3. 客户端本地操作系统将消息从客户端机器发送到服务端机器；
4. 服务的操作系统将接收到的数据包传递给Server stub；
5. Server stub解组消息为参数；
6. Server stub再调用服务端的过程，过程执行结果以相同的方式回传给客户端。

三. RPC协议

涉及到通信，自然需要协议，比如tcp、udp、http、ssh、hession、thrift、grpc、webservice等等；相信有很多小伙伴也马上想到了netty，事实上，很多RPC框架都用到了netty。

常用的RPC协议有SOAP、XML-RPC、JSON-RPC、JSON-WSP，传统的webservice框架apache cxf、apache axis2等大多基于标准的SOAP协议；很多新兴的框架，譬如dubbo支持多种协议。

四. 手写RPC框架

在了解了RPC的基本原理后，尝试来写一个RPC框架。一方面可以加深对RPC的理解，另外一方面，也可以发现RPC过程中一些细节上的问题，对于阅读开源RPC框架的源码很有帮助。
在开发前，需要说明的是，用户在使用RPC框架的时候，过程接口的定义，接口的调用，接口的实现都是用户去完成的。

客户端代码开发

结合前面的RPC流程，rpc客户端需要完成的功能的有：

1. 生成接口的代理对象
2. 从注册中心发现服务
3. 将请求编组为消息发送到服务端

1.生成接口的代理对象

这里使用jdk的动态代理生成接口的代理对象，生成代理对象的工厂类，代码如下

package cn.wym.rpc.client;import cn.wym.rpc.discovery.ServiceInfoDiscoverer;
import cn.wym.rpc.discovery.ZookeeperServiceInfoDiscoverer;
import lombok.Getter;
import lombok.Setter;import java.lang.reflect.Proxy;
import java.util.HashMap;
import java.util.Map;@Getter@Setter
public class ClientStubProxyFactory {//服务发现private ServiceInfoDiscoverer serviceInfoDiscoverer= new ZookeeperServiceInfoDiscoverer();//代理对象缓存，避免每次都新建private Map<Class<?>, Object> objectCache = new HashMap<Class<?>, Object>();//通信客户端，用于发送请求private NetClient netClient = new NettyClient();public <T> T getProxy(Class<T> interf) {T obj = (T) this.objectCache.get(interf);if (obj == null) {obj = (T) Proxy.newProxyInstance(interf.getClassLoader(), new Class<?>[] { interf },new ClientStubInvocationHandler(interf, serviceInfoDiscoverer, netClient));this.objectCache.put(interf, obj);}return obj;}
}

package cn.wym.rpc.client;import cn.wym.rpc.common.Request;
import cn.wym.rpc.common.Response;
import cn.wym.rpc.discovery.ServiceInfo;
import cn.wym.rpc.discovery.ServiceInfoDiscoverer;
import cn.wym.rpc.protocol.JSONRpcPRotocol;
import cn.wym.rpc.protocol.RpcProtocol;import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.util.List;
import java.util.Random;public class ClientStubInvocationHandler implements InvocationHandler {private Class<?> interf;private ServiceInfoDiscoverer serviceInfoDiscoverer;private NetClient netClient;private Random random = new Random();public <T> ClientStubInvocationHandler(Class<T> interf, ServiceInfoDiscoverer serviceInfoDiscoverer, NetClient netClient) {this.interf = interf;this.serviceInfoDiscoverer = serviceInfoDiscoverer;this.netClient = netClient;}public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {if (method.getName().equals("toString")) {return proxy.getClass().toString();}if (method.getName().equals("hashCode")) {return 0;}//根据名称去注册中心找到对应的服务String serviceName = method.getName();List<ServiceInfo> serviceInfos = serviceInfoDiscoverer.getServiceInfo(serviceName);//缘分负载均衡ServiceInfo serviceInfo = serviceInfos.get(random.nextInt(serviceInfos.size()));//TODO: 将请求编组为消息发送到服务端，并读取服务端返回的结果}
}

2.从注册中心发现服务

这里使用zookeeper作为注册中心，从zookeeper上读取服务端的信息，包括 服务名称、协议、服务端地址；在上面的工厂类中，ServiceInfoDiscoverer就是服务发现类，相关代码如下：

@Getter@Setter
public class ServiceInfo {private String name;private String protocol;private String address;
}

package cn.wym.rpc.discovery;import java.util.List;public interface ServiceInfoDiscoverer {List<ServiceInfo> getServiceInfo(String name);
}

package cn.wym.rpc.discovery;import com.alibaba.fastjson.JSON;
import org.I0Itec.zkclient.ZkClient;import java.io.UnsupportedEncodingException;
import java.net.URLDecoder;
import java.util.ArrayList;
import java.util.List;public class ZookeeperServiceInfoDiscoverer implements ServiceInfoDiscoverer{ZkClient client;private String centerRootPath = "/ym-rpc";public ZookeeperServiceInfoDiscoverer() {//示例代码，配置信息直接写代码里了，实际应该写在配置文件里String addr = "10.18.51.105:2181";client = new ZkClient(addr);client.setZkSerializer(new DefaultZkSerializer());}public List<ServiceInfo> getServiceInfo(String name) {String servicePath = centerRootPath + "/" + name + "/service";List<String> children = client.getChildren(servicePath);List<ServiceInfo> resources = new ArrayList<ServiceInfo>();for (String ch : children) {try {String deCh = URLDecoder.decode(ch, "UTF-8");ServiceInfo r = JSON.parseObject(deCh, ServiceInfo.class);resources.add(r);} catch (UnsupportedEncodingException e) {e.printStackTrace();}}return resources;}}

package cn.wym.rpc.discovery;import org.I0Itec.zkclient.exception.ZkMarshallingError;
import org.I0Itec.zkclient.serialize.ZkSerializer;public class DefaultZkSerializer implements ZkSerializer {public byte[] serialize(Object o) throws ZkMarshallingError {return String.valueOf(o).getBytes();}public Object deserialize(byte[] bytes) throws ZkMarshallingError {return new String(bytes);}
}

3.将请求编组为消息发送到服务端

涉及到服务器之间通信，毫无疑问，直接上netty；协议的话，简单地来个json；

package cn.wym.rpc.protocol;import cn.wym.rpc.common.Request;
import cn.wym.rpc.common.Response;public interface RpcProtocol {//编码请求byte[] marshallingRequest(Request req) throws Exception;//解码请求Request unmarshallingRequest(byte[] data) throws Exception;//编码响应byte[] marshallingResponse(Response rsp) throws Exception;//解码响应Response unmarshallingResponse(byte[] data) throws Exception;
}

package cn.wym.rpc.protocol;import cn.wym.rpc.common.Request;
import cn.wym.rpc.common.Response;
import com.alibaba.fastjson.JSONObject;public class JSONRpcPRotocol implements RpcProtocol {public byte[] marshallingRequest(Request req) throws Exception {return JSONObject.toJSONBytes(req);}public Request unmarshallingRequest(byte[] data) throws Exception {return JSONObject.parseObject(data, Request.class);}public byte[] marshallingResponse(Response rsp) throws Exception {return JSONObject.toJSONBytes(rsp);}public Response unmarshallingResponse(byte[] data) throws Exception {return JSONObject.parseObject(data, Response.class);}
}

发送请求的客户端的代码如下：

package cn.wym.rpc.client;import cn.wym.rpc.discovery.ServiceInfo;public interface NetClient {byte[] sendRequest(byte[] data, ServiceInfo sinfo) throws Throwable;
}

package cn.wym.rpc.client;import cn.wym.rpc.discovery.ServiceInfo;
import io.netty.bootstrap.Bootstrap;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelOption;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioSocketChannel;public class NettyClient implements NetClient {public byte[] sendRequest(byte[] data, ServiceInfo sinfo) throws Throwable {String[] addInfoArray = sinfo.getAddress().split(":");final NettySendHandler sendHandler = new NettySendHandler(data);byte[] respData = null;// 配置客户端EventLoopGroup group = new NioEventLoopGroup();try {Bootstrap b = new Bootstrap();b.group(group).channel(NioSocketChannel.class).option(ChannelOption.TCP_NODELAY, true).handler(new ChannelInitializer<SocketChannel>() {@Overridepublic void initChannel(SocketChannel ch) throws Exception {ChannelPipeline p = ch.pipeline();p.addLast(sendHandler);}});// 启动客户端连接b.connect(addInfoArray[0], Integer.valueOf(addInfoArray[1])).sync();respData = (byte[]) sendHandler.rspData();} finally {// 释放线程组资源group.shutdownGracefully();}return respData;}
}

package cn.wym.rpc.client;import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import lombok.extern.slf4j.Slf4j;import java.util.concurrent.CountDownLatch;@Slf4j
public class NettySendHandler extends ChannelInboundHandlerAdapter {private CountDownLatch cdl = null;private Object readMsg = null;private byte[] data;public NettySendHandler(byte[] data) {cdl = new CountDownLatch(1);this.data = data;}@Overridepublic void channelActive(ChannelHandlerContext ctx) throws Exception {log.info("连接服务端成功：" + ctx);ByteBuf reqBuf = Unpooled.buffer(data.length);reqBuf.writeBytes(data);log.info("客户端发送消息：" + reqBuf);ctx.writeAndFlush(reqBuf);}public Object rspData() {try {cdl.await();} catch (InterruptedException e) {e.printStackTrace();}return readMsg;}@Overridepublic void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {log.info("客户端读取到的数据: " + msg);ByteBuf msgBuf = (ByteBuf) msg;byte[] resp = new byte[msgBuf.readableBytes()];msgBuf.readBytes(resp);readMsg = resp;cdl.countDown();}@Overridepublic void channelReadComplete(ChannelHandlerContext ctx) {ctx.flush();}@Overridepublic void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) {// Close the connection when an exception is raised.cause.printStackTrace();log.error("发生异常：" + cause.getMessage());ctx.close();}
}

服务端代码开发

服务端需要完成的功能有：

1. 向注册中心注册服务
2. 监听端口，接收来自客户端的请求
3. 调用用户的实现类处理请求，结果回传给客户端

1. 向注册中心注册服务

将服务的信息（地址、端口、接口名称、支持的协议）写入到zookeeper

package cn.wym.rpc.server.registry;public interface ServiceRegister {void register(ServiceObject so, String protocol, int port) throws Exception;ServiceObject getServiceObject(String name) throws Exception;
}

package cn.wym.rpc.server.registry;import cn.wym.rpc.discovery.DefaultZkSerializer;
import cn.wym.rpc.discovery.ServiceInfo;
import cn.wym.rpc.util.PropertiesUtils;
import com.alibaba.fastjson.JSON;
import org.I0Itec.zkclient.ZkClient;import java.io.UnsupportedEncodingException;
import java.net.InetAddress;
import java.net.URLEncoder;
import java.util.HashMap;
import java.util.Map;/*** Zookeeper方式获取远程服务信息类。* * ZookeeperServiceInfoDiscoverer*/
public class ZookeeperExportServiceRegister implements ServiceRegister {private ZkClient client;private String centerRootPath = "/ym-rpc";private Map<String, ServiceObject> serviceMap = new HashMap<String, ServiceObject>();public ServiceObject getServiceObject(String name) {return this.serviceMap.get(name);}public ZookeeperExportServiceRegister() {String addr = PropertiesUtils.getProperties("zk.address");client = new ZkClient(addr);client.setZkSerializer(new DefaultZkSerializer());}public void register(ServiceObject so, String protocolName, int port) throws Exception {if (so == null) {throw new IllegalArgumentException("参数不能为空");}this.serviceMap.put(so.getName(), so);ServiceInfo soInf = new ServiceInfo();String host = InetAddress.getLocalHost().getHostAddress();String address = host + ":" + port;soInf.setAddress(address);soInf.setName(so.getInterf().getName());soInf.setProtocol(protocolName);this.exportService(soInf);}private void exportService(ServiceInfo serviceResource) {String serviceName = serviceResource.getName();String uri = JSON.toJSONString(serviceResource);try {uri = URLEncoder.encode(uri, "UTF-8");} catch (UnsupportedEncodingException e) {e.printStackTrace();}String servicePath = centerRootPath + "/" + serviceName + "/service";if (!client.exists(servicePath)) {client.createPersistent(servicePath, true);}String uriPath = servicePath + "/" + uri;if (client.exists(uriPath)) {client.delete(uriPath);}client.createEphemeral(uriPath);}
}

package cn.wym.rpc.server.registry;import lombok.AllArgsConstructor;
import lombok.Getter;
import lombok.Setter;@Getter@Setter@AllArgsConstructor
public class ServiceObject {private String name;private Class<?> interf;private Object obj;
}

2.监听端口，接收来自客户端的请求

通过netty监听固定端口来接收客户端的请求，并使用ChannelHandler来处理请求

package cn.wym.rpc.server;import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.*;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.logging.LogLevel;
import io.netty.handler.logging.LoggingHandler;
import lombok.Getter;
import lombok.Setter;
import lombok.extern.slf4j.Slf4j;@Getter@Setter@Slf4j
public class NettyRpcServer {protected int port;protected String protocol;protected RequestHandler handler;private Channel channel;public NettyRpcServer(int port, String protocol, RequestHandler handler) {this.port = port;this.protocol = protocol;this.handler = handler;}public void start() {// 配置服务器EventLoopGroup bossGroup = new NioEventLoopGroup(1);EventLoopGroup workerGroup = new NioEventLoopGroup();try {ServerBootstrap b = new ServerBootstrap();b.group(bossGroup, workerGroup).channel(NioServerSocketChannel.class).option(ChannelOption.SO_BACKLOG, 100).handler(new LoggingHandler(LogLevel.INFO)).childHandler(new ChannelInitializer<SocketChannel>() {@Overridepublic void initChannel(SocketChannel ch) throws Exception {ChannelPipeline p = ch.pipeline();p.addLast(new ChannelRequestHandler(handler));}});// 启动服务ChannelFuture f = b.bind(port).sync();log.info("完成服务端端口绑定与启动");channel = f.channel();// 等待服务通道关闭f.channel().closeFuture().sync();} catch (Exception e) {e.printStackTrace();} finally {// 释放线程组资源bossGroup.shutdownGracefully();workerGroup.shutdownGracefully();}}public void stop() {this.channel.close();}}

package cn.wym.rpc.server;import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.exception.ExceptionUtils;@Slf4j
public class ChannelRequestHandler  extends ChannelInboundHandlerAdapter {private RequestHandler handler;public ChannelRequestHandler(RequestHandler handler) {this.handler = handler;}@Overridepublic void channelActive(ChannelHandlerContext ctx) throws Exception {log.info("激活");}@Overridepublic void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {log.info("服务端收到消息：" + msg);ByteBuf msgBuf = (ByteBuf) msg;byte[] req = new byte[msgBuf.readableBytes()];msgBuf.readBytes(req);byte[] res = handler.handleRequest(req);log.info("发送响应：" + msg);ByteBuf respBuf = Unpooled.buffer(res.length);respBuf.writeBytes(res);ctx.write(respBuf);}@Overridepublic void channelReadComplete(ChannelHandlerContext ctx) {ctx.flush();}@Overridepublic void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) {log.error(ExceptionUtils.getStackTrace(cause));ctx.close();}
}

3.调用用户的实现类处理请求，结果回传给客户端

package cn.wym.rpc.server;import cn.wym.rpc.common.Request;
import cn.wym.rpc.common.Response;
import cn.wym.rpc.common.Status;
import cn.wym.rpc.protocol.RpcProtocol;
import cn.wym.rpc.server.registry.ServiceObject;
import cn.wym.rpc.server.registry.ServiceRegister;
import lombok.Getter;
import lombok.Setter;import java.lang.reflect.Method;@Getter@Setter
public class RequestHandler {private RpcProtocol protocol;private ServiceRegister serviceRegister;public RequestHandler(RpcProtocol protocol, ServiceRegister serviceRegister) {super();this.protocol = protocol;this.serviceRegister = serviceRegister;}public byte[] handleRequest(byte[] data) throws Exception {// 1、解组消息Request req = this.protocol.unmarshallingRequest(data);// 2、查找服务对象ServiceObject so = this.serviceRegister.getServiceObject(req.getServiceName());Response rsp = null;if (so == null) {rsp = new Response(Status.NOT_FOUND);} else {// 3、反射调用对应的过程方法try {Method m = so.getInterf().getMethod(req.getMethod(), req.getParameterTypes());Object returnValue = m.invoke(so.getObj(), req.getParameters());rsp = new Response(Status.SUCCESS);rsp.setReturnValue(returnValue);} catch (Exception e) {rsp = new Response(Status.ERROR);rsp.setException(e);}}// 4、编组响应消息return this.protocol.marshallingResponse(rsp);}
}

五. 验证

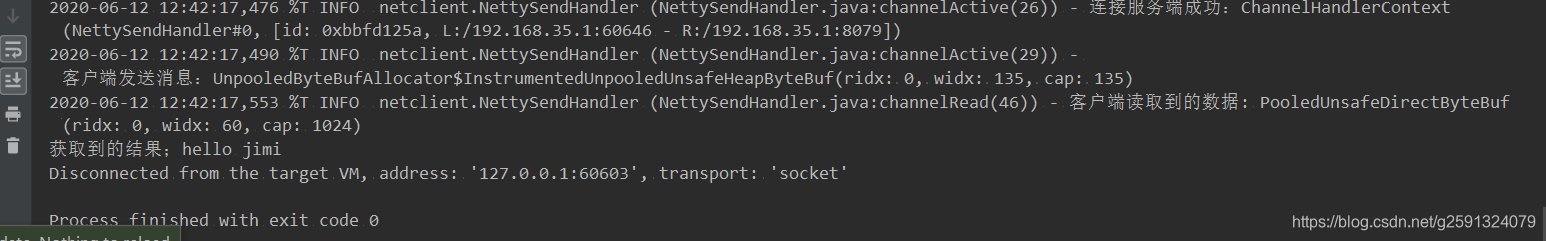

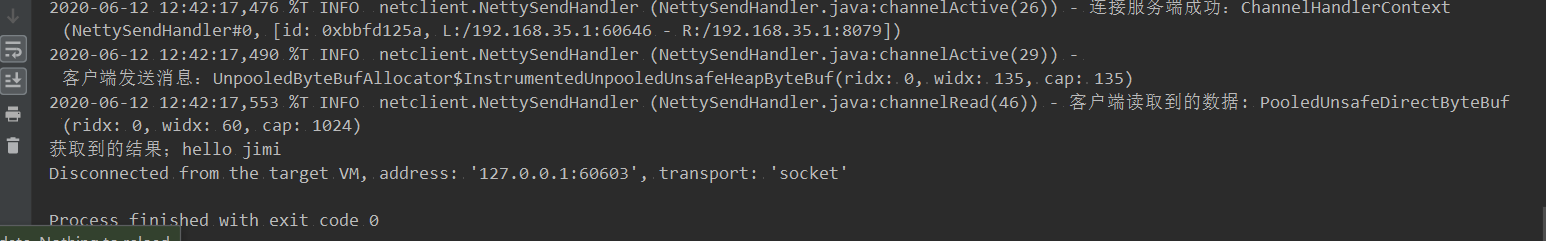

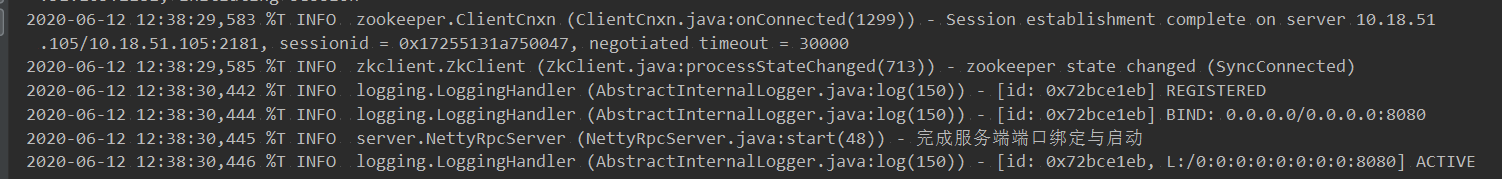

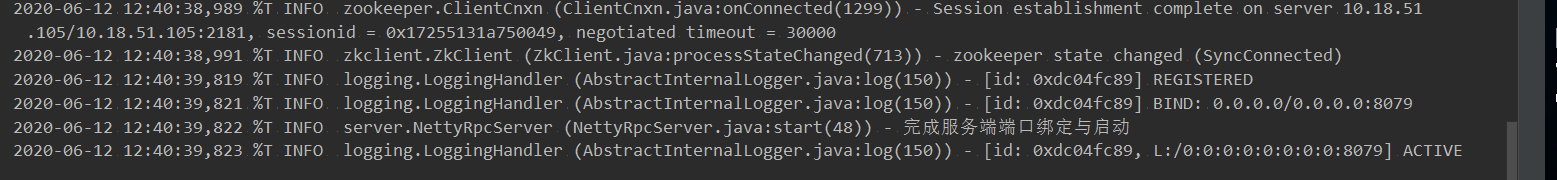

写一个Provider，Consumer，还有一个DemoService的接口，分别启动两个provider实例，监听端口8080,8079，然后运行consumer，查看服务调用情况
