SIEBEL功能开发文档-服务报告客制化
文章目录
- 业务需求
- 设计思路和整体方案
- 主函数解析
- 步骤
- 一、定制xml模板
- 二、整合服务报告数据
- 普通字段
- 图片
- 图片拼接成xml
- 动态表格
- 函数调用流程梳理
业务需求
活动完成之后，业务需要根据本次活动的实际内容，一键生成服务报告，之后触发OA流程审批。
设计思路和整体方案
siebel没有直接生成PDF和Word的功能，所以只能调用jar包来生成doc格式的文档。jar包通过参数和xml模板生成文档。
整体数据流是siebel后端整合siebel信息，拼接xml格式的文档，通过jbs调用jar包，输出doc格式文档到指定的目录下。
主函数解析
//打印服务请求报告功能
function Fn_CreateReport(Inputs,Outputs)
{try{//方法入参var sId = Inputs.GetProperty("Id");//var sId="1-M7KS9"; var sAttachType = TheApplication().InvokeMethod("LookupValue","NGC_FD_DOCTYPE","Endoscopy FSR");//内窥镜检查报告var sCreate=new Date(); //打印服务报告时间var sCreateDate=sCreate.getFullYear()+""+(Number(sCreate.getMonth())+1)+""+sCreate.getDate()+""+sCreate.getHours()+""+sCreate.getMinutes()+""+sCreate.getSeconds();var index="";//测试demovar sTemplate = TheApplication().GetService("NGC System Service").GettxtTmpl("NGCFDTSTNKJTM"); //获取中文模板(路径+文件名)var sSystem=TheApplication().GetService("NGC System Service").GetParameters("OPERATING_SYSTEM");//当前操作系统类型 var sFilePath = TheApplication().GetService("NGC System Service").GetParameters("INTERFACE_FILEPATH_T"); //文件服务器路径var sFileExt = "doc"; //文件后缀var sFileName = "NGC现场服务报告-内窥镜-一级行星二级平行-" + sCreateDate; //中文文件名称 if(sSystem=="Windows"){index = sTemplate.lastIndexOf("\\"); //Windows拆分模板路径}else{index = sTemplate.lastIndexOf("/"); //Linux拆分模板路径} var sTemplatePath = sTemplate.substring(0, index + 1); //获取模板目录var sTemplateName = sTemplate.substring(index + 1, sTemplate.length); //获取模板文件名/*拼接模板xml,pstb和psimg为必填结构，核心模板内容由pstxt生成*/var bsJbs = TheApplication().GetService("NGC Public JBS");var psIn = TheApplication().NewPropertySet();var psOut = TheApplication().NewPropertySet();var pstxt = TheApplication().NewPropertySet();var pstb = TheApplication().NewPropertySet();var psimg = TheApplication().NewPropertySet();//添加列表 var pstb1 = TheApplication().NewPropertySet();pstb1.SetType("tableList");//添加图片var psimg1 = TheApplication().NewPropertySet();psimg1.SetType("image");/***************处理xml文本填充*******************************///获取活动及服务请求相关信息FWBG_MainGetActSerMsg(sId,pstxt);//获取人员信息var appByLoginName ="";var checkLoginName = "";Fn_GetPersonMsg(sCreate.getFullYear()+"/"+(Number(sCreate.getMonth())+1)+"/"+sCreate.getDate(),appByLoginName,pstxt,checkLoginName);//构建入参，调用word生成psimg.AddChild(psimg1);pstb.AddChild(pstb1);psIn.AddChild(pstxt);psIn.AddChild(pstb);psIn.AddChild(psimg);psIn.SetProperty("Templatepath",sTemplatePath);psIn.SetProperty("Createpath", sFilePath);psIn.SetProperty("AttachmentName", sFileName + "." + sFileExt);psIn.SetProperty("TemplateName", sTemplateName);bsJbs.InvokeMethod("GetPropertyData",psIn,psOut);docToDocx(sFilePath+sFileName,sFileExt);Fn_GenerateAttr(sFilePath+sFileName + "." + sFileExt,sFileName,sFileExt,sId,sAttachType,appByLoginName,checkLoginName)Outputs.SetProperty("Message_code",psOut.GetProperty("code"));Outputs.SetProperty("Message",psOut.GetProperty("message"));}catch(e){Outputs.SetProperty("Message_code","Error");Outputs.SetProperty("Message",e.message);}finally{psOut = null;psIn = null;bsJbs = null;}
}
流程图：参数准备-获取服务报告信息-构建jbs入参-调用jbs生成报告-生成CRM附件
步骤
一、定制xml模板
每一种服务报告的xml模板都有所区别，根据服务报告的内容、格式作区分。主要是动态表格和图片比较难处理
-

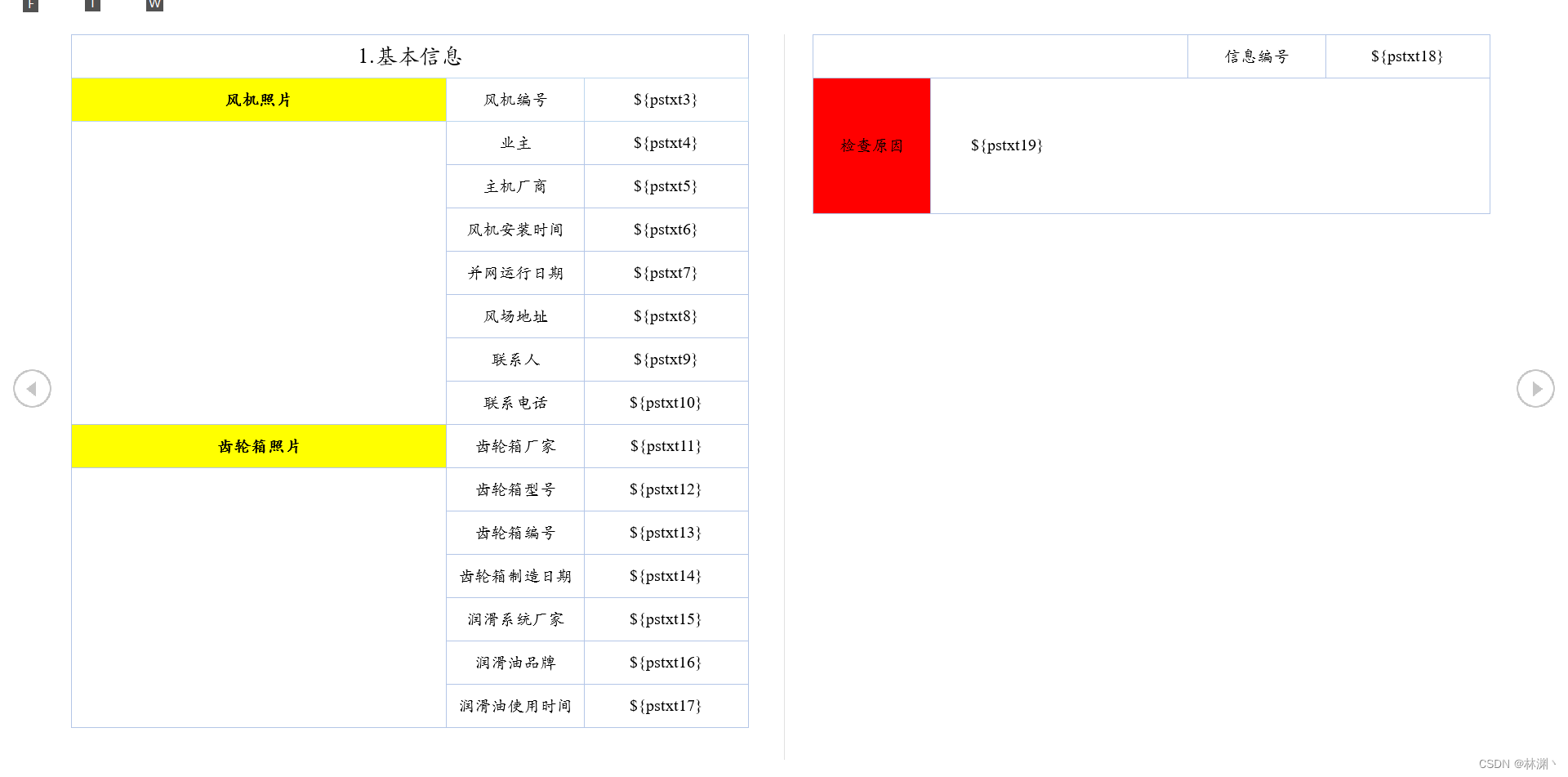

打开Word模板，所有的动态表格只保留一行即可，所有动态显示的图片删除，字段可以先用标识符占位。固定的字符和图片保持不动。将文档另存为xml格式
-

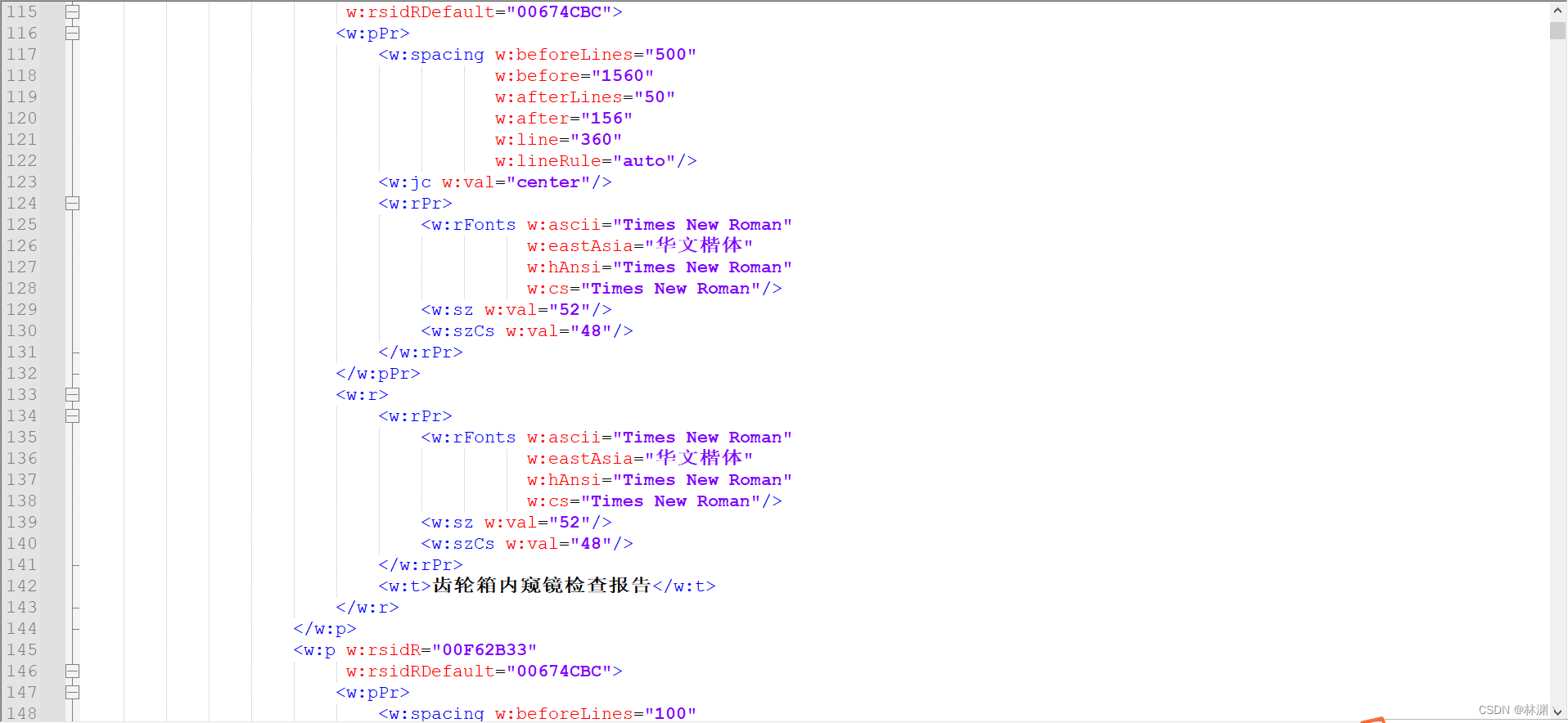

右键xml文档，使用notepad++打开，用notepad++的格式化插件格式化，插件-xml tools-pretty print
-
对于动态文本字段，找到对应的字符，将定制改为参数，例如**${pstxt1}**
-

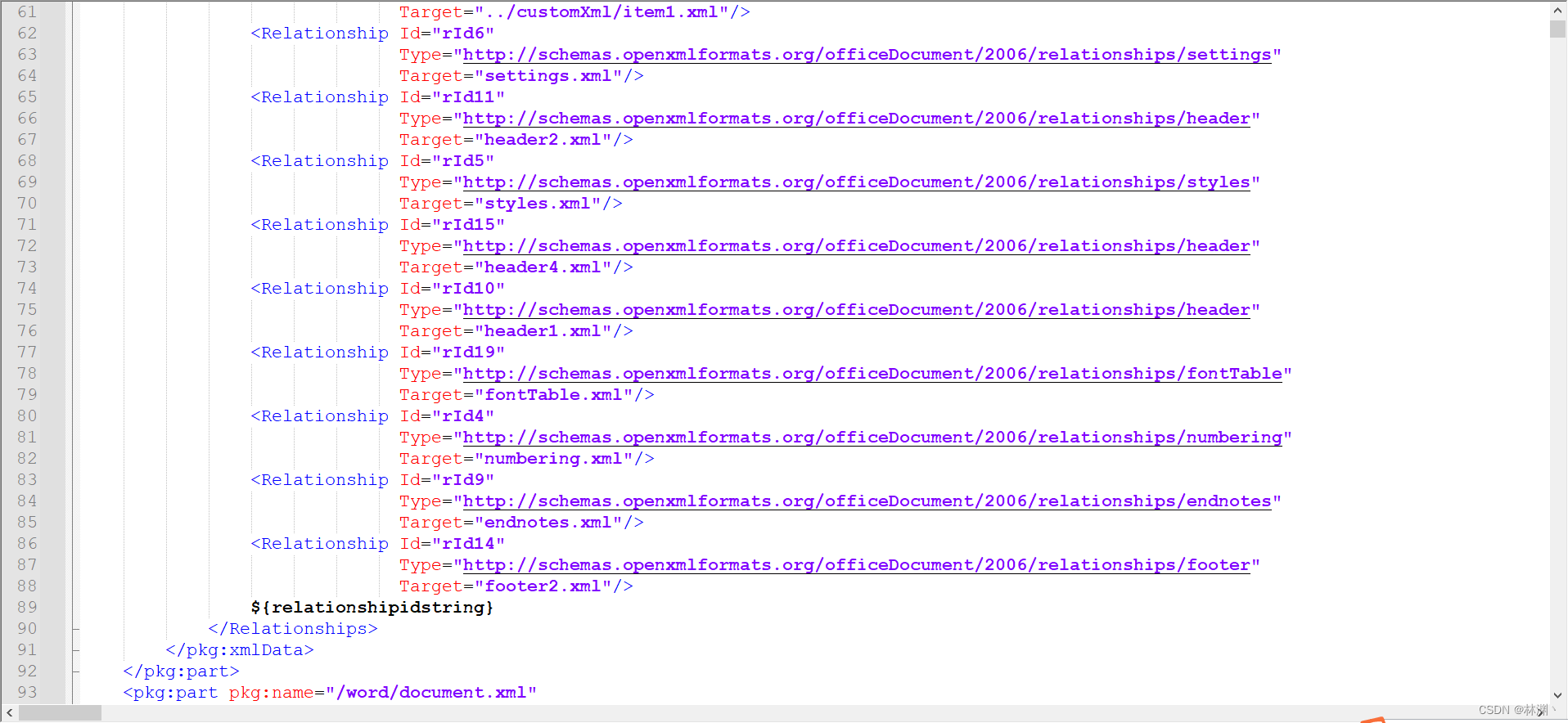

对于动态图片，需要先在relationship栏添加关联占位符**${relationshipidstring}**
-

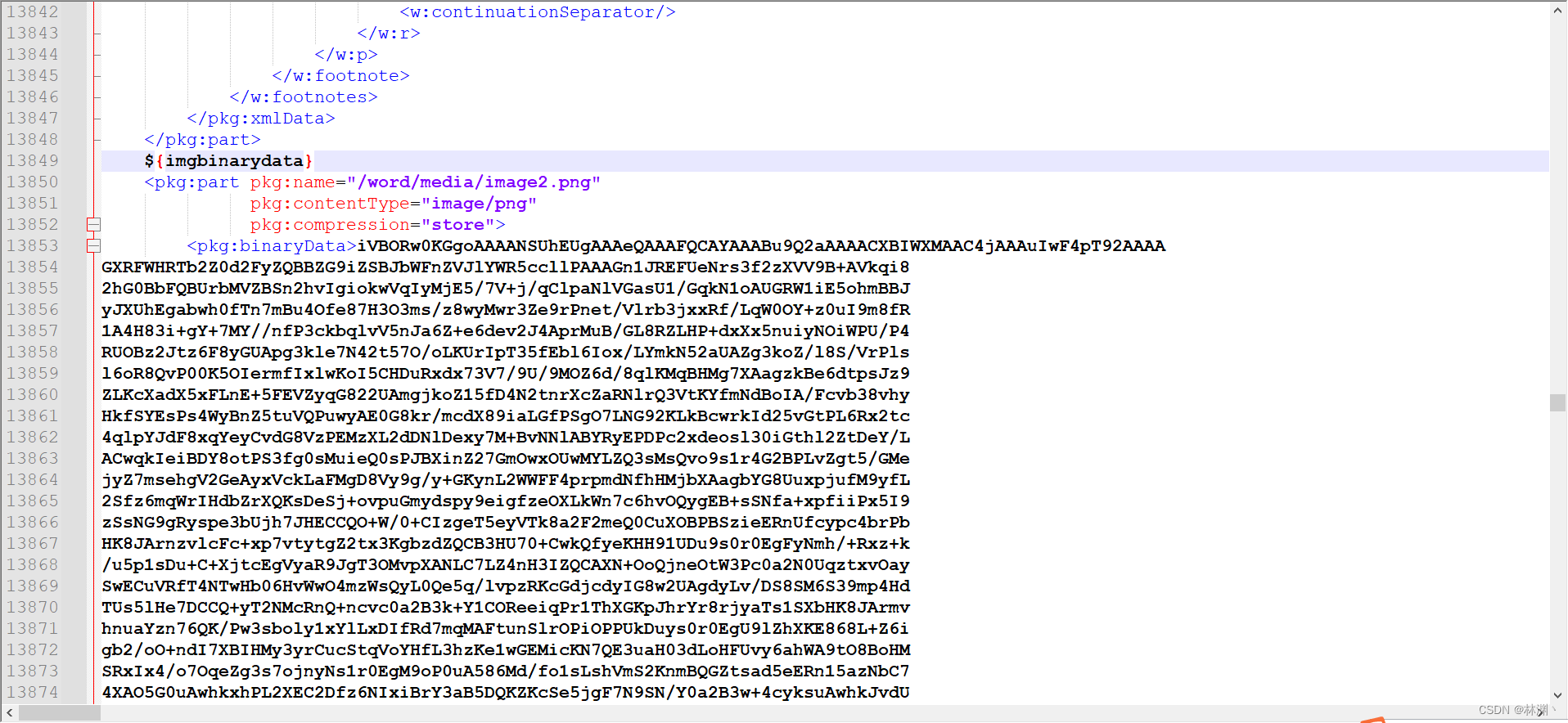

再在储存图片base64码的地方，添加图片编码占位符** ${imgbinarydata}**，一般是
-

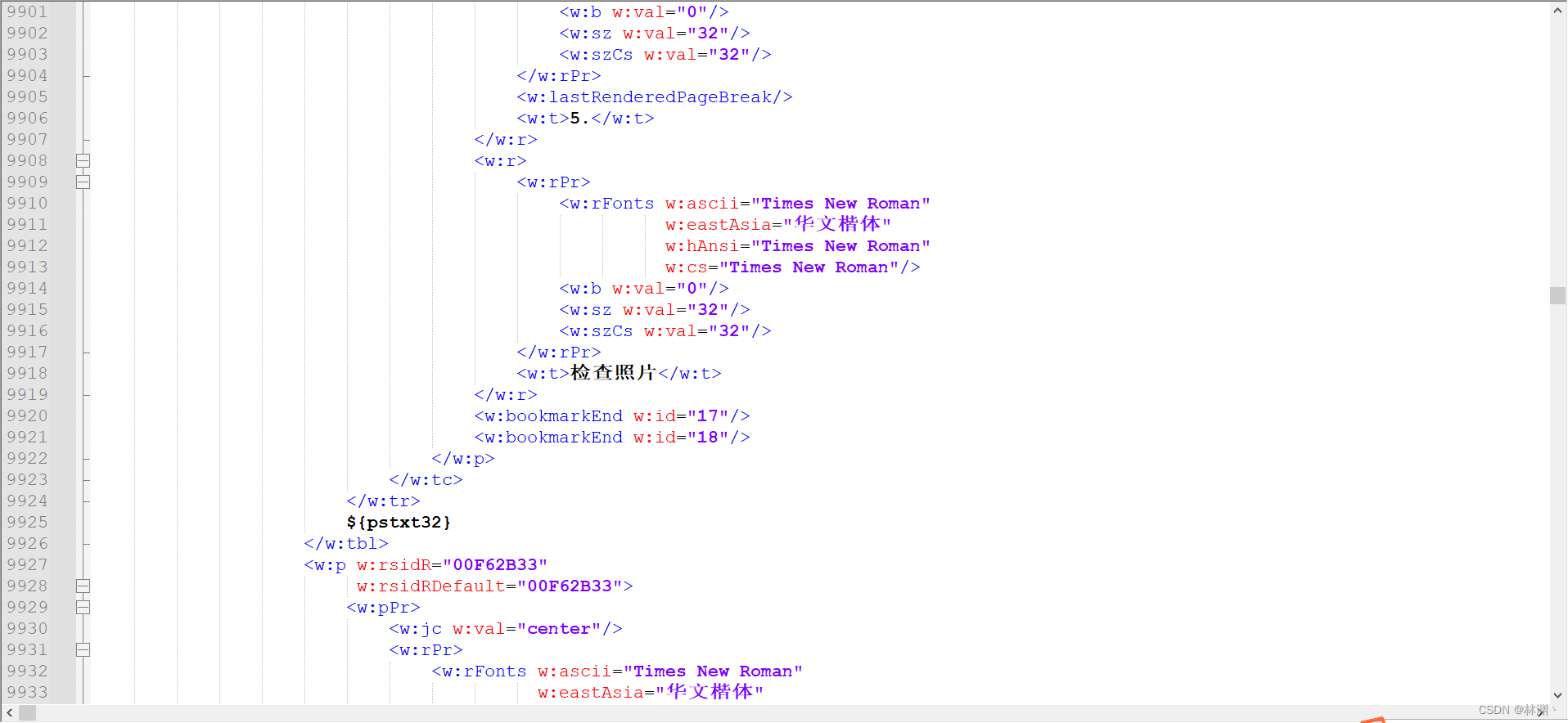

对于动态表格，直接在需要添加动态表格的地方写占位符，需要写在
-
以上占位符都由siebel后端传递参数生成完整的xml文件。其中动态字符直接传递字符串传，动态图片和动态表格需要在siebel后端拼接好xml，将整段xml传递进去。
-

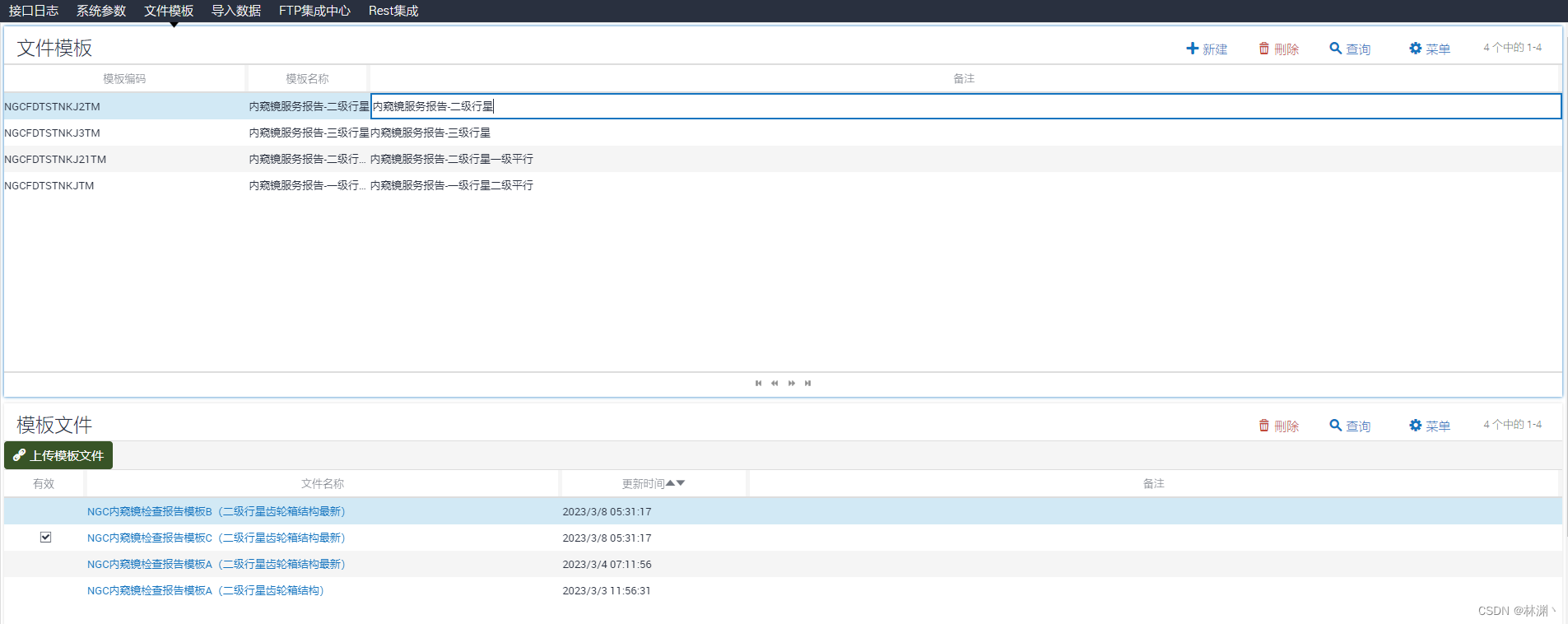

至此，xml模板准备完毕。上传到siebel后端文件模板备用。
二、整合服务报告数据
先从siebel后端整合生成服务报告所需的数据
普通字段
以资产信息为例，就是简单的定义bo、bc，取字段
//获取活动资产信息
function FWBG_GetAssetMsg(&bcFsAsset,&fjbh,&fjazsj,&bwyxrq,&clxcj,&clxxh,&clxbh,&clxzzrq,&rhxtcj,&rhypp)
{ try{with(bcFsAsset){ActivateField("Name");//风机编号ActivateField("NGC Gearbox Maker");//齿轮箱厂家ActivateField("NGC Gearbox Number");//齿轮箱编号ActivateField("Purchase Date");//齿轮箱制造日期ActivateField("NGC Lube System Brand");//润滑系统厂家ActivateField("NGC Lube Brand");//润滑油品牌ActivateField("NGC Model Number");//齿轮箱型号ActivateField("Install Date");//风机安装时间ActivateField("NGC Operate Number");//并网运行日期ClearToQuery();SetViewMode(AllView);SetSearchExpr("[Id] is not null");SetSortSpec("Created(DESCENDING)");ExecuteQuery(ForwardOnly);if (FirstRecord()) {fjbh = GetFieldValue("Name");clxcj = GetFieldValue("NGC Gearbox Maker");clxbh = GetFieldValue("NGC Gearbox Number");clxzzrq = to_date(GetFieldValue("Purchase Date"));rhxtcj = GetFieldValue("NGC Lube System Brand");rhypp = GetFieldValue("NGC Lube Brand");clxxh = GetFieldValue("NGC Model Number");fjazsj = to_date(GetFieldValue("Install Date"));bwyxrq = to_date(GetFieldValue("NGC Operate Number"));} }}catch(e){throw e.message;}}
以检查项目图片为例
//获取检查项目图片信息
function FWBG_GetActCheckMsg(&bcCheck,&bcCheckAtt,&imgattr,sCheckReq,sSeqq)
{try{ for(var i=0;i<sCheckReq.length;i++){with(bcCheck){ActivateField("NGC Activity Step");ClearToQuery();SetViewMode(AllView);SetSearchExpr("[NGC Check Requirement] = '"+ sCheckReq[i] +"'");//SetSortSpec("SeqNum(ASCENDING)");ExecuteQuery(ForwardOnly);var count = CountRecords();var sRecord = FirstRecord(); if(sRecord){ var sCheckId = GetFieldValue("Id");//var stepSeq = GetFieldValue("SeqNum");//var stepCom = GetFieldValue("NGC Activity Step"); with(bcCheckAtt){ClearToQuery();SetViewMode(AllView);SetSearchExpr("[NGC Activity Check Id] = '"+ sCheckId +"'");SetSortSpec("Created(DESCENDING)");ExecuteQuery(ForwardOnly);var stepRecord = FirstRecord();if(!stepRecord){imgattr[imgattr.length] = i;imgattr[imgattr.length] = i+"IMG";}else{var stepAttNum = 0;while(stepRecord){if(stepAttNum < 2 ){var index = imgattr.length;imgattr[index] = GetFieldValue("Id");stepAttNum++;stepRecord = NextRecord();}else{stepRecord = false;}}if(stepAttNum == 1){imgattr[imgattr.length] = i;}//xmlPart5 += Part5ActStep(sSeqq[i]+sCheckReq[i],"照片","rIdcst"+imgattr[imgattr.length-2],"rIdcst"+imgattr[imgattr.length-1]); } } sRecord = NextRecord();}}} }catch(e){throw e.message;}}
注意这段写法，因为图片的动态加载的顺序是固定的，也就是说图片的序号决定了图片的内容，这段处理是为了防止图片为空，序号乱序。
imgattr取图片的ID。
if(!stepRecord)
{imgattr[imgattr.length] = i;imgattr[imgattr.length] = i+"IMG";
}
图片拼接成xml
获取图片ID之后，还需要通过ID来将图片拼接成xml
//Your public declarations go here...
//照片function XmlPhoto(ImgId)
{var xml ="\r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " +ImgId+"\" cstate=\"print\">\r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " 动态表格
以检查项目为例，动态传入参数，拼接到xml中，这段代码动态传入了图片
//Your public declarations go here...
//服务报告part2 检查照片function XmlcheckPhoto(sCheckReq,sCheckRes,sCheckDes,sSeq,ImgId1,ImgId2)
{//设置填充色var bgColor ="00B050";switch(sCheckRes){case "未知":bgColor ="AEAAAA";break;case "未见明显异常":bgColor ="00B050";break;case "注意观察":bgColor ="FFFF00";break;case "及时修复":bgColor ="FFC000";break;case "需更换":bgColor ="FF0000";break;default:bgColor ="";break;}var xml ="\r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " " +sSeq+"\r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " " +sCheckReq+"\r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " 状态 \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " + bgColor +"\"/>\r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " " +sCheckDes+"\r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " + bgColor +"\"/>\r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " " +sCheckDes+"\r\n" + " \r\n" + " \r\n" + " \r\n" + "\r\n" + "\r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " 照片 \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " " + XmlPhoto(ImgId1) +"\r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " \r\n" + " " + XmlPhoto(ImgId2) +"\r\n" + " \r\n" + " \r\n" + " \r\n" + "";return xml;
}
再循环拼接表格的每一行
//拼接检查结果var sCheckResXml = "";for(var k=0;k<sCheckReq.length;k++){sCheckResXml = sCheckResXml + XmlcheckResult(sCheckReq[k],sCheckRes[k],sCheckDes[k],sSeq[k]);}
最后将参数赋值给之前写的占位符即可，注意占位符含义
psIn.SetProperty("pstxt15",rhxtcj);
psIn.SetProperty("pstxt16",rhypp);
psIn.SetProperty("pstxt17",arrayTyRead[0]);
psIn.SetProperty("pstxt20",instr[0]);
psIn.SetProperty("pstxt29",XmlPhoto(ImgId[0]));
psIn.SetProperty("pstxt30",XmlPhoto(ImgId[1]));
psIn.SetProperty("pstxt31",sCheckResXml);
psIn.SetProperty("pstxt32",sCheckPhotoXml);

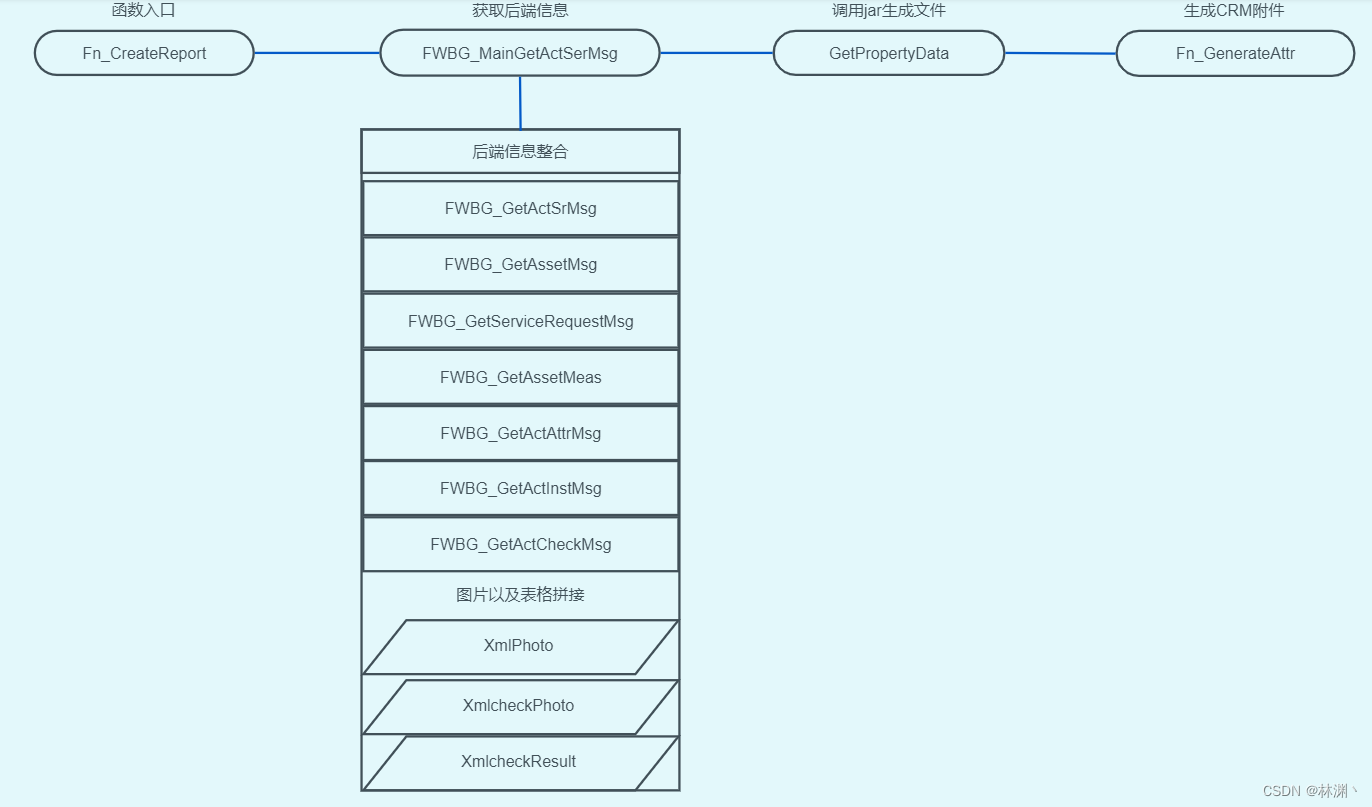

函数调用流程梳理
