【人工智能】UC Berkeley 2021春季 CS188 Project 2: Multi-Agent Search Pacman吃豆人游戏
Project 2: Multi-Agent
- Introduction
- 题目介绍
- 文件介绍
- 说在前面
- Problem2:Minimax极小极大
- Problem3:Alpha-Beta剪枝
- Problem4:Expectimax
- Problem5:Evaluation Function评价函数
- 所学感悟
- 参考链接
Introduction
题目介绍
本题目来源于UC Berkeley 2021春季 CS188 Artificial Intelligence Project2上的内容，项目具体介绍链接点击此处：UC Berkeley Spring 2021Project 2: Multi-Agent Search

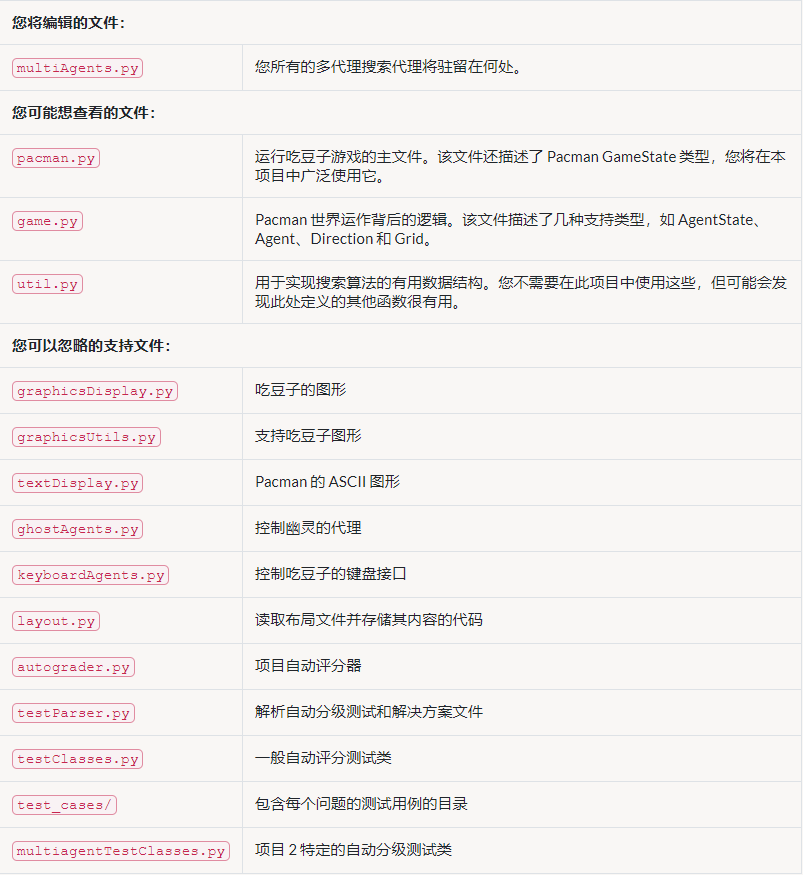

文件介绍
说在前面
本项目只完成了project2中problem2-problem5部分，若有需要查看problem1部分，请移步至其他技术博客。
项目开发环境：Python3.9+VS Code
若电脑上未安装Python环境或者所安装的Python环境版本较低，可以在cmd中运行python查看情况。

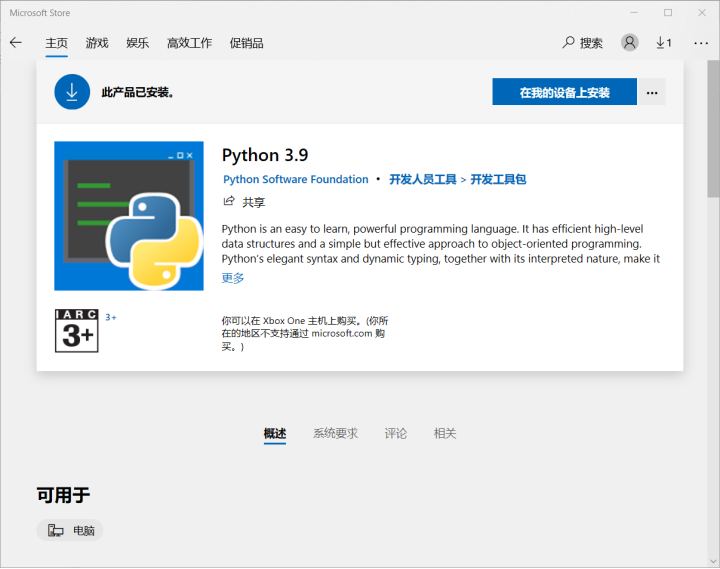

若未安装，则cmd会跳转至Python安装界面：

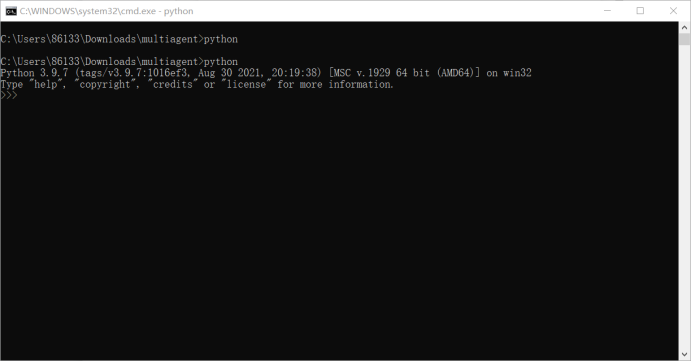

安装后的cmd如图所示：
Problem2:Minimax极小极大
Minimax极小极大算法是对抗搜索中的重要搜索方法，根据题目要求，我们可以通过迭代的方式找出失败的的最大可能性中的最小值。
在本题中，由于需要AI去击败玩家Player，所以我们考虑Max作为AI的最大利益，Min作为Player的最小利益。

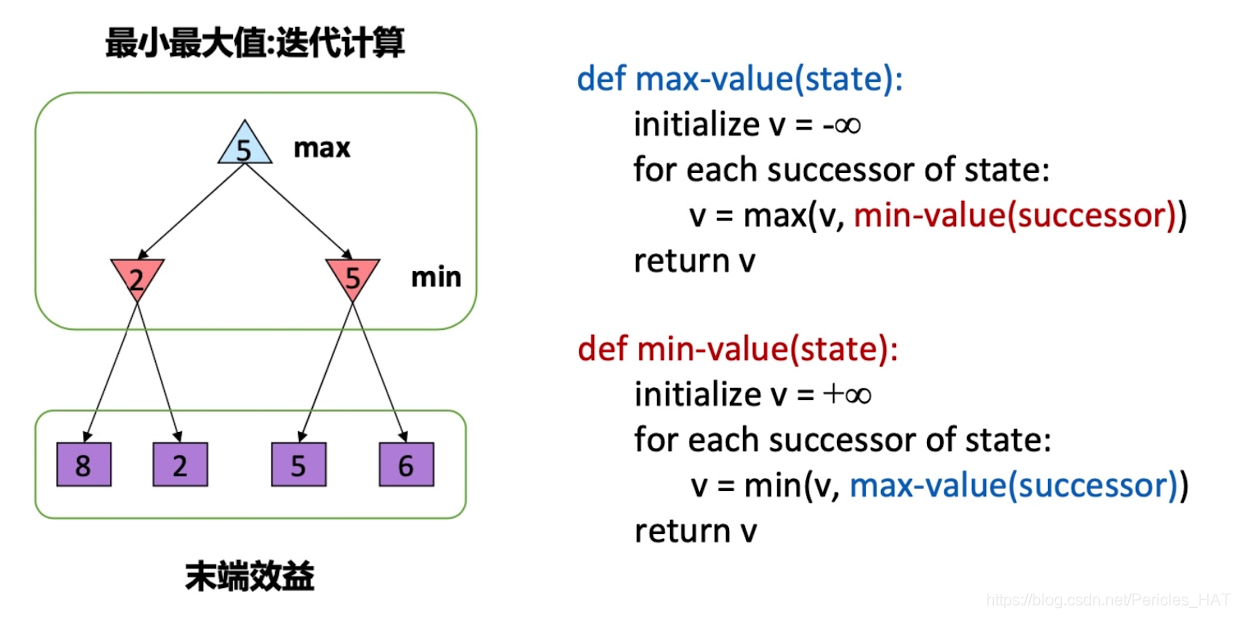

我们能够将如下的伪代码转换成我们需要的代码。值得一提的是，在2021年春季的project2中，将之前的generatSuccessor函数改为了getNextState函数，含义更具体与清晰。
class MinimaxAgent(MultiAgentSearchAgent):"""Your minimax agent (question 2)"""def getAction(self, gameState):"""Returns the minimax action from the current gameState using self.depthand self.evaluationFunction.Here are some method calls that might be useful when implementing minimax.gameState.getLegalActions(agentIndex):Returns a list of legal actions for an agentagentIndex=0 means Pacman, ghosts are >= 1gameState.getNextState(agentIndex, action):Returns the child game state after an agent takes an actiongameState.getNumAgents():Returns the total number of agents in the gamegameState.isWin():Returns whether or not the game state is a winning stategameState.isLose():Returns whether or not the game state is a losing state""""*** YOUR CODE HERE ***"#Step 1.to realize get 'Min-Value'partdef min_value(gameState,depth,agentIndex):#Initialize v= positively infinityv=float('inf')#if current state is gonna to stop"if gameState.isWin() or gameState.isLose():#it returns a number, where higher numbers are betterreturn self.evaluationFunction(gameState)#for each successor of state:get min-valuefor legalAction in gameState.getLegalActions(agentIndex):if agentIndex==gameState.getNumAgents()-1:#v=min(v,max_value(successor))v=min(v,max_value(gameState.getNextState(agentIndex,legalAction),depth))else:#go on searching the next ghostv=min(v,min_value(gameState.getNextState(agentIndex,legalAction),depth,agentIndex+1))return v#Step 2.to realize get 'Max-Value'partdef max_value(gameState,depth):#Initialize v= negatively infinityv=float('-inf')#while the first step is the top point,go on and depth add 1depth=depth+1#if current state is gonna to stopif depth==self.depth or gameState.isLose() or gameState.isWin():return self.evaluationFunction(gameState)#for each successor of state:get max-valuefor legalAction in gameState.getLegalActions(0):#v=max(v,min_value(successor))v=max(v,min_value(gameState.getNextState(0,legalAction),depth,1))return vnextAction=gameState.getLegalActions(0)Max=float('-inf')Result=Nonefor nAction in nextAction:if(nAction!="stop"):depth=0value=min_value(gameState.getNextState(0,nAction),depth,1)if(value>Max):Max=valueResult=nActionreturn Result
运行及截图：
python autograder.py -q q2 --no-graphics
Problem3:Alpha-Beta剪枝
在Minimax极小极大算法中有重复计算的部分，所以要进行剪枝。
Alpha-Beta剪枝用于裁剪搜索树中不需要搜索的树枝，来提升运算效率。

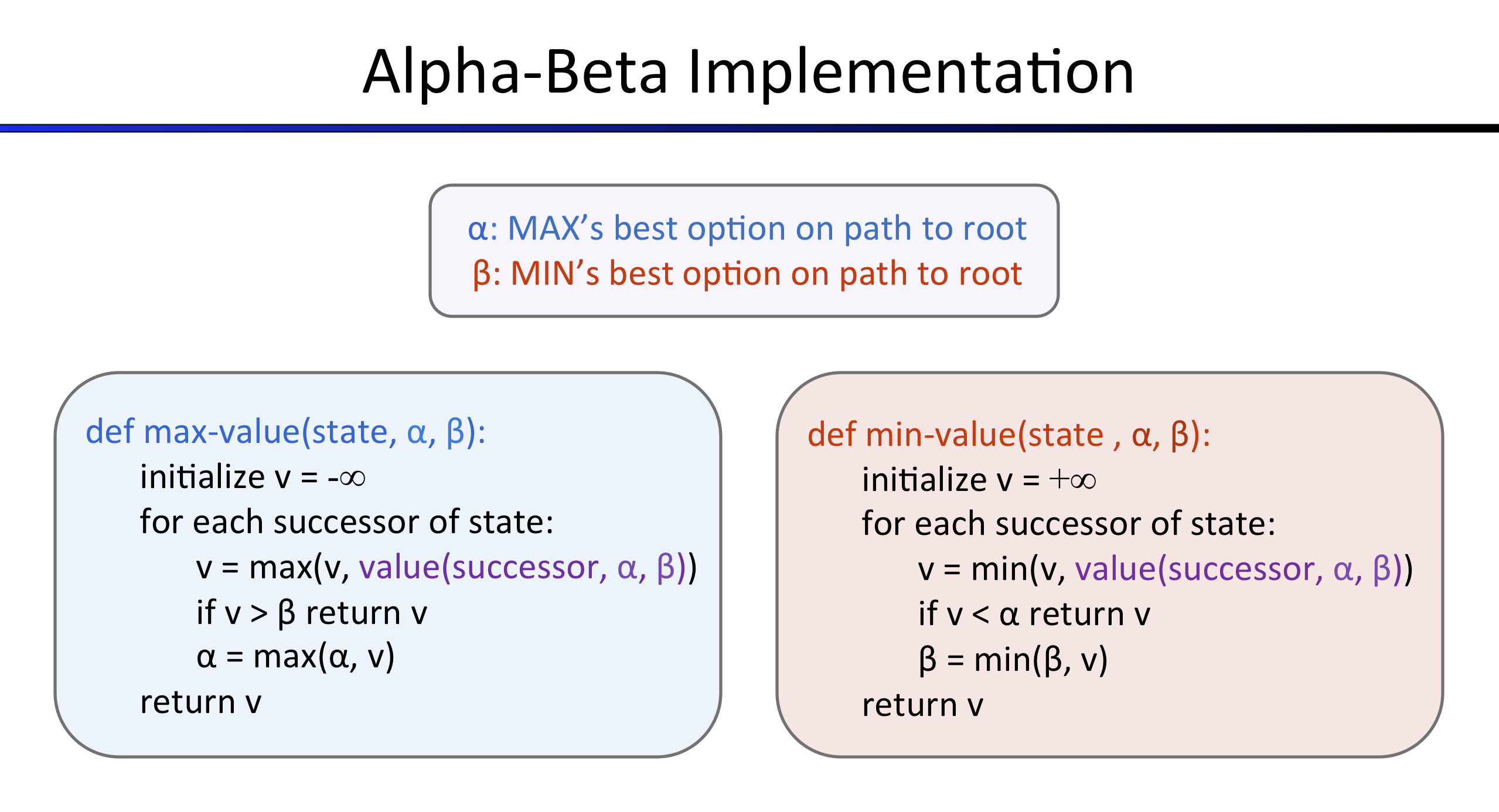

在Alpha-Beta部分我的做法不同于Minimax，在此部分进行了一定的改善。比如在比较过程中加入了函数getValue()来简化计算过程。最大的改善之处主要max-value和min-value中需要加入参数alpha&beta，并通过比较来返回值v。
class AlphaBetaAgent(MultiAgentSearchAgent):"""Your minimax agent with alpha-beta pruning (question 3)"""def getAction(self, gameState):"""Returns the minimax action using self.depth and self.evaluationFunction""""*** YOUR CODE HERE ***"alpha = float('-inf')beta = float('inf')v = float('-inf')bestAction = Nonefor legalAction in gameState.getLegalActions(0):value = self.getValue(gameState.getNextState(0, legalAction),1,0,alpha,beta)if value is not None and value>v:v = valuebestAction = legalAction#update new alphaalpha=max(alpha,v)return bestActiondef getValue(self, gameState, agentIndex, depth, alpha, beta):legalActions = gameState.getLegalActions(agentIndex)if len(legalActions)==0:return self.evaluationFunction(gameState)#according to the value of agentIndex,gain the function of next state#to assure the next is player or ghostif agentIndex==0:#cross 1 timedepth=depth+1if depth == self.depth:return self.evaluationFunction(gameState)else:return self.max_value(gameState, agentIndex, depth, alpha, beta)elif agentIndex>0:return self.min_value(gameState, agentIndex, depth, alpha, beta)def max_value(self, gameState, agentIndex, depth, alpha, beta):#Initialize v= negatively infinityv = float('-inf')#for each successor of state:get max-valuefor legalAction in gameState.getLegalActions(agentIndex):value = self.getValue(gameState.getNextState(agentIndex, legalAction),(agentIndex+1)%gameState.getNumAgents(), depth, alpha, beta)#this condition is similar with problem2 ' s conditionif value is not None and value > v:v=value#if v>beta return vif v>beta:return v#update new alphaalpha=max(alpha,v)return vdef min_value(self, gameState, agentIndex, depth, alpha, beta):#Initialize v= positively infinityv = float('inf')#for each successor of state:get min-valuefor legalAction in gameState.getLegalActions(agentIndex):value = self.getValue(gameState.getNextState(agentIndex, legalAction),(agentIndex+1)%gameState.getNumAgents(), depth, alpha, beta)if value is not None and value < v:v=value#if vif v<alpha:return v#update new betabeta=min(beta,v)return v

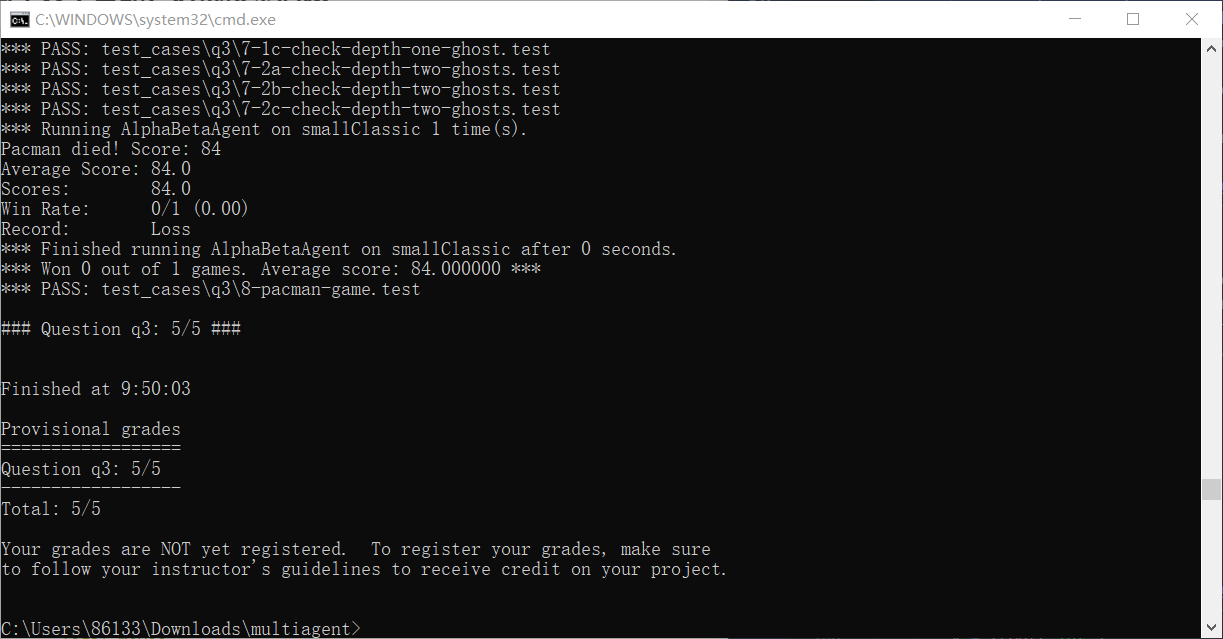

运行及截图：
python autograder.py -q q3 --no-graphics
Problem4:Expectimax
Expectimax算法本质上就是每次进行期望值的计算，然后再选取最大值，不断递归。首先从吃豆人开始，遍历所有可行的下一步，取效用最佳的action为bestAction。
和Alpha-Beta剪枝相比，本算法出现了exp-value，即计算期望值。通过对合法动作遍历，轮询所有的下一个状态，取所有评价值的平均值作为计算结果。
class ExpectimaxAgent(MultiAgentSearchAgent):"""Your expectimax agent (question 4)"""def getAction(self, gameState): """Returns the expectimax action using self.depth and self.evaluationFunctionAll ghosts should be modeled as choosing uniformly at random from theirlegal moves.""""*** YOUR CODE HERE ***"maxVal = float('-inf')bestAction = Nonefor action in gameState.getLegalActions(agentIndex=0):value = self.getValue(gameState.getNextState(agentIndex=0, action=action), agentIndex=1, depth=0)if value is not None and value>maxVal:maxVal = valuebestAction = actionreturn bestActiondef getValue(self, gameState, agentIndex, depth):legalActions = gameState.getLegalActions(agentIndex)if len(legalActions)==0:return self.evaluationFunction(gameState)if agentIndex==0:depth += 1if depth == self.depth:return self.evaluationFunction(gameState)else:return self.max_value(gameState, agentIndex, depth)elif agentIndex>0:return self.exp_value(gameState, agentIndex, depth)def max_value(self, gameState, agentIndex, depth):maxVal = -float('inf')legalActions = gameState.getLegalActions(agentIndex)for action in legalActions:value = self.getValue(gameState.getNextState(agentIndex, action), (agentIndex+1)%gameState.getNumAgents(), depth)if value is not None and value > maxVal:maxVal = valuereturn maxValdef exp_value(self, gameState, agentIndex, depth):legalActions = gameState.getLegalActions(agentIndex)total = 0for action in legalActions:value = self.getValue(gameState.getNextState(agentIndex, action), (agentIndex+1)%gameState.getNumAgents(), depth)if value is not None:total += valuereturn total/(len(legalActions))

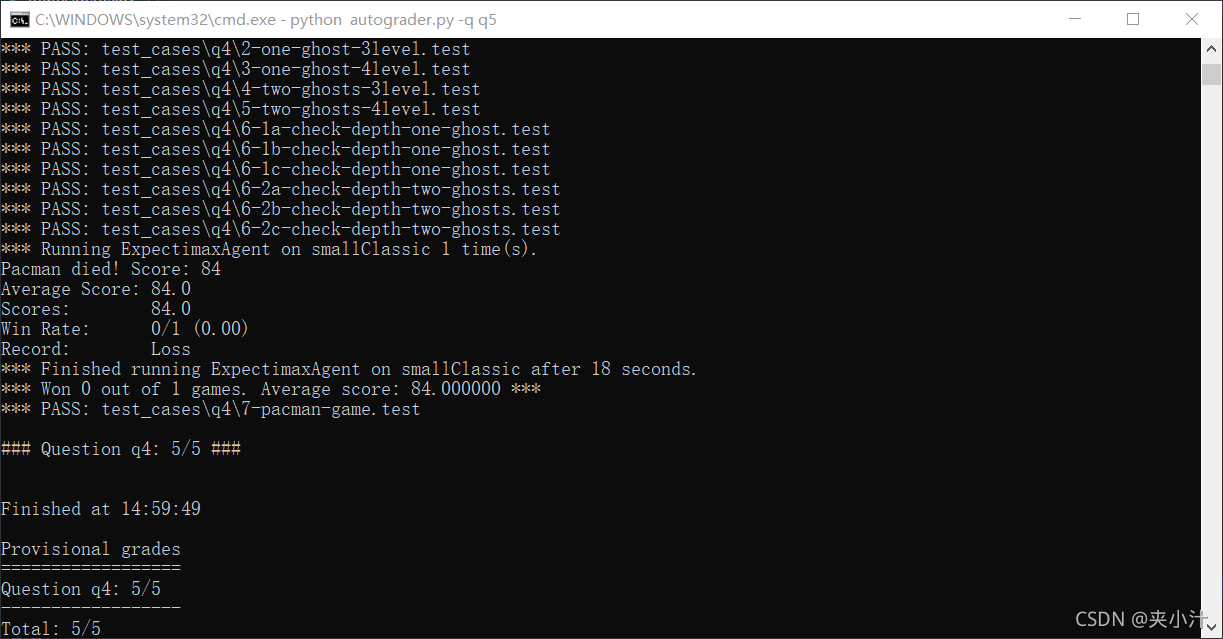

运行及截图：
python autograder.py -q q4
“你现在应该在与鬼魂的近距离观察中观察到一种更加傲慢的方法。尤其是，如果吃豆子意识到自己可能被困住了，但可能会逃跑去抓几块食物，他至少会尝试一下。调查这两种情况的结果：”

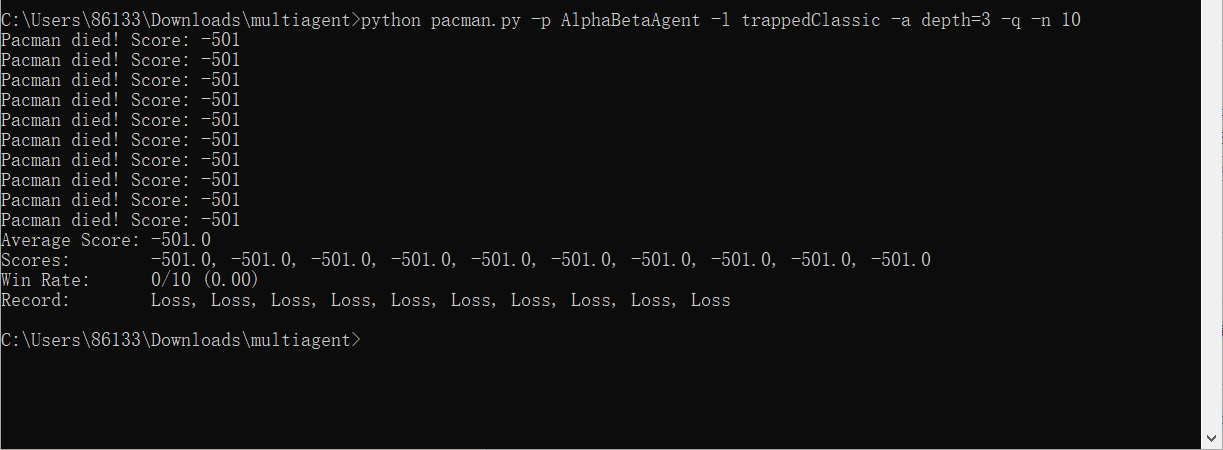

python pacman.py -p AlphaBetaAgent -l trappedClassic -a depth=3 -q -n 10

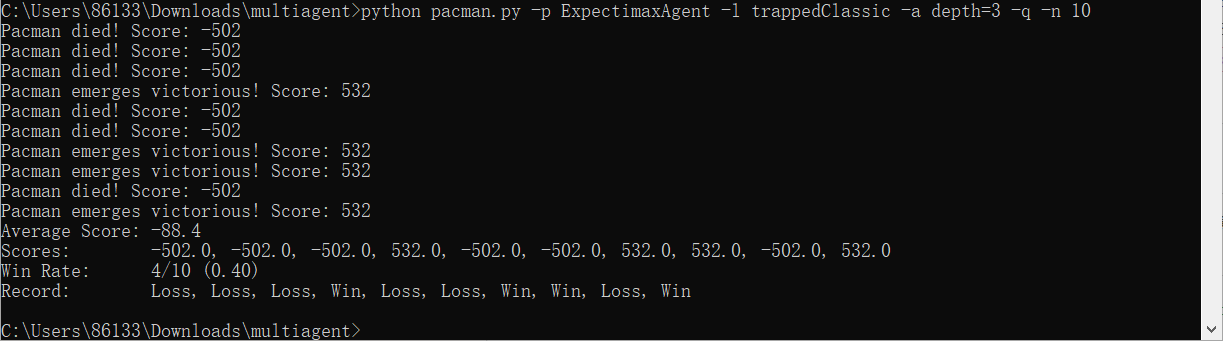

python pacman.py -p ExpectimaxAgent -l trappedClassic -a depth=3 -q -n 10
和预想中的相同，ExpectimaxAgent赢了大约一半的时间，而AlphaBetaAgent总是输。
Problem5:Evaluation Function评价函数
此题要求对Reflex Agent的代码进行改进，特别注意函数的参数发生了变化，此时我们只能观察到当前的状态，而无法得知下一个状态的信息。我们可以通过计算total这个值来表示鬼怪保持可以被吃掉状态的剩余时间，由于通过吃掉地图上的大豆豆可以得到这个正反馈，所以吃豆人会考虑吃掉附近的大豆豆。最后把计算好的各种启发值加在游戏得分上，并返回。
def betterEvaluationFunction(currentGameState):"""Your extreme ghost-hunting, pellet-nabbing, food-gobbling, unstoppableevaluation function (question 5).DESCRIPTION: <write something here so we know what you did>""""*** YOUR CODE HERE ***"#we only observe the current state and dont know the next state#initialize information we could usePos = currentGameState.getPacmanPosition() #current positionFood = currentGameState.getFood() #current foodGhostStates = currentGameState.getGhostStates() #ghost stateScaredTimes = [ghostState.scaredTimer for ghostState in GhostStates]#find food and calculate positive reflectionif len(Food.asList())>0:nearestFood = (min([manhattanDistance(Pos, food) for food in Food.asList()]))foodScore = 9/nearestFoodelse:foodScore = 0#find ghost and calculate negative reflectionnearestGhost = min([manhattanDistance(Pos,ghostState.configuration.pos) for ghostState in GhostStates])dangerScore = -10/nearestGhost if nearestGhost!=0 else 0#the rest time of ghosttotalScaredTimes = sum(ScaredTimes)#return sum of all valuereturn currentGameState.getScore() + foodScore + dangerScore + totalScaredTimes# Abbreviation
better = betterEvaluationFunction运行及截图：
python autograder.py -q q5 --no-graphics
所学感悟
本次实验中，我能够在理解他人代码以及所学理论知识的基础上，对本游戏进行完成及实现，同时，也增加了我对对抗搜索知识体系的巩固。
参考链接
1、【人工智能导论】吃豆人游戏（上）：对抗搜索与Minimax算法
2、敲代码学人工智能：对抗搜索问题
3、算法学习：Pac-Man的简单对抗
4、Berkeley Intro to AI学习笔记（一）MultiSearch
5、解析吃豆人游戏
