Antv G2实现点线图

不知道这种图学名叫什么，暂且称之为 点线图

import { Chart, registerShape } from '@antv/g2';// status决定线的颜色，type决定是否画圈圈
const data = [{'data0': "user1_test 发生告警了",'status': 2,'timestamp': "2021-06-23 15:29:00.000",'type': 1},{'data0': "user1_test 发生告警了",'status': 2,'timestamp': "2021-06-23 15:39:00.000",'type': 0},{'data0': "user1_test 发生告警了",'status': 1,'timestamp': "2021-06-23 15:39:00.000",'type': 1},{'data0': "user1_test 发生告警了",'status': 1,'timestamp': "2021-06-23 15:50:00.000",'type': 0},{'data0': "user1_test 发生告警了",'status': 2,'timestamp': "2021-06-23 16:29:00.000",'type': 1},{'data0': "user1_test 发生告警了",'status': 2,'timestamp': "2021-06-23 16:39:00.000",'type': 0},{'data0': "user1_test 发生告警了",'status': 1,'timestamp': "2021-06-23 16:49:00.000",'type': 1},{'data0': "user1_test 发生告警了",'status': 1,'timestamp': "2021-06-23 16:59:00.000",'type': 0},{'data0': "user1_test 发生告警了",'status': 3,'timestamp': "2021-06-23 17:29:00.000",'type': 1},{'data0': "user1_test 发生告警了",'status': 3,'timestamp': "2021-06-23 17:39:00.000",'type': 0},{'data0': "user1_test 发生告警了",'status': 0,'timestamp': "2021-06-23 17:49:00.000",'type': 1},{'data0': "user1_test 发生告警了",'status': 0,'timestamp': "2021-06-23 18:29:00.000",'type': 0},{'data0': "user1_test 发生告警了",'status': 2,'timestamp': "2021-06-23 18:39:00.000",'type': 1},{'data0': "user1_test 发生告警了",'status': 2,'timestamp': "2021-06-23 18:49:00.000",'type': 0},]
function splitData(point,data) {let currentStatus let lastStatus let resPoints = []let tmpPoints = []let dfor (let i = 0; i < data.length; i++) {d = data[i];currentStatus = d.statusif(currentStatus !== lastStatus && i !== 0){resPoints.push({path: tmpPoints,color: getColor(data[i-1])})tmpPoints = []}tmpPoints.push(point[i])lastStatus = d.status}resPoints.push({path:tmpPoints,color: getColor(d)})resPoints.forEach((path,index) => {resPoints[index+1] && path.path.push(resPoints[index+1].path[0])})return resPoints;
}function getColor(d){let colorMap = {0: '#00C774',1: '#2A8DFF',2: '#FF8400',3: '#FF3C48'}return colorMap[d.status]
}
function getStatusText (d) {let textMap = { 0: '正常', 1: '通知', 2: '警告', 3: '严重' }return textMap[d.status]}// 自定义画直线，并设置线的颜色
registerShape('line', 'mult-color-line', {draw(cfg, container) {// 自定义 Shape 需要将图形绘制在自己的 Shape/Group 里，并返回之const group = container.addGroup();const resPoints = splitData(cfg.points,data);resPoints.forEach(oneLine => {let color = oneLine.colorlet path = oneLine.pathconst path1 = [];for (let i = 0; i < path.length; i++) {let pre = 'L';if (i === 0) {pre = 'M';}path1.push([pre, path[i].x, path[i].y]);}group.addShape('path', {attrs: {path: path1,stroke: color,lineWidth: 2,},});})return group;},

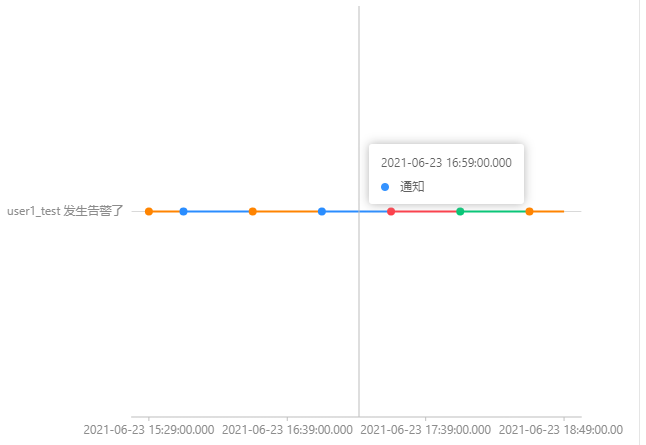

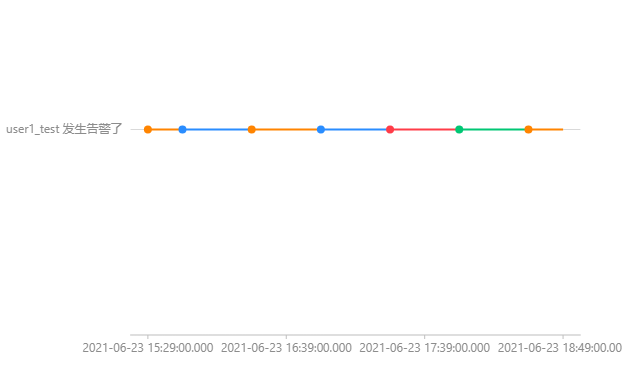

});const chart = new Chart({container: 'container',autoFit: true,height: 200,});chart.data(data);chart.line().position('timestamp*data0').shape('mult-color-line');for (let i = 0; i < data?.length; i++) {const iTime = data[i].timestampconst iType = data[i].typeconst iColor = getColor(data[i])if (iType === 1) {chart.annotation().dataMarker({position: [iTime, 0],line: {length: 0},point: {style: {fill: iColor,stroke: iColor}}})}}chart.tooltip({// Crosshairs就是tooltip的竖线showCrosshairs: true, // 展示 Tooltip 辅助线// Markers就是tooltip时激活的线上的点showMarkers: false,// marker: {//   fill: 'red'// },shared: false,crosshairs: {type: 'x',follow: true},// 自定义tooltip内容customContent: (name, items) => {const container = document.createElement('div')container.className = 'g2-tooltip'// name就是时间const time = `${name}`let listItem = ''items.forEach(item => {let color = getColor(item.data)let statusText = getStatusText(item.data)listItem += `
`listItem += `${statusText}
`})container.innerHTML = time + listItemreturn container}})chart.render();
