【ijkplayer】read_thread 流程梳理（二）

ijkplayer

【ijkplayer】整体结构总结（一）

【ijkplayer】read_thread 流程梳理（二）

【ijkplayer】解码流程梳理（三）

【ijkplayer】渲染流程梳理（四）

【ijkplayer】read_thread 流程梳理

prepare方法中，主要分为两个流程

read_thread ，负责打开流，创建音视频解码线程，读取packet等流程。
video_refresh_thread，主要负责音视频同步，以及音视频渲染显示流程。

这里把read_thread拿出来单独分析下

read_thread

位于ff_ffplay.c之中，先总结一下大概做的工作

• 打开文件，检测Stream信息

• 循环等待start接口调用，进入播放的流程

• 打开音频播放器，创建音频解码线程audio_thread；

• 创建视频解码器，创建视频解码线程video_thread;

• 创建字幕解码线程subtitle_thread;

• 循环读取Packet，解封装，并存入PacketQueue

删减代码，大概如下

static int read_thread(void *arg)
{// Open an input stream and read the header. The codecs are not opened.// The stream must be closed with avformat_close_input().// 打开输入流，并读取文件头部，解码器还未打开。主要作用是探测流的协议，如http还是rtmp等。err = avformat_open_input(&ic, is->filename, is->iformat, &ffp->format_opts);// Read packets of a media file to get stream information. This// is useful for file formats with no headers such as MPEG. This// function also computes the real framerate in case of MPEG-2 repeat// frame mode.// The logical file position is not changed by this function;// examined packets may buffered for later processing. // 探测文件封装格式，音视频编码参数等信息。err = avformat_find_stream_info(ic, opts);// Find the "best" stream in the file.// The best stream is determined according to various heuristics as the most// likely to be what the user expects.// If the decoder parameter is non-NULL, av_find_best_stream will find the// default decoder for the stream's codec; streams for which no decoder can// be found are ignored.// 根据 AVFormatContext，找到最佳的流。av_find_best_stream(ic, AVMEDIA_TYPE_VIDEO,st_index[AVMEDIA_TYPE_VIDEO], -1, NULL, 0);// 内部分别开启audio,video,subtitle的解码器的线程，开始各自的解码的工作。解码线程中分析这里的内容stream_component_open(ffp, st_index[AVMEDIA_TYPE_AUDIO]);stream_component_open(ffp, st_index[AVMEDIA_TYPE_VIDEO]);stream_component_open(ffp, st_index[AVMEDIA_TYPE_SUBTITLE]);
​// 开始无限循环,调用ffmpeg的av_read_frame()读取AVPacket，并入队。for (;;) {//AVPacket pkt;ret = av_read_frame(ic, pkt);// 把网络读取到并解封装到的pkt包入队列。（稍后在解码线程会拿到这些pkt包去解码。）// 如果是音频流的包packet_queue_put(&is->audioq, pkt);// 如果是视频流的包packet_queue_put(&is->videoq, pkt);// 如果是字幕流的包packet_queue_put(&is->subtitleq, pkt);}
}

分析

static int read_thread(void *arg) {AVFormatContext *ic = NULL;ic = avformat_alloc_context();/**  1. 打开url*/if (ffp->iformat_name)is->iformat = av_find_input_format(ffp->iformat_name);err = avformat_open_input(&ic, is->filename, is->iformat, &ffp->format_opts);/**  2. 查找流*/int i;int orig_nb_streams = ic->nb_streams;if (ffp->find_stream_info) {do {if (av_stristart(is->filename, "data:", NULL) && orig_nb_streams > 0) {for (i = 0; i < orig_nb_streams; i++) {if (!ic->streams[i] || !ic->streams[i]->codecpar ||ic->streams[i]->codecpar->profile == FF_PROFILE_UNKNOWN) {break;}}if (i == orig_nb_streams) {break;}}err = avformat_find_stream_info(ic, opts);} while (0);}/**  3.  遍历nb_streams，区分各个流，类似MediaExtractor中的trackIndex*/int st_index[AVMEDIA_TYPE_NB];int video_stream_count = 0;int h264_stream_count = 0;int first_h264_stream = -1;for (i = 0; i < ic->nb_streams; i++) {AVStream *st = ic->streams[i];enum AVMediaType type = st->codecpar->codec_type;if (type >= 0 && ffp->wanted_stream_spec[type] && st_index[type] == -1)if (avformat_match_stream_specifier(ic, st, ffp->wanted_stream_spec[type]) > 0)st_index[type] = i;// choose first h264if (type == AVMEDIA_TYPE_VIDEO) {enum AVCodecID codec_id = st->codecpar->codec_id;video_stream_count++;if (codec_id == AV_CODEC_ID_H264) {h264_stream_count++;if (first_h264_stream < 0)first_h264_stream = i;}}}/**  4. 调用av_find_best_stream确定trackIndex，找到最佳流*/if (video_stream_count > 1 && st_index[AVMEDIA_TYPE_VIDEO] < 0) {st_index[AVMEDIA_TYPE_VIDEO] = first_h264_stream;}if (!ffp->video_disable)st_index[AVMEDIA_TYPE_VIDEO] =av_find_best_stream(ic, AVMEDIA_TYPE_VIDEO,st_index[AVMEDIA_TYPE_VIDEO], -1, NULL, 0);if (!ffp->audio_disable)st_index[AVMEDIA_TYPE_AUDIO] =av_find_best_stream(ic, AVMEDIA_TYPE_AUDIO,st_index[AVMEDIA_TYPE_AUDIO],st_index[AVMEDIA_TYPE_VIDEO],NULL, 0);if (!ffp->video_disable && !ffp->subtitle_disable)st_index[AVMEDIA_TYPE_SUBTITLE] =av_find_best_stream(ic, AVMEDIA_TYPE_SUBTITLE,st_index[AVMEDIA_TYPE_SUBTITLE],(st_index[AVMEDIA_TYPE_AUDIO] >= 0 ?st_index[AVMEDIA_TYPE_AUDIO] :st_index[AVMEDIA_TYPE_VIDEO]),NULL, 0);/**  5. open the streams，读取各个数据流*/if (st_index[AVMEDIA_TYPE_AUDIO] >= 0) {stream_component_open(ffp, st_index[AVMEDIA_TYPE_AUDIO]);}if (st_index[AVMEDIA_TYPE_VIDEO] >= 0) {ret = stream_component_open(ffp, st_index[AVMEDIA_TYPE_VIDEO]);}if (st_index[AVMEDIA_TYPE_SUBTITLE] >= 0) {stream_component_open(ffp, st_index[AVMEDIA_TYPE_SUBTITLE]);}if (!ffp->render_wait_start && !ffp->start_on_prepared)toggle_pause(ffp, 1);/** 6. while循环等待start()调用，修改pause_req为0，进入读数据流程* start()必须在prepared后调用*/ffp->prepared = true;ffp_notify_msg1(ffp, FFP_MSG_PREPARED);if (!ffp->render_wait_start && !ffp->start_on_prepared) {while (is->pause_req && !is->abort_request) {SDL_Delay(20);}}/**  7. 读数据，存入packet_queue*/for (;;) {if (is->abort_request)break;if (is->seek_req) {//...}// 如果不是无限制大小的话，并且overSize || 队列都慢了，则睡10ms，等一下；控制缓冲区大小// #define MAX_QUEUE_SIZE (15 * 1024 * 1024) 15MoverSize = is->audioq.size + is->videoq.size + is->subtitleq.size > ffp->dcc.max_buffer_size;if (ffp->infinite_buffer < 1 && !is->seek_req&& (overSize ||(stream_has_enough_packets(is->audio_st, is->audio_stream, &is->audioq, MIN_FRAMES)                 && stream_has_enough_packets(is->video_st, is->video_stream, &is->videoq, MIN_FRAMES)&& stream_has_enough_packets(is->subtitle_st, is->subtitle_stream, &is->subtitleq, MIN_FRAMES)))) {/* wait 10 ms */SDL_LockMutex(wait_mutex);SDL_CondWaitTimeout(is->continue_read_thread, wait_mutex, 10);SDL_UnlockMutex(wait_mutex);continue;}// 判断是否播放结束if ((!is->paused || completed) &&(!is->audio_st || (is->auddec.finished == is->audioq.serial && frame_queue_nb_remaining(&is->sampq) == 0)) &&(!is->video_st || (is->viddec.finished == is->videoq.serial && frame_queue_nb_remaining(&is->pictq) == 0))) {if (ffp->loop != 1 && (!ffp->loop || --ffp->loop)) {// 循环播放几次，从1开始计算stream_seek(is, ffp->start_time != AV_NOPTS_VALUE ? ffp->start_time : 0, 0, 0);} else if (ffp->autoexit) {// 自动结束，走销毁逻辑ret = AVERROR_EOF;goto fail;} else {ffp_statistic_l(ffp);if (completed) {av_log(ffp,AV_LOG_INFO, "ffp_toggle_buffering: eof\n");SDL_LockMutex(wait_mutex);// 结束了，一直等while (!is->abort_request && !is->seek_req)SDL_CondWaitTimeout(is->continue_read_thread, wait_mutex, 100);SDL_UnlockMutex(wait_mutex);if (!is->abort_request)continue;} else {// 第一次进来是0，再次循环走上面if逻辑completed = 1;ffp->auto_resume = 0;ffp_toggle_buffering(ffp,0);toggle_pause(ffp,1);if (ffp->error) {ffp_notify_msg1(ffp, FFP_MSG_ERROR);} else {ffp_notify_msg1(ffp, FFP_MSG_COMPLETED);}}}}// 读取数据，存入packet_queueint ret = av_read_frame(ic, pkt);if (pkt->stream_index == is->audio_stream && pkt_in_play_range) {// 音频packet_queue_put(&is->audioq, pkt);SDL_SpeedSampler2Add(&ffp->stat.audio_bit_rate_sampler, pkt->size);} else if (pkt->stream_index == is->video_stream && pkt_in_play_range && !(is->video_st && (is->video_st->disposition & AV_DISPOSITION_ATTACHED_PIC))) { // 视频packet_queue_put(&is->videoq, pkt);SDL_SpeedSampler2Add(&ffp->stat.video_bit_rate_sampler, pkt->size);} else if (pkt->stream_index == is->subtitle_stream && pkt_in_play_range) {// 字幕packet_queue_put(&is->subtitleq, pkt);} else {av_packet_unref(pkt);}/** 开启缓冲机制* 在for循环中，每读到一个包，都会检查是否进行缓冲*/if (ffp->packet_buffering) {io_tick_counter = SDL_GetTickHR();if ((!ffp->first_video_frame_rendered && is->video_st) ||(!ffp->first_audio_frame_rendered && is->audio_st)) {// 首帧未显示前，50ms检测一次if (abs((int) (io_tick_counter - prev_io_tick_counter)) > FAST_BUFFERING_CHECK_PER_MILLISECONDS) {prev_io_tick_counter = io_tick_counter;ffp->dcc.current_high_water_mark_in_ms = ffp->dcc.first_high_water_mark_in_ms;ffp_check_buffering_l(ffp);}} else {if (abs((int) (io_tick_counter - prev_io_tick_counter)) > BUFFERING_CHECK_PER_MILLISECONDS) {prev_io_tick_counter = io_tick_counter;ffp_check_buffering_l(ffp);}}}}
}

完整代码如下

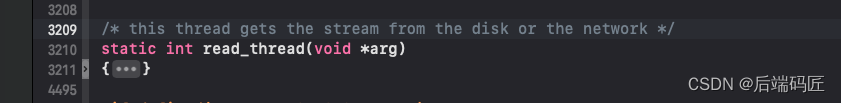

/* this thread gets the stream from the disk or the network */
static int read_thread(void *arg)
{inke_ijk_log(true, true, true, "ljc read_thread 1\n");FFPlayer *ffp = arg;VideoState *is = ffp->is;AVFormatContext *ic = NULL;int err = 0, i, ret __unused;int st_index[AVMEDIA_TYPE_NB];AVPacket pkt1, *pkt = &pkt1;int64_t stream_start_time;int completed = 0;int pkt_in_play_range = 0;AVDictionaryEntry *t;AVDictionary **opts;int orig_nb_streams;SDL_mutex *wait_mutex = SDL_CreateMutex();int scan_all_pmts_set = 0;int64_t pkt_ts;int last_error = 0;int64_t prev_io_tick_counter = 0;int64_t io_tick_counter = 0;#if defined(ENABLE_KRONOS_STREAM) || defined(ENABLE_QUIC_FLV_STREAM)// Kronos Streamint isKronosStream = 0;int isKronosFirstBuffering = 1;int kronosBufferingThreshold = 2;KronosMediaStream *kronos_media_stream = NULL;ffp->kronos_media_stream = NULL;ffp->inke_kronos_playback_pts = 0LL;ffp->inke_kronos_packet_duration = 0.0f;ffp->inke_sync_multi_playback_start_flag = 0;ffp->inke_sync_multi_playback_start_pts = 0LL;// QUIC FLV Stream#if defined(ENABLE_QUIC_FLV_STREAM)int isQuicFlvStream = 0;struct QuicFlvStream *quic_flv_stream = NULL;ffp->quic_flv_stream = NULL;#endif // defined(ENABLE_QUIC_FLV_STREAM)// FFmpeg AVIOuint8_t *avio_ctx_buffer = NULL;const size_t avio_ctx_buffer_size = 4096;AVIOContext *avio_ctx = NULL;// CDN cache monitor#define INKE_CDN_CACHE_MONITOR_DURATION 3000000LLstruct {int     report_flag;int64_t video_frame_count;int64_t video_fps;int64_t data_size;int64_t pts_base_internal;int64_t pts_diff;int32_t zero_pts_frame_count;int64_t *sei_diff;int64_t *stream_connected_ts;} inke_cdn_cache_monitor;memset(&inke_cdn_cache_monitor, 0, sizeof(inke_cdn_cache_monitor));memset(&ffp->debug_info.cdn_cache_info, 0, sizeof(ffp->debug_info.cdn_cache_info));memset(&ffp->debug_info.cdn_cache_info, '-', 3);inke_cdn_cache_monitor.pts_base_internal = -1LL;ffp->inke_cdn_monitor_sei_diff = -1LL;inke_cdn_cache_monitor.sei_diff = &ffp->inke_cdn_monitor_sei_diff;inke_cdn_cache_monitor.stream_connected_ts = &ffp->debug_info.connect_end_time;if (ffp->inke_kronos_stream == 0LL) {if ((is != NULL) && (is->filename != NULL) \&& (strncmp(is->filename, KronosProtocol, strlen(KronosProtocol)) == 0)) {ffp->inke_kronos_stream = 1LL;}}if (ffp->inke_kronos_stream != 0LL) {isKronosStream = 1;ffp->inke_live_stream = 1;}#if defined(ENABLE_QUIC_FLV_STREAM)if ((is != NULL) && (is->filename != NULL)&& (strncmp(is->filename, QuicFlvProtocol, strlen(QuicFlvProtocol)) == 0)) {isQuicFlvStream = 1;ffp->inke_live_stream = 1;}#endif // defined(ENABLE_QUIC_FLV_STREAM)#endif // #if defined(ENABLE_KRONOS_STREAM) || defined(ENABLE_QUIC_FLV_STREAM)if (!wait_mutex) {av_log(NULL, AV_LOG_FATAL, "SDL_CreateMutex(): %s\n", SDL_GetError());inke_ijk_log(true, true, true, "SDL_CreateMutex(): %s  filename:%s \n", SDL_GetError(),is->filename);ret = AVERROR(ENOMEM);goto fail;}memset(st_index, -1, sizeof(st_index));is->last_video_stream = is->video_stream = -1;is->last_audio_stream = is->audio_stream = -1;is->last_subtitle_stream = is->subtitle_stream = -1;is->eof = 0;
#ifdef INKE_EXTENSIONif ((is != NULL) && (is->filename != NULL)&& ((strncmp(is->filename, QuicFlvProtocol, strlen(QuicFlvProtocol)) == 0) || strcasestr(is->filename, ".flv") != NULL)) {ffp->inke_cdn_stream = 1;}if ((is != NULL) && (is->filename != NULL)) {const char *urlParam = strchr(is->filename, '?');if ((urlParam == NULL) || (strcasestr(urlParam, "ikSyncBeta=") == NULL)) {ffp->inke_kronos_roomid = 0LL;ffp->inke_kronos_room_timestamp = 0LL;ffp->inke_kronos_master_flag = false;}}if ((ffp->inke_kronos_roomid != 0LL) \&& (ffp->inke_kronos_room_timestamp != 0LL)) {SyncMultiAddInstance(ffp, ffp->inke_kronos_roomid, \ffp->inke_kronos_room_timestamp, ffp->inke_kronos_master_flag, ffp->inke_kronos_stream_type);}if (PIStreamPullNodePref(ffp) != 0) {//av_log(NULL, AV_LOG_ERROR, "no chorus stream network preference optimize\n");}inke_read_frame_time = av_gettime();//TODO:: powerinfo delete this code (zhouliwei)ffp->audio_callback_time = av_gettime_relative();#endif // INKE_EXTENSION
#ifdef INKE_DEBUG_IJKPLAYERffp->aout->previousLogTime = 0LL;ffp->aout->previousAudioQueueLogTime = 0LL;ffp->vout->previousLogTime = 0.0f;ffp->vout->network_frame_count = 0LL;ffp->vout->decode_frame_count = 0LL;ffp->vout->decode_fps = 0;ffp->vout->decode_previous_log_time = 0LL;snprintf(ffp->aout->streamUrl, sizeof(ffp->aout->streamUrl), "%s", ffp->input_filename);snprintf(ffp->vout->streamUrl, sizeof(ffp->vout->streamUrl), "%s", ffp->input_filename);
#endif // INKE_DEBUG_IJKPLAYERic = avformat_alloc_context();if (!ic) {av_log(NULL, AV_LOG_FATAL, "Could not allocate context.\n");inke_ijk_log(true, true, true, "Could not allocate context.  filename:%s\n",is->filename);ret = AVERROR(ENOMEM);goto fail;}ic->interrupt_callback.callback = decode_interrupt_cb;ic->interrupt_callback.opaque = is;//huangyaoif(!listIsCreated){inke_ijk_log(true, true, true, "huangyao +++ Init_Array \n");arr = Init_Array();listIsCreated = true;}if(arr != NULL){VideoStateNode* videoStateNode = (VideoStateNode *)malloc(sizeof(VideoStateNode));videoStateNode->is = is;videoStateNode->state = 1;inke_ijk_log(true, true, true, "huangyao +++ PushBack_Array \n");PushBack_Array(arr, videoStateNode);}if (!av_dict_get(ffp->format_opts, "scan_all_pmts", NULL, AV_DICT_MATCH_CASE)) {av_dict_set(&ffp->format_opts, "scan_all_pmts", "1", AV_DICT_DONT_OVERWRITE);scan_all_pmts_set = 1;}if (av_stristart(is->filename, "rtmp", NULL) ||av_stristart(is->filename, "rtsp", NULL)) {// There is total different meaning for 'timeout' option in rtmpav_log(ffp, AV_LOG_WARNING, "remove 'timeout' option for rtmp.\n");av_dict_set(&ffp->format_opts, "timeout", NULL, 0);}if (ffp->iformat_name)is->iformat = av_find_input_format(ffp->iformat_name);ffp->debug_info.player_open_input_time = av_gettime();#if !defined(ENABLE_KRONOS_STREAM) && !defined(ENABLE_QUIC_FLV_STREAM)err = avformat_open_input(&ic, is->filename, is->iformat, &ffp->format_opts);#elseif (isKronosStream == 1) {if (KronosCreateInstance(&kronos_media_stream, ffp) != 0) {inke_ijk_log(true, true, true, "KronosCreateInstance fail!. filename:%s \n",is->filename);ret = -1;goto fail;}char ip[128] = {'\0'};int  port = 0;uint32_t localASsrc = 0;uint32_t localVSsrc = 0;uint32_t  remoteASsrc = 0;char roomID[128] = {'\0'};bool isFM = (ffp->inke_kronos_fm!=0);inke_ijk_log(true, true, true, "setAudioOnly isFM=%d,val=%d filename:%s \n",isFM,ffp->inke_kronos_fm,is->filename);//krns://ip:port/channel/stream_id?L_SSRC_A=x&L_SSRC_V=x&R_SSRC_A=x&R_SSRC_V=xsscanf(is->filename,"%*[^0-9]%[^:]:%d/%*[^0-9]%[^?]%*[^0-9]%u%*[^0-9]%u%*[^0-9]%u",ip,&port,roomID,&localASsrc,&localVSsrc,&remoteASsrc);err = KronosMediaStreamSetLocalSSRC(kronos_media_stream, localASsrc, localASsrc+1);err += KronosMediaStreamSetRemoteSSRC(kronos_media_stream, remoteASsrc, remoteASsrc+1);err += KronosMediaStreamSetServerInfo(kronos_media_stream, ip, port);err += KronosMediaStreamSetAudioOnly(kronos_media_stream,isFM);err += KronosMediaStreamStartup(kronos_media_stream);if (err != 0) {assert(!"create kronos stream instance error");ret = -1;goto fail;}ffp->kronos_media_stream = kronos_media_stream;avio_ctx_buffer = av_malloc(avio_ctx_buffer_size);if (avio_ctx_buffer == NULL) {inke_ijk_log(true, true, true, "malloc avio_ctx_buffer fail filename:%s.\n",is->filename);ret = -1;goto fail;}avio_ctx = avio_alloc_context(avio_ctx_buffer, avio_ctx_buffer_size, 0, kronos_media_stream, kronos_read_packet, NULL, NULL);if (avio_ctx == NULL) {inke_ijk_log(true, true, true, "avio_alloc_context fail avio_ctx_buffer_size:%d\n",avio_ctx_buffer_size);ret = -1;goto fail;}ic->pb = avio_ctx;inke_ijk_log(true, true, true, "ljc read_thread krns open1\n");err = avformat_open_input(&ic, NULL, NULL, NULL);inke_ijk_log(true, true, true, "ljc read_thread krns open2\n");}#if defined(ENABLE_QUIC_FLV_STREAM)else if (isQuicFlvStream == 1) {if (QuicFlvCreateInstance(&quic_flv_stream, ffp) != 0) {ret = -1;goto fail;}if (QuicFlvStreamStartup(quic_flv_stream) != 0) {ret = -1;goto fail;}ffp->quic_flv_stream = quic_flv_stream;avio_ctx_buffer = av_malloc(avio_ctx_buffer_size);if (avio_ctx_buffer == NULL) {ret = -1;goto fail;}avio_ctx = avio_alloc_context(avio_ctx_buffer, avio_ctx_buffer_size, 0, quic_flv_stream, quic_flv_read_packet, NULL, NULL);if (avio_ctx == NULL) {ret = -1;goto fail;}ic->pb = avio_ctx;err = avformat_open_input(&ic, NULL, NULL, NULL);}#endif // defined(ENABLE_QUIC_FLV_STREAM)//for memory playelse if ((is != NULL) && (is->filename != NULL)&& (strncmp(is->filename, pipeProtocol, strlen(pipeProtocol)) == 0)) {avio_ctx_buffer = av_malloc(avio_ctx_buffer_size);if (avio_ctx_buffer == NULL) {ret = -1;goto fail;}struct memory_buffer_data mbuffer_data = { 0 };mbuffer_data.ptr = ffp->memory_data;mbuffer_data.size = ffp->memory_data_size;avio_ctx = avio_alloc_context(avio_ctx_buffer,avio_ctx_buffer_size,0,&mbuffer_data,memory_read_packet,NULL, NULL);if (avio_ctx == NULL) {ret = -1;goto fail;}ic->pb = avio_ctx;err = avformat_open_input(&ic, NULL, NULL, NULL);}else {err = avformat_open_input(&ic, is->filename, is->iformat, &ffp->format_opts);}#endif // !defined(ENABLE_KRONOS_STREAM) && !defined(ENABLE_QUIC_FLV_STREAM)if (err < 0) {//print_error(is->filename, err);//ljc 这个会崩溃char errbuf[128];const char *errbuf_ptr = errbuf;if (av_strerror(err, errbuf, sizeof(errbuf)) < 0)errbuf_ptr = strerror(AVUNERROR(err));inke_ijk_log(true, true, true, "ljc avformat_open_input ret=%d, %s: %s\n",err, is->filename, errbuf_ptr);ret = -1;goto fail;}if (scan_all_pmts_set)av_dict_set(&ffp->format_opts, "scan_all_pmts", NULL, AV_DICT_MATCH_CASE);if ((t = av_dict_get(ffp->format_opts, "", NULL, AV_DICT_IGNORE_SUFFIX))) {av_log(NULL, AV_LOG_ERROR, "Option %s not found.\n", t->key);
#ifdef FFP_MERGEret = AVERROR_OPTION_NOT_FOUND;goto fail;
#endif}is->ic = ic;av_log(NULL, AV_LOG_INFO,"filename not pzsp: %s",is->filename);if (ffp->genpts)ic->flags |= AVFMT_FLAG_GENPTS;av_format_inject_global_side_data(ic);opts = setup_find_stream_info_opts(ic, ffp->codec_opts);orig_nb_streams = ic->nb_streams;#ifdef INKE_EXTENSIONif (ffp->inke_live_stream == 1) {ic->probesize = 5000000; // TODO: wait for PowerInfo fix bugint64_t default_probo_size = ic->probesize;default_probo_size = default_probo_size > 5000000 ? default_probo_size : 5000000;if (strstr(is->filename, "&wsiphost=ipdbm") != NULL) {ic->probesize = 8192;}#define INKE_EXTENSION_CODEC_INFO "CodecInfo="char* codec_position = strcasestr(is->filename, INKE_EXTENSION_CODEC_INFO);if (codec_position != NULL) {codec_position += strlen(INKE_EXTENSION_CODEC_INFO);ic->probesize = atol(codec_position);ic->probesize = (ic->probesize > 0LL) && (ic->probesize <= default_probo_size) ? ic->probesize : default_probo_size;}#ifdef ENABLE_KRONOS_STREAMif (isKronosStream == 1) {ic->probesize = 4096;}#endif // ENABLE_KRONOS_STREAM}
#endif // INKE_EXTENSIONerr = avformat_find_stream_info(ic, opts);ffp->debug_info.open_success_time = av_gettime();for (i = 0; i < orig_nb_streams; i++)av_dict_free(&opts[i]);av_freep(&opts);if (err < 0) {av_log(NULL, AV_LOG_WARNING,"%s: could not find codec parameters\n", is->filename);inke_ijk_log(true, true, true, "%s: could not find codec parameters\n", is->filename);ret = -1;goto fail;}if (ic->pb)ic->pb->eof_reached = 0; // FIXME hack, ffplay maybe should not use avio_feof() to test for the endif (ffp->seek_by_bytes < 0)ffp->seek_by_bytes = !!(ic->iformat->flags & AVFMT_TS_DISCONT) && strcmp("ogg", ic->iformat->name);is->max_frame_duration = (ic->iformat->flags & AVFMT_TS_DISCONT) ? 10.0 : 3600.0;is->max_frame_duration = 10.0;av_log(ffp, AV_LOG_INFO, "max_frame_duration: %.3f\n", is->max_frame_duration);#ifdef FFP_MERGEif (!window_title && (t = av_dict_get(ic->metadata, "title", NULL, 0)))window_title = av_asprintf("%s - %s", t->value, input_filename);#endif/* if seeking requested, we execute it */if (ffp->start_time != AV_NOPTS_VALUE) {int64_t timestamp;timestamp = ffp->start_time;/* add the stream start time */if (ic->start_time != AV_NOPTS_VALUE)timestamp += ic->start_time;ret = avformat_seek_file(ic, -1, INT64_MIN, timestamp, INT64_MAX, 0);if (ret < 0) {av_log(NULL, AV_LOG_WARNING, "%s: could not seek to position %0.3f\n",is->filename, (double)timestamp / AV_TIME_BASE);}}is->realtime = is_realtime(ic);if (true || ffp->show_status)av_dump_format(ic, 0, is->filename, 0);int video_stream_count = 0;int h264_stream_count = 0;int first_h264_stream = -1;inke_ijk_log(true, true, true, "ljc ic->nb_streams:%d\n", ic->nb_streams);for (i = 0; i < ic->nb_streams; i++) {AVStream *st = ic->streams[i];enum AVMediaType type = st->codecpar->codec_type;st->discard = AVDISCARD_ALL;if (type >= 0 && ffp->wanted_stream_spec[type] && st_index[type] == -1)if (avformat_match_stream_specifier(ic, st, ffp->wanted_stream_spec[type]) > 0)st_index[type] = i;// choose first h264if (type == AVMEDIA_TYPE_VIDEO) {enum AVCodecID codec_id = st->codecpar->codec_id;video_stream_count++;if (codec_id == AV_CODEC_ID_H264) {h264_stream_count++;if (first_h264_stream < 0)first_h264_stream = i;}ffp->debug_info.has_video = 1;}else if(type == AVMEDIA_TYPE_AUDIO){ffp->debug_info.has_audio = 1;}}if (video_stream_count > 1 && st_index[AVMEDIA_TYPE_VIDEO] < 0) {st_index[AVMEDIA_TYPE_VIDEO] = first_h264_stream;av_log(NULL, AV_LOG_WARNING, "multiple video stream found, prefer first h264 stream: %d\n", first_h264_stream);}if (!ffp->video_disable)st_index[AVMEDIA_TYPE_VIDEO] =av_find_best_stream(ic, AVMEDIA_TYPE_VIDEO,st_index[AVMEDIA_TYPE_VIDEO], -1, NULL, 0);if (!ffp->audio_disable)st_index[AVMEDIA_TYPE_AUDIO] =av_find_best_stream(ic, AVMEDIA_TYPE_AUDIO,st_index[AVMEDIA_TYPE_AUDIO],st_index[AVMEDIA_TYPE_VIDEO],NULL, 0);if (!ffp->video_disable && !ffp->subtitle_disable)st_index[AVMEDIA_TYPE_SUBTITLE] =av_find_best_stream(ic, AVMEDIA_TYPE_SUBTITLE,st_index[AVMEDIA_TYPE_SUBTITLE],(st_index[AVMEDIA_TYPE_AUDIO] >= 0 ?st_index[AVMEDIA_TYPE_AUDIO] :st_index[AVMEDIA_TYPE_VIDEO]),NULL, 0);is->show_mode = ffp->show_mode;
#ifdef FFP_MERGE // bbc: dunno if we need thisif (st_index[AVMEDIA_TYPE_VIDEO] >= 0) {AVStream *st = ic->streams[st_index[AVMEDIA_TYPE_VIDEO]];AVCodecParameters *codecpar = st->codecpar;AVRational sar = av_guess_sample_aspect_ratio(ic, st, NULL);if (codecpar->width)set_default_window_size(codecpar->width, codecpar->height, sar);}
#endif/* open the streams */if (st_index[AVMEDIA_TYPE_AUDIO] >= 0) {ret = stream_component_open(ffp, st_index[AVMEDIA_TYPE_AUDIO]);}if(!ffp->scale_tempo_info.isrunning){ffp->scale_tempo_info.in_pcm_format = VLC_PCM_S16L;ffp->scale_tempo_info.out_pcm_format = VLC_PCM_S16L;scaletempo_start(&ffp->scale_tempo_info, ffp->is->audio_tgt.freq, ffp->is->audio_tgt.channels, 16);}ret = -1;if (st_index[AVMEDIA_TYPE_VIDEO] >= 0) {ret = stream_component_open(ffp, st_index[AVMEDIA_TYPE_VIDEO]);}if (is->show_mode == SHOW_MODE_NONE)is->show_mode = ret >= 0 ? SHOW_MODE_VIDEO : SHOW_MODE_RDFT;if (st_index[AVMEDIA_TYPE_SUBTITLE] >= 0) {stream_component_open(ffp, st_index[AVMEDIA_TYPE_SUBTITLE]);}ijkmeta_set_avformat_context_l(ffp->meta, ic);ffp->stat.bit_rate = ic->bit_rate;if (st_index[AVMEDIA_TYPE_VIDEO] >= 0)ijkmeta_set_int64_l(ffp->meta, IJKM_KEY_VIDEO_STREAM, st_index[AVMEDIA_TYPE_VIDEO]);if (st_index[AVMEDIA_TYPE_AUDIO] >= 0)ijkmeta_set_int64_l(ffp->meta, IJKM_KEY_AUDIO_STREAM, st_index[AVMEDIA_TYPE_AUDIO]);if (st_index[AVMEDIA_TYPE_SUBTITLE] >= 0)ijkmeta_set_int64_l(ffp->meta, IJKM_KEY_TIMEDTEXT_STREAM, st_index[AVMEDIA_TYPE_SUBTITLE]);if (is->video_stream < 0 && is->audio_stream < 0) {//av_log(NULL, AV_LOG_FATAL, "Failed to open file '%s' or configure filtergraph\n",is->filename);inke_ijk_log(true, true, true, "Failed to open file '%s' or configure filtergraph\n",is->filename);ret = -1;goto fail;}after_stream_comp_open:if (is->audio_stream >= 0) {is->audioq.is_buffer_indicator = 1;is->buffer_indicator_queue = &is->audioq;} else if (is->video_stream >= 0) {is->videoq.is_buffer_indicator = 1;is->buffer_indicator_queue = &is->videoq;} else {assert("invalid streams");}if (ffp->infinite_buffer < 0 && is->realtime)ffp->infinite_buffer = 1;if (!ffp->start_on_prepared)toggle_pause(ffp, 1);if (is->video_st && is->video_st->codecpar) {AVCodecParameters *codecpar = is->video_st->codecpar;ffp_notify_msg3(ffp, FFP_MSG_VIDEO_SIZE_CHANGED, codecpar->width, codecpar->height);ffp_notify_msg3(ffp, FFP_MSG_SAR_CHANGED, codecpar->sample_aspect_ratio.num, codecpar->sample_aspect_ratio.den);
#ifdef INKE_EXTENSIONif(codecpar->width > codecpar->height){inke_ijkplayer_msg_hook(ffp, 0x1500/*STREAM_RATIO_16_TO_9*/);}
#endif // INKE_EXTENSION}ffp->prepared = true;ffp_notify_msg1(ffp, FFP_MSG_PREPARED);if (!ffp->start_on_prepared) {while (is->pause_req && !is->abort_request) {SDL_Delay(100);}}ALOGI("ffp(%p) start after prepared", ffp);if (ffp->auto_resume) {ffp_notify_msg1(ffp, FFP_REQ_START);ffp->auto_resume = 0;}/* offset should be seeked*/if (ffp->seek_at_start > 0) {ffp_seek_to_l(ffp, ffp->seek_at_start);}#ifdef INKE_EXTENSION#define INKE_INIT_RESERVE_DATA_TIME 3600    // units:ms#define INKE_MUST_DROP_DATA_TIME    8000    // units:ms#define INKE_AUDIO_BUFFER_TIME      1600    // units:ms#define INKE_STARTUP_BUFFER_AUDIO_PACKET_COUNT 15#define INKE_STARTUP_BUFFER_VIDEO_PACKET_COUNT 8#define INKE_PLAYBACK_BUFFER_AUDIO_PACKET_COUNT 50#define INKE_PLAYBACK_BUFFER_VIDEO_PACKET_COUNT 18#define INKE_PLAYBACK_BUFFER_AUDIO_MIN_THRESHOLD 2#define INKE_PLAYBACK_BUFFER_AUDIO_MAX_THRESHOLD 200//int video_fps = 24; // TODO: read from metaint64_t last_av_frame_base_time = av_gettime();//int audio_reserve_time = INKE_INIT_RESERVE_DATA_TIME * 1000; // TODO: danymic adjust reserve timeint standard_audio_frame_interval = 0;int audio_last_delay_second = 0; //units:sint audio_queue_data_stability_time = 0; //units:msint64_t av_frame_drop_until_pts = 0LL; //units:usint  display_initialize_buffering_time = 360; //units:msbool drop_key_frame = false;bool powerinfo_has_reset_player_flag = false;int inke_buffer_audio_packet_count = INKE_STARTUP_BUFFER_AUDIO_PACKET_COUNT;int inke_buffer_video_packet_count = INKE_STARTUP_BUFFER_VIDEO_PACKET_COUNT;int64_t kronosLastReadTime = av_gettime_relative();srand((unsigned int)time(NULL));if (ffp->inke_live_stream == 1) {ffp->infinite_buffer = 1;}// qualityint64_t quality_start_time = av_gettime();int64_t quality_total_network_data_size = 0LL;int64_t quality_fps_base_time = av_gettime();int     quality_fps_frame_count = 0;int64_t stream_start_playback_time = av_gettime();display_fps_base_time = av_gettime();ffp->audio_playback_alive_time = av_gettime();if (st_index[AVMEDIA_TYPE_VIDEO] >= 0) {AVRational avg_frame_rate = ic->streams[st_index[AVMEDIA_TYPE_VIDEO]]->avg_frame_rate;inke_cdn_cache_monitor.video_fps = avg_frame_rate.num / (avg_frame_rate.den > 0 ? avg_frame_rate.den : 1);}bool isOnlyHasAudio = true;if(is->video_st && is->video_st->codecpar && is->video_st->codecpar->width > 16 && is->video_st->codecpar->height > 16){isOnlyHasAudio = false;}
#endif // INKE_EXTENSIONint64_t read_loop_log_time = 0;int64_t kronosReadBlockTime = av_gettime_relative();int64_t kronosReadTime = av_gettime_relative();//read_thread_step 8  重复6、7不断获取待播放的数据for (;;) {if (is->abort_request)break;#ifdef FFP_MERGEif (is->paused != is->last_paused) {is->last_paused = is->paused;if (is->paused)is->read_pause_return = av_read_pause(ic);elseav_read_play(ic);}
#endif
#if CONFIG_RTSP_DEMUXER || CONFIG_MMSH_PROTOCOLif (is->paused &&(!strcmp(ic->iformat->name, "rtsp") ||(ic->pb && !strncmp(ffp->input_filename, "mmsh:", 5)))) {/* wait 10 ms to avoid trying to get another packet *//* XXX: horrible */SDL_Delay(10);continue;}
#endifif (is->seek_req) {inke_ijk_log(true, true, false, "[zlw] is->seek_req:%d", is->seek_req);int64_t seek_target = is->seek_pos;int64_t seek_min    = is->seek_rel > 0 ? seek_target - is->seek_rel + 2: INT64_MIN;int64_t seek_max    = is->seek_rel < 0 ? seek_target - is->seek_rel - 2: INT64_MAX;
// FIXME the +-2 is due to rounding being not done in the correct direction in generation
//      of the seek_pos/seek_rel variablesffp_toggle_buffering(ffp, 1);ffp_notify_msg3(ffp, FFP_MSG_BUFFERING_UPDATE, 0, 0);inke_ijk_log(true, true, false, "[zlw] avformat_seek_file start");ret = avformat_seek_file(is->ic, -1, seek_min, seek_target, seek_max, is->seek_flags);inke_ijk_log(true, true, false, "[zlw] avformat_seek_file end");if (ret < 0) {av_log(NULL, AV_LOG_ERROR,"%s: error while seeking\n", is->ic->filename);#ifdef INKE_EXTENSIONffp_notify_msg1(ffp, FFP_MSG_SEEK_COMPLETE);
#endif // INKE_EXTENSION} else {if (is->audio_stream >= 0) {packet_queue_flush(&is->audioq);packet_queue_put(&is->audioq, &flush_pkt);}if (is->subtitle_stream >= 0) {packet_queue_flush(&is->subtitleq);packet_queue_put(&is->subtitleq, &flush_pkt);}if (is->video_stream >= 0) {if (ffp->node_vdec) {ffpipenode_flush(ffp->node_vdec);}packet_queue_flush(&is->videoq);packet_queue_put(&is->videoq, &flush_pkt);}if (is->seek_flags & AVSEEK_FLAG_BYTE) {set_clock(&is->extclk, NAN, 0);} else {set_clock(&is->extclk, seek_target / (double)AV_TIME_BASE, 0);}is->latest_seek_load_serial = is->videoq.serial;is->latest_seek_load_start_at = av_gettime();}ffp->dcc.current_high_water_mark_in_ms = ffp->dcc.first_high_water_mark_in_ms;is->seek_req = 0;is->queue_attachments_req = 1;is->eof = 0;
#ifdef FFP_MERGEif (is->paused)step_to_next_frame(is);
#endifcompleted = 0;SDL_LockMutex(ffp->is->play_mutex);if (ffp->auto_resume) {is->pause_req = 0;if (ffp->packet_buffering)is->buffering_on = 1;ffp->auto_resume = 0;stream_update_pause_l(ffp);}if (is->pause_req)step_to_next_frame_l(ffp);SDL_UnlockMutex(ffp->is->play_mutex);ffp_notify_msg3(ffp, FFP_MSG_SEEK_COMPLETE, (int)fftime_to_milliseconds(seek_target), ret);inke_ijk_log(true, true, false, "[zlw] FFP_MSG_SEEK_COMPLETE");ffp_toggle_buffering(ffp, 1);}if (is->queue_attachments_req) {if (is->video_st && (is->video_st->disposition & AV_DISPOSITION_ATTACHED_PIC)) {AVPacket copy;if ((ret = av_copy_packet(&copy, &is->video_st->attached_pic)) < 0)goto fail;packet_queue_put(&is->videoq, &copy);packet_queue_put_nullpacket(&is->videoq, is->video_stream);}is->queue_attachments_req = 0;}/* if the queue are full, no need to read more */if (ffp->infinite_buffer<1 && !is->seek_req &&
#ifdef FFP_MERGE(is->audioq.size + is->videoq.size + is->subtitleq.size > MAX_QUEUE_SIZE
#else(is->audioq.size + is->videoq.size + is->subtitleq.size > ffp->dcc.max_buffer_size
#endif|| (   stream_has_enough_packets(is->audio_st, is->audio_stream, &is->audioq, MIN_FRAMES)&& stream_has_enough_packets(is->video_st, is->video_stream, &is->videoq, MIN_FRAMES)&& stream_has_enough_packets(is->subtitle_st, is->subtitle_stream, &is->subtitleq, MIN_FRAMES)))) {if (!is->eof) {ffp_toggle_buffering(ffp, 0);}/* wait 10 ms */SDL_LockMutex(wait_mutex);SDL_CondWaitTimeout(is->continue_read_thread, wait_mutex, 10);SDL_UnlockMutex(wait_mutex);continue;}if ((!is->paused || completed) &&(!is->audio_st || (is->auddec.finished == is->audioq.serial && frame_queue_nb_remaining(&is->sampq) == 0))&&(!is->video_st || (is->viddec.finished == is->videoq.serial && frame_queue_nb_remaining(&is->pictq) == 0)|| (is->video_st->codecpar->width == 16 && is->video_st->codecpar->height == 16))) {if (ffp->loop != 1 && (!ffp->loop || --ffp->loop)) {ffp->seek_to_start_by_loop = 1;stream_seek(is, ffp->start_time != AV_NOPTS_VALUE ? ffp->start_time : 0, 0, 0);inke_buffer_audio_packet_count = 10;//INKE_STARTUP_BUFFER_AUDIO_PACKET_COUNT;inke_buffer_video_packet_count = 3;//INKE_STARTUP_BUFFER_VIDEO_PACKET_COUNT;ffp_notify_msg1(ffp, INKE_STREAM_RESTART_PLAY);} else if (ffp->autoexit) {ret = AVERROR_EOF;goto fail;} else {ffp_statistic_l(ffp);if (completed) {av_log(ffp, AV_LOG_INFO, "ffp_toggle_buffering: eof\n");SDL_LockMutex(wait_mutex);// infinite wait may block shutdownwhile(!is->abort_request && !is->seek_req)SDL_CondWaitTimeout(is->continue_read_thread, wait_mutex, 100);SDL_UnlockMutex(wait_mutex);if (!is->abort_request)continue;} else {completed = 1;ffp->auto_resume = 0;// TODO: 0 it's a bit early to notify complete hereffp_toggle_buffering(ffp, 0);
#ifndef INKE_EXTENSIONtoggle_pause(ffp, 1);//LYN
#endif // INKE_EXTENSIONif (ffp->error) {av_log(ffp, AV_LOG_INFO, "ffp_toggle_buffering: error: %d\n", ffp->error);ffp_notify_msg1(ffp, FFP_MSG_ERROR);} else {av_log(ffp, AV_LOG_INFO, "ffp_toggle_buffering: completed: OK\n");ffp_notify_msg1(ffp, FFP_MSG_COMPLETED);}
#ifdef INKE_EXTENSIONtoggle_pause(ffp, 1);//LYN
#endif // INKE_EXTENSION}}}pkt->flags = 0;ret = av_read_frame(ic, pkt);int minRiseVSize = 0;int minDeclineVSize = 0;double standardDecline = 0;uint16_t jitter_audio_count = 0;if(isKronosStream && ffp->kronos_media_stream && !isOnlyHasAudio){minRiseVSize = getMinVideoQueueSize(is->video_queue_size_rise, VIDEO_ARRAY_COUNT);minDeclineVSize = getMinVideoQueueSize(is->video_queue_size_decline, VIDEO_ARRAY_COUNT * 3);standardDecline = getStandardVideoQueueSize(is->video_queue_size_decline, VIDEO_ARRAY_COUNT * 3);jitter_audio_count = ffp->kronos_media_stream->jitterBufferMs/10;if(jitter_audio_count < INKE_PLAYBACK_BUFFER_AUDIO_MIN_THRESHOLD){jitter_audio_count = INKE_PLAYBACK_BUFFER_AUDIO_MIN_THRESHOLD;}if(jitter_audio_count > INKE_PLAYBACK_BUFFER_AUDIO_MAX_THRESHOLD){jitter_audio_count = INKE_PLAYBACK_BUFFER_AUDIO_MAX_THRESHOLD;}if(kronosBufferingThreshold < jitter_audio_count && minRiseVSize < 15){kronosBufferingThreshold = jitter_audio_count;}if(av_gettime_relative() - kronosLastReadTime > 50 * 1000){ //50 msint aSize = is->audioq.nb_packets + frame_queue_nb_remaining(&is->sampq);int vSize = is->videoq.nb_packets + frame_queue_nb_remaining(&is->pictq);pushVideoQueueSize(is->video_queue_size_rise, VIDEO_ARRAY_COUNT,&is->video_array_rise_index, vSize);pushVideoQueueSize(is->video_queue_size_decline, VIDEO_ARRAY_COUNT * 3,&is->video_array_decline_index, vSize);if(jitter_audio_count > 35&& minRiseVSize < 1&& kronosBufferingThreshold < INKE_PLAYBACK_BUFFER_AUDIO_MAX_THRESHOLD){kronosBufferingThreshold++;}//由于音频变速消耗cpu比较多，所以当实际的音频队列大于最大阀值的1.2倍时，就仅通过丢包限制if(aSize > kronosBufferingThreshold * 1.3 && aSize < INKE_PLAYBACK_BUFFER_AUDIO_MAX_THRESHOLD * 1.2){ffp->scale_tempo_info.scale = 1.1; // 加速播放}else if(kronosBufferingThreshold - aSize > 2){ffp->scale_tempo_info.scale = 0.9; // 减速播放}else{ffp->scale_tempo_info.scale = 1.0;}kronosLastReadTime = av_gettime_relative();}}else{jitter_audio_count = INKE_PLAYBACK_BUFFER_AUDIO_MIN_THRESHOLD;}if (isKronosStream && pkt->stream_index == is->video_stream) {
//            int64_t kronosReadTimeInterval = av_gettime_relative() - kronosReadTime;
//            int aSize = is->audioq.nb_packets + frame_queue_nb_remaining(&is->sampq);
//            int vSize = is->videoq.nb_packets + frame_queue_nb_remaining(&is->pictq);
//            inke_ijk_log(false, true, false, "Tian read_thread | *** Interval = %lld, flag = %d, aSize = %d, vSize = %d, threshold = %d jitter:%d scale_tempo_info.scale=%f minRiseVSize:%d minDeclineVSize:%d standard:%0.4f\n", kronosReadTimeInterval, ffp->inke_kronos_player_flag, aSize, vSize, kronosBufferingThreshold, jitter_audio_count, ffp->scale_tempo_info.scale, minRiseVSize, minDeclineVSize, standardDecline);
//            kronosReadTime = av_gettime_relative();}
#ifdef INKE_EXTENSIONinke_read_frame_time = av_gettime();if (inke_read_frame_time - *inke_cdn_cache_monitor.stream_connected_ts <= INKE_CDN_CACHE_MONITOR_DURATION) {if ((st_index[AVMEDIA_TYPE_VIDEO] >= 0) \&& (pkt->stream_index == st_index[AVMEDIA_TYPE_VIDEO])) {++inke_cdn_cache_monitor.video_frame_count;if (pkt->pts == 0LL) {++inke_cdn_cache_monitor.zero_pts_frame_count;}}if (inke_cdn_cache_monitor.pts_base_internal < 0LL) {inke_cdn_cache_monitor.pts_base_internal = pkt->pts;if ((ffp->input_filename != NULL) \&& (strncasecmp(ffp->input_filename, "http://", 7) == 0) \&& (strcasestr(ffp->input_filename, ".flv") != NULL)) {ffp->debug_info.cdn_cache_info.stream_key = *inke_cdn_cache_monitor.stream_connected_ts;}ffp->debug_info.cdn_cache_info.monitor_duration = (uint32_t)(INKE_CDN_CACHE_MONITOR_DURATION / 1000LL);}inke_cdn_cache_monitor.data_size += pkt->size;inke_cdn_cache_monitor.pts_diff = pkt->pts - inke_cdn_cache_monitor.pts_base_internal;ffp->debug_info.cdn_cache_info.duration = (uint32_t)((inke_read_frame_time - *inke_cdn_cache_monitor.stream_connected_ts) / 1000LL);ffp->debug_info.cdn_cache_info.data_szie = (uint32_t)inke_cdn_cache_monitor.data_size;ffp->debug_info.cdn_cache_info.video_frames = (uint32_t)inke_cdn_cache_monitor.video_frame_count;ffp->debug_info.cdn_cache_info.pts_diff = (uint32_t)(inke_cdn_cache_monitor.pts_diff - ffp->debug_info.cdn_cache_info.duration);ffp->debug_info.cdn_cache_info.zero_pts_count = (uint32_t)inke_cdn_cache_monitor.zero_pts_frame_count;} else {if (!inke_cdn_cache_monitor.report_flag) {inke_cdn_cache_monitor.report_flag = 1;if ((ffp->input_filename != NULL) \&& (strncasecmp(ffp->input_filename, "http://", 7) == 0) \&& (strcasestr(ffp->input_filename, ".flv") != NULL)) {int64_t correctedFps = inke_cdn_cache_monitor.video_fps != 0LL ? inke_cdn_cache_monitor.video_fps : 15LL;double zero_frame_duration = 1.0f * (inke_cdn_cache_monitor.zero_pts_frame_count >= 1 ? (inke_cdn_cache_monitor.zero_pts_frame_count - 1) : 0) / correctedFps;double monitor_duration = 1.0f * INKE_CDN_CACHE_MONITOR_DURATION / 1000000.0f;ffp->debug_info.cdn_cache_info.duration = (uint32_t)(INKE_CDN_CACHE_MONITOR_DURATION / 1000LL);ffp->debug_info.cdn_cache_info.pts_diff = (uint32_t)(inke_cdn_cache_monitor.pts_diff - ffp->debug_info.cdn_cache_info.duration);snprintf(ffp->debug_info.cdn_cache_info.info_string, \sizeof(ffp->debug_info.cdn_cache_info.info_string), \"size:%dKB(%.1fs),pts_diff:%.1f,frame_diff:%.1f(%d/%s%d,%d),sei_diff:%0.1f", \(int)(inke_cdn_cache_monitor.data_size / 1024), monitor_duration, \1.0f * inke_cdn_cache_monitor.pts_diff / 1000.0f - monitor_duration + zero_frame_duration, \1.0f * inke_cdn_cache_monitor.video_frame_count / correctedFps - monitor_duration, \(int)inke_cdn_cache_monitor.video_frame_count, \inke_cdn_cache_monitor.video_fps != 0LL ? "" : "+", \(int)correctedFps, \(int)inke_cdn_cache_monitor.zero_pts_frame_count, \*inke_cdn_cache_monitor.sei_diff / 1000.0f);}}}if(!isKronosStream && !isOnlyHasAudio && ffp->inke_live_stream == 1&& pkt->stream_index == is->video_stream && is->viddec.last_decode_time != 0&& inke_read_frame_time - is->viddec.last_decode_time > 5 * 1000000){   // 5sinke_ijk_log(true, true, true, "ljc wait decoder timeout. FFP_MSG_ERROR");ffp_notify_msg1(ffp, FFP_MSG_ERROR);is->abort_request = 1;}
#endif // INKE_EXTENSIONif (ret < 0) {int pb_eof = 0;int pb_error = 0;if ((ret == AVERROR_EOF || avio_feof(ic->pb)) && !is->eof) {pb_eof = 1;// check error later}if (ic->pb && ic->pb->error) {pb_eof = 1;pb_error = ic->pb->error;}if (ret == AVERROR_EXIT) {pb_eof = 1;pb_error = AVERROR_EXIT;}if (pb_eof) {if (is->video_stream >= 0)packet_queue_put_nullpacket(&is->videoq, is->video_stream);if (is->audio_stream >= 0)packet_queue_put_nullpacket(&is->audioq, is->audio_stream);if (is->subtitle_stream >= 0)packet_queue_put_nullpacket(&is->subtitleq, is->subtitle_stream);is->eof = 1;}if (pb_error) {if (is->video_stream >= 0)packet_queue_put_nullpacket(&is->videoq, is->video_stream);if (is->audio_stream >= 0)packet_queue_put_nullpacket(&is->audioq, is->audio_stream);if (is->subtitle_stream >= 0)packet_queue_put_nullpacket(&is->subtitleq, is->subtitle_stream);is->eof = 1;ffp->error = pb_error;av_log(ffp, AV_LOG_ERROR, "av_read_frame error: %x: %s\n", ffp->error,ffp_get_error_string(ffp->error));print_error("av_read_frame error", ffp->error);// break;
#ifdef INKE_EXTENSIONif (pb_error == AVERROR_EXIT) {break;}
#endif // INKE_EXTENSION} else {ffp->error = 0;}if (is->eof) {ffp_toggle_buffering(ffp, 0);#ifndef INKE_EXTENSIONSDL_Delay(1000);#elseint ispzsp = 0;if (ispzsp || (ffp->inke_live_stream == 1) || (ffp->input_filename != NULL && (ffp->input_filename[0] != '/'))) {int64_t duration = fftime_to_milliseconds(is->ic->duration);int64_t remain_duration = duration - ffp_get_current_position_l(ffp);
//                    inke_ijk_log(true, true, false, "zlw remain_duration:%lld", remain_duration);if (ffp->is->seek_req || remain_duration < 1000) {if (remain_duration < 100) {if (ffp->loop != 1 && (!ffp->loop || --ffp->loop)) {inke_ijk_log(true, true, false, "[zlw] start seek to 0 start\n");ffp->seek_to_start_by_loop = 1;stream_seek(is, ffp->start_time != AV_NOPTS_VALUE ? ffp->start_time : 0, 0, 0);inke_buffer_audio_packet_count = 10;//INKE_STARTUP_BUFFER_AUDIO_PACKET_COUNT;inke_buffer_video_packet_count = 3;//INKE_STARTUP_BUFFER_VIDEO_PACKET_COUNT;inke_ijk_log(true, true, false, "[zlw] start seek to 0 end\n");ffp_notify_msg1(ffp, INKE_STREAM_RESTART_PLAY);}}else {SDL_Delay(1);}}else {SDL_Delay(500);}} else {if (!ffp->not_fast_stop&&(ic->duration >= 0) && (ic->duration < (15 * AV_TIME_BASE))) {if (av_gettime() - stream_start_playback_time > ic->duration + 0.69 * AV_TIME_BASE) {ffp_notify_msg1(ffp, FFP_MSG_COMPLETED);is->abort_request = 1;continue;}SDL_Delay(350);} else {if (ffp->loop == 0/*loop state on*/) {SDL_Delay(200); // sleep short time when playback loop} else {SDL_Delay(1000);}}}#endif // INKE_EXTENSION}SDL_LockMutex(wait_mutex);SDL_CondWaitTimeout(is->continue_read_thread, wait_mutex, 10);SDL_UnlockMutex(wait_mutex);ffp_statistic_l(ffp);continue;} else {is->eof = 0;}if (pkt->flags & AV_PKT_FLAG_DISCONTINUITY) {if (is->audio_stream >= 0) {packet_queue_put(&is->audioq, &flush_pkt);}if (is->subtitle_stream >= 0) {packet_queue_put(&is->subtitleq, &flush_pkt);}if (is->video_stream >= 0) {packet_queue_put(&is->videoq, &flush_pkt);}}/* check if packet is in play range specified by user, then queue, otherwise discard */stream_start_time = ic->streams[pkt->stream_index]->start_time;pkt_ts = pkt->pts == AV_NOPTS_VALUE ? pkt->dts : pkt->pts;pkt_in_play_range = ffp->duration == AV_NOPTS_VALUE ||(pkt_ts - (stream_start_time != AV_NOPTS_VALUE ? stream_start_time : 0)) *av_q2d(ic->streams[pkt->stream_index]->time_base) -(double)(ffp->start_time != AV_NOPTS_VALUE ? ffp->start_time : 0) / 1000000<= ((double)ffp->duration / 1000000);
#ifdef INKE_EXTENSIONif ((ffp->inke_live_stream == 1) || isKronosStream) {streamFlowmeter(ffp, &quality_start_time, &quality_total_network_data_size, pkt->size);}if (ffp->inke_cdn_stream == 1) {if (pkt->stream_index == is->video_stream) {is->bitrateV += pkt->size;} else {is->bitrateA += pkt->size;}stepIJKPlayerInfo(ffp);}if ((ffp->inke_live_stream == 1) && !isKronosStream&&!ffp->temp_disable_fast_chase) {int64_t pkt_pts_us = (int64_t)(pkt_ts * av_q2d(ic->streams[pkt->stream_index]->time_base) * 1000000);if (is->buffering_on || ((is->audioq.duration < INKE_INIT_RESERVE_DATA_TIME) \&& (audio_last_delay_second > (int)(INKE_INIT_RESERVE_DATA_TIME / 1000)))) {av_frame_drop_until_pts = pkt_pts_us;last_av_frame_base_time = av_gettime();audio_last_delay_second = (int)(INKE_INIT_RESERVE_DATA_TIME / 1000);audio_queue_data_stability_time = 0;}if (av_frame_drop_until_pts > pkt_pts_us) {pkt_in_play_range = 0;last_av_frame_base_time = av_gettime();drop_key_frame = pkt->stream_index != is->video_stream ? drop_key_frame : true;} else {if ((pkt->stream_index == is->video_stream) && drop_key_frame) {if(pkt->flags & AV_PKT_FLAG_KEY) {drop_key_frame = false;}else {last_av_frame_base_time = av_gettime();pkt_in_play_range = 0;}}}if ((pkt->stream_index == is->audio_stream) && pkt_in_play_range && !is->buffering_on) {int64_t now = av_gettime();int av_frame_interval = (int)((now - last_av_frame_base_time) / 1000);last_av_frame_base_time = now;standard_audio_frame_interval = ((standard_audio_frame_interval != 0)|| (is->audioq.nb_packets == 0)) ? standard_audio_frame_interval: (int)(is->audioq.duration / is->audioq.nb_packets);int delay_second = (int)(is->audioq.duration / 1000);int audio_delay_drop_data_timeline = (int)(INKE_MUST_DROP_DATA_TIME / 1000);
//                av_log(NULL, AV_LOG_FATAL, "delay_second:%d, av_frame_interval:%d, standard_audio_frame_interval:%d, audio_last_delay_second:%d\n",
//                       delay_second, av_frame_interval, standard_audio_frame_interval, audio_last_delay_second);if ((av_frame_interval <= standard_audio_frame_interval * 16)&& ((audio_last_delay_second == delay_second)|| (delay_second >= audio_delay_drop_data_timeline)|| ((audio_last_delay_second >= 6) && (audio_last_delay_second < audio_delay_drop_data_timeline)&& (delay_second >= 6) && (delay_second < audio_delay_drop_data_timeline))|| ((audio_last_delay_second >= 5) && (delay_second >= 5))|| ((audio_last_delay_second > 3) && (delay_second > 3))|| ((audio_last_delay_second >= 2) && (delay_second >= 2))|| ((audio_last_delay_second >= 1) && (delay_second >= 1))|| (1.0 * delay_second / audio_delay_drop_data_timeline > 1.5f))) {audio_queue_data_stability_time += av_frame_interval;}else {audio_queue_data_stability_time = 0;}audio_last_delay_second = delay_second <= audio_delay_drop_data_timeline ? \delay_second \: audio_delay_drop_data_timeline;ffp->debug_info.audio_stability_time = audio_queue_data_stability_time;if (standard_audio_frame_interval != 0) {int audio_packet_queue_keep_time = 0;if (delay_second >= 9) {audio_last_delay_second = delay_second;audio_packet_queue_keep_time = 4;}else if ((audio_last_delay_second >= audio_delay_drop_data_timeline)&& (audio_queue_data_stability_time > 30 * 1000)) {audio_packet_queue_keep_time = 5 + (rand() % 3);}else if ((audio_last_delay_second >= 6)&& (audio_queue_data_stability_time > 60 * 1000)) {audio_packet_queue_keep_time = 5;}else if ((audio_last_delay_second >= 5)&& (audio_queue_data_stability_time > 75 * 1000)) {audio_packet_queue_keep_time = 4;}
//                    else if ((audio_last_delay_second > 3)
//                             && (audio_queue_data_stability_time > 30 * 1000)) {
//                        audio_packet_queue_keep_time = 3;
//                    }
//                    else if ((audio_last_delay_second >= 2)
//                             && (audio_queue_data_stability_time > 60 * 1000)) {
//                        audio_packet_queue_keep_time = 2;
//                    }
//                    else if ((audio_last_delay_second >= 1)
//                             && (audio_queue_data_stability_time > 180 * 1000)) {
//                        audio_packet_queue_keep_time = 1;
//                    }if (audio_packet_queue_keep_time != 0) {ffp->debug_info.drop_data_times++;av_frame_drop_until_pts = (int64_t)(pkt_pts_us + (audio_last_delay_second - audio_packet_queue_keep_time) * 1000000);audio_queue_data_stability_time = 0;}}}if (pkt->stream_index == is->video_stream) {if (is->buffering_on || (pkt_in_play_range == 0) || (is->audioq.duration < INKE_AUDIO_BUFFER_TIME)) {display_fps_base_time = av_gettime();display_fps_frame_count = 0;quality_fps_base_time = av_gettime();quality_fps_frame_count = 0;}else {++quality_fps_frame_count;if ((audio_queue_data_stability_time > 3000) && (av_gettime() - display_fps_base_time > 30000000)) {int64_t now = av_gettime();int display_fps_duration = (int)((now - display_fps_base_time) / 1000000);int quality_fps_duration = (int)((now - quality_fps_base_time) / 1000000);float display_fps = 1.0 * display_fps_frame_count / display_fps_duration;
//                        ffp->debug_info.video_display_fps = display_fps;float quality_fps = 1.0 * quality_fps_frame_count / quality_fps_duration;if ((0.8 * quality_fps > display_fps) && (0.8 * is->videoq.nb_packets > 1.0 * is->pictq.size)) {if (display_fps >= 24.0 || display_fps < 3.0 || quality_fps < 18.0) {display_fps_base_time = av_gettime();display_fps_frame_count = 0;quality_fps_base_time = av_gettime();quality_fps_frame_count = 0;}else {if (quality_fps_frame_count > 24 * 3 && display_fps_frame_count > 24 * 2) {ffp_notify_msg3(ffp, INKE_MSG_QUALITY, INKE_VIDEO_FPS_TOO_SLOW, (int)(display_fps * 100));}}}}}}}
#ifdef ENABLE_KRONOS_STREAMif (isKronosStream) {pkt_in_play_range = 1;int threshold = !is->buffering_on ? 4+kronosBufferingThreshold : 3+kronosBufferingThreshold;if (kronos_media_stream->audioInfo.format == AUDIO_INFO_FORMAT_PCM) {threshold = !is->buffering_on ? 3+kronosBufferingThreshold : 2+kronosBufferingThreshold;}int64_t cur_time = av_gettime_relative();if(ffp->audio_callback_time!=0&&cur_time-ffp->audio_callback_time>3000000LL){ffp->audio_callback_time=cur_time;ffp_reset_audiounit(ffp);}if ((is->audioq.nb_packets + frame_queue_nb_remaining(&is->sampq) >= threshold) \&& (pkt->stream_index == is->audio_stream)) {pkt_in_play_range = 0;}}
#endif // ENABLE_KRONOS_STREAM
#endif // INKE_EXTENSIONif (pkt->stream_index == is->audio_stream && pkt_in_play_range) {packet_queue_put(&is->audioq, pkt);PacketQueue *q = &is->audioq;SDL_LockMutex(q->mutex);if (pkt->duration <= 0 && q->first_pkt) {q->duration = pkt->dts - q->first_pkt->pkt.dts;}SDL_UnlockMutex(q->mutex);} else if (pkt->stream_index == is->video_stream && pkt_in_play_range&& !(is->video_st && (is->video_st->disposition & AV_DISPOSITION_ATTACHED_PIC))) {//printf("read sei frame pts = %lld\n",pkt->pts);packet_queue_put(&is->videoq, pkt);
#ifdef INKE_DEBUG_IJKPLAYER++ffp->vout->network_frame_count;
#endif // INKE_DEBUG_IJKPLAYER} else if (pkt->stream_index == is->subtitle_stream && pkt_in_play_range) {packet_queue_put(&is->subtitleq, pkt);} else {av_packet_unref(pkt);}ffp_statistic_l(ffp);
#ifdef INKE_EXTENSIONif (is->buffering_on) {#ifdef ENABLE_KRONOS_STREAMif (isKronosStream) {if (isKronosFirstBuffering && (is->audioq.nb_packets > 0)) {isKronosFirstBuffering = 0;ffp_toggle_buffering(ffp, 0);} else {if (av_gettime_relative() - kronosReadBlockTime > 1 * 1000 * 1000) {kronosBufferingThreshold = 1.5 * kronosBufferingThreshold;kronosBufferingThreshold = kronosBufferingThreshold >= INKE_PLAYBACK_BUFFER_AUDIO_MAX_THRESHOLD ? INKE_PLAYBACK_BUFFER_AUDIO_MAX_THRESHOLD : kronosBufferingThreshold;kronosReadBlockTime = av_gettime_relative();}if (is->audioq.nb_packets + frame_queue_nb_remaining(&is->sampq) >= kronosBufferingThreshold) {ffp_toggle_buffering(ffp, 0);}}} else if ((is->audioq.is_buffer_indicator && (is->audioq.nb_packets >= inke_buffer_audio_packet_count)) \|| (is->videoq.is_buffer_indicator && (is->videoq.nb_packets >= inke_buffer_video_packet_count))) {inke_buffer_audio_packet_count = inke_buffer_audio_packet_count == INKE_STARTUP_BUFFER_AUDIO_PACKET_COUNT ? INKE_PLAYBACK_BUFFER_AUDIO_PACKET_COUNT : inke_buffer_audio_packet_count;inke_buffer_video_packet_count = inke_buffer_video_packet_count == INKE_STARTUP_BUFFER_VIDEO_PACKET_COUNT ? INKE_PLAYBACK_BUFFER_VIDEO_PACKET_COUNT : inke_buffer_video_packet_count;ffp_toggle_buffering(ffp, 0);}#elseif ((is->audioq.is_buffer_indicator && (is->audioq.nb_packets >= inke_buffer_audio_packet_count)) \|| (is->videoq.is_buffer_indicator && (is->videoq.nb_packets >= inke_buffer_video_packet_count))) {inke_buffer_audio_packet_count = inke_buffer_audio_packet_count == INKE_STARTUP_BUFFER_AUDIO_PACKET_COUNT ? INKE_PLAYBACK_BUFFER_AUDIO_PACKET_COUNT : inke_buffer_audio_packet_count;inke_buffer_video_packet_count = inke_buffer_video_packet_count == INKE_STARTUP_BUFFER_VIDEO_PACKET_COUNT ? INKE_PLAYBACK_BUFFER_VIDEO_PACKET_COUNT : inke_buffer_video_packet_count;ffp_toggle_buffering(ffp, 0);}#endif // ENABLE_KRONOS_STREAM#ifdef ENABLE_KRONOS_STREAM} else {if (isKronosStream) {if (av_gettime_relative() - kronosReadBlockTime > 20 * 1000 * 1000) { // 20skronosReadBlockTime = av_gettime_relative() - 10 * 1000 * 1000;if(minDeclineVSize > 0 && !isOnlyHasAudio){if((kronosBufferingThreshold > jitter_audio_count * 2 && minDeclineVSize >= 15)|| standardDecline < 1.2|| jitter_audio_count < 20){kronosBufferingThreshold = kronosBufferingThreshold * 0.9;}else if(kronosBufferingThreshold > jitter_audio_count * 1.5 && minDeclineVSize > 3){kronosBufferingThreshold = kronosBufferingThreshold * 0.97;}else{kronosBufferingThreshold--;}kronosBufferingThreshold = kronosBufferingThreshold <= jitter_audio_count ? jitter_audio_count: kronosBufferingThreshold;}else{kronosBufferingThreshold--;kronosBufferingThreshold = kronosBufferingThreshold <= jitter_audio_count ? jitter_audio_count: kronosBufferingThreshold;}}}}#endif // ENABLE_KRONOS_STREAM
#endif // INKE_EXTENSIONif (ffp->packet_buffering) {io_tick_counter = SDL_GetTickHR();if (abs((int)(io_tick_counter - prev_io_tick_counter)) > BUFFERING_CHECK_PER_MILLISECONDS) {prev_io_tick_counter = io_tick_counter;ffp_check_buffering_l(ffp);}}
#ifdef INKE_EXTENSIONif (ffp->inke_live_stream == 1) {if (is->buffering_on && (is->audioq.duration >= display_initialize_buffering_time)) {if (display_initialize_buffering_time == 360) {// time;is->audioq.duration;is->videoq.duration}display_initialize_buffering_time = INKE_AUDIO_BUFFER_TIME;ffp_toggle_buffering(ffp, 0);audio_last_delay_second = (int)(INKE_INIT_RESERVE_DATA_TIME / 1000);}}
#endif // INKE_EXTENSION}ret = 0;fail:if (ic && !is->ic)avformat_close_input(&ic);#ifdef INKE_EXTENSIONif ((ffp->inke_kronos_roomid != 0LL) \&& (ffp->inke_kronos_room_timestamp != 0LL)) {SyncMultiRemoveInstance(ffp);}if (avio_ctx != NULL) {if (avio_ctx->buffer != NULL) {av_freep(&avio_ctx->buffer);}av_freep(&avio_ctx);}if (kronos_media_stream != NULL) {err = KronosMediaStreamShutdown(kronos_media_stream);err += KronosDestroyInstance(&kronos_media_stream);assert(err == 0);}#if defined(ENABLE_QUIC_FLV_STREAM)if (quic_flv_stream != NULL) {err = QuicFlvStreamShutdown(quic_flv_stream);err += QuicFlvDestroyInstance(&quic_flv_stream);assert(err == 0);}#endif // defined(ENABLE_QUIC_FLV_STREAM)if(ffp->scale_tempo_info.isrunning){scaletempo_stop(&ffp->scale_tempo_info);}#endif // INKE_EXTENSIONif (!ffp->prepared || !is->abort_request) {ffp->last_error = last_error;ffp_notify_msg2(ffp, FFP_MSG_ERROR, last_error);}SDL_DestroyMutex(wait_mutex);return 0;
}
