Qt：汽车仪表盘控件

Qt：汽车仪表盘

• • 前言
  • 源码
  • 效果图

前言

基于QWidget实现的汽车仪表盘，包括发动机转速表，迈速表，油表，发动机水箱温度计，并且分别提供了接口。仪表盘的实现思路是计算各个表盘的坐标并进行绘制，尽可能减少贴图的使用。
效果图如下，代码自取，请放心食用。有不懂地方可留言交流，会不定期回复。

源码

这里提供基础的源码，包含了实现仪表盘的基本思路，其它素材可根据需求自行替换。

fr_armaturenbrett.h

#ifndef FRARMATURENBRETT_H
#define FRARMATURENBRETT_H#include class FrArmaturenbrett : public QWidget {Q_OBJECT
public:enum Gear {kGear_1 = 1,kGear_2,kGear_3,kGear_4,kGear_5,kGear_6,kGear_7,kGear_8,kGear_D,kGear_N,kGear_P,kGear_R};public:explicit FrArmaturenbrett(QWidget *parent = nullptr);public slots:void set_gear(const Gear gear);void set_rpm(const int rpm);void set_speed(const int speed);void set_temperature(const double temperature);void set_oil(const int oil);protected:void paintEvent(QPaintEvent *event);private:void draw_tachometer(QPainter& painter);  // 转速表void draw_speedometer(QPainter& painter);  // 迈速表void draw_gear(QPainter& painter);  // 挡位void draw_thermometer(QPainter& painter);  // 水箱温度计void draw_oil_meter(QPainter& painter);  // 油表private:Gear _gear;int _rpm;int _speed;double _temperature;int _oil;
};#endif // FRARMATURENBRETT_H

fr_armaturenbrett.cpp

#include "fr_armaturenbrett.h"#include
#include
#include
#include FrArmaturenbrett::FrArmaturenbrett(QWidget *parent) :QWidget(parent),_gear(kGear_4),_rpm(4000),_speed(120),_temperature(60),_oil(80) {QFontDatabase::addApplicationFont(":/fonts/DejaVuSans.ttf");
}void FrArmaturenbrett::set_gear(const FrArmaturenbrett::Gear gear) {_gear = gear;update();
}void FrArmaturenbrett::set_rpm(const int rpm) {_rpm = rpm;update();
}void FrArmaturenbrett::set_speed(const int speed) {_speed = speed;update();
}void FrArmaturenbrett::set_temperature(const double temperature) {_temperature = temperature;update();
}void FrArmaturenbrett::set_oil(const int oil) {_oil = oil;update();
}void FrArmaturenbrett::paintEvent(QPaintEvent* event) {QWidget::paintEvent(event);int side = qMin(int(width() / 1.8), height());QPainter painter(this);painter.setRenderHint(QPainter::Antialiasing);painter.translate(width() / 2, height() / 2);painter.scale(side / 200.0, side / 200.0);painter.setPen(Qt::NoPen);painter.setBrush(Qt::NoBrush);draw_tachometer(painter);draw_speedometer(painter);draw_gear(painter);draw_thermometer(painter);draw_oil_meter(painter);
}void FrArmaturenbrett::draw_tachometer(QPainter& painter) {static QColor normal_color(26, 245, 245, 245);static QColor overrun_color(245, 64, 64, 225);// 绘制表盘外檐painter.save();painter.setPen(QPen(normal_color, 1,  Qt::SolidLine));QRect rect(-95, -95, 190, 190);painter.drawArc(rect, 0, 270 * 16);painter.restore();// 绘制红色区域painter.save();static QRectF rectangle_outer(-95, -95, 190, 190);static QRectF rectangle_inner(-87, -87, 174, 174);painter.setBrush(overrun_color);QPainterPath path;path.arcTo(rectangle_outer, 0.0, 108.0);path.arcTo(rectangle_inner, 108, -108);painter.drawPath(path);painter.restore();// 绘制大刻度painter.save();painter.setPen(QPen(normal_color, 1,  Qt::SolidLine));painter.rotate(90);for (int i = 0; i < 21; ++i) {painter.drawLine(88, 0, 94, 0);painter.rotate(13.5);}painter.restore();// 绘制小刻度painter.save();painter.setPen(QPen(normal_color, 1,  Qt::SolidLine));painter.rotate(90);for (int i = 0; i < 100; ++i) {painter.drawLine(91, 0, 94, 0);painter.rotate(2.7);}painter.restore();// 绘制表盘数字painter.save();painter.rotate(90);painter.setPen(normal_color);painter.setFont(QFont("Times", 14));for (int i = 0; i < 11; ++i) {painter.save();if (i > 6) {painter.setPen(overrun_color);}painter.rotate(27.0 * i);painter.translate(76, 0);painter.rotate(270 - 27.0 * i);painter.drawText(QRect(-20, -10, 40, 20), Qt::AlignCenter, QString::number(i));painter.restore();}painter.restore();// 绘制指针static const QPoint hand[] = {QPoint(-4, 0),QPoint(0, 94),QPoint(4, 0),QPoint(0, -6)};static QColor hand_color(26, 245, 245, 176);painter.save();painter.setPen(Qt::NoPen);painter.setBrush(hand_color);painter.rotate(27.0 * (_rpm / 1000.0));painter.drawConvexPolygon(hand, 4);painter.restore();// 绘制文字painter.save();painter.setPen(normal_color);painter.setFont(QFont("DejaVu Sans", 8));painter.drawText(QRect(-50, -70, 100, 50), Qt::AlignCenter, "×1000");painter.setFont(QFont("DejaVu Sans", 8, 50, true));painter.drawText(QRect(-50, 34, 32, 16), Qt::AlignCenter, "RPM");painter.restore();
}void FrArmaturenbrett::draw_speedometer(QPainter& painter) {painter.save();painter.setPen(QColor(64, 64, 245));painter.setFont(QFont("DejaVu Sans", 6, 50, true));painter.drawText(QRect(80, 50, 70, 20), Qt::AlignCenter, "SPEED");painter.setPen(QColor(26, 245, 245));painter.setFont(QFont("DejaVu Sans", 24, 63, true));painter.drawText(QRect(80, 50, 70, 50), Qt::AlignBottom | Qt::AlignLeft, QString("%0").arg(QString::number(_speed), 3,'0'));painter.setPen(QColor(26, 245, 245));painter.setFont(QFont("DejaVu Sans", 8, 63, true));painter.drawText(QRect(145, 75, 40, 20), Qt::AlignBottom | Qt::AlignLeft, "km/h");painter.restore();
}void FrArmaturenbrett::draw_gear(QPainter& painter) {static QRect gear_rect(0, 0, 80, 80);static QRect suffix_rect(48, 48, 32, 32);static QFont suffix_font("DejaVu Sans", 16, 63, true);painter.save();painter.setPen(QPen(QColor(26, 245, 245), 1,  Qt::SolidLine));painter.setFont(QFont("DejaVu Sans", 48, 63, true));switch (_gear) {case kGear_1:painter.drawText(gear_rect, Qt::AlignCenter, QString::number(_gear));painter.setFont(suffix_font);painter.drawText(suffix_rect, Qt::AlignCenter, "st");break;case kGear_2:painter.drawText(gear_rect, Qt::AlignCenter, QString::number(_gear));painter.setFont(suffix_font);painter.drawText(suffix_rect, Qt::AlignCenter, "nd");break;case kGear_3:painter.drawText(gear_rect, Qt::AlignCenter, QString::number(_gear));painter.setFont(suffix_font);painter.drawText(suffix_rect, Qt::AlignCenter, "rd");break;case kGear_4:case kGear_5:case kGear_6:case kGear_7:case kGear_8:painter.drawText(gear_rect, Qt::AlignCenter, QString::number(_gear));painter.setFont(suffix_font);painter.drawText(suffix_rect, Qt::AlignCenter, "th");break;case kGear_D:painter.drawText(gear_rect, Qt::AlignCenter, "D");break;case kGear_N:painter.drawText(gear_rect, Qt::AlignCenter, "N");break;case kGear_P:painter.drawText(gear_rect, Qt::AlignCenter, "P");break;case kGear_R:painter.drawText(gear_rect, Qt::AlignCenter, "R");break;default:break;}painter.restore();
}void FrArmaturenbrett::draw_thermometer(QPainter& painter) {painter.save();painter.drawImage(QRect(115, -60, 8, 16), QImage("://images/temperature-icon.png"));painter.translate(-160, 100);static QColor normal_color(26, 245, 245, 245);static QColor overrun_color(245, 64, 64, 225);// 绘制表盘外檐painter.save();painter.setPen(QPen(normal_color, 1, Qt::SolidLine));QRect rect(-300, -300, 600, 600);painter.drawArc(rect, 12 * 16, 20 * 16);painter.restore();// 绘制刻度painter.save();painter.setPen(QPen(normal_color, 1, Qt::SolidLine));painter.rotate(-12);painter.drawLine(300, 0, 306, 0);painter.rotate(-10);painter.drawLine(300, 0, 304, 0);painter.rotate(-10);painter.drawLine(300, 0, 306, 0);painter.restore();// 绘制刻度值painter.save();painter.setPen(normal_color);painter.setFont(QFont("DejaVu Sans", 6));painter.rotate(-12);painter.save();painter.translate(316, 0);painter.rotate(12);painter.drawText(QRect(-20, -10, 40, 20), Qt::AlignCenter, QString::number(0) + "°C");painter.restore();painter.rotate(-10);painter.save();painter.translate(317, 0);painter.rotate(22);painter.drawText(QRect(-20, -10, 40, 20), Qt::AlignCenter, QString::number(50) + "°C");painter.restore();painter.rotate(-10);painter.save();painter.translate(320, 0);painter.rotate(32);painter.drawText(QRect(-20, -10, 40, 20), Qt::AlignCenter, QString::number(100) + "°C");painter.restore();painter.restore();// 绘制红色区域painter.save();static QRectF rectangle_outer(-304, -304, 608, 608);static QRectF rectangle_inner(-300.5, -300.5, 601, 601);painter.setBrush(overrun_color);QPainterPath path;path.arcTo(rectangle_outer, 28, 3.9);path.arcTo(rectangle_inner, 31.9, -3.9);painter.drawPath(path);painter.restore();// 绘制指针painter.save();painter.setPen(QPen(overrun_color, 1, Qt::SolidLine));painter.rotate(-12 - 0.2 * _temperature);painter.drawLine(298, 0, 306, 0);painter.restore();painter.restore();
}void FrArmaturenbrett::draw_oil_meter(QPainter& painter) {painter.save();painter.drawImage(QRect(-130, -60, 16, 16), QImage("://images/fuel-icon.png"));painter.translate(160, 100);painter.rotate(180);static QColor normal_color(26, 245, 245, 245);static QColor overrun_color(245, 64, 64, 225);// 绘制表盘外檐painter.save();painter.setPen(QPen(normal_color, 1,  Qt::SolidLine));QRect rect(-300, -300, 600, 600);painter.drawArc(rect, -12 * 16, -20 * 16);painter.restore();// 绘制刻度painter.save();painter.setPen(QPen(normal_color, 1,  Qt::SolidLine));painter.rotate(12);painter.drawLine(300, 0, 306, 0);painter.rotate(10);painter.drawLine(300, 0, 304, 0);painter.rotate(10);painter.drawLine(300, 0, 306, 0);painter.restore();// 绘制刻度值painter.save();painter.setPen(normal_color);painter.setFont(QFont("DejaVu Sans", 6));painter.rotate(12);painter.save();painter.translate(316, 0);painter.rotate(168);painter.drawText(QRect(-20, -10, 40, 20), Qt::AlignCenter, QString::number(0) + "%");painter.restore();painter.rotate(10);painter.save();painter.translate(317, 0);painter.rotate(158);painter.drawText(QRect(-20, -10, 40, 20), Qt::AlignCenter, QString::number(50) + "%");painter.restore();painter.rotate(10);painter.save();painter.translate(320, 0);painter.rotate(148);painter.drawText(QRect(-20, -10, 40, 20), Qt::AlignCenter, QString::number(100) + "%");painter.restore();painter.restore();// 绘制红色区域painter.save();static QRectF rectangle_outer(-304, -304, 608, 608);static QRectF rectangle_inner(-300.5, -300.5, 601, 601);painter.setBrush(overrun_color);QPainterPath path;path.arcTo(rectangle_outer, -12.1, -3.9);path.arcTo(rectangle_inner, -16, 3.9);painter.drawPath(path);painter.restore();// 绘制指针painter.save();painter.setPen(QPen(overrun_color, 1, Qt::SolidLine));painter.rotate(12 + 0.2 * _oil);painter.drawLine(298, 0, 306, 0);painter.restore();painter.restore();
}

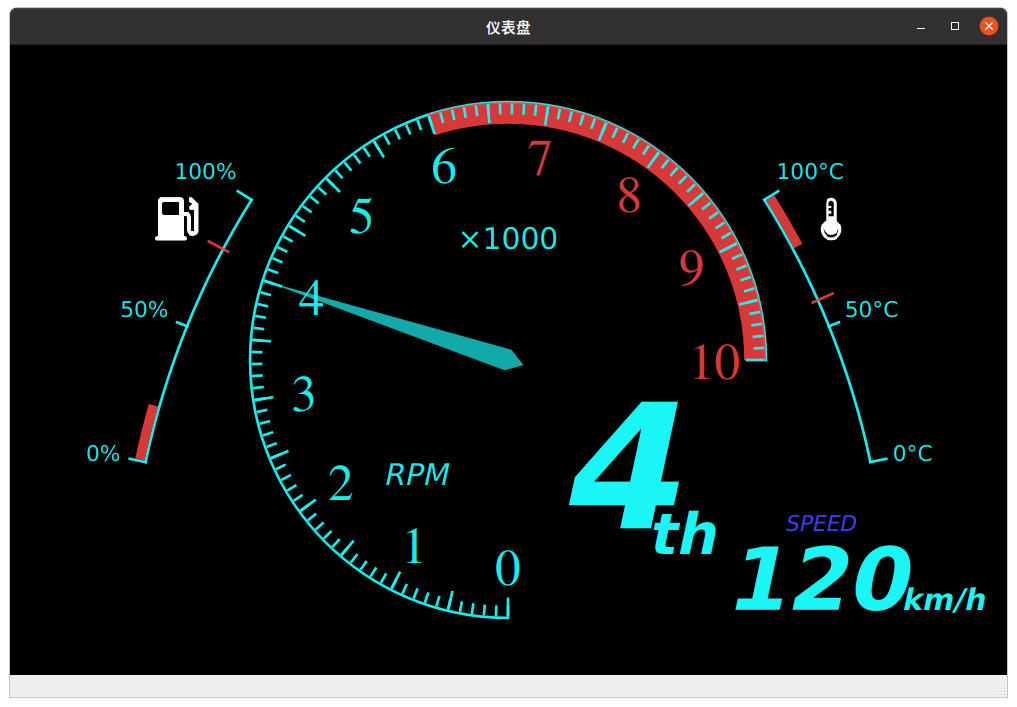

效果图
