基于Redis和RabbitMQ实现一个异步并发限制工具
目录
背景：
问题分析与解决思路：
选型：
环境准备：
引入MQ，redis的依赖
配置文件
生产者(报表请求入口)
随后创建消费者工程，过程同生产者
结语 ：
背景：
现有一个分布式的应用要与第三方报表服务对接，对方提供restful接口，调用这些接口以获取报表信息或者下载报表文件。首先，如果不需要下载文件，直接在MVC架构的service调用这些rest接口就好。可涉及到文件下载，网络IO耗时可能比较长而报表服务能承受的并发量有限，请求过多可能压垮报表服务的接口
问题分析与解决思路：
专门提供一个应用来接收报表请求，限制报表请求的并发量防止报表服务端报错或者崩溃，将请求参数放入分布式队列，利用redis计数currency，超出并发数量就限流，给出排队提示并将请求打回队列头部，未超出则从队列取出参数调用服务直接放行，随后currency - 1,rest服务调用结束后currency + 1，并使用redis分布式锁保证redis增减的原子性，MQ在服务中自产自消，充当队列
选型：
Redis + RabbitMQ + Springcloud
或Redis + Springcloud
或sentinel
如果是基于sentinel则直接使用控制页面配置即可，这里不多描述
选择MQ或者是redis都可以它们都可以实现分布式队列的效果，MQ自带队列，redis的list数据结构也可以充当队列
选型完毕，开始实现
环境准备：
安装redis，MQ的过程不再进行多余介绍，参考springboot集成Redis和RabbitMQ

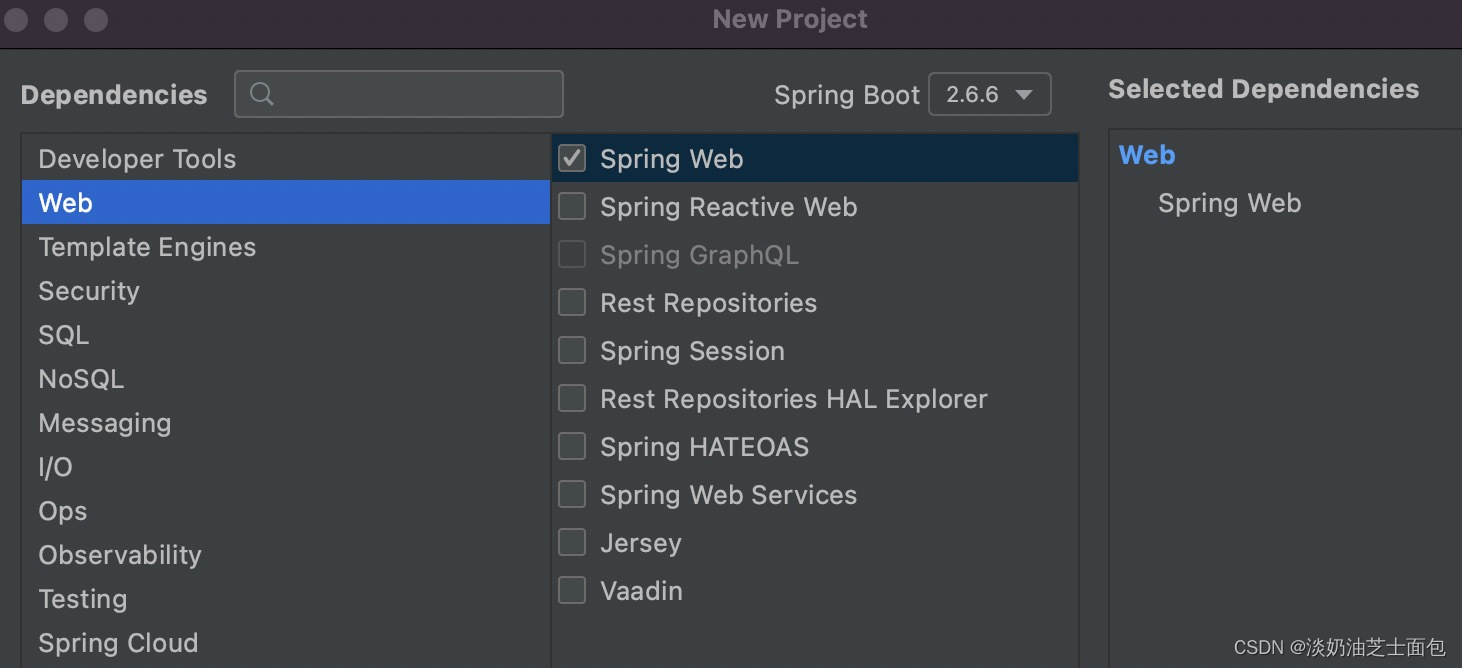

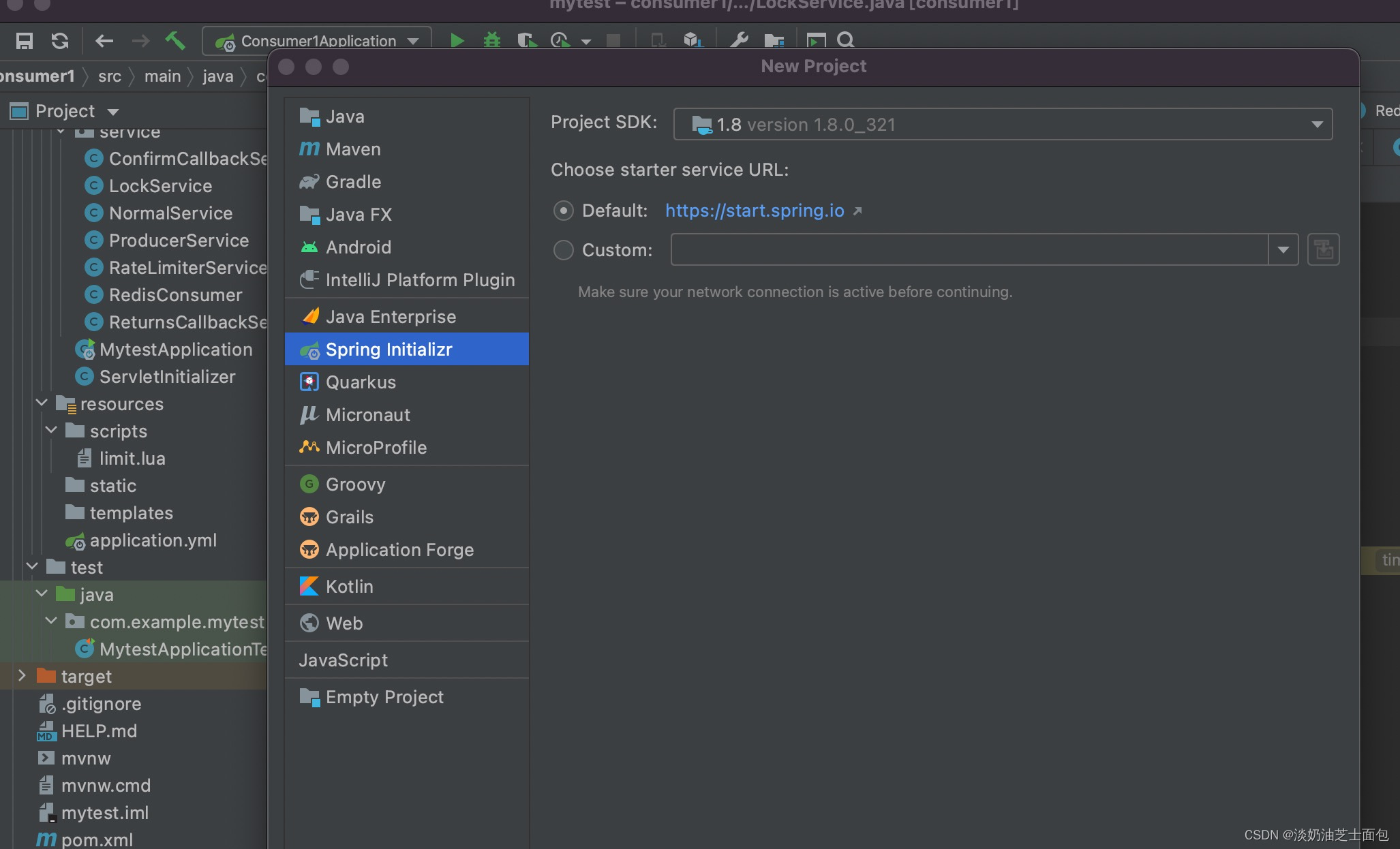

新建一个springboot工程，下一步中选好jdk版本，打包方式选war。因为模拟请求发起端，选择springweb，这样本地启动可以以接口形式访问
直接下一步，创建好工程，本文的MQ和redis都是安装在本地的，如果你装了虚拟机或者docker，自行根据情况修改配置文件
引入MQ，redis的依赖
org.springframework.boot spring-boot-starter-amqp org.springframework.data spring-data-redis 配置文件
这里，因为作为生产者不需要redis，无redis配置
server:port: 8080spring:rabbitmq:host: localhostport: 5672username: guestpassword: guest#必须配置这个才会确认回调publisher-confirm-type: correlated#消息投递到队列失败是否回调publisher-returns: true生产者(报表请求入口)
这里的confirmCallBack和returnsCallBack是MQ自带的方法，继承实现即可，是分别控制消息从生产者->交换机。和从交换机->队列的回调，都是消息发送成功的保障方法
package com.example.mytest.service;import org.springframework.amqp.core.MessageDeliveryMode;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.stereotype.Service;import javax.annotation.Resource;
import java.util.UUID;@Service
public class ProducerService {@Resourceprivate RabbitTemplate rabbitTemplate;@Resourceprivate ConfirmCallbackService confirmCallbackService;@Resourceprivate ReturnsCallbackService returnsCallbackService;@Resourceprivate RedisTemplate redisTemplate;public void sendMessage(String exchange, String routingKey, Object msg) {/*** 确保消息发送失败后可以重新返回到队列中* 注意：yml需要配置 publisher-returns: true*/rabbitTemplate.setMandatory(true);/*** 消息从生产者到交换机的回调*/rabbitTemplate.setConfirmCallback(confirmCallbackService);/*** 消息从交换机发送到队列的回调*/rabbitTemplate.setReturnsCallback(returnsCallbackService);/*** 发送消息*/rabbitTemplate.convertAndSend(exchange, routingKey, msg,message -> {message.getMessageProperties().setDeliveryMode(MessageDeliveryMode.NON_PERSISTENT);return message;},new CorrelationData(UUID.randomUUID().toString()));}//基于redis实现队列的版本public void sendToRedis(String msg){// put msg into FIFO queueredisTemplate.opsForList().rightPush("redisList", msg);}}
附上其它类
package com.example.mytest.service;import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.stereotype.Service;@Service
public class ConfirmCallbackService implements RabbitTemplate.ConfirmCallback {private static final Logger log = LoggerFactory.getLogger(ConfirmCallbackService.class);@Overridepublic void confirm(CorrelationData correlationData, boolean ack, String cause) {if (!ack) {log.error("消息发送异常!");} else {log.info("发送者已经收到确认，correlationData={} ,ack={}, cause={}", correlationData.getId(), ack, cause);}}
}
package com.example.mytest.service;import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.ReturnedMessage;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.stereotype.Service;@Service
public class ReturnsCallbackService implements RabbitTemplate.ReturnsCallback{private static final Logger log = LoggerFactory.getLogger(ReturnsCallbackService.class);@Overridepublic void returnedMessage(ReturnedMessage returned) {log.info("msg to reportQueue failed! returnedMessage ===> replyCode={} ,replyText={} ,exchange={} ,routingKey={}",returned.getReplyCode(),returned.getReplyText(),returned.getExchange(),returned.getRoutingKey());}}
package com.example.mytest.config;import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.DirectExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.rabbit.connection.CachingConnectionFactory;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.connection.RabbitConnectionFactoryBean;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.support.converter.SerializerMessageConverter;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Scope;@Configuration
public class RabbitMQConfig {public static final String EXCHANGE_A = "exchange-A";public static final String QUEUE_A = "queue-a";public static final String ROUTINGKEY_A = "routing-key-A";/*** 直连交换机*/@Beanpublic DirectExchange exchangeA() {return new DirectExchange(EXCHANGE_A);}/*** 设置队列*/@Beanpublic Queue queueA() {return new Queue(QUEUE_A, true);}/*** 绑定*/@Beanpublic Binding binding() {return BindingBuilder.bind(queueA()).to(exchangeA()).with(ROUTINGKEY_A);}@Beanpublic ConnectionFactory connectionFactory() throws Exception{RabbitConnectionFactoryBean rabbitConnectionFactoryBean = new RabbitConnectionFactoryBean();rabbitConnectionFactoryBean.setHost("localhost");rabbitConnectionFactoryBean.setPort(5672);rabbitConnectionFactoryBean.setUsername("guest");rabbitConnectionFactoryBean.setPassword("guest");rabbitConnectionFactoryBean.afterPropertiesSet();CachingConnectionFactory cachingConnectionFactory = new CachingConnectionFactory(rabbitConnectionFactoryBean.getObject());return cachingConnectionFactory;}@Bean@Scope("prototype")//通知Spring把被注解的Bean变成多例 表示每次获得bean都会生成一个新的对象public RabbitTemplate rabbitTemplate(ConnectionFactory connectionFactory) {RabbitTemplate template = new RabbitTemplate(connectionFactory);template.setMandatory(true);template.setMessageConverter(new SerializerMessageConverter());return template;}}
附上测试方法，如果执行报错找不到队列和交换机，可在MQ控制页面先手动创建，绑定即可
package com.example.mytest;import com.example.mytest.config.RabbitMQConfig;
import com.example.mytest.service.ProducerService;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;import java.util.concurrent.LinkedBlockingDeque;
import java.util.concurrent.ThreadPoolExecutor;
import java.util.concurrent.TimeUnit;@SpringBootTest(classes = MytestApplication.class)
class MytestApplicationTests {@Autowiredprivate ProducerService producerService;@Testvoid sendMessageTest() throws Exception{ThreadPoolExecutor threadPoolExecutor = new ThreadPoolExecutor(20,30,100,TimeUnit.MILLISECONDS,new LinkedBlockingDeque<>());//消息内加上线程名称//消息字符串模拟rest请求参数for (int i = 0; i <1; i++) {threadPoolExecutor.execute(() ->{System.out.println("sending msg!" + Thread.currentThread().getName());producerService.sendMessage(RabbitMQConfig.EXCHANGE_A,RabbitMQConfig.ROUTINGKEY_A,"paramJSON" + Thread.currentThread().getName());});}Thread.sleep(100000);threadPoolExecutor.shutdown();}}

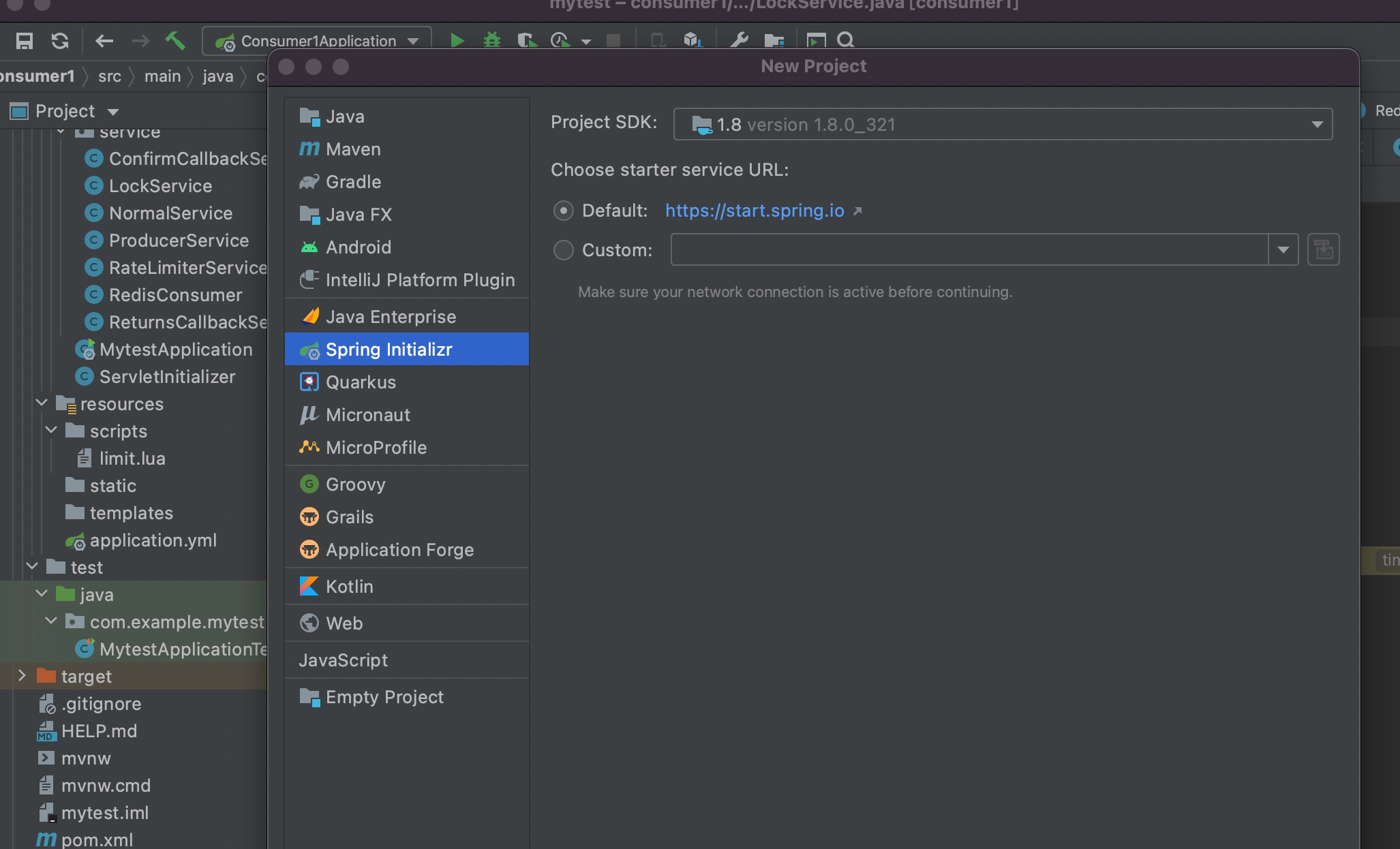

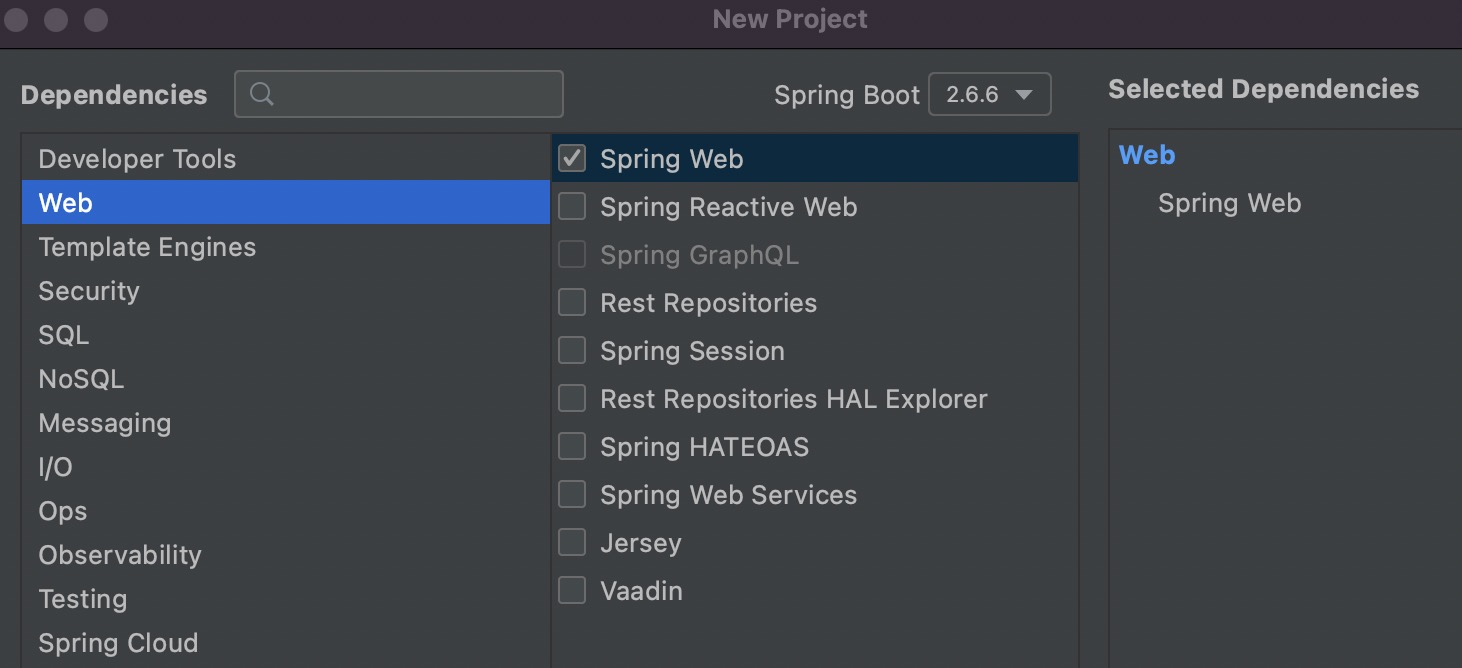

随后创建消费者工程，过程同生产者
消费者类，这里是取消息的地方，也是限制并发和访问rest服务的地方，如有需要，可以新建多个工程模拟分布式应用，流程很简单，请求进入队列，被监听，拿锁判断是否限制，决定是否打回，若不打回则处理请求并继续拿锁操作redis中的currency值
package com.example.consumer1.service;import com.rabbitmq.client.Channel;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.amqp.support.AmqpHeaders;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.messaging.Message;
import org.springframework.messaging.MessageHeaders;
import org.springframework.stereotype.Service;
import org.springframework.web.client.RestTemplate;import javax.annotation.Resource;@Service
public class Consumer1 {private static final String currencyKey = "restCurrency";@Autowiredprivate RedisTemplate redisTemplate;@Autowiredprivate LockService lockService;@ResourceRestTemplate restTemplate;private static final Logger log = LoggerFactory.getLogger(Consumer1.class);@RabbitListener(queues = "queue-a")public void processHandler1(String msg, Message message, Channel channel) throws Exception {log.info("消费者B收到消息：{}", msg);MessageHeaders headers = message.getHeaders();Long tag = (Long) headers.get(AmqpHeaders.DELIVERY_TAG);while (true) {boolean flag = lockService.acquireRedisLock();if(flag){int currency = Integer.parseInt(redisTemplate.opsForValue().get(currencyKey) + "");//限流if (currency == 0) {log.info("rate limit occured,please wait，currency now is {}", currency);channel.basicNack(tag, false, true);log.info("msg {} is backing to the queue", msg);return;} else {//手动签收消息channel.basicAck(tag, false);redisTemplate.opsForValue().decrement(currencyKey, 1);}lockService.releaseRedisLock();break;}}try {//模拟调用外部rest服务Thread.sleep(3000);while (true) {boolean flag = lockService.acquireRedisLock();if(flag){redisTemplate.opsForValue().increment(currencyKey, 1);lockService.releaseRedisLock();break;}}} catch (Exception e) {log.error("报表业务处理异常Exception" + e);boolean flag = (boolean) headers.get(AmqpHeaders.REDELIVERED);if (flag) {log.error("消息已重复处理失败,拒绝再次接收...");channel.basicAck(tag, false);} else {log.error("消息即将再次返回队列处理...");channel.basicNack(tag, false, true);}} finally {}}}
配置文件，注意端口号，本地启动多个工程不要冲突
server:port: 8081spring:rabbitmq:host: localhostport: 5672username: guestpassword: guest#必须配置这个才会确认回调publisher-confirm-type: correlated#消息投递到队列失败是否回调publisher-returns: true#消费端配置listener:simple:# 同一个队列启动几个消费者concurrency: 10# 限流 多数据量同时只能过来一条prefetch: 1#手动确认acknowledge-mode: manualredis:database: 0# Redis服务器地址host: 127.0.0.1# Redis服务器连接端口port: 6379# Redis服务器连接密码（默认为空）password:# 链接超时时间 单位 ms（毫秒）timeout: 3000注意在redis中初始化下currency的数值，测试时候可以调低一些触发限制效果，随后启动springboot的main方法就可以测试了

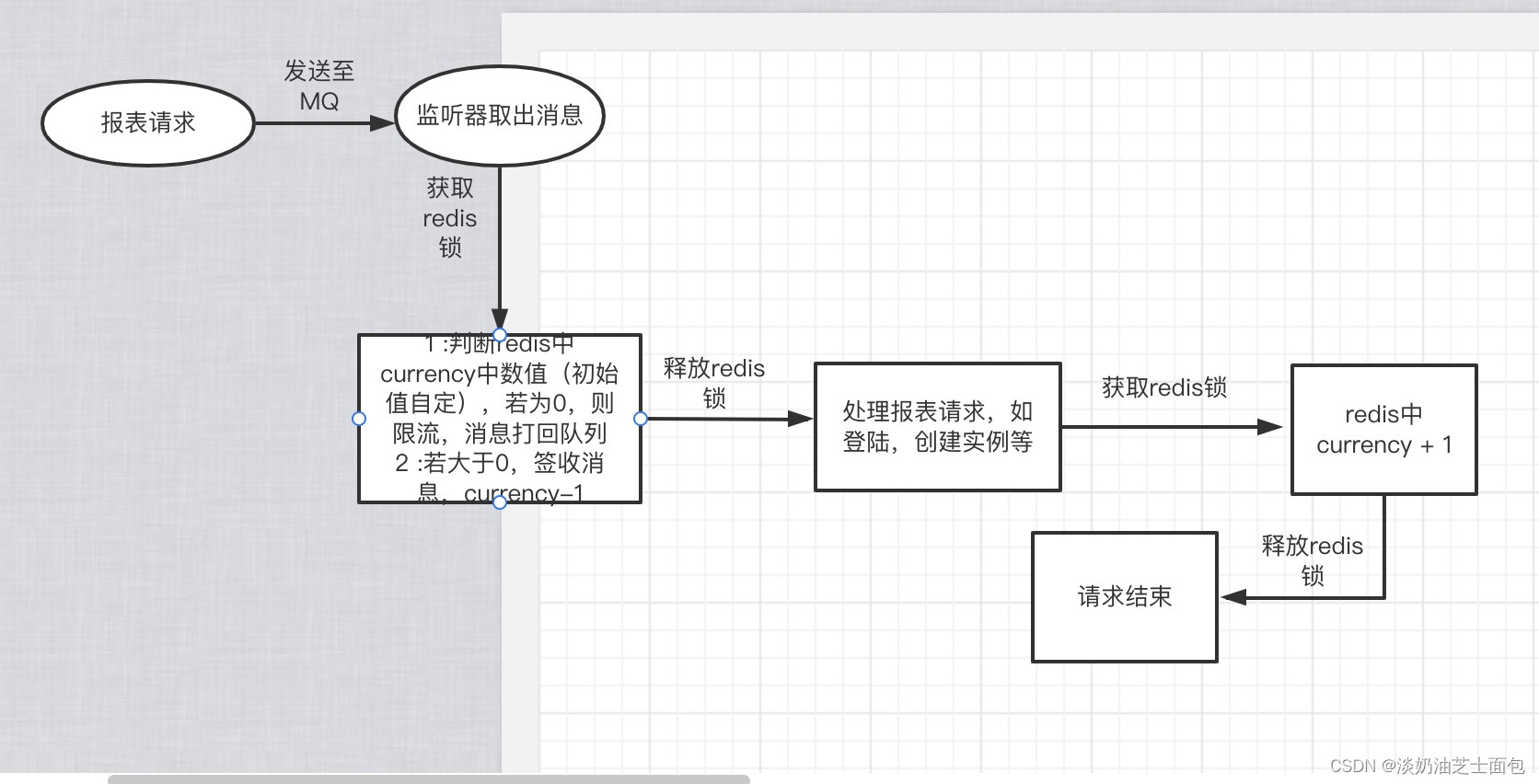

流程图概括如下
结语 ：
这个设计存在一些缺陷，如果多个服务中有一个在执行redis - 1 后宕机，currency可能永远小于设定值，(可以考虑把每个服务的执行记录都写在DB来排查这个问题)
如果队列消息积压满产生死信，需要处理死信，本文不赘述
基于纯redis的版本，直接使用redis的list结构就好，等同分布式队列
MQ不签收消息并打回默认是回到队头的，符合FIFO原则
