Python遥感开发之FY3D-NVI的批量处理

Python遥感开发之FY3D-NVI的批量处理

• 0 FY遥感数据
• 1 批量提取数据
• 2 批量拼接TIF数据
• 3 批量HAM转WGS投影（重要）
• 4 批量掩膜裁剪

0 FY遥感数据

• 本博客以《MERSI-II植被指数旬产品(1000M)》数据处理为例子，“FY3D_MERSI_00A0_L3_NVI_MLT_HAM_20191130_AOTD_1000M_MS.HDF”，其中FY3D是卫星名字、MERSI是仪器名称、00A0是数据区域类型（也是该影像的经纬度范围）、L3是数据级别、NVI是数据名称、MLT是通道名称、HAM是投影方式、AOTD是时段类型、1000M是分辨率、HDF是数据名称格式。
• 最核心最难的就是HAM投影如何转换成常见的WGS投影

1 批量提取数据

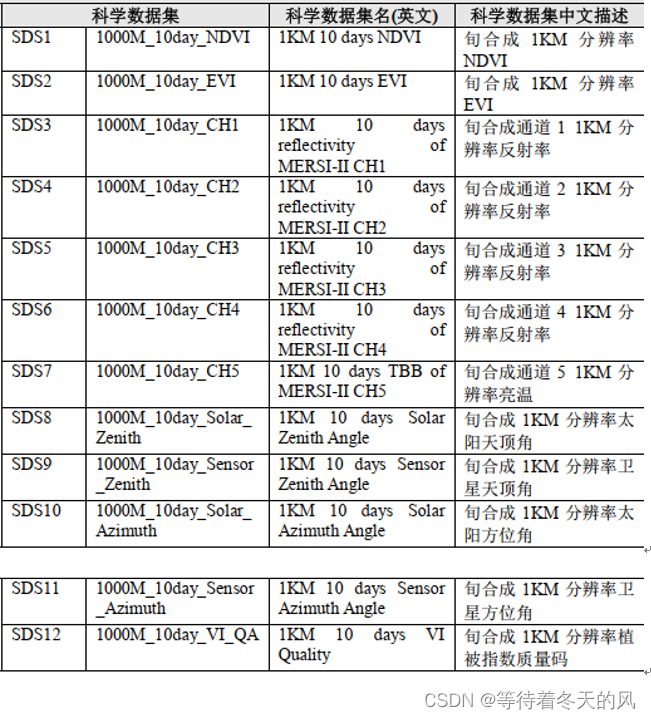

MERSI-II植被指数旬产品(1000M)数据包含如下波段，根据需要自己取
CH1表示蓝光波段
CH2表示绿光波段
CH3表示红外波段
CH4表示近红外波段
CH5表示亮温

切记

完整代码如下所示：

import os
from osgeo import gdal
import h5pydef get_data_list(file_path, out = ""):list1 = []  # 文件的完整路径if os.path.isdir(file_path):fileList = os.listdir(file_path)if out != "":for f in fileList:out_data = out + "\\" + fout_data = out_data.replace(".HDF", "_ndvi.tif")list1.append(out_data)else:for f in fileList:pre_data = file_path + '\\' + f  # 文件的完整路径list1.append(pre_data)return list1import numpy as npdef HDF2Tif(in_file,out_file):hdf_ds = h5py.File(in_file, "r")if type(hdf_ds.attrs['Left-Top X']) is np.ndarray:left_x = hdf_ds.attrs['Left-Top X'][0]else:left_x = float(hdf_ds.attrs['Left-Top X'])if type(hdf_ds.attrs['Left-Top Y']) is np.ndarray:left_y = hdf_ds.attrs['Left-Top Y'][0]else:left_y = float(hdf_ds.attrs['Left-Top Y'])res_x = hdf_ds.attrs['Resolution X'][0]res_y = hdf_ds.attrs['Resolution Y'][0]ndviname = list(hdf_ds.keys())[6] #5是evi 6是ndvi# print(list(hdf_ds.keys()))ndvi_ds = hdf_ds[ndviname]rows = ndvi_ds.shape[0]cols = ndvi_ds.shape[1]data = ndvi_ds[()]driver = gdal.GetDriverByName("GTiff")outds = driver.Create(out_file, cols, rows, 1, gdal.GDT_Int16)outds.SetGeoTransform((float(left_x) * 1000,#切记250m的分辨率需要除以4float(res_x) * 1000,0,float(left_y) * 1000,#切记250m的分辨率需要除以40,-1 * float(res_y) * 1000))proj = 'PROJCS["World_Hammer",GEOGCS["Unknown datum based upon the custom spheroid",DATUM["Not_specified_based_on_custom_spheroid",SPHEROID["Custom spheroid",6363961,0]],PRIMEM["Greenwich",0],UNIT["Degree",0.0174532925199433]],PROJECTION["Hammer_Aitoff"],PARAMETER["False_Easting",0],PARAMETER["False_Northing",0],PARAMETER["Central_Meridian",0],UNIT["metre",1],AXIS["Easting",EAST],AXIS["Northing",NORTH]]'outds.SetProjection(proj)outband = outds.GetRasterBand(1)outband.WriteArray(data)passif __name__ == '__main__':infile = r"C:\Users\Administrator\Desktop\HDF"outfile = r"C:\Users\Administrator\Desktop\01提取ndvi"infile_list = get_data_list(infile)outfile_list = get_data_list(infile,outfile)for in_file,out_file in zip(infile_list,outfile_list):print(in_file)HDF2Tif(in_file,out_file)

2 批量拼接TIF数据

import os
from osgeo import gdaldef get_data_list(file_path, out = ""):list1 = []  # 文件的完整路径if os.path.isdir(file_path):fileList = os.listdir(file_path)if out != "":for f in fileList:out_data = out + "\\" + fout_data = out_data.replace(".HDF", "_ndvi.tif")list1.append(out_data)else:for f in fileList:pre_data = file_path + '\\' + f  # 文件的完整路径list1.append(pre_data)return list1def get_same_list(image, infile_list):infile_list02 = []for data in infile_list:if image in data:# print("----", data)infile_list02.append(data)return infile_list02def get_same_image_list(infile_list):image_list= []for file in infile_list:filename = file[-31:-23]if filename not in image_list:image_list.append(filename)return list(set(image_list))def pinjie(infile_list,outfile):ds = gdal.Open(infile_list[0])cols = ds.RasterXSizerows = ds.RasterYSizeingeo = ds.GetGeoTransform()proj = ds.GetProjection()minx = ingeo[0]maxy = ingeo[3]maxx = ingeo[0] + ingeo[1] * colsminy = ingeo[3] + ingeo[5] * rowsds = Nonefor file in infile_list[1:]:ds = gdal.Open(file)cols = ds.RasterXSizerows = ds.RasterYSizegeo = ds.GetGeoTransform()minx_ = geo[0]maxy_ = geo[3]maxx_ = geo[0] + geo[1] * colsminy_ = geo[3] + geo[5] * rowsminx = min(minx, minx_)maxy = max(maxy, maxy_)maxx = max(maxx, maxx_)miny = min(miny, miny_)geo = Noneds = Nonenewcols = int((maxx - minx) / abs(ingeo[1]))newrows = int((maxy - miny) / abs(ingeo[5]))driver = gdal.GetDriverByName("GTiff")outds = driver.Create(outfile, newcols, newrows, 1, gdal.GDT_Int16)outgeo = (minx, ingeo[1], 0, maxy, 0, ingeo[5])outds.SetGeoTransform(outgeo)outds.SetProjection(proj)outband = outds.GetRasterBand(1)for file in infile_list:ds = gdal.Open(file)data = ds.ReadAsArray()geo = ds.GetGeoTransform()x = int(abs((geo[0] - minx) / ingeo[1]))y = int(abs((geo[3] - maxy) / ingeo[5]))outband.WriteArray(data, x, y)ds = Noneoutband.FlushCache()pass
if __name__ == '__main__':infile = r"C:\Users\Administrator\Desktop\01提取ndvi"outfile = r"C:\Users\Administrator\Desktop\02拼接"infile_list = get_data_list(infile)image_name_list = get_same_image_list(infile_list)print(image_name_list)for name in image_name_list:print(name)infile_list02 = get_same_list(name, infile_list)pinjie(infile_list02,outfile+"\\"+name+".tif")

3 批量HAM转WGS投影（重要）

切记：代码中出现的0.01表示1000m分辨率，如果需要换成250m分辨率，请根据代码注释自行更换。

完整代码如下：

import os
from osgeo import gdal
import numpy as np
import math
from osgeo import osrdef get_data_list(file_path, out = ""):list1 = []  # 文件的完整路径if os.path.isdir(file_path):fileList = os.listdir(file_path)if out != "":for f in fileList:out_data = out + "\\" + f# out_data = out_data.replace(".HDF", "_ndvi.tif")list1.append(out_data)else:for f in fileList:pre_data = file_path + '\\' + f  # 文件的完整路径list1.append(pre_data)return list1def H2W(infile,outfile):ds = gdal.Open(infile)ingeo = ds.GetGeoTransform()cols = ds.RasterXSizerows = ds.RasterYSizeor_x = ingeo[0]or_y = ingeo[3]end_x = ingeo[0] + cols * ingeo[1]end_y = ingeo[3] + rows * ingeo[5]# X方向分块xblocksize = int((cols + 1) / 5)# Y方向分块yblocksize = int((rows + 1) / 5)lon_max = -360lon_min = 360lat_max = -90lat_min = 90for i in range(0, rows + 1, yblocksize):if i + yblocksize < rows + 1:numrows = yblocksizeelse:numrows = rows + 1 - ifor j in range(0, cols + 1, xblocksize):if j + xblocksize < cols + 1:numcols = xblocksizeelse:numcols = cols + 1 - j# 计算所有点的Hammer坐标系下X方向坐标数组x = ingeo[0] + j * ingeo[1]y = ingeo[3] + i * ingeo[5]xgrid, ygrid = np.meshgrid(np.linspace(x, x + numcols * ingeo[1], num=numcols),np.linspace(y, y + numrows * ingeo[5], num=numrows))# 将hammer坐标转化为经纬度坐标# 首先将Hammer转化为-1到1xgrid = np.where(xgrid > (18000.0 * 1000.0), (18000.0 * 1000.0) - xgrid, xgrid)xgrid = xgrid / (18000.0 * 1000.0)ygrid = np.where(ygrid > (9000.0 * 1000.0), (9000.0 * 1000.0) - ygrid, ygrid)ygrid = ygrid / (9000.0 * 1000.0)z = np.sqrt(1 - np.square(xgrid) / 2.0 - np.square(ygrid) / 2.0)lon = 2 * np.arctan(np.sqrt(2) * xgrid * z / (2.0 * (np.square(z)) - 1))xgrid = Nonelat = np.arcsin(np.sqrt(2) * ygrid * z)ygrid = Nonez = Nonelon = lon / math.pi * 180.0lat = lat / math.pi * 180.0lon[lon < 0] = lon[lon < 0] + 360.0# lat[lat<0]=lat[lat<0]+180lon_max = max(lon_max, np.max(lon))lon_min = min(lon_min, np.min(lon))lon = Nonelat_max = max(lat_max, np.max(lat))lat_min = min(lat_min, np.min(lat))lat = Nonenewcols = math.ceil((lon_max - lon_min) / 0.01)#切记250m的分辨率需要把0.01换成0.0025newrows = math.ceil((lat_max - lat_min) / 0.01)#切记250m的分辨率需要把0.01换成0.0025driver = gdal.GetDriverByName("GTiff")outds = driver.Create(outfile, newcols, newrows, 1, gdal.GDT_Int16)geo2 = (lon_min, 0.01, 0, lat_max, 0, -1 * 0.01)#切记250m的分辨率需要把0.01换成0.0025oproj_srs = osr.SpatialReference()proj_4 = "+proj=longlat +datum=WGS84 +no_defs"oproj_srs.ImportFromProj4(proj_4)outds.SetGeoTransform(geo2)outds.SetProjection(oproj_srs.ExportToWkt())outband = outds.GetRasterBand(1)datav = ds.ReadAsArray()data = np.full((datav.shape[0] + 1, datav.shape[1] + 1), -32750, dtype=int)data[0:datav.shape[0], 0:datav.shape[1]] = datavxblocksize = int(newcols / 5)yblocksize = int(newrows / 5)for i in range(0, newrows, yblocksize):if i + yblocksize < newrows:numrows = yblocksizeelse:numrows = newrows - ifor j in range(0, newcols, xblocksize):if j + xblocksize < newcols:numcols = xblocksizeelse:numcols = newcols - jx = lon_min + j * 0.01 + 0.01 / 2.0 #切记250m的分辨率需要把0.01换成0.0025y = lat_max + i * (-1 * 0.01) - 0.01 / 2.0#切记250m的分辨率需要把0.01换成0.0025newxgrid, newygrid = np.meshgrid(np.linspace(x, x + numcols * 0.01, num=numcols),#切记250m的分辨率需要把0.01换成0.0025np.linspace(y, y + numrows * (-1 * 0.01), num=numrows))#切记250m的分辨率需要把0.01换成0.0025# 将经纬度坐标转化为Hammer坐标newxgrid = np.where(newxgrid > 180.0, newxgrid - 360.0, newxgrid)newxgrid = newxgrid / 180.0 * math.pinewygrid = newygrid / 180.0 * math.pinewz = np.sqrt(1 + np.cos(newygrid) * np.cos(newxgrid / 2.0))x = np.cos(newygrid) * np.sin(newxgrid / 2.0) / newznewxgrid = Noney = np.sin(newygrid) / newznewygrid = Nonenewz = Nonex = x * (18000.0 * 1000.0)y = y * (9000.0 * 1000.0)x_index = (np.floor((x - or_x) / ingeo[1])).astype(int)x_index = np.where(x_index < 0, data.shape[1] - 1, x_index)x_index = np.where(x_index >= data.shape[1], data.shape[1] - 1, x_index)y_index = (np.floor((y - or_y) / ingeo[5])).astype(int)y_index = np.where(y_index < 0, data.shape[0] - 1, y_index)y_index = np.where(y_index >= data.shape[0], data.shape[0] - 1, y_index)newdata = data[y_index, x_index]outband.WriteArray(newdata, j, i)outband.SetNoDataValue(-32750)outband.FlushCache()if __name__ == '__main__':infile_path = r"C:\Users\Administrator\Desktop\02拼接"outfile_path = r"C:\Users\Administrator\Desktop\03WGS"infile_list = get_data_list(infile_path)outfile_list = get_data_list(infile_path,outfile_path)for infile,outfile in zip(infile_list,outfile_list):print(infile)H2W(infile,outfile)

4 批量掩膜裁剪

请参考本人博客《Python遥感开发之批量掩膜和裁剪》
