PB实现DES加解密
文章目录
- 填充模式
- 加密模式
- ECB模式加解密操作
- CBC模式加解密操作
- 源代码
填充模式
加密操作前需要将明文分解成长度为8的块，若明文长度不是8的倍数则需要填充到8的倍数，以下是两张填充方式：
PKCS5：若数据需要填充n个字节才能对齐，则填充的每个字节值都是n；若数据已对齐，则填充一个长度为8的块，填充的每个字节值都是8
Zero：数据长度对齐时不填充，否则填充0
加密模式
ECB：电码本模式
CBC：密码分组链接模式
详细的加密流程参考 对称加密和分组加密中的四种模式(ECB、CBC、CFB、OFB)
ECB模式加解密操作

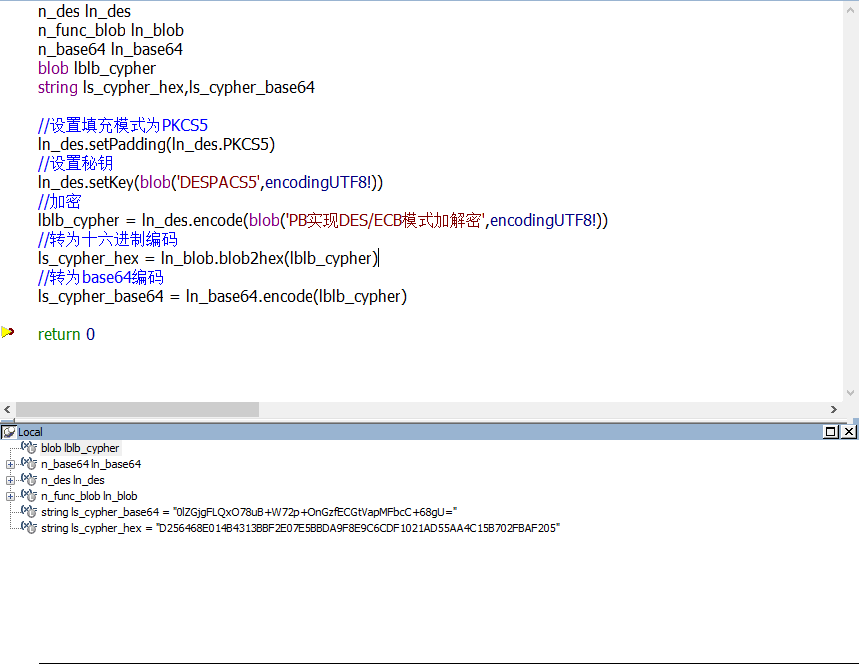

设置填充模式PKCS5，加密模式不用设置默认为ECB，秘钥DESPACS5，加密文本：PB实现DES/ECB模式加解密
十六进制密文为：D256468E014B4313BBF2E07E5BBDA9F8E9C6CDF1021AD55AA4C15B702FBAF205
base64密文为：0lZGjgFLQxO78uB+W72p+OnGzfECGtVapMFbcC+68gU=

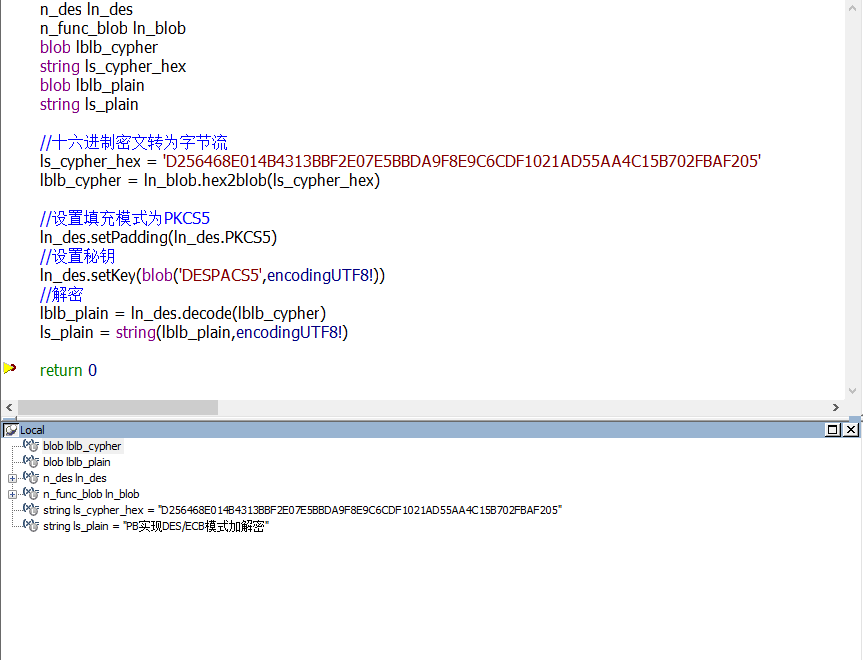

解密上一步得到的十六进制密文
解密得到的明文为：PB实现DES/ECB模式加解密
CBC模式加解密操作

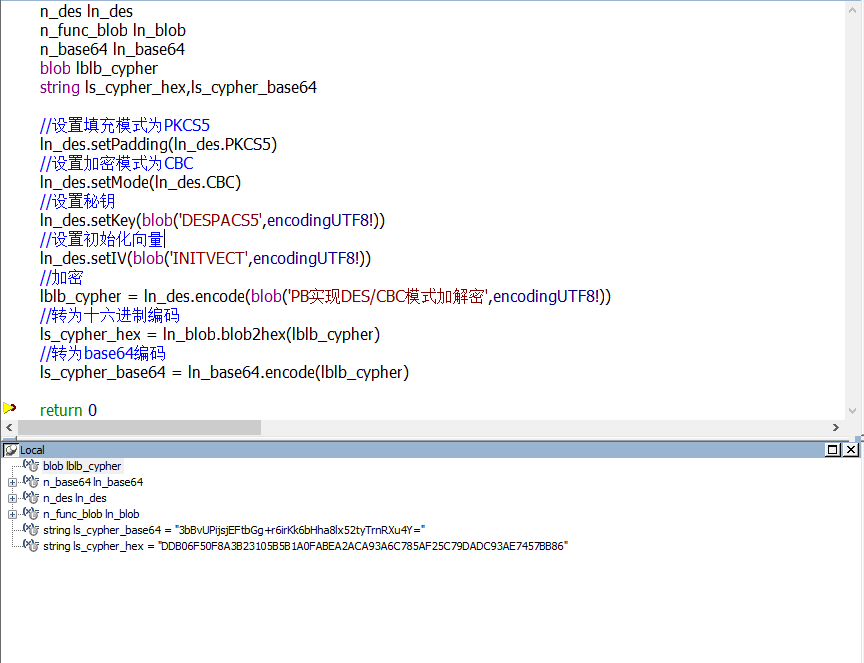

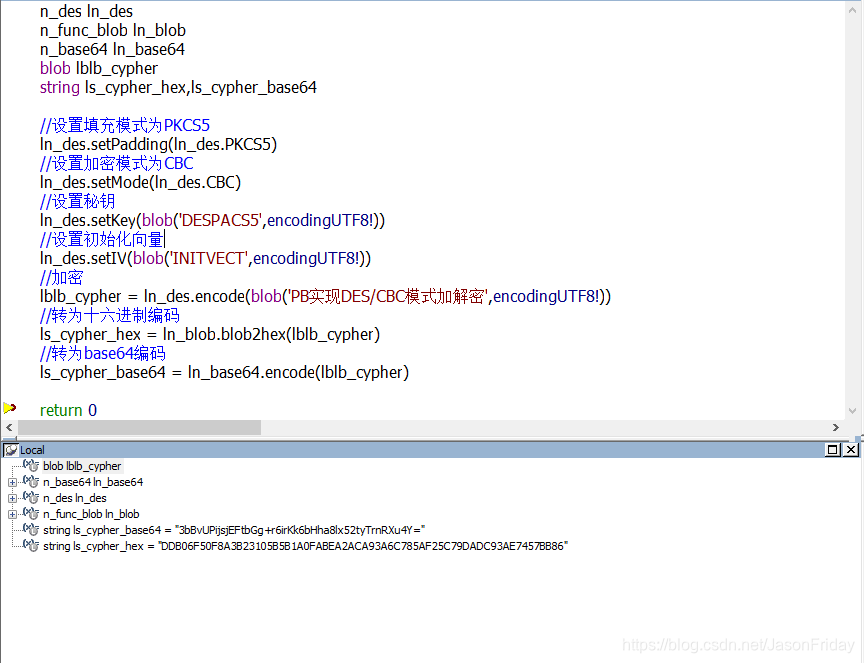

设置填充模式PKCS5，加密模式CBC，秘钥DESPACS5，初始化向量INITVECT，加密文本：PB实现DES/CBC模式加解密
十六进制密文为：DDB06F50F8A3B23105B5B1A0FABEA2ACA93A6C785AF25C79DADC93AE7457BB86
base64密文为：3bBvUPijsjEFtbGg+r6irKk6bHha8lx52tyTrnRXu4Y=

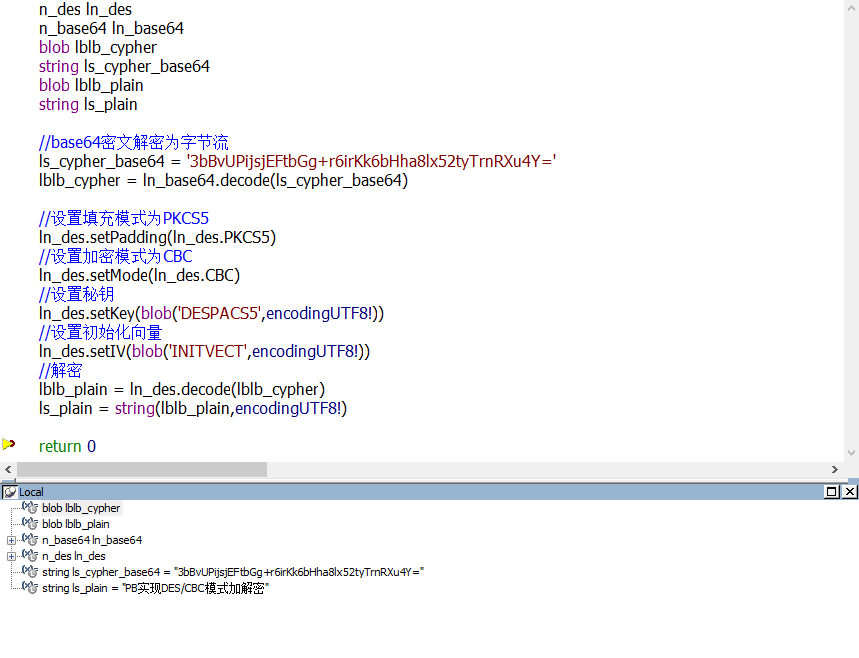

解密上一步得到的base64密文
解密得到的明文为：PB实现DES/CBC模式加解密
源代码
几个依赖项、demo中使用到的类源代码：
n_func_blob
n_func_radix
n_base64
发现BUG请留言或私信，以便修正（QQ：768310524 TEL：18649713925）
代码拷贝到文本编辑器，另存为 n_des.sru
$PBExportHeader$n_des.sru
forward
global type n_des from nonvisualobject
end type
type stbl from structure within n_des
end type
type sbox from structure within n_des
end type
end forwardtype stbl from structurestring s_list[]
end typetype sbox from structurestbl s_table[]
end typeglobal type n_des from nonvisualobject autoinstantiate
end typetype variables
public:CONSTANT STRING PKCS5 = 'PKCS5Padding'CONSTANT STRING Zero = 'ZeroPadding'CONSTANT STRING ECB = 'ECB'CONSTANT STRING CBC = 'CBC'private:string padding = PKCS5string mode = ECBbyte PC_1[] = {57,49,41,33,25,17,9,&1,58,50,42,34,26,18,&10,2,59,51,43,35,27,&19,11,3,60,52,44,36,&63,55,47,39,31,23,15,&7,62,54,46,38,30,22,&14,6,61,53,45,37,29,&21,13,5,28,20,12,4}byte PC_2[] = { 14,17,11,24,1,5,&3,28,15,6,21,10,&23,19,12,4,26,8,&16,7,27,20,13,2,&41,52,31,37,47,55,&30,40,51,45,33,48,&44,49,39,56,34,53,&46,42,50,36,29,32}byte Rn[] = {1,1,2,2,2,2,2,2,1,2,2,2,2,2,2,1}byte IP[] = {58,50,42,34,26,18,10,2,&60,52,44,36,28,20,12,4,&62,54,46,38,30,22,14,6,&64,56,48,40,32,24,16,8,&57,49,41,33,25,17,9,1,&59,51,43,35,27,19,11,3,&61,53,45,37,29,21,13,5,&63,55,47,39,31,23,15,7}byte BIT_SELECTION[] = {32,1,2,3,4,5,&4,5,6,7,8,9,&8,9,10,11,12,13,&12,13,14,15,16,17,&16,17,18,19,20,21,&20,21,22,23,24,25,&24,25,26,27,28,29,&28,29,30,31,32,1}byte P[] = { 16,7,20,21,&29,12,28,17,&1,15,23,26,&5,18,31,10,&2,8,24,14,&32,27,3,9,&19,13,30,6,&22,11,4,25}byte IP_1[] = { 40,8,48,16,56,24,64,32,&39,7,47,15,55,23,63,31,&38,6,46,14,54,22,62,30,&37,5,45,13,53,21,61,29,&36,4,44,12,52,20,60,28,&35,3,43,11,51,19,59,27,&34,2,42,10,50,18,58,26,&33,1,41,9,49,17,57,25}string Kn[16]char iv[]SBOX S_BOX[]n_func_blob fblobend variablesforward prototypes
public subroutine setkey (blob key)
public subroutine setiv (blob ivector)
private subroutine calc_keys (blob key)
public subroutine setmode (string m)
public subroutine setpadding (string pd)
public function blob encode (blob buf)
public function blob decode (blob cypher)
private subroutine calc_blocks (string blocks[], boolean flag, ref string result[])
private function string calc_block (string block, boolean flag)
private function string fun (string r, string k)
end prototypespublic subroutine setkey (blob key);long lengthlength = len(key)
if length > 8 thenkey = blobmid(key , 1 , 8)
elseif length < 8 thenkey += fblob.fill(0 , 8 - length)
end ifcalc_keys(key)
end subroutinepublic subroutine setiv (blob ivector);long lengthlength = len(ivector)
if length > 8 thenivector = blobmid(ivector , 1 , 8)
elseif length < 8 thenivector += fblob.fill(0 , 8 - length)
end ifiv = fblob.Blob2Bin(ivector)
end subroutineprivate subroutine calc_keys (blob key);char key_bit[]
char kn_bit[]
string c,d
char cd[]
char k_bit[]
int i,j
string kkey_bit = fblob.Blob2Bin(key)
for i = 1 to 56kn_bit[i] = key_bit[PC_1[i]]
nextk = string(kn_bit)
c = left(k,28)
d = right(k,28)for i = 1 to 16c = mid(c,Rn[i] + 1) + left(c,Rn[i])d = mid(d,Rn[i] + 1) + left(d,Rn[i])cd = c + dfor j = 1 to 48k_bit[j] = cd[PC_2[j]]nextKn[i] = k_bit
nextend subroutinepublic subroutine setmode (string m);mode = m
end subroutinepublic subroutine setpadding (string pd);padding = pd
end subroutinepublic function blob encode (blob buf);blob rblob
int li_padding,li_value
char pchar[],hchar[],vchar[]
long i,j
long ll_len,ll_loop,ll_point
blob blockblob[]
string block[],cypher[],cypherhex[]
byte lbyte[],rbyte[]
string resultif upperbound(Kn) <= 0 then return rblob
if len(buf) <= 0 then return rbloblbyte = GetByteArray(buf)
choose case paddingcase PKCS5li_padding = 8 - mod(len(buf),8)li_value = li_paddingcase Zeroli_padding = 8 - mod(len(buf),8)if li_padding = 8 then li_padding = 0li_value = 0case elsereturn rblob
end choosell_len = upperbound(lbyte)
for i = 1 to li_paddinglbyte[ll_len + i] = li_value
nextll_loop = fblob.slice(blob(lbyte) , 8 , blockblob)
for i = 1 to ll_loopblock[i] = fblob.Blob2Bin(blockblob[i])
nextcalc_blocks(block , true , cypher)for i = 1 to ll_looppchar = cypher[i]ll_point = 1for j = 1 to 8rbyte[8 * i - 8 + j] = byte(pchar[ll_point]) * 128 +&byte(pchar[ll_point + 1]) * 64 +&byte(pchar[ll_point + 2]) * 32 +&byte(pchar[ll_point + 3]) * 16 +&byte(pchar[ll_point + 4]) * 8 +&byte(pchar[ll_point + 5]) * 4 +&byte(pchar[ll_point + 6]) * 2 +&byte(pchar[ll_point + 7])ll_point += 8next
nextreturn blob(rbyte)
end functionpublic function blob decode (blob cypher);blob lblb
long ll_len,ll_loop,ll_point
long i,j
char bchar[]
blob blockblob[]
string block[],result[]
byte lbyte[]
int li_paddingll_len = len(cypher)
if ll_len <= 0 then return lblb
if mod(ll_len,8) <> 0 then return lblbll_loop = fblob.slice(cypher , 8 , blockblob)
for i = 1 to ll_loopblock[i] = fblob.Blob2Bin(blockblob[i])
nextcalc_blocks(block,false,result)for i = 1 to ll_loopbchar = result[i]ll_point = 1for j = 1 to 8lbyte[8 * i - 8 + j] = byte(bchar[ll_point]) * 128 +&byte(bchar[ll_point + 1]) * 64 +&byte(bchar[ll_point + 2]) * 32 +&byte(bchar[ll_point + 3]) * 16 +&byte(bchar[ll_point + 4]) * 8 +&byte(bchar[ll_point + 5]) * 4 +&byte(bchar[ll_point + 6]) * 2 +&byte(bchar[ll_point + 7]) ll_point += 8next
nextchoose case paddingcase PKCS5li_padding = lbyte[upperbound(lbyte)]case Zerocase elsereturn lblb
end chooselblb = blob(lbyte)
return blobmid(lblb,1,len(lblb) - li_padding)
end functionprivate subroutine calc_blocks (string blocks[], boolean flag, ref string result[]);int i,j
long ll_loop
char vchar[],pchar[]ll_loop = upperbound(blocks)
choose case modecase ECBfor i = 1 to ll_loopresult[i] = calc_block(blocks[i] , flag)nextcase CBCvchar = ivif flag thenfor i = 1 to ll_looppchar = blocks[i]for j = 1 to 64if pchar[j] = vchar[j] thenpchar[j] = '0'elsepchar[j] = '1'end ifnextresult[i] = calc_block(pchar , flag)vchar = result[i]nextelsefor i = 1 to ll_looppchar = calc_block(blocks[i] , flag)for j = 1 to 64if pchar[j] = vchar[j] thenpchar[j] = '0'elsepchar[j] = '1'end ifnextresult[i] = pcharvchar = blocks[i]nextend ifcase elseend chooseend subroutineprivate function string calc_block (string block, boolean flag);
char pchar[],vtempchar[],result[]
char lnchar[],rnchar[],ltempchar[],rtempchar[]
string vstr
int i,j
string l,r,kpchar = block
for i = 1 to 64vtempchar[i] = pchar[IP[i]]
nextvstr = vtempchar
lnchar = left(vstr,32)
rnchar = right(vstr,32)
for i = 1 to 16ltempchar = lncharlnchar = rncharif flag thenk = Kn[i]elsek = Kn[17 - i]end ifrtempchar = fun(rnchar,k)for j = 1 to 32if ltempchar[j] = rtempchar[j] thenrnchar[j] = '0'elsernchar[j] = '1'end ifnext
nextvtempchar = string(rnchar) + string(lnchar)
for i = 1 to 64result[i] = vtempchar[IP_1[i]]
nextreturn result
end functionprivate function string fun (string r, string k);char rchar[],echar[],kchar[],bchar[],schar[],result[]
string stemp
int i
byte row,col,vtemprchar = r
kchar = k
for i = 1 to 48echar[i] = rchar[BIT_SELECTION[i]]if echar[i] = kchar[i] thenbchar[i] = '0'elsebchar[i] = '1'end if
nextfor i = 1 to 8vtemp = 6 * i - 5row = byte(bchar[vtemp]) * 2 + byte(bchar[vtemp + 5]) + 1col = byte(bchar[vtemp + 1]) * 8 + byte(bchar[vtemp + 2]) * 4 + byte(bchar[vtemp + 3]) * 2 + byte(bchar[vtemp + 4]) + 1stemp += S_BOX[i].S_TABLE[row].S_LIST[col]
nextschar = stemp
for i = 1 to 32result[i] = schar[P[i]]
nextreturn result
end functionon n_des.create
call super::create
TriggerEvent( this, "constructor" )
end onon n_des.destroy
TriggerEvent( this, "destructor" )
call super::destroy
end onevent constructor;
S_BOX[1].S_TABLE[1].S_LIST = {'1110','0100','1101','0001','0010','1111','1011','1000','0011','1010','0110','1100','0101','1001','0000','0111'}
S_BOX[1].S_TABLE[2].S_LIST = {'0000','1111','0111','0100','1110','0010','1101','0001','1010','0110','1100','1011','1001','0101','0011','1000'}
S_BOX[1].S_TABLE[3].S_LIST = {'0100','0001','1110','1000','1101','0110','0010','1011','1111','1100','1001','0111','0011','1010','0101','0000'}
S_BOX[1].S_TABLE[4].S_LIST = {'1111','1100','1000','0010','0100','1001','0001','0111','0101','1011','0011','1110','1010','0000','0110','1101'}S_BOX[2].S_TABLE[1].S_LIST = {'1111','0001','1000','1110','0110','1011','0011','0100','1001','0111','0010','1101','1100','0000','0101','1010'}
S_BOX[2].S_TABLE[2].S_LIST = {'0011','1101','0100','0111','1111','0010','1000','1110','1100','0000','0001','1010','0110','1001','1011','0101'}
S_BOX[2].S_TABLE[3].S_LIST = {'0000','1110','0111','1011','1010','0100','1101','0001','0101','1000','1100','0110','1001','0011','0010','1111'}
S_BOX[2].S_TABLE[4].S_LIST = {'1101','1000','1010','0001','0011','1111','0100','0010','1011','0110','0111','1100','0000','0101','1110','1001'}S_BOX[3].S_TABLE[1].S_LIST = {'1010','0000','1001','1110','0110','0011','1111','0101','0001','1101','1100','0111','1011','0100','0010','1000'}
S_BOX[3].S_TABLE[2].S_LIST = {'1101','0111','0000','1001','0011','0100','0110','1010','0010','1000','0101','1110','1100','1011','1111','0001'}
S_BOX[3].S_TABLE[3].S_LIST = {'1101','0110','0100','1001','1000','1111','0011','0000','1011','0001','0010','1100','0101','1010','1110','0111'}
S_BOX[3].S_TABLE[4].S_LIST = {'0001','1010','1101','0000','0110','1001','1000','0111','0100','1111','1110','0011','1011','0101','0010','1100'}S_BOX[4].S_TABLE[1].S_LIST = {'0111','1101','1110','0011','0000','0110','1001','1010','0001','0010','1000','0101','1011','1100','0100','1111'}
S_BOX[4].S_TABLE[2].S_LIST = {'1101','1000','1011','0101','0110','1111','0000','0011','0100','0111','0010','1100','0001','1010','1110','1001'}
S_BOX[4].S_TABLE[3].S_LIST = {'1010','0110','1001','0000','1100','1011','0111','1101','1111','0001','0011','1110','0101','0010','1000','0100'}
S_BOX[4].S_TABLE[4].S_LIST = {'0011','1111','0000','0110','1010','0001','1101','1000','1001','0100','0101','1011','1100','0111','0010','1110'}S_BOX[5].S_TABLE[1].S_LIST = {'0010','1100','0100','0001','0111','1010','1011','0110','1000','0101','0011','1111','1101','0000','1110','1001'}
S_BOX[5].S_TABLE[2].S_LIST = {'1110','1011','0010','1100','0100','0111','1101','0001','0101','0000','1111','1010','0011','1001','1000','0110'}
S_BOX[5].S_TABLE[3].S_LIST = {'0100','0010','0001','1011','1010','1101','0111','1000','1111','1001','1100','0101','0110','0011','0000','1110'}
S_BOX[5].S_TABLE[4].S_LIST = {'1011','1000','1100','0111','0001','1110','0010','1101','0110','1111','0000','1001','1010','0100','0101','0011'}S_BOX[6].S_TABLE[1].S_LIST = {'1100','0001','1010','1111','1001','0010','0110','1000','0000','1101','0011','0100','1110','0111','0101','1011'}
S_BOX[6].S_TABLE[2].S_LIST = {'1010','1111','0100','0010','0111','1100','1001','0101','0110','0001','1101','1110','0000','1011','0011','1000'}
S_BOX[6].S_TABLE[3].S_LIST = {'1001','1110','1111','0101','0010','1000','1100','0011','0111','0000','0100','1010','0001','1101','1011','0110'}
S_BOX[6].S_TABLE[4].S_LIST = {'0100','0011','0010','1100','1001','0101','1111','1010','1011','1110','0001','0111','0110','0000','1000','1101'}S_BOX[7].S_TABLE[1].S_LIST = {'0100','1011','0010','1110','1111','0000','1000','1101','0011','1100','1001','0111','0101','1010','0110','0001'}
S_BOX[7].S_TABLE[2].S_LIST = {'1101','0000','1011','0111','0100','1001','0001','1010','1110','0011','0101','1100','0010','1111','1000','0110'}
S_BOX[7].S_TABLE[3].S_LIST = {'0001','0100','1011','1101','1100','0011','0111','1110','1010','1111','0110','1000','0000','0101','1001','0010'}
S_BOX[7].S_TABLE[4].S_LIST = {'0110','1011','1101','1000','0001','0100','1010','0111','1001','0101','0000','1111','1110','0010','0011','1100'}S_BOX[8].S_TABLE[1].S_LIST = {'1101','0010','1000','0100','0110','1111','1011','0001','1010','1001','0011','1110','0101','0000','1100','0111'}
S_BOX[8].S_TABLE[2].S_LIST = {'0001','1111','1101','1000','1010','0011','0111','0100','1100','0101','0110','1011','0000','1110','1001','0010'}
S_BOX[8].S_TABLE[3].S_LIST = {'0111','1011','0100','0001','1001','1100','1110','0010','0000','0110','1010','1101','1111','0011','0101','1000'}
S_BOX[8].S_TABLE[4].S_LIST = {'0010','0001','1110','0111','0100','1010','1000','1101','1111','1100','1001','0000','0011','0101','0110','1011'}end event本文来自互联网用户投稿，文章观点仅代表作者本人，不代表本站立场，不承担相关法律责任。如若转载，请注明出处。 如若内容造成侵权/违法违规/事实不符，请点击【内容举报】进行投诉反馈！
