Centos7安装启动kafkaEagle遇到问题整理

kafkaEagle资源如下：

• 源码： https://github.com/smartloli/kafka-eagle/
• 官网：https://www.kafka-eagle.org/
• 下载： http://download.kafka-eagle.org/
• 安装文档： https://docs.kafka-eagle.org/2.env-and-install

下载地址：https://github.com/smartloli/kafka-eagle-bin/archive/v2.1.0.tar.gz

首先安装kafkaEagle之前，需要要依次安装启动好jdk、zookeeper、kafka，网上相关文章很多，就不在此啰嗦了！

说明安装成功！！！

首先我遇到的问题：

1.启动kafkaEagle是web页面显示不出来一直报404，查看kafkaEagle日志：

[2018-12-11 21:13:46,490] INFO Registered kafka:type=kafka.Log4jController MBean
 (kafka.utils.Log4jControllerRegistration$)
[2018-12-11 21:13:46,998] ERROR Exiting Kafka due to fatal exception (kafka.Kafk
a$)
java.lang.VerifyError: Uninitialized object exists on backward branch 209
Exception Details:
  Location:
    scala/collection/immutable/HashMap$HashTrieMap.split()Lscala/collection/immu
table/Seq; @249: goto
  Reason:
    Error exists in the bytecode
  Bytecode:
    0000000: 2ab6 0060 04a0 001e b200 b8b2 00bd 04bd
    0000010: 0002 5903 2a53 c000 bfb6 00c3 b600 c7c0
    ......

    0000170: b200 bd05 bd00 0259 0319 0b53 5904 190c
    0000180: 53c0 00bf b600 c3b6 0102 b02a b600 3803
    0000190: 32b6 0104 b0
  Stackmap Table:
    same_frame(@35)
    full_frame(@141,{Object[#2],Integer,Integer,Integer,Integer,Integer,Object[#
114]},{})
    append_frame(@151,Object[#134],Object[#134])
    full_frame(@209,{Object[#2],Integer,Integer,Integer,Integer,Integer,Object[#
......
        at scala.collection.generic.GenMapFactory.apply(GenMapFactory.scala:48)
        at kafka.api.ApiVersion$.(ApiVersion.scala:79)
        at kafka.api.ApiVersion$.(ApiVersion.scala)
        at kafka.server.Defaults$.(KafkaConfig.scala:142)
        at kafka.server.Defaults$.(KafkaConfig.scala)
        at kafka.server.KafkaConfig$.(KafkaConfig.scala:752)


分析问题：

我们发现报的java.lang.VerifyErrro, 然后查阅相关文档https://docs.oracle.com/javase/7/docs/api/java/lang/VerifyError.html。 “hrown when the “verifier” detects that a class file, though well formed, contains some sort of internal inconsistency or security problem.” 从文档内容十有八九是jdk版本问题！版本太低！！！

解决方案：

卸载已经安装的jdk,安装高版本jdk(我换成了jdk-8u191-linux-x64.tar.gz),然后kafkaEagle的web页面成功显示了；

java jdk 8u191 官网下载地址 - 爱码网

2.然后使用默认的admin/123456登录，但是但是又出现问题了，一登陆就报405，

错误信息：

SQLException: The server time zone value ‘EDT‘ is unrecognized or represents more than one time zone

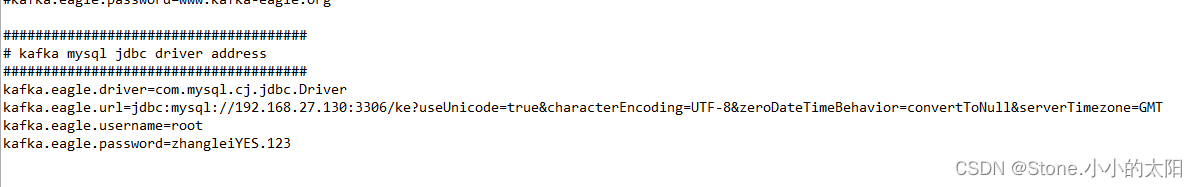

原因是mysql时区问题，kafkaEagle我使用的是mysql，修改system-config.properties,添加&serverTimezone=GMT.

 3.这下应该可以登录成功了吧，但是还是登不进去，通过看kafkaEagle的日志，如下：

 上步说我用的是mysql，system-config.properties配置文件给的数据库名是ke,我手动通过navcat创建了ke数据库，但是没有表呀，网上有说是kafka版本太低，更换即可！

我没有更换，在网上找了kafka-eagle的sql脚本：在navcat中执行。

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;-- ----------------------------
-- Table structure for ke_alarm_clusters
-- ----------------------------
DROP TABLE IF EXISTS `ke_alarm_clusters`;
CREATE TABLE `ke_alarm_clusters`  (`id` bigint NOT NULL AUTO_INCREMENT,`type` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`cluster` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`server` text CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL,`alarm_group` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`alarm_times` int NULL DEFAULT NULL,`alarm_max_times` int NULL DEFAULT NULL,`alarm_level` varchar(4) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`is_normal` varchar(2) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT 'Y',`is_enable` varchar(2) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT 'Y',`created` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`modify` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_alarm_clusters
-- ------------------------------ ----------------------------
-- Table structure for ke_alarm_config
-- ----------------------------
DROP TABLE IF EXISTS `ke_alarm_config`;
CREATE TABLE `ke_alarm_config`  (`cluster` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`alarm_group` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`alarm_type` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`alarm_url` text CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL,`http_method` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`alarm_address` text CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL,`created` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`modify` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,PRIMARY KEY (`cluster`, `alarm_group`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_alarm_config
-- ------------------------------ ----------------------------
-- Table structure for ke_alarm_consumer
-- ----------------------------
DROP TABLE IF EXISTS `ke_alarm_consumer`;
CREATE TABLE `ke_alarm_consumer`  (`id` bigint NOT NULL AUTO_INCREMENT,`cluster` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`group` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`topic` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`lag` bigint NULL DEFAULT NULL,`alarm_group` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`alarm_times` int NULL DEFAULT NULL,`alarm_max_times` int NULL DEFAULT NULL,`alarm_level` varchar(4) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`is_normal` varchar(2) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT 'Y',`is_enable` varchar(2) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT 'Y',`created` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`modify` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_alarm_consumer
-- ------------------------------ ----------------------------
-- Table structure for ke_alarm_crontab
-- ----------------------------
DROP TABLE IF EXISTS `ke_alarm_crontab`;
CREATE TABLE `ke_alarm_crontab`  (`id` bigint NOT NULL,`type` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`crontab` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`is_enable` varchar(2) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT 'Y',`created` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`modify` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,PRIMARY KEY (`id`, `type`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_alarm_crontab
-- ------------------------------ ----------------------------
-- Table structure for ke_connect_config
-- ----------------------------
DROP TABLE IF EXISTS `ke_connect_config`;
CREATE TABLE `ke_connect_config`  (`id` bigint NOT NULL AUTO_INCREMENT,`cluster` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`connect_uri` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`version` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`alive` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`created` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`modify` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_connect_config
-- ------------------------------ ----------------------------
-- Table structure for ke_consumer_bscreen
-- ----------------------------
DROP TABLE IF EXISTS `ke_consumer_bscreen`;
CREATE TABLE `ke_consumer_bscreen`  (`cluster` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`group` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`topic` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`logsize` bigint NULL DEFAULT NULL,`difflogsize` bigint NULL DEFAULT NULL,`offsets` bigint NULL DEFAULT NULL,`diffoffsets` bigint NULL DEFAULT NULL,`lag` bigint NULL DEFAULT NULL,`timespan` bigint NULL DEFAULT NULL,`tm` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,INDEX `idx_timespan`(`timespan`) USING BTREE,INDEX `idx_tm_cluster_diffoffsets`(`tm`, `cluster`, `diffoffsets`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_consumer_bscreen
-- ------------------------------ ----------------------------
-- Table structure for ke_consumer_group
-- ----------------------------
DROP TABLE IF EXISTS `ke_consumer_group`;
CREATE TABLE `ke_consumer_group`  (`cluster` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`group` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`topic` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`status` int NULL DEFAULT NULL,PRIMARY KEY (`cluster`, `group`, `topic`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_consumer_group
-- ------------------------------ ----------------------------
-- Table structure for ke_consumer_group_summary
-- ----------------------------
DROP TABLE IF EXISTS `ke_consumer_group_summary`;
CREATE TABLE `ke_consumer_group_summary`  (`cluster` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`group` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`topic_number` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`coordinator` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`active_topic` int NULL DEFAULT NULL,`active_thread_total` int NULL DEFAULT NULL,PRIMARY KEY (`cluster`, `group`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_consumer_group_summary
-- ------------------------------ ----------------------------
-- Table structure for ke_logsize
-- ----------------------------
DROP TABLE IF EXISTS `ke_logsize`;
CREATE TABLE `ke_logsize`  (`cluster` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`topic` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`logsize` bigint NULL DEFAULT NULL,`diffval` bigint NULL DEFAULT NULL,`timespan` bigint NULL DEFAULT NULL,`tm` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,INDEX `idx_timespan`(`timespan`) USING BTREE,INDEX `idx_tm_topic`(`tm`, `topic`) USING BTREE,INDEX `idx_tm_cluster_diffval`(`tm`, `cluster`, `diffval`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_logsize
-- ------------------------------ ----------------------------
-- Table structure for ke_metrics
-- ----------------------------
DROP TABLE IF EXISTS `ke_metrics`;
CREATE TABLE `ke_metrics`  (`cluster` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`broker` text CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL,`type` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`key` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`value` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`timespan` bigint NULL DEFAULT NULL,`tm` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_metrics
-- ------------------------------ ----------------------------
-- Table structure for ke_metrics_offline
-- ----------------------------
DROP TABLE IF EXISTS `ke_metrics_offline`;
CREATE TABLE `ke_metrics_offline`  (`cluster` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`key` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`one` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`mean` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`five` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`fifteen` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,PRIMARY KEY (`cluster`, `key`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_metrics_offline
-- ------------------------------ ----------------------------
-- Table structure for ke_p_role
-- ----------------------------
DROP TABLE IF EXISTS `ke_p_role`;
CREATE TABLE `ke_p_role`  (`id` bigint NOT NULL AUTO_INCREMENT,`name` varchar(64) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT 'role name',`seq` tinyint NOT NULL COMMENT 'rank',`description` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT 'role describe',PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 4 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_p_role
-- ----------------------------
INSERT INTO `ke_p_role` VALUES (1, 'Administrator', 1, 'Have all permissions');
INSERT INTO `ke_p_role` VALUES (2, 'Devs', 2, 'Own add or delete');
INSERT INTO `ke_p_role` VALUES (3, 'Tourist', 3, 'Only viewer');-- ----------------------------
-- Table structure for ke_resources
-- ----------------------------
DROP TABLE IF EXISTS `ke_resources`;
CREATE TABLE `ke_resources`  (`resource_id` bigint NOT NULL AUTO_INCREMENT,`name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT 'resource name',`url` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`parent_id` int NOT NULL,PRIMARY KEY (`resource_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 25 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_resources
-- ----------------------------
INSERT INTO `ke_resources` VALUES (1, 'System', '/system', -1);
INSERT INTO `ke_resources` VALUES (2, 'User', '/system/user', 1);
INSERT INTO `ke_resources` VALUES (3, 'Role', '/system/role', 1);
INSERT INTO `ke_resources` VALUES (4, 'Resource', '/system/resource', 1);
INSERT INTO `ke_resources` VALUES (5, 'Notice', '/system/notice', 1);
INSERT INTO `ke_resources` VALUES (6, 'Topic', '/topic', -1);
INSERT INTO `ke_resources` VALUES (7, 'Message', '/topic/message', 6);
INSERT INTO `ke_resources` VALUES (8, 'Create', '/topic/create', 6);
INSERT INTO `ke_resources` VALUES (9, 'Alarm', '/alarm', -1);
INSERT INTO `ke_resources` VALUES (10, 'Add', '/alarm/add', 9);
INSERT INTO `ke_resources` VALUES (11, 'Modify', '/alarm/modify', 9);
INSERT INTO `ke_resources` VALUES (12, 'Cluster', '/cluster', -1);
INSERT INTO `ke_resources` VALUES (13, 'ZkCli', '/cluster/zkcli', 12);
INSERT INTO `ke_resources` VALUES (14, 'UserDelete', '/system/user/delete', 1);
INSERT INTO `ke_resources` VALUES (15, 'UserModify', '/system/user/modify', 1);
INSERT INTO `ke_resources` VALUES (16, 'Mock', '/topic/mock', 6);
INSERT INTO `ke_resources` VALUES (18, 'Create', '/alarm/create', 9);
INSERT INTO `ke_resources` VALUES (19, 'History', '/alarm/history', 9);
INSERT INTO `ke_resources` VALUES (20, 'Manager', '/topic/manager', 6);
INSERT INTO `ke_resources` VALUES (21, 'PasswdReset', '/system/user/reset', 1);
INSERT INTO `ke_resources` VALUES (22, 'Config', '/alarm/config', 9);
INSERT INTO `ke_resources` VALUES (23, 'List', '/alarm/list', 9);
INSERT INTO `ke_resources` VALUES (24, 'Hub', '/topic/hub', 6);-- ----------------------------
-- Table structure for ke_role_resource
-- ----------------------------
DROP TABLE IF EXISTS `ke_role_resource`;
CREATE TABLE `ke_role_resource`  (`id` bigint NOT NULL AUTO_INCREMENT,`role_id` int NOT NULL,`resource_id` int NOT NULL,PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 26 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_role_resource
-- ----------------------------
INSERT INTO `ke_role_resource` VALUES (1, 1, 1);
INSERT INTO `ke_role_resource` VALUES (2, 1, 2);
INSERT INTO `ke_role_resource` VALUES (3, 1, 3);
INSERT INTO `ke_role_resource` VALUES (4, 1, 4);
INSERT INTO `ke_role_resource` VALUES (5, 1, 5);
INSERT INTO `ke_role_resource` VALUES (6, 1, 7);
INSERT INTO `ke_role_resource` VALUES (7, 1, 8);
INSERT INTO `ke_role_resource` VALUES (8, 1, 10);
INSERT INTO `ke_role_resource` VALUES (9, 1, 11);
INSERT INTO `ke_role_resource` VALUES (10, 1, 13);
INSERT INTO `ke_role_resource` VALUES (11, 2, 7);
INSERT INTO `ke_role_resource` VALUES (12, 2, 8);
INSERT INTO `ke_role_resource` VALUES (13, 2, 13);
INSERT INTO `ke_role_resource` VALUES (14, 2, 10);
INSERT INTO `ke_role_resource` VALUES (15, 2, 11);
INSERT INTO `ke_role_resource` VALUES (16, 1, 14);
INSERT INTO `ke_role_resource` VALUES (17, 1, 15);
INSERT INTO `ke_role_resource` VALUES (18, 1, 16);
INSERT INTO `ke_role_resource` VALUES (19, 1, 18);
INSERT INTO `ke_role_resource` VALUES (20, 1, 19);
INSERT INTO `ke_role_resource` VALUES (21, 1, 20);
INSERT INTO `ke_role_resource` VALUES (22, 1, 21);
INSERT INTO `ke_role_resource` VALUES (23, 1, 22);
INSERT INTO `ke_role_resource` VALUES (24, 1, 23);
INSERT INTO `ke_role_resource` VALUES (25, 1, 24);-- ----------------------------
-- Table structure for ke_sql_history
-- ----------------------------
DROP TABLE IF EXISTS `ke_sql_history`;
CREATE TABLE `ke_sql_history`  (`id` bigint NOT NULL AUTO_INCREMENT,`cluster` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`username` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`host` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`ksql` text CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL,`status` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`spend_time` bigint NULL DEFAULT NULL,`created` varchar(32) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`tm` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_sql_history
-- ------------------------------ ----------------------------
-- Table structure for ke_topic_rank
-- ----------------------------
DROP TABLE IF EXISTS `ke_topic_rank`;
CREATE TABLE `ke_topic_rank`  (`cluster` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`topic` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`tkey` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`tvalue` bigint NULL DEFAULT NULL,PRIMARY KEY (`cluster`, `topic`, `tkey`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_topic_rank
-- ------------------------------ ----------------------------
-- Table structure for ke_user_role
-- ----------------------------
DROP TABLE IF EXISTS `ke_user_role`;
CREATE TABLE `ke_user_role`  (`id` bigint NOT NULL AUTO_INCREMENT,`user_id` int NOT NULL,`role_id` tinyint NOT NULL,PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 2 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_user_role
-- ----------------------------
INSERT INTO `ke_user_role` VALUES (1, 1, 1);-- ----------------------------
-- Table structure for ke_users
-- ----------------------------
DROP TABLE IF EXISTS `ke_users`;
CREATE TABLE `ke_users`  (`id` bigint NOT NULL AUTO_INCREMENT,`rtxno` int NOT NULL,`username` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`password` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`email` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,`realname` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 2 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ke_users
-- ----------------------------
INSERT INTO `ke_users` VALUES (1, 1000, 'admin', '123456', 'admin@email.com', 'Administrator');SET FOREIGN_KEY_CHECKS = 1;

然后终于登录成功了！！！！！！！

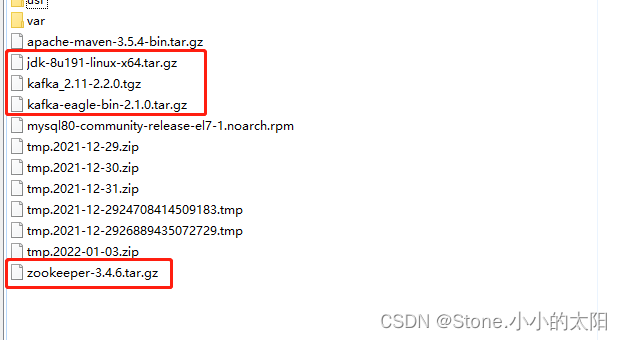

最后补充下我自己安装的版本：

补充：

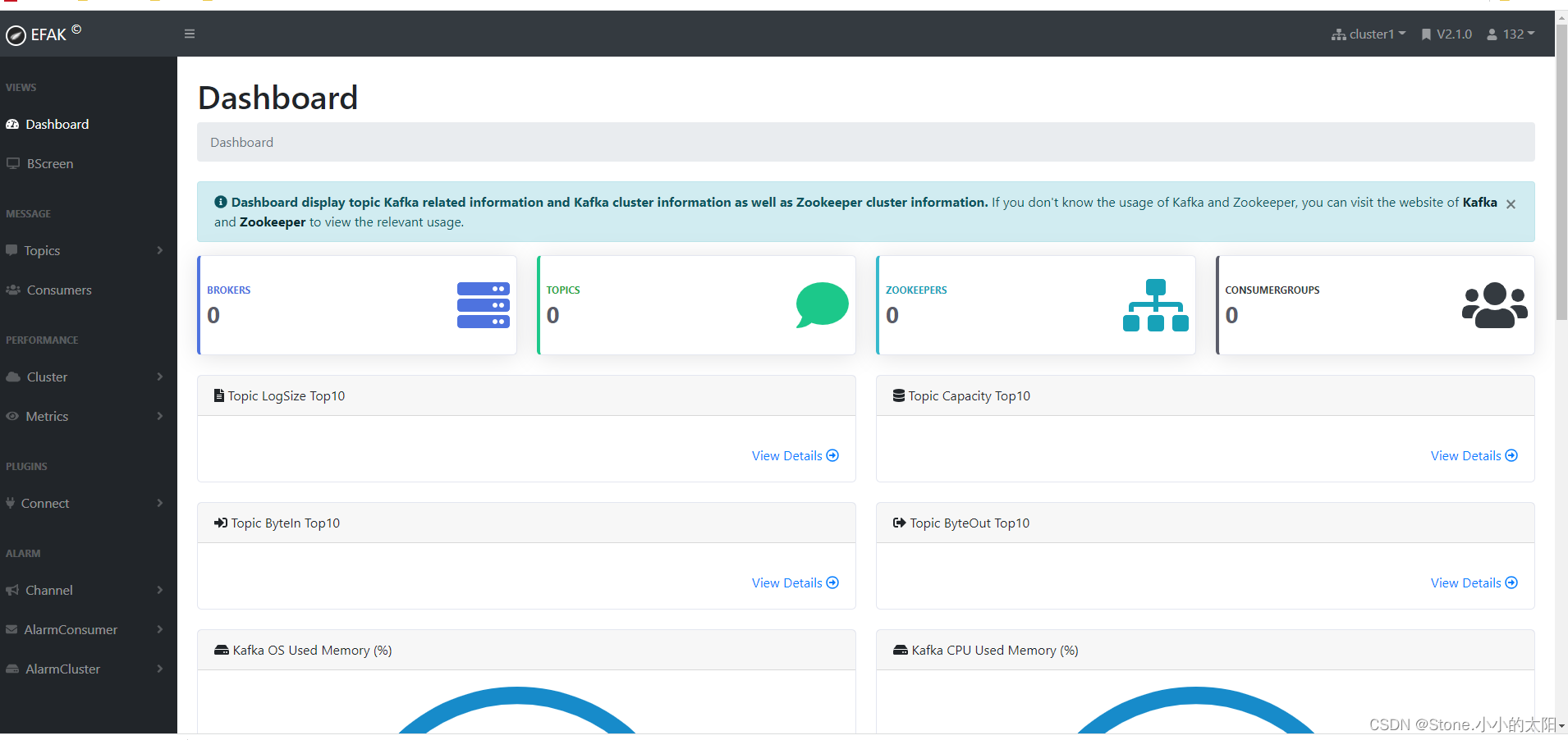

1、上面启动kafka-eagle之后，里面的brokers和zookeeper等信息都是0，然后看kafka-eagle的日志信息报错，这个问题困扰了好几天，崩溃！！！

解决方案：

之前想着是zookeeper和kafka的版本的原因，但是换了版本还是不行；最后在一个群里一哥们说可能是kafka-eagle的版本问题，经验证，确实是kafka-eagle版本，如上图用的是2.1.0最新版本；换成了2.06好了！！！

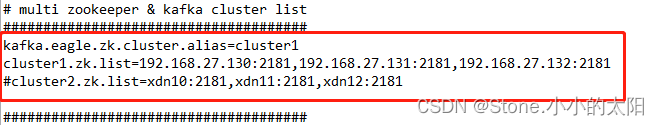

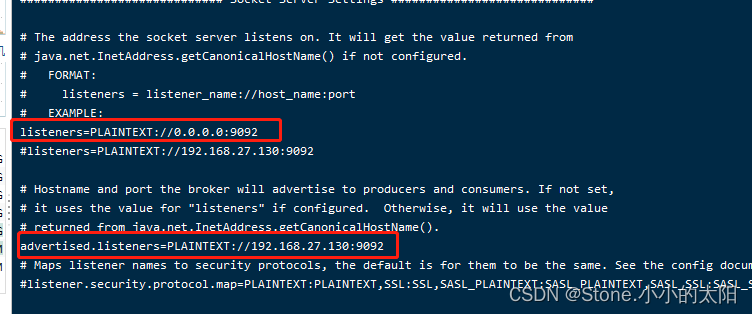

2、本文章是单机版，然后在按照网上一些文章搭建了集群版，再此只把流程罗列出来，方便日后查看：

2.1 三台机子均卸载默认的openjdk，均安装jdk1.8

2.2三台机子均安装zookeeper,并且三台机子均修改配置文件

# The number of milliseconds of each tick
tickTime=2000
# The number of ticks that the initial
# synchronization phase can take
initLimit=10
# The number of ticks that can pass between
# sending a request and getting an acknowledgement
syncLimit=5
# the directory where the snapshot is stored.
# do not use /tmp for storage, /tmp here is just
# example sakes.
dataDir=/root/zkdata
# the port at which the clients will connect
clientPort=2181
# the maximum number of client connections.
# increase this if you need to handle more clients
#maxClientCnxns=60
#
# Be sure to read the maintenance section of the
# administrator guide before turning on autopurge.
#
# http://zookeeper.apache.org/doc/current/zookeeperAdmin.html#sc_maintenance
#
# The number of snapshots to retain in dataDir
#autopurge.snapRetainCount=3
# Purge task interval in hours
# Set to "0" to disable auto purge feature
#autopurge.purgeInterval=1
server.1=192.168.27.130:2888:3888
server.2=192.168.27.131:2888:3888
server.3=192.168.27.132:2888:3888


三台机子依次 echo  1、2、3(自行百度)

然后启动三个zookeeper服务，启动时记得关闭防火墙！

2.3 三台机子均安装kafka,三台机子均修改配置文件server.properties并启动，自行百度

 2.4 给主机192.168.27.130安装kafka-eagle即可(也要注意版本)，修改环境变量和配置文件自行百度，启动就好了！！！

kafka集群搭建从参考：

centos7搭建zookeeper和kafka集群，kafka学习二-蒲公英云

百度安全验证

本文来自互联网用户投稿，文章观点仅代表作者本人，不代表本站立场，不承担相关法律责任。如若转载，请注明出处。 如若内容造成侵权/违法违规/事实不符，请点击【内容举报】进行投诉反馈！
