STM32 Cube 发送和接收485数据
1.说明
发送485数据和串口数据是不同的，刚入行一直以为是相同的只是电平的信号可能不同
发送485数据，需要对发送和接收的RE和DE进行使能操作，来决定发送有效，还是接收有效，也就是需要单片机的IO来控制数据的流向！
发送串口数据（TTL）, 直接RX和TX反接线即可
这里既然知道了485和串口的区别，那么发送485之前一定要看下电路的原理图是怎么接线的
例如：这里PB0 - DE ,PB1 - RE , PB10 和PB11 接的TX和RX

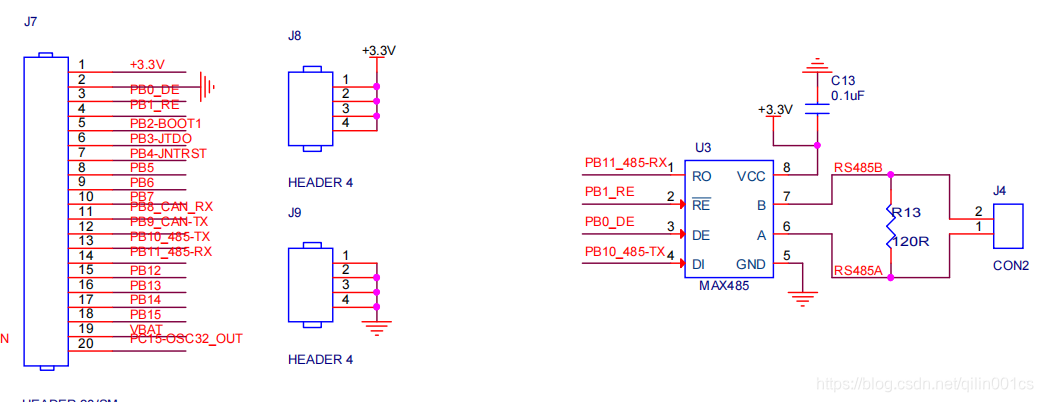

2.看原理图
那么我们分析下, 当DE和RE为1时，则发送有效，DE和RE为0时，则接收有效

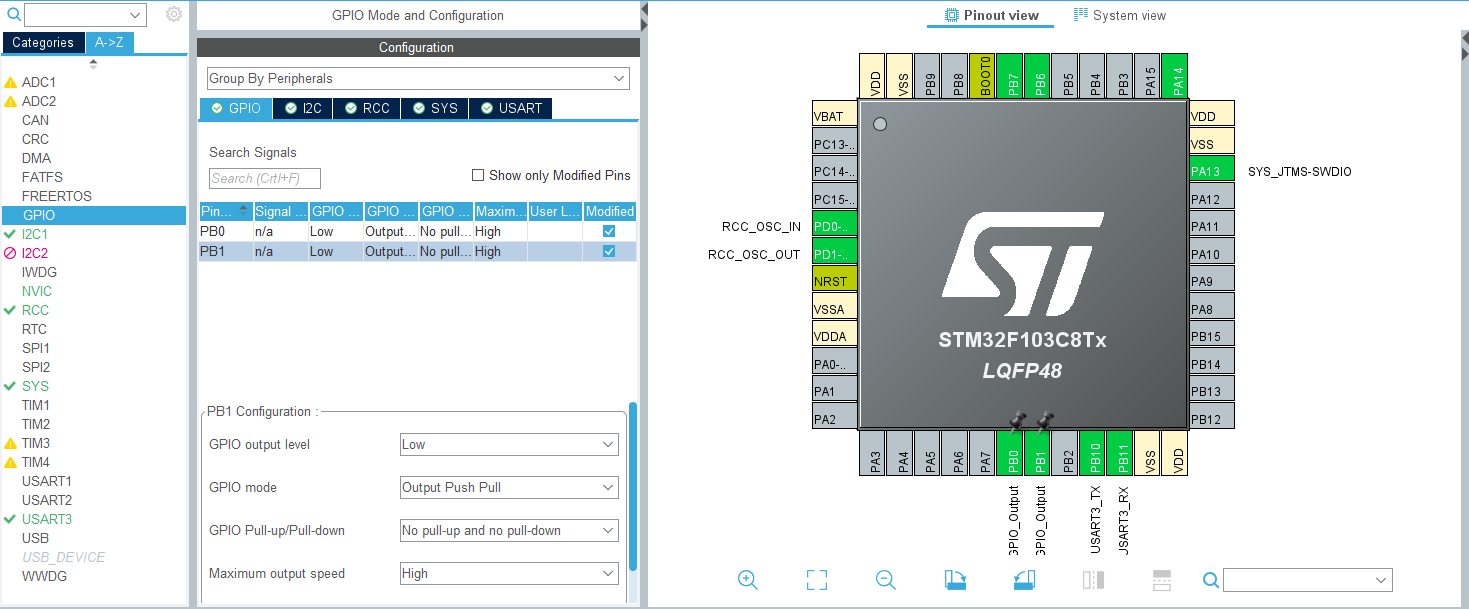

3.单片机引脚配置
串口引脚配置如下：
1.打开UART3 , 设置波特率为：9600，同时打开中断
2.设置GPIO口， GPIOB PIN_0 为低电平，PIN_1为低电平
4. 源码如下：
/********************************************************************************* @file : main.c* @brief : Main program body******************************************************************************* 485串口发送和接收********************************************************************************/#include "main.h"
#include "i2c.h"
#include "usart.h"
#include "gpio.h"
#include "stdio.h"uint8_t UART1_len=1; //1次只收1个
uint8_t UART1_arr[1]={0};
uint8_t UART1_buf[2]={0};//最大收多少
uint8_t UART1_buf_i=0;void SystemClock_Config(void);
void send485(uint8_t *pData,uint8_t len);int main(void)
{HAL_Init();SystemClock_Config();MX_GPIO_Init();MX_I2C1_Init();MX_USART3_UART_Init();HAL_UART_Receive_IT(&huart3, (uint8_t *)UART1_arr, UART1_len);while (1){}}/*** @brief System Clock Configuration* @retval None*/
void SystemClock_Config(void)
{RCC_OscInitTypeDef RCC_OscInitStruct = {0};RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};/** Initializes the RCC Oscillators according to the specified parameters* in the RCC_OscInitTypeDef structure.*/RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI;RCC_OscInitStruct.HSIState = RCC_HSI_ON;RCC_OscInitStruct.HSICalibrationValue = RCC_HSICALIBRATION_DEFAULT;RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSI_DIV2;RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL4;if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK){Error_Handler();}/** Initializes the CPU, AHB and APB buses clocks*/RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK|RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_0) != HAL_OK){Error_Handler();}
}/* USER CODE BEGIN 4 */
//485发送
void send485(uint8_t *pData,uint8_t len){// 485//接收：DE为0，RE为0，设置为接收//发送：DE为1，RE为 1，设置为发送//设置为发送HAL_GPIO_WritePin(GPIOB, GPIO_PIN_0, GPIO_PIN_SET); //PB0 = DE = 1HAL_GPIO_WritePin(GPIOB, GPIO_PIN_1, GPIO_PIN_SET); //PB1 = RE = 1//发送内容HAL_UART_Transmit(&huart3, pData, len, 1000);//重置为接收HAL_GPIO_WritePin(GPIOB, GPIO_PIN_0, GPIO_PIN_RESET); //PB0 = DE = 0HAL_GPIO_WritePin(GPIOB, GPIO_PIN_1, GPIO_PIN_RESET); //PB1 = RE = 0
}//crc modbus485 声明
uint8_t crc16_1 =0;
uint8_t crc16_2 =0;
uint16_t crc_table[] = {0x0000, 0xcc01, 0xd801, 0x1400,0xf001, 0x3c00, 0x2800, 0xe401,0xa001, 0x6c00, 0x7800, 0xb401,0x5000, 0x9c01, 0x8801, 0x4400
};
void rs485_crc16(uint8_t *arr,uint8_t len)
{uint16_t crc = 0xffff;uint8_t i;uint8_t temp;for(i = 0; i < len; i++) {temp = *arr++;crc = crc_table[(temp ^ crc) & 15] ^ (crc >> 4);crc = crc_table[((temp >> 4) ^ crc) & 15] ^ (crc >> 4);}crc16_1 = (uint8_t)(crc & 0xff ); //高8位crc16_2 = (uint8_t)(crc >> 8); //低8位
}void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart){if(huart->Instance == USART3){ //uart3 端口UART1_buf[UART1_buf_i] = UART1_arr[0];UART1_buf_i++;if(0x0a == UART1_arr[0]){ //检测到结束符 是 0A//简单业务逻辑处理if(0x01==UART1_buf[0] && 0x0A==UART1_buf[1] ){ //如果发送的是 01 0A 则返回，发送的内容，其他的不返回//我们返回485uint8_t return_arr[6] = {0x01,0x0A,0x02,0x00,0x00,0x00};rs485_crc16(return_arr, 4);return_arr[4] = crc16_1;return_arr[5] = crc16_2;send485((uint8_t *)return_arr,6);}//i置0UART1_buf_i = 0;}//再次开启打印HAL_UART_Receive_IT(&huart3, (uint8_t *)UART1_arr, UART1_len);}
}
/* USER CODE END 4 *//*** @brief This function is executed in case of error occurrence.* @retval None*/
void Error_Handler(void)
{/* USER CODE BEGIN Error_Handler_Debug *//* User can add his own implementation to report the HAL error return state */__disable_irq();while (1){}/* USER CODE END Error_Handler_Debug */
}#ifdef USE_FULL_ASSERT
/*** @brief Reports the name of the source file and the source line number* where the assert_param error has occurred.* @param file: pointer to the source file name* @param line: assert_param error line source number* @retval None*/
void assert_failed(uint8_t *file, uint32_t line)
{/* USER CODE BEGIN 6 *//* User can add his own implementation to report the file name and line number,ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) *//* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */
5.演示结果
