K8s部署zk集群和kafka集群

一、环境准备

1.1 环境说明

本文搭建MongoDB，基于WMware虚拟机，操作系统CentOS 8，且已经基于Kubeadm搭好了k8s集群，k8s节点信息如下：

如需知道k8s集群搭建，可跳转我的文章《kubeadm部署k8s集群》查看。

1.2 安装说明

本文演示如何在 K8s下部署 Kafka 集群，并且搭建后除了可以从 K8s 内部访问 Kafka 服务，也支持从 K8s 集群外部访问 Kafka 服务。本次我们使用 StatefulSet 方式搭ZooKeeper 集群，使用 Service&Deployment 搭建 Kafka 集群。

二、创建NFS存储

NFS 存储主要是为了给 Kafka、ZooKeeper 提供稳定的后端存储，当 KafkaZooKeeper 的 Pod 发生故障重启或迁移后，依然能获得原先的数据。

2.1 安装NFS

我选择在 master 节点创建 NFS 存储，首先执行如下命令安装 NFS:

yum -y install  nfs-utils rpcbind

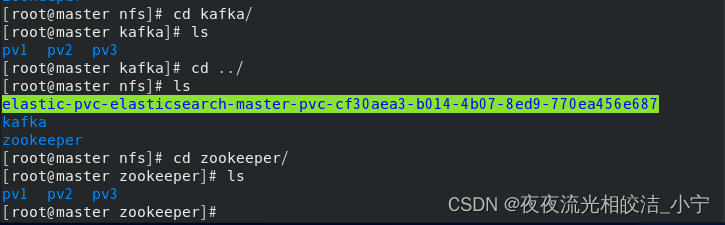

2.2 创建NFS共享文件夹

mkdir -p /var/nfs/kafka/pv{1..3}
mkdir -p /var/nfs/zookeeper/pv{1..3}

2.3编辑配置文件


vim /etc/exports/var/nfs/kafka/pv1 *(rw,sync,no_root_squash)
/var/nfs/kafka/pv2 *(rw,sync,no_root_squash)
/var/nfs/kafka/pv3 *(rw,sync,no_root_squash)
/var/nfs/zookeeper/pv1 *(rw,sync,no_root_squash)
/var/nfs/zookeeper/pv2 *(rw,sync,no_root_squash)
/var/nfs/zookeeper/pv3 *(rw,sync,no_root_squash)

2.4 配置生效

exportfs -r

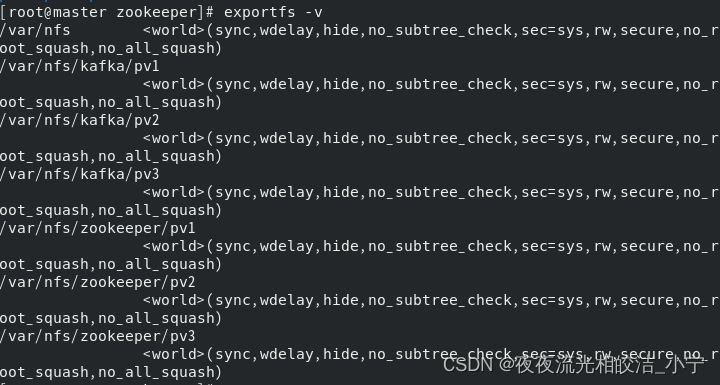

2.5 查看所有共享目录


exportfs -v

2.6 重启NFS服务

systemctl start nfs-server
systemctl enabled nfs-server
systemctl start rpcbind
systemctl enabled rpcbind

2.7 其他节点安装nfs-utils

yum -y install nfs-utils

2.8 查看master节点的nfs共享目录信息

showmount -e 192.168.31.80

 三、创建Zookeeper集群

3.1 创建namespace空间

kubectl create ns kafka-cluster

3.2 创建Zookeeper PV卷

cat > zookeeper-pv.yamlapiVersion: v1
kind: PersistentVolume
metadata:name: k8s-pv-zk01namespace: kafka-clusterlabels:app: zkannotations:volume.beta.kubernetes.io/storage-class: "anything"
spec:capacity:storage: 1GiaccessModes:- ReadWriteOncenfs:server: 192.168.31.80  # 需要改成你的nfs服务地址path: "/var/nfs/zookeeper/pv1" # 需要改成你的pv卷目录地址persistentVolumeReclaimPolicy: Recycle
---
apiVersion: v1
kind: PersistentVolume
metadata:name: k8s-pv-zk02namespace: kafka-clusterlabels:app: zkannotations:volume.beta.kubernetes.io/storage-class: "anything"
spec:capacity:storage: 1GiaccessModes:- ReadWriteOncenfs:server: 192.168.31.80path: "/var/nfs/zookeeper/pv2"persistentVolumeReclaimPolicy: Recycle
---
apiVersion: v1
kind: PersistentVolume
metadata:name: k8s-pv-zk03namespace: kafka-clusterlabels:app: zkannotations:volume.beta.kubernetes.io/storage-class: "anything"
spec:capacity:storage: 1GiaccessModes:- ReadWriteOncenfs:server: 192.168.31.80path: "/var/nfs/zookeeper/pv3"persistentVolumeReclaimPolicy: Recycle

3.3 执行命令创建PV

kubectl apply -f zookeeper-pv.yaml

3.4 执行命令查看PV是否创建成功

kubectl get pv

 3.5 创建Zookeeper Service

cat > zookeeper-service.yamlapiVersion: v1
kind: Service
metadata:name: zk-hsnamespace: kafka-clusterlabels:app: zk
spec:selector:app: zkclusterIP: Noneports:- name: serverport: 2888- name: leader-electionport: 3888
---
apiVersion: v1
kind: Service
metadata:name: zk-csnamespace: kafka-clusterlabels:app: zk
spec:selector:app: zktype: NodePortports:- name: clientport: 2181nodePort: 31811

3.6 执行命令创建Service

kubectl apply -f zookeeper-service.yaml

3.7 创建Zookeeper StatefulSet

cat > zookeeper-statefulset.yamlapiVersion: apps/v1
kind: StatefulSet
metadata:name: zknamespace: kafka-cluster
spec:serviceName: "zk-hs"replicas: 3 # by default is 1selector:matchLabels:app: zk # has to match .spec.template.metadata.labelsupdateStrategy:type: RollingUpdatepodManagementPolicy: Paralleltemplate:metadata:labels:app: zk # has to match .spec.selector.matchLabelsspec:containers:- name: zkimagePullPolicy: Alwaysimage: leolee32/kubernetes-library:kubernetes-zookeeper1.0-3.4.10ports:- containerPort: 2181name: client- containerPort: 2888name: server- containerPort: 3888name: leader-electioncommand:- sh- -c- "start-zookeeper \--servers=3 \--data_dir=/var/lib/zookeeper/data \--data_log_dir=/var/lib/zookeeper/data/log \--conf_dir=/opt/zookeeper/conf \--client_port=2181 \--election_port=3888 \--server_port=2888 \--tick_time=2000 \--init_limit=10 \--sync_limit=5 \--heap=4G \--max_client_cnxns=60 \--snap_retain_count=3 \--purge_interval=12 \--max_session_timeout=40000 \--min_session_timeout=4000 \--log_level=INFO"readinessProbe:exec:command:- sh- -c- "zookeeper-ready 2181"initialDelaySeconds: 10timeoutSeconds: 5livenessProbe:exec:command:- sh- -c- "zookeeper-ready 2181"initialDelaySeconds: 10timeoutSeconds: 5volumeMounts:- name: datadirmountPath: /var/lib/zookeepervolumeClaimTemplates:- metadata:name: datadirannotations:volume.beta.kubernetes.io/storage-class: "anything"spec:accessModes: [ "ReadWriteOnce" ]resources:requests:storage: 1Gi

3.8 执行命令生成StatefulSet

kubectl apply  -f zookeeper-statefulset.yaml

3.9 查看有没有新建成功

kubectl get pod -n kafka-cluster -o widekubectl get service -n kafka-cluster -o widekubectl get StatefulSet -n kafka-cluster -o wide

 四、创建kafka集群

4.1 创建kafka service

cat > kafka-service.yamlapiVersion: v1
kind: Service
metadata:name: kafka-service-1namespace: kafka-clusterlabels:app: kafka-service-1
spec:type: NodePortports:- port: 9092name: kafka-service-1targetPort: 9092nodePort: 30901protocol: TCPselector:app: kafka-1---apiVersion: v1
kind: Service
metadata:name: kafka-service-2namespace: kafka-clusterlabels:app: kafka-service-2
spec:type: NodePortports:- port: 9092name: kafka-service-2targetPort: 9092nodePort: 30902protocol: TCPselector:app: kafka-2---apiVersion: v1
kind: Service
metadata:name: kafka-service-3namespace: kafka-clusterlabels:app: kafka-service-3
spec:type: NodePortports:- port: 9092name: kafka-service-3targetPort: 9092nodePort: 30903protocol: TCPselector:app: kafka-3

 4.2 执行命令生成service

kubectl apply  -f kafka-service.yaml

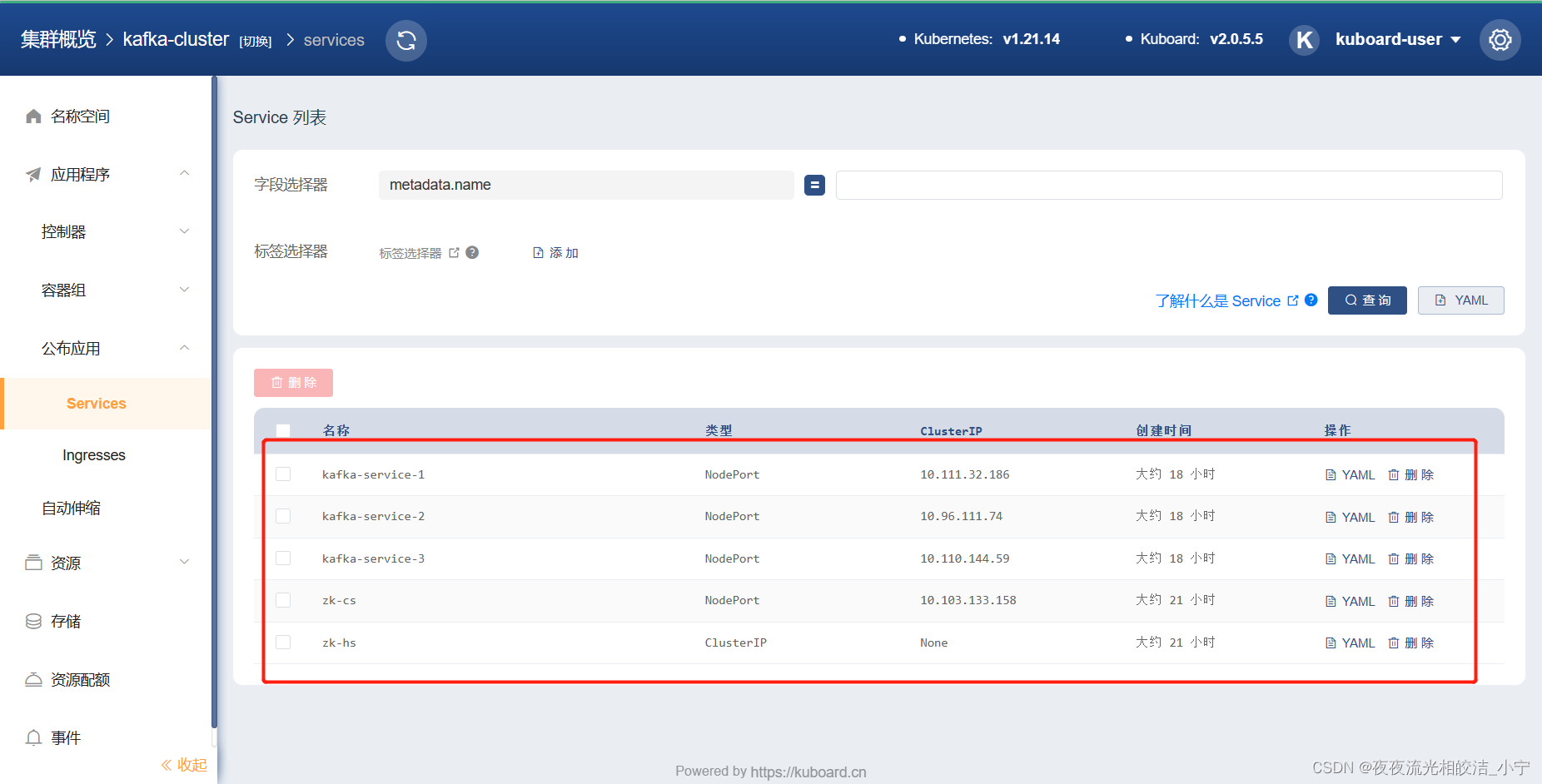

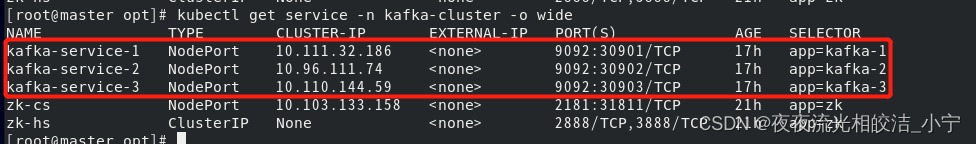

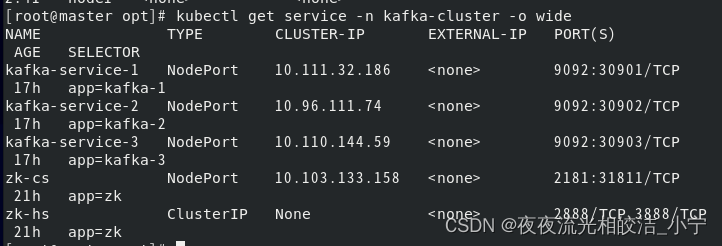

4.3 检查service 是否成功

kubectl get service -n kafka-cluster -o wide

 4.4 创建kafka Deployment

cat > kafka-deployment.yamlapiVersion: apps/v1
kind: Deployment
metadata:name: kafka-deployment-1namespace: kafka-cluster
spec:replicas: 1selector:matchLabels:app: kafka-1template:metadata:labels:app: kafka-1spec:containers:- name: kafka-1image: wurstmeister/kafkaimagePullPolicy: IfNotPresentports:- containerPort: 9092env:- name: KAFKA_ZOOKEEPER_CONNECTvalue: zk-0.zk-hs.kafka-cluster.svc.cluster.local:2181,zk-1.zk-hs.kafka-cluster.svc.cluster.local:2181,zk-2.zk-hs.kafka-cluster.svc.cluster.local:2181- name: KAFKA_BROKER_IDvalue: "1"- name: KAFKA_CREATE_TOPICSvalue: mytopic:2:1- name: KAFKA_LISTENERSvalue: PLAINTEXT://0.0.0.0:9092- name: KAFKA_ADVERTISED_PORTvalue: "30901"- name: KAFKA_ADVERTISED_HOST_NAMEvalueFrom:fieldRef:fieldPath: status.hostIPvolumeMounts:- name: datadirmountPath: /var/lib/kafkavolumes:- name: datadirnfs:server: 192.168.31.80path: "/var/nfs/kafka/pv1"
---apiVersion: apps/v1
kind: Deployment
metadata:name: kafka-deployment-2namespace: kafka-cluster
spec:replicas: 1selector:matchLabels:app: kafka-2template:metadata:labels:app: kafka-2spec:containers:- name: kafka-2image: wurstmeister/kafkaimagePullPolicy: IfNotPresentports:- containerPort: 9092env:- name: KAFKA_ZOOKEEPER_CONNECTvalue: zk-0.zk-hs.kafka-cluster.svc.cluster.local:2181,zk-1.zk-hs.kafka-cluster.svc.cluster.local:2181,zk-2.zk-hs.kafka-cluster.svc.cluster.local:2181- name: KAFKA_BROKER_IDvalue: "2"- name: KAFKA_LISTENERSvalue: PLAINTEXT://0.0.0.0:9092- name: KAFKA_ADVERTISED_PORTvalue: "30902"- name: KAFKA_ADVERTISED_HOST_NAMEvalueFrom:fieldRef:fieldPath: status.hostIPvolumeMounts:- name: datadirmountPath: /var/lib/kafkavolumes:- name: datadirnfs:server: 192.168.31.80path: "/var/nfs/kafka/pv2"---apiVersion: apps/v1
kind: Deployment
metadata:name: kafka-deployment-3namespace: kafka-cluster
spec:replicas: 1selector:matchLabels:app: kafka-3template:metadata:labels:app: kafka-3spec:containers:- name: kafka-3image: wurstmeister/kafkaimagePullPolicy: IfNotPresentports:- containerPort: 9092env:- name: KAFKA_ZOOKEEPER_CONNECTvalue: zk-0.zk-hs.kafka-cluster.svc.cluster.local:2181,zk-1.zk-hs.kafka-cluster.svc.cluster.local:2181,zk-2.zk-hs.kafka-cluster.svc.cluster.local:2181- name: KAFKA_BROKER_IDvalue: "3"- name: KAFKA_LISTENERSvalue: PLAINTEXT://0.0.0.0:9092- name: KAFKA_ADVERTISED_PORTvalue: "30903"- name: KAFKA_ADVERTISED_HOST_NAMEvalueFrom:fieldRef:fieldPath: status.hostIPvolumeMounts:- name: datadirmountPath: /var/lib/kafkavolumes:- name: datadirnfs:server: 192.168.31.80path: "/var/nfs/kafka/pv3"

4.5 执行命令生成deployment

kubectl apply -f kafka-deployment.yaml

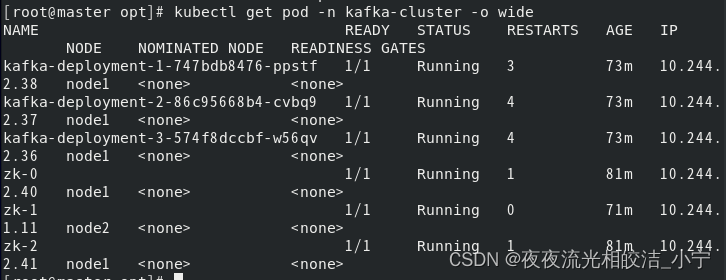

4.6 检查是否生成成功

kubectl get pod -n kafka-cluster -o wide

 五、测试

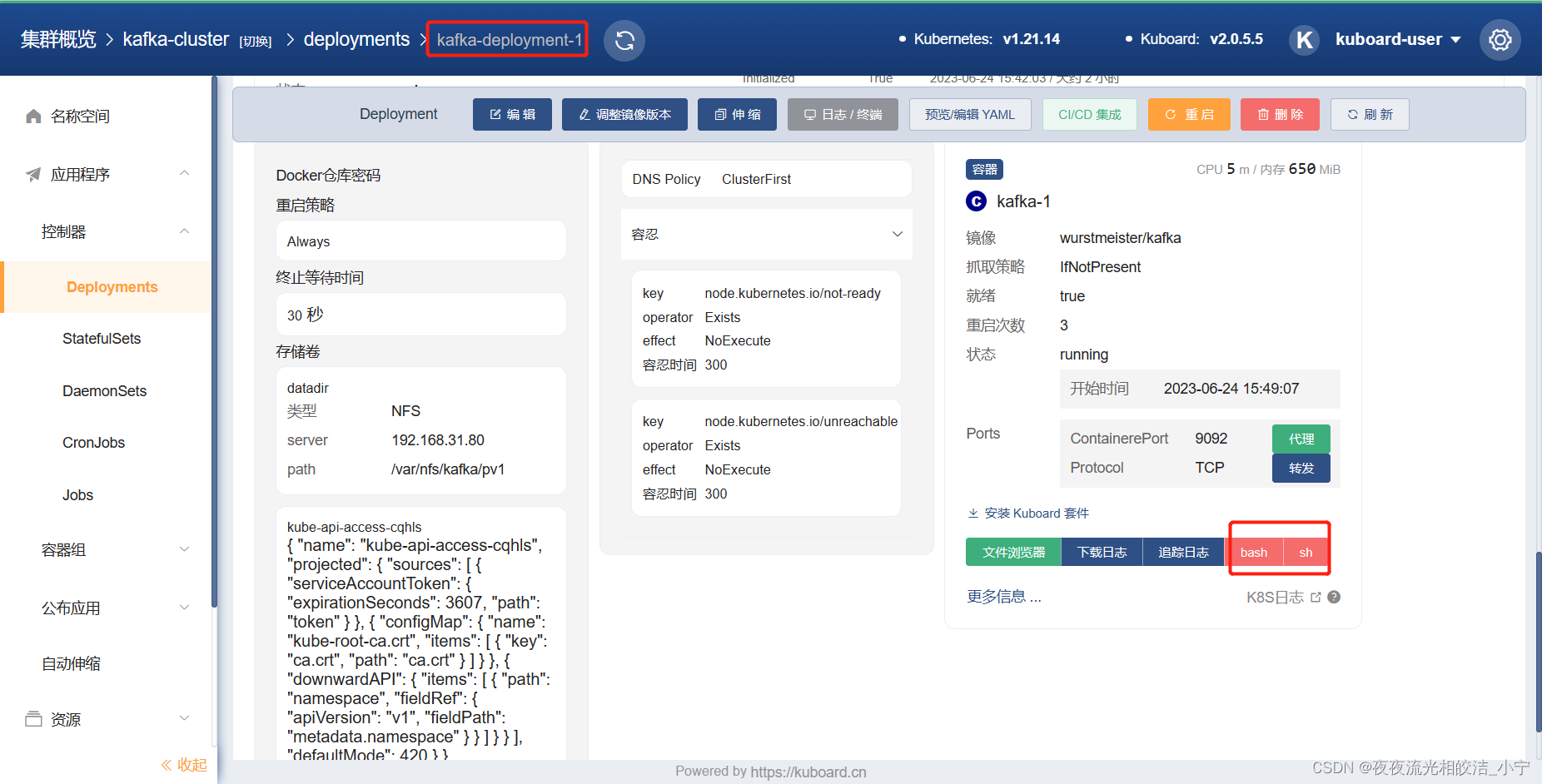

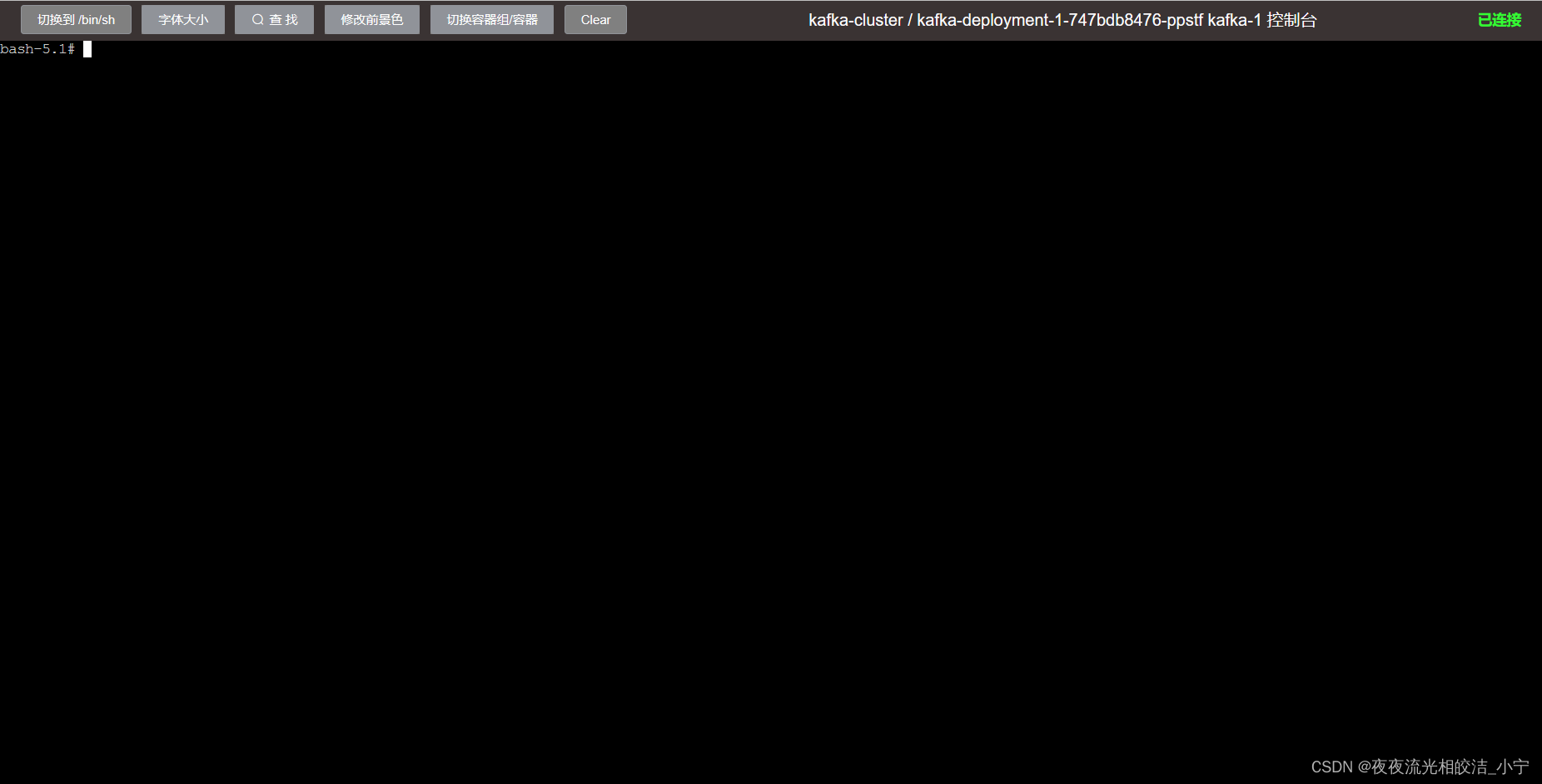

5.1 在k8s页面上进入容器

5.2  新建top

kafka-topics.sh --create --topic test_topic --zookeeper zk-0.zk-hs.kafka-cluster.svc.cluster.local:2181,zk-1.zk-hs.kafka-cluster.svc.cluster.local:2181,zk-2.zk-hs.kafka-cluster.svc.cluster.local:2181 --partitions 1 --replication-factor 1

5.3 在k8s打开新页面，进入容器中，打开生产者

kafka-console-producer.sh --broker-list kafka-service-1:9092,kafka-service-2:9092,kafka-service-3:9092 --topic test_topic

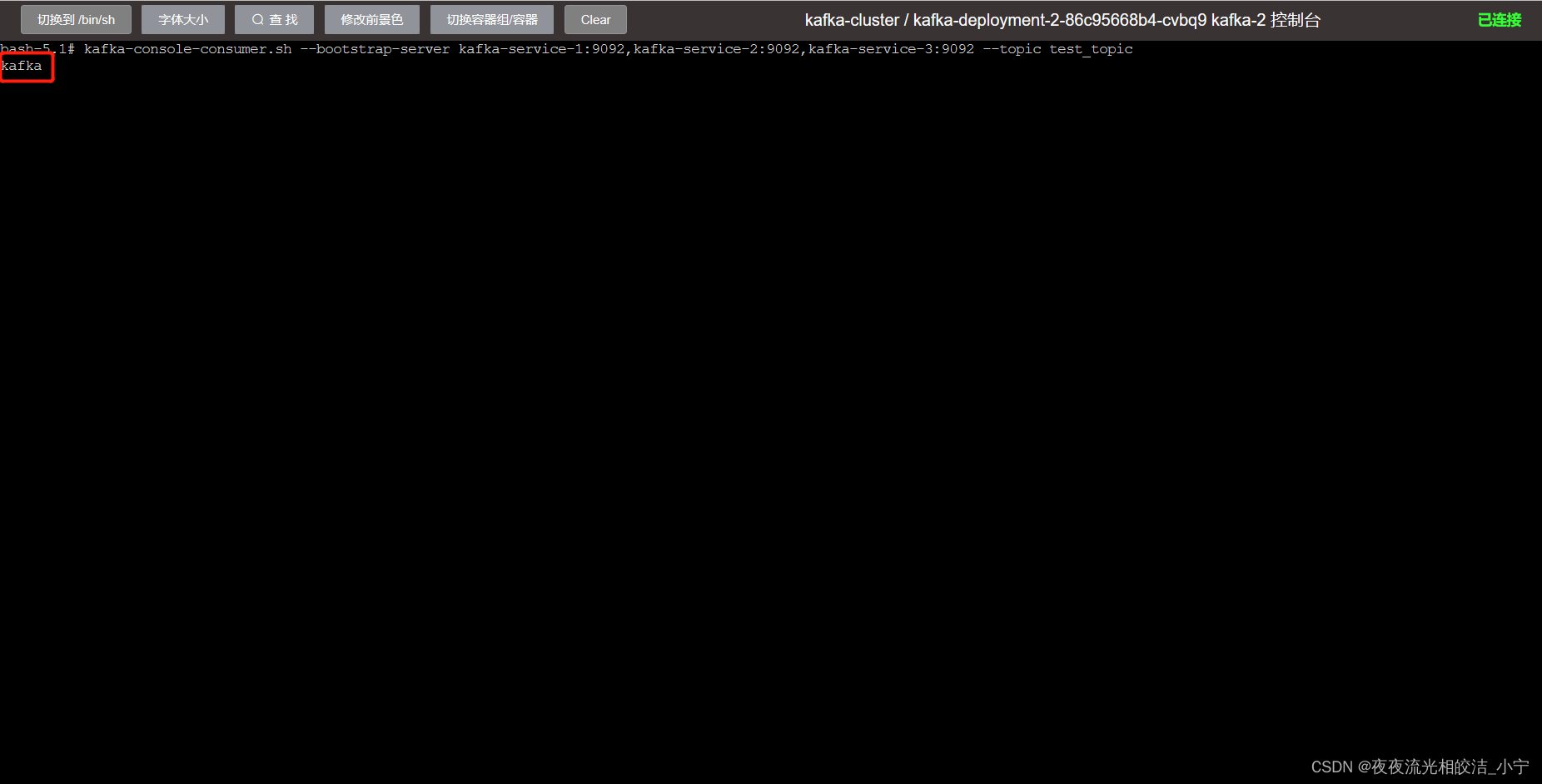

5.4 在k8s打开新页面，进入容器中，打开消费者

kafka-console-consumer.sh --bootstrap-server kafka-service-1:9092,kafka-service-2:9092,kafka-service-3:9092 --topic test_topic

在生产者中编辑发送"kafka",在消费者中消费到了"kafka"，整明我们的zookeeper集群和kafka集群是ok的，到此， 本教程结束！

如果觉得本文对您有帮助，欢迎点赞+收藏+关注！
