Docker-compose快速搭建 Prometheus+Grafana监控系统

一、说明

Prometheus负责收集数据，Grafana负责展示数据。其中采用Prometheus 中的 Exporter含：
1）Node Exporter，负责收集 host 硬件和操作系统数据。它将以容器方式运行在所有 host 上。
2）cAdvisor，负责收集容器数据。它将以容器方式运行在所有 host 上。
3）Alertmanager，负责告警。它将以容器方式运行在所有 host 上。
完整Exporter列表请参考：https://prometheus.io/docs/instrumenting/exporters/

repo所有文件下载地址

https://young1.lanzouf.com/b036xjdkf
密码:9ure

默认grafana登录地址:
http://ip:33000/login
admin/admin

二、安装docker，docker-compose

2.1 安装docker
先安装一个64位的Linux主机，其内核必须高于3.10，内存不低于1GB。在该主机上安装Docker。

# 卸载旧版本
yum -y remove docker docker-common docker-selinux docker-engine
# 安装依赖包
yum install -y yum-utils device-mapper-persistent-data lvm2
# 添加Docker软件包源
yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
# 更新yum软件包索引
yum makecache fast
# 安装免费版的docker-ce
yum -y install docker-ce
# 启动
systemctl start docker
# 查看docker版本
docker version
# 开机启动
systemctl enable docker
# 查看Docker信息
docker info

配置阿里云镜像加速
登录 -》 控制台 -》 容器镜像服务 -》镜像加速器

sudo mkdir -p /etc/docker
sudo tee /etc/docker/daemon.json <<-'EOF'
{
"registry-mirrors" : ["https://jkfdsf2u.mirror.aliyuncs.com","https://registry.docker-cn.com"],"insecure-registries" : ["docker-registry.zjq.com"],"log-driver": "json-file","log-opts": {"max-size": "10m","max-file": "10"}
}
EOFcat /etc/docker/daemon.json
sudo systemctl daemon-reload
sudo systemctl restart docker

2.2 安装docker-compose

curl -L "https://github.com/docker/compose/releases/download/1.29.0/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
chmod +x /usr/local/bin/docker-compose

解决报错 WARNING: IPv4 forwarding is disabled. Networking will not work.

1.解决方式：
第一步：在宿主机上执行echo "net.ipv4.ip_forward=1" >>/usr/lib/sysctl.d/00-system.conf
2.第二步：重启network和docker服务
[root@localhost /]# systemctl restart network && systemctl restart docker
3.第三步：验证是否成功

三、添加配置文件

mkdir -p /opt/prometheus/config
cd /opt/prometheus/config

2.1 添加prometheus.yml配置文件

vim prometheus.yml

sudo tee /opt/prometheus/config/prometheus.yml <<-'EOF'
# my global config
global:scrape_interval:     15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.scrape_timeout:      10s # scrape_timeout is set to the global default (10s).# Alertmanager configuration
alerting:alertmanagers:- static_configs:- targets: ['192.168.8.110:9093']# - alertmanager:9093# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:- "node_down.yml"# - "first_rules.yml"# - "second_rules.yml"# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:# The job name is added as a label `job=` to any timeseries scraped from this config.- job_name: 'prometheus'static_configs:- targets: ['192.168.8.110:9090']- job_name: 'cadvisor'static_configs:- targets: ['192.168.8.110:8080']- job_name: 'node'scrape_interval: 8sstatic_configs:- targets: ['192.168.8.110:9100']
EOF

prometheus.yml 配置文件参数详解

# global是一些常规的全局配置，这里只列出了两个参数：
global:scrape_interval:     15s   #每15s采集一次数据evaluation_interval: 30s   #每15s做一次告警检测scrape_timeout:      10s   # 每次 收集数据的 超时时间# 当Prometheus和外部系统(联邦, 远程存储, Alertmanager)通信的时候，添加标签到任意的时间序列或者报警external_labels:monitor: codelabfoo:     bar# rule_files指定加载的告警规则文件，告警规则放到下面来介绍。
rule_files:
- "first.rules"
- "my/*.rules"# 远程写入功能相关的设置
remote_write:- url: http://remote1/pushwrite_relabel_configs:- source_labels: [__name__]regex:         expensive.*action:        drop- url: http://remote2/push# 远程读取相关功能的设置
remote_read:- url: http://remote1/readread_recent: true- url: http://remote3/readread_recent: falserequired_matchers:job: special# scrape_configs指定prometheus要监控的目标，这部分是最复杂的。在scrape_config中每个监控目标是一个job，但job的类型有很多种。可以是最简单的static_config，即静态地指定每一个目标。scrape_configs:
- job_name: prometheus  # 必须配置, 自动附加的job labels, 必须唯一honor_labels: true   # 标签冲突, true 为以抓取的数据为准 并 忽略 服务器中的, false 为 通过重命名来解决冲突# scrape_interval is defined by the configured global (15s).# scrape_timeout is defined by the global default (10s).metrics_path:     '/metrics'# scheme defaults to 'http'.# 文件服务发现配置 列表file_sd_configs:- files:  # 从这些文件中提取目标- foo/*.slow.json- foo/*.slow.yml- single/file.ymlrefresh_interval: 10m  # 刷新文件的 时间间隔- files:- bar/*.yaml# 使用job名作为label的 静态配置目录 的 列表static_configs:- targets: ['localhost:9090', 'localhost:9191']labels:my:   labelyour: label# 目标节点 重新打标签 的配置 列表.  重新标记是一个功能强大的工具，可以在抓取目标之前动态重写目标的标签集。 可以配置多个，按照先后顺序应用relabel_configs:- source_labels: [job, __meta_dns_name]   # 从现有的标签中选择源标签, 最后会被 替换， 保持， 丢弃regex:         (.*)some-[regex]  # 正则表达式, 将会提取source_labels中匹配的值target_label:  job   # 在替换动作中将结果值写入的标签.replacement:   foo-${1}  # 如果正则表达匹配, 那么替换值. 可以使用正则表达中的 捕获组# action defaults to 'replace'- source_labels: [abc]  # 将abc标签的内容复制到cde标签中target_label:  cde- replacement:   statictarget_label:  abc- regex:replacement:   statictarget_label:  abcbearer_token_file: valid_token_file  # 可选的, bearer token 文件的信息- job_name: service-x# HTTP basic 认证信息basic_auth:username: admin_namepassword: "multiline\nmysecret\ntest"scrape_interval: 50s  # 对于该job, 多久收集一次数据scrape_timeout:  5ssample_limit: 1000  # 每次 收集 样本数据的限制. 0 为不限制metrics_path: /my_path  # 从目标 获取数据的 HTTP 路径scheme: https  # 配置用于请求的协议方案# DNS 服务发现 配置列表dns_sd_configs:- refresh_interval: 15snames:  # 要查询的DNS域名列表- first.dns.address.domain.com- second.dns.address.domain.com- names:- first.dns.address.domain.com# refresh_interval defaults to 30s.# 目标节点 重新打标签 的配置 列表relabel_configs:- source_labels: [job]regex:         (.*)some-[regex]action:        drop- source_labels: [__address__]modulus:       8target_label:  __tmp_hashaction:        hashmod- source_labels: [__tmp_hash]regex:         1action:        keep- action:        labelmapregex:         1- action:        labeldropregex:         d- action:        labelkeepregex:         k# metric 重新打标签的 配置列表metric_relabel_configs:- source_labels: [__name__]regex:         expensive_metric.*action:        drop- job_name: service-y# consul 服务发现 配置列表consul_sd_configs:- server: 'localhost:1234'  # consul API 地址token: mysecretservices: ['nginx', 'cache', 'mysql']  # 被检索目标的 服务 列表. 如果不定义那么 所有 服务 都会被 收集scheme: httpstls_config:ca_file: valid_ca_filecert_file: valid_cert_filekey_file:  valid_key_fileinsecure_skip_verify: falserelabel_configs:- source_labels: [__meta_sd_consul_tags]separator:     ','regex:         label:([^=]+)=([^,]+)target_label:  ${1}replacement:   ${2}- job_name: service-z# 收集 数据的 TLS 设置tls_config:cert_file: valid_cert_filekey_file: valid_key_filebearer_token: mysecret- job_name: service-kubernetes# kubernetes 服务 发现 列表kubernetes_sd_configs:- role: endpoints   # 必须写, 必须是endpoints, service, pod, node, 或者 ingressapi_server: 'https://localhost:1234'basic_auth:  # HTTP basic 认证信息username: 'myusername'password: 'mysecret'- job_name: service-kubernetes-namespaceskubernetes_sd_configs:- role: endpoints  # 应该被发现的 kubernetes 对象 实体api_server: 'https://localhost:1234'  # API Server的地址namespaces:  # 可选的命名空间发现, 如果省略 那么所有的命名空间都会被使用names:- default- job_name: service-marathon# Marathon 服务发现 列表marathon_sd_configs:- servers:- 'https://marathon.example.com:443'tls_config:cert_file: valid_cert_filekey_file: valid_key_file- job_name: service-ec2ec2_sd_configs:- region: us-east-1access_key: accesssecret_key: mysecretprofile: profile- job_name: service-azureazure_sd_configs:- subscription_id: 11AAAA11-A11A-111A-A111-1111A1111A11tenant_id: BBBB222B-B2B2-2B22-B222-2BB2222BB2B2client_id: 333333CC-3C33-3333-CCC3-33C3CCCCC33Cclient_secret: mysecretport: 9100- job_name: service-nervenerve_sd_configs:- servers:- localhostpaths:- /monitoring- job_name: 0123service-xxxmetrics_path: /metricsstatic_configs:- targets:- localhost:9090- job_name: 測試metrics_path: /metricsstatic_configs:- targets:- localhost:9090- job_name: service-tritontriton_sd_configs:- account: 'testAccount'dns_suffix: 'triton.example.com'endpoint: 'triton.example.com'port: 9163refresh_interval: 1mversion: 1tls_config:cert_file: testdata/valid_cert_filekey_file: testdata/valid_key_file# Alertmanager相关的配置
alerting:alertmanagers:- scheme: httpsstatic_configs:- targets:- "1.2.3.4:9093"- "1.2.3.5:9093"- "1.2.3.6:9093"

2.2 添加邮件告警配置文件

添加配置文件alertmanager.yml，配置收发邮件邮箱

sudo tee /opt/prometheus/config/alertmanager.yml <<-'EOF'
#全局配置,比如配置发件人
global:resolve_timeout: 5m                       # 处理超时时间，默认为5minsmtp_smarthost: 'smtp.qq.com:465'         # 邮箱smtp服务器代理smtp_from: '1363823245@qq.com'            # 发送邮箱名称smtp_auth_username: '1363823245@qq.com'   # 发邮件的邮箱用户名，也就是你的邮箱smtp_auth_password: 'cuwsscqllsnhgdjh'    # 邮箱密码或授权码smtp_require_tls: false                   #不进行tls验证# 定义模板信息,可以自定义html模板,发邮件的时候用自己定义的模板内容发
templates:- 'template/*.tmpl'# 定义路由树信息,这个路由可以接收到所有的告警,还可以继续配置路由,比如project: zhidaoAPP(prometheus 告警规则中自定义的lable)发给谁,project: baoxian的发给谁
route:group_by: ['alertname'] # 报警分组依据group_wait: 10s         # 最初即第一次等待多久时间发送一组警报的通知group_interval: 60s     # 在发送新警报前的等待时间repeat_interval: 1h     # 发送重复警报的周期 对于email配置中，此项不可以设置过低，否则将会由于邮件发送太多频繁，被smtp服务器拒绝receiver: 'email'       # 发送警报的接收者的名称，以下receivers name的名称# 定义警报接收者信息
receivers:- name: 'email'  # 路由中对应的receiver名称email_configs: # 邮箱配置- to: '1363823245@qq.com'   # 接收警报的email配置#html: '{{ template "test.html" . }}'  # 设定邮箱的内容模板
EOF
cat /opt/prometheus/config/alertmanager.yml

global:smtp_smarthost: 'smtp.163.com:25'　　#163服务器smtp_from: 'tsiyuetian@163.com'　　　　　　　　#发邮件的邮箱smtp_auth_username: 'tsiyuetian@163.com'　　#发邮件的邮箱用户名，也就是你的邮箱smtp_auth_password: 'TPP***'　　　　　　　　#发邮件的邮箱密码smtp_require_tls: false　　　　　　　　#不进行tls验证route:group_by: ['alertname']group_wait: 10sgroup_interval: 10srepeat_interval: 10mreceiver: live-monitoringreceivers:
- name: 'live-monitoring'email_configs:- to: '1363823245@qq.com'　　　　　　　　#收邮件的邮箱

2.3 添加报警规则

添加一个node_down.yml为 prometheus targets 监控
vim node_down.yml

sudo tee /opt/prometheus/config/node_down.yml <<-'EOF'
groups:
- name: node_downrules:- alert: InstanceDownexpr: up == 0for: 1mlabels:user: testannotations:summary: "Instance {{ $labels.instance }} down"description: "{{ $labels.instance }} of job {{ $labels.job }} has been down for more than 1 minutes."
EOF
cat /opt/prometheus/config/node_down.yml

四、编写docker-compose

vim docker-compose-monitor.yml （node-exporter采集程序不建议采用docker安装）

sudo tee /opt/prometheus/config/docker-compose-monitor.yml <<-'EOF'
version: '3.5'
services:prometheus:image: prom/prometheuscontainer_name: prometheushostname: prometheusrestart: alwaysvolumes:- /opt/prometheus/config/prometheus.yml:/etc/prometheus/prometheus.yml- /opt/prometheus/config/node_down.yml:/etc/prometheus/node_down.ymlports:- "9090:9090"networks:- monitoralertmanager:image: prom/alertmanagercontainer_name: alertmanagerhostname: alertmanagerrestart: alwaysvolumes:- /opt/prometheus/config/alertmanager.yml:/etc/alertmanager/alertmanager.ymlports:- "9093:9093"networks:- monitorgrafana:image: grafana/grafanacontainer_name: grafanahostname: grafanarestart: alwaysports:- "3000:3000"volumes:- grafana-data:/var/lib/grafananetworks:- monitorcadvisor:image: google/cadvisor:latestcontainer_name: cadvisorprivileged: truehostname: cadvisorrestart: alwaysvolumes:- /:/rootfs:ro- /var/run:/var/run:ro- /sys:/sys:ro- /var/lib/docker/:/var/lib/docker:ro- /dev/disk/:/dev/disk:ro ports:- "8080:8080"networks:- monitornode-exporter:image: quay.io/prometheus/node-exportercontainer_name: node-exporterhostname: node-exporterrestart: alwaysports:- "9100:9100"networks:- monitor
networks:monitor:driver: bridgename: monitorvolumes:grafana-data:
EOF
cat /opt/prometheus/config/docker-compose-monitor.yml

五、启动docker-compose

#启动容器：
docker-compose -f /opt/prometheus/config/docker-compose-monitor.yml up -d
#删除容器：
docker-compose -f /opt/prometheus/config/docker-compose-monitor.yml down
#重启容器：
docker restart id

容器启动如下：

查看日志

docker logs prometheus
docker logs node-exporter
docker logs cadvisor
docker logs grafana
docker logs alertmanager
#检查端口是否开启
ss -ntlp | grep -E '9090|9100|8080|3000|9093'

可以在内网通过 [http://192.168.8.110:9100/metrics]查看客户端数据：

**备注：**出现上面信息，证明已经收集到数据。

http://192.168.8.110:9090/targets

prometheus targets界面如下：

**备注：**如果State为Down，应该是防火墙问题，参考下面防火墙配置。

http://192.168.8.110:9090/graph?g0.expr=container_cpu_load_average_10s&g0.tab=0&g0.stacked=0&g0.show_exemplars=0&g0.range_input=1h&g1.expr=&g1.tab=1&g1.stacked=0&g1.show_exemplars=0&g1.range_input=1h

prometheus graph界面如下：

**备注：**如果没有数据，同步下时间。

六、防火墙配置

6.1 关闭selinux

setenforce 0
systemctl is-enabled firewalld.service
systemctl stop firewalld
systemctl disable firewalld.service
setenforce 0
sed -i 's/SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config &> /dev/null
systemctl stop NetworkManager &> /dev/null
systemctl disable NetworkManager &> /dev/null
cat /etc/selinux/config | grep SELINUX=disabled
iptables -F

6.2 配置iptables

#删除自带防火墙
systemctl stop firewalld.service
systemctl disable firewalld.service
#安装iptables
yum install -y iptables-services
#配置
vim /etc/sysconfig/iptables
*filter
:INPUT ACCEPT [0:0]
:FORWARD ACCEPT [0:0]
:OUTPUT ACCEPT [24:11326]
-A INPUT -m state --state RELATED,ESTABLISHED -j ACCEPT
-A INPUT -p icmp -j ACCEPT
-A INPUT -i lo -j ACCEPT
-A INPUT -p tcp -m state --state NEW -m tcp --dport 22 -j ACCEPT
-A INPUT -p tcp -m state --state NEW -m tcp --dport 9090 -j ACCEPT
-A INPUT -p tcp -m state --state NEW -m tcp --dport 8080 -j ACCEPT
-A INPUT -p tcp -m state --state NEW -m tcp --dport 3000 -j ACCEPT
-A INPUT -p tcp -m state --state NEW -m tcp --dport 9093 -j ACCEPT
-A INPUT -p tcp -m state --state NEW -m tcp --dport 9100 -j ACCEPT
-A INPUT -j REJECT --reject-with icmp-host-prohibited
-A FORWARD -j REJECT --reject-with icmp-host-prohibited
COMMIT
#启动
systemctl restart iptables.service
systemctl enable iptables.service

七、配置Grafana

登录Grafana首页http://192.168.8.110:3000/login（账号：admin 密码：admin）

grafana初始化密码

#获取权限
~~# su

首先打开数据库

~~# sqlite3 /var/lib/grafana/grafana.db

然后修改user表中admin用户的密码

#查看数据库中包含的表
~~# .tables#查看user表内容
~~# select * from user;#重置admin用户的密码为默认admin
~~# update user set password = '59acf18b94d7eb0694c61e60ce44c110c7a683ac6a8f09580d626f90f4a242000746579358d77dd9e570e83fa24faa88a8a6', salt = 'F3FAxVm33R' where login = 'admin';#退出sqlite3
~~# .exit

最后重启grafana服务

~~#service grafana-server start

进入本地3000端口，账号密码都为admin进入。

7.1 添加Prometheus数据源

http://192.168.8.110:9090/

7.2配置dashboards

说明：可以用自带模板，也可以去https://grafana.com/dashboards，下载对应的模板。

7.3 查看数据

grafana仪表盘下载地址 https://grafana.com/grafana/dashboards

我从网页下载了docker相关的模板：Docker and system monitoring，893，8919

输入893，就会加载出下面的信息

导入后去首页查看数据

7.4 仪表盘

Dashboards | Grafana Labs

1 Node Exporter for Prometheus Dashboard EN 20201010

Docker monitoring

Docker Swarm & Container Overview

MySQL Overview

NGINX Ingress controller

Grafana Loki Dashboard for NGINX Service Mesh

windows_exporter for Prometheus Dashboard EN

Linux - Zabbix Server

八、附录：单独启动各容器

#启动prometheus
docker run -d -p 9090:9090 --name=prometheus \
-v /opt/prometheus/config/prometheus.yml:/etc/prometheus/prometheus.yml \
-v /opt/prometheus/config/node_down.yml:/etc/prometheus/node_down.yml \
prom/prometheus# 启动grafana
docker run -d -p 3000:3000 --name=grafana grafana/grafana#启动alertmanager容器
docker run -d -p 9093:9093 -v /opt/prometheus/config/config.yml:/etc/alertmanager/config.yml --name alertmanager prom/alertmanager#启动node exporter
docker run -d \-p 9100:9100 \-v "/:/host:ro,rslave" \--name=node_exporter \quay.io/prometheus/node-exporter \--path.rootfs /host#启动cadvisor
docker run                                    \
--volume=/:/rootfs:ro                         \
--volume=/var/run:/var/run:rw                 \
--volume=/sys:/sys:ro                         \
--volume=/var/lib/docker/:/var/lib/docker:ro  \
--publish=8080:8080                           \
--detach=true                                 \
--name=cadvisor                               \
--privileged=true                             \
google/cadvisor:latest

注意:

在Ret Hat,CentOS, Fedora 等发行版上需要传递如下参数，因为 SELinux 加强了安全策略：

–privileged=true

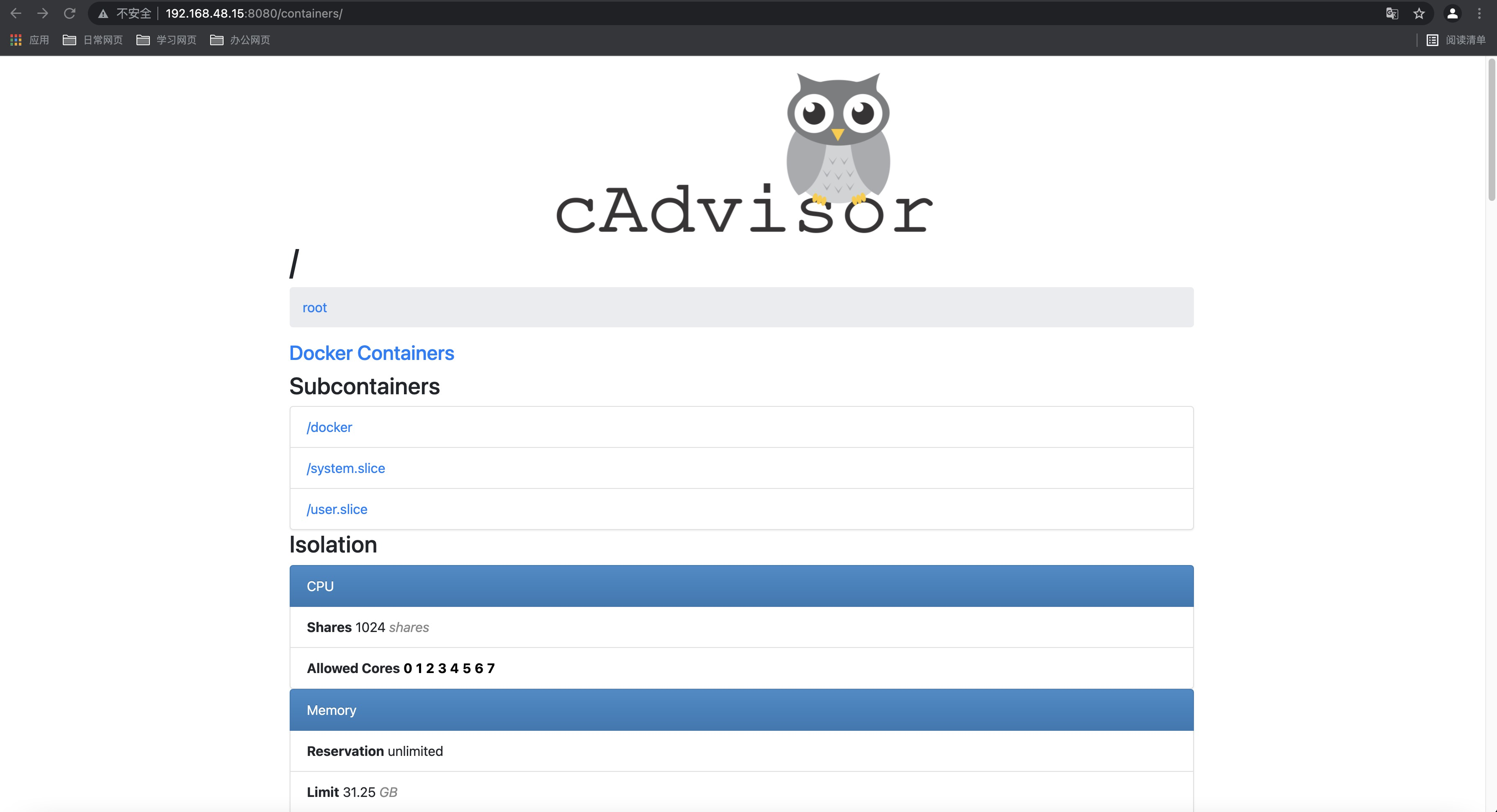

启动后访问：http://127.0.0.1:8080查看页面，/metric查看指标

centos7上面 docker 启动 cAdvisor 报错问题解决

启动命令：

docker run   --volume=/:/rootfs:ro   --volume=/var/run:/var/run:rw   --volume=/sys:/sys:ro   --volume=/apps/docker/:/var/lib/docker:ro   --volume=/dev/disk/:/dev/disk:ro   --publish=9101:8080   --detach=true   --name=cadvisor   google/cadvisor:latest

报错日志

W0619 08:47:06.754687       1 manager.go:349] Could not configure a source for OOM detection, disabling OOM events: open /dev/kmsg: no such file or directory
F0619 08:47:06.909778       1 cadvisor.go:172] Failed to start container manager: inotify_add_watch /sys/fs/cgroup/cpuacct,cpu: no such file or directory

解决办法：

mount -o remount,rw '/sys/fs/cgroup'
ln -s /sys/fs/cgroup/cpu,cpuacct /sys/fs/cgroup/cpuacct,cpu

原因分析：

系统资源只读

3、metrics指标采集

采集的url：192.168.8.110:8080/metrics

九、node_exporter插件安装

安装 node_exporter 插件

修改配置信息

Prometheus 如果要监控 Linux 系统运行状态，需要安装 node_exporter 插件

#!/bin/bash
# wget https://github.com/prometheus/node_exporter/releases/download/v1.5.0/node_exporter-1.5.0.linux-amd64.tar.gztar zxvf node_exporter-1.5.0.linux-amd64.tar.gz
mv node_exporter-1.5.0.linux-amd64 /usr/local/node_exportercat > /etc/systemd/system/node_exporter.service << EOF
[Unit]
Description=node_exporter
Documentation=https://prometheus.io/
After=network.target[Service]
Type=simple
ExecStart=/usr/local/node_exporter/node_exporter
Restart=on-failure[Install]
WantedBy=multi-user.target
EOFsystemctl daemon-reload
systemctl start node_exporter
systemctl status node_exporter
systemctl enable node_exporterrm -rf node_exporter-1.5.0.linux-amd64.tar.gz

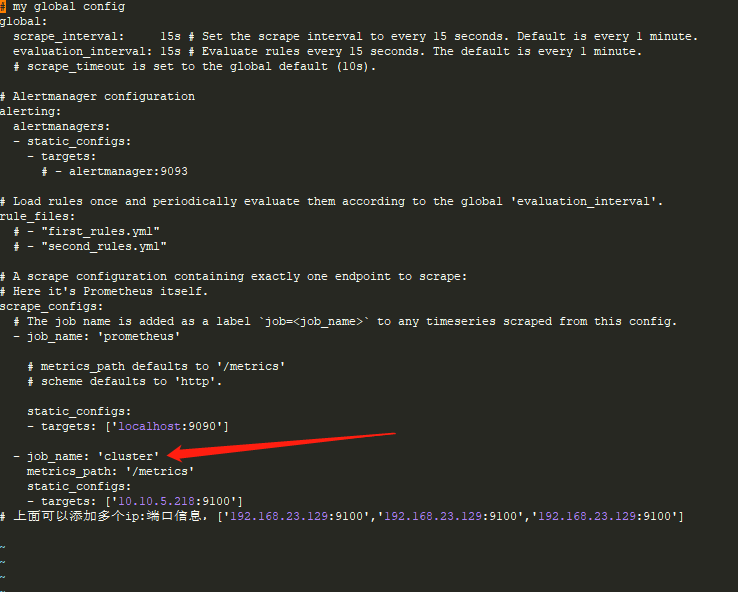

修改 Prometheus 配置文件，添加 node_exporter 监控信息，切换目录

vim /opt/prometheus/configeus.yml

在 scrape_configs: 下面添加内容如下，格式要求严格，需要添加空格达到格式一致

  - job_name: "node"metrics_path: '/metrics'static_configs:- targets: ['192.168.8.110:9100','192.168.8.111:9100'] # 上面可以添加多个ip:端口信息，['192.168.8.110:9100','192.168.8.111:9100','192.168.8.112:9100','192.168.8.113:9100']

docker restart prometheus
docker logs prometheus

http://192.168.8.110:3000/d/xfpJB9FGz/1-node-exporter-for-prometheus-dashboard-en-20201010?orgId=1

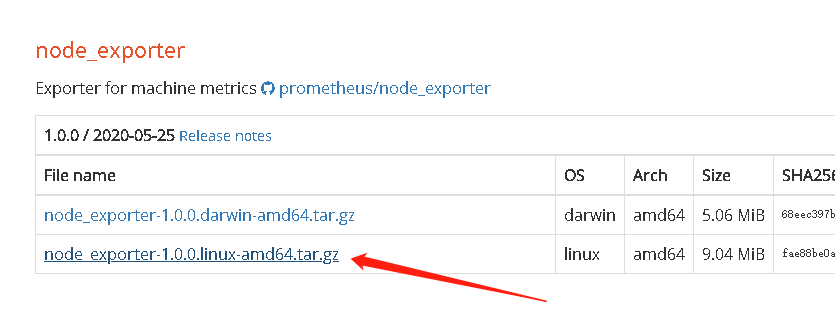

获取安装包

获取安装包地址：

wget下载安装

wget https://github.com/prometheus/node_exporter/releases/download/v1.0.0/node_exporter-1.0.0.linux-amd64.tar.gz	#右键获取链接，wget 方式获取tar -zxvf node_exporter-1.0.0.linux-amd64.tar.gz	#解压文件
mv node_exporter-1.0.0.linux-amd64 /usr/local/node_exportercd /usr/local/node_exporter			#切换目录
chmod -R 777 /usr/local/node_exporter		#赋予启动权限
nohup ./node_exporter  >> ./node_exporter.log 2>&1 &	#启动如果要改动端口号 需要添加参数 –web.listen-address=":9999" 例如
nohup ./node_exporter --web.listen-address=":9999" >> /applog/node_exporter/node_exporter.log 2>&1 &

验证

服务器验证方式
curl http://localhost:9100/metrics默认的端口号是9100，因此要开放9090端口号
sudo firewall-cmd --add-port=9100/tcp --permanent重载防火墙
sudo firewall-cmd --reload网页验证方式
http://服务器IP:9100/metrics
ss -ntlp | grep 9100

开机自启动

cat >> /usr/local/node_exporter.sh <<-EOF
#!/bin/bash
/opt/node_exporter/node_exporter &>> /applog/node_exporter/node_exporter.log
EOF

chmod 755 node_exporter.sh		#赋予执行权限cat >> /usr/lib/systemd/system/node_exporter.service <<-EOF
[Unit]
Description=node_exporter
Documentation=https://prometheus.io/docs/introduction/overview/
Wants=network-online.target
After=network-online.target[Service]
User=root
Group=root
Type=simple
# 启动脚本
ExecStart=/opt/node_exporter/node_exporter.sh[Install]
WantedBy=multi-user.target
EOF

验证启动
systemctl daemon-reload配置开机加载
systemctl enable node_exporter启动node_exporter
systemctl start node_exporter  查看是启动状态
systemctl status node_exporter

迁移与备份

镜像备份
我们可以通过以下命令将镜像保存为tar 文件
docker save -o node-exporter.tar quay.io/prometheus/node-exporter
docker save -o prometheus.tar prom/prometheus
docker save -o grafana.tar grafana/grafana
docker save -o alertmanager.tar prom/alertmanager
docker save -o cadvisor.tar google/cadvisor镜像恢复与迁移
docker load -i node-exporter.tar
docker load -i prometheus.tar
docker load -i grafana.tar
docker load -i alertmanager.tar
docker load -i cadvisor.tarls | xargs -l docker load -i

监控远程MySQL

在被管理机agent1上安装mysqld_exporter组件
下载地址: https://prometheus.io/download/

安装mysqld_exporter组件

1、下载到被监控端解压压缩包
[root@localhost ~]# tar xf mysqld_exporter-0.12.1.linux-amd64.tar.gz -C /usr/local/
2、改名并移动到指定目录
[root@localhost ~]# mv /usr/local/mysqld_exporter-0.12.1.linux-amd64 /usr/local/mysqld_exporter
[root@localhost ~]# ls /usr/local/mysqld_exporter/
LICENSE  mysqld_exporter  NOTICE

安装mariadb数据库,并授权

[root@agent1 ~]# yum install mariadb\* -y
[root@agent1 ~]# systemctl restart mariadb
[root@agent1 ~]# systemctl enable mariadb
[root@agent1 ~]# mysql

3、登录mysql为exporter创建账号并授权

grant select,replication client,process ON *.* to 'mysql_monitor'@'localhost' identified by '123456';
flush privileges;

4、创建mysql配置文件、运行时可免密码连接数据库
创建一个mariadb配置文件，写上连接的用户名与密码(和上面的授权的用户名 和密码要对应)

cat > /usr/local/mysqld_exporter/.my.cnf <

[root@agent1 ~]# nohup /usr/local/mysqld_exporter/mysqld_exporter --config.my-cnf=/usr/local/mysqld_exporter/.my.cnf >> /usr/local/mysqld_exporter/mysqld_exporter.out &  确认端口(9104)
[root@localhost ~]# tail -f -n 50 /usr/local/mysqld_exporter/mysqld_exporter.out
[root@localhost ~]# lsof -i:9104
COMMAND      PID USER   FD   TYPE DEVICE SIZE/OFF NODE NAME
mysqld_ex 121342 root    3u  IPv6 150935      0t0  TCP *:peerwire (LISTEN)

vi /usr/lib/systemd/system/mysql_exporter.service

cat > /usr/lib/systemd/system/mysql_exporter.service <<-EOF
[Unit]
Description=https://prometheus.io[Service]
User=prometheus
Group=prometheusExecStart=/usr/local/mysqld_exporter/mysqld_exporter \
--config.my-cnf=/usr/local/mysqld_exporter/.my.cnf [Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl restart mysql_exporter.service
systemctl status mysql_exporter.service

cat >> /tmp/prometheus.yml <<-EOF- job_name: 'MySQL'static_configs:- targets: ['192.168.66.31:9104']
EOF

./bin/promtool check config config/prometheus.yml

docker restart prometheus

kill -HUP  pid

curl -XPOST http://prometheus.chenlei.com/-/reload

curl -O -L "https://github.com/grafana/loki/releases/download/v1.5.0/loki-linux-amd64.zip"
curl -O -L "https://github.com/grafana/loki/releases/download/v1.5.0/promtail-linux-amd64.zip"
wget https://dl.grafana.com/oss/release/grafana-7.1.1.linux-amd64.tar.gz
wget https://raw.githubusercontent.com/grafana/loki/master/cmd/loki/loki-local-config.yaml
wget https://raw.githubusercontent.com/grafana/loki/master/cmd/promtail/promtail-local-config.yaml

unzip -q loki-linux-amd64.zip -d /data/software/loki/
unzip -q promtail-linux-amd64.zip -d /data/software/loki/

mv loki-local-config.yaml /data/software/loki/etc/
mv promtail-local-config.yaml /data/software/loki/etc/

vim loki-local-config.yaml

auth_enabled: falseserver:http_listen_port: 3100     #监听的端口ingester:lifecycler:address: 127.0.0.1ring:kvstore:store: inmemoryreplication_factor: 1final_sleep: 0schunk_idle_period: 5mchunk_retain_period: 30smax_transfer_retries: 0schema_config:configs:- from: 2020-07-29store: boltdbobject_store: filesystemschema: v11index:prefix: index_period: 168hstorage_config:boltdb:directory: /data/loki/index   #自定义boltdb目录filesystem:directory: /data/loki/chunks	#自定义filesystem目录limits_config:enforce_metric_name: falsereject_old_samples: truereject_old_samples_max_age: 168hchunk_store_config:max_look_back_period: 0stable_manager:retention_deletes_enabled: falseretention_period: 0s

vim promtail-local-config.yaml

# Promtail服务配置
server:http_listen_port: 9080grpc_listen_port: 0# 记录读取日志的位置信息文件,Promtail重新启动时需要它
positions:filename: /tmp/positions.ymal# Loki的api服务的地址
clients:- url: http://192.168.8.110:3100/loki/api/v1/pushscrape_configs:
# ngxin日志收集并打标签- job_name: nginx     # 服务名称static_configs:- targets:- localhost   # 目标服务器名称labels:job: nginx-error  # 作业名称host: localhost   # 服务器地址__path__: /var/log/*log     #服务器日志路径

[root@localhost config]# mkdir -p /opt/loki/index
[root@localhost config]# mkdir -p /opt/loki/chunks
docker-compose -f docker-compose-loki.yml up -d		#启动
docker-compose -f docker-compose-loki.yml down		#关闭
docker restart lokidocker logs prometheus
docker logs node-exporter
docker logs cadvisor
docker logs grafana
docker logs alertmanager
docker logs loki
docker logs promtail
#检查端口是否开启
ss -ntlp | grep -E '9090|9100|8080|3000|9093|3100'

version: '3.1'
networks:monitor:driver: bridge
services:prometheus:image: prom/prometheuscontainer_name: prometheushostname: prometheusrestart: alwaysenvironment:- TZ=Asia/Shanghai- LANG=zh_CN.UTF-8volumes:- /opt/prometheus/config/prometheus.yml:/etc/prometheus/prometheus.yml- /opt/prometheus/config/node_down.yml:/etc/prometheus/node_down.ymlports:- "9090:9090"networks:- monitoralertmanager:image: prom/alertmanagercontainer_name: alertmanagerhostname: alertmanagerrestart: alwaysenvironment:- TZ=Asia/Shanghai- LANG=zh_CN.UTF-8volumes:- /opt/prometheus/config/alertmanager.yml:/etc/alertmanager/alertmanager.ymlports:- "9093:9093"networks:- monitorgrafana:image: grafana/grafanacontainer_name: grafanahostname: grafanarestart: alwaysenvironment:- TZ=Asia/Shanghai- LANG=zh_CN.UTF-8ports:- "3000:3000"networks:- monitornode-exporter:image: quay.io/prometheus/node-exportercontainer_name: node-exporterhostname: node-exporterrestart: alwaysenvironment:- TZ=Asia/Shanghai- LANG=zh_CN.UTF-8ports:- "9100:9100"networks:- monitorcadvisor:image: google/cadvisor:latestcontainer_name: cadvisorprivileged: truehostname: cadvisorrestart: alwaysenvironment:- TZ=Asia/Shanghai- LANG=zh_CN.UTF-8volumes:- /:/rootfs:ro- /var/run:/var/run:ro- /sys:/sys:ro- /var/lib/docker/:/var/lib/docker:ro- /dev/disk/:/dev/disk:ro ports:- "8080:8080"networks:- monitorloki:image: grafana/loki:latestcontainer_name: lokihostname: lokirestart: alwaysenvironment:- TZ=Asia/Shanghai- LANG=zh_CN.UTF-8volumes:- /opt/loki/config/loki-local-config.yaml:/etc/loki/loki-local-config.yaml- /opt/loki/index :/data/loki/index- /opt/loki/chunks:/data/loki/chunksports:- "3100:3100"command: -config.file=/etc/loki/loki-local-config.yamlnetworks:- monitorpromtail:image: grafana/promtailcontainer_name: promtailhostname: promtailrestart: alwaysenvironment:- TZ=Asia/Shanghai- LANG=zh_CN.UTF-8volumes:- /opt/prometheus/config/promtail-local-config.yaml:/etc/promtail/promtail-local-config.yamlcommand: -config.file=/etc/promtail/promtail-local-config.yamlnetworks:- monitor

tar -xf grafana-7.1.1.linux-amd64.tar.gz -C /data/software/

nohup /data/software/loki/loki-linux-amd64 -config.file=/data/software/loki/etc/loki-local-config.yaml &nohup /data/software/loki/promtail-linux-amd64 -config.file=/data/software/loki/etc/promtail-local-config.yaml &nohup /data/software/grafana-7.1.1/bin/grafana-server web &

本文来自互联网用户投稿，文章观点仅代表作者本人，不代表本站立场，不承担相关法律责任。如若转载，请注明出处。 如若内容造成侵权/违法违规/事实不符，请点击【内容举报】进行投诉反馈！
