Unity编辑器拓展之二：ReorderableList可重新排序的列表框（复杂使用）

博客迁移

个人博客站点，欢迎访问，www.jiingfengji.tech

正文

先看效果gif图：

如果没有看过Unity编辑器拓展之一：ReorderableList可重新排序的列表框（简单使用）的，可以先看这一篇：
http://blog.csdn.net/qq_26999509/article/details/77782177

在此基础上，来绘制更加复杂的类

先提供一个需要绘制的类

using UnityEngine;
using System.Collections;
using System.Collections.Generic;
using System;public class CharacterTest : MonoBehaviour
{public List characters = new List();// Use this for initializationvoid Start () {}// Update is called once per framevoid Update () {}
}[Serializable]
public class Character
{[SerializeField]Texture icon;[SerializeField]string name;[SerializeField]int hp;[SerializeField]int power;[SerializeField]GameObject weapon;
}

然后跟上一篇一样，通过使用ReorderableList绘制List

using UnityEngine;
using System.Collections;
using UnityEditor;
using UnityEditorInternal;[CustomEditor(typeof(CharacterTest))]
public class CharacterInspector : Editor
{ReorderableList reorderableList;void OnEnable(){SerializedProperty prop = serializedObject.FindProperty("characters");reorderableList = new ReorderableList(serializedObject, prop, true, true, true, true);//设置单个元素的高度reorderableList.elementHeight = 80;//绘制单个元素reorderableList.drawElementCallback =(rect, index, isActive, isFocused) => {var element = prop.GetArrayElementAtIndex(index);rect.height -= 4;rect.y += 2;EditorGUI.PropertyField(rect, element);};//背景色reorderableList.drawElementBackgroundCallback = (rect, index, isActive, isFocused) => {GUI.backgroundColor = Color.yellow;};//头部reorderableList.drawHeaderCallback = (rect) =>EditorGUI.LabelField(rect, prop.displayName);}public override void OnInspectorGUI(){serializedObject.Update();reorderableList.DoLayoutList();serializedObject.ApplyModifiedProperties();}
}

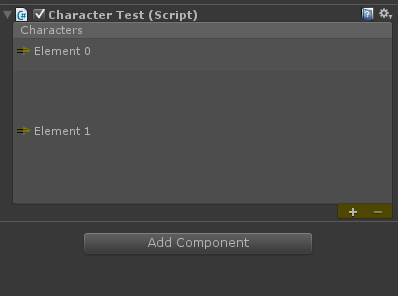

目前的效果如下图：

最后还需要利用PropertyDrawer来绘制单个Serializable类的每个实例的GUI，也就是Character类

using UnityEngine;
using System.Collections;
using UnityEditor;//定制Serializable类的每个实例的GUI
[CustomPropertyDrawer(typeof(Character))]
public class CharacterDrawer : PropertyDrawer
{public override void OnGUI(Rect position, SerializedProperty property, GUIContent label){//创建一个属性包装器，用于将常规GUI控件与SerializedProperty一起使用using (new EditorGUI.PropertyScope(position, label, property)){//设置属性名宽度 Name HPEditorGUIUtility.labelWidth = 60;//输入框高度，默认一行的高度position.height = EditorGUIUtility.singleLineHeight;//ico 位置矩形Rect iconRect = new Rect(position){width = 68,height = 68};Rect nameRect = new Rect(position){width = position.width - 70,    //减去icon的width 64x = position.x + 70             //在icon的基础上右移64};Rect hpRect = new Rect(nameRect){//在name的基础上，y坐标下移y = nameRect.y + EditorGUIUtility.singleLineHeight + 2};Rect powerRect = new Rect(hpRect){//在hp的基础上，y坐标下移y = hpRect.y + EditorGUIUtility.singleLineHeight + 2};Rect weaponLabelRect = new Rect(powerRect){y = powerRect.y + EditorGUIUtility.singleLineHeight + 2,width = 60};Rect weaponRect = new Rect(weaponLabelRect){x = weaponLabelRect.x + 60,width = powerRect.width - 60};//找到每个属性的序列化值SerializedProperty iconProperty = property.FindPropertyRelative("icon");SerializedProperty nameProperty = property.FindPropertyRelative("name");SerializedProperty hpProperty = property.FindPropertyRelative("hp");SerializedProperty powerProperty = property.FindPropertyRelative("power");SerializedProperty weaponProperty = property.FindPropertyRelative("weapon");//绘制iconiconProperty.objectReferenceValue = EditorGUI.ObjectField(iconRect, iconProperty.objectReferenceValue, typeof(Texture), false);//绘制namenameProperty.stringValue = EditorGUI.TextField(nameRect, nameProperty.displayName, nameProperty.stringValue);//Slider，范围在0-100EditorGUI.IntSlider(hpRect, hpProperty, 0, 100);//Slider，范围在0-10EditorGUI.IntSlider(powerRect, powerProperty, 0, 10);EditorGUI.PrefixLabel(weaponLabelRect, new GUIContent("weapon"));EditorGUI.PropertyField(weaponRect, weaponProperty, GUIContent.none);}}
}

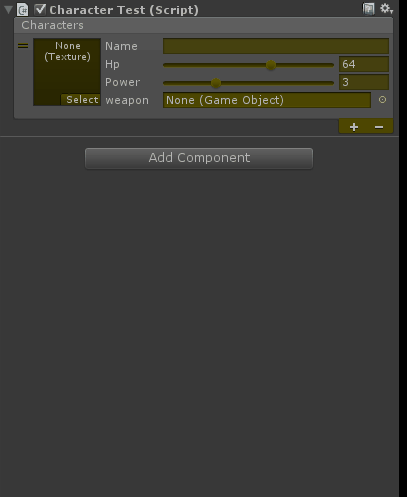

最后效果就是文章一开始的gif图了

示例工程链接：
链接：http://pan.baidu.com/s/1cgyZ98 密码：jbzh

以上知识分享，如有错误，欢迎指出，共同学习，共同进步
