之前介绍高效科研工具的时候，有说过在论文中排列图片是的几种方案，其中一种就是用latex排图，可以很好地插入到Latex写作的论文中，下面贴一下相关的代码：

\documentclass[journal,10pt]{IEEEtran}
%\documentclass[12pt,journal,draftcls,onecolumn]{IEEEtran}
\usepackage{epsfig}
\usepackage{graphicx,subfigure}
\usepackage{amsmath}
\usepackage{amssymb}
\usepackage{nccbbb}
\usepackage{booktabs}
\usepackage{microtype}
\usepackage{color}
\usepackage{hyperref}
\usepackage{multirow}
\pagestyle{empty}\begin{document}
\graphicspath{{./VIF/}{./MEF/}{./NIR/}{./MFF/}{./Med}}
%\graphicspath{}\begin{figure*}[t]\begin{center}\subfigcapskip=-0.06in\setcounter{subfigure}{0}\subfigure{\includegraphics[width=0.12\linewidth]{00537D/ir.jpg}}\hspace{-0.17in}\subfigure{\includegraphics[width=0.12\linewidth]{00537D/vi.jpg}}\hspace{-0.17in}\subfigure{\includegraphics[width=0.12\linewidth]{00537D/GTF.jpg}}\hspace{-0.17in}\subfigure{\includegraphics[width=0.12\linewidth]{00537D/DenseFuse.jpg}}\hspace{-0.17in}\subfigure{\includegraphics[width=0.12\linewidth]{00537D/IFCNN.jpg}}\hspace{-0.17in}		\subfigure{\includegraphics[width=0.12\linewidth]{00537D/SDNet.jpg}}\hspace{-0.17in}\subfigure{\includegraphics[width=0.12\linewidth]{00537D/U2Fusion.jpg}}\hspace{-0.17in}		\subfigure{\includegraphics[width=0.12\linewidth]{00537D/SwinFusion.jpg}}\\\vspace{-0.12in}\subfigure{\includegraphics[width=0.12\linewidth]{00633D/ir.jpg}}\hspace{-0.17in}\subfigure{\includegraphics[width=0.12\linewidth]{00633D/vi.jpg}}\hspace{-0.17in}\subfigure{\includegraphics[width=0.12\linewidth]{00633D/GTF.jpg}}\hspace{-0.17in}		\subfigure{\includegraphics[width=0.12\linewidth]{00633D/DenseFuse.jpg}}\hspace{-0.17in}\subfigure{\includegraphics[width=0.12\linewidth]{00633D/IFCNN.jpg}}\hspace{-0.17in}		\subfigure{\includegraphics[width=0.12\linewidth]{00633D/SDNet.jpg}}\hspace{-0.17in}\subfigure{\includegraphics[width=0.12\linewidth]{00633D/U2Fusion.jpg}}\hspace{-0.17in}		\subfigure{\includegraphics[width=0.12\linewidth]{00633D/SwinFusion.jpg}}\\\vspace{-0.12in}\setcounter{subfigure}{0}\subfigure[Infrared]{\includegraphics[width=0.12\linewidth]{00881N/ir.jpg}}\hspace{-0.17in}\subfigure[Visible]{\includegraphics[width=0.12\linewidth]{00881N/vi.jpg}}\hspace{-0.17in}\subfigure[GTF]{\includegraphics[width=0.12\linewidth]{00881N/GTF.jpg}}\hspace{-0.17in}		\subfigure[DenseFuse]{\includegraphics[width=0.12\linewidth]{00881N/DenseFuse.jpg}}\hspace{-0.17in}\subfigure[IFCNN]{\includegraphics[width=0.12\linewidth]{00881N/IFCNN.jpg}}\hspace{-0.17in}		\subfigure[SDNet]{\includegraphics[width=0.12\linewidth]{00881N/SDNet.jpg}}\hspace{-0.17in}\subfigure[U2Fusion]{\includegraphics[width=0.12\linewidth]{00881N/U2Fusion.jpg}}\hspace{-0.17in}		\subfigure[Ours]{\includegraphics[width=0.12\linewidth]{00881N/SwinFusion.jpg}}\end{center}\vspace{-0.1in}\label{Fig:00537D}
\end{figure*}
\newpage
\clearpage% that's all folks
\end{document}

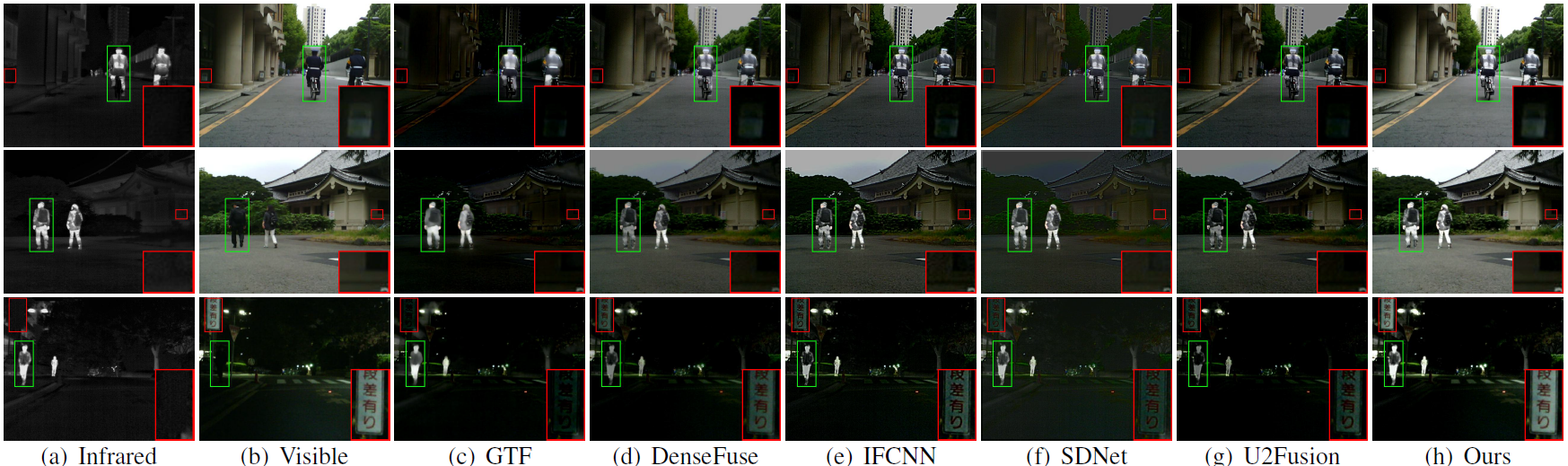

附上一下效果：

代码生成的是PDF文件，可以利用PDF裁剪边框，也可以使用PDF-Cut-Withe自动裁剪边框。然后在将PDF作为一个子图在Latex文件中导入即可。
为了方便大家尝试，相关的图片文件也打包上传至Latex 图片排列。
