Unity UI拖选卡片之美

目标需求：

在制定区域内部进行拖选，可以获得选中卡片的信息，靠近中间区域的会变大，两侧变小，松手的时候会返回到最靠近的一个卡片当中。

结合我们的需求，下面就教大家实现UI拖选卡片的功能

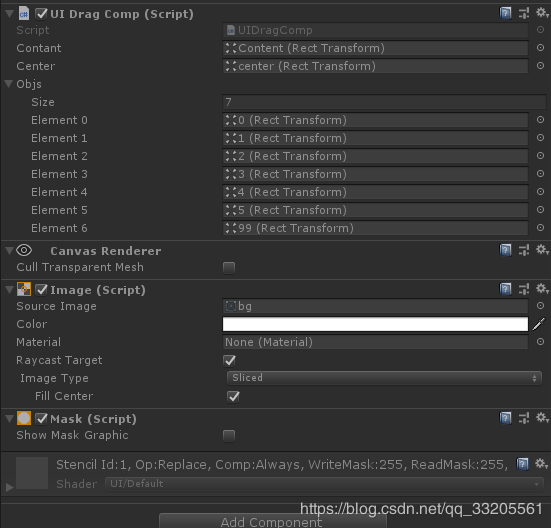

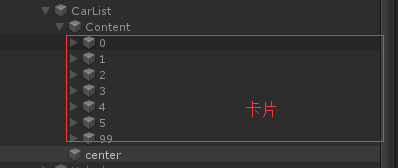

Unity组件

代码如下

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
using UnityEngine.Events;
using UnityEngine.EventSystems;public class UIDragComp : MonoBehaviour,IDragHandler,IEndDragHandler
{//-------------------------- Unity obj ------------public Transform contant;public Transform center;Transform _select;public List objs;Coroutine moveToCenter;public Transform select { get { return _select; } }public int objCount { get { return objs.Count; } }public int selcetIndex { get { return objs.IndexOf(_select); } }Transform leftTrans;Transform rightTrans;//------------------------- init ------void Awake(){SetRightLeft();FindSelectObj();}void SetRightLeft(){float right = -9999;float left = 9999;Transform rightObj = null;Transform leftObj = null;for (int i = 0; i < objs.Count; i++){if (objs[i].position.x > right){rightObj = objs[i];right = objs[i].transform.position.x;}if (objs[i].position.x < left){leftObj = objs[i];left = objs[i].transform.position.x;}}leftTrans = leftObj;rightTrans = rightObj;}//------------------ function ---------Transform FindSelectObj(){Transform nearly = null;float minDis = 999;for (int i = 0; i < objs.Count; i++){float dis = Vector2.Distance(objs[i].position, center.position);if (dis < minDis){nearly = objs[i];minDis = dis;}}_select = nearly;return nearly;}IEnumerator MoveToSelect(){Vector3 centerPos = center.position;Vector3 targetPos = _select.position;float distance = Vector3.Distance(centerPos, targetPos);while (distance > 0.03f){centerPos = center.position;targetPos = _select.position;Vector3 pos = Vector3.Lerp(targetPos, centerPos, 0.3f);Vector3 contantMove = pos - _select.position;contant.Translate(contantMove);distance = Vector3.Distance(centerPos, _select.position);ScaleTheSize();yield return null;}moveToCenter = null;}void ScaleTheSize(){foreach (Transform trans in objs){float distance = Vector2.Distance(trans.position, center.position);float tLerp = distance / (Screen.width / 2);float size = Mathf.Lerp(1f, 0.65f, tLerp);trans.localScale = new Vector3(1, 1, 1) * size;}}//------------------------- ui event ---------------public void OnDrag(PointerEventData data){Vector3 delta = data.delta;float xMove = delta.x;if (leftTrans.position.x + xMove >= (center.position.x + Screen.width / 4))xMove = (center.position.x + Screen.width / 4) - leftTrans.position.x;if (rightTrans.position.x + xMove <= (center.position.x - Screen.width / 4))xMove = (center.position.x - Screen.width / 4) - rightTrans.position.x;contant.Translate(xMove * Vector3.right);FindSelectObj();ScaleTheSize();if (moveToCenter != null) StopCoroutine(moveToCenter);}public void OnEndDrag(PointerEventData data){moveToCenter = StartCoroutine(MoveToSelect());}
}
