android apn加载流程,Android APN加载流程
Version: Android 4.4.4

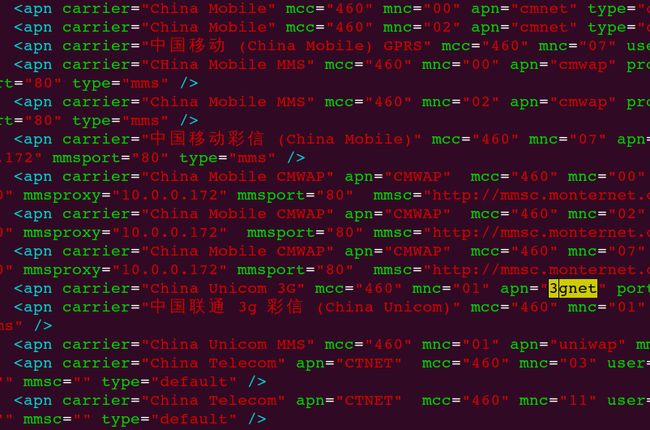

一、关于APN 1、Android的APN(Access Point Name)数据预置在/system/etc/apns-conf.xml中：
2、源码：apns-conf.xml来自apns-full-conf.xml，编译系统的时候Copy到/system/etc/目录下：
PRODUCT_COPY_FILES +=
device/sample/etc/apns-full-conf.xml:system/etc/apns-conf.xml
二、APN加载过程
1、系统检查到SIM卡正常后从/system/etc/apns-conf.xml解析数据，存放到数据库：telephony.db
/data/data/com.android.providers.telephony/databases/telephony.db
sqlite> select * from carriers where numeric='46001';
1113|China Unicom 3G|46001|460|01|3gnet|||||80||||-1|default,supl|1|IP|IP|1|0||
1114|中国联通 3g 彩信 (China Unicom)|46001|460|01|3gwap||||||10.0.0.172|80|http://mmsc.myuni.com.cn|-1|mms|1|IP|IP|1|0||
1115|China Unicom MMS|46001|460|01|uniwap||||||10.0.0.172|80|
telephony.db数据库的建立对应TelephonyProvider.java文件：
packages\providers\telephonyprovider\src\com\android\providers\telephony\TelephonyProvider.java
public class TelephonyProvider extends ContentProvider{
private static final String DATABASE_NAME = "telephony.db";
private static class DatabaseHelper extends SQLiteOpenHelper {
public DatabaseHelper(Context context) {
super(context, DATABASE_NAME, null, getVersion(context));
mContext = context;
}
@Override
public void onCreate(SQLiteDatabase db) {
// Set up the database schema
db.execSQL("CREATE TABLE " + CARRIERS_TABLE +
"(_id INTEGER PRIMARY KEY," +
"name TEXT," +
"numeric TEXT," +
"mcc TEXT," +
"mnc TEXT," +
"apn TEXT," +
"user TEXT," +
"server TEXT," +
"password TEXT," +
"proxy TEXT," +
"port TEXT," +
"mmsproxy TEXT," +
"mmsport TEXT," +
"mmsc TEXT," +
"authtype INTEGER," +
"type TEXT," +
"current INTEGER," +
"protocol TEXT," +
"roaming_protocol TEXT," +
"carrier_enabled BOOLEAN," +
"bearer INTEGER," +
"mvno_type TEXT," +
"mvno_match_data TEXT);");
initDatabase(db);
}
private void initDatabase(SQLiteDatabase db) {
// Read internal APNS data
// Environment.getRootDirectory() is a fancy way of saying ANDROID_ROOT or "/system".
File confFile = new File(Environment.getRootDirectory(), PARTNER_APNS_PATH);
loadApns(db, confparser);
}
}
}

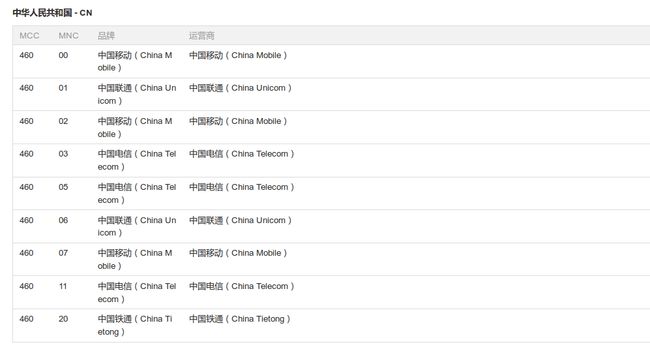

2、检索APN,根据MCC、MNC的值组合(46001)来查询telephony.db数据库：
http://www.gpsspg.com/bs/mnc.htm
frameworks\opt\telephony\src\java\com\android\internal\telephony\dataconnection\DcTracker.java
/**
* Based on the sim operator numeric, create a list for all possible
* Data Connections and setup the preferredApn.
*/
private void createAllApnList() {
mAllApnSettings = new ArrayList();
IccRecords r = mIccRecords.get();
// getOperatorNumeric()返回MCC+MNC的组合值
String operator = (r != null) ? r.getOperatorNumeric() : "";
if (operator != null) {
String selection = "numeric = '" + operator + "'";
// query only enabled apn.
// carrier_enabled : 1 means enabled apn, 0 disabled apn.
selection += " and carrier_enabled = 1";
if (DBG) log("createAllApnList: selection=" + selection);
Cursor cursor = mPhone.getContext().getContentResolver().query(
Telephony.Carriers.CONTENT_URI, null, selection, null, null);
if (cursor != null) {
Rlog.e(LOG_TAG, "cursor != null");
Rlog.e(LOG_TAG, "cursor.getCount(): " + cursor.getCount());
if (cursor.getCount() > 0) {
mAllApnSettings = createApnList(cursor);
}
cursor.close();
}
}
}这样，在Setting界面就可以看到设备的APN信息；若APN缺少，4G、3G等移动网络异常!
