MEC项目代码注释[自用]

做MEC项目,用到了三相DQ,单相DQ,负序等,组内人员参考此坐标系的定义编写代码,以下文章节选自以下各位大神们.感谢各位作者的辛苦推导.

版权声明：本文为CSDN博主「JaySur」的原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接及本声明。
原文链接：https://blog.csdn.net/jaysur/article/details/100673823

1.项目之前用的PLL为

D + D_+ D+​ =$sin\ast alpha-cos\ast beta$
Q + Q_+ Q+​ =$cos\ast alpha+sin\ast beta$
D − D_- D−​ =$-sin\ast alpha-cos\ast beta$
Q − Q_- Q−​ =$cos\ast alpha+sin\ast beta$
得到如下:
C P a r k C_{Park} CPark​ = [ s i n θ − c o s θ c o s θ s i n θ ] \begin{bmatrix} sin\theta & -cos\theta\\ cos\theta & sin\theta \\ \end{bmatrix} [sinθcosθ​−cosθsinθ​] \qquad\qquad\qquad (1-1)

C P a r k − 1 C_{Park}^{-1} CPark−1​ = [ − s i n θ − c o s θ c o s θ s i n θ ] \begin{bmatrix} -sin\theta & -cos\theta\\ cos\theta & sin\theta \\ \end{bmatrix} [−sinθcosθ​−cosθsinθ​] \qquad\qquad\qquad (1-2)

之前的代码

#if !SPLL_3PH_DDSRFint temp0 = 0;float32 zZ,zB,zC,AGCVal;//del zero sequencezZ  = (GridVoltAF + GridVoltBF + GridVoltCF)*S1DIV3;
//  zA  = GridVoltAF-zZ;zB  = GridVoltBF-zZ;zC  = GridVoltCF-zZ;//id=sqrt(2/3)*[ cos(wt)  cos(wt-pi*2/3)  cos(wt-pi*4/3)]*[a b c]'//iq=sqrt(2/3)*[-sin(wt) -sin(wt-pi*2/3) -sin(wt-pi*4/3)]*[a b c]'//3s/2s transferGridVoltAlpha=  SQRT_2DIV3 *(GridVoltAF-zZ - 0.5f*zB - 0.5f*zC);    //,zA=(GridVoltAF-zZ)GridVoltBeta=   SQRT2_DIV2 *(zB - zC);                              //=//2s/2r transferGridPLLVoltD= DCL_runDF22(&gridVoltPosiDFilter, GridVoltAlpha*PLLResCos + GridVoltBeta *PLLResSin);GridPLLVoltQ= DCL_runDF22(&gridVoltPosiQFilter, GridVoltBeta *PLLResCos - GridVoltAlpha*PLLResSin);AGCVal =1/(DCL_runDF22(&PLLAGCFilter, sqrt(GridPLLVoltD*GridPLLVoltD+GridPLLVoltQ*GridPLLVoltQ)));if(AGCVal>1/(5.0f*SQRT2*SQRT_3DIV2))        AGCVal=1/(5.0f*SQRT2*SQRT_3DIV2);           //5Vif(AGCVal<1/(690*1.2f*SQRT2*SQRT_3DIV2))    AGCVal=1/(690*1.2f*SQRT2*SQRT_3DIV2);   //220VPllPiOutput =DCL_runPI(&PLLPICtrl, GridPLLVoltQ*AGCVal , 0);    //PID,AGCTheta=IntergrateBackEuler(PllPiOutput,Theta);       //Integration and get same phase as the voltage 0 degreesif(Theta > PI2) {Theta -= PI2;}                     //2*PI limitingif(Theta < 0)   {Theta += PI2;}                     //2*PI limitinggridFreq = DCL_runDF22(&bwForFreq, PllPiOutput *(1/PI2));temp0 = (int16)(Theta*PLL_STEP);                    //float convert to inttemp0 %=  SINE_LOOKTABLE_LEN;                       //Take a remainderPLLResSin=-pCoseLookTab(temp0);PLLResCos= pSineLookTab(temp0);VoltTheta=Theta-PllCalibrPhase+(PI/2);              //Corrected to the lead of the PI/2 phase-locked angleif(VoltTheta > PI2) VoltTheta -= PI2;               //2*PI limitingif(VoltTheta < 0)   VoltTheta += PI2;               //2*PI limitingtemp0 = (int16)(VoltTheta*PLL_STEP);                //float convert to inttemp0 %=  SINE_LOOKTABLE_LEN;resSin=pSineLookTab(temp0);resCos=pCoseLookTab(temp0);

2.经过修改的坐标系:

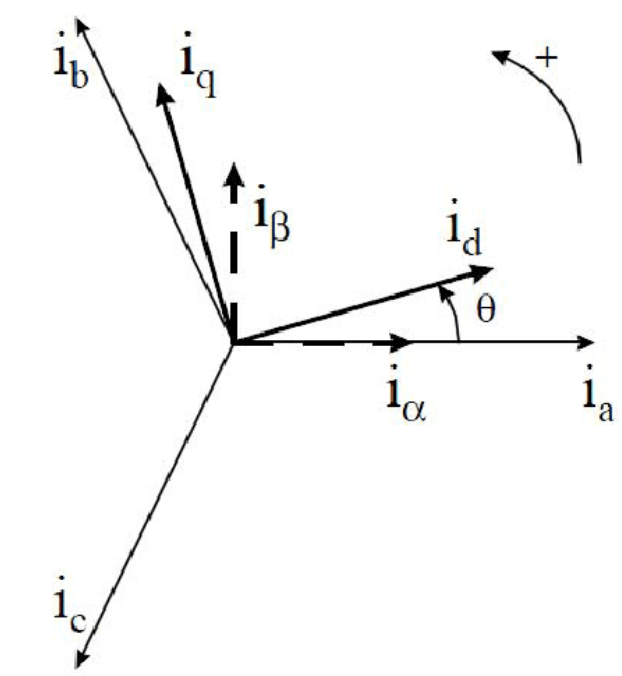

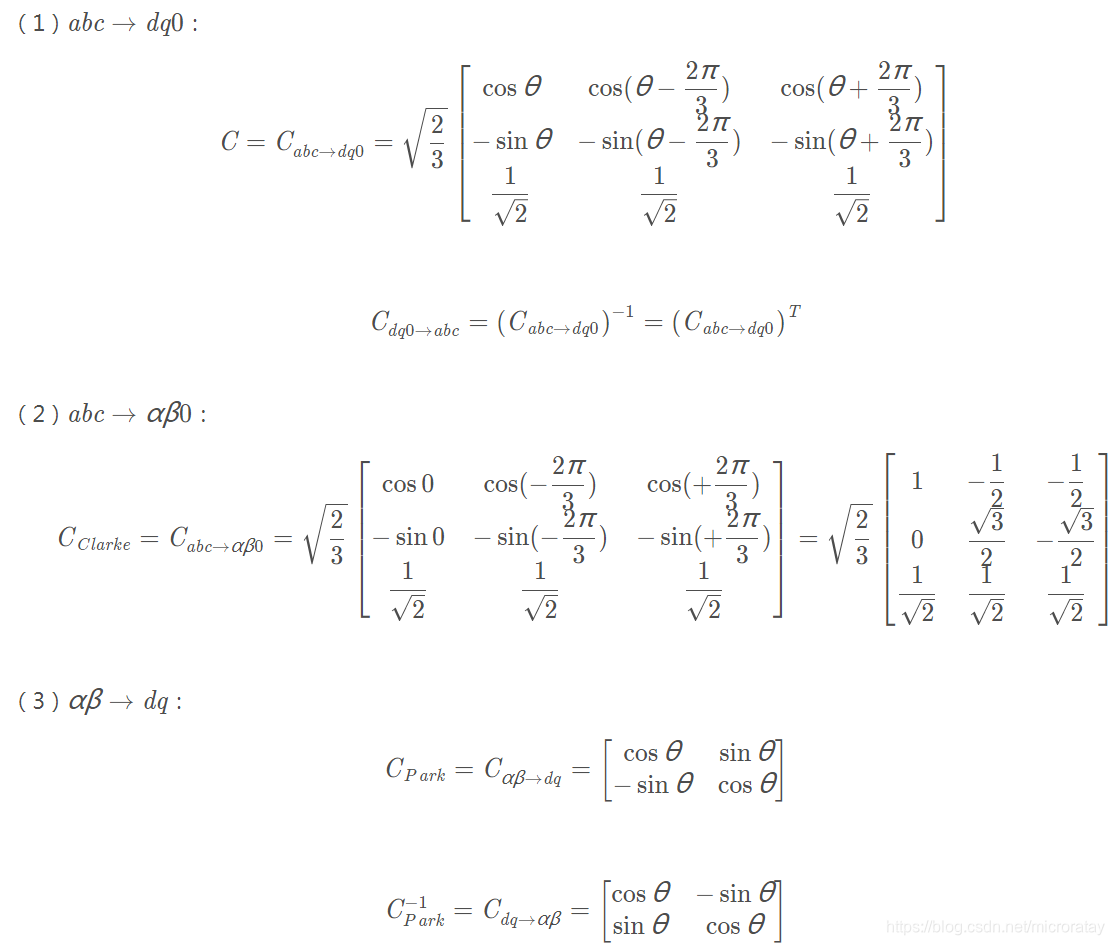

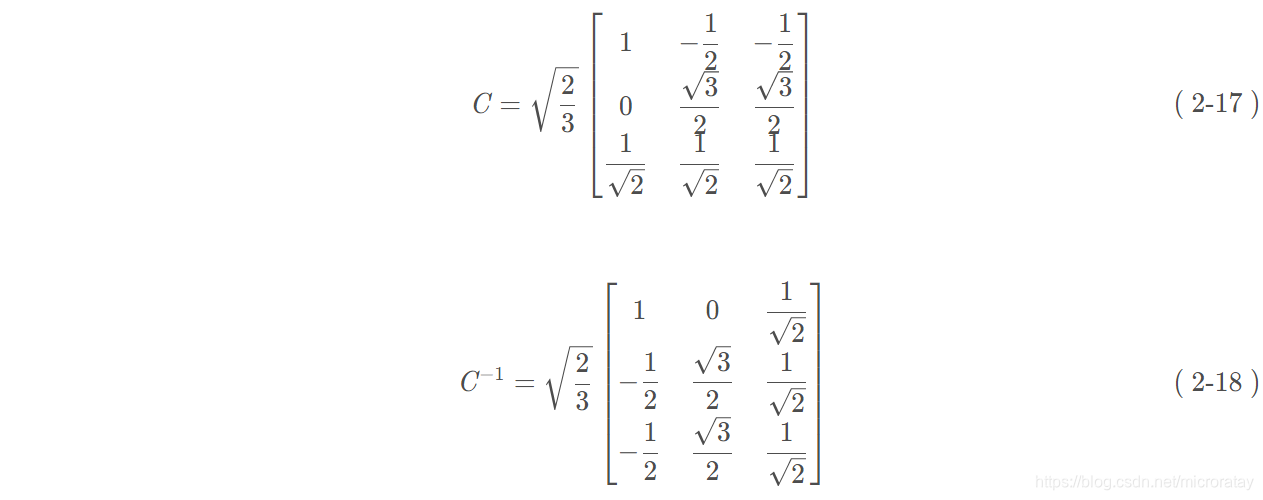

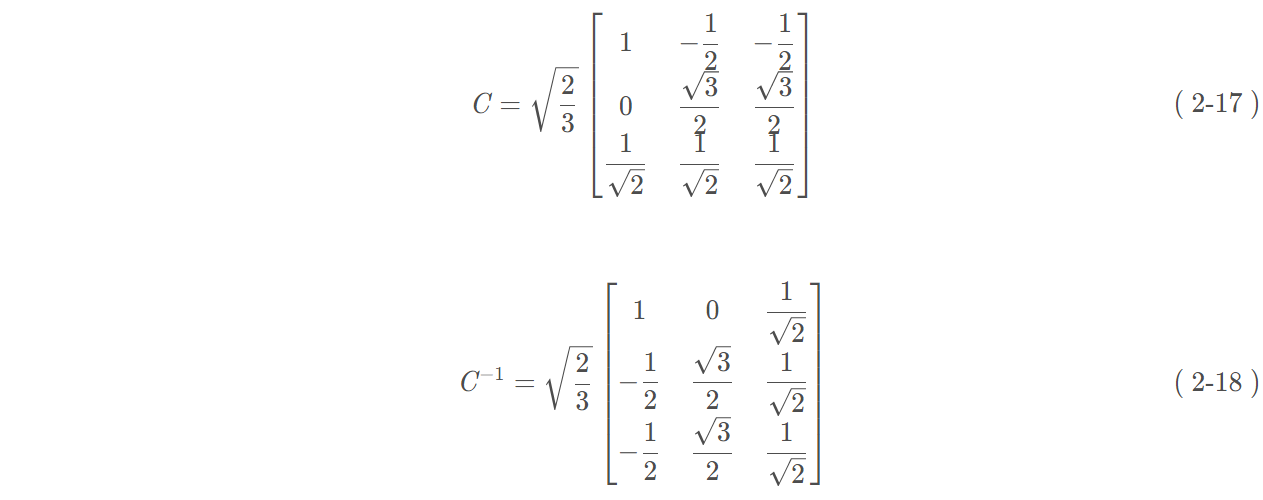

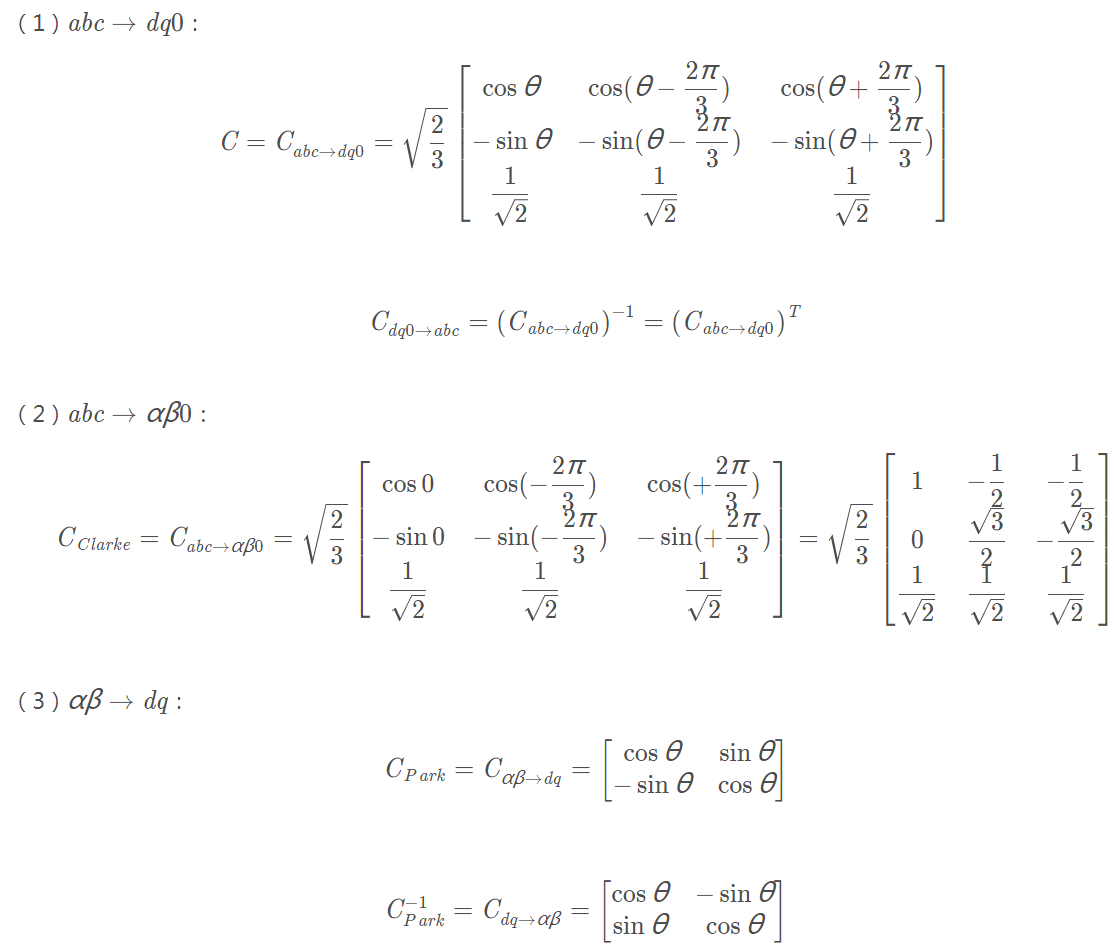

电机控制中Clarke变换的等幅值变换和等功率变换
​​

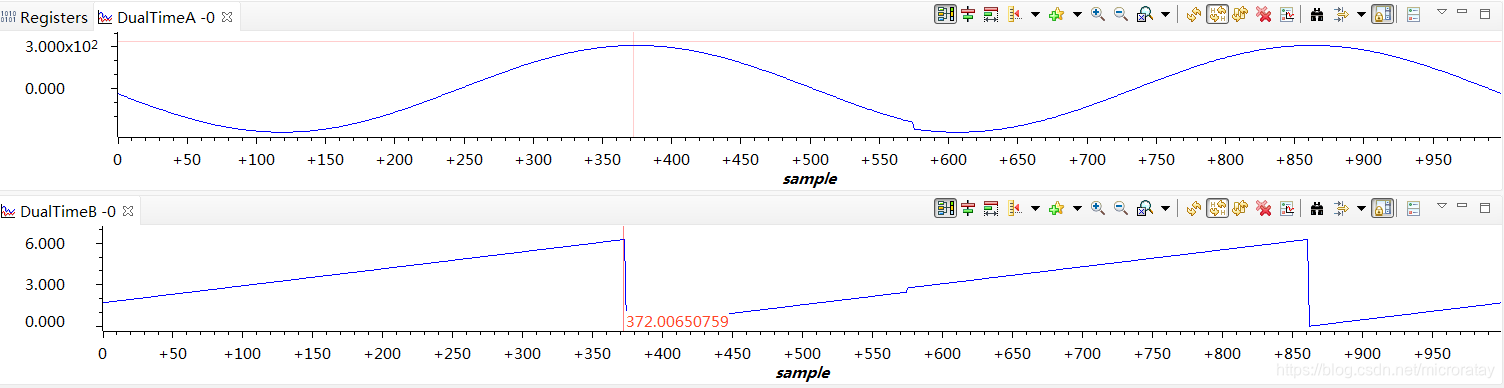

得到图形如下:

得到的
[ I d I q ] \begin{bmatrix} I_{d} \\ I_{q}\\\end{bmatrix} [Id​Iq​​] = [ I m ∗ c o s θ − I m ∗ s i n θ ] \begin{bmatrix} I_{m}*cos\theta \\ -I_{m}*sin\theta \\ \end{bmatrix} [Im​∗cosθ−Im​∗sinθ​] \qquad\qquad\qquad (2-3)
得到了SPLL.Theta锁相的角度$\theta$即电网电压A相$\ast cos\theta$

重新生成VoltTheta=SPLL.Theta+$pi/2$,即电网电压A相$\ast sin\theta$

单相DQ的伪代码如下:

if(++VoltPrvPos >= VOLT_FUNDPOINT) VoltPrvPos=0;
VoltSlid[VoltPrvPos] = 外部PT经过模拟滤波器后经AD采样得到的值经过数字滤波器VoltPos = VoltPrvPos+VoltLeadPoints; //超前校正指针,超前了360*VoltLeadPoints/VOLT_FUNDPOINT度
#define CAP_VOL_POINT				((PWMFREQUENCY/(50*4))*2*3)	//每周波的3/4
CapVoltPos = VoltPos+CAP_VOL_POINT; //电容电压一周波缓冲区指针,滞后270度,即超前90度CapAlpha    = VoltSlid[VoltPos];
pCapBeta    = VoltSlid[CapVoltPos];if(!StateFlag.VoltFilterEn)	//用上周波值校正电网电压滞后的相差pOutSrc=  VoltSlid[VoltPos];
else                   		//做电流前馈时,打算用dq校正电网电压滞后的相差,此时未校正pOutSrc=  VoltSlid[VoltPrvPos];
D=(beta *resSin + alpha*resCos)*(SQRT2_DIV2);    //D
Q=(beta *resCos - alpha*resSin)*(SQRT2_DIV2);    //Q

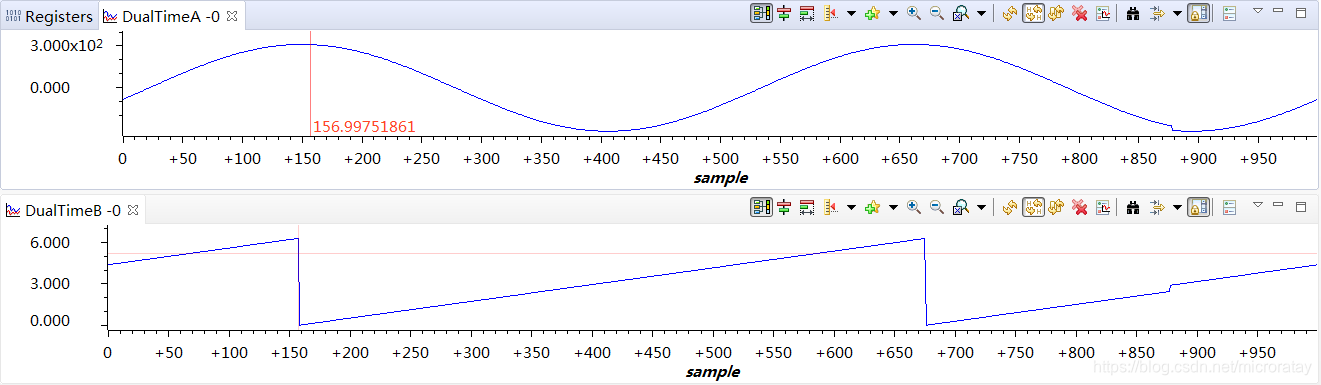

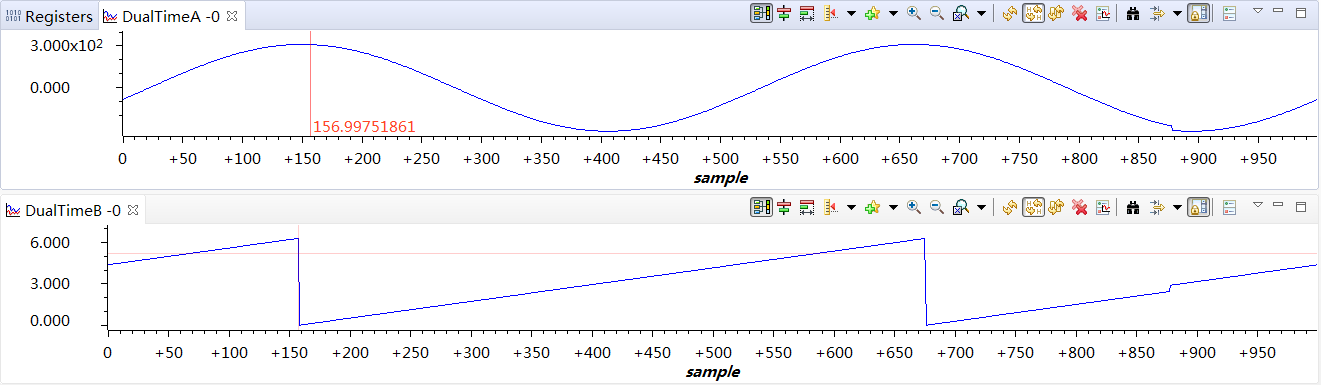

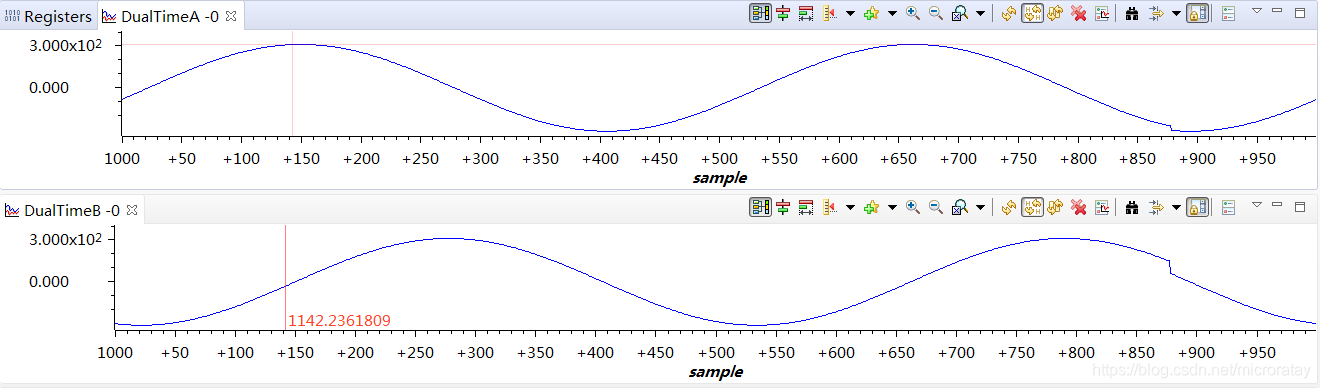

得到$alpha$与$beta$波形
得到$alpha$与电网电压A相$\ast cos\theta$同相,即

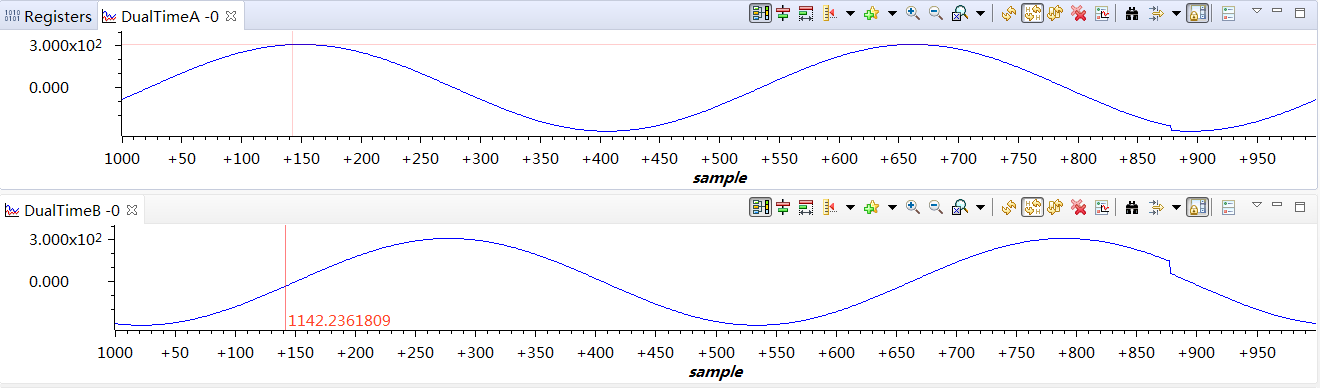

得到DQ值
