对paho.MQTT遇到的问题处理两记

文章目录

  • EMQX
    • 安装Broker
  • Python编写
    • 下载
    • 代码
  • Android配置编写及问题解决
    • 1. 根目录下
    • 2. app目录下
    • 3. AndroidManifest.xml 添加
    • 4. MainActivity.java


EMQX

安装Broker

docker run -d --name emqx -p 1883:1883 -p 8081:8081 -p 8083:8083 -p 8084:8084 -p 8883:8883 -p 18083:18083 emqx/emqx:4.3.8

基于原项目修改
https://github.com/eclipse/paho.mqtt.python
https://github.com/eclipse/paho.mqtt.android

Python编写

下载

pip install paho-mqtt

若过程中出现以下问题,需升级pip

Building wheels for collected packages: paho-mqttBuilding wheel for paho-mqtt (setup.py) ... errorERROR: Command errored out with exit status 1:command: /root/django/venv_RTCS/bin/python -u -c 'import sys, setuptools, tokenize; sys.argv[0] = '"'"'/tmp/pip-req-build-yt56ry83/setup.py'"'"'; __file__='"'"'/tmp/pip-req-build-yt56ry83/setup.py'"'"';f=getattr(tokenize, '"'"'open'"'"', open)(__file__);code=f.read().replace('"'"'\r\n'"'"', '"'"'\n'"'"');f.close();exec(compile(code, __file__, '"'"'exec'"'"'))' bdist_wheel -d /tmp/pip-wheel-0vih1nvjcwd: /tmp/pip-req-build-yt56ry83/Complete output (6 lines):usage: setup.py [global_opts] cmd1 [cmd1_opts] [cmd2 [cmd2_opts] ...]or: setup.py --help [cmd1 cmd2 ...]or: setup.py --help-commandsor: setup.py cmd --helperror: invalid command 'bdist_wheel'ERROR: Failed building wheel for paho-mqttRunning setup.py clean for paho-mqtt
Failed to build paho-mqtt
  • 升级pip
python -m pip install --upgrade pip

代码

#!/usr/bin/python
# coding:utf-8import paho.mqtt.client as mqtt
import jsonHOST = ""
PORT = 1883
user = "test"
pw = "test"
client_id = "test"class Project_Mqtt:# 建立连接def do_connect(self, HOST, user, pw, client_id):self.client = mqtt.Client(client_id)self.client.username_pw_set(user, pw)self.client.connect(HOST, PORT, 60)# 处理订阅消息def deal_on_message(self, client, userdata, msg):print(msg.topic + " " + msg.payload.decode("utf-8"))messages = json.loads(msg.payload)# 订阅def do_subscribe(self, topic, qos=0):self.client.subscribe(topic, qos=qos)self.client.on_message = self.deal_on_messageself.client.loop_forever()# 发布def do_publish(self, topic, message, qos=0):self.client.publish(topic, message, qos=qos, retain=False)# 停止def do_stop(self):self.client.loop_stop()

Android配置编写及问题解决

对高版本的SDK的一种暂时的可适用方法。

  • 解决问题:localbroadcastmanager未定义(高版本API已不支持),参考Github issue,引用第三方包但无效。故须在根目录下配置gradle.properties

1. 根目录下

  • gradle.properties添加
    android.enableJetifier=true


2. app目录下

  • build.gradle添加
    implementation 'com.android.support:support-v4:30+'
    implementation 'org.eclipse.paho:org.eclipse.paho.client.mqttv3:1.2.2'
    implementation 'org.eclipse.paho:org.eclipse.paho.android.service:1.1.1'
    implementation 'androidx.localbroadcastmanager:localbroadcastmanager:1.0.0'

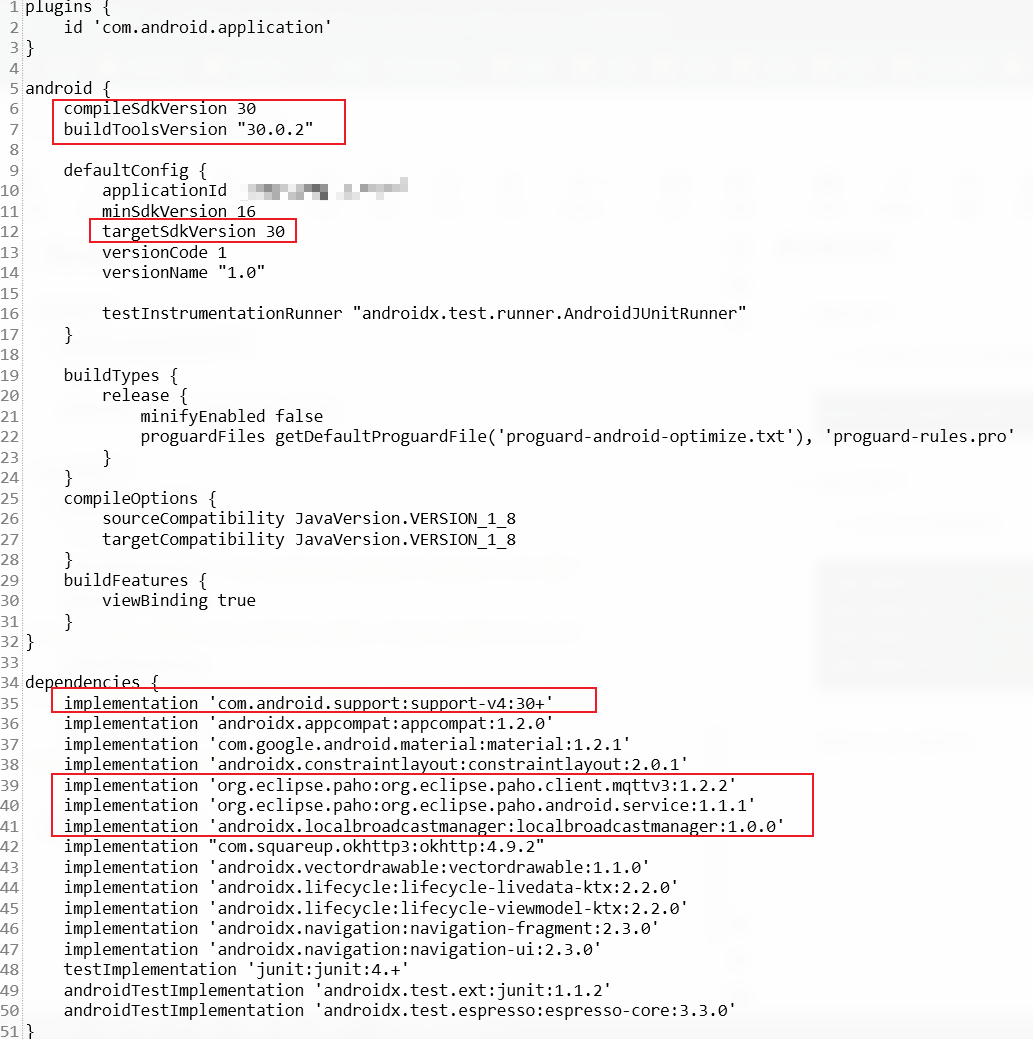

  • build.gradle修改SDK31 为 SDK30 在这里插入图片描述
  • build.gradle 同步

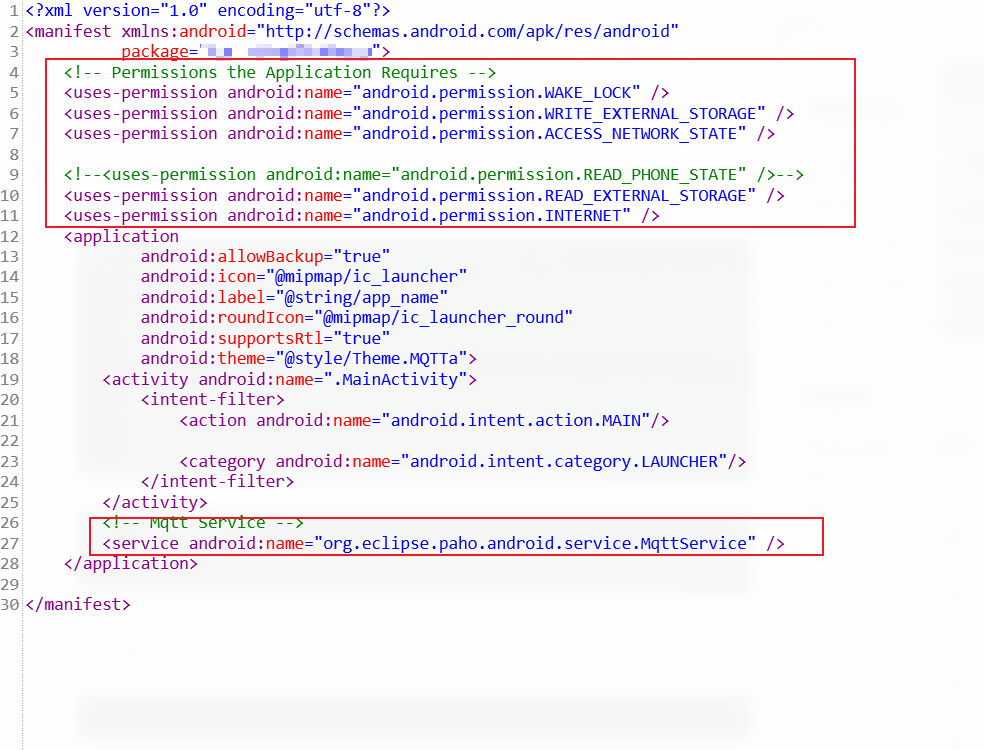

3. AndroidManifest.xml 添加

在这里插入图片描述

<uses-permission android:name="android.permission.WAKE_LOCK" /><uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" /><uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" /><uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />

<service android:name="org.eclipse.paho.android.service.MqttService"/>

4. MainActivity.java

serverUri 须为【主机的ip】

package com.example.mqtta;import android.widget.Toast;
import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;
import org.eclipse.paho.android.service.MqttAndroidClient;
import org.eclipse.paho.client.mqttv3.DisconnectedBufferOptions;
import org.eclipse.paho.client.mqttv3.IMqttActionListener;
import org.eclipse.paho.client.mqttv3.IMqttDeliveryToken;
import org.eclipse.paho.client.mqttv3.IMqttMessageListener;
import org.eclipse.paho.client.mqttv3.IMqttToken;
import org.eclipse.paho.client.mqttv3.MqttCallbackExtended;
import org.eclipse.paho.client.mqttv3.MqttConnectOptions;
import org.eclipse.paho.client.mqttv3.MqttException;
import org.eclipse.paho.client.mqttv3.MqttMessage;public class MainActivity extends AppCompatActivity {MqttAndroidClient mqttAndroidClient;// final String serverUri = "tcp://10.96.131.119:1883";String clientId = "test";final String subscriptionTopic = "test";final String publishTopic = "test";final String publishMessage = "Hello World!";final String name = "test";final String password = "test";@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);clientId = clientId + System.currentTimeMillis();mqttAndroidClient = new MqttAndroidClient(getApplicationContext(), serverUri, clientId);mqttAndroidClient.setCallback(new MqttCallbackExtended() {@Overridepublic void connectComplete(boolean reconnect, String serverURI) {publishMessage();
//                if (reconnect) {
//                    addToHistory("Reconnected to : " + serverURI);
//                    // Because Clean Session is true, we need to re-subscribe
//                    subscribeToTopic();
//                } else {
//                    addToHistory("Connected to: " + serverURI);
//                }}@Overridepublic void connectionLost(Throwable cause) {}// 处理订阅消息@Overridepublic void messageArrived(String topic, MqttMessage message) throws Exception {Toast.makeText(MainActivity.this, new String(message.getPayload()), Toast.LENGTH_LONG).show();}@Overridepublic void deliveryComplete(IMqttDeliveryToken token) {}});// 连接设置MqttConnectOptions mqttConnectOptions = new MqttConnectOptions();mqttConnectOptions.setAutomaticReconnect(true);mqttConnectOptions.setCleanSession(false);mqttConnectOptions.setUserName(name);mqttConnectOptions.setPassword(password.toCharArray());try {mqttAndroidClient.connect(mqttConnectOptions, null, new IMqttActionListener() {@Overridepublic void onSuccess(IMqttToken asyncActionToken) {
//                    DisconnectedBufferOptions disconnectedBufferOptions = new DisconnectedBufferOptions();
//                    disconnectedBufferOptions.setBufferEnabled(true);
//                    disconnectedBufferOptions.setBufferSize(100);
//                    disconnectedBufferOptions.setPersistBuffer(false);
//                    disconnectedBufferOptions.setDeleteOldestMessages(false);
//                    mqttAndroidClient.setBufferOpts(disconnectedBufferOptions);Toast.makeText(MainActivity.this, "连接成功", Toast.LENGTH_LONG).show();subscribeToTopic();}@Overridepublic void onFailure(IMqttToken asyncActionToken, Throwable exception) {Toast.makeText(MainActivity.this, "连接失败", Toast.LENGTH_LONG).show();
//                    addToHistory("Failed to connect to: " + serverUri);}});} catch (MqttException ex){ex.printStackTrace();}}// 订阅public void subscribeToTopic(){try {mqttAndroidClient.subscribe(subscriptionTopic, 0, null, new IMqttActionListener() {@Overridepublic void onSuccess(IMqttToken asyncActionToken) {Toast.makeText(MainActivity.this, "订阅成功", Toast.LENGTH_SHORT).show();}@Overridepublic void onFailure(IMqttToken asyncActionToken, Throwable exception) {}});
//
//            // THIS DOES NOT WORK!
//            mqttAndroidClient.subscribe(subscriptionTopic, 0, new IMqttMessageListener() {
//                @Override
//                public void messageArrived(String topic, MqttMessage message) throws Exception {
//                    // message Arrived!
//                    System.out.println("Message: " + topic + " : " + new String(message.getPayload()));
//                }
//            });} catch (MqttException ex){System.err.println("Exception whilst subscribing");ex.printStackTrace();}}// 发布public void publishMessage(){try {MqttMessage message = new MqttMessage();message.setPayload(publishMessage.getBytes());mqttAndroidClient.publish(publishTopic, message);Toast.makeText(MainActivity.this, "Message Published", Toast.LENGTH_SHORT).show();if(!mqttAndroidClient.isConnected()){Toast.makeText(MainActivity.this, "Lost of Connected", Toast.LENGTH_SHORT).show();}} catch (MqttException e) {System.err.println("Error Publishing: " + e.getMessage());e.printStackTrace();}}
}
