安装kubectl

Kubectl 是 Kubernetes 自带的命令行工具，可以用它直接操作 Kubernetes。

在线方式

macOS，执行：

# using brew https://brew.sh/
brew install kubernetes-cli

Linux，执行：

curl -LO https://storage.googleapis.com/kubernetes-release/release/$(curl -s https://storage.googleapis.com/kubernetes-release/release/stable.txt)/bin/linux/amd64/kubectl&& chmod +x kubectl && sudo mv kubectl /usr/local/bin/

Windows，执行：

curl -LO https://storage.googleapis.com/kubernetes-release/release/v1.15.0/bin/windows/amd64/kubectl.exe

离线方式

可以从kubernetes库上直接下载，方法如下：

• step 1: 访问官方github网址：https://github.com/kubernetes/kubernetes/releases

• step 2: 找到想使用的发布版本，在每个发布版本的最后一行有类似“CHANGELOG-1.10.md”这样的内容，点击超链进入；

• step 3: 然后进入“Client Binaries”区域；

• step 4: 选择和目标机器系统匹配的二进制包下载；

• step 5: 解压缩，放入/usr/local/bin目录；

安装minikube

阿里云（推荐）

首先记住阿里云发布的minikube地址：https://github.com/AliyunContainerService/minikube

阿里云提供了最新的Minikube修改版的文件，可以直接下载使用

Mac OSX

$ minikube version
minikube version: v1.2.0

缺省Minikube使用VirtualBox驱动来创建Kubernetes本地环境

[root@localhost ~]# minikube start -p K8sTest
* [K8sTest] minikube v1.3.1 on Centos 7.2.1511
! Please don't run minikube as root or with 'sudo' privileges. It isn't necessary with virtualbox driver.
* Using image repository registry.cn-hangzhou.aliyuncs.com/google_containers
* Creating virtualbox VM (CPUs=2, Memory=2000MB, Disk=20000MB) ...
* Preparing Kubernetes v1.15.2 on Docker 18.09.8 ...
* Pulling images ...
* Launching Kubernetes ...
* Waiting for: apiserver proxy etcd scheduler controller dns
* Done! kubectl is now configured to use "K8sTest"

通过cat ~/.kube/config 验证多了一个cluster集群

[root@localhost ~]# cat ~/.kube/config
apiVersion: v1
clusters:
- cluster:certificate-authority: /root/.minikube/ca.crtserver: https://192.168.99.101:8443name: K8sTest
- cluster:certificate-authority: /root/.minikube/ca.crtserver: https://192.168.99.100:8443name: minikube
contexts:
- context:cluster: K8sTestuser: K8sTestname: K8sTest
- context:cluster: minikubeuser: minikubename: minikube
current-context: K8sTest
kind: Config
preferences: {}
users:
- name: K8sTestuser:client-certificate: /root/.minikube/client.crtclient-key: /root/.minikube/client.key
- name: minikubeuser:client-certificate: /root/.minikube/client.crtclient-key: /root/.minikube/client.key

验证

执行下面的命令：

$ kubectl get nodes
NAME       STATUS   ROLES    AGE    VERSION
minikube   Ready    master   4m5s   v1.15.0

若输出正常，则表示创建成功。

minikube ssh 验证k8s里的服务

但是，但是，minikube start并不代表，整个k8s集群搭建好了，因为k8s里的服务还需要起，比如API server，scheduler，kubelet等等，他们都是以容器的方式在后台启动。

那怎么判断成功了呢？

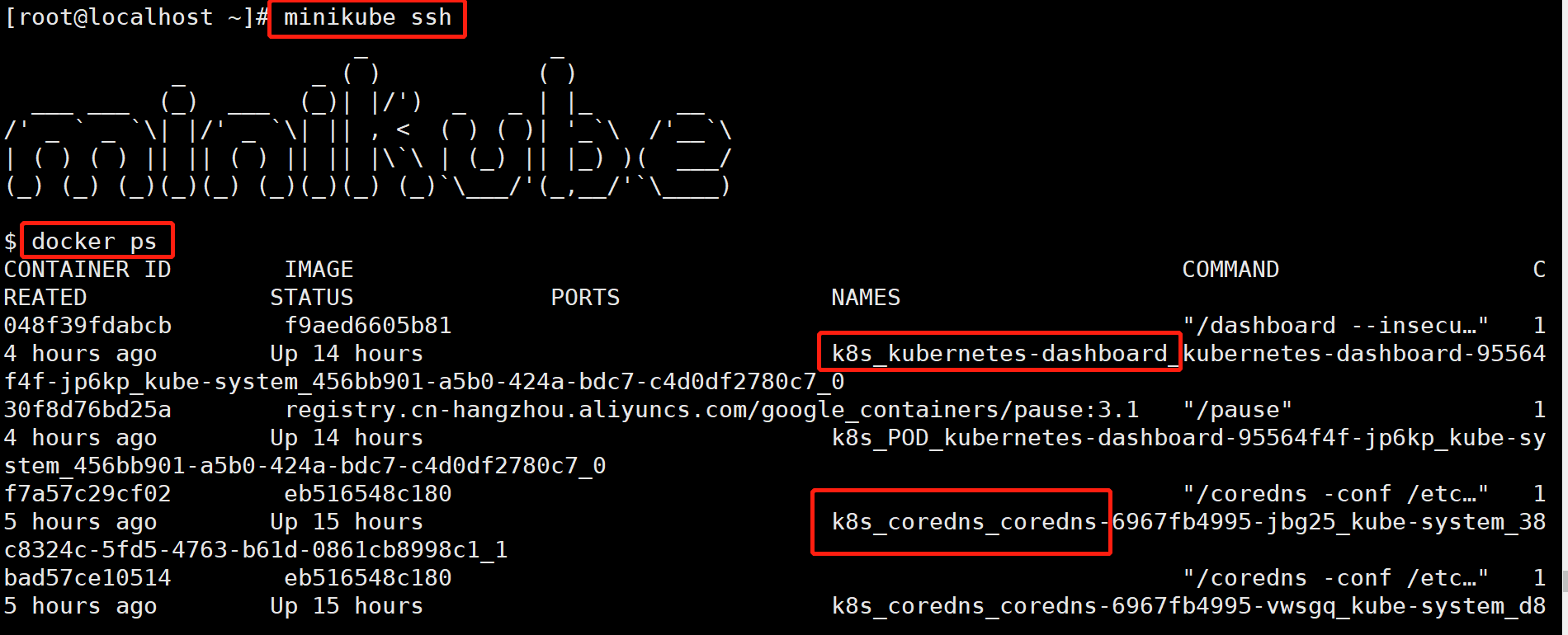

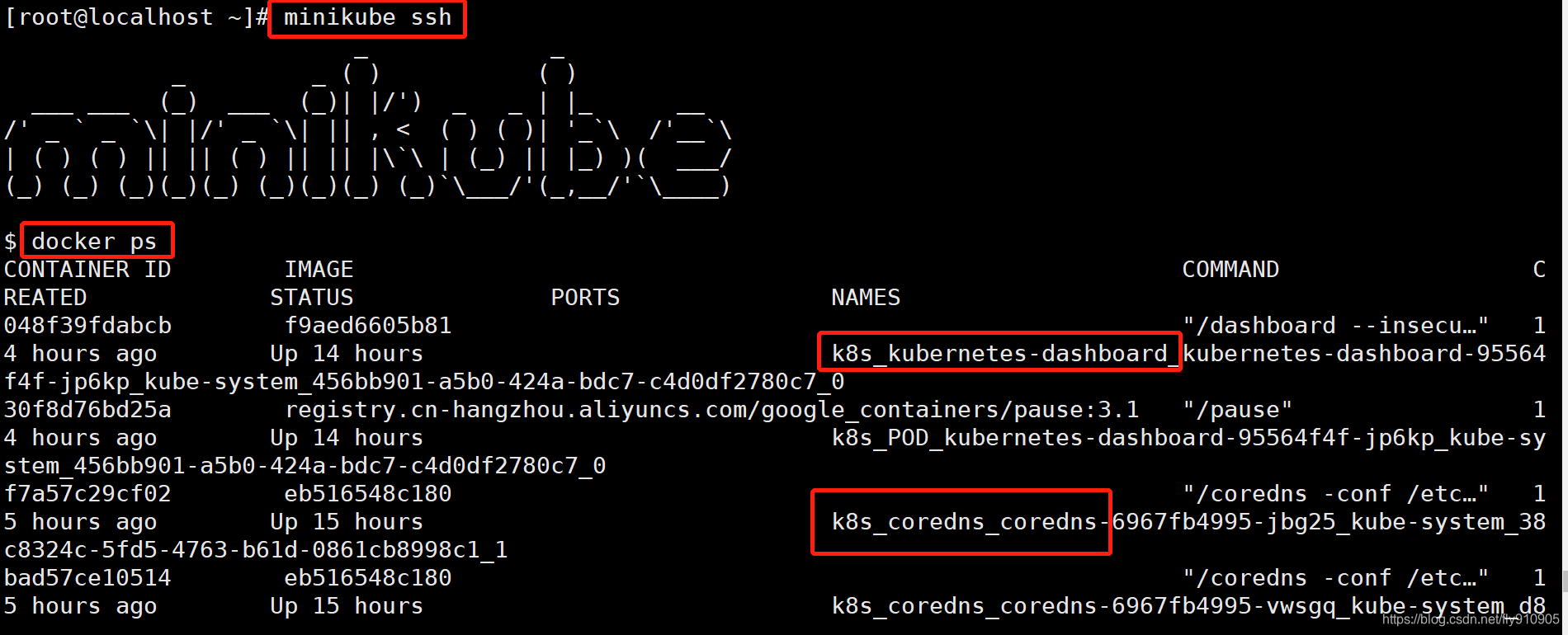

我们可以通过minikube ssh进到虚机里，然后看看是否有一些container运行起来了

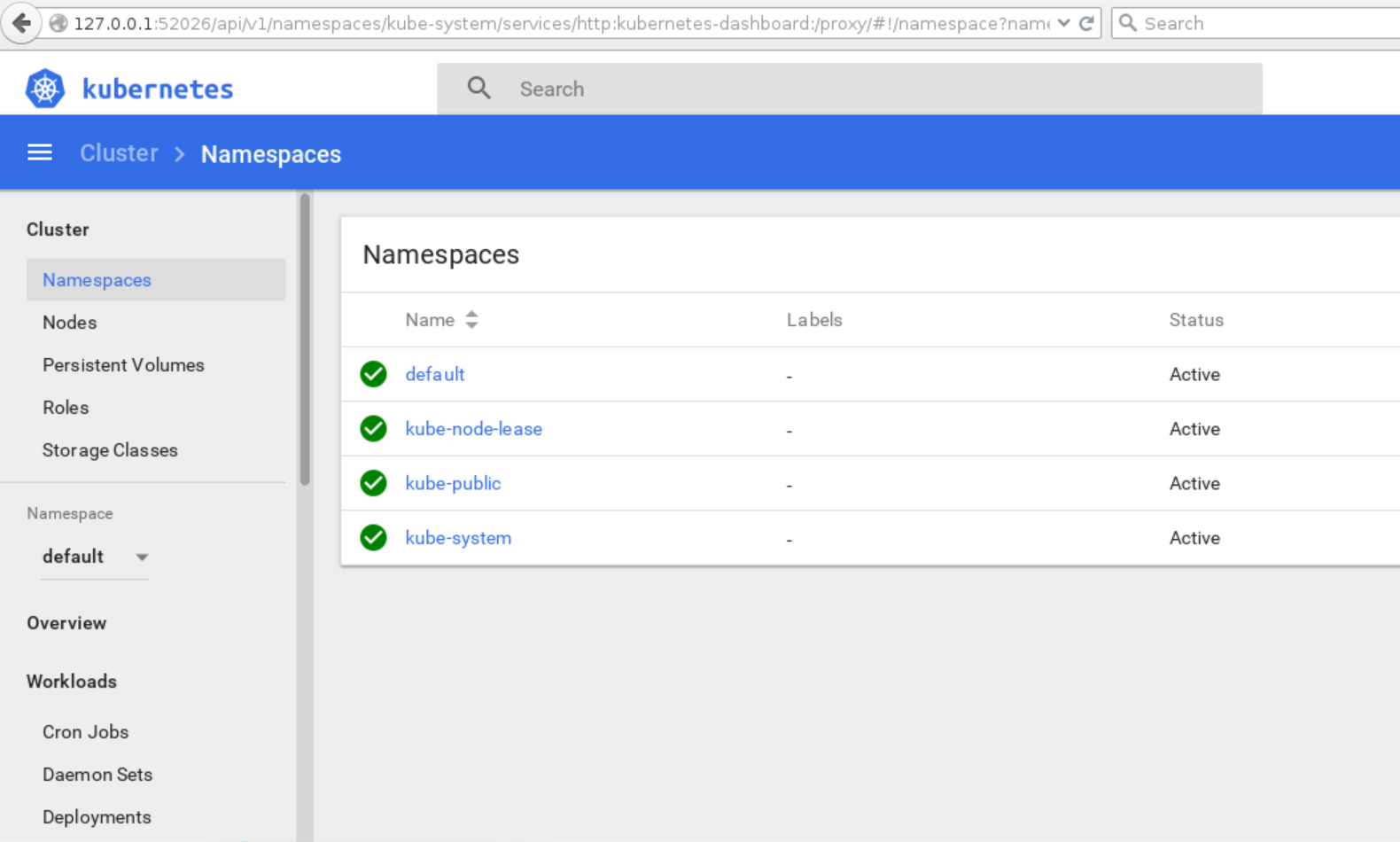

minikube dashboard

在本地运行minikube dashboard 会在本地弹出浏览器，就是Kubernetes的dashboard，那基本上恭喜您，安装成功了

问题3：error: failed to discover supported resources: Get https://192.168.99.100:8443/api: Service Unavailable

[root@localhost ~]# minikube help
Minikube is a CLI tool that provisions and manages single-node Kubernetes clusters optimized for
development workflows.Basic Commands:start          Starts a local kubernetes clusterstatus         Gets the status of a local kubernetes clusterstop           Stops a running local kubernetes clusterdelete         Deletes a local kubernetes clusterdashboard      Access the kubernetes dashboard running within the minikube clusterImages Commands:docker-env     Sets up docker env variables; similar to '$(docker-machine env)'cache          Add or delete an image from the local cache.Configuration and Management Commands:addons         Modify minikube's kubernetes addonsconfig         Modify minikube configprofile        Profile gets or sets the current minikube profileupdate-context Verify the IP address of the running cluster in kubeconfig.Networking and Connectivity Commands:service        Gets the kubernetes URL(s) for the specified service in your local clustertunnel         tunnel makes services of type LoadBalancer accessible on localhostAdvanced Commands:mount          Mounts the specified directory into minikubessh            Log into or run a command on a machine with SSH; similar to 'docker-machine ssh'kubectl        Run kubectlTroubleshooting Commands:ssh-key        Retrieve the ssh identity key path of the specified clusterip             Retrieves the IP address of the running clusterlogs           Gets the logs of the running instance, used for debugging minikube, not user code.update-check   Print current and latest version numberversion        Print the version of minikubeOther Commands:completion     Outputs minikube shell completion for the given shell (bash or zsh)Use "minikube  --help" for more information about a given command.

minikube在线使用体验

https://kubernetes.io/docs/tutorials/kubernetes-basics/create-cluster/cluster-interactive/
