第十五天 - Hive自定义函数扩展 - Sqoop安装配置、基本操作 - Sqoop结合Web.md

第十五天 - Hive自定义函数扩展 - Sqoop安装配置、基本操作 - Sqoop结合Web

文章目录

• 第十五天 - Hive自定义函数扩展 - Sqoop安装配置、基本操作 - Sqoop结合Web
• • • 一、Hive自定义函数扩展
    • 二、Sqoop安装
    • • • 功能概述
        • 安装配置
        • 测试连接
    • 三、Sqoop基本操作
    • • • 将MySQL表数据导入到HDFS中
    • 四、Sqoop结合JavaWeb
    • • • 运行效果

一、Hive自定义函数扩展

UDF：输入一行数据，输出一行数据

UDAF：输入多行数据，输出一行数据

例：拼接字符串

Concat.java

import org.apache.hadoop.hive.ql.metadata.HiveException;
import org.apache.hadoop.hive.ql.udf.generic.AbstractGenericUDAFResolver;
import org.apache.hadoop.hive.ql.udf.generic.GenericUDAFEvaluator;
import org.apache.hadoop.hive.serde2.objectinspector.ObjectInspector;
import org.apache.hadoop.hive.serde2.objectinspector.ObjectInspectorFactory;
import org.apache.hadoop.hive.serde2.objectinspector.ObjectInspectorFactory.ObjectInspectorOptions;
import org.apache.hadoop.hive.serde2.objectinspector.PrimitiveObjectInspector;
import org.apache.hadoop.hive.serde2.typeinfo.TypeInfo;public class Concat extends AbstractGenericUDAFResolver  {public static class Evaluator extends GenericUDAFEvaluator{PrimitiveObjectInspector input;ObjectInspector output;PrimitiveObjectInspector stringOI;// 确定相关数据类型，map阶段和reduce阶段都会执行// map阶段的参数与传入的参数有关// reduce阶段的参数长度为一@Overridepublic ObjectInspector init(Mode m, ObjectInspector[] parameters) throws HiveException {super.init(m, parameters);if (m == Mode.PARTIAL1 || m == Mode.COMPLETE) {input = (PrimitiveObjectInspector)parameters[0];}else {stringOI = (PrimitiveObjectInspector)parameters[0];}output = ObjectInspectorFactory.getReflectionObjectInspector(String.class, ObjectInspectorOptions.JAVA);return output;}// 自定义实现逻辑所需要的结构，以及迭代执行的方法static class ConcatAgg implements AggregationBuffer{String value = "";void concat(String other) {if (value.length() == 0) {value += other;}else {value += "," + other;}}}// 获得一个新的缓冲对象，每个map调用执行一次@Overridepublic AggregationBuffer getNewAggregationBuffer() throws HiveException {ConcatAgg concatAgg = new ConcatAgg();reset(concatAgg);return concatAgg;}// 帮助重置自定义结构的初始值@Overridepublic void reset(AggregationBuffer agg) throws HiveException {ConcatAgg concatAgg = (ConcatAgg)agg;concatAgg.value = "";}// map阶段调用执行@Overridepublic void iterate(AggregationBuffer agg, Object[] parameters) throws HiveException {// TODO Auto-generated method stubConcatAgg concatAgg = (ConcatAgg)agg;if (parameters[0] != null) {concatAgg.concat(input.getPrimitiveJavaObject(parameters[0]).toString());}}// map阶段结束时的返回结果，如果无复杂的业务逻辑可以直接调用terminate方法@Overridepublic Object terminatePartial(AggregationBuffer agg) throws HiveException {return terminate(agg);}// map的合并阶段@Overridepublic void merge(AggregationBuffer agg, Object partial) throws HiveException {if (partial != null) {ConcatAgg result = (ConcatAgg)agg;String partialValue = stringOI.getPrimitiveJavaObject(partial).toString();ConcatAgg concatAgg = new ConcatAgg();concatAgg.concat(partialValue);result.concat(concatAgg.value);}}// reduce阶段返回结果// 如果逻辑中没有reduce阶段则直接在map阶段结束后调用@Overridepublic Object terminate(AggregationBuffer agg) throws HiveException {ConcatAgg concatAgg = (ConcatAgg)agg;return concatAgg.value;}}public GenericUDAFEvaluator getEvaluator(TypeInfo[] parameters) {return new Evaluator();}}

UDTF：一行输入，多行输出

例：分割字符串

Split.java

import java.util.ArrayList;
import java.util.List;import org.apache.hadoop.hive.ql.exec.UDFArgumentException;
import org.apache.hadoop.hive.ql.metadata.HiveException;
import org.apache.hadoop.hive.ql.udf.generic.GenericUDTF;
import org.apache.hadoop.hive.serde2.objectinspector.ObjectInspector;
import org.apache.hadoop.hive.serde2.objectinspector.ObjectInspectorFactory;
import org.apache.hadoop.hive.serde2.objectinspector.StructObjectInspector;
import org.apache.hadoop.hive.serde2.objectinspector.primitive.PrimitiveObjectInspectorFactory;public class Split extends GenericUDTF {@Overridepublic void close() throws HiveException {// TODO Auto-generated method stub}// 设置返回结果的列的个数以及相应的数据类型public StructObjectInspector initialize(ObjectInspector[] args) throws UDFArgumentException {List fieldNames = new ArrayList();ArrayList fieldOIs = new ArrayList();// 返回的新列的字段名称fieldNames.add("tag");fieldOIs.add(PrimitiveObjectInspectorFactory.javaStringObjectInspector);return ObjectInspectorFactory.getStandardStructObjectInspector(fieldNames, fieldOIs);}// process中编写核心处理逻辑// 通过参数列表获得到用户调用方法时传入的参数@Overridepublic void process(Object[] objects) throws HiveException {// 第一个参数代表待处理的字符串String str = objects[0].toString();// 第二个参数代表传入的分隔符String[] values = str.split(objects[1].toString());for (String value : values) {// forward方法返回一行的数据// 参数为数组，数组中元素的个数决定返回几列forward(new String[] {value});}}}

二、Sqoop安装

功能概述

主要用于在Hadoop(Hive)与传统的数据库(mysql、oracle…)间进行数据的传递，可以将一 个关系型数据库中的数据导入到HDFS（Hive）中，也可以将HDFS的数据导进到关系型数 据库中。

安装配置

• 解压缩安装文件

  tar -zvxf sqoop-1.4.6.bin__hadoop-2.0.4-alpha.tar.gz

• 配置文件

  1. sqoop-env.sh

     文件位置：Sqoop安装目录下的conf文件夹(将sqoop-env-template.sh重命名为sqoop-env.sh)

     需要在此文件中配置Hadoop家目录和Hive家目录

     #Set path to where bin/hadoop is available
     export HADOOP_COMMON_HOME=/home/hadoopadmin/hadoop-2.7.1 #Set path to where hadoop-*-core.jar is available
     export HADOOP_MAPRED_HOME=/home/hadoopadmin/hadoop-2.7.1 #Set the path to where bin/hive is available
     export HIVE_HOME=/home/hadoopadmin/apache-hive-1.2.1-bin


  2. configure-sqoop

     文件位置：Sqoop安装目录下的bin文件夹

     封装应用需要进行注释configure-sqoop(bin)的135-147行，当装了zoopkeeper后打开144-147

     目的：封装应用时调用后不会输出一些无用的信息

• 拷贝jar包

  将hadoop-common-2.7.2.jar拷贝至sqoop的lib目录

  cp $HADOOP_HOME/share/hadoop/common/hadoop-common-2.7.2.jar $SQOOP_HOME/lib

  sqoop通过数据连接获得基本信息，需要准备相应数据库的驱动jar包放在lib目录下

• 编辑环境变量

  SQOOP_HOME=/home/bigdata/sqoop-1.4.7.bin

  PATH=$PATH:$SQOOP_HOME/bin

  export SQOOP_HOME



  source .bash_profile

测试连接

命令格式：sqoop后接连接数据库字符串，username后接连接数据库用户名，password后接连接数据库密码，list-databases展示数据库列表，list-table展示连接数据库下的所有表

sqoop list-databases --connect jdbc:mysql://SZ01:3306 --username root --password root

sqoop list-tables --connect jdbc:mysql://SZ01:3306/w01 --username root --password root

三、Sqoop基本操作

可以使用以下命令查看帮助

sqoop help

sqoop xxx --help

将MySQL表数据导入到HDFS中

单表导入，可以指定某几列，或用where筛选某些数据(需要使用引号)，columns指定需要导入的列，table指定需要导入的表，delete-target-dir用于判断目标路径是否存在，存在则先删除，m用于指定最大mapTask个数，范围为1-4

sqoop import
--connect jdbc:mysql://SZ01:3306/test
--username {userName}
--password {password}
--columns {columnName,columnName,...}
--table {tableName}
--where '{condition}'
[--as-textfile]
[--delete-target-dir]
--target-dir {hdfsPath}
-m {maskNum}

导入到HDFS中时，目标文件夹不能已存在

#####将MySQL表数据导入到Hive中

多表导入，使用query参数导入查询生成的结果集(多表，需要使用引号)，如果有where条件需要添加and $CONDITIONS

sqoop import
--connect jdbc:mysql://SZ01:3306
--username {userName}
--password {password}
--query '{sql}'
--hive-import
--hive-database {hiveDatabaseName}
--hive-table {hiveTableName}
[--hive-overwrite]
--target-dir {hdfsPath}
-m {maskNum}

四、Sqoop结合JavaWeb

#####目标需求

客户通过页面输入访问的端口号、用户名、密码获取数据库中的库信息，以下拉菜单方式展现，当选择了下拉菜单中的库时，又能显示该库中存在的表，如果表不存在则不显示并且弹窗告知用户该库中没有表。

#####编写代码

databaseSource.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"pageEncoding="UTF-8"%>








数据库类型:mysqloracle
主机名称:
端口号:
用户名:
密码:

databaseSource.js

$(function() {$(".getDataBase").click(function() {var method = "showDatabases";var databaseType = $("select[name='databaseType']").val();var hostName = $("input[name='hostName']").val();var port = $("input[name='port']").val();var name = $("input[name='name']").val();var password = $("input[name='password']").val();$.ajax({url : "DataBaseServlet",type : "post",data : {method : method,databaseType : databaseType,hostName : hostName,port : port,name : name,password : password},dataType : "json",success : function(data) {var select = $("");for (index in data) {select.append("" + data[index] + "");}$(".databaseList").html("");$(".databaseList").append(select);}})})$(".databaseList").on("change",".database",function() {var method = "showTables";var databaseName = $(this).val();var databaseType = $("select[name='databaseType']").val();var hostName = $("input[name='hostName']").val();var port = $("input[name='port']").val();var name = $("input[name='name']").val();var password = $("input[name='password']").val();$.ajax({url : "DataBaseServlet",type : "post",data : {method : method,databaseType : databaseType,hostName : hostName,port : port,name : name,password : password,databaseName : databaseName},dataType : "json",success : function(data) {if(data.length != 0){var select = $("");for (index in data) {select.append("" + data[index] + "");}$(".dataTableList").html("");$(".dataTableList").append(select);}else{$(".dataTableList").html("");alert("该数据元下无数据表");}}})})
})

DataBaseServlet.java

import java.io.IOException;
import java.io.PrintWriter;
import java.util.ArrayList;import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;import com.sand.util.PropertiesUtil;
import com.sand.util.RemoteUtil;import net.sf.json.JSONArray;/*** Servlet implementation class DataBaseServlet*/
@WebServlet("/DataBaseServlet")
public class DataBaseServlet extends HttpServlet {private static final long serialVersionUID = 1L;/*** @see HttpServlet#HttpServlet()*/public DataBaseServlet() {super();// TODO Auto-generated constructor stub}/*** @see HttpServlet#doGet(HttpServletRequest request, HttpServletResponse response)*/protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {response.setCharacterEncoding("UTF-8");PrintWriter out = response.getWriter();String method = request.getParameter("method");PropertiesUtil propertiesUtil = new PropertiesUtil("system.properties");String sqoopBinHome = propertiesUtil.readPropertyByKey("sqoopBinHome");String host = propertiesUtil.readPropertyByKey("hostName");String userName = propertiesUtil.readPropertyByKey("hadoopUser");String userPwd = propertiesUtil.readPropertyByKey("hadoopPwd");// 连接数据库的类型String databaseType = request.getParameter("databaseType");// 连接数据库的主机名String hostName = request.getParameter("hostName");// 端口号String port = request.getParameter("port");// 数据库用户名String name = request.getParameter("name");// 数据库密码String password = request.getParameter("password");String jdbcUrl = "jdbc:" + databaseType + "://" + hostName + ":" + port + "/";RemoteUtil remoteUtil = new RemoteUtil(host, userName, userPwd);String cmd = "";cmd += sqoopBinHome;if("showDatabases".equals(method)) {cmd +="/sqoop list-databases --connect " + jdbcUrl + " --username " + name + " --password " + password;String result = remoteUtil.execute(cmd);String jsonArray = JSONArray.fromObject(result.split("\n")).toString();out.print(jsonArray);out.close();}else if("showTables".equals(method)) {String databaseName = request.getParameter("databaseName");jdbcUrl += databaseName;cmd += "/sqoop list-tables --connect " + jdbcUrl + " --username " + name + " --password " + password;String result = remoteUtil.execute(cmd);if(!result.contains("Running Sqoop version: 1.4.7")) {String jsonArray = JSONArray.fromObject(result.split("\n")).toString();out.print(jsonArray);out.close();}else {out.print(JSONArray.fromObject(new ArrayList()));out.close();}}}/*** @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)*/protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {// TODO Auto-generated method stubdoGet(request, response);}}

system.properties

# 主机名
hostName=SZ01
# hdfs端口号
hdfsPort=8020
# 操作Hadoop软件用户名
hadoopUser=bigdata
# 操作Hadoop软件用户密码
hadoopPwd=bigdata
# Hadoop命令文件所在路径
hadoopBinHome=/home/bigdata/hadoop-2.7.2/bin
# Sqoop命令文件所在路径
sqoopBinHome=/home/bigdata/sqoop-1.4.7.bin/bin
# 用户文件根目录
userDataDir=/input/user
# 算法包所在路径
jarPath=/home/bigdata/mr/mapreduce.jar
# 单词计数主类
wordCount=com.sand.mr.master.WordCountMaster
# 流量统计主类
flowCount=com.sand.mr.master.FlowCountMaster
# 结果文件根目录
resultPath=/output/

PropertiesUtil.java

import java.io.IOException;
import java.util.Properties;public class PropertiesUtil {private String fileName;private Properties properties = new Properties();public PropertiesUtil(String fileName) {this.fileName = fileName;open();}private void open() {try {properties.load(Thread.currentThread().getContextClassLoader().getResourceAsStream(fileName));} catch (IOException e) {e.printStackTrace();}}public String readPropertyByKey(String key) {return properties.getProperty(key);}}

运行效果

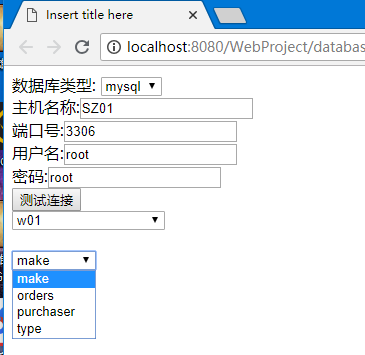

输入所需信息后点击测试连接

选择要展示的数据库中的表

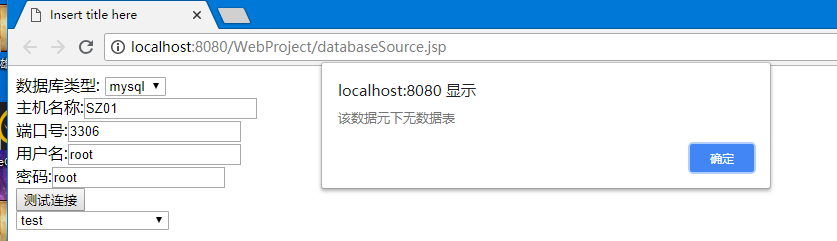

当库中无表时弹窗告知用户
