halide调度过程可视化工具

halide调度过程可视化工具

• • • 简介
    • 代码实现
    • 调用流程

简介

该工具主要是为了进行能够对Halide使用了trace之后，打印出来的计算信息进行动态图可视化，如此可以更好地理解Halide的调度过程

代码实现

下面部分显示了所有的代码实现

import cv2
import numpy as np
import imageio
# 显示Halide计算过程的图像可视化def readtxt(filename:str):f = open(filename)line = f.readline()allline = []while line:allline.append(line)line = f.readline()f.close()return allline# 分析文本，返回画图信息
def txt2struct(allline:list):#分割info = []for line in allline:if '(' in line and ')' in line:a = line.split('(')name =  a[0].split(' ')[-1]if ')' in a[-1]:b = a[-1].split(')')[0].split(',')point = [int(i.strip()) for i in b]# 添加进入infoinfo.append({'name':name, 'point':point})return info'''
{
maxtrix:[{name:str,size:[],begin:[]},]
timeline:
[{name:str,point:[,]},]
}
'''
def info2max(info:list):allinfo = {}allmaxtrix = []all_name = []for i in info:if i['name'] not in all_name:all_name.append(i['name'])for i in all_name:maxtrix = {}maxtrix['name'] = imaxtrix['size'] = [0,0]maxtrix['begin'] = [0,0]allp = []for j in info:if j['name'] == i:allp.append(j['point'])maxtrix['size'] = [max([k[0] for k in allp]), max([k[1] for k in allp])]maxtrix['begin'] = [min([k[0] for k in allp]), min([k[1] for k in allp])]k1 = maxtrix['size']k2 = maxtrix['begin']k2 = [min(0,k3) for k3 in k2]maxtrix['size'] = [k4-k5 + 1 for k4,k5 in zip(k1,k2)]allmaxtrix.append(maxtrix)allinfo['maxtrix'] = allmaxtrixallinfo['timeline'] = inforeturn allinfo'''
实际画图的操作
'''
#初始化图像
def initmax(info:dict, rect_size:list):nw = 5nh = 5zerop = []for i in info['maxtrix']:zerop.append([nw + i['begin'][0], nh + i['begin'][1]])nw += i['size'][0] + 2nw += 5nh += (5 + max([i['size'][1] for i in info['maxtrix']]))nw *= rect_size[0]nh *= rect_size[1]zerop = [[i[0]*rect_size[0], i[1]*rect_size[1]] for i in zerop]return np.zeros((nh,nw,3)).astype(np.uint8), zerop#画矩阵
def plotmax(img:np.ndarray, begin:list, size:list, gap:list, linewidth:int, color:tuple):# 竖线for i in range(0, size[0] + 1):cv2.line(img,(begin[0] + i * gap[0], begin[1]),(begin[0] + i * gap[0], begin[1] + size[1]*gap[1]),color,linewidth)# 横线for i in range(0, size[1] + 1):cv2.line(img,(begin[0], begin[1] + i * gap[1]),(begin[0] + size[0] * gap[0], begin[1] + i * gap[1]),color,linewidth)return img# 画框点
def PoltRect(img:np.ndarray, begin:list, size:list, color:tuple, time:int):res_img = []for i in range(time):b = img.copy()cv2.rectangle(b,(begin[0] + size[0], begin[1] + size[1]),(begin[0], begin[1]),(0,0,0),thickness=-1)res_img.append(b)a = img.copy()cv2.rectangle(a,(begin[0] + size[0], begin[1] + size[1]),(begin[0], begin[1]),color,thickness=-1)res_img.append(a)return res_img# color = [max(0, min(255, 255 - i)) for i in color]# color = tuple(color)# 寻找对应的名字
def find_dict(allinfo:dict, name:str):for j in range(len(allinfo['maxtrix'])):i = allinfo['maxtrix'][j]if name == i['name']:return i, jreturn {'name':None, 'size':[], 'begin':[]}, 0def frame_to_gif(frame_list, gifname:str):# BGR->RGB# for i in frame_list:#     cv2.cvtColor(i, cv2.COLOR_BGR2RGB)# for i in frame_list:#     cv2.cvtColor(i, cv2.COLOR_BGR2RGB)gif = imageio.mimsave(gifname, frame_list,'GIF')import argparse# 创建parser对象
parser = argparse.ArgumentParser(description="Show Halide Info")# 添加参数
# help添加参数说明
parser.add_argument('--Halide', default='Halide.txt', type=str, help='Halide trace info')
parser.add_argument('--Gif', default='result.gif', type=str, help='Halide Gif Path')
# 解析并打印参数
args = parser.parse_args()if __name__ == '__main__':allline = readtxt(args.Halide)txtinfo = txt2struct(allline)allinfo = info2max(txtinfo)gap = [20,20]img , zeros= initmax(allinfo, gap)# 画矩阵for i,j in zip(zeros, allinfo['maxtrix']):img = plotmax(img, i, j['size'], gap, 2, (0,255,0))# 画动态点show_img = []for p in allinfo['timeline']:maxinfo, pzp = find_dict(allinfo, p['name'])pzp = zeros[pzp]res_img = PoltRect(img,[pzp[0] + p['point'][0] * gap[0], pzp[1] + p['point'][1] * gap[1]],gap,(0,0,255),2)img = res_img[-1].copy()show_img.extend(res_img)# 显示动图for i in show_img:cv2.imshow("maxtrix", i)cv2.waitKey(33)# 保存为动图for i in show_img:cv2.cvtColor(i, cv2.COLOR_BGR2RGB, i)frame_to_gif(show_img, args.Gif)# print(allinfo)# for i in txtinfo:#     print("{0}({1},{2})".format(i['name'],#                                 i['point'][0],#                                 i['point'][1]))

调用流程

• 克隆工程

git clone https://github.com/pengzhikang/Halide-Learning.gitcd Halide-Learning/tools

• 把halide trace过程打印出来的调度信息保存为文本文件Halide.txt(类似如下所示的信息)

Store producer_y.0(0, 0) = 0.000000
Store producer_y.0(1, 0) = 0.000000
Store producer_y.0(0, 1) = 0.000000
Store producer_y.0(1, 1) = 0.841471
Store consumer_y.0(0, 0) = 0.210368
Store producer_y.0(1, 0) = 0.000000
Store producer_y.0(2, 0) = 0.000000
Store producer_y.0(1, 1) = 0.841471
Store producer_y.0(2, 1) = 0.909297
Store consumer_y.0(1, 0) = 0.437692
Store producer_y.0(2, 0) = 0.000000
Store producer_y.0(3, 0) = 0.000000
Store producer_y.0(2, 1) = 0.909297
Store producer_y.0(3, 1) = 0.141120
Store consumer_y.0(2, 0) = 0.262604
Store producer_y.0(3, 0) = 0.000000
Store producer_y.0(4, 0) = 0.000000
Store producer_y.0(3, 1) = 0.141120
Store producer_y.0(4, 1) = -0.756802
Store consumer_y.0(3, 0) = -0.153921
Store producer_y.0(0, 1) = 0.000000
Store producer_y.0(1, 1) = 0.841471
Store producer_y.0(0, 2) = 0.000000
Store producer_y.0(1, 2) = 0.909297
Store consumer_y.0(0, 1) = 0.437692
Store producer_y.0(1, 1) = 0.841471
Store producer_y.0(2, 1) = 0.909297
Store producer_y.0(1, 2) = 0.909297
Store producer_y.0(2, 2) = -0.756802
Store consumer_y.0(1, 1) = 0.475816
Store producer_y.0(2, 1) = 0.909297
Store producer_y.0(3, 1) = 0.141120
Store producer_y.0(2, 2) = -0.756802
Store producer_y.0(3, 2) = -0.279415
Store consumer_y.0(2, 1) = 0.003550
Store producer_y.0(3, 1) = 0.141120
Store producer_y.0(4, 1) = -0.756802
Store producer_y.0(3, 2) = -0.279415
Store producer_y.0(4, 2) = 0.989358
Store consumer_y.0(3, 1) = 0.023565
Store producer_y.0(0, 2) = 0.000000
Store producer_y.0(1, 2) = 0.909297
Store producer_y.0(0, 3) = 0.000000
Store producer_y.0(1, 3) = 0.141120
Store consumer_y.0(0, 2) = 0.262604
Store producer_y.0(1, 2) = 0.909297
Store producer_y.0(2, 2) = -0.756802
Store producer_y.0(1, 3) = 0.141120
Store producer_y.0(2, 3) = -0.279415
Store consumer_y.0(1, 2) = 0.003550
Store producer_y.0(2, 2) = -0.756802
Store producer_y.0(3, 2) = -0.279415
Store producer_y.0(2, 3) = -0.279415
Store producer_y.0(3, 3) = 0.412118
Store consumer_y.0(2, 2) = -0.225879
Store producer_y.0(3, 2) = -0.279415
Store producer_y.0(4, 2) = 0.989358
Store producer_y.0(3, 3) = 0.412118
Store producer_y.0(4, 3) = -0.536573
Store consumer_y.0(3, 2) = 0.146372
Store producer_y.0(0, 3) = 0.000000
Store producer_y.0(1, 3) = 0.141120
Store producer_y.0(0, 4) = 0.000000
Store producer_y.0(1, 4) = -0.756802
Store consumer_y.0(0, 3) = -0.153921
Store producer_y.0(1, 3) = 0.141120
Store producer_y.0(2, 3) = -0.279415
Store producer_y.0(1, 4) = -0.756802
Store producer_y.0(2, 4) = 0.989358
Store consumer_y.0(1, 3) = 0.023565
Store producer_y.0(2, 3) = -0.279415
Store producer_y.0(3, 3) = 0.412118
Store producer_y.0(2, 4) = 0.989358
Store producer_y.0(3, 4) = -0.536573
Store consumer_y.0(2, 3) = 0.146372
Store producer_y.0(3, 3) = 0.412118
Store producer_y.0(4, 3) = -0.536573
Store producer_y.0(3, 4) = -0.536573
Store producer_y.0(4, 4) = -0.287903
Store consumer_y.0(3, 3) = -0.237233

• 执行python脚本

# 只保存动图，不显示
python3 PlotCal.py --Halide Halide.txt --Gif result.gif
# 保存动图，同时显示
python3 PlotCal.py --Halide Halide.txt --Gif result.gif --Show

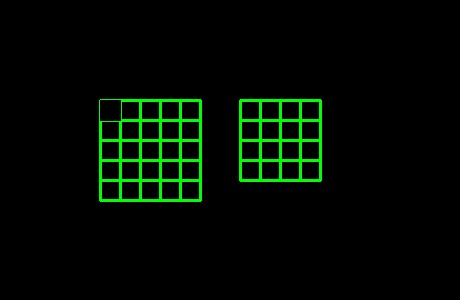

• 执行完成后，我们可以查看gif动图
