1 引言

普通遗传算法（Sample Genetic Algorithm, SGA）存在着严重的缺点，它的Pc和Pm的值是固定的，本文采用自适应遗传算法进行求解TSP问题。不管是优良个体还是劣质个体都经过了相同概率的交叉和变异操作。这会引起两个很严重的问题：

1. 相同的概率，这可以说是不公平，因为对于优良个体，我们应该减小交叉变异概率，使之能够尽量保存 ； 而对于劣质个体，我们应该增大交叉变异概率，使之能够尽可能的改变劣质的状况 。所以，一成不变的交叉变异概率影响了算法的效率。
2. 相同的概率总不能很好的满足种群进化过程中的需要，比如在迭代初期，种群需要较高的交叉和变异概率，已达到快速寻找最优解的目的，而在收敛后期，种群需要较小的交叉和变异概率，以帮助种群在寻找完最优解后快速收敛。所以，一成不变的交叉变异概率影响了算法的效率。

2 问题描述

TSP问题共有3种数学模型，如下。另有https://blog.csdn.net/Zhang_0702_China/article/details/106983492给出了TSP几种建模方式详细介绍。

1. 消除子回路约束模型（本文采用，下图）
2. MTZ约束消除子回路模型，Miller-Tucker-Zemlin formulation
3. 1-tree模型

3 遗传算法

3.1初始种群生成

种群规模设置为100，随机城市顺序，采用自然数编码方式构造染色体，用0-19表示20个城市，染色体的编码如图所示，每条染色体表示城市访问顺序。如下图表示为：该旅行商从城市2出发，走到城市8，最后回到城市2。

3.2适应度计算

适应度函数是非负的，任何情况下总希望越大越好。TSP问题的目标函数是总距离越小越好，所以设计适应度函数为 f i t n e s s = 1 z fitness=\frac{1}{z} fitness=z1​

3.3 选择操作（精英策略+轮盘赌策略）

精英策略：即选择父代中适应度最大的个体遗传到子代。
轮盘赌选择：计算产生新个体的适应值，根据适应值大小分配个体的概率，根据概率方式选择个体作为下一代种群的父代。基本思想：各个个体被选中的概率与其适应度大小成正比,适应度值越好的个体，被选择的概率就越大。轮盘赌选择步骤如下：

1. 计算适应度：适应度为该条染色体（一条可行路径）的总距离的倒数
2. 计算每个个体的选择概率：选择概率是个体被遗传到下一代的概率，显然适应度愈大，该个体愈能适应环境，遗传到下一代的概率更高。染色体$i$的选择概率计算公式为 p i ( s e l e c t ) = f i t n e s s i ∑ i = 1 N f i t n e s s i p_i(select)=\frac{fitness_i}{\sum_{i=1}^N{fitness_i}} pi​(select)=∑i=1N​fitnessi​fitnessi​​ ，其中$i$代表个体，$N$代表种群规模。
3. 计算每个个体的累积概率： p i ( c u l ) = ∑ j = 1 i p j ( s e l e c t ) p_i(cul)=\sum_{j=1}^i{p_j(select)} pi​(cul)=∑j=1i​pj​(select)
4. 执行精英策略：在当代种群population中把选择概率最大的个体，直接复制到子代种群offspring，即offspring[1] = population[argmax(p_select)]，其中p_select= { p i ( s e l e c t ) } i = 1 N \{p_i(select)\}_{i=1}^N {pi​(select)}i=1N​
5. 执行轮盘赌选择：对每个个体$i$，在[0, 1]区间生成一个随机数 r i r_i ri​，若 p i − 1 ( c u l ) ≤ r i ≤ p i ( c u l ) p_{i-1}(cul) \leq r_i \leq p_i(cul) pi−1​(cul)≤ri​≤pi​(cul)，则个体i被选择至下一代。
6. 重复步骤5，N-1次。

3.4 交叉

选择两点交叉（Two-points crossover）作为本文的交叉算子，两点交叉步骤如下：

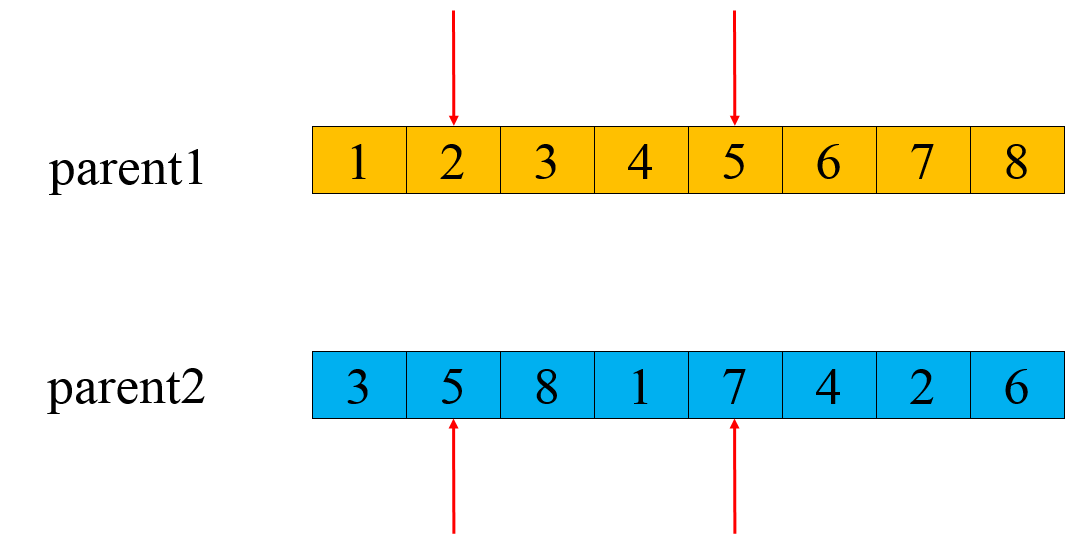

1. 随机选择两条染色体作为父代染色体，随机选择交叉基因的起止位置（两染色体被选位置相同）。

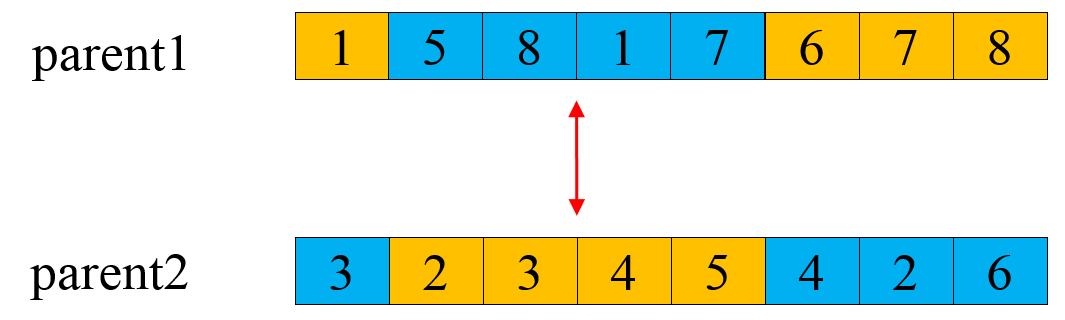

2. 交换这两组基因的位置。

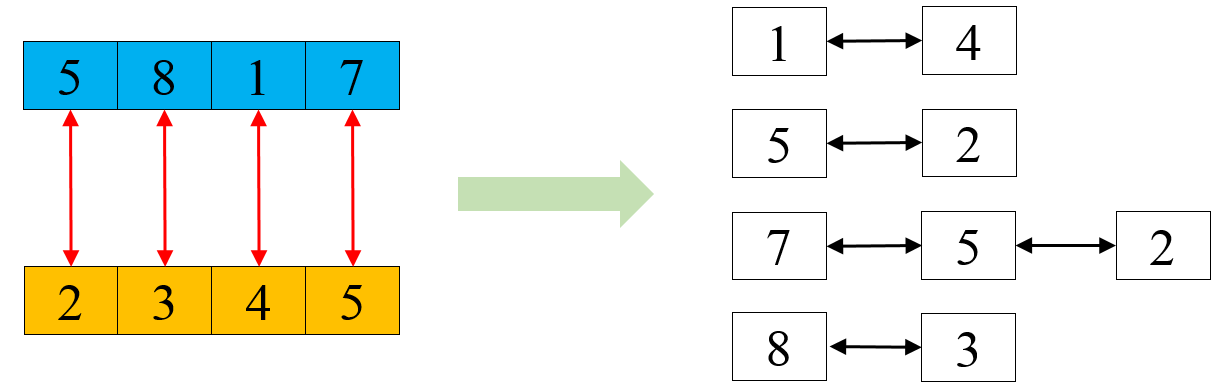

3. 重复基因检测根据交换的两组基因建立一个映射关系（映射表），如图所示，以7-5-2这一映射关系为例，可以看到第二步结果中子代1存在两个基因7，这时将其通过映射关系转变为基因2，以此类推至没有冲突为止。最后所有冲突的基因都会经过映射，保证形成的新一对子代基因无冲突。

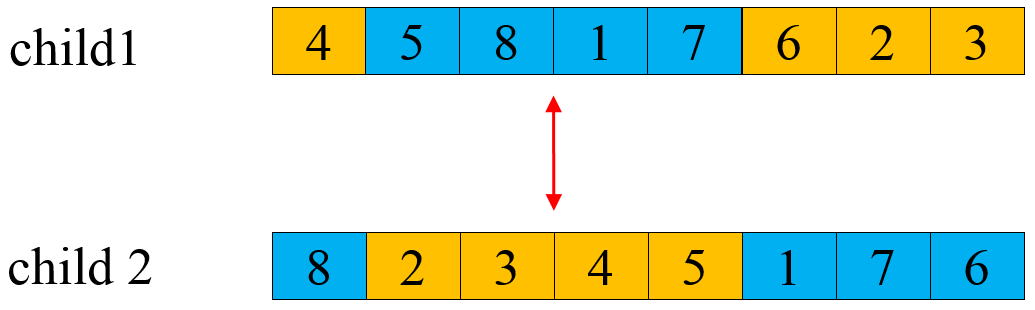

4. 重复基因替换。对非交叉的基因片段进行扫描，若发现重复基因，则根据step3建立的映射表进行替换。保证了每个染色体中的基因仅出现一次，通过该交叉策略在一个染色体中不会出现重复的基因，所以经常用于旅行商（TSP）或其他排序问题编码。

采用2-opt方法，即随机选择一条染色体，随机选择2个基因位，将这两个位置的基因交换，如下图。

3.6 停止准则

停止准则有3种，本文选择第三种。

1. 当最优个体的适应度达到给定的阈值
2. 最优个体的适应度和群体适应度不再上升
3. 迭代次数达到预设的代数时，算法终止（本文采用）

4 数值实验

4.1 运行结果

运行一把迭代10000次结果如下，800多就逼近最优解：

Iteration: 0 path: [11, 17, 4, 2, 15, 10, 14, 18, 7, 12, 19, 8, 9, 5, 3, 1, 6, 16, 13, 0] distance: 1729.0
Iteration: 200 path: [15, 18, 17, 14, 11, 8, 4, 2, 9, 12, 13, 10, 7, 5, 3, 1, 6, 16, 19, 0] distance: 1122.0
Iteration: 400 path: [15, 18, 17, 14, 11, 8, 4, 2, 9, 12, 19, 16, 13, 10, 6, 1, 3, 7, 5, 0] distance: 893.0
Iteration: 600 path: [15, 18, 17, 14, 11, 8, 4, 5, 9, 12, 19, 16, 13, 10, 6, 1, 3, 7, 2, 0] distance: 887.0
Iteration: 800 path: [15, 18, 17, 14, 11, 8, 4, 5, 9, 12, 19, 16, 13, 10, 6, 1, 3, 7, 2, 0] distance: 887.0
Iteration: 1000 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 1200 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 1400 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 1600 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 1800 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 2000 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 2200 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 2400 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 2600 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 2800 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 3000 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 3200 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 3400 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 3600 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 3800 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 4000 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 4200 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 4400 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 4600 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 4800 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 5000 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 5200 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 5400 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 5600 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 5800 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 6000 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 6200 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 6400 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 6600 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 6800 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 7000 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 7200 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 7400 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 7600 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 7800 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 8000 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 8200 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 8400 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 8600 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 8800 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 9000 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 9200 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 9400 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 9600 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 9800 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
Iteration: 10000 path: [15, 18, 17, 14, 11, 8, 4, 9, 7, 12, 19, 16, 13, 10, 6, 1, 3, 5, 2, 0] distance: 879.0
time used: 1s

编程求解（Java）

自适应遗传算法求解旅行商问题（Java代码）

1. GeneticAlgorithm遗传算法
2. Main运行
3. Instance读取文件（20个城市的坐标，）
4. Util类：一些工具方法


package geneticalgorithm.algorithm;import geneticalgorithm.util.Util;
import geneticalgorithm.tsp.TSP;import java.util.*;public class GeneticAlgorithm {TSP tsp;//距离矩阵double[][] distance;//种群规模int size;//基因数量int gene;//父代种群int[][] parent;//适应度double[] fitness;//子代种群int[][] child;//最大迭代次数private final int GEN;//交叉概率private double pcrossover;//变异概率private double pmutation;public GeneticAlgorithm(String fileName, int GEN) {tsp = new TSP(fileName);distance = tsp.distance;pcrossover = 0.;pmutation = 0.;this.GEN = GEN;}public void initialize(int size) {this.size = size;gene = distance.length;parent = new int[size][gene];fitness = new double[size];child = new int[size][gene];}private void initializePopulation() {int size = parent.length;for (int i = 0; i < size; i++) {parent[i] = Util.randArr(gene);}}//适应度函数private void fitness() {for (int i = 0; i < parent.length; i++)fitness[i] = 1000000.0 / getLen(parent[i]);updateProbality();}//更新交叉概率、变异概率private void updateProbality() {//最大适应度double fmax = Util.max(fitness);//平均适应度double favg = Util.sum(fitness) / size;pcrossover = 100 / (fmax - favg);pmutation = 100 / (fmax - favg);}/*** @param chrom 染色体* @return 一条染色体的总距离*/private double getLen(int[] chrom) {double len = 0;for (int k = 0; k < chrom.length - 1; k++) {int i = chrom[k];int j = chrom[k + 1];len += distance[i][j];}len = len + distance[chrom[chrom.length - 1]][0];return len;}//选择操作private void select() {eliteSelect();routtleSelect();}//精英选择1条染色体private void eliteSelect() {int elite = Util.getMaxIndex(fitness);updatePopulation(parent, child, elite, 0);}//轮盘赌选择99条染色体private void routtleSelect() {double[] cumul = cumulativep();
//        System.out.println(Arrays.toString(cumulativep()));for (int i = 1; i < parent.length; i++) {double randDouble = Math.random();int selected = 0;for (int j = 0; j < cumul.length; j++) {if (randDouble < cumul[j]) {selected = j;//选择第j条染色体break;}}updatePopulation(parent, child, selected, i);}}//更新种群private void updatePopulation(int[][] parent, int[][] child, int selected, int i) {System.arraycopy(parent[selected], 0, child[i], 0, gene);}//累积概率private double[] cumulativep() {double[] cumulativep = new double[size];double[] slectionp = slectionp();for (int i = 0; i < size; i++) {double res = 0.;for (int j = 0; j <= i; j++) {res += slectionp[j];}cumulativep[i] = res;}return cumulativep;}//选择概率private double[] slectionp() {double[] selectionp = new double[size];for (int i = 0; i < size; i++)selectionp[i] = fitness[i] / Util.sum(fitness);return selectionp;}public void cross() {int ch1 = Util.randInt(size - 1) + 1;int ch2 = Util.randInt(size - 1) + 1;//不选择精英个体int[] chrom1 = child[ch1];int[] chrom2 = child[ch2];cross(chrom1, chrom2);}private void cross(int[] chrom1, int[] chrom2) {int cut1 = Util.randInt(gene);int cut2 = Util.randInt(cut1, gene - 1);int[][] map = new int[cut2 - cut1 + 1][2];swap(chrom1, chrom2, map, cut1, cut2);adjust(chrom1, chrom2, map, cut1, cut2);}private void swap(int[] chrom1, int[] chrom2, int[][] map, int cut1, int cut2) {for (int i = cut1; i <= cut2; i++) {map[i - cut1][0] = chrom1[i];map[i - cut1][1] = chrom2[i];chrom1[i] = map[i - cut1][1];chrom2[i] = map[i - cut1][0];}for (int i = 0; i < map.length; i++) {for (int j = 0; j < map.length; j++) {if (map[i][0] == map[j][1]) {map[i][0] = map[j][0];map[j][1] = map[i][1];map[i][0] = map[i][1] = -1;}}}}private static void adjust(int[] chrom1, int[] chrom2, int[][] map, int cut1, int cut2) {for (int i = 0; i < chrom1.length; i++) {if (i < cut1 || i > cut2)for (int[] ints : map) {if (chrom1[i] == ints[1]) chrom1[i] = ints[0];if (chrom2[i] == ints[0]) chrom2[i] = ints[1];}}}public void mutate() {//i从1开始 保留精英for (int i = 1; i < child.length; i++) {int r1 = Util.randInt(20);//产生[0,20)的随机整数int r2 = Util.randInt(20);int gene1 = child[i][r1];int gene2 = child[i][r2];child[i][r1] = gene2;child[i][r2] = gene1;}}public void runGeneticAlgorithm() {initializePopulation();fitness();long start = System.currentTimeMillis();for (int gen = 0; gen <= GEN; gen++) {select();if (Math.random() < pcrossover) cross();if (Math.random() < pmutation) mutate();for (int i = 0; i < child.length; i++) parent[i] = child[i].clone();for (int i = 0; i < child.length; i++) {if (Util.isRepetition(child[i])) {System.out.println(Arrays.toString(child[i]));throw new IllegalArgumentException("repetition!");}}fitness();displayInfo(gen);}long end = System.currentTimeMillis();System.out.printf("time used: %ss", (end - start) / 1000);}private void displayInfo(int counter) {if (counter % 200 == 0) {int ch = Util.getMaxIndex(fitness);System.out.println();System.out.printf("Iteration: %s\t", counter);System.out.printf("     path: %s\t", Arrays.toString(child[ch]));System.out.printf(" distance: %s", getLen(child[ch]));System.out.println();}}}

package geneticalgorithm.tsp;import java.io.BufferedReader;
import java.io.FileReader;
import java.io.IOException;public class Instance {public double[][] readFile(String filename) {double[] x = new double[20];double[] y = new double[20];double[][] distance = new double[x.length][y.length];try (BufferedReader bf = new BufferedReader(new FileReader(filename))) {int counter = 0;String line;while ((line = bf.readLine()) != null) {String[] coordinate = line.split(",");x[counter] = Double.parseDouble(coordinate[0]);y[counter] = Double.parseDouble(coordinate[1]);counter += 1;}} catch (IOException e) {System.out.println("File not found!");System.exit(-1);}for (int i = 0; i < x.length; i++) {distance[i][i] = 0;for (int j = 0; j < y.length; j++) {double e1 = Math.abs((x[i] - x[j]));double e2 = Math.abs((y[i] - y[j]));distance[i][j] = distance[j][i] = (int) Math.sqrt(e1 * e1 + e2 * e2);}}return distance;}}

package geneticalgorithm.tsp;public class TSP {public double[][] distance;public TSP(String fileName) {distance = new Instance().readFile(fileName);}
}

package geneticalgorithm.Main;import geneticalgorithm.algorithm.GeneticAlgorithm;public class Main {public static void main(String[] args) {String fileName = "D:\\Users\\36297\\JavaWorkspace\\algori\\src\\tsp\\geneticalgori\\data.txt";GeneticAlgorithm ga = new GeneticAlgorithm(fileName,10000);ga.initialize(500);ga.runGeneticAlgorithm();}
}

package geneticalgorithm.util;import java.util.Arrays;
import java.util.HashSet;
import java.util.Random;
import java.util.Set;
import java.util.concurrent.ThreadLocalRandom;public class Util {/*** @param n [0-n]长度* @return [0-n]范围不重复的随机数组*/public static int[] randArr(int n) {return ThreadLocalRandom.current().ints(0, n).distinct().limit(n).toArray();}/*** @param array 一维数组* @return maximum element of an integer array*/public static int max(int[] array) {return Arrays.stream(array).max().getAsInt();}/*** @param array integer array* @return index of the max*/public static int getMaxIndex(int[] array) {double max = max(array);for (int i = 0; i < array.length; i++)if (max == array[i]) return i;return -1;}/*** @param array 一维数组* @return maximum element of an double array*/public static double max(double[] array) {return Arrays.stream(array).max().getAsDouble();}/*** @param array double array* @return index of the max*/public static int getMaxIndex(double[] array) {double max = max(array);for (int i = 0; i < array.length; i++)if (max == array[i]) return i;return -1;}/*** @param array double array* @return 数组求和*/public static double sum(double[] array) {return Arrays.stream(array).sum();}/*** @param index [0,index)* @return 返回[0, index)的一个随机整数*/public static int randInt(int index) {return new Random().nextInt(index);}/*** @param min [min,max)* @param max [min,max)* @return [min, max)间的一个随机数*/public static int randInt(int min, int max) {return (int) (Math.random() * (max + 1 - min) + min);}public static boolean isRepetition(int[] args) {Set<Object> set = new HashSet<>();for (int arg : args) set.add(arg);return set.size() != args.length;}
}

城市坐标txt文件

60,200
180,200
80,180
140,180
20,160
100,160
200,160
140,140
40,120
100,120
180,100
60,80
120,80
180,60
20,40
100,40
200,40
20,20
60,20
160,20
