百度云源码说明：

目录

项目简介与数据集

HED网络简介

源码

结果展示与tensorboard可视化

项目简介与数据集

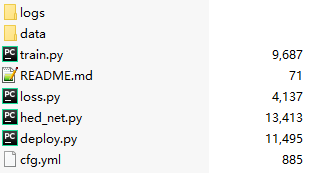

dataset数据集文件如下：

第一个文件里为训练与标签图片，train.txt为训练图片与标签图片对应关系,IMG_2717_224.jpg为测试图片

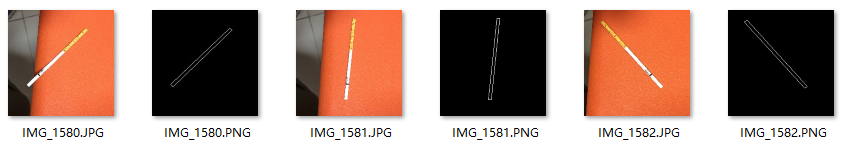

数据集如下：

需求是边缘识别出试纸，所以需要的训练图片和标签图片如上所示。（这个标签图片是通过labelme进行标注，生成了json文件然后对json文件进行处理生成了mask图像）

HED网络简介

HED网络用于边缘检测：目的是标识数字图像中亮度变化明显的点。就是把边缘检测出来，下左图为原图，后两张为边缘检测后处理图像：

现在边缘检测需求逐渐有了针对性，比如二维码识别只需要边缘检测一个正方形区域，所以HED网络就比传统边缘检测算法如canny算法更加优秀。

（如果是入门，可以看一下计算机视觉简单知识及CANNY算法：机器学习（14）--经典边缘检测canny算法（计算机视觉从0到1）https://blog.csdn.net/qq_36187544/article/details/89548363）

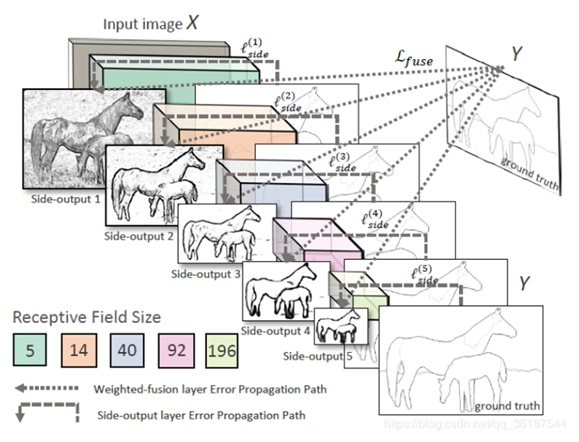

HED 网络是一种多尺度多融合(multi-scale and multi-level feature learning)的网络结构，基于VGG16，原理图如下，不详细解释了：

源码

hed_net.py（其余文件见百度云）:

# -*- coding: UTF-8 -*-
from __future__ import print_function
import numpy as np
import tensorflow as tf
import yaml'''
HED网络类
基于VGG16，所以模型形同VGG16，唯一注意点是concat处，加上concat导致梯度计算不出，不知是某个类库的问题还是其他未知问题
'''# HED网络定义类
class HED(object):def __init__(self, height, width, channel):# 定义图片长宽self.height = heightself.width = width# 定义占位符self.x = tf.placeholder(tf.float32, (None, height, width, channel))# 定义配置属性，来自配置文件with open('cfg.yml') as file:self.cfg = yaml.load(file)def vgg_hed(self):'''VGG16模型为2层卷积+reLU,池化，2层卷积+reLU，池化，3层卷积+reLU，池化，3层卷积+reLU，池化，3层卷积+reLU，池化，3层全连接+reLU,softmax输出:return: 中间5层图片及最后融合的图片共6个数据'''# block对应的函数是iteration层卷积+reLUbn1, relu1 = self.block(input_tensor=self.x, filters=64, iteration=2, dilation_rate=[(4, 4), (1, 1)], name='block1')mp1 = tf.layers.max_pooling2d(inputs=relu1, pool_size=(2, 2), strides=(2, 2), padding='same', name='max_pool1')bn2, relu2 = self.block(input_tensor=mp1, filters=128, iteration=2, name='block2')mp2 = tf.layers.max_pooling2d(inputs=relu2, pool_size=(2, 2), strides=(2, 2), padding='same', name='max_pool2')bn3, relu3 = self.block(input_tensor=mp2, filters=256, iteration=3, name='block3')mp3 = tf.layers.max_pooling2d(inputs=relu3, pool_size=(2, 2), strides=(2, 2), padding='same', name='max_pool3')bn4, relu4 = self.block(input_tensor=mp3, filters=512, iteration=3, name='block4')mp4 = tf.layers.max_pooling2d(inputs=relu4, pool_size=(2, 2), strides=(2, 2), padding='same', name='max_pool4')bn5, relu5 = self.block(input_tensor=mp4, filters=512, iteration=3, name='block5')# self.side()对图片进行反卷积self.side1 = self.side(input_tensor=bn1, stride=(1, 1), name='side1', deconv=False)self.side2 = self.side(input_tensor=bn2, stride=(2, 2), name='side2')self.side3 = self.side(input_tensor=bn3, stride=(4, 4), name='side3')self.side4 = self.side(input_tensor=bn4, stride=(8, 8), name='side4')self.side5 = self.side(input_tensor=bn5, stride=(16, 16), name='side5')# sides原本对应side12345的合成，但是优化器迭代concat报错所以先直接采用第五层作为sidessides = self.side5'''t1 = [[1, 2, 3], [4, 5, 6]]  t2 = [[7, 8, 9], [10, 11, 12]]  tf.concat([t1, t2], 0)  # [[1, 2, 3], [4, 5, 6], [7, 8, 9], [10, 11, 12]]  tf.concat([t1, t2], 1)  # [[1, 2, 3, 7, 8, 9], [4, 5, 6, 10, 11, 12]]'''# sides = tf.concat(values=[self.side1, self.side2, self.side3, self.side4, self.side5], axis=3)# tf.layers.conv2d参数含义：filters输出通道数，kernel_size卷积核大小，strides卷积步长# 通过1×1卷积核实现通道数的缩放，sides通过concat后(?,224,224,5)通过卷积核变为(?,224,224,1)self.fused_side = tf.layers.conv2d(inputs=sides, filters=1, kernel_size=(1, 1), strides=(1, 1),use_bias=False, kernel_initializer=tf.constant_initializer(0.2), name='fused_side')return self.side1, self.side2, self.side3, self.side4, self.side5, self.fused_sidedef block(self, input_tensor, filters, iteration, dilation_rate=None, name=None):'''相当于将HED网络分层分块，VGG16模型为2层(卷积+reLU),池化，2层(卷积+reLU)，池化，3层(卷积+reLU)，池化，3层(卷积+reLU)，池化，3层(卷积+reLU)，池化，3层全连接+reLU,softmax输出这里一个block对应iteration层的卷积+reLU:param input_tensor:输入的tensor:param filters:输出通道个数，等价于output_channels:param iteration:迭代次数，比如第一个block对应2层的(卷积+reLU)，这里iteration为2:param dilation_rate:扩张卷积:param name:命名空间，不重要，只在tensorboard可视化时看起来会简美些:return:经过(卷积+reLU)处理的tensor'''# dilation_rate表示扩张卷积，针对的是卷积核的大小，# 扩张卷积优点：扩展卷积在保持参数个数不变的情况下增大了卷积核的感受野，同时它可以保证输出的特征映射（feature map）的大小保持不变。# dilation_rate默认为（1，1）# 扩张卷积应用于图像语义分割问题中下采样会降低图像分辨率、丢失信息的一种卷积思路，所以实际上整个代码只是在VGG16第一层卷积中加入了扩张卷积if dilation_rate is None:dilation_rate = [(1, 1)]if len(dilation_rate) == 1:dilation_rate *= iterationregularizer = tf.contrib.layers.l2_regularizer(self.cfg['weight_decay_ratio'])with tf.variable_scope(name):relu = input_tensorfor it in range(iteration):tp_dilation_rate = dilation_rate.pop(0)print("hed_net:",tp_dilation_rate)conv = tf.layers.conv2d(inputs=relu, filters=filters,kernel_size=(3, 3), strides=(1, 1), padding='same',activation=None, use_bias=True,kernel_regularizer=regularizer,dilation_rate=tp_dilation_rate,# kernel_initializer=tf.truncated_normal_initializer(stddev=0.5),name='conv{:d}'.format(it))# bn = tf.layers.batch_normalization(inputs=conv, axis=-1, name='bn{:d}'.format(it))bn = convrelu = tf.nn.relu(bn, name='relu{:d}'.format(it))return relu, reludef side(self, input_tensor, stride, name, deconv=True):'''对图片进行反卷积:param input_tensor:输入的tensor:param stride:卷积步长，反卷积为扩大倍数:param name:命名空间名字:param deconv:是否反卷积:return:反卷积后的张量'''with tf.variable_scope(name):side = tf.layers.conv2d(inputs=input_tensor, filters=1, kernel_size=(1, 1), strides=(1, 1),padding='same',activation=None,bias_initializer=tf.constant_initializer(value=0),kernel_initializer=tf.constant_initializer(value=0),kernel_regularizer=tf.contrib.layers.l2_regularizer(0.0002))if deconv:# conv2d_transpose名字虽然叫转置，但实际上就是代表反卷积# stride步长，即扩大倍数side = tf.layers.conv2d_transpose(inputs=side, filters=1, kernel_size=(2*stride[0], 2*stride[1]),strides=stride, padding='same',kernel_initializer=tf.truncated_normal_initializer(stddev=0.1),bias_initializer=tf.truncated_normal_initializer(stddev=0.1),kernel_regularizer=tf.contrib.layers.l2_regularizer(self.cfg['weight_decay_ratio']),activation=None)# 以上已经处理反卷积完成，这里在对反卷积完成后的张量做一次双线性插值图片处理side = tf.image.resize_images(images=side, size=(self.height, self.width),method=tf.image.ResizeMethod.BILINEAR)return sidedef evaluate(self):'''评价，暂无，之后可用F1等评价:return:'''# evaluation criteria# accuracy# precision# recall# F1 scorepassdef summary(self):'''记录:return:'''max_outputs = 1tf.summary.image(name='orig_image_sm', tensor=self.x, max_outputs=max_outputs)tf.summary.image(name='side1_im', tensor=tf.sigmoid(self.side1), max_outputs=max_outputs, )tf.summary.image(name='side2_im', tensor=tf.sigmoid(self.side2), max_outputs=max_outputs, )tf.summary.image(name='side3_im', tensor=tf.sigmoid(self.side3), max_outputs=max_outputs, )tf.summary.image(name='side4_im', tensor=tf.sigmoid(self.side4), max_outputs=max_outputs, )tf.summary.image(name='side5_im', tensor=tf.sigmoid(self.side5), max_outputs=max_outputs, )tf.summary.image(name='fused_side_im', tensor=tf.sigmoid(self.fused_side), max_outputs=max_outputs, )tf.summary.histogram(name='side1_hist', values=tf.sigmoid(self.side1))tf.summary.histogram(name='side2_hist', values=tf.sigmoid(self.side2))tf.summary.histogram(name='side3_hist', values=tf.sigmoid(self.side3))tf.summary.histogram(name='side4_hist', values=tf.sigmoid(self.side4))tf.summary.histogram(name='side5_hist', values=tf.sigmoid(self.side5))tf.summary.histogram(name='fused_side_hist', values=tf.sigmoid(self.fused_side))def assign_init_weights(self, sess=None):'''初始化权重,读取VGG16权重文件进行权重初始化:param sess: session:return:'''with open(self.cfg['init_weights'], 'rb') as file:weights = np.load(file, encoding='latin1').item()with tf.variable_scope('block1', reuse=True):k = tf.get_variable(name='conv0/kernel')sess.run(tf.assign(k, weights['conv1_1'][0]))k = tf.get_variable(name='conv0/bias')sess.run(tf.assign(k, weights['conv1_1'][1]))k = tf.get_variable(name='conv1/kernel')sess.run(tf.assign(k, weights['conv1_2'][0]))k = tf.get_variable(name='conv1/bias')sess.run(tf.assign(k, weights['conv1_2'][1]))print('assign first block done !')with tf.variable_scope('block2', reuse=True):k = tf.get_variable(name='conv0/kernel')sess.run(tf.assign(k, weights['conv2_1'][0]))k = tf.get_variable(name='conv0/bias')sess.run(tf.assign(k, weights['conv2_1'][1]))k = tf.get_variable(name='conv1/kernel')sess.run(tf.assign(k, weights['conv2_2'][0]))k = tf.get_variable(name='conv1/bias')sess.run(tf.assign(k, weights['conv2_2'][1]))print('assign second block done !')with tf.variable_scope('block3', reuse=True):k = tf.get_variable(name='conv0/kernel')sess.run(tf.assign(k, weights['conv3_1'][0]))k = tf.get_variable(name='conv0/bias')sess.run(tf.assign(k, weights['conv3_1'][1]))k = tf.get_variable(name='conv1/kernel')sess.run(tf.assign(k, weights['conv3_2'][0]))k = tf.get_variable(name='conv1/bias')sess.run(tf.assign(k, weights['conv3_2'][1]))k = tf.get_variable(name='conv2/kernel')sess.run(tf.assign(k, weights['conv3_3'][0]))k = tf.get_variable(name='conv2/bias')sess.run(tf.assign(k, weights['conv3_3'][1]))print('assign third block done !')with tf.variable_scope('block4', reuse=True):k = tf.get_variable(name='conv0/kernel')sess.run(tf.assign(k, weights['conv4_1'][0]))k = tf.get_variable(name='conv0/bias')sess.run(tf.assign(k, weights['conv4_1'][1]))k = tf.get_variable(name='conv1/kernel')sess.run(tf.assign(k, weights['conv4_2'][0]))k = tf.get_variable(name='conv1/bias')sess.run(tf.assign(k, weights['conv4_2'][1]))k = tf.get_variable(name='conv2/kernel')sess.run(tf.assign(k, weights['conv4_3'][0]))k = tf.get_variable(name='conv2/bias')sess.run(tf.assign(k, weights['conv4_3'][1]))print('assign fourth block done !')with tf.variable_scope('block5', reuse=True):k = tf.get_variable(name='conv0/kernel')sess.run(tf.assign(k, weights['conv5_1'][0]))k = tf.get_variable(name='conv0/bias')sess.run(tf.assign(k, weights['conv5_1'][1]))k = tf.get_variable(name='conv1/kernel')sess.run(tf.assign(k, weights['conv5_2'][0]))k = tf.get_variable(name='conv1/bias')sess.run(tf.assign(k, weights['conv5_2'][1]))k = tf.get_variable(name='conv2/kernel')sess.run(tf.assign(k, weights['conv5_3'][0]))k = tf.get_variable(name='conv2/bias')sess.run(tf.assign(k, weights['conv5_3'][1]))weights = None  # gcprint('assign fifth block done !')print('net initializing successfully with vgg16 weights trained by imagenet data')

结果展示与tensorboard可视化

原图与结果（训练太慢了。。。几十张图十几次迭代，效果不太好）：

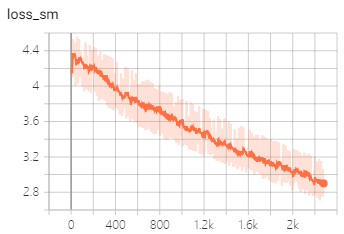

tensorboard可视化，可见损失还未收敛：
