二叉树的各种遍历算法实现

1、实验内容

实现二叉树的先序、中序和后序遍历的递归和非递归算法

依据这个视频写出后序非递归算法

2、代码实现：

#include
using namespace std;
typedef int Status;
#define OK 1
#define MAXSIZE 200
//1.	二叉树的基本操作算法实现
//（1）利用二叉树字符串“A(B(D, E(H(J, K(L, M(, N))))), C(F, G(, I)))”创建二叉树的二叉链式存储结构；
//（2）输出该二叉树；
//（3）输出‘H’节点的左、右孩子结点值；
//（4）输出该二叉树的结点个数、叶子结点个数、二叉树的度和高度；//定义二叉树结构
typedef struct Node
{char data;struct Node *lchild, *rchild;  //定义左右
}*BiTree, BiTNode;//定义链栈结构
typedef struct SNode
{BiTNode *data;struct SNode *next;
}*LinkStack, SNode;//构造一个空的链表
Status InitBiTree(BiTree &T)
{T = NULL;return OK;
}//链栈的初始化
Status InitStack(LinkStack &S)
{S = NULL;return OK;
}//入栈
Status PushStack(LinkStack &S, BiTNode *T)
{SNode *p = new SNode;p->data = T;p->next = S;S = p;return OK;
}//出栈
Status PopStack(LinkStack &S, BiTNode *&T)
{if (S == NULL) cout << "空栈" << endl;T = S->data;SNode *p = S;S = S->next;delete p;return OK;
}//判断是否为空栈
bool Empty(LinkStack S)
{if (S == NULL) return true;else return false;
}//获取栈顶元素
BiTNode* Gettop(LinkStack &S)
{if (S != NULL) return S->data;else return NULL;
}Status CreateBiTree(BiTree &T)
{BiTree S[MAXSIZE];    //顺序栈，便于回溯BiTNode *p = NULL;int top = 0, k = 0;  //top表示一维数组的下标；char ch;cin >> ch;while (ch != '#'){switch (ch){case '(':S[++top] = p; k = 1; break;  //top++为入栈，k=1为左子树；case ')':top--; break;     //top--为出栈；case ',':k = 2; break;     //k=2为右子树default:p = new BiTNode;p->data = ch;p->lchild = p->rchild = NULL;if (T == NULL) T = p;else{switch (k){case 1:S[top]->lchild = p; break;case 2:S[top]->rchild = p;  break;}}break;}cin >> ch;}return OK;
}//先序遍历的递归
Status PreBiTree(BiTree T)
{if (T != NULL){cout << T->data << "\t";PreBiTree(T->lchild);PreBiTree(T->rchild);}return OK;
}//中序遍历的递归
Status InBiTree(BiTree T)
{if (T != NULL){InBiTree(T->lchild);cout << T->data << "\t";InBiTree(T->rchild);}return OK;
}//后序遍历的递归
Status LaterBiTree(BiTree T)
{if (T != NULL){LaterBiTree(T->lchild);LaterBiTree(T->rchild);cout << T->data << "\t";}return OK;
}//先序遍历的非递归
Status SqlpreBiTree(LinkStack &S,BiTree T)
{BiTNode *p = T;BiTNode *q = new BiTNode;while (p || !Empty(S)){if (p) {PushStack(S, p);cout << p->data << "\t";p = p->lchild;}else {PopStack(S, q);p = q->rchild;}}return OK;
}//中序遍历的非递归
Status SqlInBiTree(LinkStack &S,BiTree T)
{BiTNode *p = T;BiTNode *q = new BiTNode;while (p || !Empty(S)){if (p) {PushStack(S, p);p = p->lchild;}else {PopStack(S, q);cout << q->data << "\t";p = q->rchild;}}return OK;
}//后序遍历的非递归
Status SqlLaterBiTree(LinkStack &S, BiTree T)
{BiTNode *p = T;BiTNode *q = new BiTNode;BiTNode *e = new BiTNode;int flag = 0;while (p || !Empty(S)){while (p) {PushStack(S, p);p = p->lchild;            //将最左的结点全部压栈}flag = 1;                   //表示当前结点的左孩子为空或者已经被访问过了p = NULL;while (flag == 1){e = Gettop(S);if (e->rchild == p) {PopStack(S, q); p = q;cout << p->data << "\t";}else{p = e->rchild;flag = 0;}}}return OK;
}int  main()
{cout << "广义表的形式输入(以#结束):";BiTree T;InitBiTree(T);LinkStack S;InitStack(S);CreateBiTree(T);cout << endl;cout << "先序遍历的递归输出：";PreBiTree(T);cout << endl;cout << "先序遍历的非递归输出：";SqlpreBiTree(S,T);cout << endl;cout << "中序遍历的递归输出：";InBiTree(T);cout << endl;cout << "中序遍历的非递归输出：";SqlInBiTree(S,T);cout << endl;cout << "后序遍历的递归输出：";LaterBiTree(T);cout << endl;cout << "后序遍历的非递归输出：";SqlLaterBiTree(S, T);cout << endl;
}

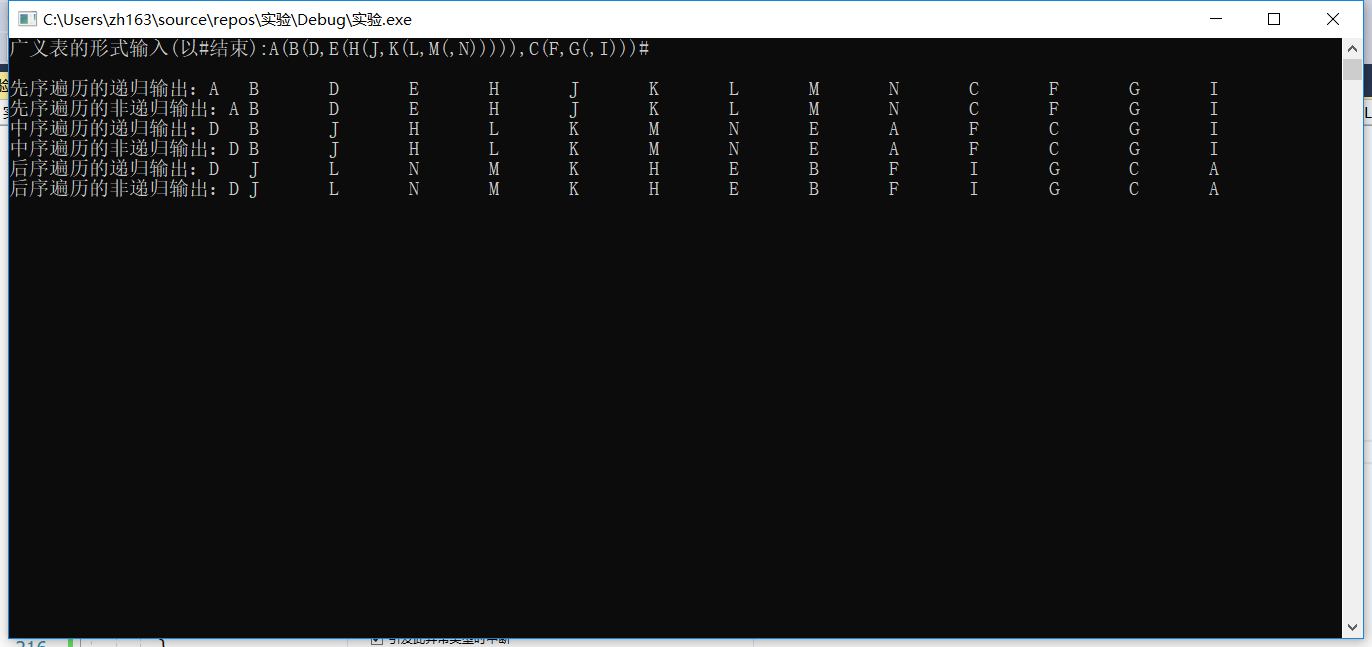

3、实验结果：
