GUI布局

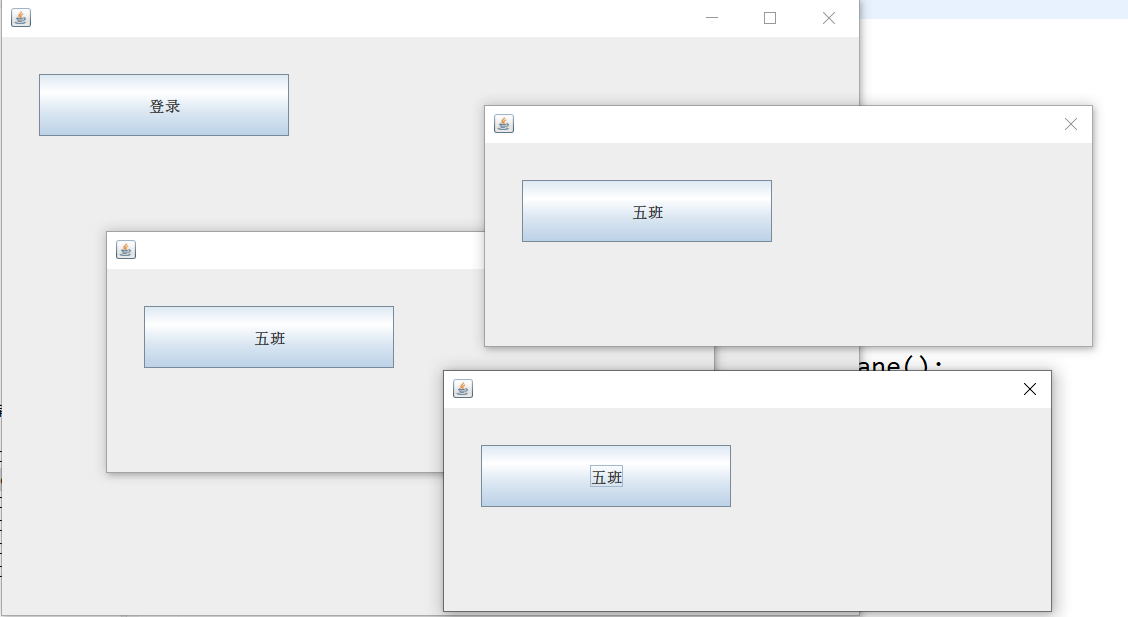

打开多个对话框

package demo01;import java.awt.Container;
import java.awt.Label;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;import javax.swing.JButton;
import javax.swing.JDialog;
import javax.swing.JFrame;public class DialogDemo01 extends JDialog{public DialogDemo01(JFrame jframe) {//super(jframe,true);super(jframe,false);this.setBounds(100,100,500,200);Container container1=this.getContentPane();container1.setLayout(null);//container.add(new Label("大数据五班"));JButton button1=new JButton("五班");button1.setBounds(30,30,200,50);container1.add(button1);}public static void main(String[] args) {JFrame j=new JFrame();j.setVisible(true);j.setBounds(100,100,700,500);j.setDefaultCloseOperation(EXIT_ON_CLOSE);Container container=j.getContentPane();container.setLayout(null);JButton button=new JButton("登录");button.setBounds(30,30,200,50);button.addActionListener(new ActionListener(){@Overridepublic void actionPerformed(ActionEvent e) {DialogDemo01 s=new DialogDemo01(j);s.setVisible(true);System.out.println("我被点击");}});container.add(button);}
}

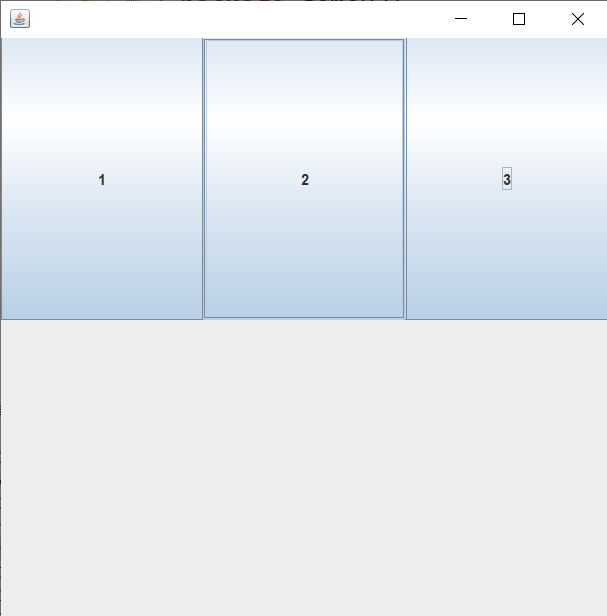

普通方位

package demo02;import java.awt.Container;
import java.awt.GridLayout;import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JPanel;
//面板作为容器不能单独存在，必须放在其他容器里面   JFrame，JDialog
public class JPaneDemo extends JFrame {public JPaneDemo() {Container container=this.getContentPane();container.setLayout(new GridLayout(2,1,10,10));JPanel panel=new JPanel(new GridLayout(1,3));panel.add(new JButton("1"));panel.add(new JButton("2"));panel.add(new JButton("3"));container.add(panel);this.setDefaultCloseOperation(EXIT_ON_CLOSE);this.setVisible(true);this.setBounds(100,100,500,500);}public static void main(String[] args) {new JPaneDemo();}
}

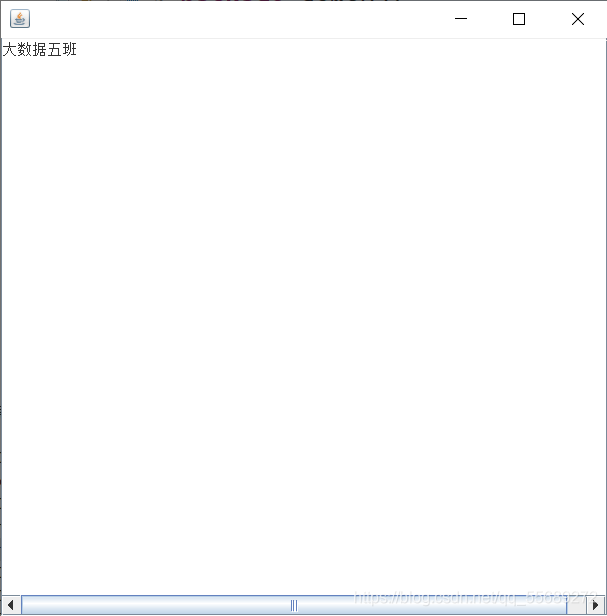

左右滑动

package demo02;import java.awt.Container;
import java.awt.GridLayout;import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JPanel;
import javax.swing.JScrollPane;
import javax.swing.JTextArea;public class JScrollDemo extends JFrame{public JScrollDemo() {Container container=this.getContentPane();//文本域JTextArea textarea=new JTextArea(20,50);textarea.setText("大数据五班");//scroll面板JScrollPane scrollpane=new JScrollPane(textarea);//JPanel scrollpane=new JPanel();//scrollpane.add(textarea);container.add(scrollpane);this.setDefaultCloseOperation(EXIT_ON_CLOSE);this.setVisible(true);this.setBounds(100,100,500,500);}public static void main(String[] args) {new JScrollDemo();}
}

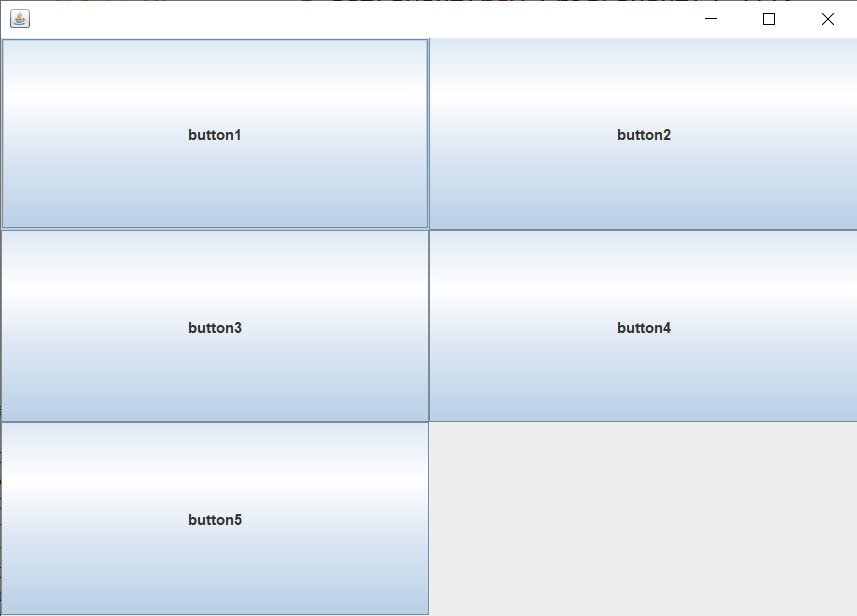

两行三列

package demo03;import java.awt.FlowLayout;
import java.awt.GridLayout;import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.WindowConstants;public class TestGrid {public static void main(String[] args) {JFrame j=new JFrame();j.setVisible(true);j.setBounds(100,100,700,500);j.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);j.setLayout(new GridLayout(3,2));JButton button1=new JButton("button1");button1.setSize(50,50);JButton button2=new JButton("button2");button2.setSize(50,50);JButton button3=new JButton("button3");JButton button4=new JButton("button4");JButton button5=new JButton("button5");//JButton button6=new JButton("button6");j.add(button1);j.add(button2);j.add(button3);j.add(button4);j.add(button5);//j.add(button6);//j.pack();}
}

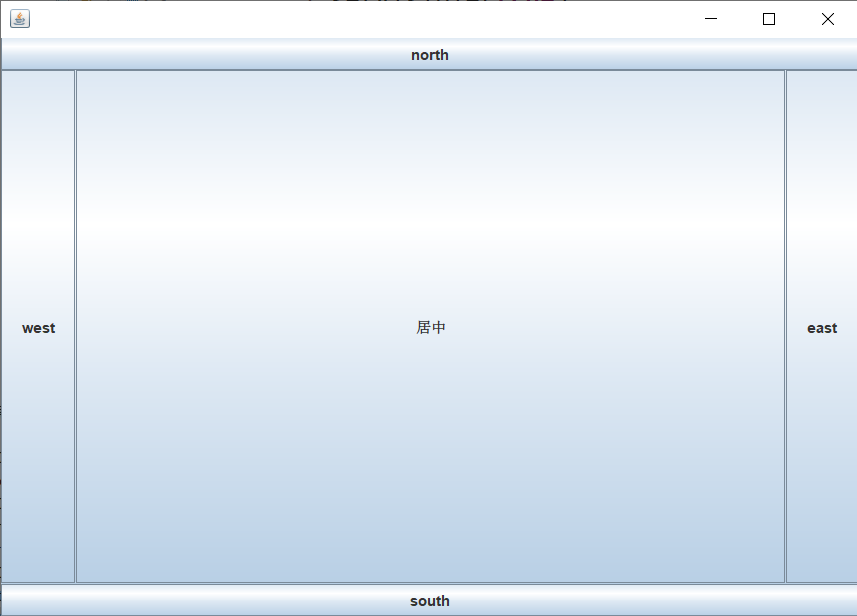

上下左右（东西南北）

package demo03;import java.awt.BorderLayout;
import java.awt.FlowLayout;
import java.awt.GridLayout;import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.WindowConstants;public class TestBorderLayout {public static void main(String[] args) {JFrame j=new JFrame();j.setVisible(true);j.setBounds(100,100,700,500);j.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);JButton east=new JButton("east");JButton west=new JButton("west");JButton south=new JButton("south");JButton north=new JButton("north");JButton center=new JButton("居中");j.add(east,BorderLayout.EAST);j.add(west,BorderLayout.WEST);j.add(south,BorderLayout.SOUTH);j.add(north,BorderLayout.NORTH);j.add(center,BorderLayout.CENTER);}
}

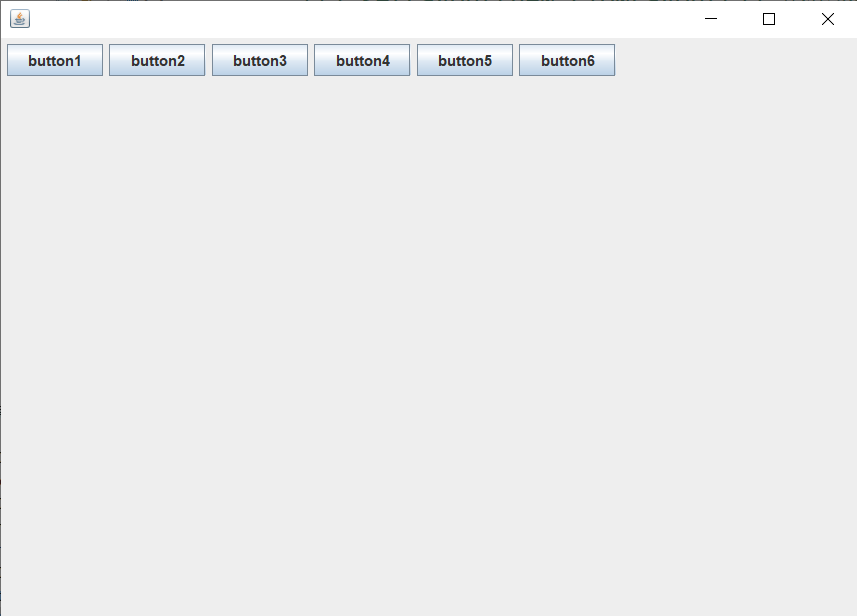

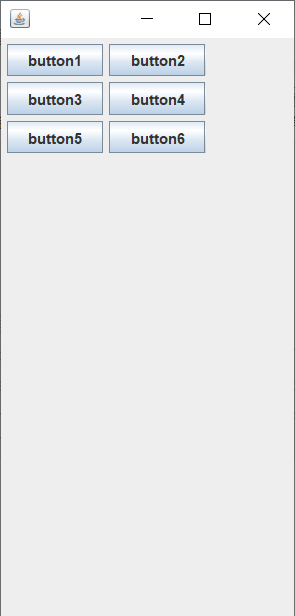

流动体

package demo03;import java.awt.FlowLayout;
import java.awt.GridLayout;import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.WindowConstants;public class TestFlowLayout2 {public static void main(String[] args) {JFrame j=new JFrame();j.setVisible(true);j.setBounds(100,100,700,500);j.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);//j.setLayout(new FlowLayout());不传参数，默认居中//j.setLayout(new FlowLayout(FlowLayout.RIGHT));j.setLayout(new FlowLayout(FlowLayout.LEFT));JButton button1=new JButton("button1");JButton button2=new JButton("button2");JButton button3=new JButton("button3");JButton button4=new JButton("button4");JButton button5=new JButton("button5");JButton button6=new JButton("button6");j.add(button1);j.add(button2);j.add(button3);j.add(button4);j.add(button5);j.add(button6);}
}

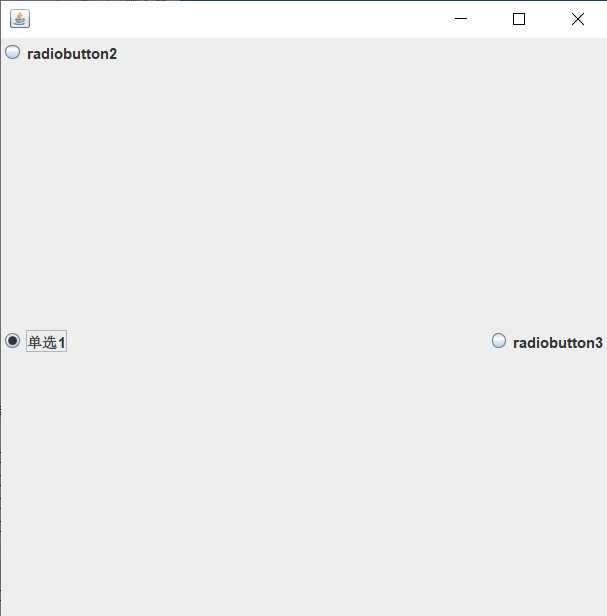

单选

package demo04;import java.awt.BorderLayout;
import java.awt.Container;import javax.swing.ButtonGroup;
import javax.swing.JFrame;
import javax.swing.JRadioButton;public class RadioButton extends JFrame {public RadioButton() {Container container1=this.getContentPane();JRadioButton radiobutton1=new JRadioButton("单选1");JRadioButton radiobutton2=new JRadioButton("radiobutton2");JRadioButton radiobutton3=new JRadioButton("radiobutton3");JRadioButton radiobutton4=new JRadioButton("radiobutton4");ButtonGroup group=new ButtonGroup();group.add(radiobutton1);group.add(radiobutton2);group.add(radiobutton3);container1.add(radiobutton1,BorderLayout.CENTER);container1.add(radiobutton2,BorderLayout.NORTH);container1.add(radiobutton3,BorderLayout.SOUTH);container1.add(radiobutton3,BorderLayout.EAST);this.setDefaultCloseOperation(EXIT_ON_CLOSE);this.setVisible(true);this.setBounds(100,100,500,500);}public static void main(String[] args) {new RadioButton();}
}

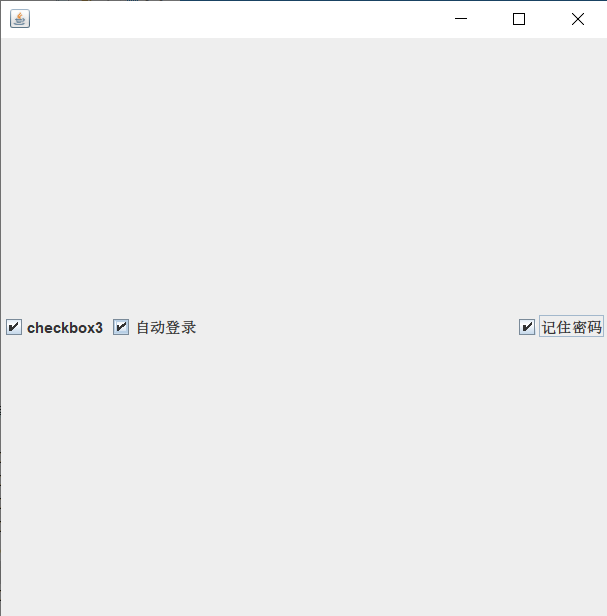

多选

package demo04;import java.awt.BorderLayout;
import java.awt.Component;
import java.awt.Container;import javax.swing.ButtonGroup;
import javax.swing.JCheckBox;
import javax.swing.JFrame;
import javax.swing.JRadioButton;public class CheckBox extends JFrame {public CheckBox() {Container container1=this.getContentPane();JCheckBox checkbox1=new JCheckBox("自动登录");JCheckBox checkbox2=new JCheckBox("记住密码");JCheckBox checkbox3=new JCheckBox("checkbox3");container1.add(checkbox1,BorderLayout.CENTER);container1.add(checkbox2,BorderLayout.EAST);container1.add(checkbox3,BorderLayout.WEST);this.setDefaultCloseOperation(EXIT_ON_CLOSE);this.setVisible(true);this.setBounds(100,100,500,500);}public static void main(String[] args) {new CheckBox();}
}

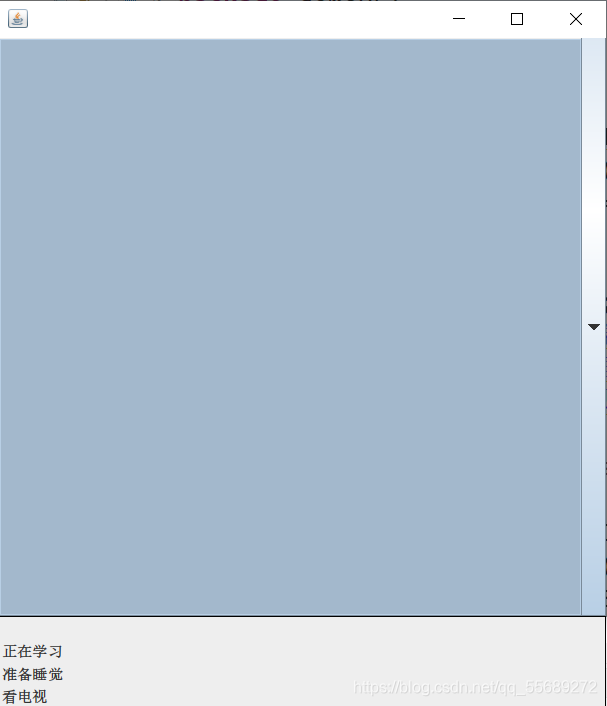

下拉框

package demo05;import java.awt.Container;import javax.swing.JComboBox;
import javax.swing.JFrame;public class TextComBoxDemo01 extends JFrame {public TextComBoxDemo01() {Container container1=this.getContentPane();	JComboBox status=new JComboBox();status.addItem(null);status.addItem("正在学习");status.addItem("准备睡觉");status.addItem("看电视");container1.add(status);this.setDefaultCloseOperation(EXIT_ON_CLOSE);this.setVisible(true);this.setBounds(100,100,500,500);}public static void main(String[] args) {new TextComBoxDemo01();}
}

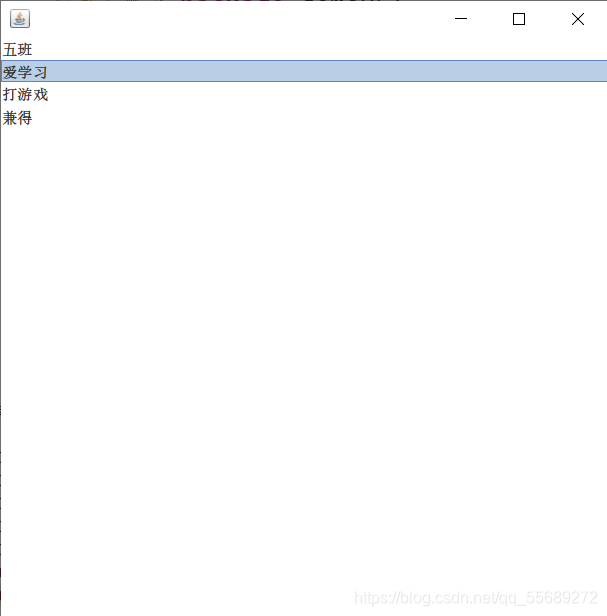

标签

package demo05;import java.awt.Container;
import java.util.Vector;import javax.swing.JComboBox;
import javax.swing.JFrame;
import javax.swing.JList;public class TextComBoxDemo2 extends JFrame {public TextComBoxDemo2() {Container container1=this.getContentPane();	//String[] contents= {"1","五班","java"};Vector<Object> contents=new Vector();JList jlist=new JList(contents);contents.add("五班");contents.add("爱学习");contents.add("打游戏");contents.add("兼得");container1.add(jlist);this.setDefaultCloseOperation(EXIT_ON_CLOSE);this.setVisible(true);this.setBounds(100,100,500,500);}public static void main(String[] args) {new TextComBoxDemo2();}
}
