Crane - 1 材料清单及连线说明
1 材料清单及连线说明
1.1 材料清单
说明：下面的淘宝链接仅用作材料图片的参考，不作为推广。
| 序号 | 名称 | 数量 | 淘宝链接 |
|---|---|---|---|
| 1 | Arduino uno r3 | 2 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.4b382e8dNNVpmd&id=534568157296&_u=i2km3ff7e2b |
| 2 | 舵机驱动板 16路模块 | 1 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.4b382e8dNNVpmd&id=536649554984&_u=i2km3ffdf9d |
| 3 | 游戏摇杆扩展板 | 1 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.4b382e8dNNVpmd&id=542221141461&_u=i2km3ff55f1 |
| 4 | NRF24L01+ 2.4G无线模块 | 2 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.4b382e8dNNVpmd&id=41247399188&_u=i2km3ff6356 |
| 5 | USB转方口线 | 1 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.4b382e8dNNVpmd&id=565060775954&_u=i2km3ff6050 |
| 6 | SG90 9g舵机 | 4 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.4b382e8dNNVpmd&id=524239871002&_u=i2km3ff0911 |
| 7 | L298N 电机驱动模块 | 1 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.70b12e8daVDlRp&id=584458447674&_u=s2km3fffb4e |
| 8 | 充电宝外壳套件 | 1 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.4b382e8dNNVpmd&id=585541222917&_u=i2km3ffc807 |
| 9 | 智能小车底盘 | 1 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.70b12e8daVDlRp&id=564766112804&_u=s2km3ffe5cd |
| 10 | 拨动开关 | 1 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.4b382e8dNNVpmd&id=178520993&_u=i2km3ff88fb |
| 11 | 机械手臂 | 1 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.4b382e8dNNVpmd&id=588155119736&_u=i2km3ff1b59 |
| 12 | 18650电池 | 4 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.70b12e8daVDlRp&id=551607814851&_u=s2km3ff6366 |
| 13 | 18650 两节串联电池盒 | 1 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.70b12e8daVDlRp&id=15861846469&_u=s2km3ff28f6 |
| 14 | 铜柱M3x20mm+6 | 3 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.65a32e8dH04gEw&id=14916605154&_u=i2km3ff913b |
| 15 | 铜柱M3x10mm+6 | 4 | https://item.taobao.com/item.htm?spm=a1z09.2.0.0.65a32e8dH04gEw&id=14916521994&_u=i2km3ff5508 |
| 16 | M3螺丝螺母 | 若干 | |
| 17 | 导线 | 若干 |

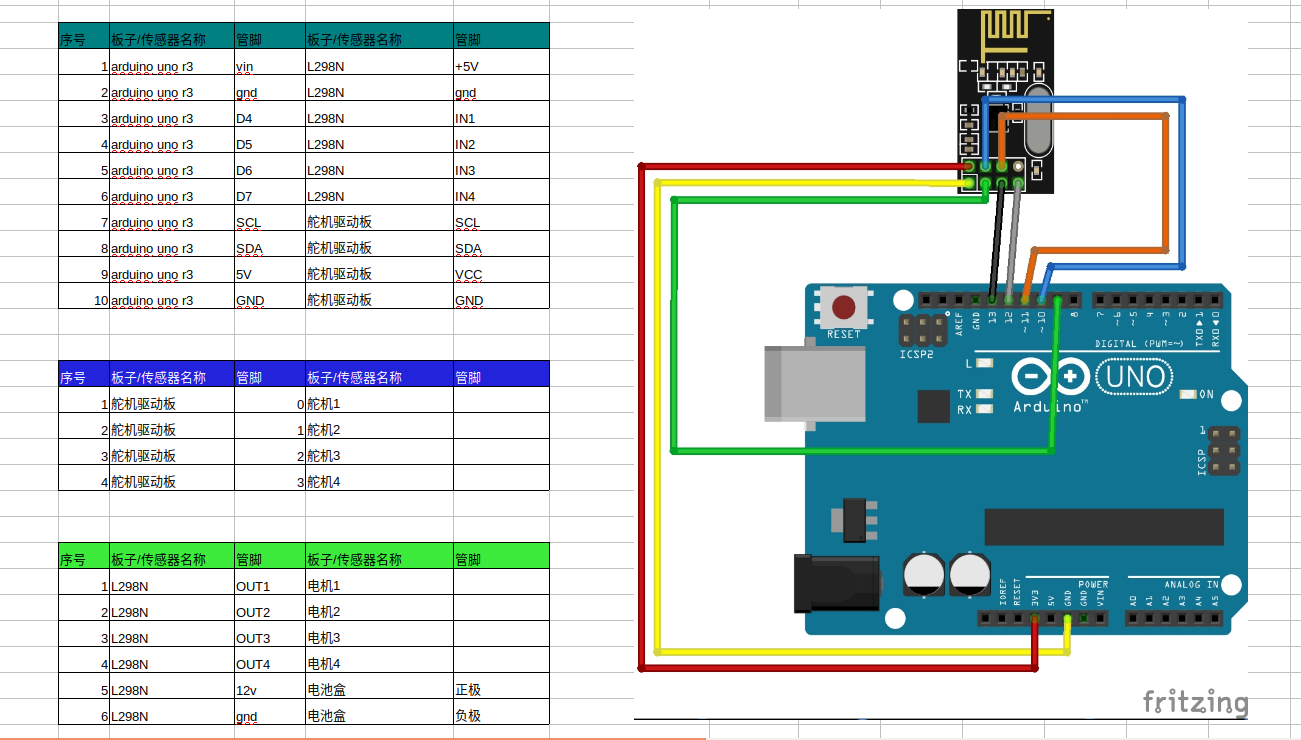

1.2 连线说明
