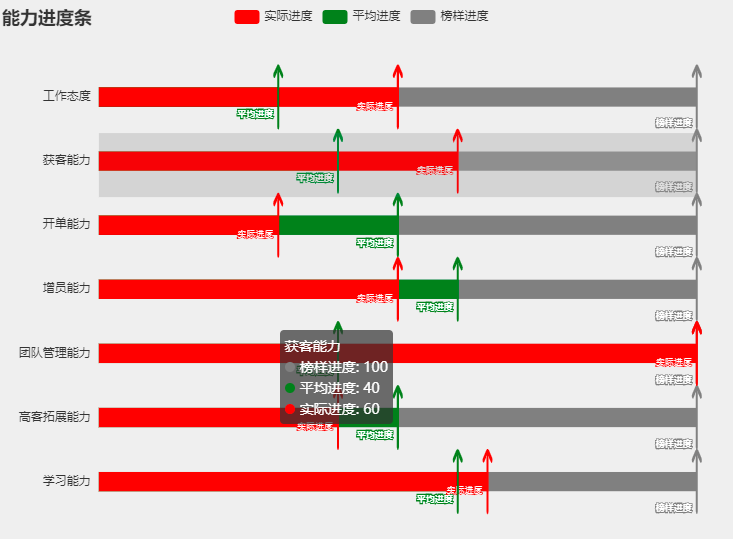

Echarts横向倒叙柱状图显示箭头

option = {title: {text: '能力进度条',},tooltip: {trigger: 'axis',axisPointer: { // 坐标轴指示器，坐标轴触发有效type: 'shadow' // 默认为直线，可选为：'line' | 'shadow'}},legend: {data: ['实际进度', '平均进度', '榜样进度']},grid: {left: '3%',right: '4%',bottom: '3%',containLabel: true},xAxis: {type: 'value',show: false},yAxis: {type: 'category',data: ['工作态度', '获客能力', '开单能力', '增员能力', '团队管理能力', '高客拓展能力', '学习能力'],axisTick: {show: false},inverse: true,axisLine: {show: false}},series: [{name: '榜样进度',type: 'bar',barGap: '-100%',barCategoryGap: '70%',/*多个并排柱子设置柱子之间的间距*/// barCateGoryGap:1, //关键第二句：值或为百分比 ‘60%’ ，如果同一类目下的柱间距：barGap:2itemStyle: {normal: {color: 'rgba(128,128,128,1)',label: {formatter: "\n\n\n\n\n\n榜样进度",show: true,position: 'insideRight',textStyle: {fontSize: 9,fontFamily: 'Microsoft YaHei',fontStyle: 'normal',fontWeight: 'bold'}},}},data: [100, 100, 100, 100, 100, 100, 100],markPoint: {symbol:'path://M708.49298 138.982839l-140.580343-119.812792c-33.547582-25.560062-81.472699-25.560062-115.020281 0l-140.580344 119.812792c-17.572543 17.572543-20.767551 43.132605-4.792511 59.107645s43.132605 20.767551 59.107644 4.792511l102.24025-84.667706v862.652106c0 25.560062 17.572543 43.132605 43.132605 43.132605s43.132605-17.572543 43.132605-43.132605V123.0078l102.24025 84.667707c4.792512 4.792512 17.572543 7.98752 25.560062 7.98752 12.780031 0 25.560062-4.792512 33.547582-17.572543 12.780031-15.975039 12.780031-41.535101-7.987519-59.107645z',symbolKeepAspect: true,symbolSize: [10, 65],label: {position: "insideTop",// distance: 7,show: false},data: [{xAxis: 100,yAxis: 0},{xAxis: 100,yAxis: 1},{xAxis: 100,yAxis: 2},{xAxis: 100,yAxis: 3},{xAxis: 100,yAxis: 4},{xAxis: 100,yAxis: 5},{xAxis: 100,yAxis: 6}]}},{name: '平均进度',type: 'bar',barGap: '-100%',barCategoryGap: '70%',/*多个并排柱子设置柱子之间的间距*/// barCateGoryGap:1, //关键第二句：值或为百分比 ‘60%’ ，如果同一类目下的柱间距：barGap:2itemStyle: {normal: {color: 'green',label: {formatter: "\n\n\n\n\平均进度",show: true,position: 'insideRight',textStyle: {fontSize: 9,fontFamily: 'Microsoft YaHei',fontStyle: 'normal',fontWeight: 'bold'}},}},data: [30, 40, 50, 60, 40, 50, 60],markPoint: {symbol:'path://M708.49298 138.982839l-140.580343-119.812792c-33.547582-25.560062-81.472699-25.560062-115.020281 0l-140.580344 119.812792c-17.572543 17.572543-20.767551 43.132605-4.792511 59.107645s43.132605 20.767551 59.107644 4.792511l102.24025-84.667706v862.652106c0 25.560062 17.572543 43.132605 43.132605 43.132605s43.132605-17.572543 43.132605-43.132605V123.0078l102.24025 84.667707c4.792512 4.792512 17.572543 7.98752 25.560062 7.98752 12.780031 0 25.560062-4.792512 33.547582-17.572543 12.780031-15.975039 12.780031-41.535101-7.987519-59.107645z',symbolKeepAspect: true,symbolSize: [10, 65],label: {position: "insideTop",// distance: 7,show: false},data: [{xAxis: 30,yAxis: 0},{xAxis: 40,yAxis: 1},{xAxis: 50,yAxis: 2},{xAxis: 60,yAxis: 3},{xAxis: 40,yAxis: 4},{xAxis: 50,yAxis: 5},{xAxis: 60,yAxis: 6}]}},{name: '实际进度',type: 'bar',barGap: '-100%',barCategoryGap: '70%',/*多个并排柱子设置柱子之间的间距*/// barCateGoryGap:1, //关键第二句：值或为百分比 ‘60%’ ，如果同一类目下的柱间距：barGap:2itemStyle: {normal: {color: 'red',label: {formatter: "\n\n\实际进度",show: true,position: 'insideRight',textStyle: {fontSize: 9,fontFamily: 'Microsoft YaHei',fontStyle: 'normal',fontWeight: 'bold'}},}},data: [50, 60, 30, 50, 100, 40, 65],markPoint: {symbol:'path://M708.49298 138.982839l-140.580343-119.812792c-33.547582-25.560062-81.472699-25.560062-115.020281 0l-140.580344 119.812792c-17.572543 17.572543-20.767551 43.132605-4.792511 59.107645s43.132605 20.767551 59.107644 4.792511l102.24025-84.667706v862.652106c0 25.560062 17.572543 43.132605 43.132605 43.132605s43.132605-17.572543 43.132605-43.132605V123.0078l102.24025 84.667707c4.792512 4.792512 17.572543 7.98752 25.560062 7.98752 12.780031 0 25.560062-4.792512 33.547582-17.572543 12.780031-15.975039 12.780031-41.535101-7.987519-59.107645z',symbolKeepAspect: true,symbolSize: [10, 65],label: {position: "insideTop",// distance: 7,show: false},data: [{xAxis: 50,yAxis: 0},{xAxis: 60,yAxis: 1},{xAxis: 30,yAxis: 2},{xAxis: 50,yAxis: 3},{xAxis: 100,yAxis: 4},{xAxis: 40,yAxis: 5},{xAxis: 65,yAxis: 6}]}}]
}
