Revit二次开发-Ribbon插件制作

RibbonTab介绍

1. 创建项目

2. 添加引用

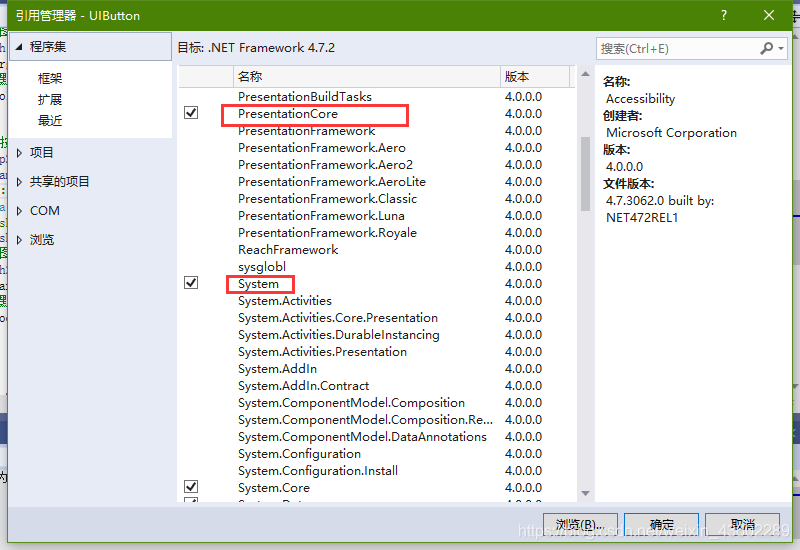

3添加制作位图需要添加的引用:PresentationCore、System.Xaml、WindowsBase

4. 创建类（选项版）`

   using System;
   using System.Collections.Generic;
   using System.Linq;
   using System.Text;
   using System.Threading.Tasks;
   using Autodesk.Revit.DB;
   using Autodesk.Revit.UI;
   using Autodesk.Revit.Attributes;using System.Windows.Media.Imaging;//需要添加引用:PresentationCore、    System.Xaml、WindowsBaseusing Autodesk.Revit.UI.Events;


namespace UIButton
{
[Transaction(TransactionMode.Manual)]
class IlluminationDesign :IExternalApplication
{
public Result OnShutdown(UIControlledApplication application)
{
return Result.Succeeded;
}
public Result OnStartup(UIControlledApplication application)
{
//【1】第一步：创建一个RibbonTab
application.CreateRibbonTab(“照明计算”);//new tab
//【2】第二步：在刚才的RibbonTab中创建 uIPanel
RibbonPanel rp = application.CreateRibbonPanel(“照明计算”, “选择光源”);
//【3】第三步：指定程序集的名称以及所使用的类名
string assemblyPath = @“D:\Desktop\VSdemo\UIButton\UIButton\bin\Debug\UIButton.dll”;
string classNameHelloRevit = “UIButton.HelloRevit”;
//【4】第四步：创建PushButton
PushButtonData pbd = new PushButtonData(“InnerNameRevit”, “灯具库”, assemblyPath, classNameHelloRevit);
//【4-1】将pushButton添加到面板中
PushButton pushButton = rp.AddItem(pbd) as PushButton;
//【4-2】添加图标
string imgPath = @“D:\Desktop\VSdemo\照明系统.png”;
pushButton.LargeImage = new BitmapImage(new Uri(imgPath));
//【4-3】设置默认信息
pushButton.ToolTip = “请选择合适的灯具”;

//【4-4】增加按钮
RibbonPanel rp2= application.CreateRibbonPanel(“照明计算”, “方案导出”);
string classNamefangan = “UIButton.fangan”;
//【4】第四步：创建PushButton
PushButtonData pbd2 = new PushButtonData(“InnerNameRevit”, “图纸和明细表”, assemblyPath, classNamefangan);
//【4-1】将pushButton添加到面板中
PushButton pushButton2 = rp2.AddItem(pbd2) as PushButton;
//【4-2】添加图标
string imgPath2 = @“D:\Desktop\VSdemo\明细表.png”;
pushButton2.LargeImage = new BitmapImage(new Uri(imgPath2));
//【4-3】设置默认信息
pushButton2.ToolTip = “生成图纸和明细表”;

return Result.Succeeded;
}
}
}`

5. 创建命令按钮`using Autodesk.Revit.Attributes;
   using Autodesk.Revit.DB;
   using Autodesk.Revit.UI;
   using System;
   using System.Collections.Generic;
   using System.Linq;
   using System.Text;
   using System.Threading.Tasks;

namespace UIButton
{
[Transaction(TransactionMode.Manual)]
public class HelloRevit : IExternalCommand
{

    public Result Execute(ExternalCommandData commandData, ref string message, ElementSet elements){//获取当前文档Document doc = commandData.Application.ActiveUIDocument.Document;//显示HelioworldTaskDialog.Show("提示","方案生成完毕");return Result.Succeeded;}}

}

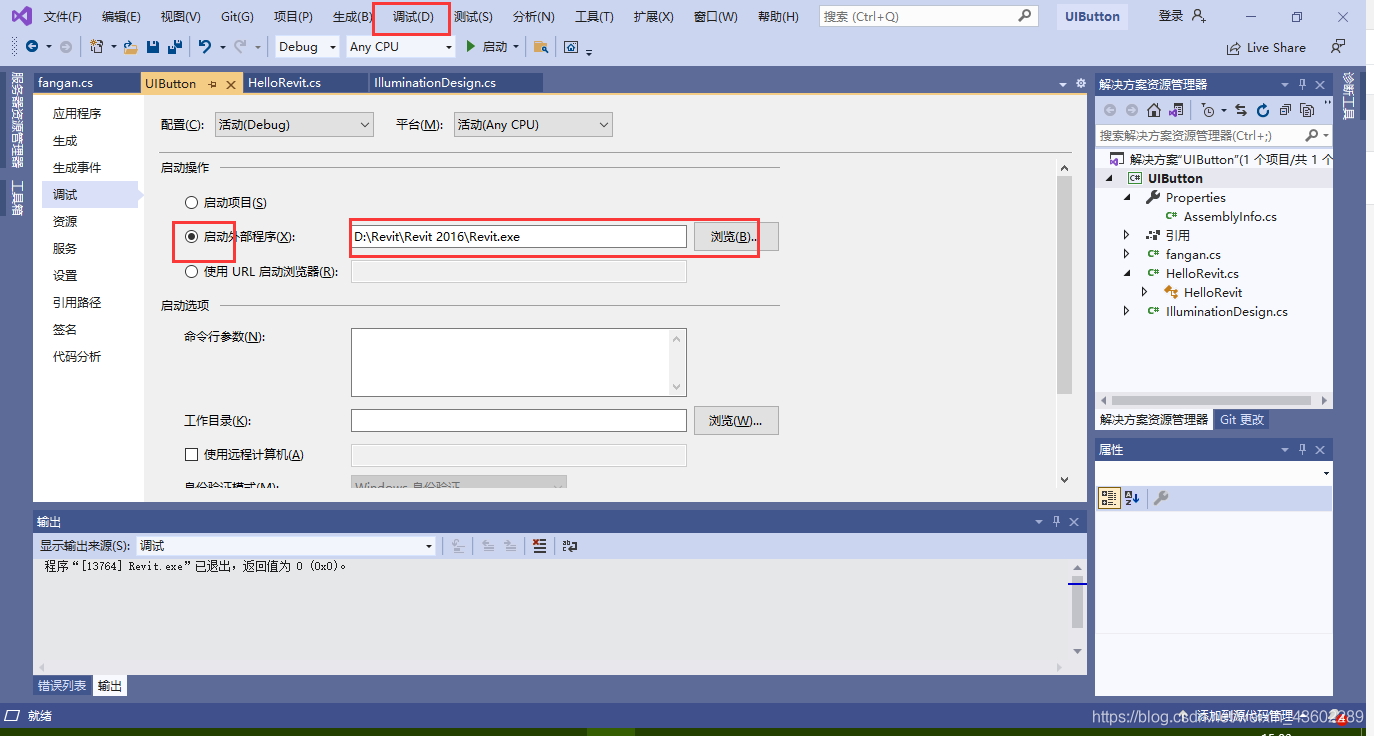

调试

• 打开revit，加载外部程序


  load创建的VS项目所在路径，点save，选择saved checked items to Addin folder
  此时C:\ProgramData\Autodesk\Revit\Addins\2014路径下产生.addin文件，复制进当前使用Revit版本下，我的是2016.


  再Load Applications
  添加刚刚的addin文件即可。（若显示没有文件，选择all files可见）
