Android P 系统启动-System Server启动篇

概述：

该篇章主要做了如下事情：

• 框架层最核心的服务System server的启动
• 启动系统管理服务SystemServiceManager
• 启动引导服务
• 启动核心服务
• 启动其他服务

代码路径：


/frameworks/base/core/java/com/android/internal/os/- ZygoteInit.java- RuntimeInit.java- Zygote.java/frameworks/base/core/services/java/com/android/server/- SystemServer.java/frameworks/base/core/jni/- com_android_internal_os_Zygote.cpp- AndroidRuntime.cpp/frameworks/base/cmds/app_process/App_main.cpp

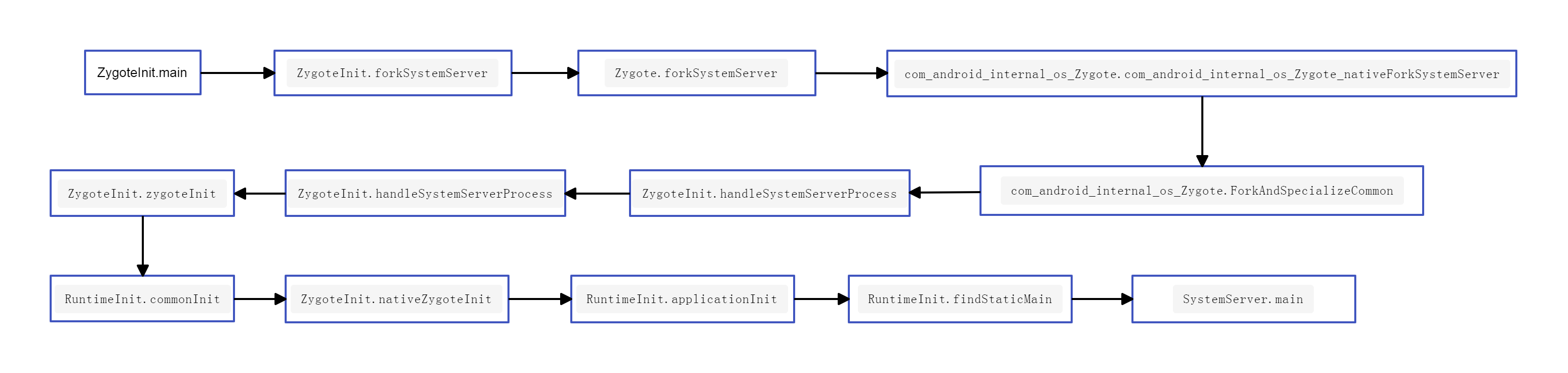

System Server启动流程图：

ZygoteInit.forkSystemServer

准备fork系统进程的参数

/*** Prepare the arguments and forks for the system server process.** Returns an {@code Runnable} that provides an entrypoint into system_server code in the* child process, and {@code null} in the parent.*/private static Runnable forkSystemServer(String abiList, String socketName,ZygoteServer zygoteServer) {long capabilities = posixCapabilitiesAsBits(OsConstants.CAP_IPC_LOCK,OsConstants.CAP_KILL,OsConstants.CAP_NET_ADMIN,OsConstants.CAP_NET_BIND_SERVICE,OsConstants.CAP_NET_BROADCAST,OsConstants.CAP_NET_RAW,OsConstants.CAP_SYS_MODULE,OsConstants.CAP_SYS_NICE,OsConstants.CAP_SYS_PTRACE,OsConstants.CAP_SYS_TIME,OsConstants.CAP_SYS_TTY_CONFIG,OsConstants.CAP_WAKE_ALARM,OsConstants.CAP_BLOCK_SUSPEND);/* Containers run without some capabilities, so drop any caps that are not available. */StructCapUserHeader header = new StructCapUserHeader(OsConstants._LINUX_CAPABILITY_VERSION_3, 0);//容器运行没有内容，就阻止一些无效的caps.StructCapUserData[] data;try {data = Os.capget(header);} catch (ErrnoException ex) {throw new RuntimeException("Failed to capget()", ex);}capabilities &= ((long) data[0].effective) | (((long) data[1].effective) << 32);/* Hardcoded command line to start the system server *///通过硬编码启动system serverString args[] = {"--setuid=1000","--setgid=1000","--setgroups=1001,1002,1003,1004,1005,1006,1007,1008,1009,1010,1018,1021,1023,1024,1032,1065,3001,3002,3003,3006,3007,3009,3010","--capabilities=" + capabilities + "," + capabilities,"--nice-name=system_server","--runtime-args","--target-sdk-version=" + VMRuntime.SDK_VERSION_CUR_DEVELOPMENT,"com.android.server.SystemServer",};ZygoteConnection.Arguments parsedArgs = null;int pid;try {parsedArgs = new ZygoteConnection.Arguments(args);ZygoteConnection.applyDebuggerSystemProperty(parsedArgs);ZygoteConnection.applyInvokeWithSystemProperty(parsedArgs);boolean profileSystemServer = SystemProperties.getBoolean("dalvik.vm.profilesystemserver", false);if (profileSystemServer) {parsedArgs.runtimeFlags |= Zygote.PROFILE_SYSTEM_SERVER;}/* Request to fork the system server process */pid = Zygote.forkSystemServer(parsedArgs.uid, parsedArgs.gid,parsedArgs.gids,parsedArgs.runtimeFlags,null,parsedArgs.permittedCapabilities,parsedArgs.effectiveCapabilities);} catch (IllegalArgumentException ex) {throw new RuntimeException(ex);}/* For child process *///启动system server子进程if (pid == 0) {if (hasSecondZygote(abiList)) {waitForSecondaryZygote(socketName);}zygoteServer.closeServerSocket();//处理system server 进程剩下的工作return handleSystemServerProcess(parsedArgs);}return null;}

com_android_internal_os_Zygote_nativeForkSystemServer

static jint com_android_internal_os_Zygote_nativeForkSystemServer(JNIEnv* env, jclass, uid_t uid, gid_t gid, jintArray gids,jint runtime_flags, jobjectArray rlimits, jlong permittedCapabilities,jlong effectiveCapabilities) {pid_t pid = ForkAndSpecializeCommon(env, uid, gid, gids,runtime_flags, rlimits,permittedCapabilities, effectiveCapabilities,MOUNT_EXTERNAL_DEFAULT, NULL, NULL, true, NULL,NULL, false, NULL, NULL);if (pid > 0) {// The zygote process checks whether the child process has died or not.//Zygote 经常检查子进程是否死亡ALOGI("System server process %d has been created", pid);gSystemServerPid = pid;// There is a slight window that the system server process has crashed// but it went unnoticed because we haven't published its pid yet. So// we recheck here just to make sure that all is well.//这有个system server已经奔溃的小窗口，但是它不通知，因为我们还没有发布它的pid，所以我们在这里重新检查确认好。int status;if (waitpid(pid, &status, WNOHANG) == pid) {ALOGE("System server process %d has died. Restarting Zygote!", pid);//当system server挂了，重启Zygote进程RuntimeAbort(env, __LINE__, "System server process has died. Restarting Zygote!");}bool low_ram_device = GetBoolProperty("ro.config.low_ram", false);bool per_app_memcg = GetBoolProperty("ro.config.per_app_memcg", low_ram_device);if (per_app_memcg) {// Assign system_server to the correct memory cgroup.// Not all devices mount /dev/memcg so check for the file first// to avoid unnecessarily printing errors and denials in the logs.if (!access("/dev/memcg/system/tasks", F_OK) &&!WriteStringToFile(StringPrintf("%d", pid), "/dev/memcg/system/tasks")) {......}}}return pid;
}

ForkAndSpecializeCommon

// Utility routine to fork zygote and specialize the child process.
static pid_t ForkAndSpecializeCommon(JNIEnv* env, uid_t uid, gid_t gid, jintArray javaGids,jint runtime_flags, jobjectArray javaRlimits,jlong permittedCapabilities, jlong effectiveCapabilities,jint mount_external,jstring java_se_info, jstring java_se_name,bool is_system_server, jintArray fdsToClose,jintArray fdsToIgnore, bool is_child_zygote,jstring instructionSet, jstring dataDir) {//设置子进程的signal信号处理函数SetSignalHandlers();......//fork pidpid_t pid = fork();if (pid == 0) {//预初始化AppPreApplicationInit();// Clean up any descriptors which must be closed immediately//关闭并清除文件描述符if (!DetachDescriptors(env, fdsToClose, &error_msg)) {fail_fn(error_msg);}......// If this zygote isn't root, it won't be able to create a process group,// since the directory is owned by root.if (!is_system_server && getuid() == 0) {//对于非system_server子进程，则创建进程组int rc = createProcessGroup(uid, getpid());......}//设置resg idint rc = setresgid(gid, gid, gid);......//设置res user IDrc = setresuid(uid, uid, uid);......// Make it easier to debug audit logs by setting the main thread's name to the// nice name rather than "app_process".if (se_name_c_str == NULL && is_system_server) {se_name_c_str = "system_server";}if (se_name_c_str != NULL) {//设置线程名为system_server，方便调试SetThreadName(se_name_c_str);}delete se_info;delete se_name;// Unset the SIGCHLD handler, but keep ignoring SIGHUP (rationale in SetSignalHandlers).//设置子进程的signal信号处理函数为默认函数UnsetChldSignalHandler();//等价于调用zygote.callPostForkChildHooks()env->CallStaticVoidMethod(gZygoteClass, gCallPostForkChildHooks, runtime_flags,is_system_server, is_child_zygote, instructionSet);......} else if (pid > 0) {// the parent process//进入父进程，即zygote进程......}}return pid;
}

在这里，从Zygote进程fork 出一个进程用于创建system server进程，system server进程创建好后，便执行ZygoteInit.handleSystemServerProcess来处理system server剩下的工作;

ZygoteInit.handleSystemServerProcess：

这个方法主要做了以下处理：

/*** Finish remaining work for the newly forked system server process.*/private static Runnable handleSystemServerProcess(ZygoteConnection.Arguments parsedArgs) {// set umask to 0077 so new files and directories will default to owner-only permissions.Os.umask(S_IRWXG | S_IRWXO);if (parsedArgs.niceName != null) {//设置当前进程名为"system_server"Process.setArgV0(parsedArgs.niceName);}final String systemServerClasspath = Os.getenv("SYSTEMSERVERCLASSPATH");if (systemServerClasspath != null) {//执行dex优化操作performSystemServerDexOpt(systemServerClasspath);// Capturing profiles is only supported for debug or eng builds since selinux normally// prevents it.boolean profileSystemServer = SystemProperties.getBoolean("dalvik.vm.profilesystemserver", false);if (profileSystemServer && (Build.IS_USERDEBUG || Build.IS_ENG)) {try {//准备system server配置prepareSystemServerProfile(systemServerClasspath);} catch (Exception e) {Log.wtf(TAG, "Failed to set up system server profile", e);}}}if (parsedArgs.invokeWith != null) {String[] args = parsedArgs.remainingArgs;// If we have a non-null system server class path, we'll have to duplicate the// existing arguments and append the classpath to it. ART will handle the classpath//ART将处理现有的参数附加上classpath。// correctly when we exec a new process.if (systemServerClasspath != null) {String[] amendedArgs = new String[args.length + 2];amendedArgs[0] = "-cp";amendedArgs[1] = systemServerClasspath;System.arraycopy(args, 0, amendedArgs, 2, args.length);args = amendedArgs;}//启动应用进程WrapperInit.execApplication(parsedArgs.invokeWith,parsedArgs.niceName, parsedArgs.targetSdkVersion,VMRuntime.getCurrentInstructionSet(), null, args);throw new IllegalStateException("Unexpected return from WrapperInit.execApplication");} else {ClassLoader cl = null;if (systemServerClasspath != null) {// 创建类加载器，并赋予当前线程cl = createPathClassLoader(systemServerClasspath, parsedArgs.targetSdkVersion);Thread.currentThread().setContextClassLoader(cl);}/** Pass the remaining arguments to SystemServer.*///system_server故进入此分支return ZygoteInit.zygoteInit(parsedArgs.targetSdkVersion, parsedArgs.remainingArgs, cl);}}

ZygoteInit.zygoteInit

public static final Runnable zygoteInit(int targetSdkVersion, String[] argv, ClassLoader classLoader) {......//重新打开android log中的System.out and System.errRuntimeInit.redirectLogStreams();//初始化时间、时区、HTTP User-agent格式，logmanager复位。RuntimeInit.commonInit();//zygote的初始化ZygoteInit.nativeZygoteInit();//应用的初始化return RuntimeInit.applicationInit(targetSdkVersion, argv, classLoader);}

RuntimeInit.commonInit

protected static final void commonInit() {/** set handlers; these apply to all threads in the VM. Apps can replace* the default handler, but not the pre handler.*///设置未捕获异常handlerLoggingHandler loggingHandler = new LoggingHandler();Thread.setUncaughtExceptionPreHandler(loggingHandler);Thread.setDefaultUncaughtExceptionHandler(new KillApplicationHandler(loggingHandler));/** Install a TimezoneGetter subclass for ZoneInfo.db*///设置时区TimezoneGetter.setInstance(new TimezoneGetter() {@Overridepublic String getId() {return SystemProperties.get("persist.sys.timezone");}});TimeZone.setDefault(null);/** Sets handler for java.util.logging to use Android log facilities.* The odd "new instance-and-then-throw-away" is a mirror of how* the "java.util.logging.config.class" system property works. We* can't use the system property here since the logger has almost* certainly already been initialized.*/LogManager.getLogManager().reset();重置lognew AndroidConfig();/** Sets the default HTTP User-Agent used by HttpURLConnection.*/设置userAgent格式String userAgent = getDefaultUserAgent();System.setProperty("http.agent", userAgent);/** Wire socket tagging to traffic stats.*/// 设置socket的tag，用于网络流量统计NetworkManagementSocketTagger.install();......initialized = true;}

app_main::onZygoteInit

    virtual void onZygoteInit(){sp proc = ProcessState::self();ALOGV("App process: starting thread pool.\n");//启动binder线程池proc->startThreadPool();}

ProcessState::startThreadPool

void ProcessState::startThreadPool()
{AutoMutex _l(mLock);if (!mThreadPoolStarted) {mThreadPoolStarted = true;if (mSpawnThreadOnStart) {//生成主线程spawnPooledThread(true);}}
}

ProcessState::spawnPooledThread

void ProcessState::spawnPooledThread(bool isMain)
{if (mThreadPoolStarted) {String8 name = makeBinderThreadName();ALOGV("Spawning new pooled thread, name=%s\n", name.string());//创建线程实例对象sp t = new PoolThread(isMain);//线程T 执行run。t->run(name.string());}
}

RuntimeInit.applicationInit

    protected static Runnable applicationInit(int targetSdkVersion, String[] argv,ClassLoader classLoader) {// If the application calls System.exit(), terminate the process// immediately without running any shutdown hooks.  It is not possible to// shutdown an Android application gracefully.  Among other things, the// Android runtime shutdown hooks close the Binder driver, which can cause// leftover running threads to crash before the process actually exits.//true代表应用程序退出时不调用AppRuntime.onExit()，否则会在退出前调用nativeSetExitWithoutCleanup(true);// We want to be fairly aggressive about heap utilization, to avoid// holding on to a lot of memory that isn't needed.//设置虚拟机的内存利用率参数值为0.75VMRuntime.getRuntime().setTargetHeapUtilization(0.75f);VMRuntime.getRuntime().setTargetSdkVersion(targetSdkVersion);//解析参数final Arguments args = new Arguments(argv);// The end of of the RuntimeInit event (see #zygoteInit).Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);/*通过反射方法findStaticMain，调用startClass的static方法 main()， 此处args.startClass为”com.android.server.SystemServer”*/// Remaining arguments are passed to the start class's static mainreturn findStaticMain(args.startClass, args.startArgs, classLoader);}

SystemServer.main

public static void main(String[] args) {//执行system server run 方法new SystemServer().run();}

SystemServer().run

    private void run() {try {......//当前时间如果小于1970年，就将当前时间设置为1970年if (System.currentTimeMillis() < EARLIEST_SUPPORTED_TIME) {Slog.w(TAG, "System clock is before 1970; setting to 1970.");SystemClock.setCurrentTimeMillis(EARLIEST_SUPPORTED_TIME);}//// Default the timezone property to GMT if not set.//默认时区从系统属性persist.sys.timezone获得String timezoneProperty =  SystemProperties.get("persist.sys.timezone");if (timezoneProperty == null || timezoneProperty.isEmpty()) {Slog.w(TAG, "Timezone not set; setting to GMT.");//如果系统属性persist.sys.timezone是null的，就设置persist.sys.timezone默认值为GMT。SystemProperties.set("persist.sys.timezone", "GMT");}......//设置地区语言，语言，国家，地区if (!SystemProperties.get("persist.sys.language").isEmpty()) {final String languageTag = Locale.getDefault().toLanguageTag();SystemProperties.set("persist.sys.locale", languageTag);SystemProperties.set("persist.sys.language", "");SystemProperties.set("persist.sys.country", "");SystemProperties.set("persist.sys.localevar", "");}// The system server should never make non-oneway calls//如果binder通信阻塞就发出警告Binder.setWarnOnBlocking(true);// The system server should always load safe labels//为system server增加安全标签PackageItemInfo.setForceSafeLabels(true);// Default to FULL within the system server.//system server 全局sql默认全同步SQLiteGlobal.sDefaultSyncMode = SQLiteGlobal.SYNC_MODE_FULL;// Deactivate SQLiteCompatibilityWalFlags until settings provider is initialized//SQL初始化好后才能使用SQLiteCompatibilityWalFlags.init(null);......// In case the runtime switched since last boot (such as when// the old runtime was removed in an OTA), set the system// property so that it is in sync. We can | xq oqi't do this in// libnativehelper's JniInvocation::Init code where we already// had to fallback to a different runtime because it is// running as root and we need to be the system user to set// the property. http://b/11463182//如果发生OTA，同步系统属性。SystemProperties.set("persist.sys.dalvik.vm.lib.2", VMRuntime.getRuntime().vmLibrary());// Mmmmmm... more memory!//清除内存增长上限，因为启动过程需要很多内存空间VMRuntime.getRuntime().clearGrowthLimit();// The system server has to run all of the time, so it needs to be// as efficient as possible with its memory usage.//设置内存的可能有效使用率为0.8VMRuntime.getRuntime().setTargetHeapUtilization(0.8f);// Some devices rely on runtime fingerprint generation, so make sure// we've defined it before booting further.// 针对部分设备依赖于运行时就产生指纹信息，因此需要在开机完成前已经定义Build.ensureFingerprintProperty();// Within the system server, it is an error to access Environment paths without// explicitly specifying a user.//访问环境变量前，需要明确地指定用户Environment.setUserRequired(true);// Within the system server, any incoming Bundles should be defused// to avoid throwing BadParcelableException.BaseBundle.setShouldDefuse(true);// Within the system server, when parceling exceptions, include the stack trace//默认是会进行stack trace 打包的。Parcel.setStackTraceParceling(true);// Ensure binder calls into the system always run at foreground priority.//确保当前系统进程的binder调用，总是运行在前台优先级(foreground priority)BinderInternal.disableBackgroundScheduling(true);// Increase the number of binder threads in system_server设置system server最大binder线程数量上限。BinderInternal.setMaxThreads(sMaxBinderThreads);// Prepare the main looper thread (this thread).// 主线程looper就在当前线程运行android.os.Process.setThreadPriority(android.os.Process.THREAD_PRIORITY_FOREGROUND);android.os.Process.setCanSelfBackground(false);Looper.prepareMainLooper();Looper.getMainLooper().setSlowLogThresholdMs(SLOW_DISPATCH_THRESHOLD_MS, SLOW_DELIVERY_THRESHOLD_MS);// Initialize native services./加载android_servers.so库，该库包含的源码在frameworks/base/services/目录下System.loadLibrary("android_servers");// Check whether we failed to shut down last time we tried.// This call may not return.//检测上次关机过程是否失败，该方法可能不会返回performPendingShutdown();// Initialize the system context.//创建system 上下文createSystemContext();// Create the system service manager.//创建SystemServiceManagermSystemServiceManager = new SystemServiceManager(mSystemContext);mSystemServiceManager.setStartInfo(mRuntimeRestart,mRuntimeStartElapsedTime, mRuntimeStartUptime);//将mSystemServiceManager添加到本地服务的成员sLocalServiceObjectsLocalServices.addService(SystemServiceManager.class, mSystemServiceManager);// Prepare the thread pool for init tasks that can be parallelized//在system server init期间并行初始化 线程池；SystemServerInitThreadPool.get();} finally {......}// Start services.// 启动各种服务try {//启动引导服务startBootstrapServices();//启动核心服务startCoreServices();//启动其他服务startOtherServices();//SystemServerInitThreadPool关闭SystemServerInitThreadPool.shutdown();} catch (Throwable ex) {throw ex;} finally {}//严苛模式初始化配置StrictMode.initVmDefaults(null);......// Loop forever.//进入looper循环Looper.loop();throw new RuntimeException("Main thread loop unexpectedly exited");}

SystemServer.performPendingShutdown

private void performPendingShutdown() {//获取关机活动属性final String shutdownAction = SystemProperties.get(ShutdownThread.SHUTDOWN_ACTION_PROPERTY, "");if (shutdownAction != null && shutdownAction.length() > 0) {boolean reboot = (shutdownAction.charAt(0) == '1');final String reason;//截取出关机原因if (shutdownAction.length() > 1) {reason = shutdownAction.substring(1, shutdownAction.length());} else {reason = null;}// If it's a pending reboot into recovery to apply an update,// always make sure uncrypt gets executed properly when needed.// If '/cache/recovery/block.map' hasn't been created, stop the// reboot which will fail for sure, and get a chance to capture a// bugreport when that's still feasible. (Bug: 26444951)//if (reason != null && reason.startsWith(PowerManager.REBOOT_RECOVERY_UPDATE)) {File packageFile = new File(UNCRYPT_PACKAGE_FILE);if (packageFile.exists()) {String filename = null;try {filename = FileUtils.readTextFile(packageFile, 0, null);} catch (IOException e) {Slog.e(TAG, "Error reading uncrypt package file", e);}if (filename != null && filename.startsWith("/data")) {if (!new File(BLOCK_MAP_FILE).exists()) {Slog.e(TAG, "Can't find block map file, uncrypt failed or " +"unexpected runtime restart?");return;}}}}//关机原因不为空并且不是REBOOT_RECOVERY_UPDATE就执行关机或者重启Runnable runnable = new Runnable() {@Overridepublic void run() {synchronized (this) {ShutdownThread.rebootOrShutdown(null, reboot, reason);}}};// ShutdownThread must run on a looper capable of displaying the UI.Message msg = Message.obtain(UiThread.getHandler(), runnable);msg.setAsynchronous(true);UiThread.getHandler().sendMessage(msg);}}

SystemServer.createSystemContext

private void createSystemContext() {//创建上下文ActivityThread activityThread = ActivityThread.systemMain();mSystemContext = activityThread.getSystemContext();mSystemContext.setTheme(DEFAULT_SYSTEM_THEME);//设置默认主题final Context systemUiContext = activityThread.getSystemUiContext();systemUiContext.setTheme(DEFAULT_SYSTEM_THEME);}

createSystemContext这个过程会创建对象有ActivityThread，Instrumentation, ContextImpl，LoadedApk，Application；

SystemServer.startBootstrapServices

    private void startBootstrapServices() {//初始化系统配置实例对象SystemServerInitThreadPool.get().submit(SystemConfig::getInstance, TAG_SYSTEM_CONFIG);// MUST be very earlyString ioCtlOpen = SystemProperties.get("persist.sys.ioctl.enable");if (ioCtlOpen == null || ioCtlOpen.isEmpty()) {SystemProperties.set("persist.sys.ioctl.enable", "true");}......//阻塞等待与installd建立socket通道Installer installer = mSystemServiceManager.startService(Installer.class);......//启动DeviceIdentifiersPolicyServicemSystemServiceManager.startService(DeviceIdentifiersPolicyService.class);//启动ActivityManagerServicemActivityManagerService = mSystemServiceManager.startService(ActivityManagerService.Lifecycle.class).getService();mActivityManagerService.setSystemServiceManager(mSystemServiceManager);mActivityManagerService.setInstaller(installer);//启动PowerManagerServicemPowerManagerService = mSystemServiceManager.startService(PowerManagerService.class);// Now that the power manager has been started, let the activity manager// initialize power management features.mActivityManagerService.initPowerManagement();//启动RecoverySystemServicemSystemServiceManager.startService(RecoverySystemService.class);//如果有循环重启就启动救援机制RescueParty.noteBoot(mSystemContext);//启动LightsServicemSystemServiceManager.startService(LightsService.class);//启动DisplayManagerServicemDisplayManagerService = mSystemServiceManager.startService(DisplayManagerService.class);//Phase100: 在初始化package manager之前，需要默认的显示.mSystemServiceManager.startBootPhase(SystemService.PHASE_WAIT_FOR_DEFAULT_DISPLAY);traceEnd();//当设备正在加密时，仅运行核心String cryptState = SystemProperties.get("vold.decrypt");if (ENCRYPTING_STATE.equals(cryptState)) {Slog.w(TAG, "Detected encryption in progress - only parsing core apps");mOnlyCore = true;} else if (ENCRYPTED_STATE.equals(cryptState)) {Slog.w(TAG, "Device encrypted - only parsing core apps");mOnlyCore = true;}//启动服务PackageManagerServicemPackageManagerService = PackageManagerService.main(mSystemContext, installer,mFactoryTestMode != FactoryTest.FACTORY_TEST_OFF, mOnlyCore);mFirstBoot = mPackageManagerService.isFirstBoot();mPackageManager = mSystemContext.getPackageManager();if (!mRuntimeRestart && !isFirstBootOrUpgrade()) {.......}//启动UserManagerServicemSystemServiceManager.startService(UserManagerService.LifeCycle.class);// Initialize attribute cache used to cache resources from packages.//用应用的缓存资源初始化缓存参数AttributeCache.init(mSystemContext);mActivityManagerService.setSystemProcess();// DisplayManagerService needs to setup android.display scheduling related policies// since setSystemProcess() would have overridden policies due to setProcessGroup//建立显示机制，setSystemProcess可以覆盖策略mDisplayManagerService.setupSchedulerPolicies();// Manages Overlay packages//管理overlay 包OverlayManagerService overlayManagerService = new OverlayManagerService(mSystemContext, installer);mSystemServiceManager.startService(overlayManagerService);if (SystemProperties.getInt("persist.sys.displayinset.top", 0) > 0) {// DisplayManager needs the overlay immediately.//需要叠加显示overlayManagerService.updateSystemUiContext();LocalServices.getService(DisplayManagerInternal.class).onOverlayChanged();}// The sensor service needs access to package manager service, app ops// service, and permissions service, therefore we start it after them.// Start sensor service in a separate thread. Completion should be checked// before using it.//启动 sensor servermSensorServiceStart = SystemServerInitThreadPool.get().submit(() -> {startSensorService();}, START_SENSOR_SERVICE);}

SystemServer.startCoreServices

    private void startCoreServices() {//启动电池服务mSystemServiceManager.startService(BatteryService.class);//启动流量统计服务mSystemServiceManager.startService(UsageStatsService.class);mActivityManagerService.setUsageStatsManager(LocalServices.getService(UsageStatsManagerInternal.class));if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_WEBVIEW)) {//启动webviewmWebViewUpdateService = mSystemServiceManager.startService(WebViewUpdateService.class);}//启动BinderCallsStatsService BinderCallsStatsService.start();}

SystemServer.startOtherServices

/*** Starts a miscellaneous grab bag of stuff that has yet to be refactored* and organized.*/private void startOtherServices() {......// For debugging RescueParty//用于救援机制调试if (Build.IS_DEBUGGABLE && SystemProperties.getBoolean("debug.crash_system", false)) {throw new RuntimeException();}try {final String SECONDARY_ZYGOTE_PRELOAD = "SecondaryZygotePreload";//第二次Zygote proloadmZygotePreload = SystemServerInitThreadPool.get().submit(() -> {try {if (!Process.zygoteProcess.preloadDefault(Build.SUPPORTED_32_BIT_ABIS[0])) {Slog.e(TAG, "Unable to preload default resources");}} catch (Exception ex) {}}, SECONDARY_ZYGOTE_PRELOAD);//该服务根据UID提供应用描述信息。ServiceManager.addService("sec_key_att_app_id_provider",new KeyAttestationApplicationIdProviderService(context));//该服务是替换KeyChain提供存储凭证的私钥。mSystemServiceManager.startService(KeyChainSystemService.class);//启动执行策略服务ServiceManager.addService("scheduling_policy", new SchedulingPolicyService());......//resolvermContentResolver = context.getContentResolver();//providermActivityManagerService.installSystemProviders();// Now that SettingsProvider is ready, reactivate SQLiteCompatibilityWalFlagsSQLiteCompatibilityWalFlags.reset();traceEnd();// Records errors and logs, for example wtf()// Currently this service indirectly depends on SettingsProvider so do this after// InstallSystemProviders.traceBeginAndSlog("StartDropBoxManager");mSystemServiceManager.startService(DropBoxManagerService.class);traceEnd();traceBeginAndSlog("StartVibratorService");vibrator = new VibratorService(context);ServiceManager.addService("vibrator", vibrator);traceEnd();if (!isWatch) {traceBeginAndSlog("StartConsumerIrService");consumerIr = new ConsumerIrService(context);ServiceManager.addService(Context.CONSUMER_IR_SERVICE, consumerIr);traceEnd();}traceBeginAndSlog("StartAlarmManagerService");mSystemServiceManager.startService(AlarmManagerService.class);traceEnd();traceBeginAndSlog("InitWatchdog");final Watchdog watchdog = Watchdog.getInstance();watchdog.init(context, mActivityManagerService);traceEnd();traceBeginAndSlog("StartInputManagerService");inputManager = new InputManagerService(context);traceEnd();traceBeginAndSlog("StartWindowManagerService");// WMS needs sensor service readyConcurrentUtils.waitForFutureNoInterrupt(mSensorServiceStart, START_SENSOR_SERVICE);mSensorServiceStart = null;wm = WindowManagerService.main(context, inputManager,mFactoryTestMode != FactoryTest.FACTORY_TEST_LOW_LEVEL,!mFirstBoot, mOnlyCore, new PhoneWindowManager());ServiceManager.addService(Context.WINDOW_SERVICE, wm, /* allowIsolated= */ false,DUMP_FLAG_PRIORITY_CRITICAL | DUMP_FLAG_PROTO);ServiceManager.addService(Context.INPUT_SERVICE, inputManager,/* allowIsolated= */ false, DUMP_FLAG_PRIORITY_CRITICAL);traceEnd();traceBeginAndSlog("SetWindowManagerService");mActivityManagerService.setWindowManager(wm);traceEnd();traceBeginAndSlog("WindowManagerServiceOnInitReady");wm.onInitReady();traceEnd();// Start receiving calls from HIDL services. Start in in a separate thread// because it need to connect to SensorManager. This have to start// after START_SENSOR_SERVICE is done.SystemServerInitThreadPool.get().submit(() -> {TimingsTraceLog traceLog = new TimingsTraceLog(SYSTEM_SERVER_TIMING_ASYNC_TAG, Trace.TRACE_TAG_SYSTEM_SERVER);traceLog.traceBegin(START_HIDL_SERVICES);startHidlServices();traceLog.traceEnd();}, START_HIDL_SERVICES);if (!isWatch && enableVrService) {traceBeginAndSlog("StartVrManagerService");mSystemServiceManager.startService(VrManagerService.class);traceEnd();}traceBeginAndSlog("StartInputManager");inputManager.setWindowManagerCallbacks(wm.getInputMonitor());inputManager.start();traceEnd();// TODO: Use service dependencies instead.traceBeginAndSlog("DisplayManagerWindowManagerAndInputReady");mDisplayManagerService.windowManagerAndInputReady();traceEnd();// Skip Bluetooth if we have an emulator kernel// TODO: Use a more reliable check to see if this product should// support Bluetooth - see bug 988521if (isEmulator) {Slog.i(TAG, "No Bluetooth Service (emulator)");} else if (mFactoryTestMode == FactoryTest.FACTORY_TEST_LOW_LEVEL) {Slog.i(TAG, "No Bluetooth Service (factory test)");} else if (!context.getPackageManager().hasSystemFeature(PackageManager.FEATURE_BLUETOOTH)) {Slog.i(TAG, "No Bluetooth Service (Bluetooth Hardware Not Present)");} else {traceBeginAndSlog("StartBluetoothService");mSystemServiceManager.startService(BluetoothService.class);traceEnd();}traceBeginAndSlog("IpConnectivityMetrics");mSystemServiceManager.startService(IpConnectivityMetrics.class);traceEnd();traceBeginAndSlog("NetworkWatchlistService");mSystemServiceManager.startService(NetworkWatchlistService.Lifecycle.class);traceEnd();traceBeginAndSlog("PinnerService");mSystemServiceManager.startService(PinnerService.class);traceEnd();} catch (RuntimeException e) {Slog.e("System", "******************************************");Slog.e("System", "************ Failure starting core service", e);}StatusBarManagerService statusBar = null;INotificationManager notification = null;LocationManagerService location = null;CountryDetectorService countryDetector = null;ILockSettings lockSettings = null;MediaRouterService mediaRouter = null;// Bring up services needed for UI.if (mFactoryTestMode != FactoryTest.FACTORY_TEST_LOW_LEVEL) {traceBeginAndSlog("StartInputMethodManagerLifecycle");mSystemServiceManager.startService(InputMethodManagerService.Lifecycle.class);traceEnd();traceBeginAndSlog("StartAccessibilityManagerService");try {ServiceManager.addService(Context.ACCESSIBILITY_SERVICE,new AccessibilityManagerService(context));} catch (Throwable e) {reportWtf("starting Accessibility Manager", e);}traceEnd();}traceBeginAndSlog("MakeDisplayReady");try {wm.displayReady();} catch (Throwable e) {reportWtf("making display ready", e);}traceEnd();if (mFactoryTestMode != FactoryTest.FACTORY_TEST_LOW_LEVEL) {if (!"0".equals(SystemProperties.get("system_init.startmountservice"))) {traceBeginAndSlog("StartStorageManagerService");try {/** NotificationManagerService is dependant on StorageManagerService,* (for media / usb notifications) so we must start StorageManagerService first.*/mSystemServiceManager.startService(STORAGE_MANAGER_SERVICE_CLASS);storageManager = IStorageManager.Stub.asInterface(ServiceManager.getService("mount"));} catch (Throwable e) {reportWtf("starting StorageManagerService", e);}traceEnd();traceBeginAndSlog("StartStorageStatsService");try {mSystemServiceManager.startService(STORAGE_STATS_SERVICE_CLASS);} catch (Throwable e) {reportWtf("starting StorageStatsService", e);}traceEnd();}}// We start this here so that we update our configuration to set watch or television// as appropriate.traceBeginAndSlog("StartUiModeManager");mSystemServiceManager.startService(UiModeManagerService.class);traceEnd();if (!mOnlyCore) {traceBeginAndSlog("UpdatePackagesIfNeeded");try {mPackageManagerService.updatePackagesIfNeeded();} catch (Throwable e) {reportWtf("update packages", e);}traceEnd();}traceBeginAndSlog("PerformFstrimIfNeeded");try {mPackageManagerService.performFstrimIfNeeded();} catch (Throwable e) {reportWtf("performing fstrim", e);}traceEnd();if (mFactoryTestMode != FactoryTest.FACTORY_TEST_LOW_LEVEL) {traceBeginAndSlog("StartOvumOvulationService");try {mOvumOvulationService = mSystemServiceManager.startService(OvumOvulationService.class);mOvumOvulationService.setActivityManager(mActivityManagerService);} catch (Throwable e) {reportWtf("starting OvumOvulationService", e);}traceEnd();traceBeginAndSlog("StartLockSettingsService");try {mSystemServiceManager.startService(LOCK_SETTINGS_SERVICE_CLASS);lockSettings = ILockSettings.Stub.asInterface(ServiceManager.getService("lock_settings"));} catch (Throwable e) {reportWtf("starting LockSettingsService service", e);}traceEnd();final boolean hasPdb = !SystemProperties.get(PERSISTENT_DATA_BLOCK_PROP).equals("");if (hasPdb) {traceBeginAndSlog("StartPersistentDataBlock");mSystemServiceManager.startService(PersistentDataBlockService.class);traceEnd();}if (hasPdb || OemLockService.isHalPresent()) {// Implementation depends on pdb or the OemLock HALtraceBeginAndSlog("StartOemLockService");mSystemServiceManager.startService(OemLockService.class);traceEnd();}traceBeginAndSlog("StartDeviceIdleController");mSystemServiceManager.startService(DeviceIdleController.class);traceEnd();// Always start the Device Policy Manager, so that the API is compatible with// API8.traceBeginAndSlog("StartDevicePolicyManager");mSystemServiceManager.startService(DevicePolicyManagerService.Lifecycle.class);traceEnd();if (!isWatch) {traceBeginAndSlog("StartStatusBarManagerService");try {statusBar = new StatusBarManagerService(context, wm);ServiceManager.addService(Context.STATUS_BAR_SERVICE, statusBar);} catch (Throwable e) {reportWtf("starting StatusBarManagerService", e);}traceEnd();}traceBeginAndSlog("StartClipboardService");mSystemServiceManager.startService(ClipboardService.class);traceEnd();traceBeginAndSlog("StartNetworkManagementService");try {networkManagement = NetworkManagementService.create(context);ServiceManager.addService(Context.NETWORKMANAGEMENT_SERVICE, networkManagement);} catch (Throwable e) {reportWtf("starting NetworkManagement Service", e);}traceEnd();traceBeginAndSlog("StartIpSecService");try {ipSecService = IpSecService.create(context);ServiceManager.addService(Context.IPSEC_SERVICE, ipSecService);} catch (Throwable e) {reportWtf("starting IpSec Service", e);}traceEnd();traceBeginAndSlog("StartTextServicesManager");mSystemServiceManager.startService(TextServicesManagerService.Lifecycle.class);traceEnd();if (!disableSystemTextClassifier) {traceBeginAndSlog("StartTextClassificationManagerService");mSystemServiceManager.startService(TextClassificationManagerService.Lifecycle.class);traceEnd();}traceBeginAndSlog("StartNetworkScoreService");mSystemServiceManager.startService(NetworkScoreService.Lifecycle.class);traceEnd();traceBeginAndSlog("StartNetworkStatsService");try {networkStats = NetworkStatsService.create(context, networkManagement);ServiceManager.addService(Context.NETWORK_STATS_SERVICE, networkStats);} catch (Throwable e) {reportWtf("starting NetworkStats Service", e);}traceEnd();traceBeginAndSlog("StartNetworkPolicyManagerService");try {networkPolicy = new NetworkPolicyManagerService(context, mActivityManagerService,networkManagement);ServiceManager.addService(Context.NETWORK_POLICY_SERVICE, networkPolicy);} catch (Throwable e) {reportWtf("starting NetworkPolicy Service", e);}traceEnd();if (!mOnlyCore) {if (context.getPackageManager().hasSystemFeature(PackageManager.FEATURE_WIFI)) {// Wifi Service must be started first for wifi-related services.traceBeginAndSlog("StartWifi");mSystemServiceManager.startService(WIFI_SERVICE_CLASS);traceEnd();traceBeginAndSlog("StartWifiScanning");mSystemServiceManager.startService("com.android.server.wifi.scanner.WifiScanningService");traceEnd();}if (context.getPackageManager().hasSystemFeature(PackageManager.FEATURE_WIFI_RTT)) {traceBeginAndSlog("StartRttService");mSystemServiceManager.startService("com.android.server.wifi.rtt.RttService");traceEnd();}if (context.getPackageManager().hasSystemFeature(PackageManager.FEATURE_WIFI_AWARE)) {traceBeginAndSlog("StartWifiAware");mSystemServiceManager.startService(WIFI_AWARE_SERVICE_CLASS);traceEnd();}if (context.getPackageManager().hasSystemFeature(PackageManager.FEATURE_WIFI_DIRECT)) {traceBeginAndSlog("StartWifiP2P");mSystemServiceManager.startService(WIFI_P2P_SERVICE_CLASS);traceEnd();}if (context.getPackageManager().hasSystemFeature(PackageManager.FEATURE_LOWPAN)) {traceBeginAndSlog("StartLowpan");mSystemServiceManager.startService(LOWPAN_SERVICE_CLASS);traceEnd();}}if (enableWigig) {try {Slog.i(TAG, "Wigig Service");String wigigClassPath ="/system/framework/wigig-service.jar" + ":" +"/system/framework/vendor.qti.hardware.wigig.supptunnel-V1.0-java.jar" + ":" +"/system/framework/vendor.qti.hardware.wigig.netperftuner-V1.0-java.jar";PathClassLoader wigigClassLoader =new PathClassLoader(wigigClassPath, getClass().getClassLoader());Class wigigP2pClass = wigigClassLoader.loadClass("com.qualcomm.qti.server.wigig.p2p.WigigP2pServiceImpl");Constructor ctor = wigigP2pClass.getConstructor(Context.class);wigigP2pService = ctor.newInstance(context);Slog.i(TAG, "Successfully loaded WigigP2pServiceImpl class");ServiceManager.addService("wigigp2p", (IBinder) wigigP2pService);Class wigigClass = wigigClassLoader.loadClass("com.qualcomm.qti.server.wigig.WigigService");ctor = wigigClass.getConstructor(Context.class);wigigService = ctor.newInstance(context);Slog.i(TAG, "Successfully loaded WigigService class");ServiceManager.addService("wigig", (IBinder) wigigService);} catch (Throwable e) {reportWtf("starting WigigService", e);}}if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_ETHERNET) ||mPackageManager.hasSystemFeature(PackageManager.FEATURE_USB_HOST)) {traceBeginAndSlog("StartEthernet");mSystemServiceManager.startService(ETHERNET_SERVICE_CLASS);traceEnd();}traceBeginAndSlog("StartConnectivityService");try {connectivity = new ConnectivityService(context, networkManagement, networkStats, networkPolicy);ServiceManager.addService(Context.CONNECTIVITY_SERVICE, connectivity,/* allowIsolated= */ false,DUMP_FLAG_PRIORITY_HIGH | DUMP_FLAG_PRIORITY_NORMAL);networkStats.bindConnectivityManager(connectivity);networkPolicy.bindConnectivityManager(connectivity);} catch (Throwable e) {reportWtf("starting Connectivity Service", e);}traceEnd();traceBeginAndSlog("StartNsdService");try {serviceDiscovery = NsdService.create(context);ServiceManager.addService(Context.NSD_SERVICE, serviceDiscovery);} catch (Throwable e) {reportWtf("starting Service Discovery Service", e);}traceEnd();traceBeginAndSlog("StartSystemUpdateManagerService");try {ServiceManager.addService(Context.SYSTEM_UPDATE_SERVICE,new SystemUpdateManagerService(context));} catch (Throwable e) {reportWtf("starting SystemUpdateManagerService", e);}traceEnd();traceBeginAndSlog("StartUpdateLockService");try {ServiceManager.addService(Context.UPDATE_LOCK_SERVICE,new UpdateLockService(context));} catch (Throwable e) {reportWtf("starting UpdateLockService", e);}traceEnd();traceBeginAndSlog("StartNotificationManager");mSystemServiceManager.startService(NotificationManagerService.class);SystemNotificationChannels.createAll(context);notification = INotificationManager.Stub.asInterface(ServiceManager.getService(Context.NOTIFICATION_SERVICE));traceEnd();traceBeginAndSlog("StartDeviceMonitor");mSystemServiceManager.startService(DeviceStorageMonitorService.class);traceEnd();traceBeginAndSlog("StartLocationManagerService");try {location = new LocationManagerService(context);ServiceManager.addService(Context.LOCATION_SERVICE, location);} catch (Throwable e) {reportWtf("starting Location Manager", e);}traceEnd();traceBeginAndSlog("StartCountryDetectorService");try {countryDetector = new CountryDetectorService(context);ServiceManager.addService(Context.COUNTRY_DETECTOR, countryDetector);} catch (Throwable e) {reportWtf("starting Country Detector", e);}traceEnd();traceBeginAndSlog("StartOvumManagerService");try {ServiceManager.addService(Context.OVUM_MANAGER_SERVICE,new OvumManagerService(context, mPowerManagerService, mActivityManagerService));} catch (Throwable e) {reportWtf("starting OvumManagerService", e);}traceEnd();traceBeginAndSlog("StartFreezeService");try {if (FreezeManager.isFreezeOpen()) {ServiceManager.addService(Context.OVUM_FREEZE_SERVICE,new FreezeService(context, mActivityManagerService, location));}} catch (Throwable e) {reportWtf("starting FreezeService", e);}traceEnd();try {ServiceManager.addService(Context.OVUM_PERFORMANCEOBSERVER_SERVICE,new PerformanceObserverService(context, mActivityManagerService));} catch (Throwable e) {reportWtf("starting PerformanceObserverService", e);}/*	try {ServiceManager.addService(Context.PERFORMANCE_MONITOR_SERVICE,new PerformanceObserverService(context, mActivityManagerService));} catch (Throwable e) {reportWtf("starting PerformanceMonitor", e);}*/if (!isWatch) {traceBeginAndSlog("StartSearchManagerService");try {mSystemServiceManager.startService(SEARCH_MANAGER_SERVICE_CLASS);} catch (Throwable e) {reportWtf("starting Search Service", e);}traceEnd();}if (context.getResources().getBoolean(R.bool.config_enableWallpaperService)) {traceBeginAndSlog("StartWallpaperManagerService");mSystemServiceManager.startService(WALLPAPER_SERVICE_CLASS);traceEnd();}traceBeginAndSlog("StartAudioService");mSystemServiceManager.startService(AudioService.Lifecycle.class);traceEnd();if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_BROADCAST_RADIO)) {traceBeginAndSlog("StartBroadcastRadioService");mSystemServiceManager.startService(BroadcastRadioService.class);traceEnd();}traceBeginAndSlog("StartDockObserver");mSystemServiceManager.startService(DockObserver.class);traceEnd();if (isWatch) {traceBeginAndSlog("StartThermalObserver");mSystemServiceManager.startService(THERMAL_OBSERVER_CLASS);traceEnd();}traceBeginAndSlog("StartWiredAccessoryManager");try {// Listen for wired headset changesinputManager.setWiredAccessoryCallbacks(new WiredAccessoryManager(context, inputManager));} catch (Throwable e) {reportWtf("starting WiredAccessoryManager", e);}traceEnd();if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_MIDI)) {// Start MIDI Manager servicetraceBeginAndSlog("StartMidiManager");mSystemServiceManager.startService(MIDI_SERVICE_CLASS);traceEnd();}if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_USB_HOST)|| mPackageManager.hasSystemFeature(PackageManager.FEATURE_USB_ACCESSORY)|| isEmulator) {// Manage USB host and device supporttraceBeginAndSlog("StartUsbService");mSystemServiceManager.startService(USB_SERVICE_CLASS);traceEnd();}if (!isWatch) {traceBeginAndSlog("StartSerialService");try {// Serial port supportserial = new SerialService(context);ServiceManager.addService(Context.SERIAL_SERVICE, serial);} catch (Throwable e) {Slog.e(TAG, "Failure starting SerialService", e);}traceEnd();}traceBeginAndSlog("StartHardwarePropertiesManagerService");try {hardwarePropertiesService = new HardwarePropertiesManagerService(context);ServiceManager.addService(Context.HARDWARE_PROPERTIES_SERVICE,hardwarePropertiesService);} catch (Throwable e) {Slog.e(TAG, "Failure starting HardwarePropertiesManagerService", e);}traceEnd();traceBeginAndSlog("StartTwilightService");mSystemServiceManager.startService(TwilightService.class);traceEnd();if (ColorDisplayController.isAvailable(context)) {traceBeginAndSlog("StartNightDisplay");mSystemServiceManager.startService(ColorDisplayService.class);traceEnd();}traceBeginAndSlog("StartJobScheduler");JobSchedulerService js = mSystemServiceManager.startService(JobSchedulerService.class);traceEnd();traceBeginAndSlog("StartIdleControllerService");try {ServiceManager.addService(Context.OVUM_IDLE_CONTROLLER_SERVICE,new IdleControllerService(context, mPowerManagerService, mActivityManagerService, location, wm, js));} catch (Throwable e) {reportWtf("starting IdleControllerService", e);}traceEnd();traceBeginAndSlog("StartSoundTrigger");mSystemServiceManager.startService(SoundTriggerService.class);traceEnd();traceBeginAndSlog("StartTrustManager");mSystemServiceManager.startService(TrustManagerService.class);traceEnd();if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_BACKUP)) {traceBeginAndSlog("StartBackupManager");mSystemServiceManager.startService(BACKUP_MANAGER_SERVICE_CLASS);traceEnd();}if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_APP_WIDGETS)|| context.getResources().getBoolean(R.bool.config_enableAppWidgetService)) {traceBeginAndSlog("StartAppWidgerService");mSystemServiceManager.startService(APPWIDGET_SERVICE_CLASS);traceEnd();}// We need to always start this service, regardless of whether the// FEATURE_VOICE_RECOGNIZERS feature is set, because it needs to take care// of initializing various settings.  It will internally modify its behavior// based on that feature.traceBeginAndSlog("StartVoiceRecognitionManager");mSystemServiceManager.startService(VOICE_RECOGNITION_MANAGER_SERVICE_CLASS);traceEnd();if (GestureLauncherService.isGestureLauncherEnabled(context.getResources())) {traceBeginAndSlog("StartGestureLauncher");mSystemServiceManager.startService(GestureLauncherService.class);traceEnd();}traceBeginAndSlog("StartSensorNotification");mSystemServiceManager.startService(SensorNotificationService.class);traceEnd();traceBeginAndSlog("StartContextHubSystemService");mSystemServiceManager.startService(ContextHubSystemService.class);traceEnd();traceBeginAndSlog("StartDiskStatsService");try {ServiceManager.addService("diskstats", new DiskStatsService(context));} catch (Throwable e) {reportWtf("starting DiskStats Service", e);}traceEnd();// timezone.RulesManagerService will prevent a device starting up if the chain of trust// required for safe time zone updates might be broken. RuleManagerService cannot do// this check when mOnlyCore == true, so we don't enable the service in this case.// This service requires that JobSchedulerService is already started when it starts.final boolean startRulesManagerService =!mOnlyCore && context.getResources().getBoolean(R.bool.config_enableUpdateableTimeZoneRules);if (startRulesManagerService) {traceBeginAndSlog("StartTimeZoneRulesManagerService");mSystemServiceManager.startService(TIME_ZONE_RULES_MANAGER_SERVICE_CLASS);traceEnd();}if (!isWatch) {traceBeginAndSlog("StartNetworkTimeUpdateService");try {networkTimeUpdater = new NetworkTimeUpdateService(context);ServiceManager.addService("network_time_update_service", networkTimeUpdater);} catch (Throwable e) {reportWtf("starting NetworkTimeUpdate service", e);}traceEnd();}traceBeginAndSlog("StartCommonTimeManagementService");try {commonTimeMgmtService = new CommonTimeManagementService(context);ServiceManager.addService("commontime_management", commonTimeMgmtService);} catch (Throwable e) {reportWtf("starting CommonTimeManagementService service", e);}traceEnd();traceBeginAndSlog("CertBlacklister");try {CertBlacklister blacklister = new CertBlacklister(context);} catch (Throwable e) {reportWtf("starting CertBlacklister", e);}traceEnd();if (EmergencyAffordanceManager.ENABLED) {// EmergencyMode servicetraceBeginAndSlog("StartEmergencyAffordanceService");mSystemServiceManager.startService(EmergencyAffordanceService.class);traceEnd();}// Dreams (interactive idle-time views, a/k/a screen savers, and doze mode)traceBeginAndSlog("StartDreamManager");mSystemServiceManager.startService(DreamManagerService.class);traceEnd();traceBeginAndSlog("AddGraphicsStatsService");ServiceManager.addService(GraphicsStatsService.GRAPHICS_STATS_SERVICE,new GraphicsStatsService(context));traceEnd();if (CoverageService.ENABLED) {traceBeginAndSlog("AddCoverageService");ServiceManager.addService(CoverageService.COVERAGE_SERVICE, new CoverageService());traceEnd();}if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_PRINTING)) {traceBeginAndSlog("StartPrintManager");mSystemServiceManager.startService(PRINT_MANAGER_SERVICE_CLASS);traceEnd();}if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_COMPANION_DEVICE_SETUP)) {traceBeginAndSlog("StartCompanionDeviceManager");mSystemServiceManager.startService(COMPANION_DEVICE_MANAGER_SERVICE_CLASS);traceEnd();}traceBeginAndSlog("StartRestrictionManager");mSystemServiceManager.startService(RestrictionsManagerService.class);traceEnd();traceBeginAndSlog("StartMediaSessionService");mSystemServiceManager.startService(MediaSessionService.class);traceEnd();traceBeginAndSlog("StartMediaUpdateService");mSystemServiceManager.startService(MediaUpdateService.class);traceEnd();if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_HDMI_CEC)) {traceBeginAndSlog("StartHdmiControlService");mSystemServiceManager.startService(HdmiControlService.class);traceEnd();}if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_LIVE_TV)|| mPackageManager.hasSystemFeature(PackageManager.FEATURE_LEANBACK)) {traceBeginAndSlog("StartTvInputManager");mSystemServiceManager.startService(TvInputManagerService.class);traceEnd();}if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_PICTURE_IN_PICTURE)) {traceBeginAndSlog("StartMediaResourceMonitor");mSystemServiceManager.startService(MediaResourceMonitorService.class);traceEnd();}if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_LEANBACK)) {traceBeginAndSlog("StartTvRemoteService");mSystemServiceManager.startService(TvRemoteService.class);traceEnd();}traceBeginAndSlog("StartMediaRouterService");try {mediaRouter = new MediaRouterService(context);ServiceManager.addService(Context.MEDIA_ROUTER_SERVICE, mediaRouter);} catch (Throwable e) {reportWtf("starting MediaRouterService", e);}traceEnd();if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_FINGERPRINT)) {traceBeginAndSlog("StartFingerprintSensor");mSystemServiceManager.startService(FingerprintService.class);traceEnd();}traceBeginAndSlog("StartBackgroundDexOptService");try {BackgroundDexOptService.schedule(context);} catch (Throwable e) {reportWtf("starting StartBackgroundDexOptService", e);}traceEnd();traceBeginAndSlog("StartPruneInstantAppsJobService");try {PruneInstantAppsJobService.schedule(context);} catch (Throwable e) {reportWtf("StartPruneInstantAppsJobService", e);}traceEnd();// LauncherAppsService uses ShortcutService.traceBeginAndSlog("StartShortcutServiceLifecycle");mSystemServiceManager.startService(ShortcutService.Lifecycle.class);traceEnd();traceBeginAndSlog("StartLauncherAppsService");mSystemServiceManager.startService(LauncherAppsService.class);traceEnd();traceBeginAndSlog("StartCrossProfileAppsService");mSystemServiceManager.startService(CrossProfileAppsService.class);traceEnd();}if (!isWatch) {traceBeginAndSlog("StartMediaProjectionManager");mSystemServiceManager.startService(MediaProjectionManagerService.class);traceEnd();}if (isWatch) {traceBeginAndSlog("StartWearConfigService");mSystemServiceManager.startService(WEAR_CONFIG_SERVICE_CLASS);traceEnd();traceBeginAndSlog("StartWearConnectivityService");mSystemServiceManager.startService(WEAR_CONNECTIVITY_SERVICE_CLASS);traceEnd();traceBeginAndSlog("StartWearTimeService");mSystemServiceManager.startService(WEAR_DISPLAY_SERVICE_CLASS);mSystemServiceManager.startService(WEAR_TIME_SERVICE_CLASS);traceEnd();if (enableLeftyService) {traceBeginAndSlog("StartWearLeftyService");mSystemServiceManager.startService(WEAR_LEFTY_SERVICE_CLASS);traceEnd();}traceBeginAndSlog("StartWearGlobalActionsService");mSystemServiceManager.startService(WEAR_GLOBAL_ACTIONS_SERVICE_CLASS);traceEnd();}if (!disableSlices) {traceBeginAndSlog("StartSliceManagerService");mSystemServiceManager.startService(SLICE_MANAGER_SERVICE_CLASS);traceEnd();}if (!disableCameraService) {traceBeginAndSlog("StartCameraServiceProxy");mSystemServiceManager.startService(CameraServiceProxy.class);traceEnd();}if (context.getPackageManager().hasSystemFeature(PackageManager.FEATURE_EMBEDDED)) {traceBeginAndSlog("StartIoTSystemService");mSystemServiceManager.startService(IOT_SERVICE_CLASS);traceEnd();}// Statsd helpertraceBeginAndSlog("StartStatsCompanionService");mSystemServiceManager.startService(StatsCompanionService.Lifecycle.class);traceEnd();// Before things start rolling, be sure we have decided whether// we are in safe mode.final boolean safeMode = wm.detectSafeMode();if (safeMode) {traceBeginAndSlog("EnterSafeModeAndDisableJitCompilation");mActivityManagerService.enterSafeMode();// Disable the JIT for the system_server processVMRuntime.getRuntime().disableJitCompilation();traceEnd();} else {// Enable the JIT for the system_server processtraceBeginAndSlog("StartJitCompilation");VMRuntime.getRuntime().startJitCompilation();traceEnd();}// MMS service brokertraceBeginAndSlog("StartMmsService");mmsService = mSystemServiceManager.startService(MmsServiceBroker.class);traceEnd();if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_AUTOFILL)) {traceBeginAndSlog("StartAutoFillService");mSystemServiceManager.startService(AUTO_FILL_MANAGER_SERVICE_CLASS);traceEnd();}// It is now time to start up the app processes...traceBeginAndSlog("MakeVibratorServiceReady");try {vibrator.systemReady();} catch (Throwable e) {reportWtf("making Vibrator Service ready", e);}traceEnd();traceBeginAndSlog("MakeLockSettingsServiceReady");if (lockSettings != null) {try {lockSettings.systemReady();} catch (Throwable e) {reportWtf("making Lock Settings Service ready", e);}}traceEnd();// Needed by DevicePolicyManager for initializationtraceBeginAndSlog("StartBootPhaseLockSettingsReady");mSystemServiceManager.startBootPhase(SystemService.PHASE_LOCK_SETTINGS_READY);traceEnd();traceBeginAndSlog("StartBootPhaseSystemServicesReady");mSystemServiceManager.startBootPhase(SystemService.PHASE_SYSTEM_SERVICES_READY);traceEnd();// Wigig services are not registered as system services because of class loader// limitations, send boot phase notification separatelyif (enableWigig) {try {Slog.i(TAG, "calling onBootPhase for Wigig Services");Class wigigP2pClass = wigigP2pService.getClass();Method m = wigigP2pClass.getMethod("onBootPhase", int.class);m.invoke(wigigP2pService, new Integer(SystemService.PHASE_SYSTEM_SERVICES_READY));Class wigigClass = wigigService.getClass();m = wigigClass.getMethod("onBootPhase", int.class);m.invoke(wigigService, new Integer(SystemService.PHASE_SYSTEM_SERVICES_READY));} catch (Throwable e) {reportWtf("Wigig services ready", e);}}traceBeginAndSlog("MakeWindowManagerServiceReady");try {wm.systemReady();} catch (Throwable e) {reportWtf("making Window Manager Service ready", e);}traceEnd();if (safeMode) {mActivityManagerService.showSafeModeOverlay();}// Update the configuration for this context by hand, because we're going// to start using it before the config change done in wm.systemReady() will// propagate to it.final Configuration config = wm.computeNewConfiguration(DEFAULT_DISPLAY);DisplayMetrics metrics = new DisplayMetrics();WindowManager w = (WindowManager)context.getSystemService(Context.WINDOW_SERVICE);w.getDefaultDisplay().getMetrics(metrics);context.getResources().updateConfiguration(config, metrics);// The system context's theme may be configuration-dependent.final Theme systemTheme = context.getTheme();if (systemTheme.getChangingConfigurations() != 0) {systemTheme.rebase();}traceBeginAndSlog("MakePowerManagerServiceReady");try {// TODO: use boot phasemPowerManagerService.systemReady(mActivityManagerService.getAppOpsService());} catch (Throwable e) {reportWtf("making Power Manager Service ready", e);}traceEnd();traceBeginAndSlog("MakePackageManagerServiceReady");mPackageManagerService.systemReady();traceEnd();traceBeginAndSlog("MakeDisplayManagerServiceReady");try {// TODO: use boot phase and communicate these flags some other waymDisplayManagerService.systemReady(safeMode, mOnlyCore);} catch (Throwable e) {reportWtf("making Display Manager Service ready", e);}traceEnd();mSystemServiceManager.setSafeMode(safeMode);// Start device specific servicestraceBeginAndSlog("StartDeviceSpecificServices");final String[] classes = mSystemContext.getResources().getStringArray(R.array.config_deviceSpecificSystemServices);for (final String className : classes) {traceBeginAndSlog("StartDeviceSpecificServices " + className);try {mSystemServiceManager.startService(className);} catch (Throwable e) {reportWtf("starting " + className, e);}traceEnd();}traceEnd();traceBeginAndSlog("StartBootPhaseDeviceSpecificServicesReady");mSystemServiceManager.startBootPhase(SystemService.PHASE_DEVICE_SPECIFIC_SERVICES_READY);traceEnd();// These are needed to propagate to the runnable below.final NetworkManagementService networkManagementF = networkManagement;final NetworkStatsService networkStatsF = networkStats;final NetworkPolicyManagerService networkPolicyF = networkPolicy;final ConnectivityService connectivityF = connectivity;final LocationManagerService locationF = location;final CountryDetectorService countryDetectorF = countryDetector;final NetworkTimeUpdateService networkTimeUpdaterF = networkTimeUpdater;final CommonTimeManagementService commonTimeMgmtServiceF = commonTimeMgmtService;final InputManagerService inputManagerF = inputManager;final TelephonyRegistry telephonyRegistryF = telephonyRegistry;final MediaRouterService mediaRouterF = mediaRouter;final MmsServiceBroker mmsServiceF = mmsService;final IpSecService ipSecServiceF = ipSecService;final WindowManagerService windowManagerF = wm;// We now tell the activity manager it is okay to run third party// code.  It will call back into us once it has gotten to the state// where third party code can really run (but before it has actually// started launching the initial applications), for us to complete our// initialization.mActivityManagerService.systemReady(() -> {Slog.i(TAG, "Making services ready");traceBeginAndSlog("StartActivityManagerReadyPhase");addBootEvent("StartActivityManagerReadyPhase");mSystemServiceManager.startBootPhase(SystemService.PHASE_ACTIVITY_MANAGER_READY);traceEnd();addBootEvent("StartActivityManagerReadyPhase END");traceBeginAndSlog("StartObservingNativeCrashes");addBootEvent("StartObservingNativeCrashes");try {mActivityManagerService.startObservingNativeCrashes();} catch (Throwable e) {reportWtf("observing native crashes", e);}traceEnd();addBootEvent("StartObservingNativeCrashes END");// No dependency on Webview preparation in system server. But this should// be completed before allowing 3rd partyfinal String WEBVIEW_PREPARATION = "WebViewFactoryPreparation";Future webviewPrep = null;if (!mOnlyCore && mWebViewUpdateService != null) {webviewPrep = SystemServerInitThreadPool.get().submit(() -> {Slog.i(TAG, WEBVIEW_PREPARATION);TimingsTraceLog traceLog = new TimingsTraceLog(SYSTEM_SERVER_TIMING_ASYNC_TAG, Trace.TRACE_TAG_SYSTEM_SERVER);traceLog.traceBegin(WEBVIEW_PREPARATION);ConcurrentUtils.waitForFutureNoInterrupt(mZygotePreload, "Zygote preload");mZygotePreload = null;mWebViewUpdateService.prepareWebViewInSystemServer();traceLog.traceEnd();}, WEBVIEW_PREPARATION);}if (mPackageManager.hasSystemFeature(PackageManager.FEATURE_AUTOMOTIVE)) {traceBeginAndSlog("StartCarServiceHelperService");addBootEvent("StartCarServiceHelperService");mSystemServiceManager.startService(CAR_SERVICE_HELPER_SERVICE_CLASS);addBootEvent("StartCarServiceHelperService END");traceEnd();}traceBeginAndSlog("StartSystemUI");addBootEvent("StartSystemUI");try {startSystemUi(context, windowManagerF);} catch (Throwable e) {reportWtf("starting System UI", e);}addBootEvent("StartSystemUI END");traceEnd();traceBeginAndSlog("MakeNetworkManagementServiceReady");addBootEvent("MakeNetworkManagementServiceReady");try {if (networkManagementF != null) networkManagementF.systemReady();} catch (Throwable e) {reportWtf("making Network Managment Service ready", e);}CountDownLatch networkPolicyInitReadySignal = null;if (networkPolicyF != null) {networkPolicyInitReadySignal = networkPolicyF.networkScoreAndNetworkManagementServiceReady();}addBootEvent("MakeNetworkManagementServiceReady END");traceEnd();traceBeginAndSlog("MakeIpSecServiceReady");addBootEvent("MakeIpSecServiceReady");try {if (ipSecServiceF != null) ipSecServiceF.systemReady();} catch (Throwable e) {reportWtf("making IpSec Service ready", e);}addBootEvent("MakeIpSecServiceReady END");traceEnd();traceBeginAndSlog("MakeNetworkStatsServiceReady");addBootEvent("MakeNetworkStatsServiceReady");try {if (networkStatsF != null) networkStatsF.systemReady();} catch (Throwable e) {reportWtf("making Network Stats Service ready", e);}addBootEvent("MakeNetworkStatsServiceReady END");traceEnd();traceBeginAndSlog("MakeConnectivityServiceReady");addBootEvent("MakeConnectivityServiceReady");try {if (connectivityF != null) connectivityF.systemReady();} catch (Throwable e) {reportWtf("making Connectivity Service ready", e);}addBootEvent("MakeConnectivityServiceReady END");traceEnd();traceBeginAndSlog("MakeNetworkPolicyServiceReady");addBootEvent("MakeNetworkPolicyServiceReady");try {if (networkPolicyF != null) {networkPolicyF.systemReady(networkPolicyInitReadySignal);}} catch (Throwable e) {reportWtf("making Network Policy Service ready", e);}addBootEvent("MakeNetworkPolicyServiceReady END");traceEnd();traceBeginAndSlog("StartWatchdog");addBootEvent("StartWatchdog");Watchdog.getInstance().start();addBootEvent("StartWatchdog END");traceEnd();// Wait for all packages to be preparedmPackageManagerService.waitForAppDataPrepared();// It is now okay to let the various system services start their// third party code...traceBeginAndSlog("PhaseThirdPartyAppsCanStart");addBootEvent("PhaseThirdPartyAppsCanStart");// confirm webview completion before starting 3rd partyif (webviewPrep != null) {ConcurrentUtils.waitForFutureNoInterrupt(webviewPrep, WEBVIEW_PREPARATION);}mSystemServiceManager.startBootPhase(SystemService.PHASE_THIRD_PARTY_APPS_CAN_START);addBootEvent("PhaseThirdPartyAppsCanStart END");traceEnd();traceBeginAndSlog("MakeLocationServiceReady");addBootEvent("MakeLocationServiceReady");try {if (locationF != null) locationF.systemRunning();} catch (Throwable e) {reportWtf("Notifying Location Service running", e);}addBootEvent("MakeLocationServiceReady END");traceEnd();traceBeginAndSlog("MakeCountryDetectionServiceReady");addBootEvent("MakeCountryDetectionServiceReady");try {if (countryDetectorF != null) countryDetectorF.systemRunning();} catch (Throwable e) {reportWtf("Notifying CountryDetectorService running", e);}addBootEvent("MakeCountryDetectionServiceReady END");traceEnd();traceBeginAndSlog("MakeNetworkTimeUpdateReady");addBootEvent("MakeNetworkTimeUpdateReady");try {if (networkTimeUpdaterF != null) networkTimeUpdaterF.systemRunning();} catch (Throwable e) {reportWtf("Notifying NetworkTimeService running", e);}addBootEvent("MakeNetworkTimeUpdateReady END");traceEnd();traceBeginAndSlog("MakeCommonTimeManagementServiceReady");addBootEvent("MakeCommonTimeManagementServiceReady");try {if (commonTimeMgmtServiceF != null) {commonTimeMgmtServiceF.systemRunning();}} catch (Throwable e) {reportWtf("Notifying CommonTimeManagementService running", e);}addBootEvent("MakeCommonTimeManagementServiceReady END");traceEnd();traceBeginAndSlog("MakeInputManagerServiceReady");addBootEvent("MakeInputManagerServiceReady");try {// TODO(BT) Pass parameter to input managerif (inputManagerF != null) inputManagerF.systemRunning();} catch (Throwable e) {reportWtf("Notifying InputManagerService running", e);}addBootEvent("MakeInputManagerServiceReady END");traceEnd();traceBeginAndSlog("MakeTelephonyRegistryReady");addBootEvent("MakeTelephonyRegistryReady");try {if (telephonyRegistryF != null) telephonyRegistryF.systemRunning();} catch (Throwable e) {reportWtf("Notifying TelephonyRegistry running", e);}addBootEvent("MakeTelephonyRegistryReady END");traceEnd();traceBeginAndSlog("MakeMediaRouterServiceReady");addBootEvent("MakeMediaRouterServiceReady");try {if (mediaRouterF != null) mediaRouterF.systemRunning();} catch (Throwable e) {reportWtf("Notifying MediaRouterService running", e);}addBootEvent("MakeMediaRouterServiceReady END");traceEnd();traceBeginAndSlog("MakeMmsServiceReady");addBootEvent("MakeMmsServiceReady");try {if (mmsServiceF != null) mmsServiceF.systemRunning();} catch (Throwable e) {reportWtf("Notifying MmsService running", e);}addBootEvent("MakeMmsServiceReady END");traceEnd();traceBeginAndSlog("IncidentDaemonReady");addBootEvent("IncidentDaemonReady");try {// TODO: Switch from checkService to getService once it's always// in the build and should reliably be there.final IIncidentManager incident = IIncidentManager.Stub.asInterface(ServiceManager.getService(Context.INCIDENT_SERVICE));if (incident != null) incident.systemRunning();} catch (Throwable e) {reportWtf("Notifying incident daemon running", e);}addBootEvent("IncidentDaemonReady END");traceEnd();}, BOOT_TIMINGS_TRACE_LOG);traceBeginAndSlog("ScheduleIdleOptimize");addBootEvent("ScheduleIdleOptimize");try {BackgroundDexOptService.scheduleIdleOptimize(context);} catch (Throwable e) {reportWtf("ScheduleIdleOptimize", e);}addBootEvent("ScheduleIdleOptimize END");traceEnd();}

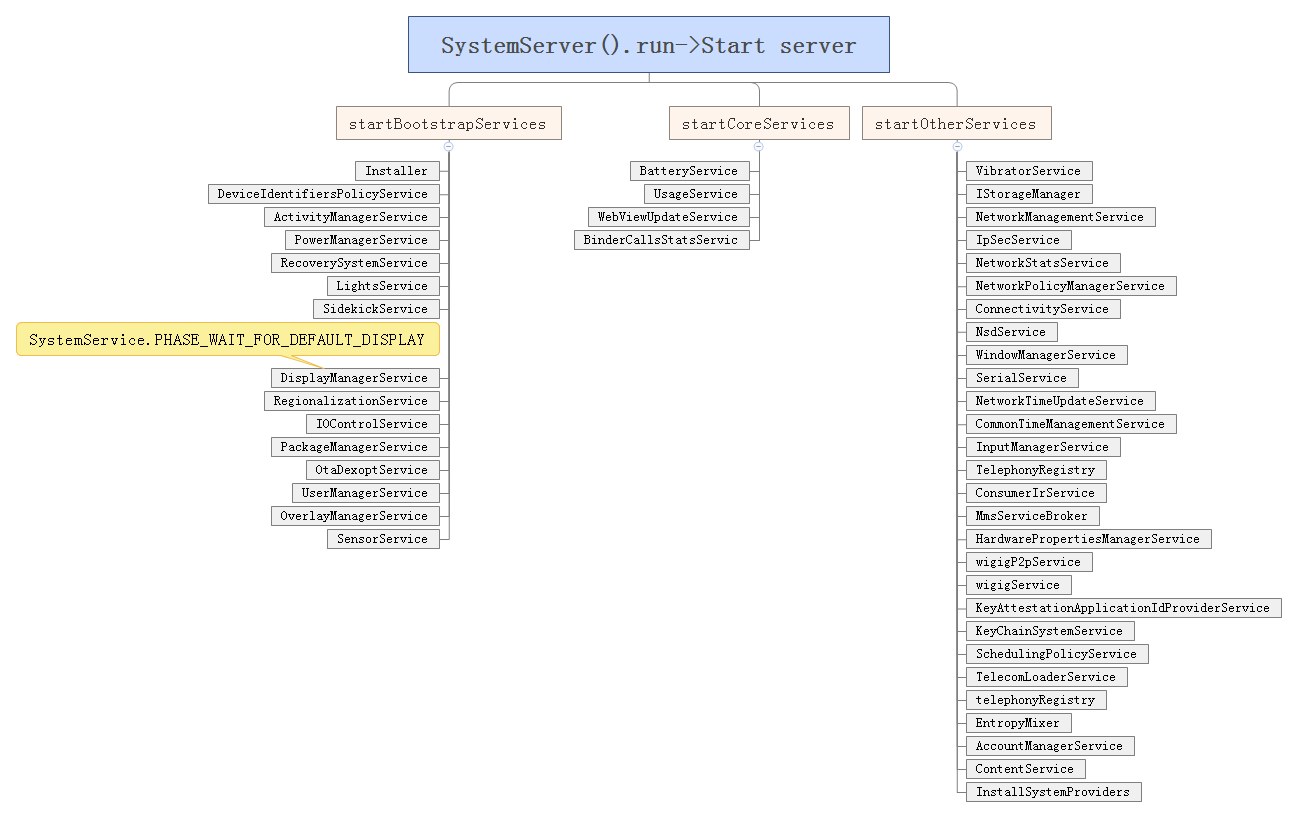

如图所示，图中为SystemServer 启动的服务：

System server的启动过程做了如上事情，System Server启动完成后，会启动HOME APP，详情请见下节。
