《数据库系统概念》第6版 学习笔记
Apare_xzc 2020.9.9
数据库系统概念的官方网站

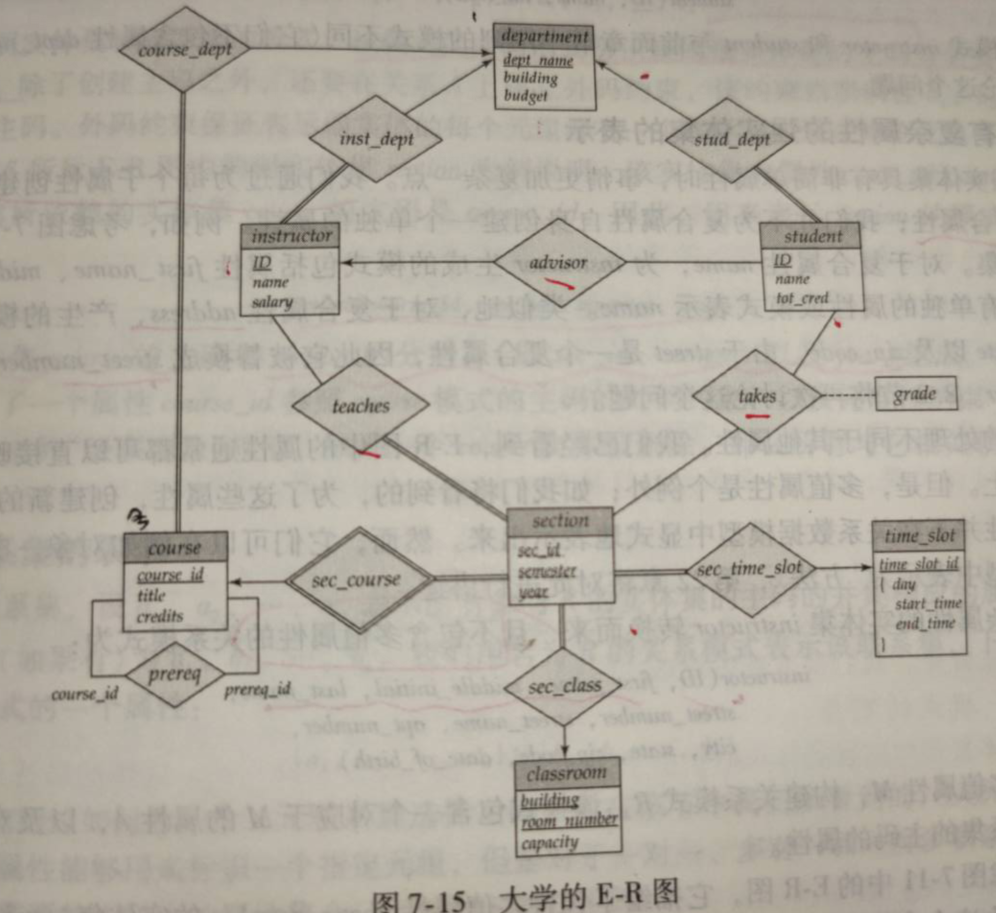

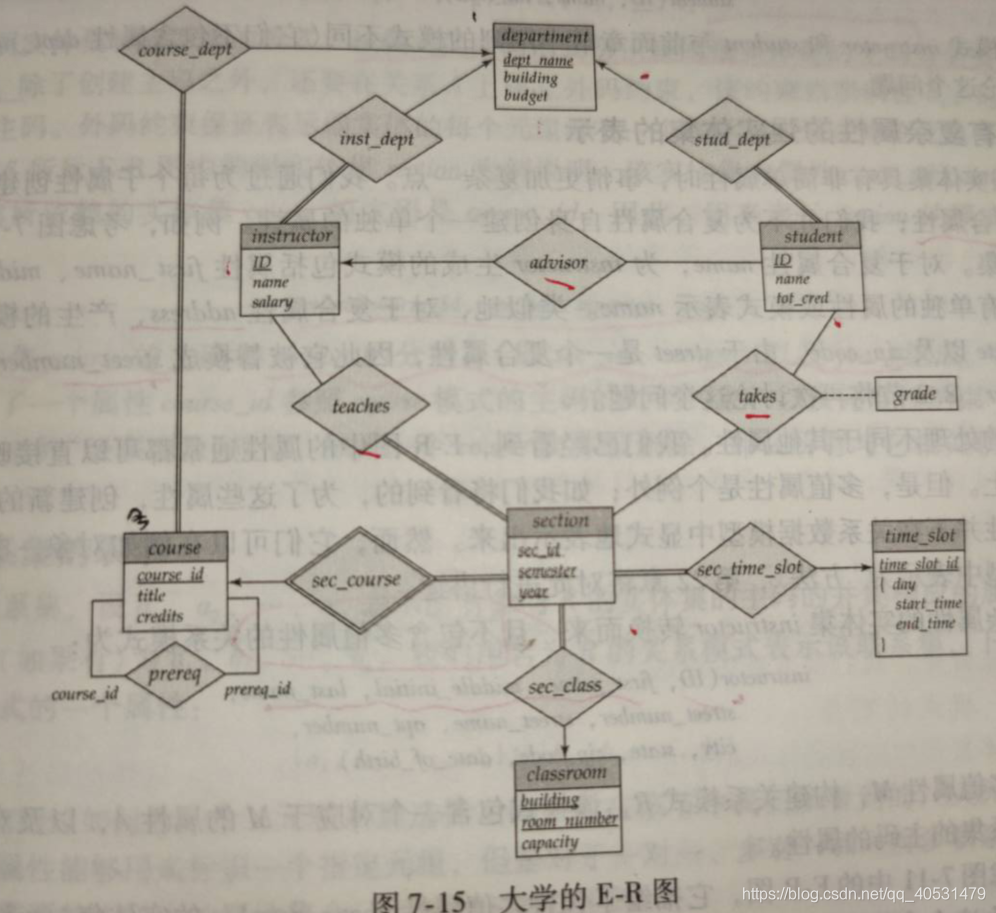

E-R图(P159)
MySQL建表
# 官方文档的 DDL-MySQL+drop
drop table if exists prereq; # 先修课表
drop table if exists time_slot; # 开课时间段表
drop table if exists advisor; # 学生导师表
drop table if exists takes; # 学生注册课程表
drop table if exists student; # 学生信息表
drop table if exists teaches; # 开课表
drop table if exists section; #
drop table if exists instructor; # 教室师表
drop table if exists course; # 课程表
drop table if exists department; # 院系表
drop table if exists classroom; # 教室表create table classroom(building varchar(15),room_number varchar(7),capacity numeric(4,0),primary key (building, room_number));
create table department(dept_name varchar(20), building varchar(15), budget numeric(12,2) check (budget > 0),primary key (dept_name));
create table course(course_id varchar(8), title varchar(50), dept_name varchar(20),credits numeric(2,0) check (credits > 0),primary key (course_id),foreign key (dept_name) references department(dept_name)on delete set null);
create table instructor(ID varchar(5), name varchar(20) not null, dept_name varchar(20), salary numeric(8,2) check (salary > 29000),primary key (ID),foreign key (dept_name) references department(dept_name)on delete set null);
create table section(course_id varchar(8), sec_id varchar(8),semester varchar(6)check (semester in ('Fall', 'Winter', 'Spring', 'Summer')), year numeric(4,0) check (year > 1701 and year < 2100), building varchar(15),room_number varchar(7),time_slot_id varchar(4),primary key (course_id, sec_id, semester, year),foreign key (course_id) references course(course_id)on delete cascade,foreign key (building, room_number) references classroom(building, room_number)on delete set null);
create table teaches(ID varchar(5), course_id varchar(8),sec_id varchar(8), semester varchar(6),year numeric(4,0),primary key (ID, course_id, sec_id, semester, year),foreign key (course_id,sec_id, semester, year) references section(course_id,sec_id, semester, year)on delete cascade,foreign key (ID) references instructor(ID)on delete cascade);
create table student(ID varchar(5), name varchar(20) not null, dept_name varchar(20), tot_cred numeric(3,0) check (tot_cred >= 0),primary key (ID),foreign key (dept_name) references department(dept_name)on delete set null);
create table takes(ID varchar(5), course_id varchar(8),sec_id varchar(8), semester varchar(6),year numeric(4,0),grade varchar(2),primary key (ID, course_id, sec_id, semester, year),foreign key (course_id,sec_id, semester, year) references section(course_id,sec_id, semester, year)on delete cascade,foreign key (ID) references student(ID)on delete cascade);
create table advisor(s_ID varchar(5),i_ID varchar(5),primary key (s_ID),foreign key (i_ID) references instructor (ID)on delete set null,foreign key (s_ID) references student (ID)on delete cascade);
create table time_slot(time_slot_id varchar(4),day varchar(1),start_hr numeric(2) check (start_hr >= 0 and start_hr < 24),start_min numeric(2) check (start_min >= 0 and start_min < 60),end_hr numeric(2) check (end_hr >= 0 and end_hr < 24),end_min numeric(2) check (end_min >= 0 and end_min < 60),primary key (time_slot_id, day, start_hr, start_min));
create table prereq(course_id varchar(8), prereq_id varchar(8),primary key (course_id, prereq_id),foreign key (course_id) references course(course_id)on delete cascade,foreign key (prereq_id) references course(course_id))
其它数据库(SQL server/Oracle)建表
# DDL with drop tables for most datebases other than MySQL
drop table if exists prereq;
drop table if exists time_slot;
drop table if exists advisor;
drop table if exists takes;
drop table if exists student;
drop table if exists teaches;
drop table if exists section;
drop table if exists instructor;
drop table if exists course;
drop table if exists department;
drop table if exists classroom;create table classroom(building varchar(15),room_number varchar(7),capacity numeric(4,0),primary key (building, room_number));create table department(dept_name varchar(20), building varchar(15), budget numeric(12,2) check (budget > 0),primary key (dept_name));create table course(course_id varchar(8), title varchar(50), dept_name varchar(20),credits numeric(2,0) check (credits > 0),primary key (course_id),foreign key (dept_name) references departmenton delete set null);create table instructor(ID varchar(5), name varchar(20) not null, dept_name varchar(20), salary numeric(8,2) check (salary > 29000),primary key (ID),foreign key (dept_name) references departmenton delete set null);create table section(course_id varchar(8), sec_id varchar(8),semester varchar(6)check (semester in ('Fall', 'Winter', 'Spring', 'Summer')), year numeric(4,0) check (year > 1701 and year < 2100), building varchar(15),room_number varchar(7),time_slot_id varchar(4),primary key (course_id, sec_id, semester, year),foreign key (course_id) references courseon delete cascade,foreign key (building, room_number) references classroomon delete set null);create table teaches(ID varchar(5), course_id varchar(8),sec_id varchar(8), semester varchar(6),year numeric(4,0),primary key (ID, course_id, sec_id, semester, year),foreign key (course_id,sec_id, semester, year) references sectionon delete cascade,foreign key (ID) references instructoron delete cascade);create table student(ID varchar(5), name varchar(20) not null, dept_name varchar(20), tot_cred numeric(3,0) check (tot_cred >= 0),primary key (ID),foreign key (dept_name) references departmenton delete set null);create table takes(ID varchar(5), course_id varchar(8),sec_id varchar(8), semester varchar(6),year numeric(4,0),grade varchar(2),primary key (ID, course_id, sec_id, semester, year),foreign key (course_id,sec_id, semester, year) references sectionon delete cascade,foreign key (ID) references studenton delete cascade);create table advisor(s_ID varchar(5),i_ID varchar(5),primary key (s_ID),foreign key (i_ID) references instructor (ID)on delete set null,foreign key (s_ID) references student (ID)on delete cascade);create table time_slot(time_slot_id varchar(4),day varchar(1),start_hr numeric(2) check (start_hr >= 0 and start_hr < 24),start_min numeric(2) check (start_min >= 0 and start_min < 60),end_hr numeric(2) check (end_hr >= 0 and end_hr < 24),end_min numeric(2) check (end_min >= 0 and end_min < 60),primary key (time_slot_id, day, start_hr, start_min));create table prereq(course_id varchar(8), prereq_id varchar(8),primary key (course_id, prereq_id),foreign key (course_id) references courseon delete cascade,foreign key (prereq_id) references course);
读者可以比较上面两份建表代码的区别。
我们发现，不同之处在于引入外键的地方。
foreign key (prereq_id) references course(course_id) //in MySQL
foreign key (prereq_id) references course //in others
- 还有一个小tips，就是DDL语句中，定义一个表，不同的属性定义用逗号分隔开，但是最后一个属性后面不可以有逗号(C语言的列表初始化数组有没有都可)。
然后我们可以用官网提供的sql文档插入数据
delete from prereq;
delete from time_slot;
delete from advisor;
delete from takes;
delete from student;
delete from teaches;
delete from section;
delete from instructor;
delete from course;
delete from department;
delete from classroom;
insert into classroom values ('Packard', '101', '500');
insert into classroom values ('Painter', '514', '10');
insert into classroom values ('Taylor', '3128', '70');
insert into classroom values ('Watson', '100', '30');
insert into classroom values ('Watson', '120', '50');
insert into department values ('Biology', 'Watson', '90000');
insert into department values ('Comp. Sci.', 'Taylor', '100000');
insert into department values ('Elec. Eng.', 'Taylor', '85000');
insert into department values ('Finance', 'Painter', '120000');
insert into department values ('History', 'Painter', '50000');
insert into department values ('Music', 'Packard', '80000');
insert into department values ('Physics', 'Watson', '70000');
insert into course values ('BIO-101', 'Intro. to Biology', 'Biology', '4');
insert into course values ('BIO-301', 'Genetics', 'Biology', '4');
insert into course values ('BIO-399', 'Computational Biology', 'Biology', '3');
insert into course values ('CS-101', 'Intro. to Computer Science', 'Comp. Sci.', '4');
insert into course values ('CS-190', 'Game Design', 'Comp. Sci.', '4');
insert into course values ('CS-315', 'Robotics', 'Comp. Sci.', '3');
insert into course values ('CS-319', 'Image Processing', 'Comp. Sci.', '3');
insert into course values ('CS-347', 'Database System Concepts', 'Comp. Sci.', '3');
insert into course values ('EE-181', 'Intro. to Digital Systems', 'Elec. Eng.', '3');
insert into course values ('FIN-201', 'Investment Banking', 'Finance', '3');
insert into course values ('HIS-351', 'World History', 'History', '3');
insert into course values ('MU-199', 'Music Video Production', 'Music', '3');
insert into course values ('PHY-101', 'Physical Principles', 'Physics', '4');
insert into instructor values ('10101', 'Srinivasan', 'Comp. Sci.', '65000');
insert into instructor values ('12121', 'Wu', 'Finance', '90000');
insert into instructor values ('15151', 'Mozart', 'Music', '40000');
insert into instructor values ('22222', 'Einstein', 'Physics', '95000');
insert into instructor values ('32343', 'El Said', 'History', '60000');
insert into instructor values ('33456', 'Gold', 'Physics', '87000');
insert into instructor values ('45565', 'Katz', 'Comp. Sci.', '75000');
insert into instructor values ('58583', 'Califieri', 'History', '62000');
insert into instructor values ('76543', 'Singh', 'Finance', '80000');
insert into instructor values ('76766', 'Crick', 'Biology', '72000');
insert into instructor values ('83821', 'Brandt', 'Comp. Sci.', '92000');
insert into instructor values ('98345', 'Kim', 'Elec. Eng.', '80000');
insert into section values ('BIO-101', '1', 'Summer', '2009', 'Painter', '514', 'B');
insert into section values ('BIO-301', '1', 'Summer', '2010', 'Painter', '514', 'A');
insert into section values ('CS-101', '1', 'Fall', '2009', 'Packard', '101', 'H');
insert into section values ('CS-101', '1', 'Spring', '2010', 'Packard', '101', 'F');
insert into section values ('CS-190', '1', 'Spring', '2009', 'Taylor', '3128', 'E');
insert into section values ('CS-190', '2', 'Spring', '2009', 'Taylor', '3128', 'A');
insert into section values ('CS-315', '1', 'Spring', '2010', 'Watson', '120', 'D');
insert into section values ('CS-319', '1', 'Spring', '2010', 'Watson', '100', 'B');
insert into section values ('CS-319', '2', 'Spring', '2010', 'Taylor', '3128', 'C');
insert into section values ('CS-347', '1', 'Fall', '2009', 'Taylor', '3128', 'A');
insert into section values ('EE-181', '1', 'Spring', '2009', 'Taylor', '3128', 'C');
insert into section values ('FIN-201', '1', 'Spring', '2010', 'Packard', '101', 'B');
insert into section values ('HIS-351', '1', 'Spring', '2010', 'Painter', '514', 'C');
insert into section values ('MU-199', '1', 'Spring', '2010', 'Packard', '101', 'D');
insert into section values ('PHY-101', '1', 'Fall', '2009', 'Watson', '100', 'A');
insert into teaches values ('10101', 'CS-101', '1', 'Fall', '2009');
insert into teaches values ('10101', 'CS-315', '1', 'Spring', '2010');
insert into teaches values ('10101', 'CS-347', '1', 'Fall', '2009');
insert into teaches values ('12121', 'FIN-201', '1', 'Spring', '2010');
insert into teaches values ('15151', 'MU-199', '1', 'Spring', '2010');
insert into teaches values ('22222', 'PHY-101', '1', 'Fall', '2009');
insert into teaches values ('32343', 'HIS-351', '1', 'Spring', '2010');
insert into teaches values ('45565', 'CS-101', '1', 'Spring', '2010');
insert into teaches values ('45565', 'CS-319', '1', 'Spring', '2010');
insert into teaches values ('76766', 'BIO-101', '1', 'Summer', '2009');
insert into teaches values ('76766', 'BIO-301', '1', 'Summer', '2010');
insert into teaches values ('83821', 'CS-190', '1', 'Spring', '2009');
insert into teaches values ('83821', 'CS-190', '2', 'Spring', '2009');
insert into teaches values ('83821', 'CS-319', '2', 'Spring', '2010');
insert into teaches values ('98345', 'EE-181', '1', 'Spring', '2009');
insert into student values ('00128', 'Zhang', 'Comp. Sci.', '102');
insert into student values ('12345', 'Shankar', 'Comp. Sci.', '32');
insert into student values ('19991', 'Brandt', 'History', '80');
insert into student values ('23121', 'Chavez', 'Finance', '110');
insert into student values ('44553', 'Peltier', 'Physics', '56');
insert into student values ('45678', 'Levy', 'Physics', '46');
insert into student values ('54321', 'Williams', 'Comp. Sci.', '54');
insert into student values ('55739', 'Sanchez', 'Music', '38');
insert into student values ('70557', 'Snow', 'Physics', '0');
insert into student values ('76543', 'Brown', 'Comp. Sci.', '58');
insert into student values ('76653', 'Aoi', 'Elec. Eng.', '60');
insert into student values ('98765', 'Bourikas', 'Elec. Eng.', '98');
insert into student values ('98988', 'Tanaka', 'Biology', '120');
insert into takes values ('00128', 'CS-101', '1', 'Fall', '2009', 'A');
insert into takes values ('00128', 'CS-347', '1', 'Fall', '2009', 'A-');
insert into takes values ('12345', 'CS-101', '1', 'Fall', '2009', 'C');
insert into takes values ('12345', 'CS-190', '2', 'Spring', '2009', 'A');
insert into takes values ('12345', 'CS-315', '1', 'Spring', '2010', 'A');
insert into takes values ('12345', 'CS-347', '1', 'Fall', '2009', 'A');
insert into takes values ('19991', 'HIS-351', '1', 'Spring', '2010', 'B');
insert into takes values ('23121', 'FIN-201', '1', 'Spring', '2010', 'C+');
insert into takes values ('44553', 'PHY-101', '1', 'Fall', '2009', 'B-');
insert into takes values ('45678', 'CS-101', '1', 'Fall', '2009', 'F');
insert into takes values ('45678', 'CS-101', '1', 'Spring', '2010', 'B+');
insert into takes values ('45678', 'CS-319', '1', 'Spring', '2010', 'B');
insert into takes values ('54321', 'CS-101', '1', 'Fall', '2009', 'A-');
insert into takes values ('54321', 'CS-190', '2', 'Spring', '2009', 'B+');
insert into takes values ('55739', 'MU-199', '1', 'Spring', '2010', 'A-');
insert into takes values ('76543', 'CS-101', '1', 'Fall', '2009', 'A');
insert into takes values ('76543', 'CS-319', '2', 'Spring', '2010', 'A');
insert into takes values ('76653', 'EE-181', '1', 'Spring', '2009', 'C');
insert into takes values ('98765', 'CS-101', '1', 'Fall', '2009', 'C-');
insert into takes values ('98765', 'CS-315', '1', 'Spring', '2010', 'B');
insert into takes values ('98988', 'BIO-101', '1', 'Summer', '2009', 'A');
insert into takes values ('98988', 'BIO-301', '1', 'Summer', '2010', null);
insert into advisor values ('00128', '45565');
insert into advisor values ('12345', '10101');
insert into advisor values ('23121', '76543');
insert into advisor values ('44553', '22222');
insert into advisor values ('45678', '22222');
insert into advisor values ('76543', '45565');
insert into advisor values ('76653', '98345');
insert into advisor values ('98765', '98345');
insert into advisor values ('98988', '76766');
insert into time_slot values ('A', 'M', '8', '0', '8', '50');
insert into time_slot values ('A', 'W', '8', '0', '8', '50');
insert into time_slot values ('A', 'F', '8', '0', '8', '50');
insert into time_slot values ('B', 'M', '9', '0', '9', '50');
insert into time_slot values ('B', 'W', '9', '0', '9', '50');
insert into time_slot values ('B', 'F', '9', '0', '9', '50');
insert into time_slot values ('C', 'M', '11', '0', '11', '50');
insert into time_slot values ('C', 'W', '11', '0', '11', '50');
insert into time_slot values ('C', 'F', '11', '0', '11', '50');
insert into time_slot values ('D', 'M', '13', '0', '13', '50');
insert into time_slot values ('D', 'W', '13', '0', '13', '50');
insert into time_slot values ('D', 'F', '13', '0', '13', '50');
insert into time_slot values ('E', 'T', '10', '30', '11', '45 ');
insert into time_slot values ('E', 'R', '10', '30', '11', '45 ');
insert into time_slot values ('F', 'T', '14', '30', '15', '45 ');
insert into time_slot values ('F', 'R', '14', '30', '15', '45 ');
insert into time_slot values ('G', 'M', '16', '0', '16', '50');
insert into time_slot values ('G', 'W', '16', '0', '16', '50');
insert into time_slot values ('G', 'F', '16', '0', '16', '50');
insert into time_slot values ('H', 'W', '10', '0', '12', '30');
insert into prereq values ('BIO-301', 'BIO-101');
insert into prereq values ('BIO-399', 'BIO-101');
insert into prereq values ('CS-190', 'CS-101');
insert into prereq values ('CS-315', 'CS-101');
insert into prereq values ('CS-319', 'CS-101');
insert into prereq values ('CS-347', 'CS-101');
insert into prereq values ('EE-181', 'PHY-101');
advistor表：

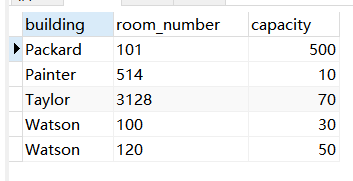

classroom表

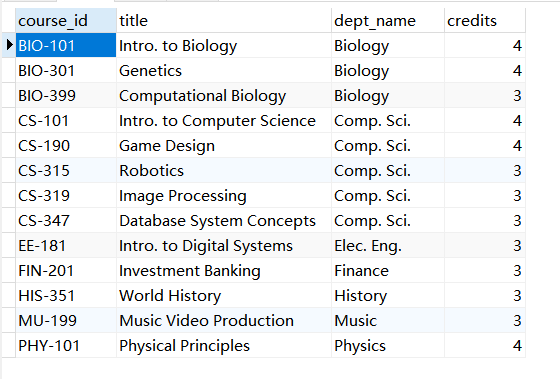

course表

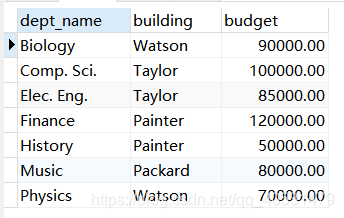

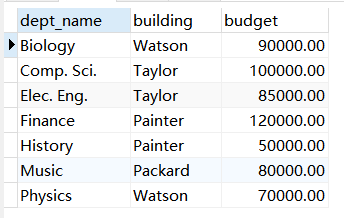

department表

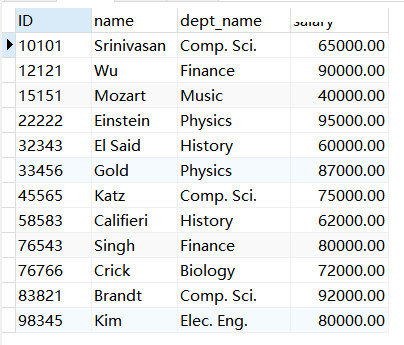

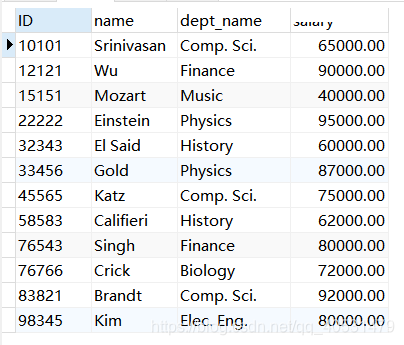

instructor表
prereq表

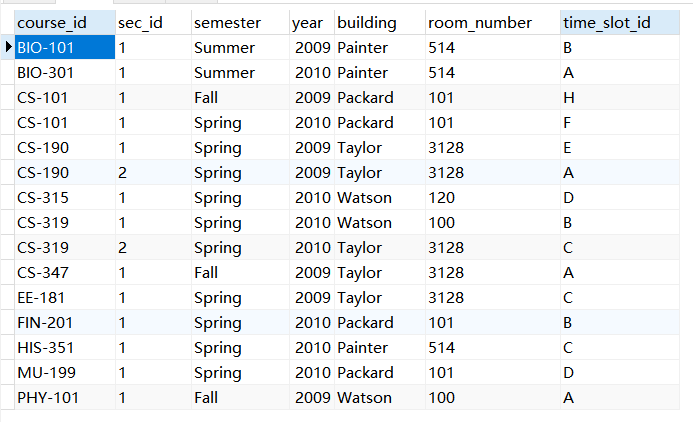

section表

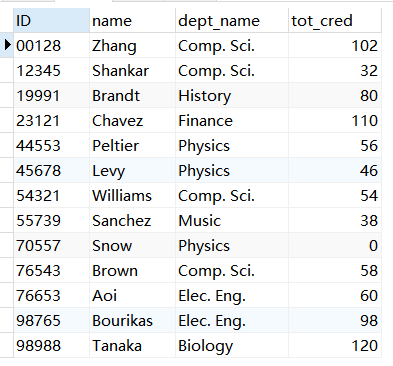

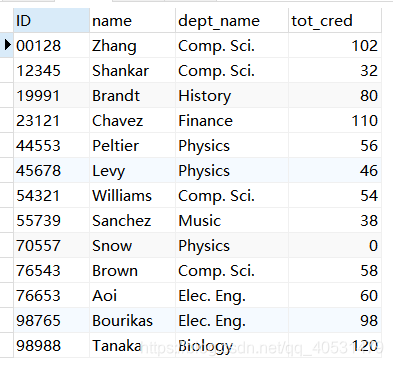

student表

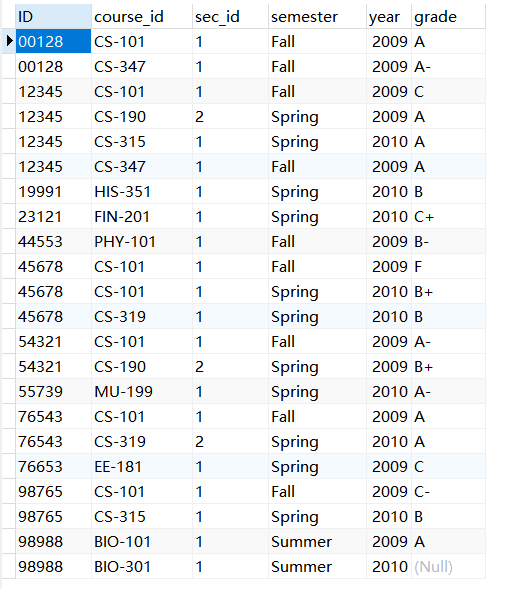

takes表

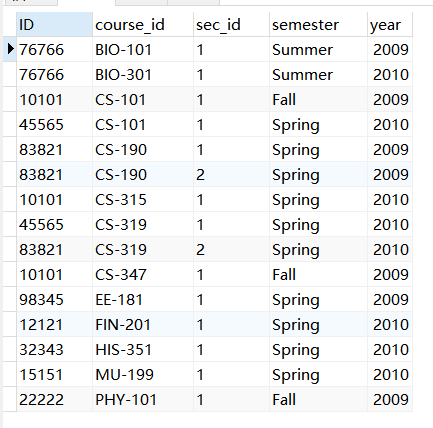

teaches表
time_slot表
未完待续…
本文来自互联网用户投稿，文章观点仅代表作者本人，不代表本站立场，不承担相关法律责任。如若转载，请注明出处。 如若内容造成侵权/违法违规/事实不符，请点击【内容举报】进行投诉反馈！
