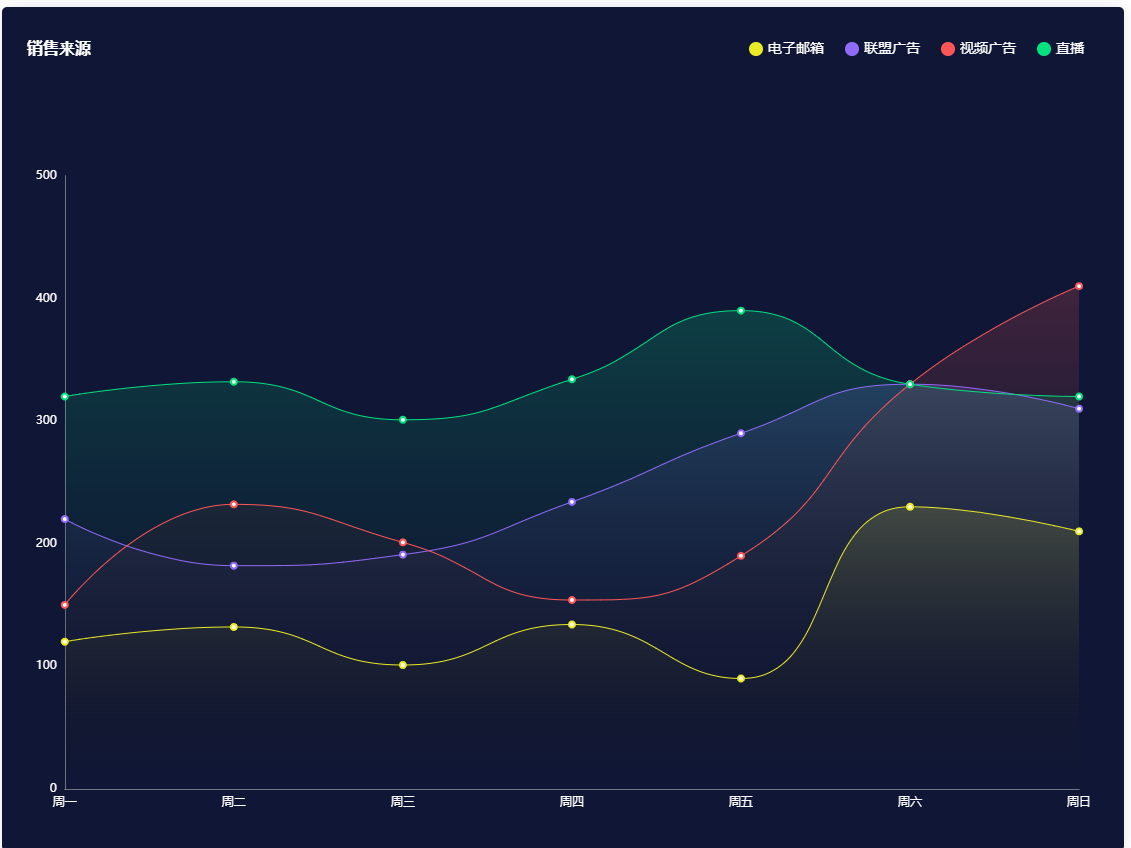

echarts 线形图

const backgroundColor = '#101736';
const color = ['#EAEA26', '#906BF9', '#FE5656', '#01E17E', '#3DD1F9', '#FFAD05']; //2个以上的series就需要用到color数组
const title = {text: '销售来源',textStyle: {color: '#fff',fontSize: 16,},padding: 0,top: 35,left: 25,
};
const legend = {//data，就是取得每个series里面的name属性。orient: 'horizontal',icon: 'circle', //图例形状padding: 0,top: 35,right: 40,itemWidth: 14, //小圆点宽度itemHeight: 14, // 小圆点高度itemGap: 21, // 图例每项之间的间隔。[ default: 10 ]横向布局时为水平间隔，纵向布局时为纵向间隔。textStyle: {fontSize: 14,color: '#ffffff',},
};
const tooltip = {show: true,trigger: 'axis',axisPointer: {type: 'shadow',},
};
let seriesData = [{ name: '电子邮箱', data: [120, 132, 101, 134, 90, 230, 210] },{ name: '联盟广告', data: [220, 182, 191, 234, 290, 330, 310] },{ name: '视频广告', data: [150, 232, 201, 154, 190, 330, 410] },{ name: '直播', data: [320, 332, 301, 334, 390, 330, 320] },
];
const commonConfigFn = (index) => {return {type: 'line',smooth: true,symbol: 'emptyCircle', //空心小圆点。线条小圆点形状symbolSize: 6, //小圆点大小itemStyle: {//还是小圆点设置},label: {show: false, //不显示小圆点上的label文字},lineStyle: {width: 1, //线条设置},areaStyle: {//填充线条下面的面积区域颜色。（areaStyle只是锦上添花）opacity: 0.2,color: {type: 'linear',x: 0,y: 0,x2: 0,y2: 1,colorStops: [{offset: 0,color: color[index], // 上处的颜色},{offset: 1,color: 'transparent', // 下处的颜色},],global: false, // 缺省为 false},},};
};seriesData = seriesData.map((item, index) => ({ ...item, ...commonConfigFn(index) }));
option = {backgroundColor,color,title,tooltip,legend,grid: {top: '20%',left: '3%',right: '4%',bottom: '5%',containLabel: true,},xAxis: {show: true, //显示x轴+x轴label文字type: 'category',boundaryGap: false, //从Y轴出发，这个false很好的axisLine: {show: true, //显示x坐标轴轴线lineStyle: {color: 'rgba(255,255,255,.4)',},},axisTick: {show: false, //不显示x坐标1cm刻度},axisLabel: {color: '#ffffff', //x轴label文字颜色},splitLine: {show: false, //不显示grid竖向分割线},data: ['周一', '周二', '周三', '周四', '周五', '周六', '周日'],},yAxis: {type: 'value',axisLabel: {color: '#ffffff',},axisLine: {show: true,lineStyle: {color: 'rgba(255,255,255,.4)',},},splitLine: {show: false, //不显示grid水平分割线},},series: seriesData,
};
