C++ 使用gRPC入门教程

    gRPC是一个高性能、通用的开源RPC框架，其由Google主要面向移动应用开发并基于HTTP/2协议标准而设计，基于ProtoBuf(Protocol Buffers)序列化协议开发，且支持众多开发语言，能够基于语言自动生成客户端和服务端功能库。

1.新建工程GrpcClient、GrpcServer和GrpcLibrary

   添加 - 新建项目 - 控制台应用 GrpcClient、GrpcServer。

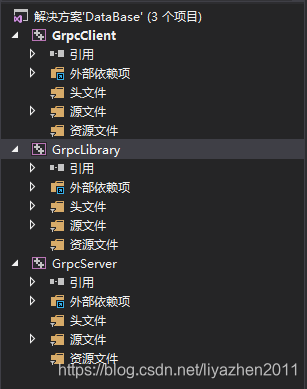

   添加 - 新建项目 - 类库 GrpcLibrary。 工程中的三个项目情况如下：

2.自定义服务

    在项目GrpcLibrary里添加HelloWorld.proto用以生成代码。

// greeter_server.cc
#include
#include
#include #include #ifdef BAZEL_BUILD
#include "examples/protos/helloworld.grpc.pb.h"
#else
#include "HelloWorld.grpc.pb.h"
#endifusing grpc::Server;
using grpc::ServerBuilder;
using grpc::ServerContext;
using grpc::Status;
using GrpcLibrary::HelloRequest;
using GrpcLibrary::HelloReply;
using GrpcLibrary::GrpcService;// Logic and data behind the server's behavior.
class GreeterServiceImpl final : public GrpcService::Service {Status SayHello(ServerContext* context, const HelloRequest* request,  HelloReply* reply) override {std::string prefix("Hello ");reply->set_message(prefix + request->name());return Status::OK;}
};void RunServer() {std::string server_address("0.0.0.0:50051");GreeterServiceImpl service;ServerBuilder builder;// Listen on the given address without any authentication mechanism.builder.AddListeningPort(server_address, grpc::InsecureServerCredentials());// Register "service" as the instance through which we'll communicate with// clients. In this case it corresponds to an *synchronous* service.builder.RegisterService(&service);// Finally assemble the server.std::unique_ptr server(builder.BuildAndStart());std::cout << "Server listening on " << server_address << std::endl;// Wait for the server to shutdown. Note that some other thread must be// responsible for shutting down the server for this call to ever return.server->Wait();
}int main(int argc, char** argv) {RunServer();return 0;
}

4.客户端

// greeter_client.cc
#include
#include
#include #include #ifdef BAZEL_BUILD
#include "examples/protos/helloworld.grpc.pb.h"
#else
#include "helloworld.grpc.pb.h"
#endifusing grpc::Channel;
using grpc::ClientContext;
using grpc::Status;
using GrpcLibrary::HelloRequest;
using GrpcLibrary::HelloReply;
using GrpcLibrary::GrpcService;class GreeterClient {
public:GreeterClient(std::shared_ptr channel): stub_(GrpcService::NewStub(channel)) {}std::string SayHello(const std::string& user) {// Data we are sending to the server.HelloRequest request;request.set_name(user);// Container for the data we expect from the server.HelloReply reply;// Context for the client. It could be used to convey extra information to// the server and/or tweak certain RPC behaviors.ClientContext context;// The actual RPC.Status status = stub_->SayHello(&context, request, &reply);// Act upon its status.if (status.ok()) {return reply.message();}else {std::cout << status.error_code() << ": " << status.error_message()<< std::endl;return "RPC failed";}}private:std::unique_ptr stub_;
};int main(int argc, char** argv) {GreeterClient greeter(grpc::CreateChannel("localhost:50051", grpc::InsecureChannelCredentials()));std::string user("world");std::string reply = greeter.SayHello(user);std::cout << "Greeter received: " << reply << std::endl;return 0;
}

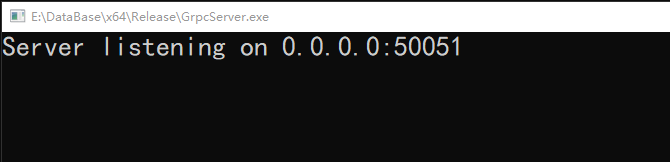

5.测试

   先启动服务的，再启动客户端。
