static const struct kgsl_ioctl kgsl_ioctl_funcs[] = {...// ioctl命令：IOCTL_KGSL_GPUMEM_ALLOC// ioctl函数：kgsl_ioctl_gpumem_allocKGSL_IOCTL_FUNC(IOCTL_KGSL_GPUMEM_ALLOC,kgsl_ioctl_gpumem_alloc),...
}

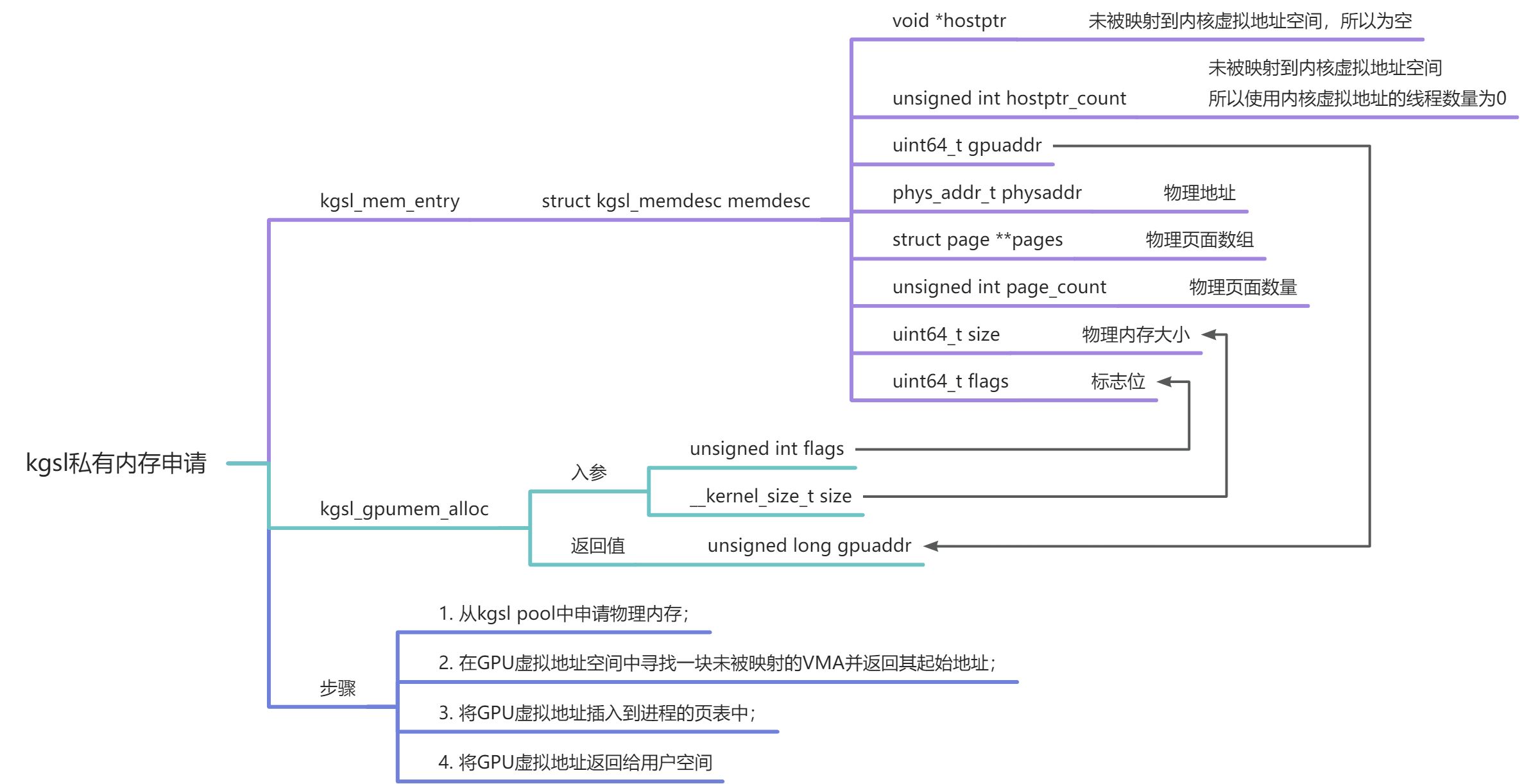

1. kgsl_gpumem_alloc

struct kgsl_gpumem_alloc {// 返回值：GPU虚拟地址unsigned long gpuaddr; /* output param */// 申请的物理内存大小__kernel_size_t size;// 标志位unsigned int flags;
};// ioctl参数：kgsl_gpumem_alloc
#define IOCTL_KGSL_GPUMEM_ALLOC \_IOWR(KGSL_IOC_TYPE, 0x2f, struct kgsl_gpumem_alloc)

2. kgsl_ioctl_gpumem_alloc

long kgsl_ioctl_gpumem_alloc(struct kgsl_device_private *dev_priv,unsigned int cmd, void *data)
{// ioctl参数struct kgsl_gpumem_alloc *param = data;// kgsl_mem_entry用于描述用户空间的内存分配[见2.1节]struct kgsl_mem_entry *entry;// 用户空间指定的标志位uint64_t flags = param->flags;/** On 64 bit kernel, secure memory region is expanded and* moved to 64 bit address, 32 bit apps can not access it from* this IOCTL.*/if ((param->flags & KGSL_MEMFLAGS_SECURE) && is_compat_task()&& test_bit(KGSL_MMU_64BIT, &device->mmu.features))return -EOPNOTSUPP;/* Legacy functions doesn't support these advanced features */flags &= ~((uint64_t) KGSL_MEMFLAGS_USE_CPU_MAP);if (is_compat_task())flags |= KGSL_MEMFLAGS_FORCE_32BIT;// 创建kgsl_mem_entry[见2.2节]entry = gpumem_alloc_entry(dev_priv, (uint64_t) param->size, flags);if (IS_ERR(entry))return PTR_ERR(entry);// 更新参数param->gpuaddr = (unsigned long) entry->memdesc.gpuaddr;param->size = (size_t) entry->memdesc.size;param->flags = (unsigned int) entry->memdesc.flags;/* Put the extra ref from kgsl_mem_entry_create() */// 减少引用计数, 如果引用计数减为0则通过kgsl_mem_entry_destroy释放kgsl_mem_entrykgsl_mem_entry_put(entry);return 0;
}

2.1 kgsl_mem_entry

/** struct kgsl_mem_entry - a userspace memory allocation*/
struct kgsl_mem_entry {// Currently userspace can only hold a single reference count but the kernel may hold morestruct kref refcount;// description of the memory[见2.1.1节]struct kgsl_memdesc memdesc;// type-specific data, such as the dma-buf attachment pointervoid *priv_data;// rb_node for the gpu address lookup rb treestruct rb_node node;// idr index for this entry, can be used to find memory that does not have a valid GPU addressunsigned int id;// 持有该内存的进程struct kgsl_process_private *priv;// if !0, userspace requested that his memory be freed, but there are still references to itint pending_free;// String containing user specified metadata for the entrychar metadata[KGSL_GPUOBJ_ALLOC_METADATA_MAX + 1];// used to schedule a kgsl_mem_entry_put in atomic contextsstruct work_struct work;/*** @map_count: Count how many vmas this object is mapped in - used for* debugfs accounting*/// 映射的VMA数量atomic_t map_count;
};

2.1.1 kgsl_memdesc

/*** struct kgsl_memdesc - GPU memory object descriptor*/
struct kgsl_memdesc {// 此块对象映射的页表struct kgsl_pagetable *pagetable;// CPU(进程)虚拟地址void *hostptr;// 使用CPU虚拟地址的线程个数unsigned int hostptr_count;// GPU虚拟地址uint64_t gpuaddr;// 该内存对象的物理地址phys_addr_t physaddr;// 该内存对象的物理内存大小uint64_t size;// Internal flags and settingsunsigned int priv;struct sg_table *sgt;// 操作这块内存的函数[见2.1.2节]const struct kgsl_memdesc_ops *ops;// 用户空间申请内存时设置的标志位(Flags set from userspace)uint64_t flags;struct device *dev;// dma attributes for this memoryunsigned long attrs;// An array of pointers to allocated pages// 申请的物理页面数组struct page **pages;// Total number of pages allocated// 申请的物理页面数量unsigned int page_count;/** @lock: Spinlock to protect the gpuaddr from being accessed by* multiple entities trying to map the same SVM region at once*/spinlock_t lock;
};

2.1.2 kgsl_memdesc_ops

// 具体实现见2.2.5节kgsl_page_ops
struct kgsl_memdesc_ops {unsigned int vmflags;vm_fault_t (*vmfault)(struct kgsl_memdesc *memdesc,struct vm_area_struct *vma, struct vm_fault *vmf);// 释放内存void (*free)(struct kgsl_memdesc *memdesc);// 映射到内核虚拟地址空间int (*map_kernel)(struct kgsl_memdesc *memdesc);// 解映射void (*unmap_kernel)(struct kgsl_memdesc *memdesc);/*** @put_gpuaddr: Put away the GPU address and unmap the memory* descriptor*/void (*put_gpuaddr)(struct kgsl_memdesc *memdesc);
};

2.2 gpumem_alloc_entry

struct kgsl_mem_entry *gpumem_alloc_entry(struct kgsl_device_private *dev_priv,uint64_t size, uint64_t flags)
{int ret;struct kgsl_process_private *private = dev_priv->process_priv;struct kgsl_mem_entry *entry;struct kgsl_mmu *mmu = &dev_priv->device->mmu;unsigned int align;flags &= KGSL_MEMFLAGS_GPUREADONLY| KGSL_CACHEMODE_MASK| KGSL_MEMTYPE_MASK| KGSL_MEMALIGN_MASK| KGSL_MEMFLAGS_USE_CPU_MAP| KGSL_MEMFLAGS_SECURE| KGSL_MEMFLAGS_FORCE_32BIT| KGSL_MEMFLAGS_IOCOHERENT| KGSL_MEMFLAGS_GUARD_PAGE;/* Return not supported error if secure memory isn't enabled */if (!kgsl_mmu_is_secured(mmu) &&(flags & KGSL_MEMFLAGS_SECURE)) {dev_WARN_ONCE(dev_priv->device->dev, 1,"Secure memory not supported");return ERR_PTR(-EOPNOTSUPP);}/* Cap the alignment bits to the highest number we can handle */align = MEMFLAGS(flags, KGSL_MEMALIGN_MASK, KGSL_MEMALIGN_SHIFT);if (align >= ilog2(KGSL_MAX_ALIGN)) {dev_err(dev_priv->device->dev,"Alignment too large; restricting to %dK\n",KGSL_MAX_ALIGN >> 10);flags &= ~((uint64_t) KGSL_MEMALIGN_MASK);flags |= (uint64_t)((ilog2(KGSL_MAX_ALIGN) <<KGSL_MEMALIGN_SHIFT) &KGSL_MEMALIGN_MASK);}/* For now only allow allocations up to 4G */if (size == 0 || size > UINT_MAX)return ERR_PTR(-EINVAL);// 更新缓存策略flags = kgsl_filter_cachemode(flags);// 前面主要完成标志位的校验和更新// 这里开始创建kgsl_mem_entry[见2.2.1节]entry = kgsl_mem_entry_create();if (entry == NULL)return ERR_PTR(-ENOMEM);// 根据标志位判断是否是cached bufferif (IS_ENABLED(CONFIG_QCOM_KGSL_IOCOHERENCY_DEFAULT) &&kgsl_cachemode_is_cached(flags))flags |= KGSL_MEMFLAGS_IOCOHERENT;// 私有内存分配[2.2.2节]ret = kgsl_allocate_user(dev_priv->device, &entry->memdesc,size, flags, 0);if (ret != 0)goto err;// 将该内存绑定到kgsl进程[2.2.7节]ret = kgsl_mem_entry_attach_process(dev_priv->device, private, entry);if (ret != 0) {kgsl_sharedmem_free(&entry->memdesc);goto err;}kgsl_process_add_stats(private,kgsl_memdesc_usermem_type(&entry->memdesc),entry->memdesc.size);trace_kgsl_mem_alloc(entry);// 将kgsl_mem_entry提交到kgsl_process_private, 以便其他操作也能够访问kgsl_mem_entry_commit_process(entry);return entry;
err:kfree(entry);return ERR_PTR(ret);
}

2.2.1 kgsl_mem_entry_create

static struct kgsl_mem_entry *kgsl_mem_entry_create(void)
{// 创建kgsl_mem_entrystruct kgsl_mem_entry *entry = kzalloc(sizeof(*entry), GFP_KERNEL);if (entry != NULL) {// 初始化kgsl_mem_entry引用计数为1kref_init(&entry->refcount);/* put this ref in userspace memory alloc and map ioctls */// 引用计数加1kref_get(&entry->refcount);// 初始化映射的VMA数量为0atomic_set(&entry->map_count, 0);}return entry;
}

2.2.2 kgsl_allocate_user

enum kgsl_mmutype {// 支持IOMMUKGSL_MMU_TYPE_IOMMU = 0,KGSL_MMU_TYPE_NONE
};int kgsl_allocate_user(struct kgsl_device *device, struct kgsl_memdesc *memdesc,u64 size, u64 flags, u32 priv)
{// 如果不支持IOMMU, 则需要分配连续内存if (device->mmu.type == KGSL_MMU_TYPE_NONE)return kgsl_alloc_contiguous(device, memdesc, size, flags,priv);else if (flags & KGSL_MEMFLAGS_SECURE)return kgsl_allocate_secure(device, memdesc, size, flags, priv);// 页面分配[见2.2.3节]return kgsl_alloc_pages(device, memdesc, size, flags, priv);
}

2.2.3 kgsl_alloc_pages

static int kgsl_alloc_pages(struct kgsl_device *device,struct kgsl_memdesc *memdesc, u64 size, u64 flags, u32 priv)
{struct page **pages;int count;// size大小对齐size = PAGE_ALIGN(size);// 判断size大小有效性if (!size || size > UINT_MAX)return -EINVAL;// 根据标志位初始化kgsl_memdesc[见2.2.4节]kgsl_memdesc_init(device, memdesc, flags);// 传入的priv为0memdesc->priv |= priv;// #define KGSL_MEMDESC_SYSMEM BIT(9)if (priv & KGSL_MEMDESC_SYSMEM) {memdesc->ops = &kgsl_system_ops;count = kgsl_system_alloc_pages(size, &pages, device->dev);} else {// 设置kgsl_memdesc的kgsl_memdesc_ops实现[2.2.5节]memdesc->ops = &kgsl_page_ops;// 分配页面并返回分配的page[2.2.6节]count = _kgsl_alloc_pages(size, &pages, device->dev);}if (count < 0)return count;// 页面数组指针memdesc->pages = pages;// 内存大小memdesc->size = size;// 页面数量memdesc->page_count = count;// 更新全局的kgsl的内存统计: 将申请的内存大小统计进kgsl_driver的stats结构体page_alloc成员KGSL_STATS_ADD(size, &kgsl_driver.stats.page_alloc,&kgsl_driver.stats.page_alloc_max);return 0;
}

2.2.4 kgsl_memdesc_init

void kgsl_memdesc_init(struct kgsl_device *device,struct kgsl_memdesc *memdesc, uint64_t flags)
{struct kgsl_mmu *mmu = &device->mmu;unsigned int align;// 初始化kgsl_memdescmemset(memdesc, 0, sizeof(*memdesc));/* Turn off SVM if the system doesn't support it */// 判断是否支持KGSL_MMU_IOPGTABLEif (!kgsl_mmu_is_perprocess(mmu))flags &= ~((uint64_t) KGSL_MEMFLAGS_USE_CPU_MAP);/* Secure memory disables advanced addressing modes */if (flags & KGSL_MEMFLAGS_SECURE)flags &= ~((uint64_t) KGSL_MEMFLAGS_USE_CPU_MAP);/* Disable IO coherence if it is not supported on the chip */// 判断是否支持I/O coherencyif (!kgsl_mmu_has_feature(device, KGSL_MMU_IO_COHERENT)) {flags &= ~((uint64_t) KGSL_MEMFLAGS_IOCOHERENT);WARN_ONCE(IS_ENABLED(CONFIG_QCOM_KGSL_IOCOHERENCY_DEFAULT),"I/O coherency is not supported on this target\n");} else if (IS_ENABLED(CONFIG_QCOM_KGSL_IOCOHERENCY_DEFAULT))flags |= KGSL_MEMFLAGS_IOCOHERENT;/** We can't enable I/O coherency on uncached surfaces because of* situations where hardware might snoop the cpu caches which can* have stale data. This happens primarily due to the limitations* of dma caching APIs available on arm64*/if (!kgsl_cachemode_is_cached(flags))flags &= ~((u64) KGSL_MEMFLAGS_IOCOHERENT);if (kgsl_mmu_has_feature(device, KGSL_MMU_NEED_GUARD_PAGE) ||(flags & KGSL_MEMFLAGS_GUARD_PAGE))memdesc->priv |= KGSL_MEMDESC_GUARD_PAGE;if (flags & KGSL_MEMFLAGS_SECURE)memdesc->priv |= KGSL_MEMDESC_SECURE;// 设置标志位memdesc->flags = flags;// 设置持有该内存的devicememdesc->dev = &device->pdev->dev;// 对齐align = max_t(unsigned int,kgsl_memdesc_get_align(memdesc), ilog2(PAGE_SIZE));// 设置kgsl_memdesc的对齐标志位kgsl_memdesc_set_align(memdesc, align);spin_lock_init(&memdesc->lock);
}

2.2.5 kgsl_page_ops

static const struct kgsl_memdesc_ops kgsl_page_ops = {.free = kgsl_free_pages,.vmflags = VM_DONTDUMP | VM_DONTEXPAND | VM_DONTCOPY | VM_MIXEDMAP,.vmfault = kgsl_paged_vmfault,.map_kernel = kgsl_paged_map_kernel,.unmap_kernel = kgsl_paged_unmap_kernel,.put_gpuaddr = kgsl_unmap_and_put_gpuaddr,
};

2.2.6 _kgsl_alloc_pages

static int _kgsl_alloc_pages(struct kgsl_memdesc *memdesc,u64 size, struct page ***pages, struct device *dev)
{int count = 0;// 将内存大小转换为页面数量int npages = size >> PAGE_SHIFT;// attempt to allocate physically contiguous memory by kmalloc// but upon failure, fall back to non-contiguous (vmalloc) allocationstruct page **local = kvcalloc(npages, sizeof(*local), GFP_KERNEL);u32 page_size, align;u64 len = size;if (!local)return -ENOMEM;// 共享内存设置成功或者未配置CONFIG_QCOM_KGSL_USE_SHMEM则返回0[见2.2.6.1节]count = kgsl_memdesc_file_setup(memdesc, size);if (count) {kvfree(local);return count;}/* Start with 1MB alignment to get the biggest page we can */align = ilog2(SZ_1M);// 根据内存大小计算页面大小page_size = kgsl_get_page_size(len, align);while (len) {// 调用kgsl_pool_alloc_page分配, 并将获取的page通过local数组返回int ret = kgsl_alloc_page(&page_size, &local[count],npages, &align, count, memdesc->shmem_filp, dev);if (ret == -EAGAIN)continue;else if (ret <= 0) {int i;for (i = 0; i < count; ) {int n = 1 << compound_order(local[i]);kgsl_free_page(local[i]);i += n;}kvfree(local);if (!kgsl_sharedmem_noretry_flag)pr_err_ratelimited("kgsl: out of memory: only allocated %lldKb of %lldKb requested\n",(size - len) >> 10, size >> 10);if (memdesc->shmem_filp)fput(memdesc->shmem_filp);return -ENOMEM;}count += ret;npages -= ret;len -= page_size;page_size = kgsl_get_page_size(len, align);}// pages作为返回值*pages = local;return count;
}

2.2.6.1 kgsl_memdesc_file_setup

// 配置kgsl使用共享内存
#ifdef CONFIG_QCOM_KGSL_USE_SHMEM
static int kgsl_memdesc_file_setup(struct kgsl_memdesc *memdesc, uint64_t size)
{int ret;// 在共享内存目录下挂载一个kgsl-3d0的目录, 共享size大小的内存memdesc->shmem_filp = shmem_file_setup("kgsl-3d0", size,VM_NORESERVE);if (IS_ERR(memdesc->shmem_filp)) {ret = PTR_ERR(memdesc->shmem_filp);pr_err("kgsl: unable to setup shmem file err %d\n",ret);memdesc->shmem_filp = NULL;return ret;}return 0;
}
#else
static int kgsl_memdesc_file_setup(struct kgsl_memdesc *memdesc, uint64_t size)
{return 0;
}
#endif

2.2.7 kgsl_mem_entry_attach_to_process

/** Attach the memory object to a process by (possibly) getting a GPU address and* (possibly) mapping it*/
static int kgsl_mem_entry_attach_process(struct kgsl_device *device,struct kgsl_process_private *process,struct kgsl_mem_entry *entry)
{int id, ret;// kgsl_process_private引用计数加1ret = kgsl_process_private_get(process);if (!ret)return -EBADF;// [见2.2.7.1节]ret = kgsl_mem_entry_track_gpuaddr(device, process, entry);if (ret) {kgsl_process_private_put(process);return ret;}idr_preload(GFP_KERNEL);spin_lock(&process->mem_lock);/* Allocate the ID but don't attach the pointer just yet */// 为kgsl_mem_entry分配idid = idr_alloc(&process->mem_idr, NULL, 1, 0, GFP_NOWAIT);spin_unlock(&process->mem_lock);idr_preload_end();if (id < 0) {if (!kgsl_memdesc_use_cpu_map(&entry->memdesc))kgsl_mmu_put_gpuaddr(&entry->memdesc);kgsl_process_private_put(process);return id;}entry->id = id;entry->priv = process;/** Map the memory if a GPU address is already assigned, either through* kgsl_mem_entry_track_gpuaddr() or via some other SVM process*/// GPU虚拟地址分配成功if (entry->memdesc.gpuaddr) {// [见2.2.7.6节]ret = kgsl_mmu_map(entry->memdesc.pagetable,&entry->memdesc);if (ret)kgsl_mem_entry_detach_process(entry);}kgsl_memfree_purge(entry->memdesc.pagetable, entry->memdesc.gpuaddr,entry->memdesc.size);return ret;
}

2.2.7.1 kgsl_mem_entry_track_gpuaddr

/* Allocate a IOVA for memory objects that don't use SVM */
static int kgsl_mem_entry_track_gpuaddr(struct kgsl_device *device,struct kgsl_process_private *process,struct kgsl_mem_entry *entry)
{struct kgsl_pagetable *pagetable;/** If SVM is enabled for this object then the address needs to be* assigned elsewhere* Also do not proceed further in case of NoMMU.*/// 不支持IOMMU则直接返回if (kgsl_memdesc_use_cpu_map(&entry->memdesc) ||(kgsl_mmu_get_mmutype(device) == KGSL_MMU_TYPE_NONE))return 0;// 使用kgsl进程页表pagetable = kgsl_memdesc_is_secured(&entry->memdesc) ?device->mmu.securepagetable : process->pagetable;// 获取GPU虚拟地址[见2.2.7.2节]return kgsl_mmu_get_gpuaddr(pagetable, &entry->memdesc);
}

2.2.7.2 kgsl_mmu_get_gpuaddr

#define PT_OP_VALID(_pt, _field) \(((_pt) != NULL) && \((_pt)->pt_ops != NULL) && \((_pt)->pt_ops->_field != NULL))/*** kgsl_mmu_get_gpuaddr - Assign a GPU address to the memdesc* @pagetable: GPU pagetable to assign the address in* @memdesc: mem descriptor to assign the memory to** Return: 0 on success or negative on failure*/
static inline int kgsl_mmu_get_gpuaddr(struct kgsl_pagetable *pagetable,struct kgsl_memdesc *memdesc)
{// 调用iommu_pt_ops中定义的kgsl_iommu_get_gpuaddr分配GPU虚拟地址[2.2.7.5节]if (PT_OP_VALID(pagetable, get_gpuaddr))return pagetable->pt_ops->get_gpuaddr(pagetable, memdesc);return -ENOMEM;
}

2.2.7.3 kgsl_iommu_get_gpuaddr

static int kgsl_iommu_get_gpuaddr(struct kgsl_pagetable *pagetable,struct kgsl_memdesc *memdesc)
{struct kgsl_iommu_pt *pt = pagetable->priv;int ret = 0;uint64_t addr, start, end, size;unsigned int align;if (WARN_ON(kgsl_memdesc_use_cpu_map(memdesc)))return -EINVAL;if (memdesc->flags & KGSL_MEMFLAGS_SECURE &&pagetable->name != KGSL_MMU_SECURE_PT)return -EINVAL;// 获取映射区域(kgsl_memdesc)的大小size = kgsl_memdesc_footprint(memdesc);align = max_t(uint64_t, 1 << kgsl_memdesc_get_align(memdesc),PAGE_SIZE);if (memdesc->flags & KGSL_MEMFLAGS_FORCE_32BIT) {start = pagetable->compat_va_start;end = pagetable->compat_va_end;} else {// 页表的起始虚拟地址start = pt->va_start;// 页表的结束虚拟地址end = pt->va_end;}spin_lock(&pagetable->lock);// 获取一块未映射的虚拟地址[2.2.7.4节]addr = _get_unmapped_area(pagetable, start, end, size, align);if (addr == (uint64_t) -ENOMEM) {ret = -ENOMEM;goto out;}/** This path is only called in a non-SVM path with locks so we can be* sure we aren't racing with anybody so we don't need to worry about* taking the lock*/// 将该虚拟地址插入页表[2.2.7.5节]ret = _insert_gpuaddr(pagetable, addr, size);if (ret == 0) {// 设置GPU虚拟地址memdesc->gpuaddr = addr;// 设置页表memdesc->pagetable = pagetable;}out:spin_unlock(&pagetable->lock);return ret;
}

2.2.7.4 _get_unmapped_area

/** struct kgsl_iommu_addr_entry - entry in the kgsl_pagetable rbtree.* @base: starting virtual address of the entry* @size: size of the entry* @node: the rbtree node*/
struct kgsl_iommu_addr_entry {// 起始虚拟地址uint64_t base;uint64_t size;struct rb_node node;
};static uint64_t _get_unmapped_area(struct kgsl_pagetable *pagetable,uint64_t bottom, uint64_t top, uint64_t size,uint64_t align)
{// 页表radix tree头节点struct rb_node *node = rb_first(&pagetable->rbtree);uint64_t start;bottom = ALIGN(bottom, align);start = bottom;while (node != NULL) {uint64_t gap;// 查找rb_node的容器即kgsl_iommu_addr_entrystruct kgsl_iommu_addr_entry *entry = rb_entry(node,struct kgsl_iommu_addr_entry, node);/** Skip any entries that are outside of the range, but make sure* to account for some that might straddle the lower bound*/if (entry->base < bottom) {if (entry->base + entry->size > bottom)start = ALIGN(entry->base + entry->size, align);node = rb_next(node);continue;}/* Stop if we went over the top */if (entry->base >= top)break;/* Make sure there is a gap to consider */if (start < entry->base) {gap = entry->base - start;if (gap >= size)return start;}/* Stop if there is no more room in the region */if (entry->base + entry->size >= top)return (uint64_t) -ENOMEM;/* Start the next cycle at the end of the current entry */start = ALIGN(entry->base + entry->size, align);node = rb_next(node);}// 返回起始虚拟地址if (start + size <= top)return start;return (uint64_t) -ENOMEM;
}

2.2.7.5 _insert_gpuaddr

static int _insert_gpuaddr(struct kgsl_pagetable *pagetable,uint64_t gpuaddr, uint64_t size)
{struct rb_node **node, *parent = NULL;// 创建kgsl_iommu_addr_entrystruct kgsl_iommu_addr_entry *new =kmem_cache_alloc(addr_entry_cache, GFP_ATOMIC);if (new == NULL)return -ENOMEM;// 设置kgsl_iommu_addr_entry起始虚拟地址new->base = gpuaddr;// 设置kgsl_iommu_addr_entry大小new->size = size;// 页表基数树头节点node = &pagetable->rbtree.rb_node;while (*node != NULL) {struct kgsl_iommu_addr_entry *this;parent = *node;this = rb_entry(parent, struct kgsl_iommu_addr_entry, node);if (new->base < this->base)node = &parent->rb_left;else if (new->base > this->base)node = &parent->rb_right;else {/* Duplicate entry */WARN(1, "duplicate gpuaddr: 0x%llx\n", gpuaddr);kmem_cache_free(addr_entry_cache, new);return -EEXIST;}}// 将rb_node插入页表的基数树rb_link_node(&new->node, parent, node);rb_insert_color(&new->node, &pagetable->rbtree);return 0;
}

2.2.7.6 kgsl_mmu_map

int
kgsl_mmu_map(struct kgsl_pagetable *pagetable,struct kgsl_memdesc *memdesc)
{int size;struct kgsl_device *device = KGSL_MMU_DEVICE(pagetable->mmu);if (!memdesc->gpuaddr)return -EINVAL;/* Only global mappings should be mapped multiple times */// KGSL_MEMDESC_MAPPED标志位用于判断kgsl_memdesc是否被映射：只有全局共享内存才能映射多次if (!kgsl_memdesc_is_global(memdesc) &&(KGSL_MEMDESC_MAPPED & memdesc->priv))return -EINVAL;size = kgsl_memdesc_footprint(memdesc);if (PT_OP_VALID(pagetable, mmu_map)) {int ret;// 调用iommu_pt_ops中定义的kgsl_iommu_map[见2.2.7.7节]ret = pagetable->pt_ops->mmu_map(pagetable, memdesc);if (ret)return ret;atomic_inc(&pagetable->stats.entries);// 内存统计KGSL_STATS_ADD(size, &pagetable->stats.mapped,&pagetable->stats.max_mapped);kgsl_mmu_trace_gpu_mem_pagetable(pagetable);if (!kgsl_memdesc_is_global(memdesc)&& !(memdesc->flags & KGSL_MEMFLAGS_USERMEM_ION)) {kgsl_trace_gpu_mem_total(device, size);}// 标记此块内存已经被映射memdesc->priv |= KGSL_MEMDESC_MAPPED;}return 0;
}

2.2.7.6 kgsl_iommu_map

static int
kgsl_iommu_map(struct kgsl_pagetable *pt,struct kgsl_memdesc *memdesc)
{int ret;uint64_t addr = memdesc->gpuaddr;uint64_t size = memdesc->size;unsigned int flags = _get_protection_flags(pt, memdesc);struct sg_table *sgt = NULL;/** For paged memory allocated through kgsl, memdesc->pages is not NULL.* Allocate sgt here just for its map operation. Contiguous memory* already has its sgt, so no need to allocate it here.*/if (memdesc->pages != NULL)sgt = kgsl_alloc_sgt_from_pages(memdesc);elsesgt = memdesc->sgt;if (IS_ERR(sgt))return PTR_ERR(sgt);ret = _iommu_map_sg(pt, addr, sgt->sgl, sgt->nents, flags);if (ret)goto done;ret = _iommu_map_guard_page(pt, memdesc, addr + size, flags);if (ret)_iommu_unmap(pt, addr, size);done:if (memdesc->pages != NULL)kgsl_free_sgt(sgt);return ret;
}
