CEPH单机版、分布式部署说明和测试分析
CEPH单机版部署
环境说明
1台VMware虚拟机(ubuntu)
安装CEPH部署工具（Ubuntu）
-
添加release key
wget -q -O- 'https://download.ceph.com/keys/release.asc' | sudo apt-key add - -
添加Ceph软件包源，用Ceph稳定版（如
cuttlefish、dumpling、emperor、firefly等等）替换掉{ceph-stable-release}. 如：echo deb http://download.ceph.com/debian-{ceph-stable-release}/ $(lsb_release -sc) main | sudo tee /etc/apt/sources.list.d/ceph.list -
更新你的仓库，并安装
ceph-deploy:sudo apt-get update && sudo apt-get install ceph-deploy
部署CEPH软件
mkdir myceph
cd myceph
ceph-deploy new {hostname}
若提示
UnableToResolveError: Unable to resolve host: {hostname}
则修改 /etc/hosts，添加相应的IP地址和hostname，然后重新deploy。
设置集群副本数量
把如下内容加入到 ceph.conf 里面。
[global]
osd pool default size = 1
osd pool default min size = 1
安装(luminous 版)
ceph-deploy install --release luminous {hostname}
初始化 mon
ceph-deploy mon create-initial
ceph-deploy admin {hostname}
部署ceph mgr
sudo chmod +r /etc/ceph/ceph.client.admin.keyring
ceph-deploy mgr create {hostname}
部署osd
安装lvm2
sudo apt install lvm2
若无sdb，则在虚拟机里添加一个硬盘，然后
sudo su
cd
pvcreate /dev/sdb
然后在myceph目录下
ceph-deploy osd create --data /dev/sdb {hostname}

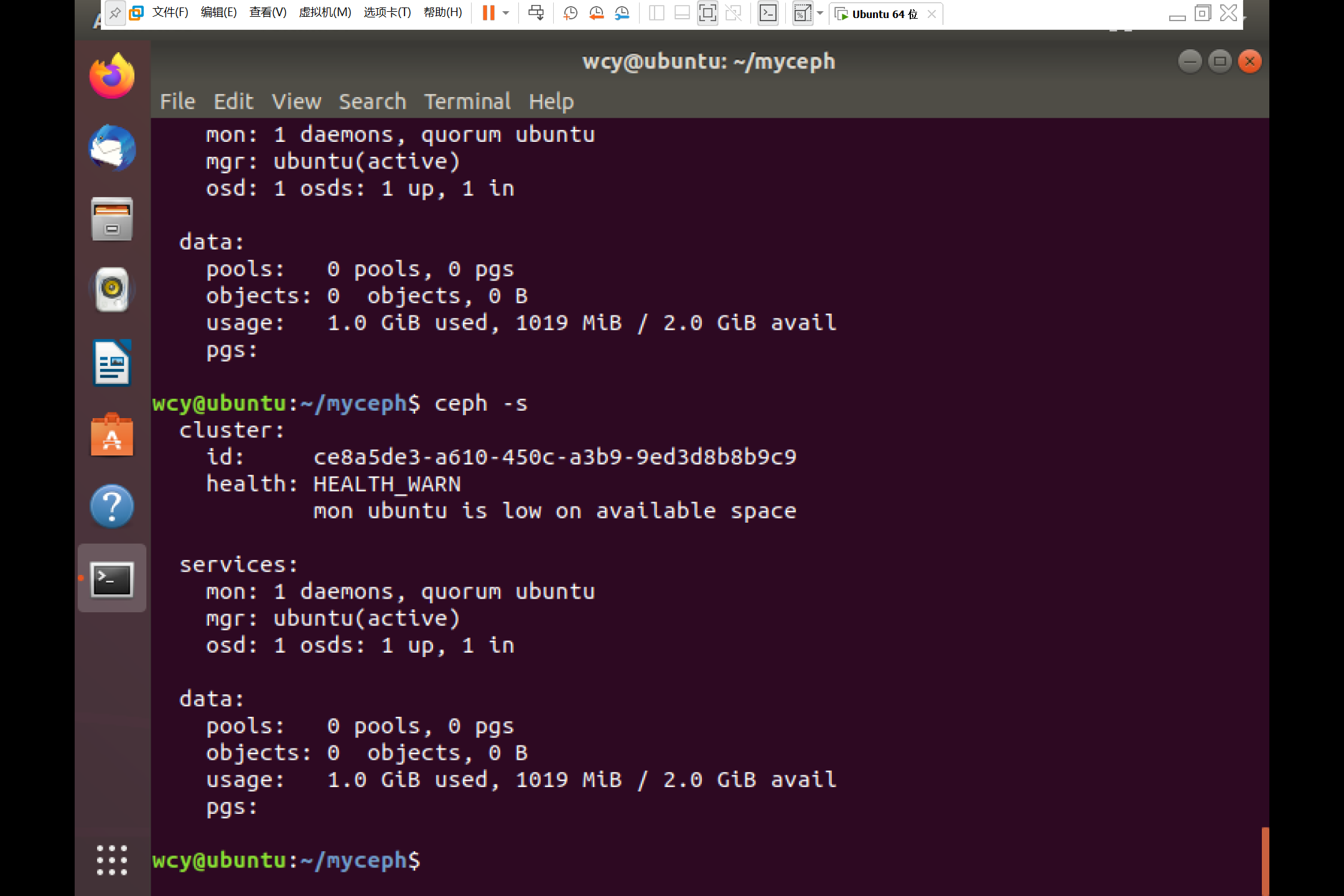

部署完毕，可以通过以下命令查看系统状态
ceph -s
CEPH分布式部署
一、环境说明
3台VMware虚拟机：Ubuntu18.04(python3版本为3.6.9，实测python版本3.8.10不支持platform.linux_distribution属性，也需要python2环境）
node1: admin node, monitor, mgr
node2: osd0
node3: osd1
二、准备工作
在所有节点安装SSH服务器
sudo apt-get insatll openssh-server
修改hostname为node1, node2, node3
sudo vim /etc/hostname
确保各节点主机名解析为网络IP地址而非回环接口地址（127.0.0.1）
ip address #查看网络IP地址
sudo vim /etc/hosts #添加一行: {hostname} {IP address}
配置管理主机node1, 使之可以通过SSH无密码访问各节点
ssh-keygen
ssh-copy-id node2
ssh-copy-id node3
管理主机上安装ceph-deploy
shudo apt-get install ceph-deploy
ceph-deploy --version #查看ceph-deploy版本 e.g. 2.0.1
在所有节点安装NTP并使用同一个NTP服务器, 避免时钟偏移
sudo apt-get install ntp
ntpstat #查看ntp连接的服务器
确保各节点的用户都有sudo权限
echo "{username} ALL = (root) NOPASSWD:ALL" | sudo tee /etc/sudoers.d/{username}
sudo chmod 0440 /etc/sudoers.d/{username}
三、CEPH部署
在管理节点新建工作目录，后续操作在工作目录下完成
mkdir my-cluster
cd my-cluster
创建monitor节点，生成一个ceph 配置文件、一个monitor密钥环和一个日志文件
ceph-deploy new node1 #node1作为monitor节点
把ceph .conf里的默认副本数从3改成2, 把下面这行加入global段：
osd pool default size = 2
安装ceph, --release {stable ceph version}设置希望安装的ceph版本
echo deb http://download.ceph.com/debian-{ceph-stable-release}/ $(lsb_release -sc) main | sudo tee /etc/apt/sources.list.d/ceph.list #添加ceph软件包源
ceph-deploy install --release nautilus node1 node2 node3
初始化monitor节点，生成monitor节点检测集群所需要的密钥文件
ceph-deploy mon create-initial
sudo chmod +r /etc/ceph/ceph.client.admin.keyring #确保有读权限
ceph-deploy admin node1 node2 node3 #将生成的ceph.client.admin.keyring和配置文件push到各节点

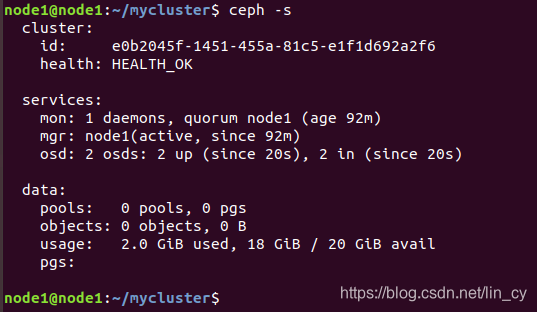

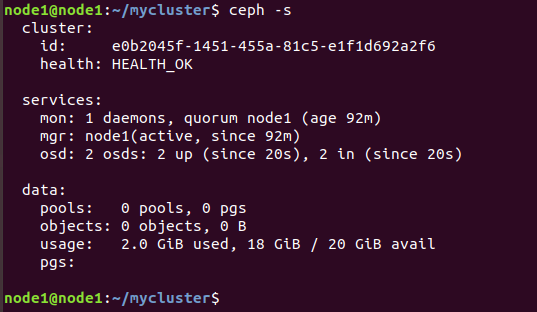

有monitor节点之后就可以查看集群状态
ceph -s
ceph health
部署mgr节点
ceph-deploy mgr create node1
部署osd节点
ceph-deploy osd create node2 --data /dev/sdb #如果没有硬盘，需要新建ceph-deploy osd create node3 --data /dev/sdb
CEPH性能测试
配置pool
查看现有pool列表
ceph osd lspools
创建pool
ceph osd pool create {poolname} {pg_num}
poolname自定义
pg_num根据osd个数决定
若少于5个osd,设置为128
5~10个设置为512
10~50个设置为4096
RADOS性能测试
使用 rados bench 工具，语法为：
rados bench -p {poolname} -b -t --no-cleanup
-
pool_name：测试所针对的存储池
-
seconds：测试所持续的秒数
-
-
-b：block size，即块大小，默认为 4M
-
-t：读/写并行数，默认为 16
-
–no-cleanup 表示测试完成后不删除测试用数据。在做读测试之前，需要使用该参数来运行一遍写测试来产生测试数据，在全部测试结束后可以运行 rados -p {poolname} cleanup 来清理所有测试数据。
写性能：
rados bench -p {poolname} 10 write --no-cleanup
单机版结果：
hints = 1
Maintaining 16 concurrent writes of 4194304 bytes to objects of size 4194304 for up to 10 seconds or 0 objects
Object prefix: benchmark_data_ubuntu_3299sec Cur ops started finished avg MB/s cur MB/s last lat(s) avg lat(s)0 0 0 0 0 0 - 01 16 16 0 0 0 - 02 16 32 16 31.9723 32 1.92392 1.925293 16 94 78 103.898 248 0.114933 0.5759434 16 176 160 159.859 328 0.361561 0.3938535 16 249 233 186.255 292 0.125467 0.3333686 16 324 308 205.156 300 0.176233 0.3021787 16 417 401 228.94 372 0.130945 0.2768388 16 511 495 247.291 376 0.121559 0.2573819 16 597 581 257.981 344 0.0660743 0.24658110 16 699 683 272.939 408 0.168625 0.233924
Total time run: 10.182057
Total writes made: 700
Write size: 4194304
Object size: 4194304
Bandwidth (MB/sec): 274.994
Stddev Bandwidth: 141.789
Max bandwidth (MB/sec): 408
Min bandwidth (MB/sec): 0
Average IOPS: 68
Stddev IOPS: 35
Max IOPS: 102
Min IOPS: 0
Average Latency(s): 0.232217
Stddev Latency(s): 0.266586
Max latency(s): 1.932
Min latency(s): 0.0660743分布式结果：
hints = 1
Maintaining 16 concurrent writes of 4194304 bytes to objects of size 4194304 for up to 10 seconds or 0 objects
Object prefix: benchmark_data_node1_4847sec Cur ops started finished avg MB/s cur MB/s last lat(s) avg lat(s)0 0 0 0 0 0 - 01 16 27 11 43.934 44 0.958087 0.8100962 16 57 41 81.9217 120 0.61323 0.6595353 16 87 71 94.572 120 0.503445 0.5707994 16 111 95 94.9214 96 0.468569 0.6428065 16 148 132 105.52 148 0.33698 0.5821016 16 190 174 115.919 168 0.366644 0.5315767 16 232 216 123.33 168 0.290543 0.5031758 16 278 262 130.898 184 0.295768 0.4808169 16 325 309 137.163 188 0.35907 0.45843910 16 374 358 142.985 196 0.277222 0.440417
Total time run: 10.1864
Total writes made: 374
Write size: 4194304
Object size: 4194304
Bandwidth (MB/sec): 146.862
Stddev Bandwidth: 48.1405
Max bandwidth (MB/sec): 196
Min bandwidth (MB/sec): 44
Average IOPS: 36
Stddev IOPS: 12.0351
Max IOPS: 49
Min IOPS: 11
Average Latency(s): 0.435129
Stddev Latency(s): 0.184439
Max latency(s): 1.20688
Min latency(s): 0.179783
顺序读：
rados bench -p {poolname} 10 seq
单机版结果：
hints = 1sec Cur ops started finished avg MB/s cur MB/s last lat(s) avg lat(s)0 7 7 0 0 0 - 01 16 27 11 43.8893 44 0.984048 0.5356512 16 41 25 49.8692 56 1.22267 0.9086453 16 56 40 53.2291 60 0.901194 0.9640864 16 69 53 52.912 52 0.855935 0.9889265 16 84 68 54.324 60 0.581672 0.9995176 16 97 81 53.9307 52 0.452083 1.000627 16 113 97 55.3639 64 0.289436 1.016638 16 138 122 60.9318 100 0.584262 0.9740269 16 166 150 66.5934 112 0.447022 0.92651410 16 187 171 68.3247 84 0.267998 0.891268
Total time run: 10.388094
Total reads made: 188
Read size: 4194304
Object size: 4194304
Bandwidth (MB/sec): 72.3906
Average IOPS: 18
Stddev IOPS: 5
Max IOPS: 28
Min IOPS: 11
Average Latency(s): 0.879502
Max latency(s): 2.77958
Min latency(s): 0.128939分布式结果：
hints = 1sec Cur ops started finished avg MB/s cur MB/s last lat(s) avg lat(s)0 16 16 0 0 0 - 01 16 35 19 75.9691 76 0.844994 0.3343282 16 71 55 109.918 144 0.025664 0.3939453 16 79 63 83.9544 32 0.0236074 0.4456314 16 92 76 75.9504 52 2.41877 0.467345 16 104 88 70.3483 48 3.21936 0.5983866 16 116 100 66.6158 48 3.51801 0.7066937 16 126 110 62.8141 40 0.0227477 0.7893088 16 140 124 61.9596 56 0.0286146 0.8520149 16 154 138 61.2958 56 3.75188 0.92829210 16 167 151 60.364 52 3.44796 0.927477
Total time run: 10.97
Total reads made: 168
Read size: 4194304
Object size: 4194304
Bandwidth (MB/sec): 61.2577
Average IOPS: 15
Stddev IOPS: 7.88036
Max IOPS: 36
Min IOPS: 8
Average Latency(s): 1.04367
Max latency(s): 5.15464
Min latency(s): 0.0209998
随机读：
rados bench -p {poolname} 10 rand
单机版结果：
hints = 1sec Cur ops started finished avg MB/s cur MB/s last lat(s) avg lat(s)0 0 0 0 0 0 - 01 16 32 16 63.861 64 0.982781 0.5564152 16 74 58 115.701 168 0.289066 0.4897993 15 137 122 162.339 256 0.427532 0.366934 16 199 183 182.695 244 0.118992 0.3315375 16 237 221 176.395 152 0.409733 0.3382576 16 291 275 182.962 216 0.149843 0.3332957 16 337 321 182.986 184 0.302139 0.3365278 15 397 382 190.581 244 0.166876 0.3286849 16 502 486 215.568 416 0.087144 0.28981710 16 614 598 238.764 448 0.123667 0.262413
Total time run: 10.148457
Total reads made: 614
Read size: 4194304
Object size: 4194304
Bandwidth (MB/sec): 242.007
Average IOPS: 60
Stddev IOPS: 29
Max IOPS: 112
Min IOPS: 16
Average Latency(s): 0.26046
Max latency(s): 1.00095
Min latency(s): 0.0197968分布式结果：
hints = 1sec Cur ops started finished avg MB/s cur MB/s last lat(s) avg lat(s)0 0 0 0 0 0 - 01 16 68 52 207.866 208 0.301147 0.1601942 16 81 65 129.917 52 1.49991 0.2270133 16 108 92 122.605 108 0.0262147 0.3771654 16 174 158 157.929 264 0.32342 0.3752915 16 232 216 172.719 232 0.28657 0.3575646 16 315 299 199.249 332 0.149081 0.3145317 16 385 369 210.77 280 0.424625 0.2851318 16 450 434 216.919 260 0.537691 0.2857949 16 537 521 231.473 348 0.115179 0.2712310 16 625 609 243.516 352 0.186903 0.25941211 15 626 611 222.102 8 0.627918 0.259884
Total time run: 11.0713
Total reads made: 626
Read size: 4194304
Object size: 4194304
Bandwidth (MB/sec): 226.171
Average IOPS: 56
Stddev IOPS: 29.5207
Max IOPS: 88
Min IOPS: 2
Average Latency(s): 0.280889
Max latency(s): 2.4916
Min latency(s): 0.00970343
测试完后清理测试数据：
rados -p {poolname} cleanup
分析：写带宽比顺序读和随机读大，随机读带宽比顺序读大。写的延迟最小，顺序读的延迟最大。写的IOPS和随机读的接近，顺序读的较小。
基于我们的部署，分布式部署的最大延迟明显高于单机部署，但是最小延迟却明显小于单机部署。分布式部署的读写速度均低于单机部署。
配置参数优化
修改ceph.conf
1.filestore_fd_cache参数
filestore_fd_cache_shards = 32
filestore_fd_cache_size = 32768
filestore的fd cache加速访问，在非一次性写入的应用场景，增大配置可以很明显的提升filestore的性能。
2.filestore sync参数
filestore_min_sync_interval = 1
filestore_max_sync_interval = 10
filestore_commit_timeout = 1000
filestore_min_sync_interval和filestore_max_sync_interval是配置filestore flush outstanding IO到disk的时间间隔的；增大配置可以让系统做尽可能多的IO merge，减少filestore写磁盘的压力，但也会增大page cache占用内存的开销，增大数据丢失的可能性；
filestore_commit_timeout是配置filestore sync entry到disk的超时时间，在filestore压力很大时，调大这个值能尽量避免IO超时导致OSD crush；
结果
写性能：
hints = 1
Maintaining 16 concurrent writes of 4194304 bytes to objects of size 4194304 for up to 10 seconds or 0 objects
Object prefix: benchmark_data_ubuntu_3338sec Cur ops started finished avg MB/s cur MB/s last lat(s) avg lat(s)0 0 0 0 0 0 - 01 16 98 82 327.084 328 0.138832 0.1826042 16 196 180 359.324 392 0.154765 0.1707453 16 288 272 361.839 368 0.191919 0.1724974 16 378 362 361.328 360 0.105692 0.1709245 16 475 459 366.571 388 0.137447 0.1730456 16 564 548 364.784 356 0.142131 0.1735017 16 653 637 363.438 356 0.156795 0.1744328 16 756 740 369.487 412 0.125955 0.172069 16 852 836 370.979 384 0.135375 0.17100710 15 966 951 379.85 460 0.0963606 0.167036
Total time run: 10.113000
Total writes made: 966
Write size: 4194304
Object size: 4194304
Bandwidth (MB/sec): 382.082
Stddev Bandwidth: 36.5854
Max bandwidth (MB/sec): 460
Min bandwidth (MB/sec): 328
Average IOPS: 95
Stddev IOPS: 9
Max IOPS: 115
Min IOPS: 82
Average Latency(s): 0.167306
Stddev Latency(s): 0.0485496
Max latency(s): 0.352612
Min latency(s): 0.047893
顺序读：
hints = 1sec Cur ops started finished avg MB/s cur MB/s last lat(s) avg lat(s)0 1 1 0 0 0 - 01 16 70 54 215.534 216 0.225474 0.2362562 16 117 101 201.711 188 0.384736 0.2815053 16 171 155 206.401 216 0.242041 0.2920374 16 248 232 231.685 308 0.18295 0.2684335 16 329 313 250.063 324 0.0916033 0.2474846 16 421 405 269.628 368 0.240974 0.2321267 16 486 470 268.243 260 0.322225 0.2302438 16 558 542 270.699 288 0.122256 0.2300789 16 657 641 284.58 396 0.224304 0.21984710 16 762 746 298.017 420 0.142215 0.210116
Total time run: 10.152429
Total reads made: 763
Read size: 4194304
Object size: 4194304
Bandwidth (MB/sec): 300.618
Average IOPS: 75
Stddev IOPS: 19
Max IOPS: 105
Min IOPS: 47
Average Latency(s): 0.210082
Max latency(s): 0.564497
Min latency(s): 0.0414586
随机读：
hints = 1sec Cur ops started finished avg MB/s cur MB/s last lat(s) avg lat(s)0 0 0 0 0 0 - 01 16 102 86 342.45 344 0.24186 0.1672352 15 194 179 357.07 372 0.15139 0.170773 16 321 305 405.899 504 0.189961 0.151184 16 462 446 445.151 564 0.0725454 0.1403225 16 601 585 467.239 556 0.173793 0.1331046 16 717 701 466.64 464 0.152518 0.1327857 16 860 844 481.634 572 0.108298 0.1294158 15 1006 991 494.828 588 0.0967869 0.1265049 16 1148 1132 502.403 564 0.172386 0.12402310 16 1295 1279 510.808 588 0.107241 0.122303
Total time run: 10.154751
Total reads made: 1295
Read size: 4194304
Object size: 4194304
Bandwidth (MB/sec): 510.106
Average IOPS: 127
Stddev IOPS: 22
Max IOPS: 147
Min IOPS: 86
Average Latency(s): 0.123086
Max latency(s): 0.385023
Min latency(s): 0.018103
分析：修改参数后，各测试带宽均有显著提升，特别是顺序读和随机读。延迟也有所减小。
