原生态REST学习环境搭建

1、Rest学习环境搭建:服务提供者

1.1、创建父工程springcloud_demo

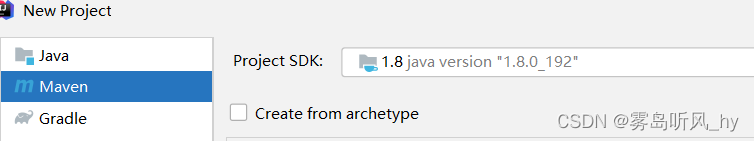

以maven的方式创建父工程

父工程为springcloud_demo

• 父工程主要是定义POM文件，将后续各个子模块公用的jar包等统一提取出来，类似一个抽象父类
• 切记Packageing是pom模式


父工程的pom.xml文件

<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0modelVersion><groupId>org.examplegroupId><artifactId>springcloud_demoartifactId><version>1.0-SNAPSHOTversion><modules><module>springcloud-apimodule><module>springcloud-provider-dept-8001module><module>springcloud-consumer-dept-80module>modules><packaging>pompackaging><parent><groupId>org.springframework.bootgroupId><artifactId>spring-boot-starter-parentartifactId><version>2.1.4.RELEASEversion><relativePath/> parent><properties><project.build.sourceEncoding>UTF-8project.build.sourceEncoding><maven.compiler.source>1.8maven.compiler.source><maven.compiler.target>1.8maven.compiler.target><junit.version>4.12junit.version><log4j.version>1.2.17log4j.version><lombok.version>1.16.18lombok.version><swagger.version>2.7.0swagger.version>properties><dependencies><dependency><groupId>org.springframework.cloudgroupId><artifactId>spring-cloud-alibaba-dependenciesartifactId><version>0.2.0.RELEASEversion><type>pomtype><scope>importscope>dependency><dependency><groupId>org.springframework.cloudgroupId><artifactId>spring-cloud-dependenciesartifactId><version>Greenwich.SR1version><type>pomtype><scope>importscope>dependency><dependency><groupId>org.springframework.bootgroupId><artifactId>spring-boot-dependenciesartifactId><version>2.1.4.RELEASEversion><type>pomtype><scope>importscope>dependency><dependency><groupId>mysqlgroupId><artifactId>mysql-connector-javaartifactId><version>5.1.47version>dependency><dependency><groupId>com.alibabagroupId><artifactId>druidartifactId><version>1.1.10version>dependency><dependency><groupId>org.mybatis.spring.bootgroupId><artifactId>mybatis-spring-boot-starterartifactId><version>1.3.2version>dependency><dependency><groupId>org.springframework.bootgroupId><artifactId>spring-boot-devtoolsartifactId><version>2.1.4.RELEASEversion>dependency><dependency><groupId>ch.qos.logbackgroupId><artifactId>logback-coreartifactId><version>1.2.3version>dependency><dependency><groupId>org.springframework.bootgroupId><artifactId>spring-boot-starter-webartifactId><version>2.1.4.RELEASEversion><scope>compilescope>dependency><dependency><groupId>io.springfoxgroupId><artifactId>springfox-swagger2artifactId><version>${swagger.version}version>dependency><dependency><groupId>io.springfoxgroupId><artifactId>springfox-swagger-uiartifactId><version>${swagger.version}version>dependency><dependency><groupId>junitgroupId><artifactId>junitartifactId><version>${junit.version}version>dependency><dependency><groupId>log4jgroupId><artifactId>log4jartifactId><version>${log4j.version}version>dependency><dependency><groupId>org.projectlombokgroupId><artifactId>lombokartifactId><version>${lombok.version}version>dependency>dependencies>
project>

1.2、搭建子module–springcloud-api

子module的创建方式仍为maven

**备注：**api的模块主要为服务提供实体，无其它作用

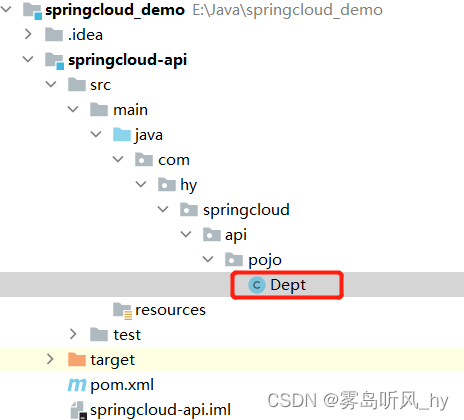

创建实体类部门Dept

实体类代码：

package com.hy.springcloud.api.pojo;import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.experimental.Accessors;import java.io.Serializable;/*@Author: hy*/
/*api模块仅提供实体类*/
@Data//简略构造器、 get set方法等
@NoArgsConstructor //无参构造注解
@Accessors //链式写法
public class Dept implements Serializable { //Dept实体类private Long deptno;//主键private String  dname;//微服务，一个服务对应一个数据库，同一信息可能存在不同数据库private String db_source;//构造器public Dept(String dname){this.dname=dname;}/*链式写法Dept dept = new Dept()原始：dept.setDeptNo(11) dept.setDname('技术部') ...链式：dept.setDeptNo(11).setDname('技术部')*/}

1.3、服务提供方搭建

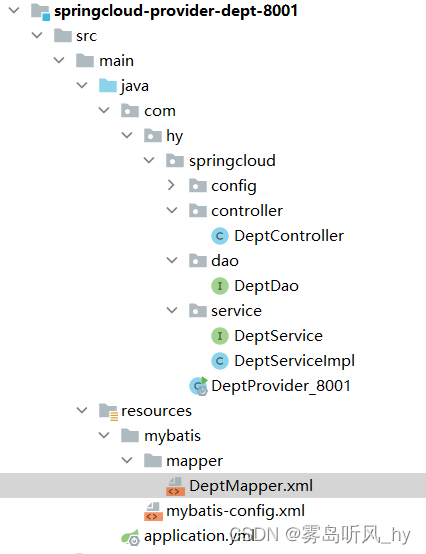

整体结构如下：

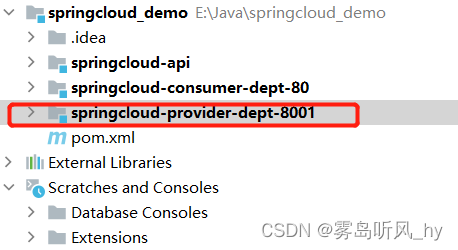

1、以maven方式创建springcloud-provider-dept-8001

2、编写pom配置

需要拿到实体类，并以pom方式引入，所以需要在pom文件中配置。
**备注：**其它依赖会自动从父工程引入！

<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><parent><artifactId>springcloud_demoartifactId><groupId>org.examplegroupId><version>1.0-SNAPSHOTversion>parent><modelVersion>4.0.0modelVersion><artifactId>springcloud-provider-dept-8001artifactId><dependencies><dependency><groupId>org.examplegroupId><artifactId>springcloud-apiartifactId><version>1.0-SNAPSHOTversion>dependency>dependencies>
project>

3、配置文件application.yml

server:port: 8001#mybatis配置
mybatis:type-aliases-package: com.hy.springcloud.api.pojoconfig-location: classpath:mybatis/mybatis-config.xmlmapper-locations: classpath:mybatis/mapper/*.xml#spring配置
spring:application:name: springcloud-provider-dept #别名datasource:type: com.alibaba.druid.pool.DruidDataSourcedriver-class-name: com.mysql.jdbc.Driverurl: jdbc:mysql://localhost:3306/hy_cloud?useUnicode=true&characterEncoding=utf-8username: rootpassword: root

4、编写Dao、Service、Controller层

1、Dao层

package com.hy.springcloud.dao;import com.hy.springcloud.api.pojo.Dept; //从pom.xml导入
import org.apache.ibatis.annotations.Mapper;
import org.springframework.stereotype.Repository;import java.util.List;
/*Auhtor: hy*/
@Mapper
@Repository
public interface DeptDao {public boolean addDept(Dept dept);public Dept queryById(Long id);public List<Dept> queryAll(); //查询所有public boolean deleteById(Long id);public boolean updateDept(Dept dept);
}

2、mapper文件xml

DOCTYPE mapperPUBLIC "-//mybatis.org//DTD Config 3.0//EN""http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.hy.springcloud.dao.DeptDao"><insert id="addDept" parameterType="Dept">insert  into dept (dname,db_source)values (#{dname},DATABASE());insert><select id="queryById" resultType="Dept" parameterType="Long">select * from dept where deptno=#{id};select><select id="queryAll" resultType="Dept">select * from dept;select><delete id="deleteById" parameterType="Long">delete * from dept where deptno=#{id};delete><update id="updateDept" parameterType="Dept">update dept set dname=#{dname};update>
mapper>

3、Service层

package com.hy.springcloud.service;
import com.hy.springcloud.api.pojo.Dept;
import java.util.List;
/*Author: hy*/
public interface DeptService {public boolean addDept(Dept dept);public Dept queryById(Long id);public List<Dept> queryAll(); //查询所有public boolean deleteById(Long id);public boolean updateDept(Dept dept);
}

4、Service接口实现

package com.hy.springcloud.service;import com.hy.springcloud.api.pojo.Dept;
import com.hy.springcloud.dao.DeptDao;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.security.PrivateKey;
import java.util.List;/*author: hy*/
@Service
public class DeptServiceImpl implements DeptService{@Autowiredprivate DeptDao deptDao;@Overridepublic boolean addDept(Dept dept) {return deptDao.addDept(dept);}@Overridepublic Dept queryById(Long id) {return deptDao.queryById(id);}@Overridepublic List<Dept> queryAll() {return deptDao.queryAll();}@Overridepublic boolean deleteById(Long id) {return deptDao.deleteById(id);}@Overridepublic boolean updateDept(Dept dept) {return deptDao.updateDept(dept);}
}

5、Controller层

package com.hy.springcloud.controller;import com.hy.springcloud.api.pojo.Dept;
import com.hy.springcloud.service.DeptService;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import io.swagger.annotations.ApiParam;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import sun.security.krb5.internal.PAData;import javax.xml.ws.http.HTTPBinding;
import java.util.List;/*author: hy*/
@RestController  //与前端不交互，使用RestController
@Api(tags = "Dept测试")
public class DeptController {@Autowiredprivate DeptService deptService;@ApiOperation(value = "添加部门")@PostMapping(path = "/dept/add")public boolean addDept(Dept dept){return  deptService.addDept(dept);}@ApiOperation(value = "查询部门")@GetMapping(path = "/dept/get/{id}")//RestFul风格public Dept queryById(@PathVariable("id") Long id){return deptService.queryById(id);}@ApiOperation(value = "查询所有部门")@GetMapping(path = "/dept/list")public List<Dept> queryALL(){return deptService.queryAll();}@ApiOperation(value = "删除部门")@DeleteMapping(path = "/dept/del/{id}")public boolean deleteById(@PathVariable("id") Long id ){return deptService.deleteById(id);}@ApiOperation(value = "更新部门")@PutMapping(path = "/dept/update")public boolean updateDept(Dept dept){return  deptService.updateDept(dept);}
}

5、创建主启动类

package com.hy.springcloud;/*author: hy*///启动类
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;@SpringBootApplication
public class DeptProvider_8001 {public static void main(String[] args) {SpringApplication.run(DeptProvider_8001.class,args);}
}

6、启动测试

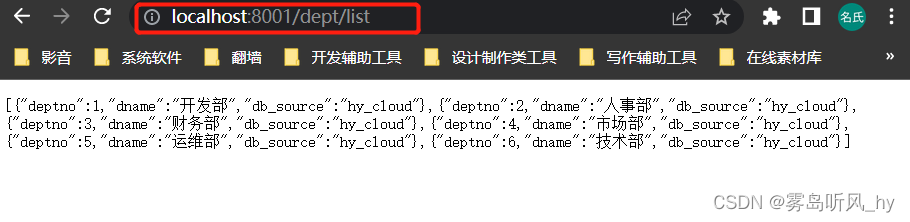

http://localhost:8001/dept/list

2、Rest学习环境搭建:服务消费者

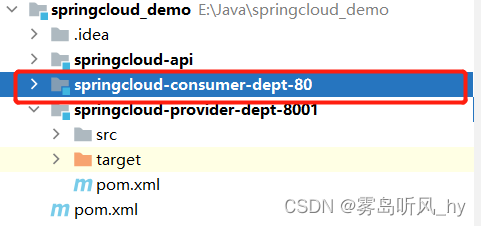

2.1、搭建消费方子module

仍以maven的方式创建

需要注意的是：消费方只负责消费，所以只有Controller层

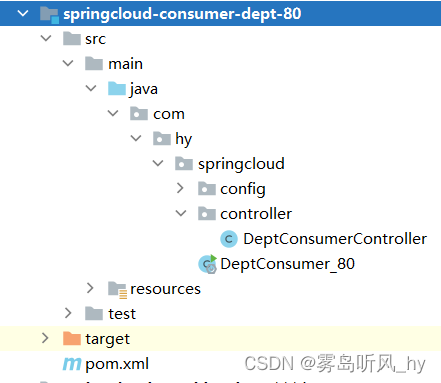

整体结构如下：

2.1、配置pom文件与yml文件

**备注：**pom文件依赖仍从父工程引入，只需在 pom文件中引入实体类

pom.xml文件

<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><parent><artifactId>springcloud_demoartifactId><groupId>org.examplegroupId><version>1.0-SNAPSHOTversion>parent><modelVersion>4.0.0modelVersion><artifactId>springcloud-consumer-dept-80artifactId><dependencies><dependency><groupId>org.examplegroupId><artifactId>springcloud-apiartifactId><version>1.0-SNAPSHOTversion>dependency>dependencies>
project>

application.xml文件：

只需配置服务端口号

server:port: 80

2.3、ConfigBean与Controller层

1、ConfigBean

• RestTemplate 提供多种便捷访问远程http服务的方法，简单的Restful服务模板~
• RestTemplate供我们直接调用!需要自行注册到spring中！

package com.hy.springcloud.config;import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;@Configuration
public class ConfigBean { //Configuration --spring  applicationContext.xml@Beanpublic RestTemplate getRestTemplate(){return new RestTemplate();}
}

2、Controller层

package com.hy.springcloud.controller;import com.hy.springcloud.api.pojo.Dept;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.client.RestTemplate;import java.util.List;/*消费者与服务提供者实现了完全解耦*/
@RestController
public class DeptConsumerController {//理解：消费者不应该有service层//RestTemplate ....供我们直接调用!注册到spring中/*** 理解：消费者，不应该有service层~* RestTemplate .... 供我们直接调用就可以了！ 注册到Spring中* (地址：url, 实体：Map ,Class responseType)*
* 提供多种便捷访问远程http服务的方法，简单的Restful服务模板~*/@Autowiredprivate RestTemplate restTemplate;/*** 服务提供方地址前缀*
* Ribbon:我们这里的地址，应该是一个变量，通过服务名来访问*/private static final String REST_URL_PREFIX = "http://localhost:8001";//private static final String REST_URL_PREFIX = "http://SPRINGCLOUD-PROVIDER-DEPT";/*** 消费方添加部门信息* @param dept* @return*/@RequestMapping("/consumer/dept/add")public boolean add(Dept dept) {// postForObject(服务提供方地址(接口),参数实体,返回类型.class)return restTemplate.postForObject(REST_URL_PREFIX + "/dept/add", dept, Boolean.class);}/*** 消费方根据id查询部门信息* @param id* @return*/@RequestMapping("/consumer/dept/get/{id}")public Dept get(@PathVariable("id") Long id) {// getForObject(服务提供方地址(接口),返回类型.class)return restTemplate.getForObject(REST_URL_PREFIX + "/dept/get/" + id, Dept.class);}/*** 消费方查询部门信息列表* @return*/@RequestMapping("/consumer/dept/list")public List<Dept> list() {return restTemplate.getForObject(REST_URL_PREFIX + "/dept/list", List.class);}
}

2.4、创建主启动类

DeptConsumer_80
**备注：**需要排除datasource的自动注解，否则可能启动报错：配置数据源失败

package com.hy.springcloud;import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration;@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)  //排除datasource的自动注解 否则会报错：配置数据源失败
public class DeptConsumer_80 {public static void main(String[] args) {SpringApplication.run(DeptConsumer_80.class,args);}
}

2.5、启动测试

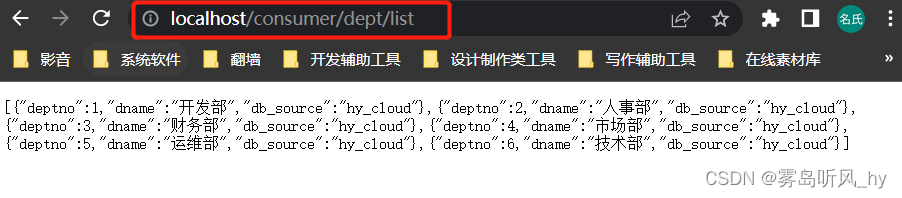

http://localhost/consumer/dept/list

3、总结说明

以上就是原生态的Rest服务搭建详细流程，若仍有问题或需要sql文件，评论或私信！！！
