Launch启动文件的使用方法

• 案例一：运行两个节点
• 案例二：加载参数与命名空间
• 案例三：小海龟跟随的launch启动方法
• 案例四：remap修改节点名

案例一：运行两个节点

在工作空间src文件夹内新建一个learning_launch功能包

catkin_creat_pkg learning_launch

touch一个simple.launch文件，打开文件在设置-高亮可以更改为xml语法高亮

<launch><node pkg="learning_topic" type="person_subscriber" name="talker" output="screen" /><node pkg="learning_topic" type="person_publisher" name="listener" output="screen" />
launch>

catkin_make编译
roslaunch learning_launch simple.launch运行

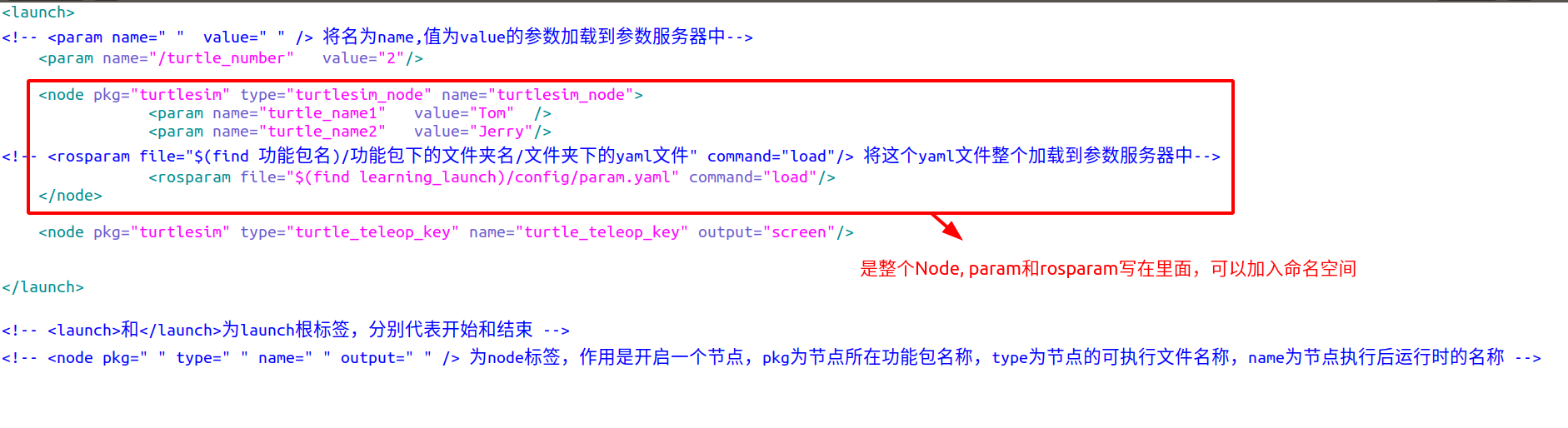

案例二：加载参数与命名空间

<launch>
<param name="/turtle_number"   value="2"/><node pkg="turtlesim" type="turtlesim_node" name="turtlesim_node"><param name="turtle_name1"   value="Tom"  /><param name="turtle_name2"   value="Jerry"/>
<rosparam file="$(find learning_launch)/config/param.yaml" command="load"/>node><node pkg="turtlesim" type="turtle_teleop_key" name="turtle_teleop_key" output="screen"/>launch>

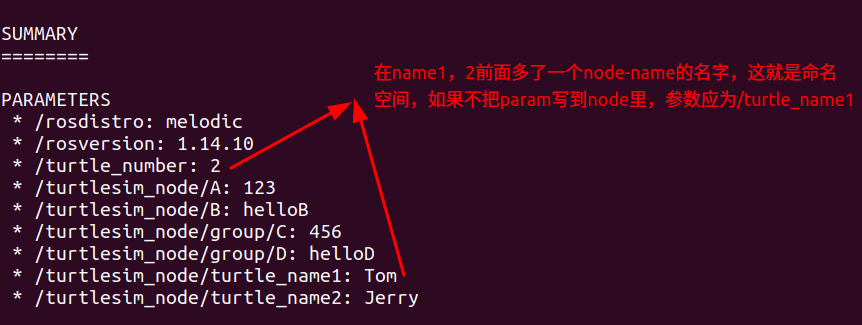

注意在运行前，要在功能包内创建config文件夹，并创建param.yaml文件，内容如下，group加缩进也为命名空间

案例三：小海龟跟随的launch启动方法

小海龟跟随见上节ROS中的坐标系管理系统
运行c++文件

 <launch><node pkg="turtlesim" type="turtlesim_node" name="sim"/><node pkg="turtlesim" type="turtle_teleop_key" name="teleop" output="screen"/><node pkg="learning_tf" type="turtle_tf_broadcaster" args="/turtle1" name="turtle1_tf_broadcaster" /><node pkg="learning_tf" type="turtle_tf_broadcaster" args="/turtle2" name="turtle2_tf_broadcaster" /><node pkg="learning_tf" type="turtle_tf_listener" name="listener" />launch>

运行python文件,type中加.py

<launch><node pkg="turtlesim" type="turtlesim_node" name="sim"/><node pkg="turtlesim" type="turtle_teleop_key" name="teleop" output="screen"/><node name="turtle1_tf_broadcaster" pkg="learning_tf" type="turtle_tf_broadcaster.py"><param name="turtle" type="string" value="turtle1" />node><node name="turtle2_tf_broadcaster" pkg="learning_tf" type="turtle_tf_broadcaster.py"><param name="turtle" type="string" value="turtle2" /> node><node pkg="learning_tf" type="turtle_tf_listener.py" name="listener" />launch>

案例四：remap修改节点名

<launch>
<include file="$(find learning_launch)/launch/simple.launch" /><node pkg="turtlesim" type="turtlesim_node" name="turtlesim_node">
<remap from="/turtle1/cmd_vel" to="/cmd_vel"/>node>launch>

roslaunch learning_launch turtlesim_remap.launch
重新打开终端输入rostopic list查看当前话题

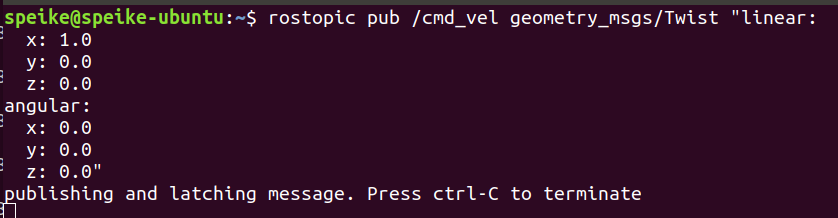

之前的/turtle1/cmd_vel已经改为/cmd_vel，可以用这个话题名发布速度指令
