《qss样式表笔记大全(二)：可设置样式的窗口部件列表（上）（包含相关示例）》

**

可设置样式的窗口部件列表

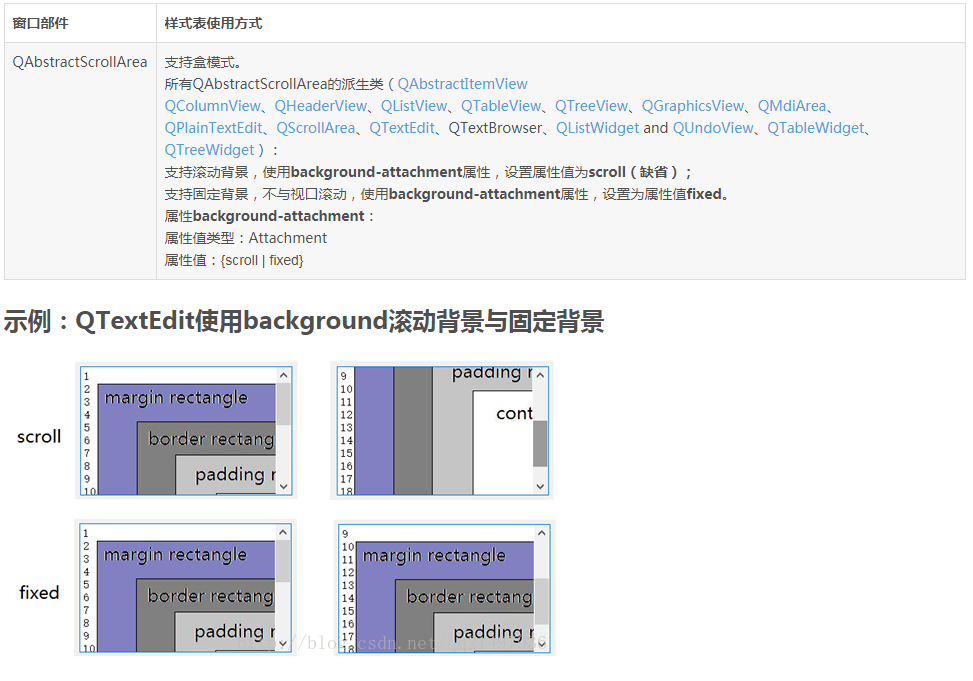

QAbstractScrollArea（滚动区域：随视口滚动背景、固定背景）

**

扩展：固定平铺拉伸满视口背景

QTextEdit{border-image: url(E:/1.jpg);
}

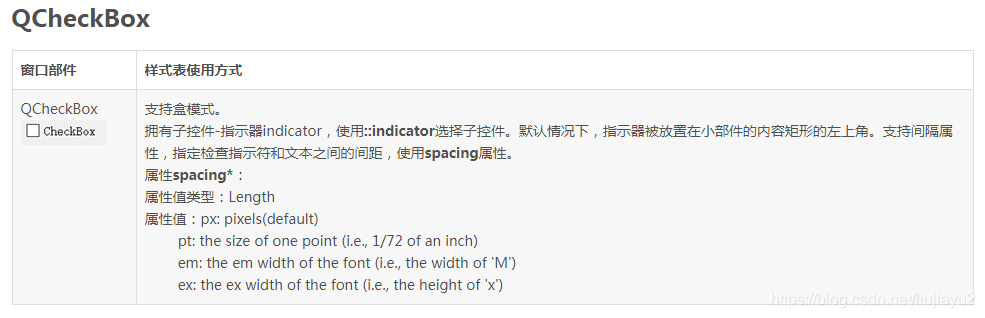

示例：QCheckBox::indicator定制

QCheckBox {spacing: 5px;
}
QCheckBox::indicator {width: 13px;height: 13px;
}
QCheckBox::indicator:unchecked {background-color: rgb(60, 0, 0);
}
QCheckBox::indicator:unchecked:hover {background-color: rgb(120, 0, 0);
}
QCheckBox::indicator:unchecked:pressed {background-color: rgb(180, 0, 0);
}
QCheckBox::indicator:checked {background-color: rgb(0, 60, 0);
}
QCheckBox::indicator:checked:hover {background-color: rgb(0, 120, 0);
}
QCheckBox::indicator:checked:pressed {background-color: rgb(0, 180, 0);
}
QCheckBox::indicator:indeterminate:hover {background-color: rgb(0, 0, 255);
}
QCheckBox::indicator:indeterminate:pressed {background-color: rgb(0, 0, 255, 100);
}

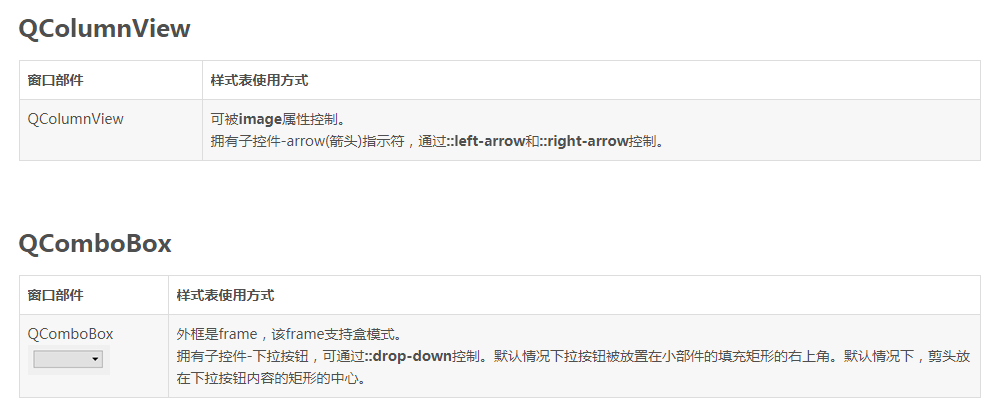

示例：QComboBox定制

QComboBox {border: 1px solid gray; /* border: 宽度 线类型 颜色 */border-radius: 3px;padding: 1px 18px 1px 3px;min-width: 6em;
}
QComboBox:editable {background: white;
}
QComboBox:!editable, QComboBox::drop-down:editable {background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,stop: 0 #E1E1E1, stop: 0.4 #DDDDDD,stop: 0.5 #D8D8D8, stop: 1.0 #D3D3D3);
}
/* QComboBox gets the "on" state when the popup is open */
QComboBox:!editable:on, QComboBox::drop-down:editable:on {background: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,stop: 0 #D3D3D3, stop: 0.4 #D8D8D8,stop: 0.5 #DDDDDD, stop: 1.0 #E1E1E1);
}
QComboBox:on { /* shift the text when the popup opens */padding-top: 3px;padding-left: 4px;
}
QComboBox::drop-down {subcontrol-origin: padding;subcontrol-position: top right;width: 15px;border-left-width: 1px; border-left-style: solid; /* just a single line */border-left-color: darkgray;border-top-right-radius: 3px; /* same radius as the QComboBox */border-bottom-right-radius: 3px;
}
QComboBox::down-arrow {/* image: url(E:/1.jpg);*/border-image: url(E:/1.jpg);
}
QComboBox::down-arrow:on { /* shift the arrow when popup is open */top: 1px;left: 1px;
}

注意：增加test1 test22… 单项的高度（ui->comboBox->setView(new QListView(); 添加图片），

原来是如下：

QComboBox QAbstractItemView::item { min-height: 110px; min-width: 40px; }

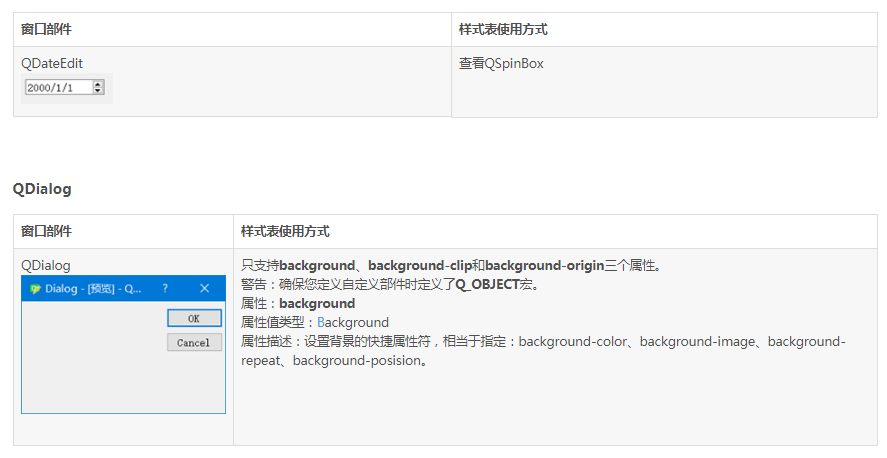

QDateEdit（参照QSpinBox）

QDialogButtonBox

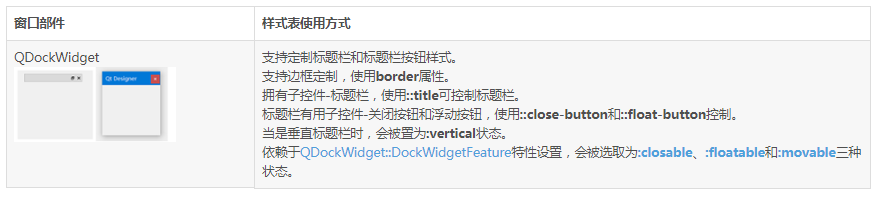

QDockWidget

QDoubleSpinBox（查看QSpinBox）

QFrame

示例：QFrame定制

QFrame, QLabel, QToolTip{border: 2px solid green; /* border: 宽度 线类型 颜色 */border-radius: 4px;padding: 2px; /* 边界都内部矩形的宽度 */
background-image: url(E:/1.jpg);
}

QGroupBox

示例：QGroupBox定制

QGroupBox {background-color: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,stop: 0 #E0E0E0, stop: 1 #FFFFFF);border: 2px solid gray; /* 右图border: 4px solid gray; */border-radius: 5px;margin-top: 1ex; /* 右图margin-top: 4ex; */
}
QGroupBox::title {subcontrol-origin: margin;subcontrol-position: top center; /* position at the top center */padding: 0 3px;background-color: qlineargradient( x1: 0, y1: 0, x2: 0, y2: 1,stop: 0 #FF0ECE,stop: 1 #FFFFFF);
}

当在代码或者ui中将GroupBox设置为checkable=true时，如下：

QGroupBox {background-color: qlineargradient(x1: 0, y1: 0, x2: 0, y2: 1,stop: 0 #E0E0E0, stop: 1 #FFFFFF);border: 4px solid gray;border-radius: 5px;margin-top: 24px; /* leave space at the top for the title */
}
QGroupBox::title {subcontrol-origin: margin;subcontrol-position: top center; /* position at the top center */padding: 0 3px;background-color: qlineargradient( x1: 0, y1: 0, x2: 0, y2: 1,stop: 0 #FF0ECE, stop: 1 #FFFFFF);
}
QGroupBox::indicator {width: 24px;height: 24px;
}
QGroupBox::indicator:unchecked {image: url(E:/1.jpg);
}

示例：QTableWidget的QHeaderView定制

QHeaderView::section {background-color: qlineargradient( x1:0, y1:0, x2:0, y2:1,stop:0 #616161, stop: 0.5 #505050,stop: 0.6 #434343, stop:1 #656565);color: white;padding-left: 4px;border: 1px solid #6c6c6c;
}
QHeaderView::section:checked
{background-color: red;
}
/* 以下图标，只有在设置允许sortingEnable排序后，点击表头才会出现*/
QHeaderView::down-arrow {width:24px;height:24px;image: url(E:/arrow-down.jpg);
}
QHeaderView::up-arrow {width:24px;height:24px;image: url(E:/arrow-up.jpg);
}
