LNMP架构（详细过程）

目录

一、安装Nginx服务

二、安装MySQL服务

三、安装配置PHP解析环境

四、部署 Discuz！社区论坛 Web 应用

五、fpm参数优化

六、yum 安装 LNMP

一、安装Nginx服务

上篇博客有详细安装过程

关闭防火墙

systemctl stop firewalld

systemctl disable firewalld

setenforce 0

1、安装依赖包
yum -y install pcre-devel zlib-devel gcc gcc-c++ make

2、创建运行用户
useradd -M -s /sbin/nologin nginx

3、编译安装
cd /opt
tar zxvf nginx-1.12.0.tar.gz -C /opt/cd nginx-1.12.0/
./configure \
--prefix=/usr/local/nginx \
--user=nginx \
--group=nginx \
--with-http_stub_status_modulemake && make install

4、优化路径
ln -s /usr/local/nginx/sbin/nginx /usr/local/sbin/

5、添加 Nginx 系统服务
vim /lib/systemd/system/nginx.service
[Unit]
Description=nginx
After=network.target
[Service]
Type=forking
PIDFile=/usr/local/nginx/logs/nginx.pid
ExecStart=/usr/local/nginx/sbin/nginx
ExecReload=/bin/kill -s HUP $MAINPID
ExecStop=/bin/kill -s QUIT $MAINPID
PrivateTmp=true
[Install]
WantedBy=multi-user.targetchmod 754 /lib/systemd/system/nginx.service
systemctl start nginx.service
systemctl enable nginx.service

二、安装MySQL服务

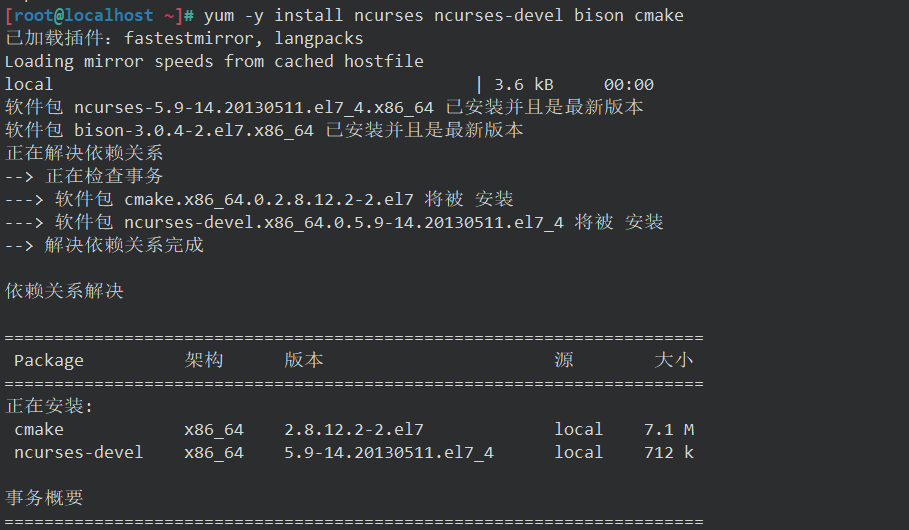

1、安装Mysql环境依赖包
yum -y install \
ncurses \
ncurses-devel \
bison \
cmake

2、创建运行用户
useradd -M -s /sbin/nologin  mysql

3、编译安装
cd /opt

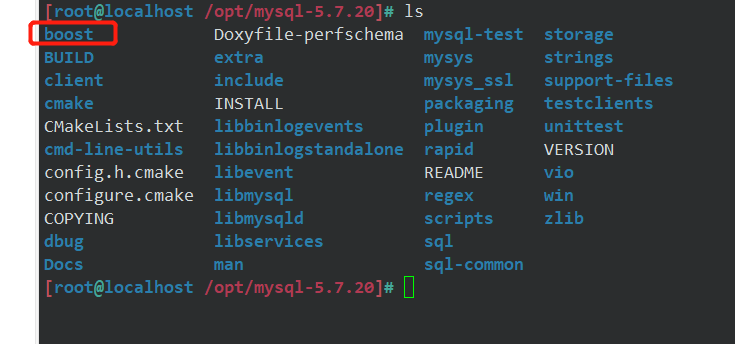

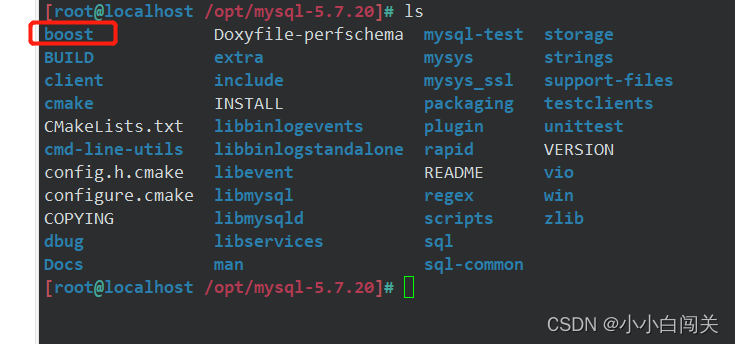

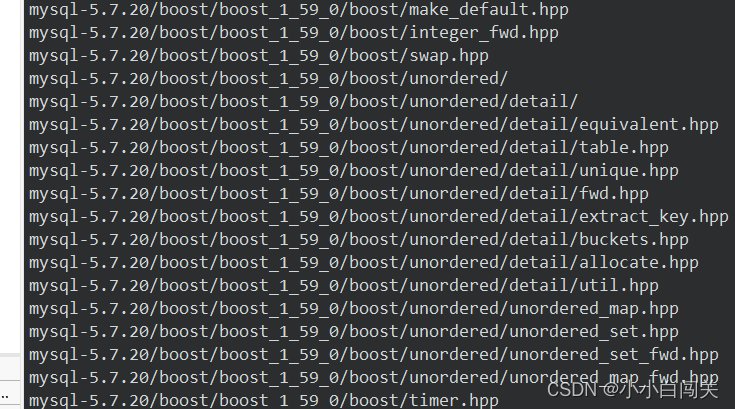

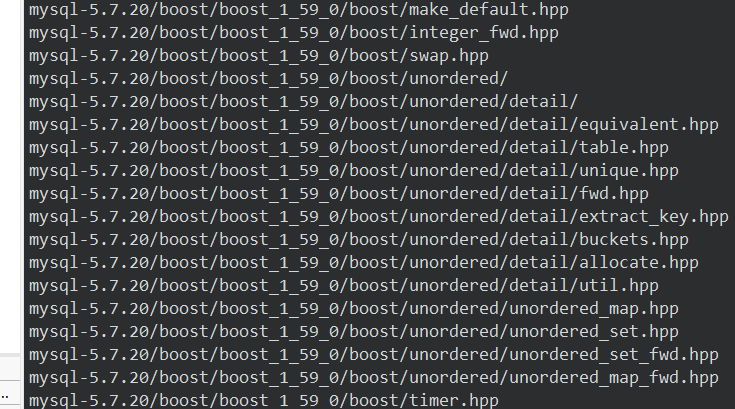

tar zxvf mysql-boost-5.7.20.tar.gzcd /opt/mysql-5.7.20/

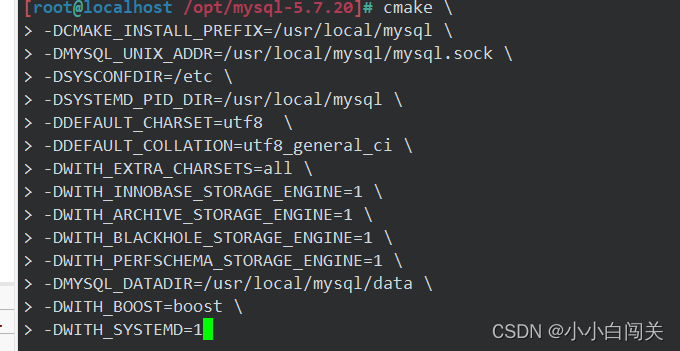

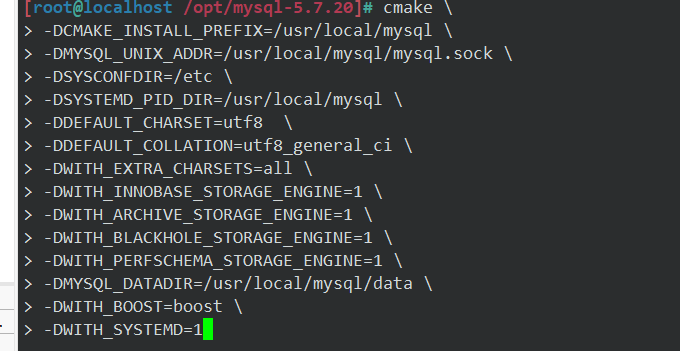

cmake \
-DCMAKE_INSTALL_PREFIX=/usr/local/mysql \
-DMYSQL_UNIX_ADDR=/usr/local/mysql/mysql.sock \
-DSYSCONFDIR=/etc \
-DSYSTEMD_PID_DIR=/usr/local/mysql \
-DDEFAULT_CHARSET=utf8  \
-DDEFAULT_COLLATION=utf8_general_ci \
-DWITH_EXTRA_CHARSETS=all \
-DWITH_INNOBASE_STORAGE_ENGINE=1 \
-DWITH_ARCHIVE_STORAGE_ENGINE=1 \
-DWITH_BLACKHOLE_STORAGE_ENGINE=1 \
-DWITH_PERFSCHEMA_STORAGE_ENGINE=1 \
-DMYSQL_DATADIR=/usr/local/mysql/data \
-DWITH_BOOST=boost \

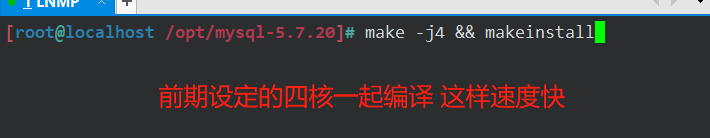

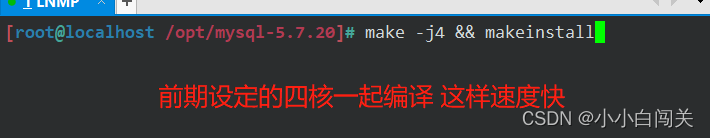

-DWITH_SYSTEMD=1make && make install

4、修改mysql 配置文件
vim /etc/my.cnf
[client]
port = 3306
socket=/usr/local/mysql/mysql.sock[mysqld]
user = mysql
basedir=/usr/local/mysql
datadir=/usr/local/mysql/data
port = 3306
character-set-server=utf8
pid-file = /usr/local/mysql/mysqld.pid
socket=/usr/local/mysql/mysql.sock
bind-address = 0.0.0.0
skip-name-resolve
max_connections=2048
default-storage-engine=INNODB
max_allowed_packet=16M
server-id = 1sql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_AUTO_CREATE_USER,NO_AUTO_VALUE_ON_ZERO,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,PIPES_AS_CONCAT,ANSI_QUOTES

5、更改mysql安装目录和配置文件的属主属组
chown -R mysql:mysql /usr/local/mysql/
chown mysql:mysql /etc/my.cnf

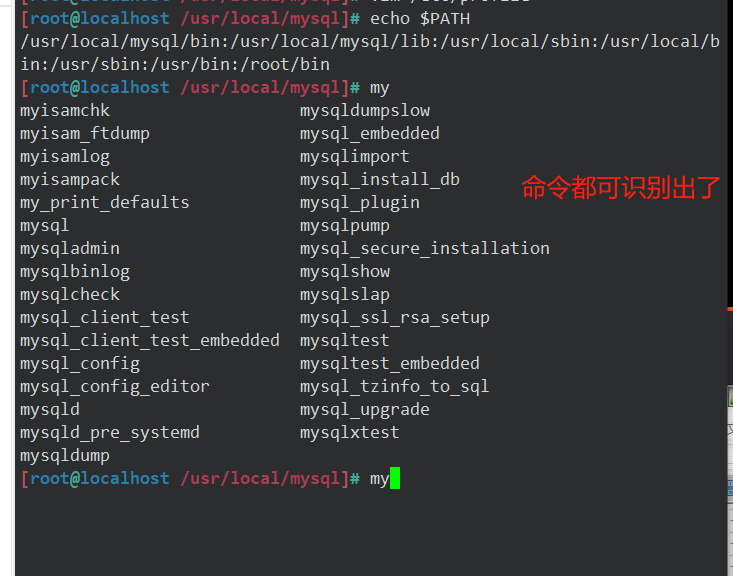

6、设置路径环境变量

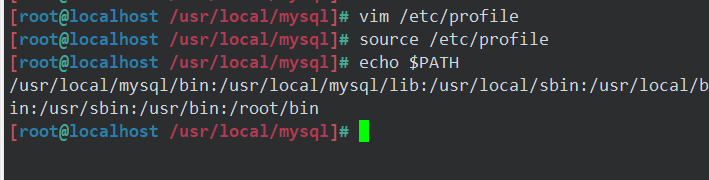

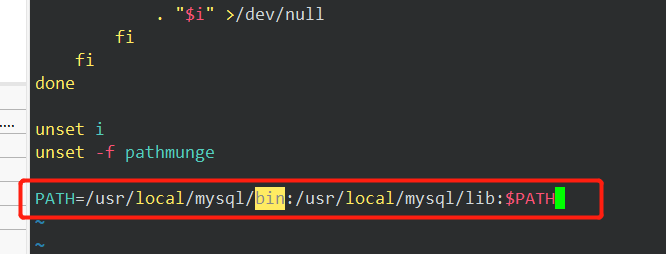

echo 'export PATH=/usr/local/mysql/bin:/usr/local/mysql/lib:$PATH' >> /etc/profile
source /etc/profile

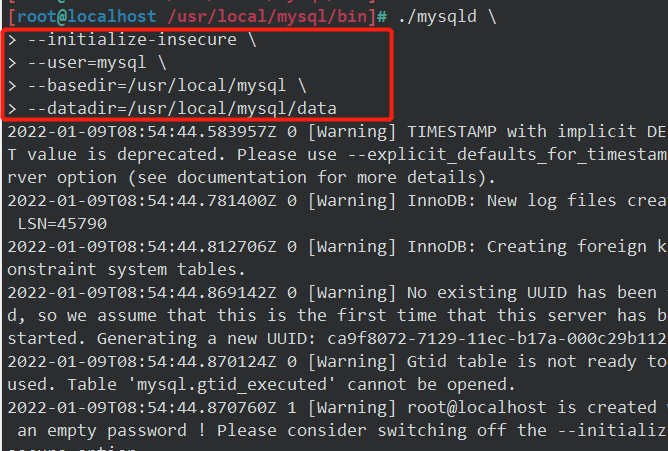

7、初始化数据库
cd /usr/local/mysql/bin/
./mysqld \
--initialize-insecure \
--user=mysql \
--basedir=/usr/local/mysql \
--datadir=/usr/local/mysql/data

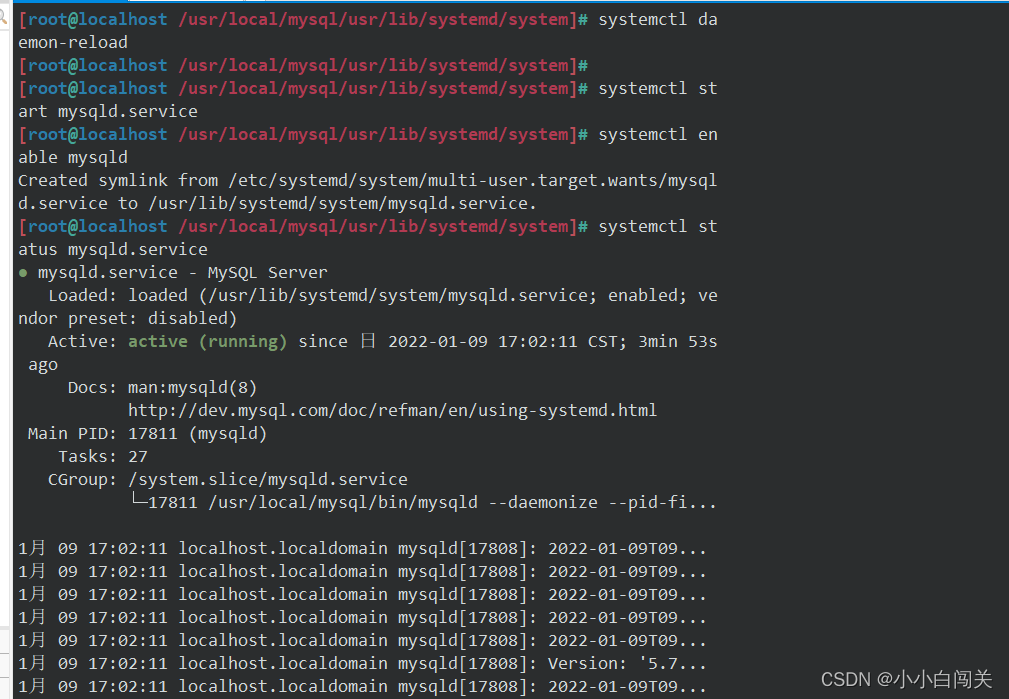

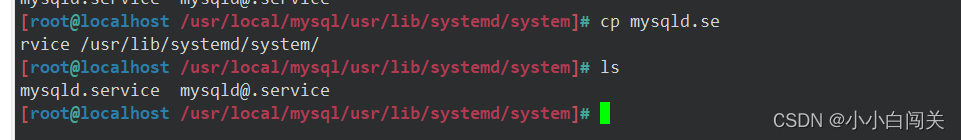

8、添加mysqld系统服务

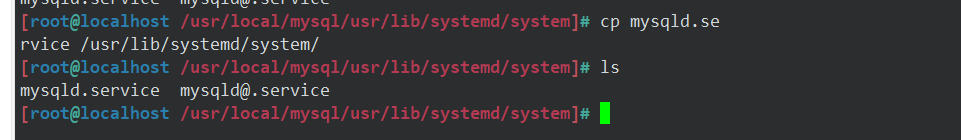

cp /usr/local/mysql/usr/lib/systemd/system/mysqld.service /usr/lib/systemd/system/
systemctl daemon-reload

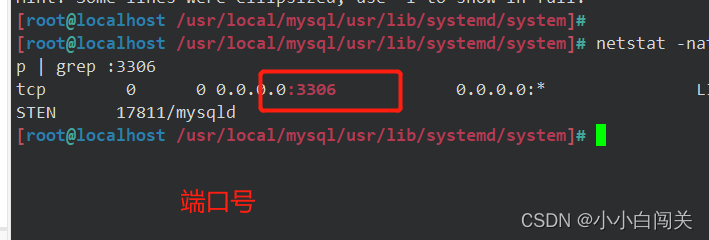

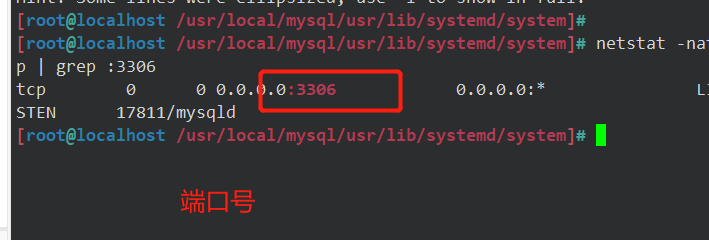

systemctl start mysqld.service
systemctl enable mysqld

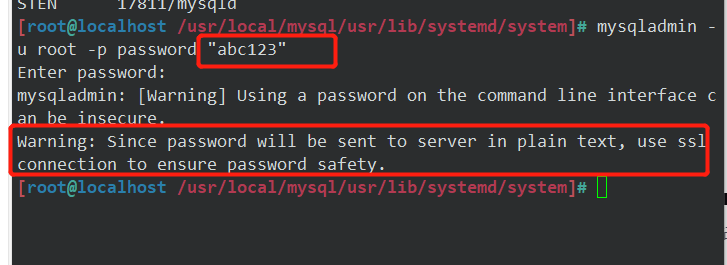

9、修改mysql 的登录密码
mysqladmin -u root -p password "abc123"

10、授权远程登录

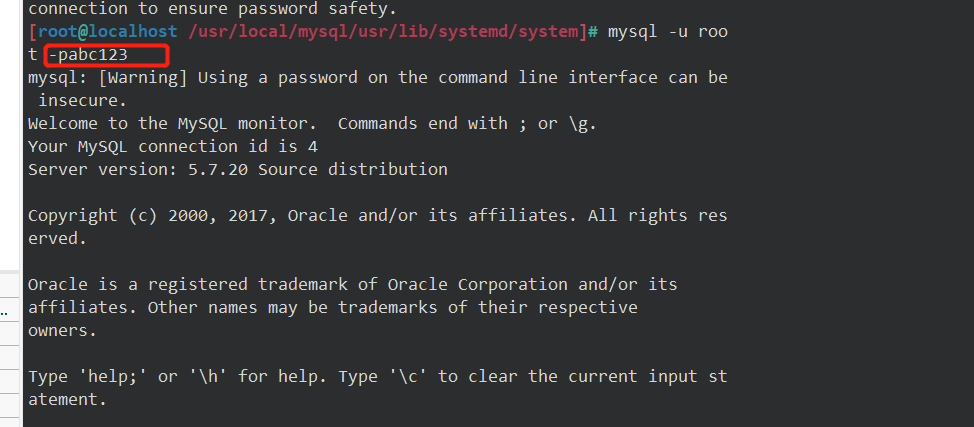

mysql -u root -p

三、安装配置PHP解析环境

1、安装环境依赖包

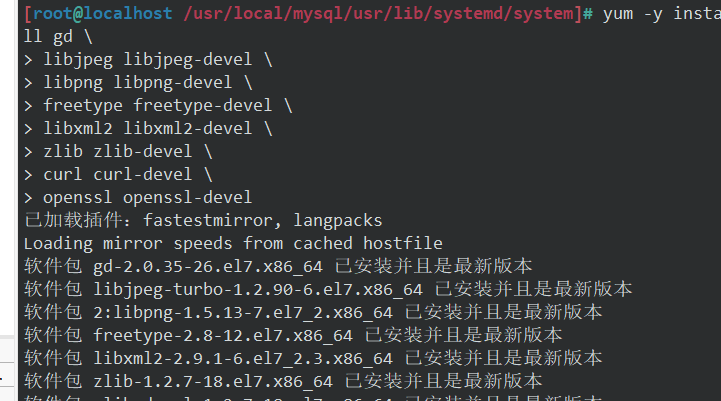

yum -y install gd \
libjpeg libjpeg-devel \
libpng libpng-devel \
freetype freetype-devel \
libxml2 libxml2-devel \
zlib zlib-devel \
curl curl-devel \
openssl openssl-devel

2、编译安装

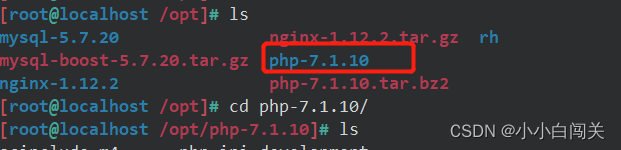

cd /opt

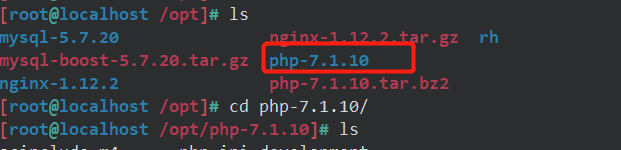

tar jxvf php-7.1.10.tar.bz2cd php-7.1.10

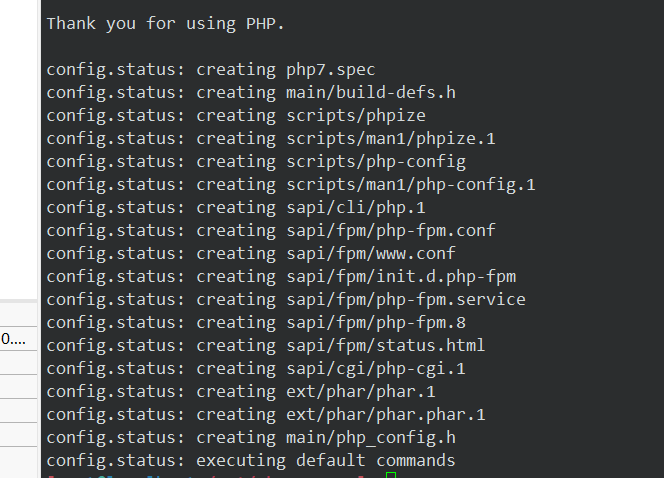

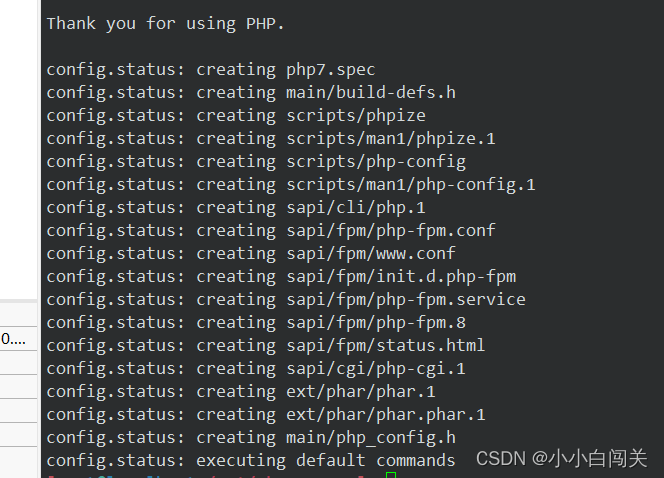

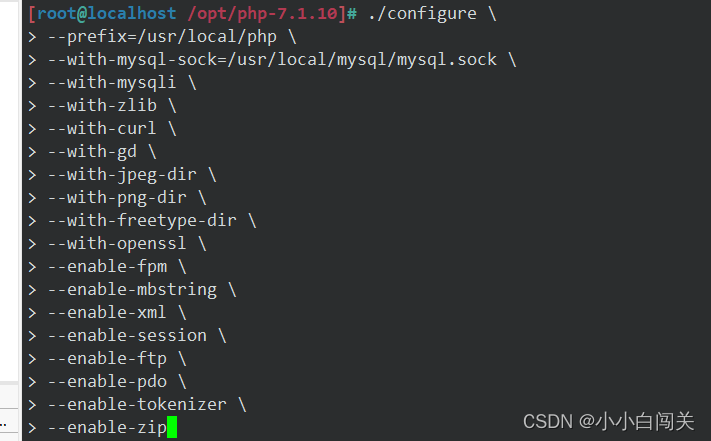

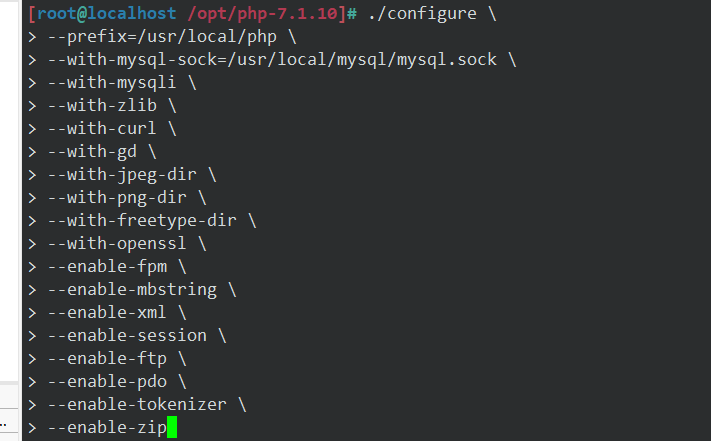

./configure \
--prefix=/usr/local/php \
--with-mysql-sock=/usr/local/mysql/mysql.sock \
--with-mysqli \
--with-zlib \
--with-curl \
--with-gd \
--with-jpeg-dir \
--with-png-dir \
--with-freetype-dir \
--with-openssl \
--enable-fpm \
--enable-mbstring \
--enable-xml \
--enable-session \
--enable-ftp \
--enable-pdo \
--enable-tokenizer \
--enable-zipmake && make install

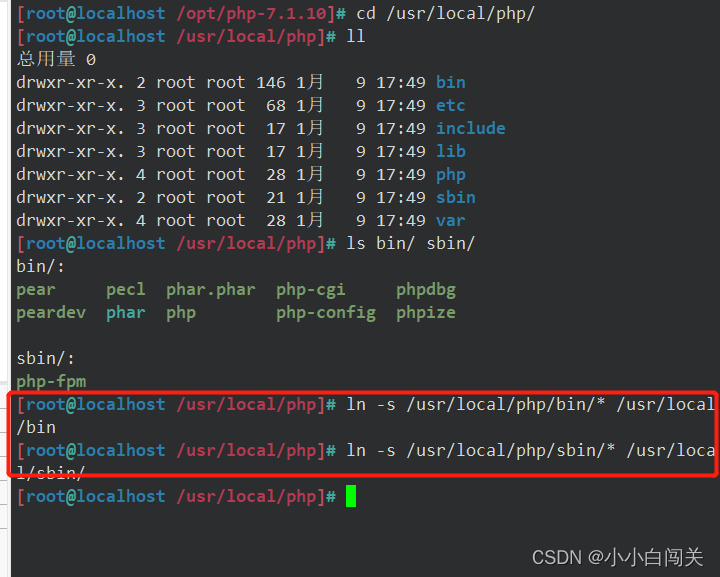

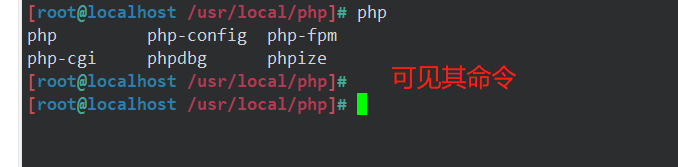

3、路径优化
ln -s /usr/local/php/bin/* /usr/local/bin/
ln -s /usr/local/php/sbin/* /usr/local/sbin/

4、调整PHP配置文件
php有三个配置文件：
php.ini			主配置文件
php-fpm.conf	进程服务配置文件
www.conf		扩展配置文件#调整主配置文件：

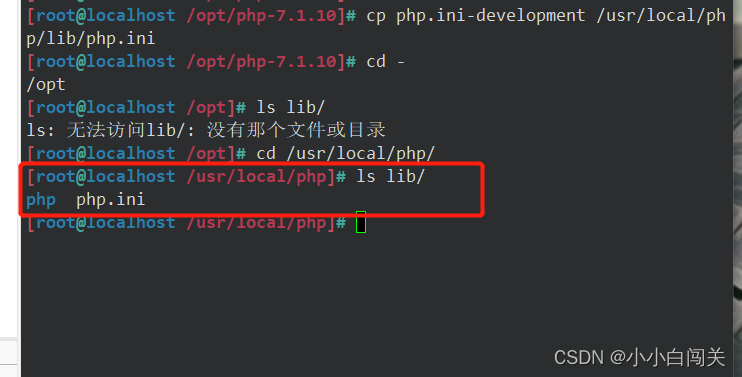

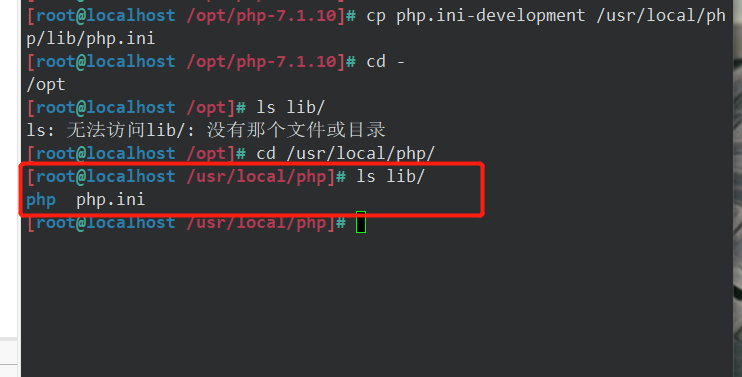

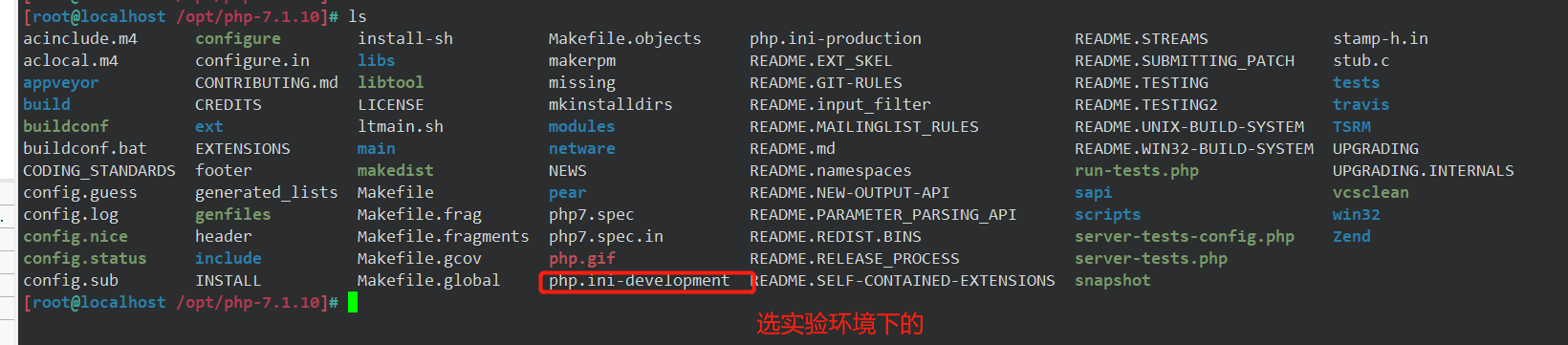

cp /opt/php-7.1.10/php.ini-development /usr/local/php/lib/php.ini
vim /usr/local/php/lib/php.ini
--1170行--修改
mysqli.default_socket = /usr/local/mysql/mysql.sock

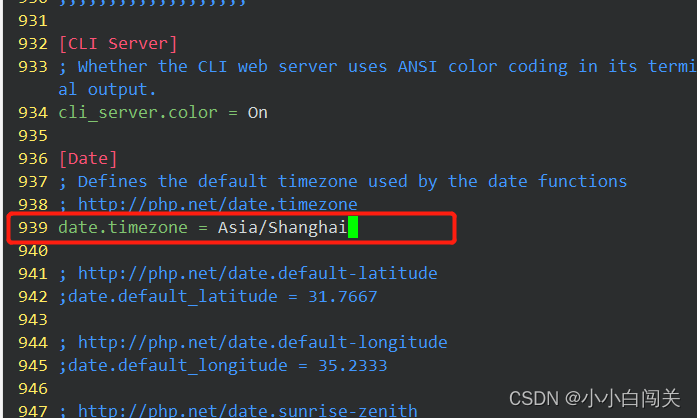

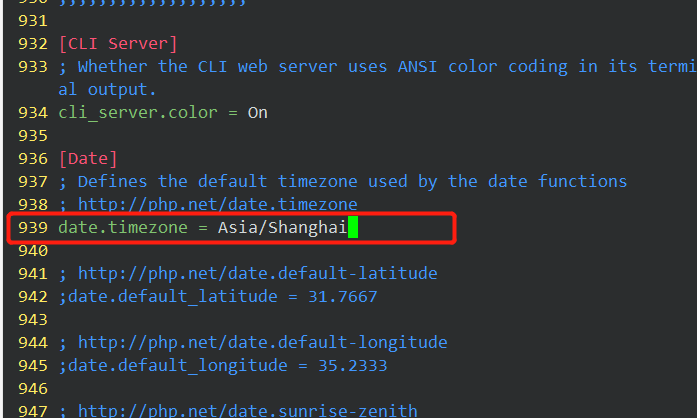

--939行--取消注释，修改

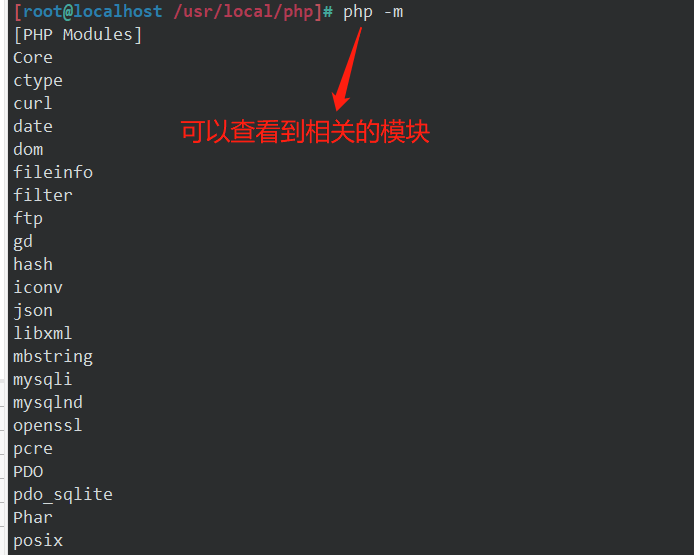

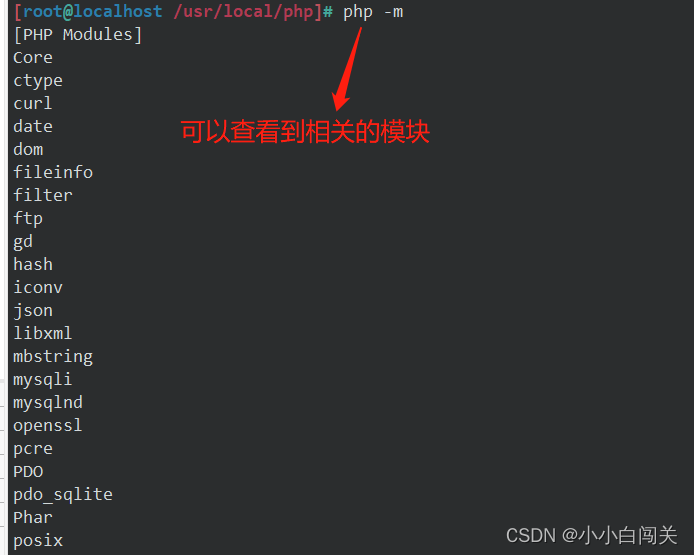

date.timezone = Asia/Shanghaiphp -m 					#验证安装的模块#调整进程服务配置文件：

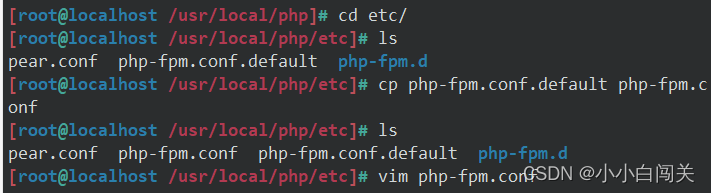

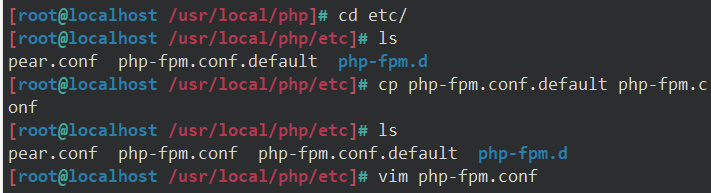

cd /usr/local/php/etc/
cp  php-fpm.conf.default php-fpm.conf
vim php-fpm.conf

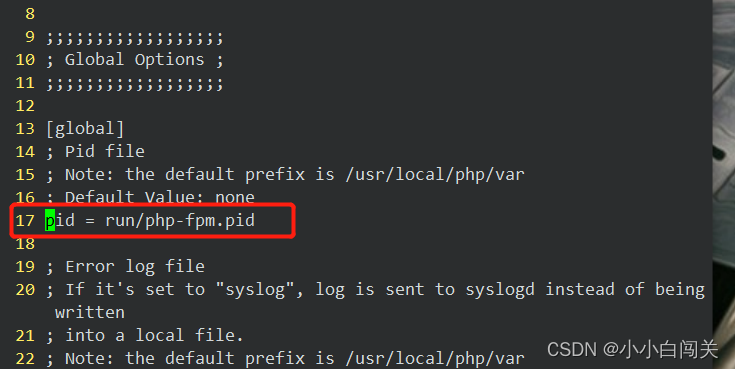

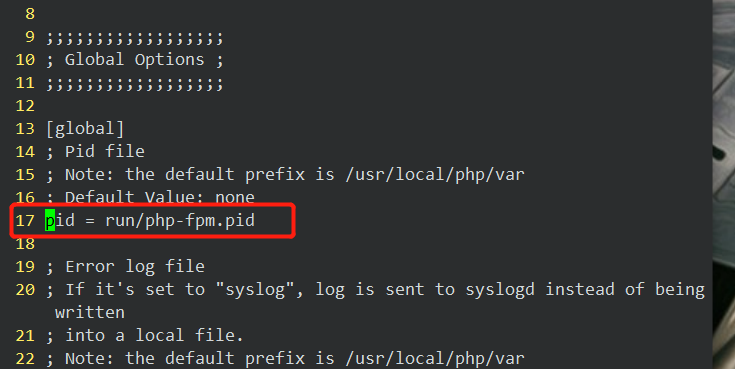

--17行--去掉";"注释
pid = run/php-fpm.pid#调整扩展配置文件：

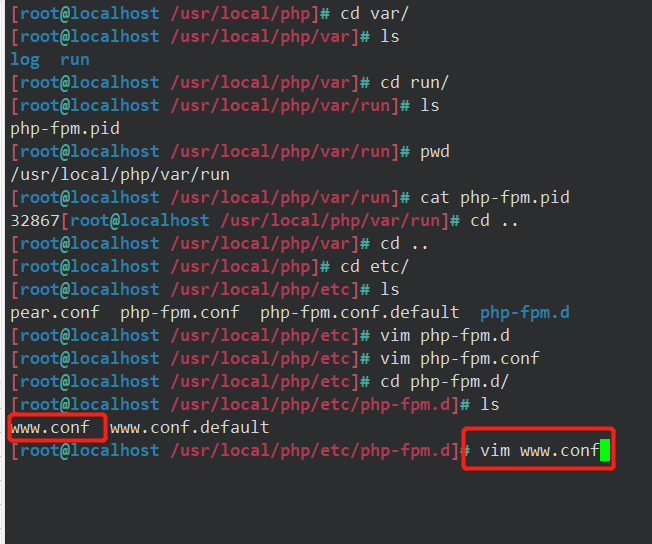

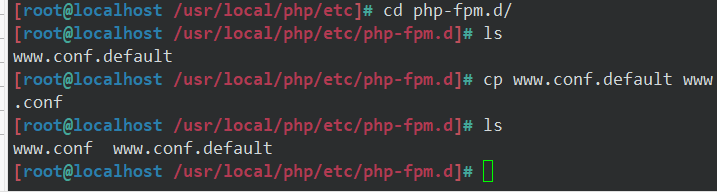

cd /usr/local/php/etc/php-fpm.d/
cp www.conf.default www.conf

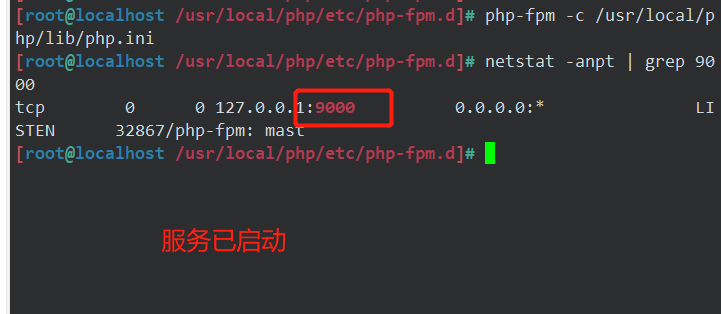

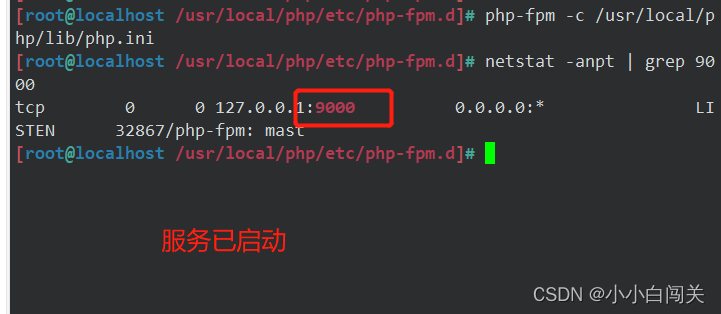

5、启动php-fpm
/usr/local/php/sbin/php-fpm -c /usr/local/php/lib/php.ini

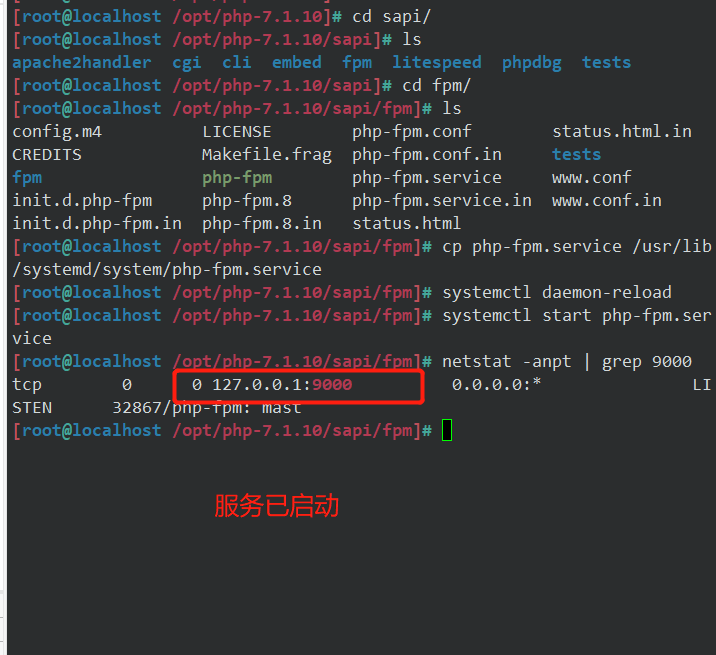

netstat -anpt | grep 9000#PHP-FPM(FastCGI Process Manager：FastCGI 进程管理器)是一个 PHPFastCGI 管理器， 由于Nginx服务器不能处理动态页面，需要由 Nginx 把动态请求交给 php-fpm 进程进行解析。cd /opt/php-7.1.10/sapi/fpm

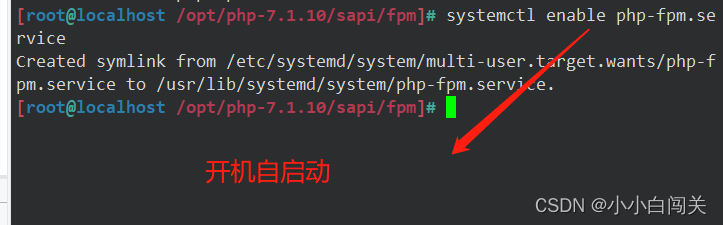

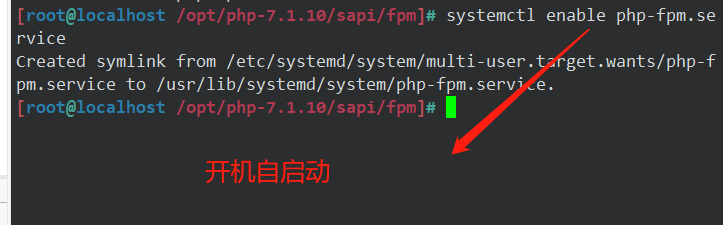

cp php-fpm.service /usr/lib/systemd/system/php-fpm.service
systemctl restart php-fpm.service

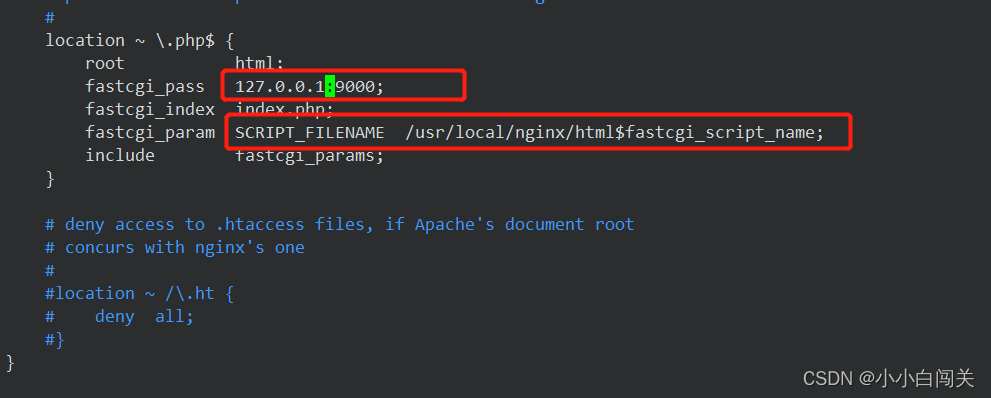

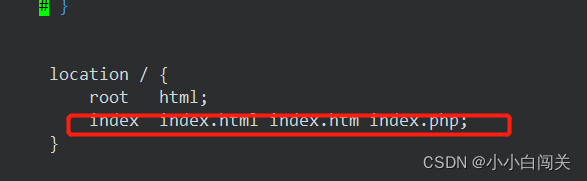

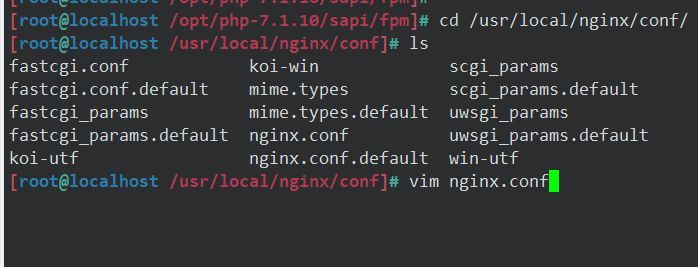

6、配置 Nginx 支持 PHP 解析

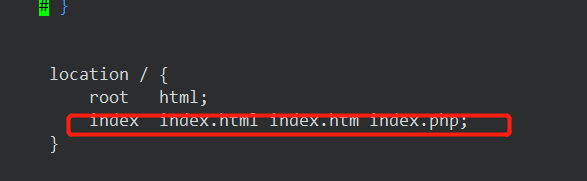

vim /usr/local/nginx/conf/nginx.conf
--65行--取消注释，修改

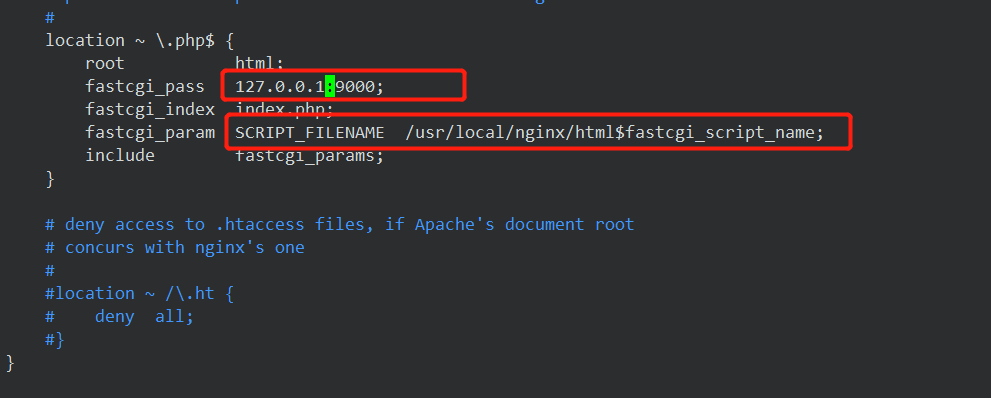

location ~ \.php$ {root           html;fastcgi_pass   127.0.0.1:9000;fastcgi_index  index.php;fastcgi_param  SCRIPT_FILENAME  /usr/local/nginx/html$fastcgi_script_name;	#将 /scripts 修改为nginx的工作目录#fastcgi_param  SCRIPT_FILENAME $document_root$fastcgi_script_name;  #$document_root 代表当前请求在root指令中指定的值include        fastcgi_params;
}systemctl restart nginx.service

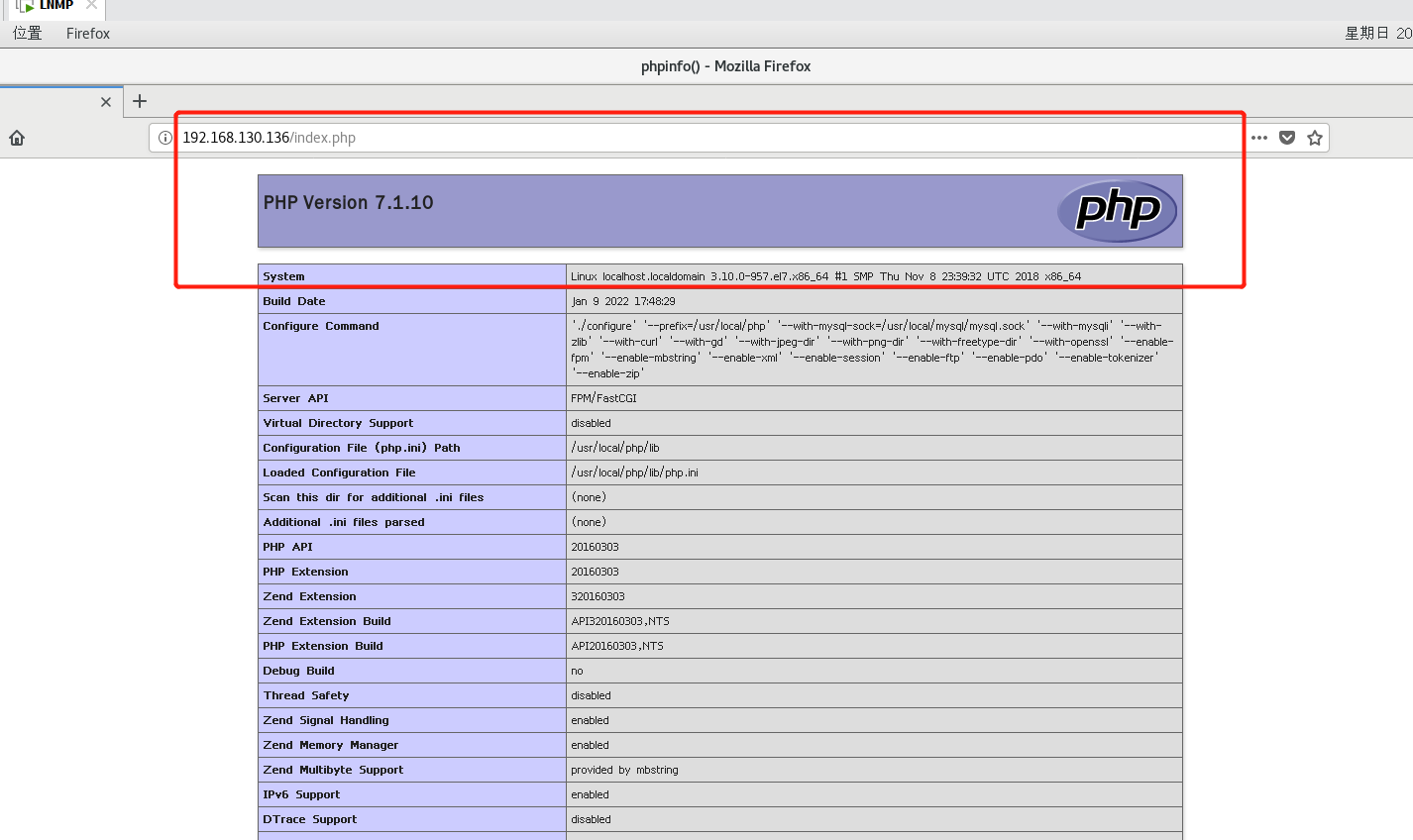

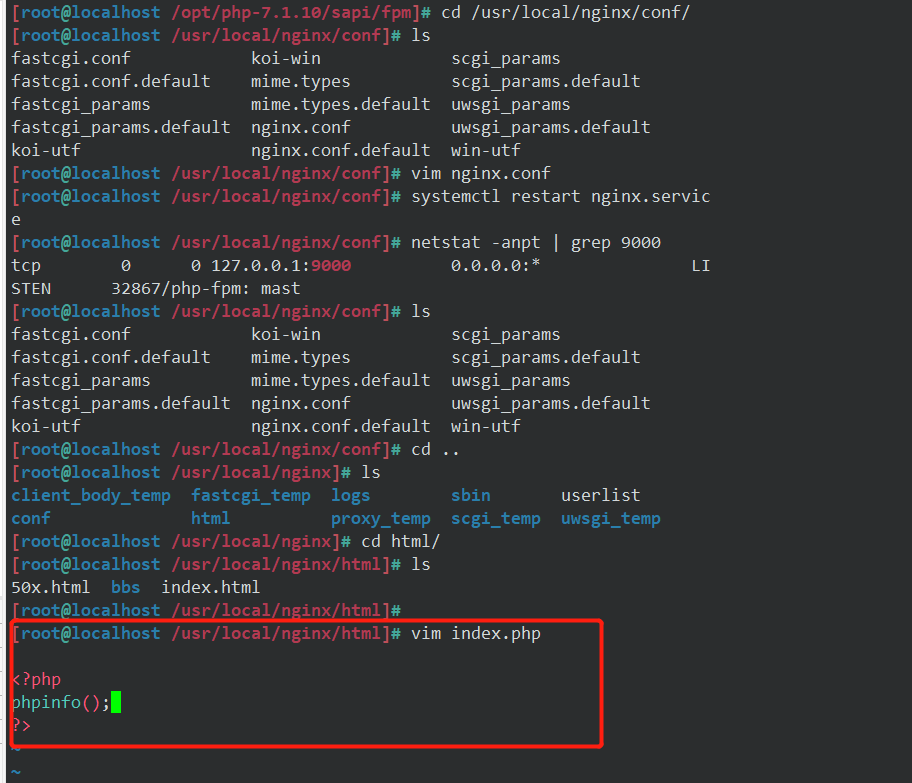

7、验证PHP 测试页
vim /usr/local/nginx/html/index.php
浏览器访问
http://192.168.80.10/index.php

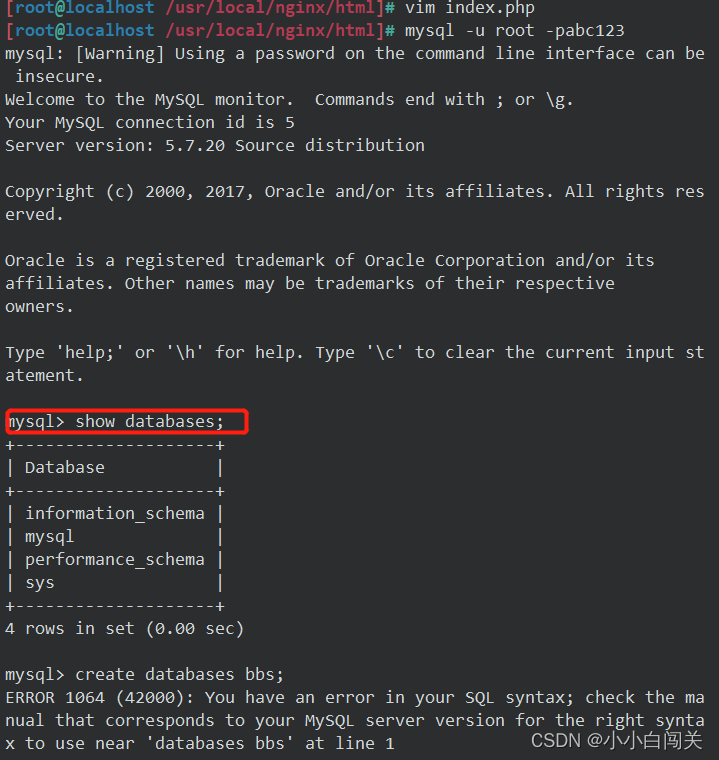

8、验证数据库工作是否正常

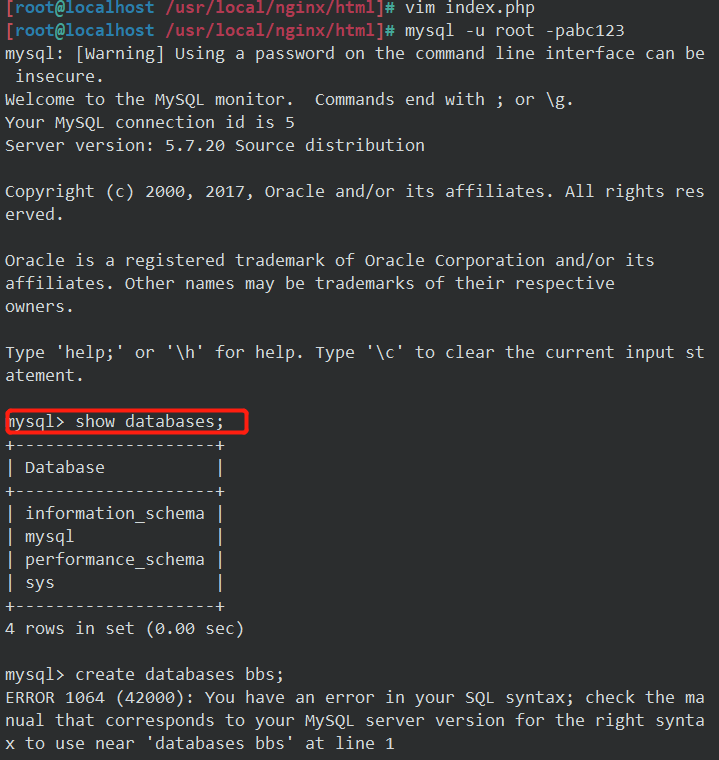

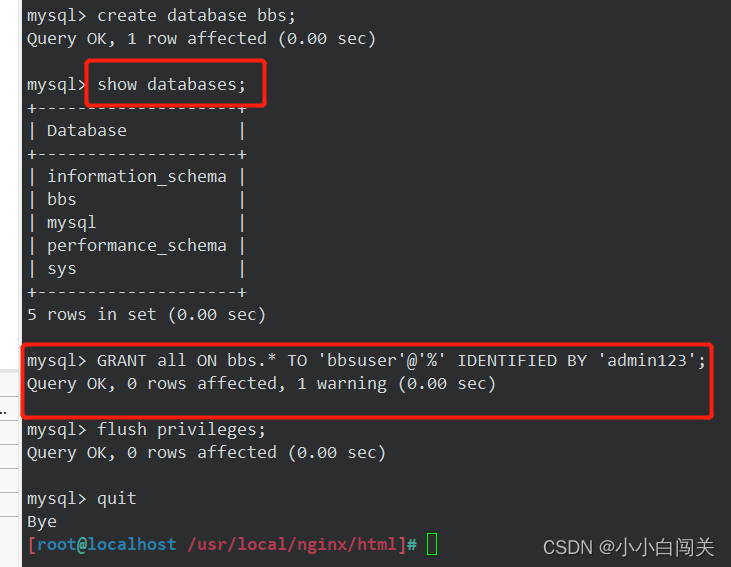

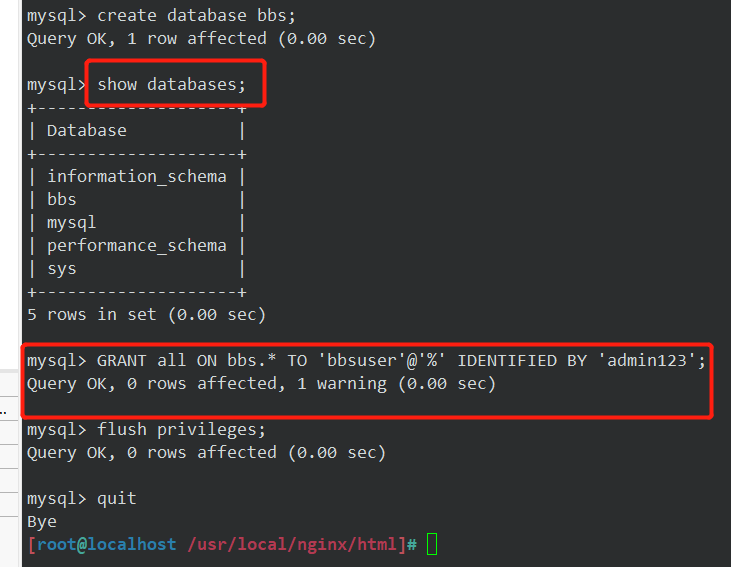

mysql -u root -p
CREATE DATABASE bbs;
GRANT all ON bbs.* TO 'bbsuser'@'%' IDENTIFIED BY 'admin123';
GRANT all ON bbs.* TO 'bbsuser'@'localhost' IDENTIFIED BY 'admin123';

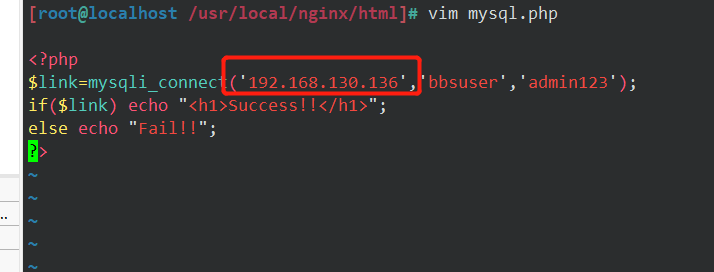

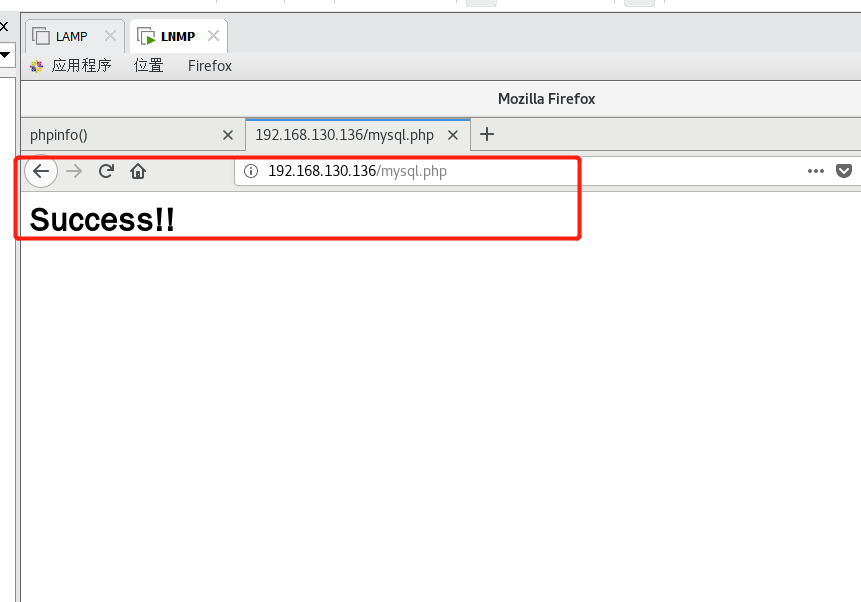

flush privileges;vim /usr/local/nginx/html/index.php      		#替换原来的测试页内容
Success!!";
else echo "Fail!!";
?>浏览器访问
http://192.168.80.10/index.php

四、部署 Discuz！社区论坛 Web 应用

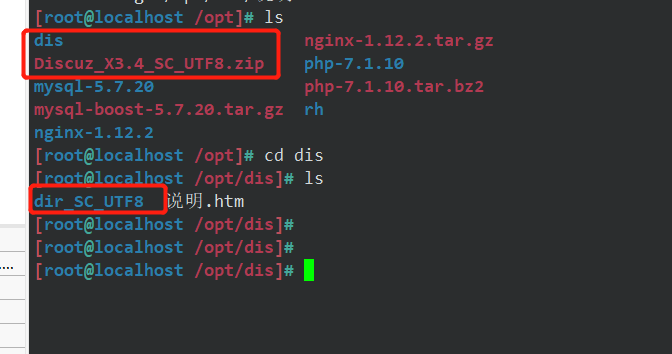

cd /opt
unzip Discuz_X3.4_SC_UTF8.zip  -d /opt/dis

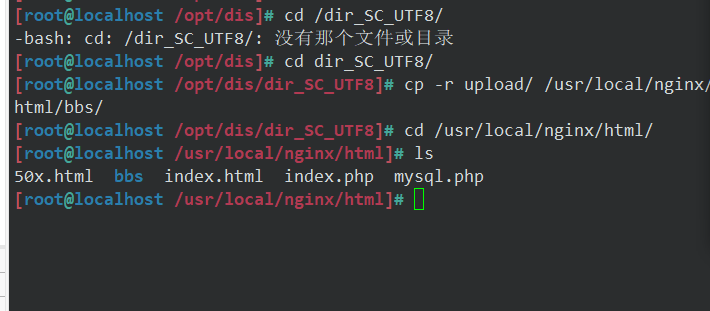

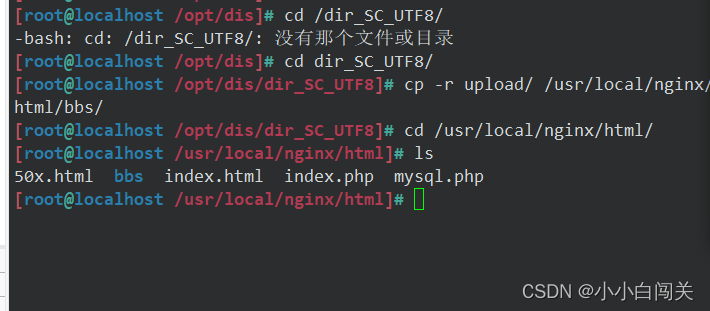

cd /opt/dis/dir_SC_UTF8/

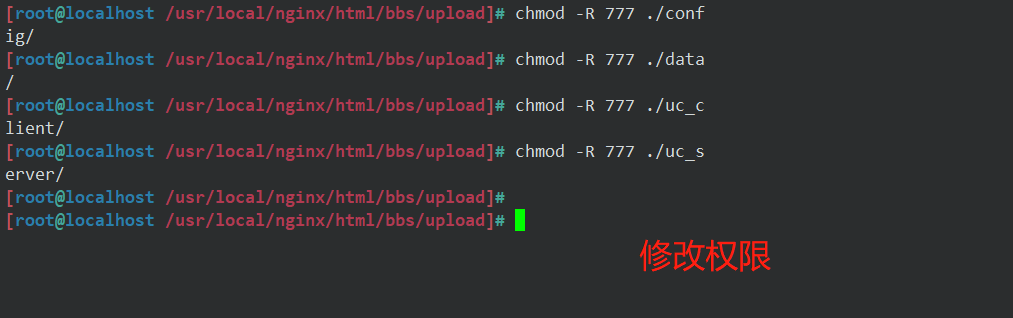

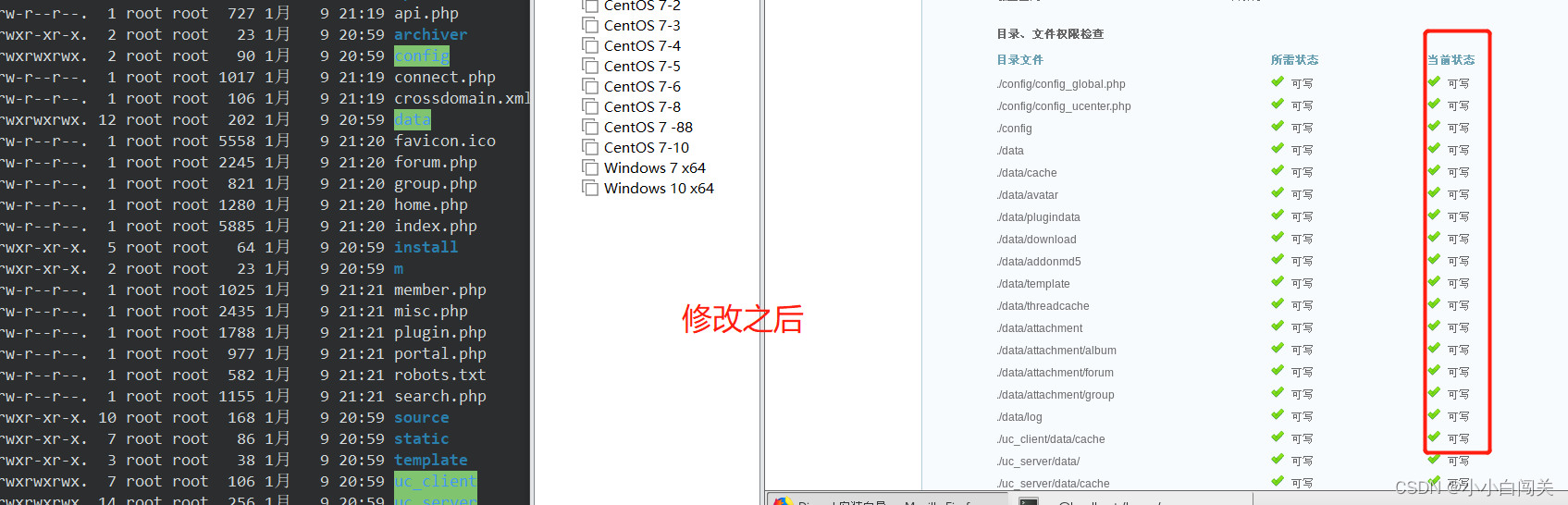

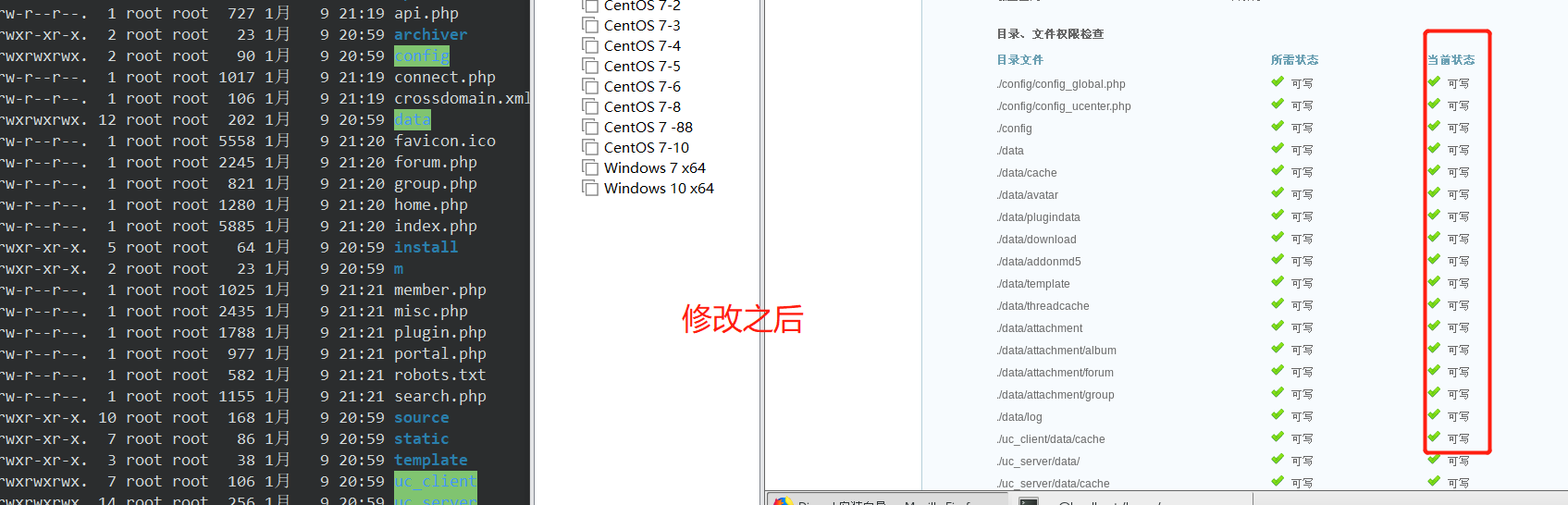

cp -r upload/ /usr/local/nginx/html/bbs/调整论坛目录的权限：
cd /usr/local/nginx/html/bbs/
chown -R nginx ./config/
chown -R nginx ./data/
chown -R nginx ./uc_client/
chown -R nginx ./uc_server/
或

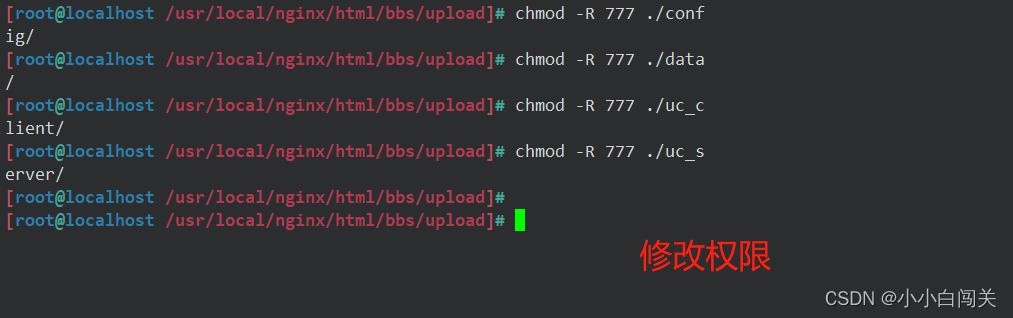

chmod -R 777 ./config/
chmod -R 777 ./data/
chmod -R 777 ./uc_client/
chmod -R 777 ./uc_server/论坛页面访问

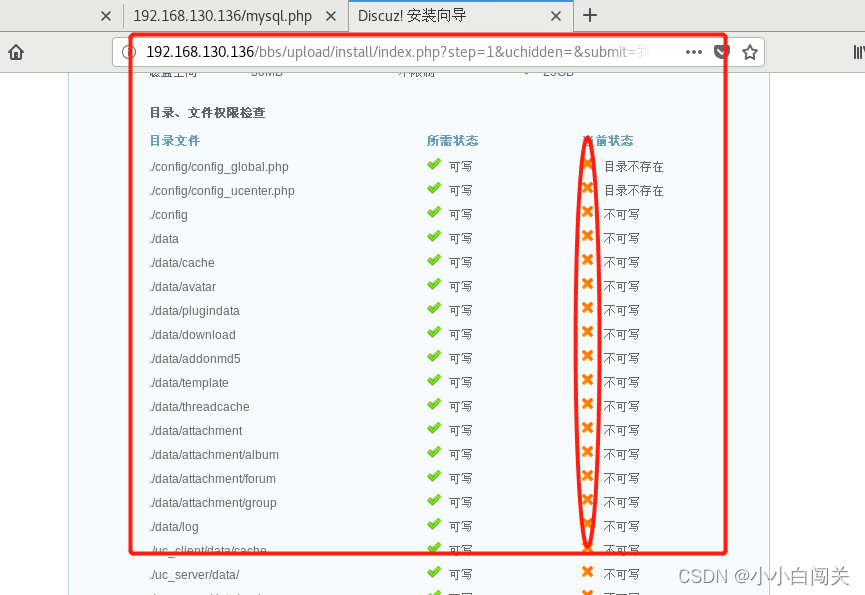

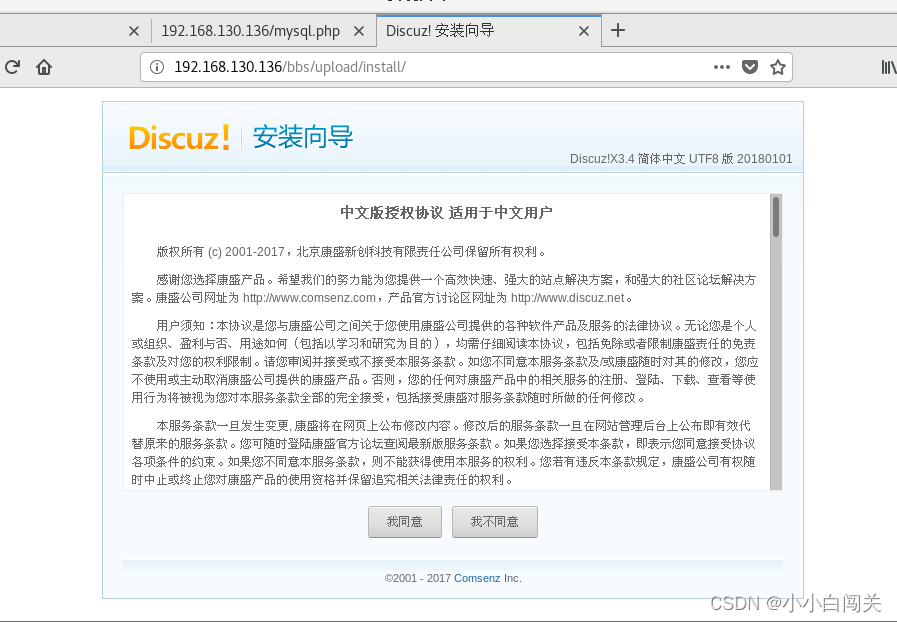

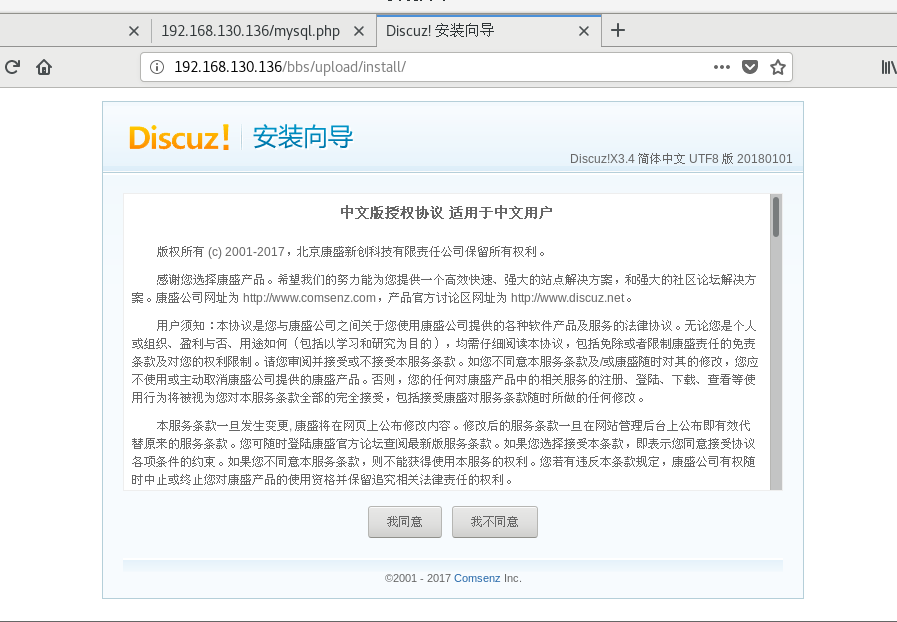

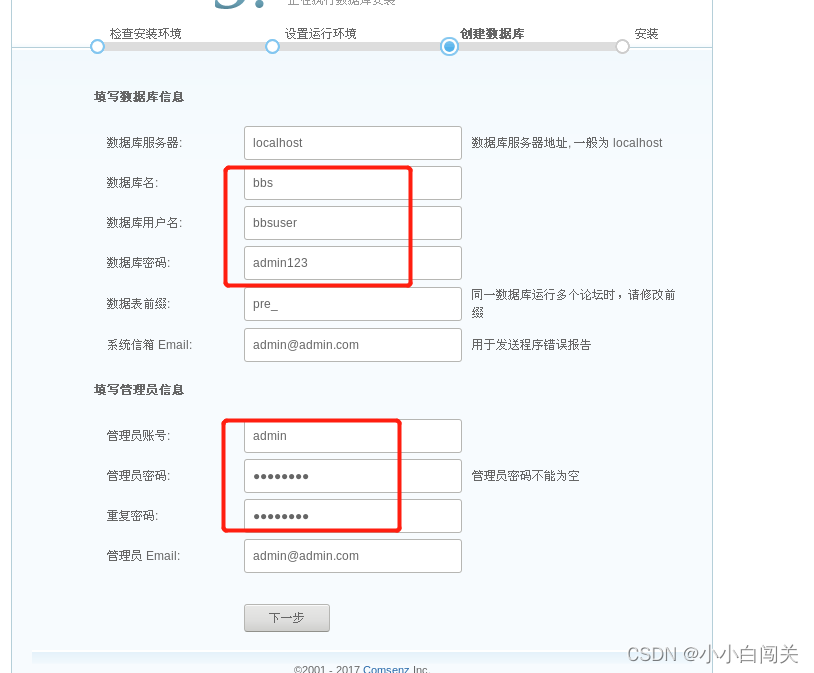

http://192.168.80.10/bbs/install/index.php

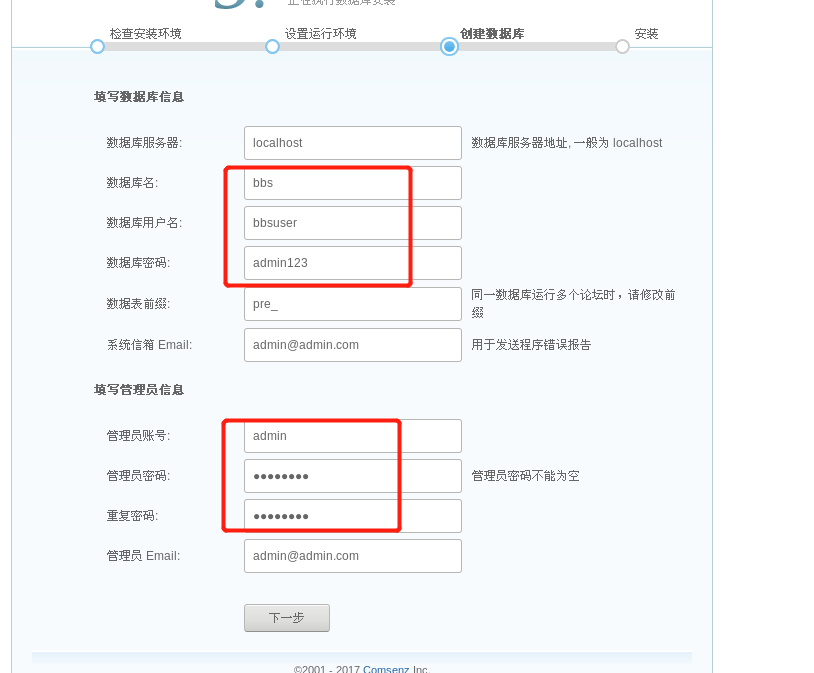

数据库服务器：localhost     ###本地架设就用localhost，如何不是在在本机上就要填写IP地址和端口号
数据库名字：bbs
数据库用户名：bbsuser
数据库密码：admin123
管理员账号:admin
管理员密码:admin123

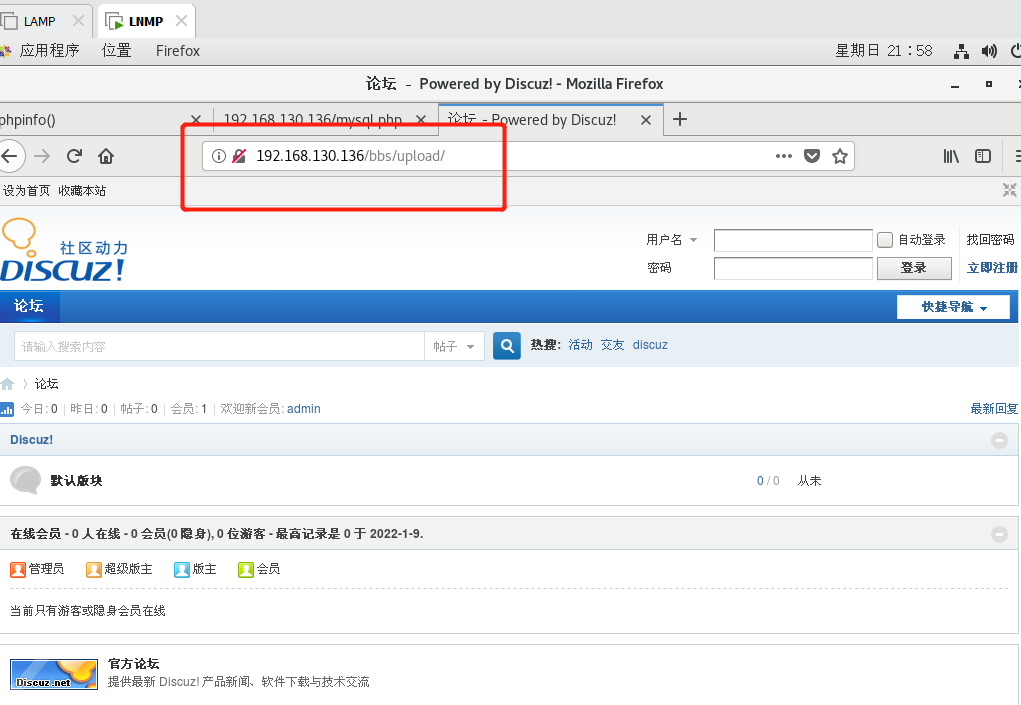

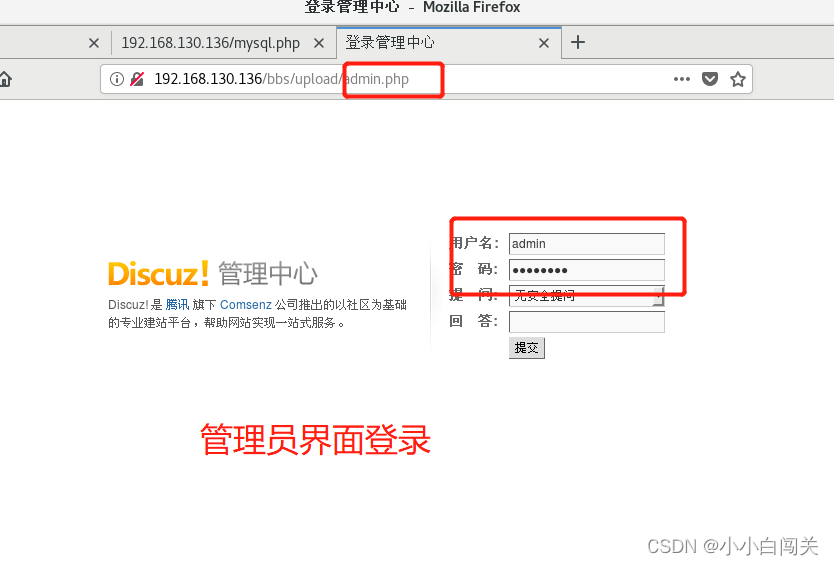

访问论坛页面：
http://192.168.80.10/bbs/index.php

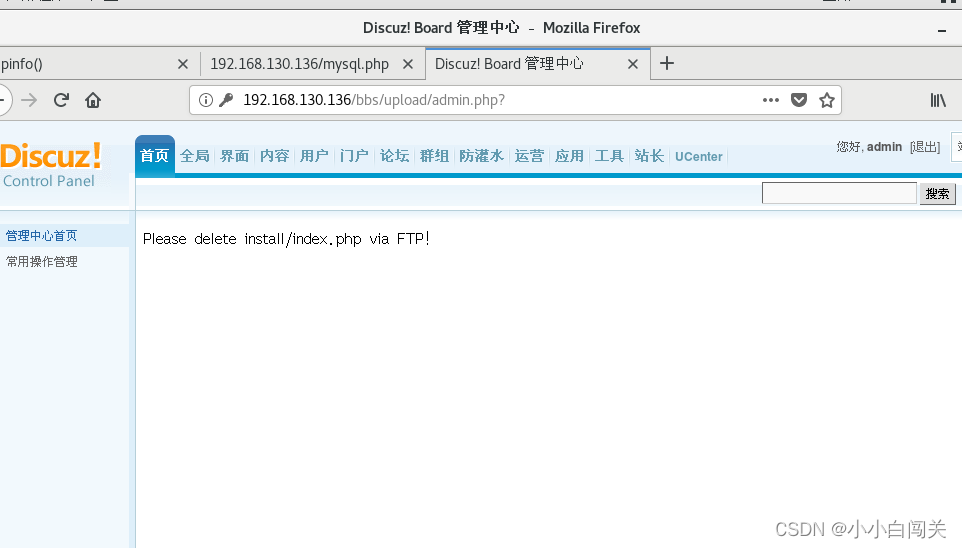

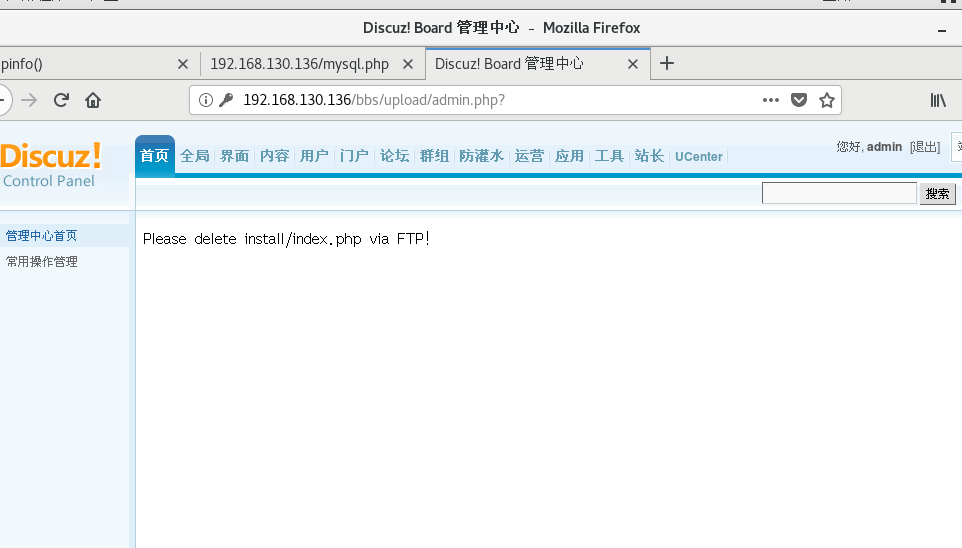

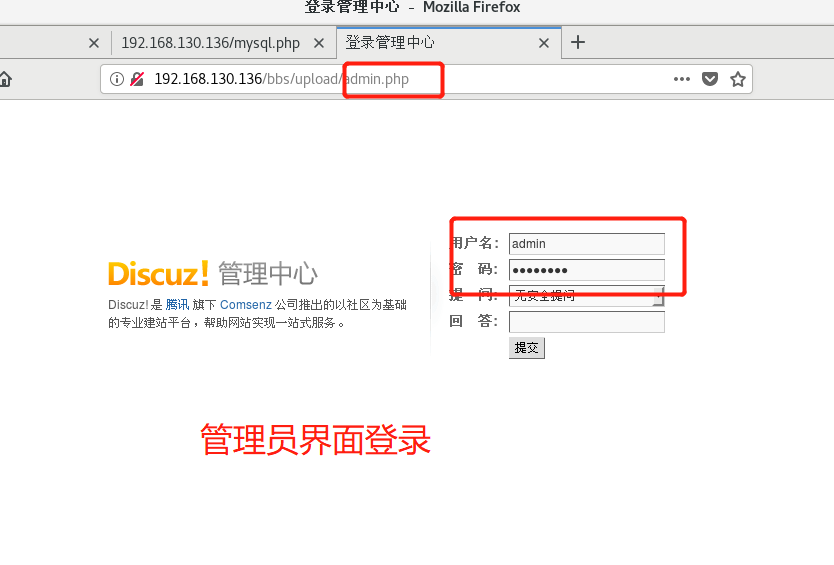

http://192.168.80.10/bbs/admin.php

五、fpm参数优化

vim /usr/local/php/etc/php-fpm.conf

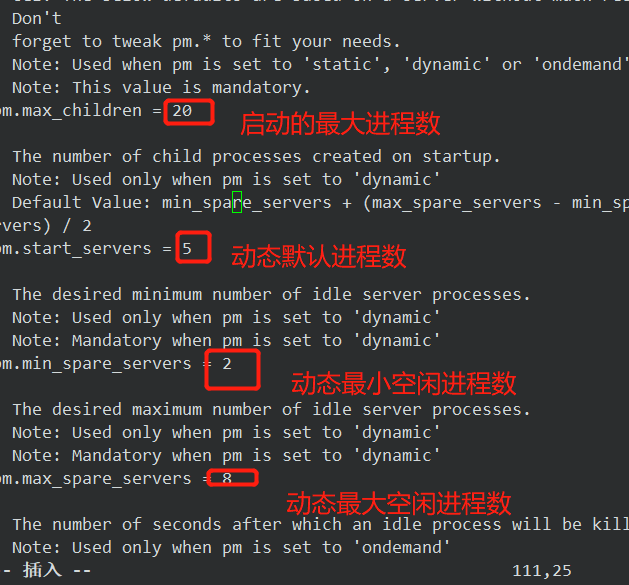

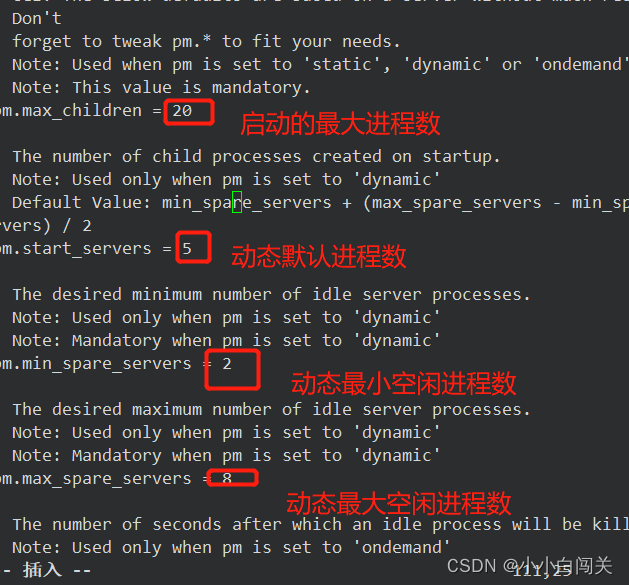

pid = run/php-fpm.pidvim /usr/local/php/etc/php-fpm.d/www.conf
--96行--
pm = dynamic				#fpm进程启动方式，动态的
--107行--
pm.max_children=20			#fpm进程启动的最大进程数
--112行--
pm.start_servers = 5		#动态方式下启动时默认开启的进程数，在最小和最大之间
--117行--
pm.min_spare_servers = 2	#动态方式下最小空闲进程数
--122行--

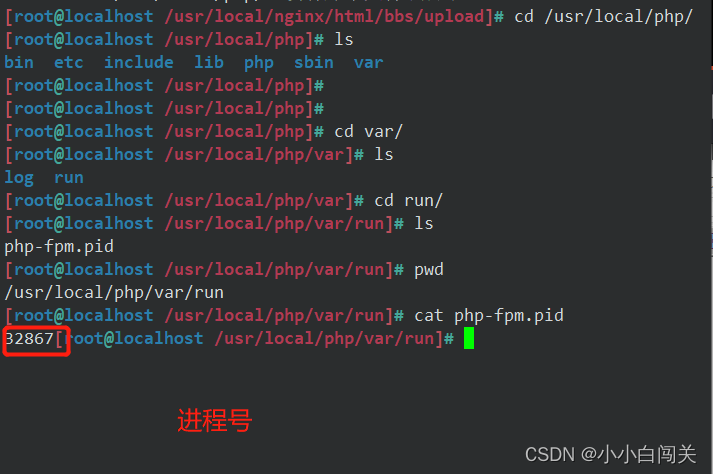

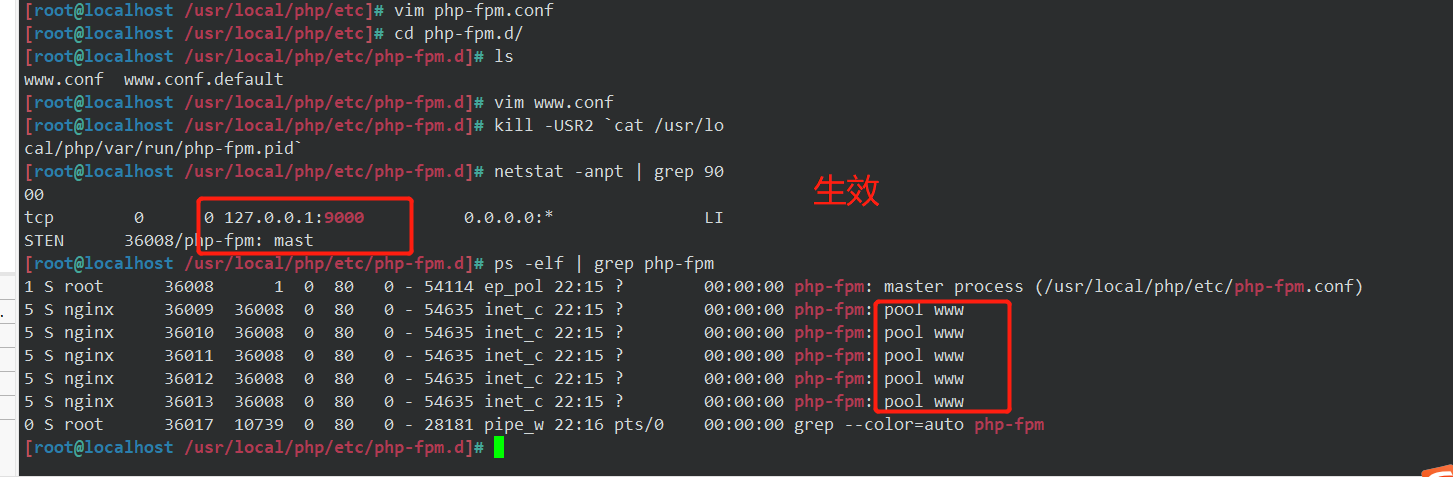

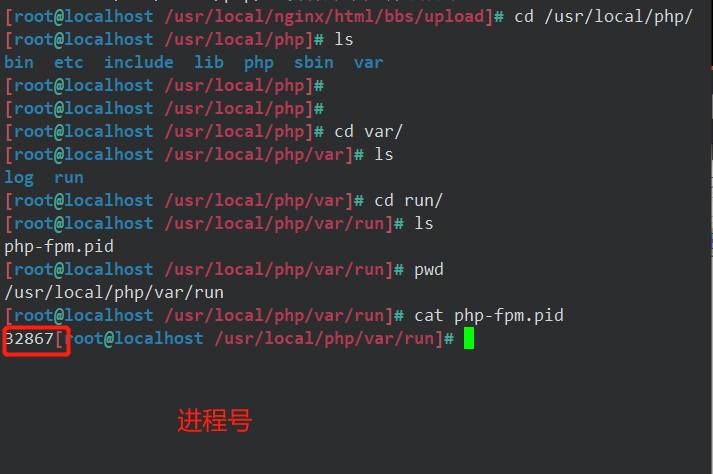

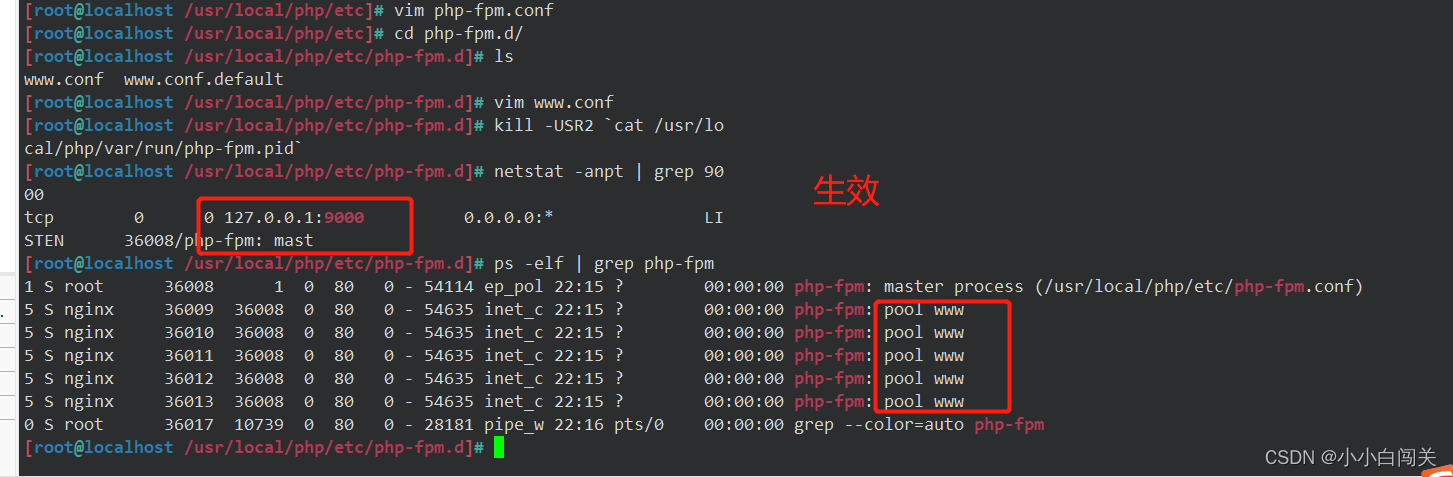

pm.max_spare_servers = 8	#动态方式下最大空闲进程数kill -USR2 `cat /usr/local/php/var/run/php-fpm.pid`			#重启php-fpm
netstat -anpt | grep 9000
ps -elf | grep php-fpm

六、yum 安装 LNMP

//安装 nginx
vim /etc/yum.repos.d/nginx.repo
[nginx-stable]
name=nginx stable repo
baseurl=http://nginx.org/packages/centos/7/$basearch/
gpgcheck=0
enabled=1yum install nginx -y
nginx -vsystemctl start nginx
systemctl enable nginx//安装 mysql 5.7 (mariadb)
yum remove mariadb*wget -i -c http://dev.mysql.com/get/mysql57-community-release-el7-10.noarch.rpm
yum -y install mysql57-community-release-el7-10.noarch.rpm
yum -y install mysql-community-serversystemctl start mysqld.service
systemctl enable mysqld.servicegrep "password" /var/log/mysqld.log			#在日志文件中找出root用户的初始密码
2021-07-31T07:55:00.366359Z 1 [Note] A temporary password is generated for root@localhost: ga7%浏览器访问：http://192.168.80.10/index.php//测试mysql是否能连接成功
vim /usr/share/nginx/html/index.php
Success!!";
else echo "Fail!!";
?>浏览器访问：http://192.168.80.10/index.php
